Dyson Supersonic HD02 User manual

HD02
04.05.201807:56 -C93987_HD02_OPMAN_EU_X583-PRO-OPMAN-93987.indd_15_4c0s

2
Thank you for buying the
Dyson Supersonic™ hair dryer
professional edition.
To read your manual in English
go to page 4.
Merci d’avoir acheté le sèche-
cheveux Dyson Supersonic™
édition professionnelle.
Pour lire votre manuel en français
rendez-vous à la page 24.
Vielen Dank, dass Sie sich für einen
Dyson Supersonic™ Haartrockner
Professional Edition entschieden
haben.
Um das Handbuch auf Deutsch
zu lesen, gehen Sie auf Seite 44.
Bedankt voor uw aankoop van de
Dyson Supersonic™ Professional
Edition haardroger.
Ga naar pagina 64 om uw
gebruikers handleiding in het
Nederlands te lezen.
Gracias por comprar el secador de
pelo Dyson Supersonic™ edición
profesional.
Para leer el manual en español,
vaya a la página 86.
04.05.201807:56 -C93987_HD02_OPMAN_EU_X583-PRO-OPMAN-93987.indd_15_4c0s

3
Grazie per aver acquistato
l’asciugacapelli Dyson
Supersonic™ Edizione
Professionale.
Per leggere il manuale in Italiano,
andare a pagina 106.
Благодарим вас
за приобретение
профессионального фена Dyson
Supersonic™.
Инструкция на русском языке
находится на странице 126.
04.05.201807:56 -C93987_HD02_OPMAN_EU_X583-PRO-OPMAN-93987.indd_15_4c0s

4
EN
IMPORTANT SAFETY
INSTRUCTIONS
BEFORE USING THIS
APPLIANCE READ ALL
INSTRUCTIONS AND
CAUTIONARY MARKINGS
IN THIS MANUAL AND ON
THE APPLIANCE.
When using an electrical
appliance, basic precautions
should always be followed,
including the following:
WARNING
THE APPLIANCE, FILTER
AND ATTACHMENTS
CONTAIN MAGNETS.
1. Keep away from pacemakers,
defibrillators, credit cards and
electronic storage media.
WARNING
THESE WARNINGS APPLY
TO THE APPLIANCE, AND
ALSO WHERE APPLICABLE,
TO ALL TOOLS,
ACCESSORIES, CHARGERS
OR MAINS ADAPTORS.
TO REDUCE THE RISK OF
FIRE, ELECTRIC SHOCK,
OR INJURY:
2. This Dyson appliance can be
used by children aged from
8 years and above and persons
with reduced physical, sensory
or reasoning capabilities, or lack
04.05.201807:56 -C93987_HD02_OPMAN_EU_X583-PRO-OPMAN-93987.indd_15_4c0s

5
of experience and knowledge,
only if they have been given
supervision or instruction by a
responsible person concerning use
of the appliance in a safe way and
understand the hazards involved.
Cleaning and user maintenance
shall not be made by children
without supervision.
3. Do not allow to be used as a toy.
Close attention is necessary when
used by or near children. Children
should be supervised to ensure that
they do not play with the appliance.
4. If the appliance is used in a
bathroom, unplug after use.
The proximity of water presents a
hazard even when the appliance is
switched off.
5. WARNING: Do not use this
appliance near bathtubs,
showers, basins or other vessels
containing water.
6. If the supply cord is damaged, it
must be replaced or repaired by
the manufacturer, its service agent
or similarly qualified persons in
order to avoid a hazard.
7. This appliance has a non- self
resetting thermal cut out safety
device to prevent overheating.
If your appliance cuts out, unplug it
from the mains supply socket and
leave to cool.
8. CAUTION: In order to avoid
a hazard due to inadvertent
resetting of the thermal cut-out,
04.05.201807:56 -C93987_HD02_OPMAN_EU_X583-PRO-OPMAN-93987.indd_15_4c0s

6
this appliance must not be
supplied through an external
switching device, such as a timer,
or connected to a circuit that is
regularly switched on and off by
the utility company, or plugged
into any socket where the electrical
supply is unstable or likely to be
turned off.
9. For additional protection, the
installation of a residual current
device (RCD) having a rated
residual operating current not
exceeding 30 mA is advisable.
10. Do not use the appliance for any
other purpose than drying hair.
11. Do not handle any part of the plug
or appliance with wet hands.
12. Do not unplug by pulling on
the cable. To unplug, grasp
the plug, not the cable.
The use of an extension cable is
not recommended.
13. Do not stretch the cord or place
the cord under strain. Keep the
cord away from heated surfaces
and do not wrap the cord around
the appliance.
14. Do not use any lubricants, cleaning
agents, polishes or air fresheners
on any part of the appliance.
15. Contact the Dyson Helpline when
a service or repair is required.
Do not disassemble the appliance
as incorrect reassembly may result
in an electric shock or fire.
16. If the appliance is not working as it
should, has received a sharp blow,
has been dropped, damaged,
04.05.201807:56 -C93987_HD02_OPMAN_EU_X583-PRO-OPMAN-93987.indd_15_4c0s

7
left outdoors, or dropped into
water, do not use and contact the
Dyson Helpline.

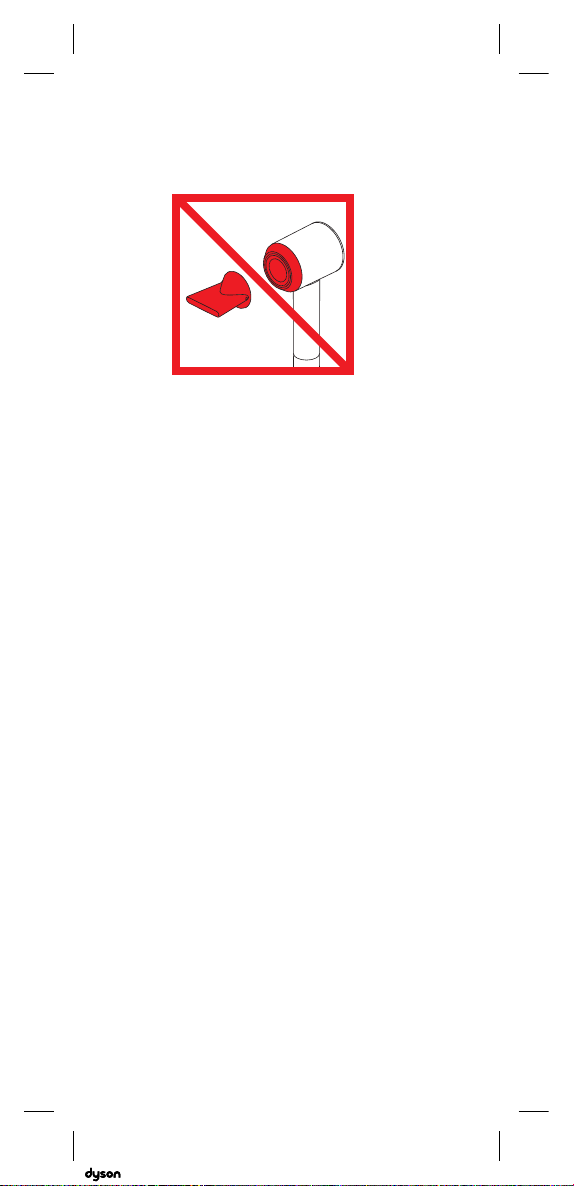

The air exit, metal ring, attachments
and area shaded in red may be hot
during use. Allow them to cool before
handling.
04.05.201807:56 -C93987_HD02_OPMAN_EU_X583-PRO-OPMAN-93987.indd_15_4c0s

8
After registering your free 2 year guarantee, your
Dyson appliance will be covered for parts and
labour for 2 years from the date of purchase,
subject to the terms of the guarantee. If you have
any questions about your Dyson appliance,
call the Dyson Helpline with your serial number
and details of where and when you bought the
appliance.
Most questions can be solved over the phone by
one of our trained Dyson Helpline staff.
Visit www.dyson.co.uk/support (UK) or
www.dyson.ie/support (ROI) for online help,
support videos, general tips and useful
information about Dyson.

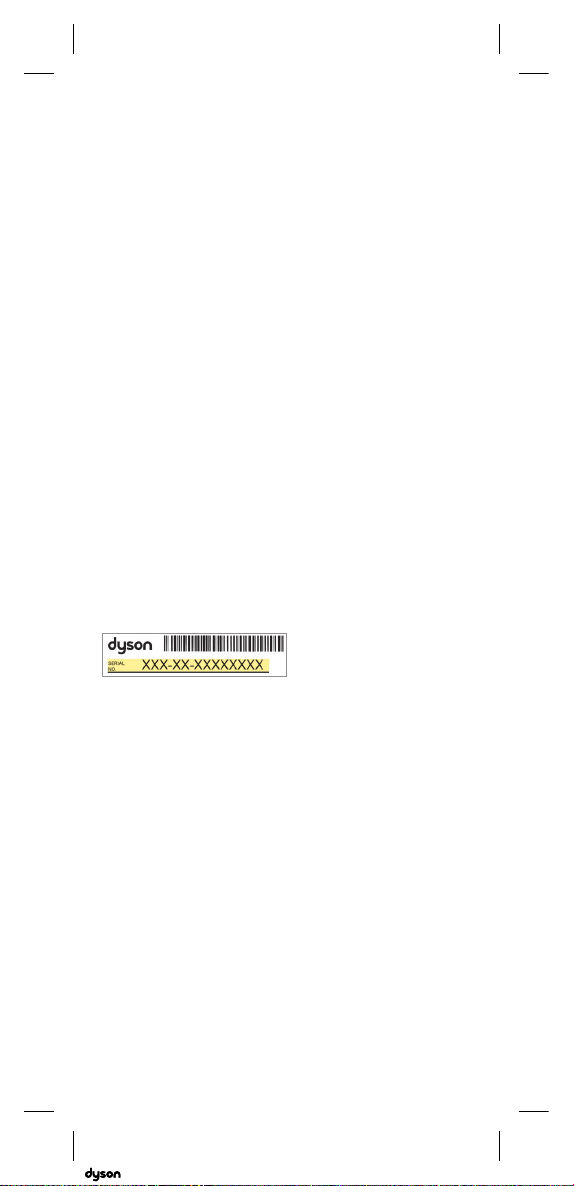

Your serial number can be found on the rating
plate located on the cable label, towards
the plug. Note your serial number for future
reference on the back page of this manual.
Thank you for buying the
Dyson Supersonic™ hair
dryer professional edition.
Hair dryers with big bulky motors have to put
them in the head – that’s why hair dryer design
hasn’t changed since the 1960s.
We’ve turned convention on its head and put
our powerful digital motor in the handle.
We also made the Dyson Supersonic™ hair dryer
intelligent, by giving it a clever microprocessor
which regulates temperature to help prevent
extreme heat damage to protect natural shine.
This illustration is for
example purposes only.
04.05.201807:56 -C93987_HD02_OPMAN_EU_X583-PRO-OPMAN-93987.indd_15_4c0s

9
In the box
Dyson Supersonic™
hair dryer
Professional
concentrator
Diffuser
Storage hanger
Smoothing nozzle
Filter cleaning brush
Filter cage
Non-slip mat
04.05.201807:56 -C93987_HD02_OPMAN_EU_X583-PRO-OPMAN-93987.indd_15_4c0s

10
Functions
Air inlet
Magnetic filter cage
Easy to remove
for cleaning (see
the "Regular filter
maintenance"
section for details).
Negative ions
Helps reduce static.
Temperature control
4 precise heat
settings. Including
a cold setting to fix
your style.
Power on/off
Sliding switch.
Cold shot
Press and hold to
deactivate heat
and set style.
Airflow control
3 precise settings.
LEDs
04.05.201807:56 -C93987_HD02_OPMAN_EU_X583-PRO-OPMAN-93987.indd_15_4c0s

11
LEDs
Diagnostics
The LEDs will flash indefinitely to communicate
one of the following warnings:
Settings
When solid, the LED lights indicate
which settings you’re using.
Flow
High
Temperature
Low/scalp mode
Medium
Constant cold/
cold shot
No red
LED
Fast
Medium
Gentle
If all three red lights
remain illuminated
contact the Dyson
Helpline.
Clean the filter. See
the "Regular filter
maintenance" section
for details.
Maximum thermistor temperature
at safety shut down: 145°C.
Maximum operating temperature in
normal working conditions: 105°C.
DO NOT TURN
BACK ON
04.05.201807:56 -C93987_HD02_OPMAN_EU_X583-PRO-OPMAN-93987.indd_15_4c0s

12

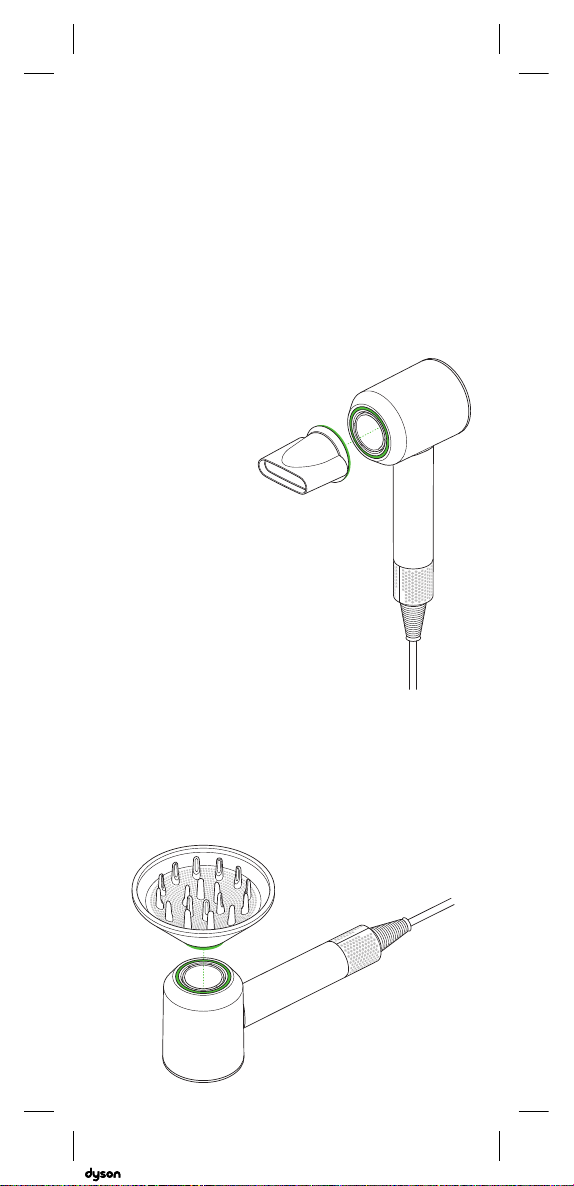

Magic magnetic holding
Magnetic accessories
can be quickly and easily
attached to the front of the
appliance. They can be
rotated 360° so you can
position them precisely
where you need them.
Attachments
Storage hanger
and non-slip mat
If you store your appliance
on a hook, attach the storage
hanger to the ribbed section at
the base of the handle.
Professional concentrator
Fast, precise airflow that spans
the length of your brush.
04.05.201807:56 -C93987_HD02_OPMAN_EU_X583-PRO-OPMAN-93987.indd_15_4c0s

13
Diffuser
Evenly disperses airflow
to dry curls gently
and help reduce frizz.
Recommended for use on
the low temperature and
flow settings.
Heat Shield technology
Keeps the surface of the
attachments cool for easy
adjustment and close-up styling.
Smoothing nozzle
Dries hair gently using smooth air.
04.05.201807:56 -C93987_HD02_OPMAN_EU_X583-PRO-OPMAN-93987.indd_15_4c0s

14
Once a week
Regular filter
maintenance
The filters must be cleaned
every week.
Ensure that you unplug your appliance from the
mains electricity supply and allow to cool down
before cleaning your filter.
The Dyson Supersonic™ hair dryer Professional
edition has highly tuned technology to give
outstanding performance. This technology
needs to be kept free from dust and hair product
residue and maintenance is required to maintain
performance.
A spare filter cage is included to ensure you can
continue to use your appliance.
Filter cleaning brush
Filter mesh Filter cage
04.05.201807:56 -C93987_HD02_OPMAN_EU_X583-PRO-OPMAN-93987.indd_15_4c0s

15
1 2
clik
clik
clik
clik

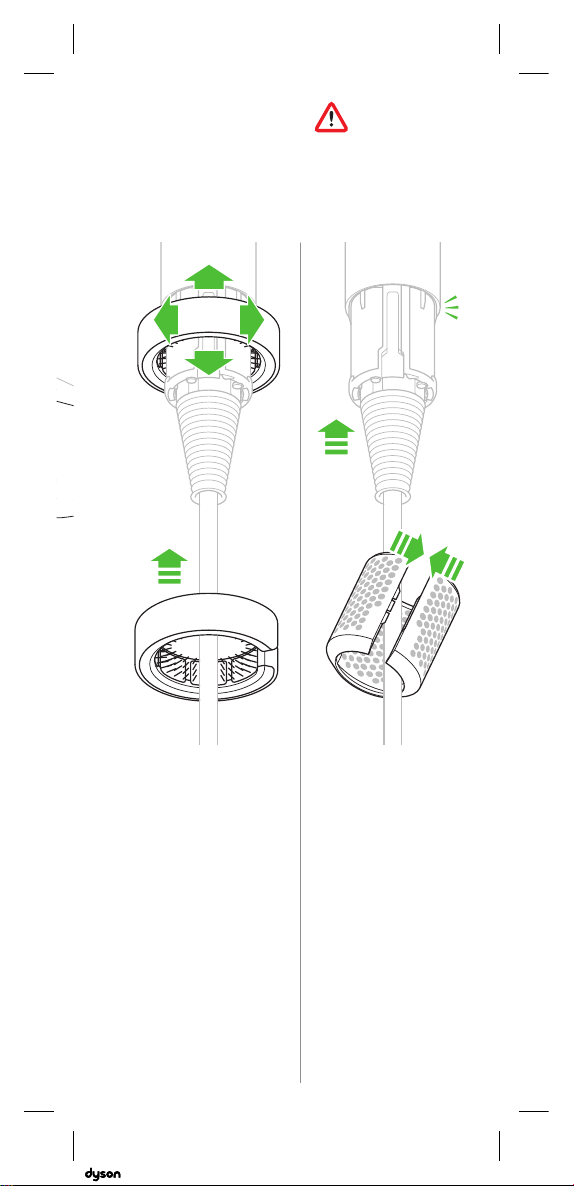

Slide the filter cleaning
brush over the cable
and onto the filter
cage. Using a rotating
action clean the filter
cage thoroughly.
Remove the filter
cleaning brush.

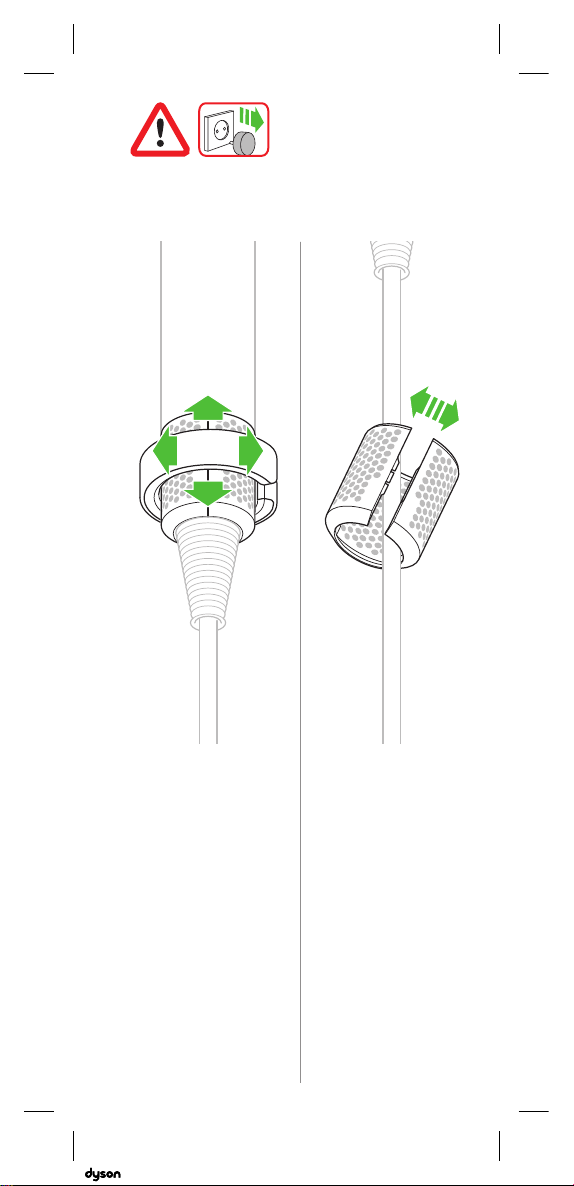

Hold the handle of
your appliance and
pull the filter cage
downwards, onto
the cable.
Gently pull open the
filter cage and slide it
off the cable.
04.05.201807:56 -C93987_HD02_OPMAN_EU_X583-PRO-OPMAN-93987.indd_15_4c0s

16
3 4
clik
clik
clik
clik

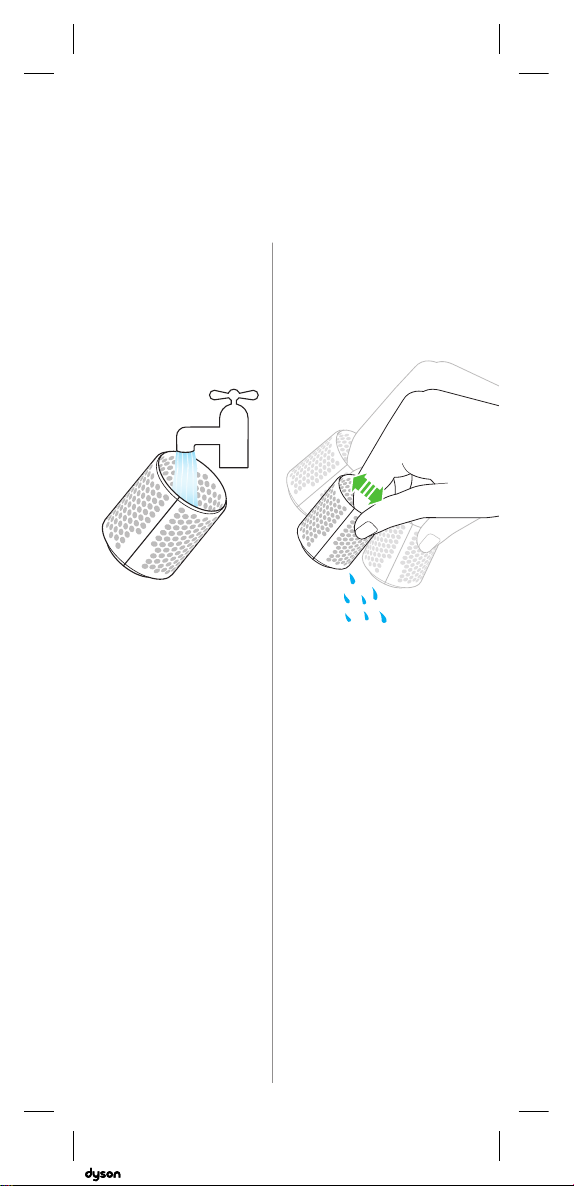

Wash the filter cage
under a warm,
running tap.
Shake the filter cage to
remove the majority of
the excess water.
04.05.201807:56 -C93987_HD02_OPMAN_EU_X583-PRO-OPMAN-93987.indd_15_4c0s

17
5 6
clik
clik
clik
clik
clik
clik
Do not use your
machine without the
filter cage attached.
Using a rotating
and up and down
action, clean the filter
mesh with the filter
cleaning brush until
all the debris has
been removed.
Do not use water or
chemicals to clean the
filter mesh.
Gently pull the filter
cage open and slide it
onto the cable.
Slide the filter cage
towards the handle
and twist until it snaps
into place.
04.05.201807:56 -C93987_HD02_OPMAN_EU_X583-PRO-OPMAN-93987.indd_15_4c0s

18

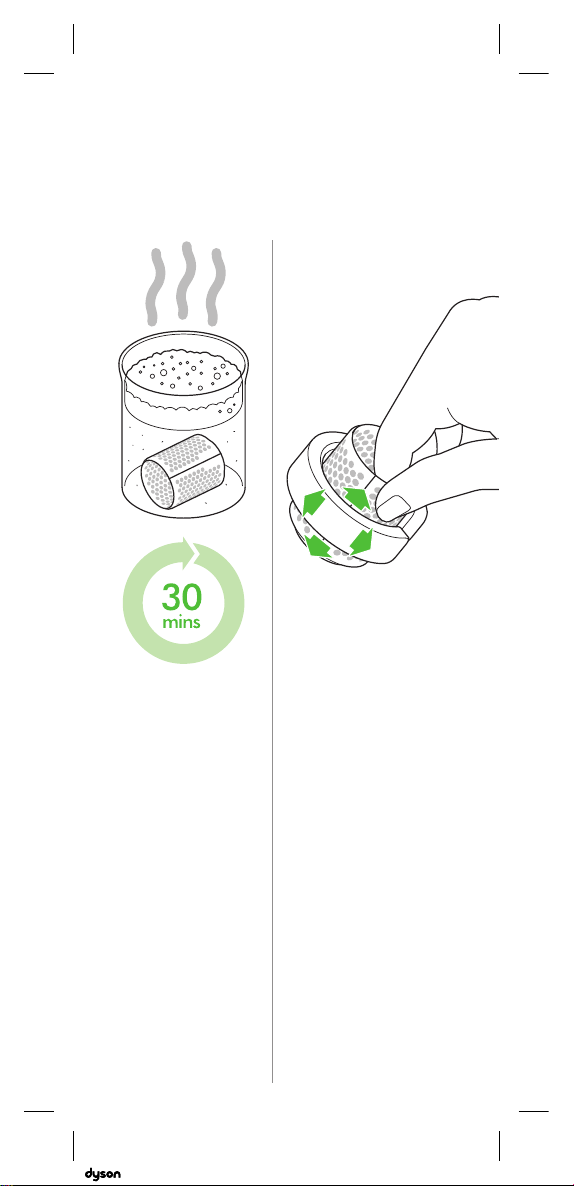

Removing hair product
residue - when
necessary
If your appliance is not performing as expected
or the lights continue to flash after following
the regular filter maintenance instructions, an
additional clean is required to remove hair
product residue that may not be visible.
Filter cleaning brush
Filter mesh Filter cage
04.05.201807:56 -C93987_HD02_OPMAN_EU_X583-PRO-OPMAN-93987.indd_15_4c0s

19
1 2
clik
clik
clik
clik
Hold the handle of
your appliance and
pull the filter cage
downwards, onto
the cable.
Gently pull open the
filter cage and slide it
off the cable.
04.05.201807:56 -C93987_HD02_OPMAN_EU_X583-PRO-OPMAN-93987.indd_15_4c0s

20
3 4
clik
clik
clik
clik
Leave the filter cage
to soak in warm soapy
water for 30 minutes.
Slide the filter cleaning
brush onto the filter
cage and clean
thoroughly using a
rotating action.
Remove the filter
cleaning brush.
04.05.201807:56 -C93987_HD02_OPMAN_EU_X583-PRO-OPMAN-93987.indd_15_4c0s
