Eaget PLAY M17 User manual

EAGET
User guide
EAGET PLAY M17
FULL HD MEDIA PLAYER/DTV RECORDER INSTALLATION

NOTES
This is the quick installation the player.
1 Connection
62B62B62B1.1 Connecting the Power Supply
(1) connect the AC adaptor to the player’s DC IN jack;
63B63B63B1.2 Connecting to a PC
(1) Make sure the player is powered on;
(2) Plug in the squarish connector of the USB cable to this player’s USB DEVICE port;
(3) Plug in the rectangular connector of the USB cable to computer.
In this way, you can manage content on the built-in HDD of the player on your local PC.
64B64B64B1.3 Connecting a USB Device
(1) Make sure the player is powered on;
(2) Plug in the USB stick or USB HDD etc. to the USB HOST port of this player.
In this way, you can browse contents on the USB device.
65B65B65B1.4 Connecting a Memory Card
Memory card can be used by inserting to the card slot
In this way, you can browse contents on the memory card.
66B66B66B1.5 Connecting to a TV
1.5.1 A/V OUT
(1) Plug in the 3 color connector to the player’s A/V OUT jack;
In this way, you can enjoy the content in the player on TV or other display devices.
1.5.2 Y/Pb/Pr Component OUT
(1) Plug in the 3 color connector to the player’s Y/Pb/Pr jack;
(2) Follow the picture and plug in the 3 color connector to the TV’s Y/Pb/Pr jack.
Audio Connection while using Y/Pb/Pr Video out:
First method: use the audio output from the A/V OUT jack;
Second method: use the audio output from the S/PDIF Coaxial or Optical jack.
In this way, you can also enjoy videos, music, and photos in the player on TV.
1.5.3 HDMI OUT
(1) Plug one connector on your HDMI cable to the player’s HDMI jack;
(2) Plug the other connector on your HDMI cable to the TV’s HDMI jack. Note: The HDMI cable
is an optional accessory sold separately.
In this way, you can have the highest quality video and audio via a single cable.
67B67B67B1.6 Connecting to an Digital Amplifier
(1) Plug in the RCA connector on your coaxial cable to the player’s S/PDIF Coaxial jack. Or if
you use optical fiber, please plug in the Toslink connector on your optical fiber to the player’s
S/PDIF Optical jack;

(2) Plug in the other connector on your coaxial cable or optical fiber to the digital audio device
(digital amplifier or decoder).
Note: Optical fiber and coaxial cable are not supplied.
In this way, you can enjoy powerful Dolby Digital, DTS, or MPEG sound.
68B68B68B1.7 Connecting to a LAN
To connect to a LAN (Local Area Network) you require a cat5, cat5e or cat6 network cable (not
supplied).
(1) Connect one of the crystal plugs on the cable to the player’s RJ45 LAN socket;
(2) Connect the other crystal plug on the cable to a RJ45 LAN port on your router, switch, or
hub devices.
69B69B69B1.8 Connecting to a WLAN
(1) Make sure the player is powered on;
(2) Plug the Wireless LAN USB Adapter (i.e. Wi-Fi USB Dongle) to the USB HOST port of the
player,
or you could use the intergrated WifiAntenna
Note: The Wi-Fi Dongle is an optional accessory sold separately.
14B14B14B2. Power On / Off
70B70B70BPower On
After connecting the DC IN jack and press the switch on the back panel, the player will soon
enter the home screen, and the power indicator will turn blue.
71B71B71BPower Off
Press the power button on the front panel, the player will soon enter standby mode, and the
power indicator will turn red. Then unplug the power cord to cut off the power supply.
3.The Remote Control
All procedures in this manual can be carried out using the remote control buttons.
See the following for details on each button and its function:

No.
Name
Function
1
Eject
Press to stop storage
press and hold for a while to eject disc if DVD-ROM has pluged.
2
Mute
Press to mute audio output, and press again to resume.
3
EPG
Only available for DTV Model
Press to view the Electronic Program Guide
Press again to back to DTV
4
REC
Only available for DTV Model
Press to record TV program
5
Zoom
Press to zoom in/out when playing back photos or Video programs.
Photo zoom levels:2X,4X,8X,16X;
Video zoom levels:2X,3X,4X,8X.
6
TV System
Press to switch between NTSC Interlaced, NTSC Progressive,
PAL Interlaced, and PAL Progressive.
7
Numeric
Press to enter channel numbers or numeric input when changing settings

8
Book/Mark
To add Mark to the file which have already veiwd .
9
Previous
1. Press to go the prev. on a HDD or USB file when playing music.
2. Press to page up the file list at Browser.
3. When play photo ,the button is enable; play Movie and Mp3 file, the button is
disable.
10
FR
Press to fast rewind the current playback.
Press repeatedly to select faster rewind speeds.
11
Setup
Press to access the Setup Menu directly to change system settings.
12
FF
Press to fast forward the current playback.
Press repeatedly to select fast forward speeds.
13
Guide
Press to view the Guide menu. See “The Guide Menu”on page 6 for more details.
14
Option
Press to select option bar.
15
Left (Arrow)
Press the arrow buttons to navigate the menus
Right (Arrow)
Press the arrow buttons to navigate the menus
Up (Arrow)
Press the arrow buttons to navigate the menus
Down (Arrow)
Press the arrow buttons to navigate the menus
16
Slow Motion
Press to play back in slow motion. Three motion settings are available.
Five slow motion levels(3/4,1/2,1/4,1/8,1/16x) are available.
Press to resume regular playback.
17
Subtitle
Press to activate available subtitles when play the DIVX file.
DivX subtitle supported: SRT,SMI,SUB,SSA format file
18
Play/Pause
Press to begin playback of a DVD or HDD title.
Press again to pause current playback
19
Repeat
Press REPEAT 1 /ALL to set repeat option - Chapter, Title or Off.
20
Green
Press to select file or folder to copy, move, rename or delete.
21
Red
Press to pop up the file List Menu
22
Power
Press to POWER on or off the device
23
Timeshift
Only available for DTV model
Press to start DTV time shift function
24
A-B
Repeat from Point A to point B
25
Music
Quick button to Pop up Music file

26
Audio
Press to select an audio track on a HDD or USB file.
27
Goto
Press to jump to a specific point on the disc or title. Specify the point using Title,
Chapter and Time.
28
Vol+
Press to increase the volume.
29
Next
1. Press to go the next on a HDD or USB file when playing music.
2. Press to page down the file list at Browser.
3. When play photo ,the button is enable; play Movie and Mp3 file, the button is
disable.
30
Vol -
Press to decrease the volume.
31
Return
Press to return to the previous screen when navigating the menus.
32
OK
Press to select confirm in menus.
33
Display /Info
Press to view the current channel information.
34
Stop
Press to stop playback.
35
Yellow
TO player Cover Art (Only available Posted file was intergrated)
36
Blue
Full SCREEN of the COVER Art (Only available Posted file was intergrated)
4. Setup

System Setup
Menu Language
Using navigation buttons to select and press ‘OK’ button to enter into the
multi-language list to select the language, Press ‘OK’ button to confirm.
Text Encoding
Using navigation buttons to choice the different encoding, press ‘Up’ and ‘Down’
buttons to select item, press ‘OK’ button to confirm.
Time
Using navigation buttons to select item, to adjust the value of year, month, day,
hour, minute, second ...
R/RW Auto-Play
If you system has plugged in DVD-R/RW loader, enable this option will auto
play. Press ‘OK’ button to enter the confirmation screen, select 'Yes' or ‘No’
press ‘OK’ button to confirm.
Screen Saver
This setup is to enable or disable the screen saver function.Using ‘Up’ and
‘Down’ buttons to select "On" or "Off". Press ‘OK’ button to confirm.
DLNA DMR
This setup is to enable or disable the DLNA DMR function.
Using ‘Up’ and ‘Down’ buttons to select "On" or "Off", press ‘OK’ button to
confirm your decision.
Device Name
If you enable DLNA DMR function, please fill in the device name which can be
used as identification in LAN.
MiniKBD
Language
To select language of on screen Mini Keyboard
Scan storage
This item is to set the scan mode of the storage detection.
Auto scan on /Auto scan off/Resume scan/Stop scanning storage/Do not
scan the storage.
Resume Play
The device support video resume play function. This item is to enable or disable
the resume play function.
Format
The device support hdd format into ext3 by its owned software.
BD Navigation
The device support BD Navigation
Factory Default
To default factory setting
Audio Setup
Night Mode
This item is to select Open/Close the night mode to reduce the sound
HDMI Output
This setting is optional HDMIAudio on the output mode, including
LPCM –Linear pulse code modulation two channel
LPCM Multi-Channel - Linear pulse code modulation Multi-Channel
RAW –Audio Raw data.
SPDIF Output
This setting can choose theAudio SPDIF output modes, including
LPCM –Linear pulse code modulation two channel
RAW –Audio Raw data.

Surround Sound
TrueHD7.1
TRUEHD/DTS-HD
TrueHD7.1
SPDIF5.1
Vedio Setup
Aspect Ratio
This setting can choose the ratio of the screen, including
Pan & Scan 4:3 - 16:9 picture in 4:3 screen mode which adjust the ratio to
meet 4:3
Letter Box 4:3 - 16:9 picture in 4:3 screen mode which leave the black side in
up and down.
16:9
16:10
TV System
This item can choose TV system, options include
NTSC
PAL
480P
576P
720P 50Hz
720P 60Hz
1080i 50Hz
1080i 60Hz
1080P 50Hz
1080P 60Hz
Video Zoom
This item is able to select video zoom in/out function.
1080P24HZ
If the TV supports 1080P 24HZ, you can turn on this option.
Deep Color
HDMI COLOR bit setting
TV&REC Setup
TV Region
This item is to set the TV Region, you can choose where the area or country is.
Channel Scan
This item is a digital television channel scan and save the channel information
Auto Scan
If you select ‘Auto Scan’, it will scan TV channel automatically. Press 'OK' button
to start the channel scan, when the scan is complete, it will display the number of
channels, Pressing ’OK’button go to next setup.
Manual Scan
There are three items should be setup, they have different range depending on the
TV region
●Channel
●Bandwidth
●Frequency
Channel Set
If there is someone channel that you don’t want to have, you can delete it by
1. Selecting channel number that you want to delete, and then press ‘OK’button,

shown in Figure
2. Select Yes and press ‘OK’to confirm the action
3. Back to Channel Set menu, you will see this channel Delete Status with ‘Yes’
REC Device
User can set the record file save to which storage, there are
●HDD
●USB
REC priority
User can select the record priority by
●Manual REG
●Schedule REG
Format
User can format the internal (if it has) or external (USB, SATA, …) storage(HDD)
by using this option.
NetWrok Setup
Wired Lan Setup
There are two modes to set the network IP:
DHCP IP (Auto) - dynamical assign IP addresses to devices on the network.
FIX IP (Manual) - manual configuration IP address.
FIX IP (Manual)
To configure IP manually, select FIX IP (manual), and press OK button to enter the
setup menu
In Fix IP (Manual) menu, use the arrow ‘Left’ and ‘Right’ buttons to select items
and use the arrow ‘Up’ and ‘Down’ buttons to adjust the value.
Press ‘OK’button to enter the confirmation screen, select 'Yes' and press ‘OK’
button to confirm.
PPPoE Setup
If you have applied ADSL service from ISP, you should set up the PPPoE.
Network Info
Show the Current wired /wireless Network IP info
BT
Turn on/off BT
Samba
Turn on/off Samba
BT safety
When visit Neighbor Network
REC priority
User can select the record priority by
●Manual REG
●Schedule REG
Format
User can format the internal (if it has) or external (USB, SATA, …) storage(HDD)
by using this option.
System Upgrade
Version info
Show the current Version info
USB up-grade
Select to update the firmware via a USB stick.
1) Copy ‘install.img’to the root directory of a USB stick, and connect it to
the USB HOST port of the player.
2) Go to Setup--System upgrade
3) Press ENTER to confirm

5. Home Menu
Home Menu is the main function of the system and the classification of the major projects, shown
in Figure
At Home Menu, use the navigation buttons ‘up’and ‘down’to select each item, to enter the
item please press 'OK' button. Each item described as below.
5.1 DTV (Only available for the DTV model)
Enter Into Digital TV
5.2 File Manager
The File Manager allows you browse and play music, photo and movie files stored on a HDD or
an external USB device, DVD disc, etc.
5.3 Movie
Only Movies file show in screen
5.4 Music
Only Music file show in screen
5.5 Photo
Only Photofile show in screen
5.6 Internet
Enter into internet Media service screen to choose favorable internet Media/Audio/Photo service .
Web browse was integrated.

5.7 Setup
Enter to setup system,Audio,Vedio,Network & MISC .
The following buttons can be used while navigating the menu.
Button
Function
UP / DOWN
Select filter options: All, Music, Photos, and Movies.
LEFT / RIGHT
Move cursor LEFT / RIGHT to select devices, folders, or files.
PREV / NEXT
Go to previous / next page.
ENTER
Enter or confirm the selected item.
CONFIRM
Add the selected files to the playlist.
RETURN
Return to the previous menu.
Option
Press ‘Option’ button to pop up Option window which can switch
the browsing file mode, including
Thumbnail
List
Preview
All Media
Movies
Photos
Music
Green
Press ‘Green’button will pop up File Editing window, there are
items to do file handling operation, including
Copy
Delete
Move
Rename
Send to Buddy
Multiple Select
Red
Press ‘Red’button to pop up the file list Menu
5.7 Create New Playlist
Music -> Press ‘Red’button -> Save Playlist
If you want to create a new audio playlist please follow the step:
Note: Unlike Music file browser, Movies file browser no support to create a new playlist
1. In File List window, please follow the instructions below the screen select files to "File List",
and press ‘Left’button to change focus on ‘File List’

2.press “play/pause”to added the file to the list
3. Press ‘Green’button to pop up “Multi-File Editing’window, select ’Save Playlist’, press ‘OK’
button to confirm.
4. If you want to rename playlist file, please select ‘Rename’and press ‘Ok’button to confirm it
which will pop up ‘Mini Keyboard’to edit file name.
5. Please follow the instruction below the screen fill the playlist file name in Edit Bar. Select Edit
Bar or OK pattern press ‘Ok’button to confirm

6. Select OK pattern press ‘OK’button to confirm. It will back to ‘File List’, press ‘Green’button
select ‘Exit’to complete the operation.
5.8 Create Photo Album
Photo -> Press ‘Red’button -> Create PhotoAlbum
If you want to create a new photo album please follow the step:
1. In File List window, please follow the instructions below the screen select files to "File List",
and press ‘Left’button to change focus on ‘File List’
3. Press ‘Green’button to pop up “Multi-File Editing’window, select ’Create Photo Album’,
press ‘OK’button to confirm.
4. If you want to rename playlist file, please select ‘Rename’and press ‘Ok’button to confirm it
which will pop up ‘Mini Keyboard’to edit file name.

5. Please follow the instruction below the screen fill the playlist file name in Edit Bar. Select Edit
Bar or OK pattern press ‘Ok’button to confirm
6. Select OK pattern press ‘OK’button to confirm. It will back to ‘File List’, press ‘Green’button
select ‘Exit’to complete the operation.
6. Web Server & BitTorrent

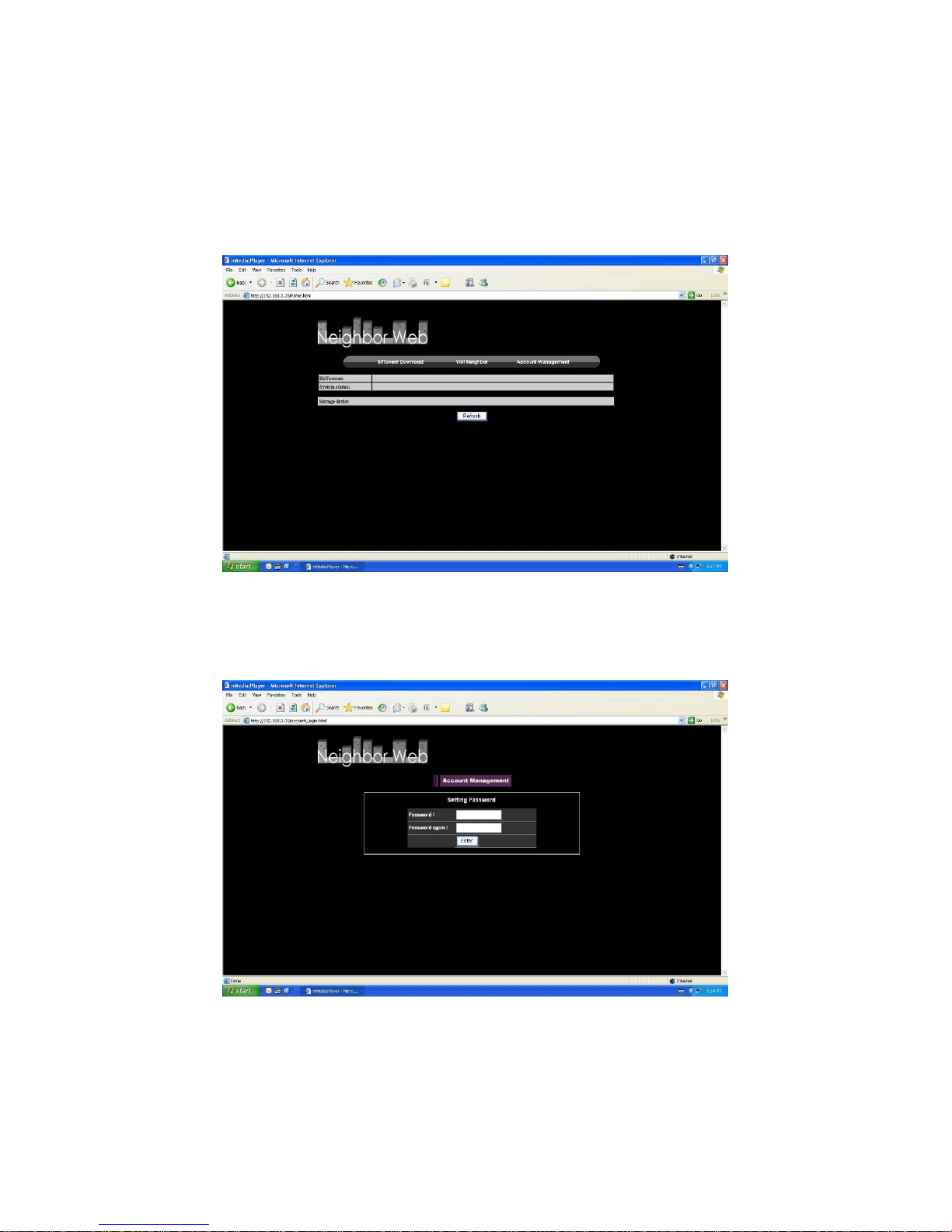

41B41B41B6.1 Web Server (unicgi)

AWeb server called ‘Neighbor Web’has been integrated into the player.
- Connect the player to your home network (LAN or WLAN).
- Get the IP address of the player under SETUP -> NETWORK menu.
- Type the IP address (e.g., 192.168.3.15) in the address bar of Internet Explore on your
PC.
Then you can access the Web server on your PC.
Note: Please turn on BT&Samba
42B42B42B6.2 Account Management
- Click Account Management on the home page of Neighbor Web.
- This page allows you to set a password for accessing Neighbor Web.
Note:
Password will become effective when Login Control is turned on.
The default user name is ‘admin’, and the default password is ‘123’.

43B43B43B6.3 Visit Neighbor (samba)
- Click Visit Neighbor on the home page of Neighbor Web.
- Then you will be able to browse, edit, and copy files to / from the local HDD of the player.
44B44B44B6.4 BitTorrent Download (btpd)
BitTorrent is a peer-to-peer file sharing protocol used for distributing large amounts of data on
the Internet. A BitTorrent utility (btpd –BitTorrent Protocol Daemon) has been integrated into
the player
The BitTorrent client btpd is running in daemon (a process running in the background) mode
and you can manipulate the process via the Web server.
- Click BitTorrent Download on the home page of Neighbor Web, then you will enter the
BitTorrent Download page.
110B110B110B6.4.1 Add new torrent
- Click Add new torrent on the BitTorrent Download page.

- Click Browse to upload a torrent file, and click Yes to confirm.
111B111B111B6.4.2 Managing the downloads
The BitTorrent Download page also allows you to start, stop, delete torrents, and set priorities
for torrents, as well as view the status of current torrents.
- Click Start to begin download.
- Click Stop to stop download.
- Click Delete to delete the selected torrent.
- Click Refresh to refresh the current status.
- Click Down arrow to decrease the priority for the selected torrent.
- Click Up arrow to increase the priority for the selected torrent.
112B112B112B6.4.3 Settings
- Click Setting on the BitTorrent Download page to enter the BitTorrent Setting page.

In the BitTorrent Setting page, you can configure the following settings.
- Set the maximum download rate.
- Set the maximum upload rate.
- Set the idle hours to start the next download automatically.
- Set the seeding hours.
- Set to delete the finished torrent files automatically or not.
- Set the maximum number of simultaneous download tasks.
Pls follow the instruction to using FTP ext .
7. A/V Streaming via Network
You can stream the media files shared on the home network (Ethernet or WLAN). There are
two ways to locate media files shared on your local network in the Network menu. One is to
browse through workgroup; the other way is to browse through ‘My_Shortcuts’.
98B98B98B7.1 Browsing through Workgroup
You can choose the workgroup which your PC belongs to from the workgroup list, find your PC
name, and press the ENTER button to confirm. Then you can select and play the shared
media files that you want to browse.
Note:
While browsing high definition video files (resolution up to 720p / 1080i / 1080p) via
Ethernet or WLAN, the video might be buffering. It is normal due to the limit of network
speed or signal strength.
Due to different network conditions, sometimes the workgroup might not be accessed or
shown in the list. And then you need to use ‘My_Shortcuts’ to browse shared files.

99B99B99B7.2 Browsing through ‘My_Shortcuts’
You can also set ‘Specific File Server IP’ and access it from ‘My_Shortcuts’ in the menu.
- Press the MENU button and a popup menu appears.
- Select Add to open a popup menu where you can input Label, Net User ID, Net
Password, Domain, Host Name, and Specific File Server IP. Select OK to confirm,
Cancel to cancel, and Simple / Detail to switch between simple and advanced options.
- Select the shortcut you added and press the ENTER button to confirm. Then you can
select and play the shared media files on the destination computer.
31B31B31B8 A/V Streaming via UPnP-server
A built-in UPnP (Universal Plug and Play) client has been integrated on the system, which
enables the player to auto-detect UPnP Media Servers on the network to browse and stream
media files from them.
100B100B100B8.1 Installing UPnP Media Server on your PC
There’re a lot of free and commercial UPnP Media Server software, such as Windows Media
Connect, Windows Media Player 11, XBMC Media Center (Linux/Mac/Windows), MediaTomb
(Linux), etc. Please install one of them on you computer. In the following chapters, we will take
Windows Media Player 11 on Microsoft Windows XP SP2 for an example.

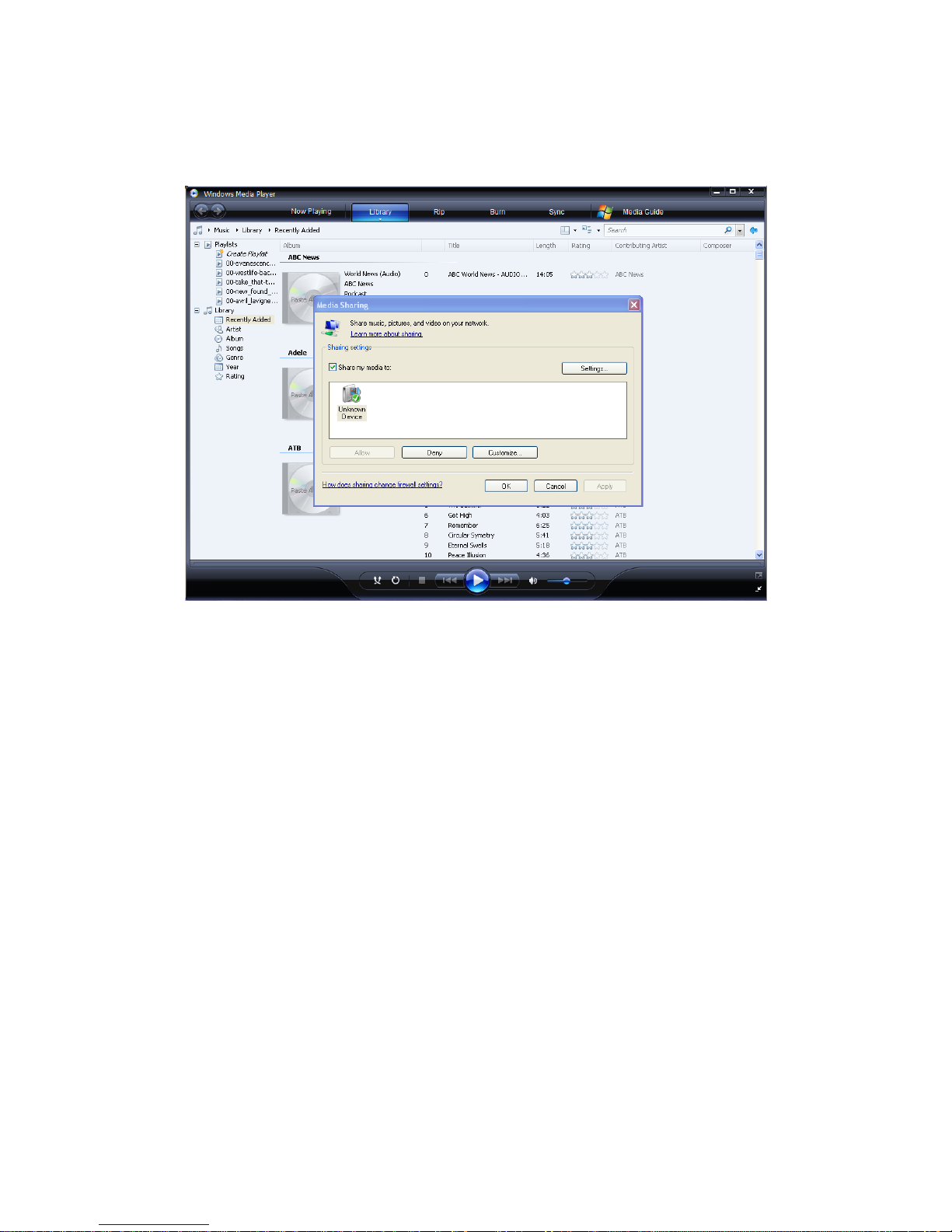

101B101B101B8.2 Sharing Media on your PC
The Media Sharing feature of Windows Media Player 11 lets you enjoy the contents of your
Windows Media Player library from anywhere in your home.
- Open Windows Media Player 11, click Library -> Add Library -> Advanced Options to
add or remove media files from the library.

- Click Library -> Media Sharing, then you can allow or deny devices to access the media
library. Click Allow to authorize your player.
102B102B102B8.3 Streaming Media on your Player
- Connect your player to the home network (LAN or WLAN).
- Visit Browser - > UPnP menu on the player, select the UPnP-server, and press ENTER.
- Then you can browse the media library shared by Windows Media Player 11.
Note:
Make sure your player and your computer are on the same local area network and subnet.
Firewalls may prevent your player to communicating with your computer. Please open the
ports manually and add your player to the ‘trusted’list, or disable the firewall temporarily.
