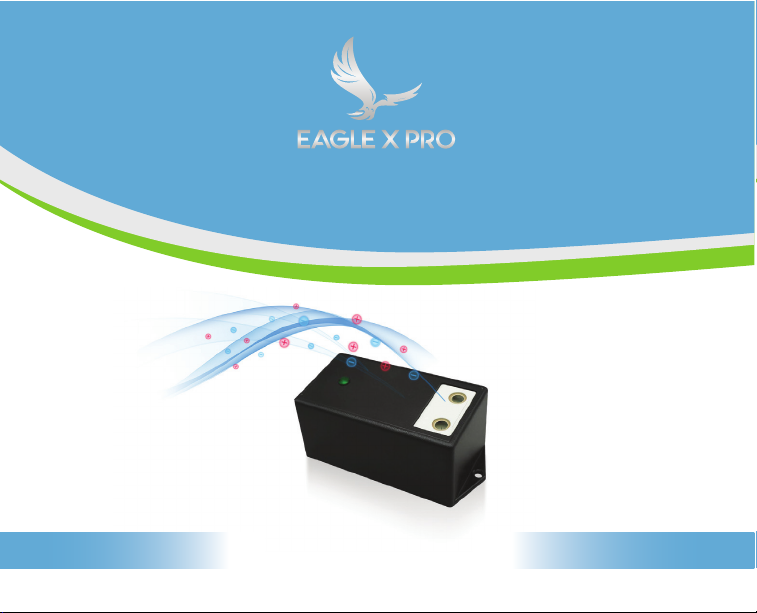

Eagle Pro EXP D5 Series User manual

USER’S MANUAL
EXP D5 SERIES
D5i-M

02
Congratulations
Thank you for choosing Eagle X Pro to clean and improve your indoor air quality.
We are committed to product quality and safety. Our friendly customer service team is
available for any questions or concerns, please do not hesitate to contact us!
Our goal is to provide the highest quality indoor air across the globe.
We cannot achieve this goal without you, thank you for your purchase.
Phone
833-324-5397
Email
offi[e-mail]
Web
www.eaglexpro.com

Manual Index
Manual Index........................................................................................................................................................................................................... Page 3
Product Introduction ....................................................................................................................................................................................... Page 4
Technology Overview ...................................................................................................................................................................................... Page 5
Testing Data ........................................................................................................................................................................................................... Page 6
Installation ............................................................................................................................................................................................................... Page 7
Operation/Troubleshooting ....................................................................................................................................................................... Page 8
Technical Specifications................................................................................................................................................................................. Page 9
Device Dimensions .......................................................................................................................................................................................... Page 10
Warranty ................................................................................................................................................................................................................... Page 11
Contact ..................................................................................................................................................................................................................... Page 12
03

04
Introduction
The Eagle X Pro (EXP) Mounted D5i-M is a patented air purification device based upon bipolar
ionization (BPI) technology, specifically developed to bring the health and quality of nature’s air
to indoor environments. In natural habitats, solar and thermal energies create positive and
negative Oxygen ions that clean and renew outdoor air by removing harmful pollutants, such as
viruses, bacteria, fungi, and mold spores. The Mounted D5i-M generates these same positive and
negative Oxygen ions - just like those found in nature - that purify and freshen indoor air by
nuetralizing the harmful pollutants.
The D5i-M is designed for installation in HVAC systems for commercial and residential
applications. This compact, easy to install unit is suitable for use in hospitals, schools, restaurants,
hotels, commercial buildings, residential spaces and more.
EXP technology was tested and found effective in neutralizing harmful pollutants such as viruses
(SARS-COV-2, Influenza), bacteria, mold spores, fungi, odors, C02, dust and smoke. While
generating the highest density of Oxygen ions compared to any other technology on the market,
our Mounted D5i-M technology maintains undetectable levels of ozone (<0.005 ppm) - well
below federal requirements and regulation (UL 867 certified).

05
Science Behind The Technology
EXP Technology uses a
corona discharge
system to generate
Oxygen ions O2
+and O2 -
at a high density.
These O2
+and O2 -ions
have high chemical
activity and when
reacting with water
(H2O) molecules in the
air, hydroperoxide H2O2
is formed.
Once airborne, these
hydroperoxides (H2O2)
then cluster around
harmful pollutants.
A chemical reaction
occurs and the
hydroperoxides (H2O2)
break down the protein
structure of the
pollutants, rendering
them harmless.
Technology Overview

06
Substance Substance Name Testing Organization Removal
Bacteria
Escherichia Coli EMSL Analytical, USA 99%
Escherichia Coli ATCC Istanbul University, Turkey 91%
Staphylococcus Aureus EMSL Analytical, USA 91%
Pseudomonas Aeruginosa Istanbul University, Turkey 99%
Staphylococcus Aureus (MRSA) EMSL Analytical, USA 99%
Fungus
Aspergillus Niger EMSL Analytical, USA 97%
Dichobotrys Abundans Prof. Joe F. Boatman, USA 90%
Penicillium Prof. Joe F. Boatman, USA 95%
Mold Cladosporium Cladosporioides EMSL Analytical 97%
Spores Bacillus Subtilis Var Niger
Influenza H1N1
Influenza H5N1
Istanbul University, Turkey 89%
Viruses
Kitasato Research Center,
Japan 99%
Kitasato University, Thailand 99%
SARS-COV-2 University of Patras, Greece 99%
Testing Data

Indicator LED
Fan Discharge
Fan
Power Supply
Recessed
Needlepoints
07

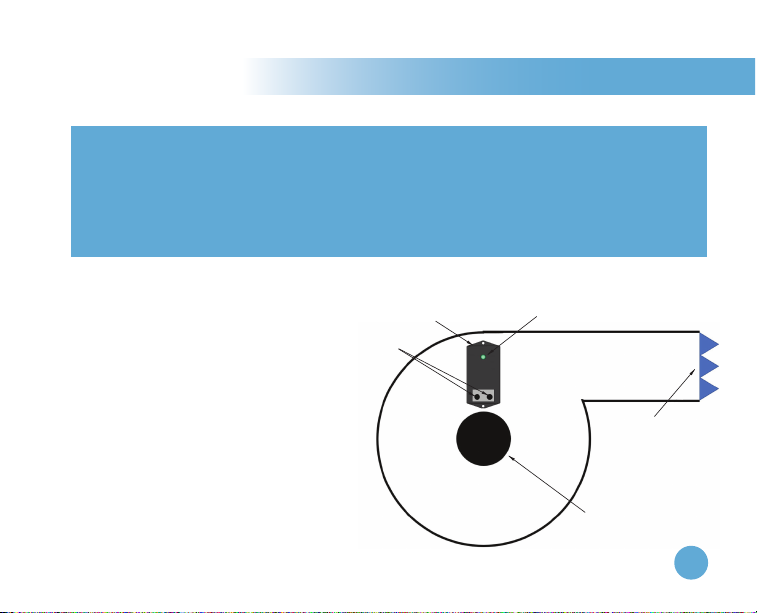

Installation
1. Do not connect to power before
installation is complete.
2. Identify a mounting location to ensure
the unit is DOWNSTREAM of any coils or
filters and not at risk of moisture from any
in-line humidifiers.
3. The included sheet metal screws or
mounting magnets should be used to
mount the D5i-M, inside the fan box or in
ductwork ensuring that air flows over the
two recessed needlepoint electrodes
simultaneously.
4. For best results, place unit in a location
where needlepoints will be exposed to
maximum airflow. If magnetically mounting
directly on the fan housing, place D5i-M Unit
in the ‘12 o’clock position’ above fan inlet.
CAUTION: Unit should only be installed by a licensed HVAC professional.
CAUTION: To reduce the risk of fire, this unit should not be installed downstream of a
humidifier or exposed to other sources of moisture.
CAUTION: This product is suitable for mounting into duct of metallic construction only.
Installation must be such that the structural integrity of the ducting is not compromised.

08
Operation
1. The D5i-M unit will be activated when power is supplied to the unit and the green LED light is
illuminated, indicating the ‘On’ position.
2. The D5i-M unit is self-balancing and does not require any type of adjustment.
3. The benefit of the D5i-M unit is achieved only when the supply fan is running. Therefore, to achieve
improved air quality, interlock the D5i-M unit to run when the supply fan is powered.
Troubleshooting
IF THE UNIT IS NOT WORKING, CHECK IN THE FOLLOWING ORDER THAT:
1. The D5i-M unit is connected to power, the supply fan is running and that the green LED indicator
is illuminated.
2. Check the power input connections to the D5i-M unit. Verify all connections are correct and tight.
Reconnect any loose wires as necessary.

Technical Specifications
09
Specs D5i-M
Ion output (Ions/Sec) 10 Billion (1010) ion/sec
Emitter Points Nickel Plated Needles
Input Voltage 12V DC / 24V AC
Output Voltage 0-8k V DC
Power Consumption Average 30mA @ 12V DC
Power Supply Requirements Over Current Protection 500mA
Operation Environment Temp. (14°F) – (158°F), Hum. <70%
Storage Environment Temp. (14°F) – (158°F), Hum. <85%
Ozone < 0.005 ppm
CFM 1,000 to 2,400
Life Cycle 5-7 years (depending on environmental conditions)
Power Green LED On: Power “On”
Green LED Off: Power “Off”
Color Black
Dimensions 4.875’x2’x2’ Inches (LxWxH)
Weight 0.10 Lb
Certifications UL, CSA, CE, IEC, FCC, RoHS 2 Compliant
Ion Balance Inherently Self-Balancing System < ± 30V
Discharge Time 1000V – 100V @ < 10 sec acc. Spec

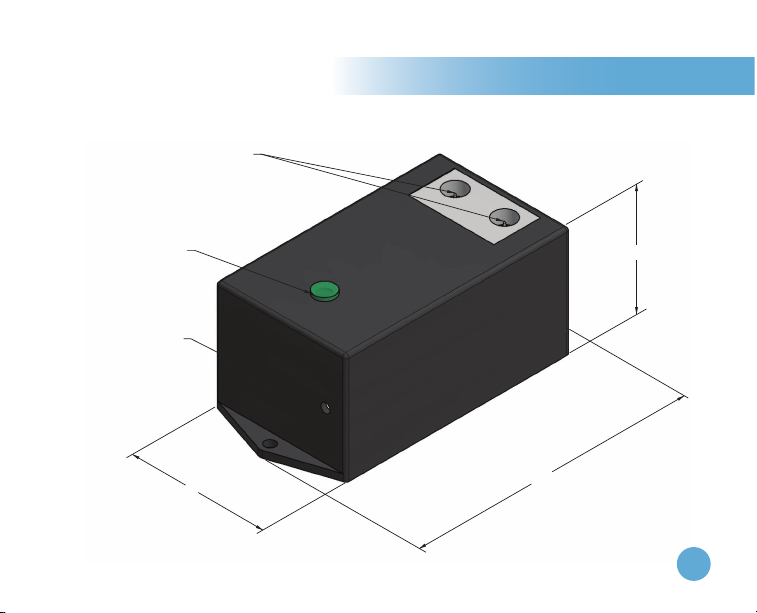

Device Dimensions
10
2”
2”
Power Supply
Indicator LED
Recessed Needlepoints
4 ”/
78
