Eagle Pro TL-1525P User manual

Read this manual and follow all the safety rules and operating instructions before using this product.
Lifting Capacity
(Ton)
Max. Height
(mm)
Min. Height
(mm)
Gross
Weight (kg)
Net
Weight (kg)
Package Size
(mm)
2.5 510 7 325 30.5 777X383X200
SPECIFICATIONS
Item No.: TL-1525P(E1525P)
OPERATOR'S MANUAL
2.5 TON GARAGE JACK

This is the safety alert symbol. It is used to alert you
to potential personal injury hazards. Obey all safety
messages that follow this symbol to avoid possible
injury or death.
IMPORTANT: READ THESE INSTRUCTIONS BEFORE OPERATING
BEFORE USING THIS DEVICE, READ THIS MANUAL COMPLETELY AND THOROUGHLY, UNDERSTAND ITS OPERATING PROCEDURES,
SAFETY WARNINGS AND MAINTENANCE REQUIREMENTS.
It is the responsibility of the owner to make sure all personnel read this manual prior to using the device. It is also the responsibility of the
device owner to keep this manual intact and in a convenient location for all to see and read. If the manual or product labels are lost or not
legible, contact Tonglift for replacements. If the operator is not fluent in English, the product and safety instructions shall be read to and
discussed with the operator in the operator's native language by the purchaser/owner or his designee, making sure that the operator
comprehends its contents.
THE NATURE OF HAZARDOUS SITUATIONS
The use of portable automotive lifting devices is subject to certain hazards that cannot be prevented by mechanical means, but only by the
exercise of intelligence, care, and common sense. It is therefore essential to have owners and personnel involved in the use and operation
of the equipment who are careful, competent, trained, and qualified in the safe operation of the equipment and its proper use. Examples of
hazards are dropping, tipping or slipping of loads caused primarily by improperly securing loads, overloading, off-centered loads, use on
other than hard level surfaces, and using equipment for a purpose for which it was not designed.
METHODS TO AVOID HAZARDOUS SITUATIONS
• Read, study, understand and follow all instructions before operating this device.
• Inspect the jack before each use. Do not use jack if damaged, altered, modified, in poor condition, leaking hydraulic fluid, or
unstable due to loose or missing components. Make corrections before using.
• Lift only on areas of the vehicle as specified by the vehicle manufacturer.
• Wear eye protection that meets OSHA standards (users and bystanders).
• Do not use jack beyond its rated capacity. Do not shock Load.
• This is a lifting device only. Immediately after lifting, support the vehicle with jack stands capable of sustaining
the load before working on the vehicle.
• Use only on a hard level surface free from obstructions so the jack is free to reposition itself during lifting and lowering operations.
• Center load on saddle. Be sure setup is stable before working on vehicle.
• Do not move or dolly the vehicle while on the jack.
• Do not use any materials that may serve as risers, spacers or extenders between the stock lifting saddle and the load.
• Do not use any adapters that replace the stock lifting saddle unless approved or supplied by the jack manufacturer.
• Do not use (or modify) this product for any other purpose than that for which it was designed without consulting the
manufacturer's authorized representative.
• Always lower the jack slowly and carefully.
• Failure to heed these warnings may result in serious or fatal personal injury and/or property damage.
CONSEQUENCES OF NOT AVOIDING HAZARDOUS SITUATIONS
Failure to read this manual completely and thoroughly, failure to understand its OPERATING INSTRUCTIONS, SAFETY WARNINGS,
MAINTENANCE INSTRUCTIONS and comply with them, and failure to comply with the METHODS TO AVOID HAZARDOUS SITUATIONS
could cause accidents resulting in serious or fatal personal injury and/or property damage.
WARNING: Indicates a hazardous situation
which, if not avoided, could result in death
or serious injury.
WARNING
WARNING
WARNING
WARNING
WARNING INFORMATION
www.eagleprojacks.net

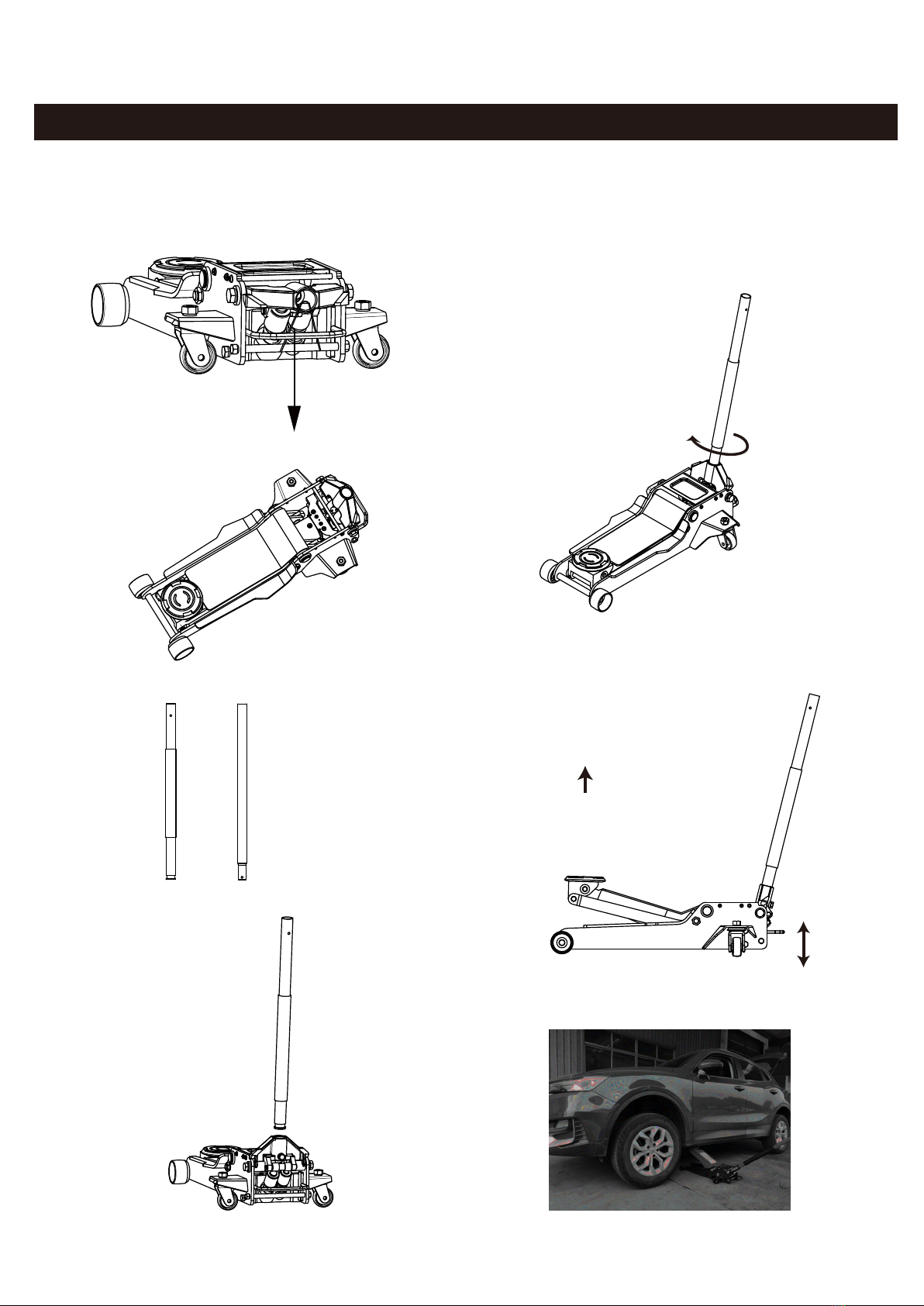

discharge the screw
①
②
③assembly the two handle
④put the handle into the handle socket
⑤close the release valve by turning it
clockwise until it is firmly closed.
⑥
⑦
up and down the handle to lifting the jack
OPERATING INSTRUCTIONS
Important:Sometimes during shipment and handling, air gets into the hydraulic system, causing poor lifting performance. Before initial
operation, purge any air from the system by fully opening pump release valve (turn handle counter-clockwise). Then, while holding the
saddle down, pump handle rapidly several times.
www.eagleprojacks.net

SYSTEM AIR PURGE PROCEDURE
2. Turn release valve counter-clockwise on full turn
to the open position.
1. Remove cover plate.
3. Rapidly pump the handle 6-8 times. Leave handle
slightly to the side to purge trapped air from
system. (Use caution not to tear or puncture the
oil plug.)
5. Replace Cover Plate.
6. Turn release valve clockwise to the closed
position.
7. Jack is now ready for use. Check for proper pump
action. (Repeat steps if neccessary).
IMPORTANT: BEFORE FIRST USE
Perform the following Air Purge Procedure to remove any air that may have been introduced into the hydraulic system as a
result of product shipment and handling. This step is to be completed without any weight on the jack.
Cover plate
Cover plate
www.eagleprojacks.net

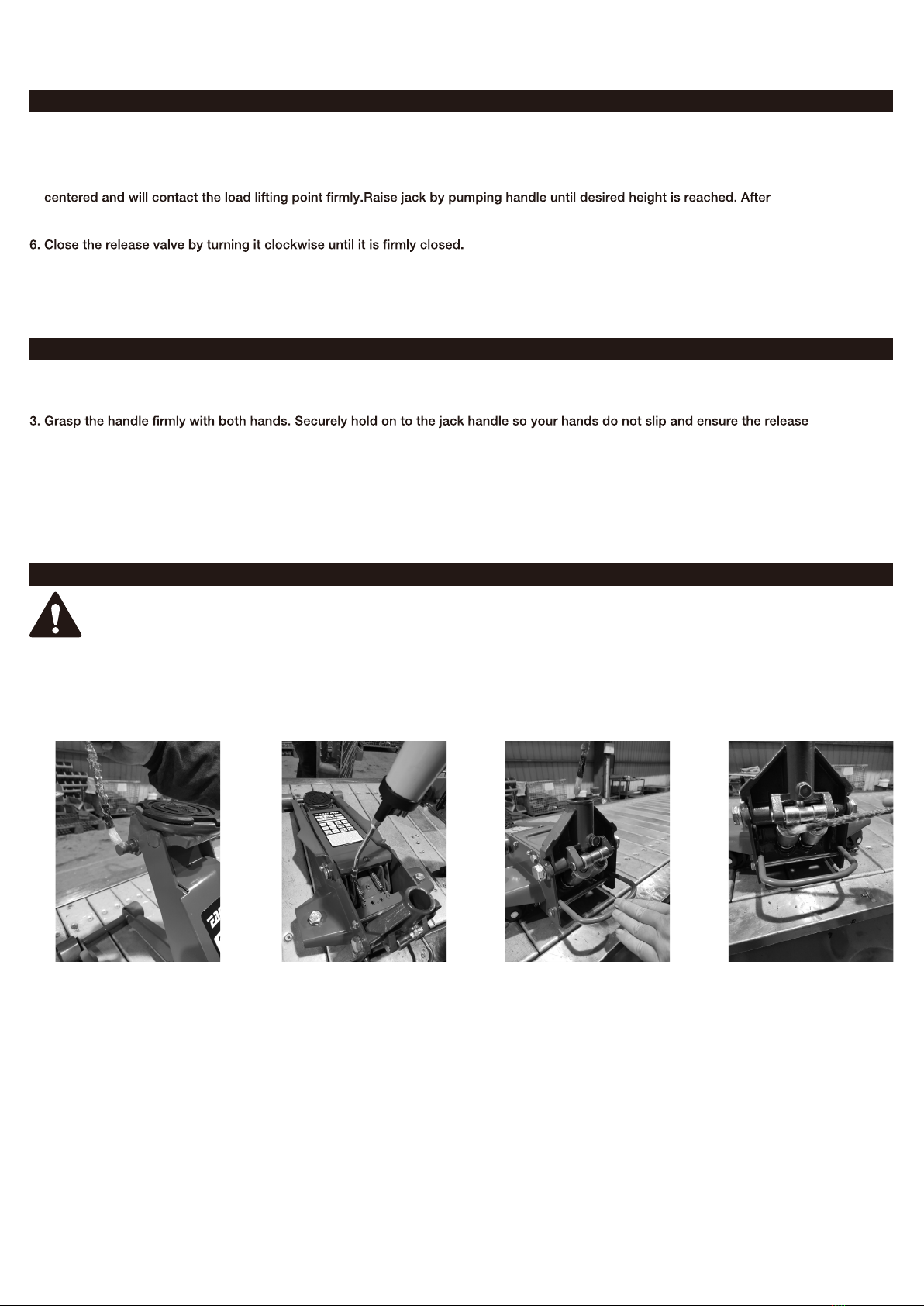

Raising the Jack
Lowering the Jack
1. Block the vehicle’s wheels for lifting stability.Secure the load to prevent inadvertent shifting and movement.
2. Position the jack near desired lift point.
3. Set the Parking Brake in the vehicle.
4. Refer to the vehicle manufacturer owner’s manual to locate approved lifting points on the vehicle.Position the jack so that the saddle is
lifting, secure and
transfer load to jack stands or other appropriate means. Do not use jack as the only means of support.
5. Assemble the handle; ensure to align with slots.
7. Before raising the vehicle double check and verify the saddle is centered and also has full contact with the lifting point.
8. Pump handle to lift until saddle contacts load.Continue to pump the jack handle to lift the vehicle to the desired height. After lifting, support
the load with appropriately rated vehicle support stands before working on the vehicle.
1. Raise load high enough to allow clearance for the jack stands to be removed, then carefully remove jack stands.
2. Remove support stands.
valve does
not rapidly lower.
4. Carefully open the Release Valve by slowly turning the handle counter-clockwise. (Do not allow bystanders around the jack or under the
load when lowering the jack.
5. After removing jack from under the load, keep jack in the lowered position to reduce exposure to rust and contamination.
NOTE: Always store jack in the fully lowered position, and the handle in the upright position
PREVENTATIVE MAINTENANCE
This is the safety alert symbol used for the PREVENTATIVE MAINTENANCE section of this manual to alert you to potential personal
injury hazards. Obey all instructions to avoid possible injury or death.
1. Always store the jack in a well protected area where they will not be exposed to inclement weather, corrosive vapors, abrasive dust, or
any other harmful elements. The jack must be cleaned of water, snow, sand, grit, oil, grease or other foreign matter before using.
2. The jack must be lubricated periodically in order to prevent premature wearing of parts. A general purpose grease must be applied to all
zerk grease fittings, caster wheels, front axle, lift arm, handle base pivot bolts, release mechanism and all other bearing surfaces. Worn
parts resulting from inadequate or no lubrication are not eligible for warranty consideration.
3. It should not be necessary to refill or top off the reservoir with hydraulic fluid unless there is an external leak. An external leak requires
immediate repair which must be performed in a dirt-free environment by an authorized service center.
IMPORTANT: In order to prevent seal damage and jack failure, never use alcohol, hydraulic brake fluid or transmission oil in the jack.
Use Chevron Hydraulic Oil AW ISO 32 or its equivalent Unocal Unax AW 150.
4. Every jack owner is responsible for keeping the jack labels clean and readable. Use a mild soap solution to wash external surfaces of the
jack but not any moving hydraulic components.
5. Inspect the jack before each use. Do not use the jack if any component is cracked, broken, bent, shows sign of damage or leaks
hydraulic fluid. Do not use the jack if it has loose or missing hardware or components, or is modified in any way. Take corrective action
before using the jack again.
6. Any hydraulic repairs within the warranty period must be performed by an authorized service center.
Linkage Lifting Arm Handle Socket Rolloer Pin
www.eagleprojacks.net

Lowering the Jack
1. Raise load high enough to allow clearance for the jack stands to be removed, then
carefully remove jack stands.
2. Remove support stands.
3. Grasp the handle firmly with both hands. Securely hold on to the jack handle so your
hands do not slip and ensure the release valve does not rapidly lower.
4. Carefully open the Release Valve by slowly turning the handle counter-clockwise. (Do
not allow bystanders around the jack or under the load when lowering the jack.
5. After removing jack from under the load, keep jack in the lowered position to reduce
exposure to rust and contamination.
NOTE: Always store jack in the fully lowered position, and the handle in the upright position.
To Add Jack Oil
1. Position the jack on level ground and 4.Fill the oil case until oil level is just
beneath the lower rim of the oil fill hole.
lower the saddle.
2. Remove cover plate.
3. Remove the oil plug.
6.Replace coverplate and perform the Air
Purge Procedure.
5. Replace oil plug.
Cover plate
Cover plate
www.eagleprojacks.net

TO REPLACE JACK OIL
1. Position the jack on level ground and
lower the saddle.
2.Open release valve by turning handle
counter-clockwise.
3. Remove cover plate.
Cover plate
Cover plate
4. Remove the oil plug.
6.Position the jack on level ground and keep
saddle in the lowered position. Fill the oil
case until oil level is just beneath the lower
rim. Keep dirt and other foreign materials
clear when pouring.
5. Turn the jack on its side to drain old oil
from the oil fill hole.
7. Replace oil plug.
8.Replace coverplate and perform the Air
Purge Procedure.
www.eagleprojacks.net

MAIN BODY ASSEMBLY
www.eagleprojacks.net

TROUBLESHOOTING
WARRANTY NOTICE
This service jack is covered under a 1-year limited warranty when used as recommended. Only those items listed with a Part # are available
for purchase. For assistance with the operation or the availability of replacement parts. Please a have available a copy of your receipt, the
model number of the product, serial number regarding your question.
Not all equipment components are available for replacement; illustrations provided are a convenient reference of location and position in the
assembly sequence.
The manufacturer reserves the rights to make design changes and or improvements to product lines and manuals without notice.
JACK WILL NOT
LIFT LOAD
× × ×
×
× ×
×
×
×
×
×
×
× ×
×
JACK WILL NOT
HOLD LOAD
JACK WILL
NOT LOWER
POOR JACK
LIFTING
WILL NOT LIFT TO
FULL EXTENSION CAUSES AND SOLUTIONS
Release valve is not completely closed
(Turn handle clockwise)
ReWeight Capacity Exceeded
Air is in the hydraulics.
Purge air from system
Low oil level. Add oil as required.
Jack is binding or foreign obstruction
Power unit malfunctioning.
Replace the power unit
Drain excessive oil.
Lubricate moving parts
Part List
Item No. Description Q'TY Item No. Description Q'TY
1
Front Wheel
2 24
Idler Wheel
1
2
Retainer Ring 20
4 25
Small Handle Socket
1
3
Washer 16
2 26
Washer 6
1
4
Nut M16
2 27
Nut M6x10
1
5
Real Wheel
2 28
Foot Pedal
1
6
Lift Arm Shaft
1 29
Spring
1
7
Retainer Ring 25
2 30
Rear Handle
1
8
Washer 10
4 31
Locating Pin
1
9
Bolt M10x25
4 32
Handle Sleeve
1
10 Bolt ST5.5x16 4 33
Front Handle
1
11 Washer 16W 2 34
Pump
1
12 Screw 16 2 35
Tension Spring
2
13 Washer 8 4 36
Pin 4x50
1
14 Nut M8x20 4 37
Link Member
1
15 Washer 2 38
Oil Cup M6
1
16 Washer 18 2 39
Bolt
2
17 Bolt 2 40
Long Connecting Rod
2
18 Shaft 2 41
Frame
1
19 Handle Socket 1 42
Retainer Ring 14
2
20 Cover Board 1 43
Lifting Arm
1
21 Roller Shaft 1 44
Saddle
1
22 Locating Screw 1 45
Screw
1
23 Washer12 1 46
Rubber Pad
1
www.eagleprojacks.net
