Eagle Power II Operating instructions

INSTALLATION & OWNER'S
MANUAL
INSTALLATION & OWNER'S
MANUAL
PHONE [phone] / TOLL FREE [phone]
THE EAGLE POWER II BATTERY BACK UP
Control Box
Battery Box
All manuals and user guides at all-guides.com
all-guides.com

/ /
/ /
/ /
/ /
/ /
/ /
/ /
/ /
/ /
/ /
/ /
/ /
/ /
/ / / / / /
/ // // /
/ /
/ /
/ / / / / /
BATTERY TEST LOG
OPERATOR SERVICES DATESBATTERY TEST DATES

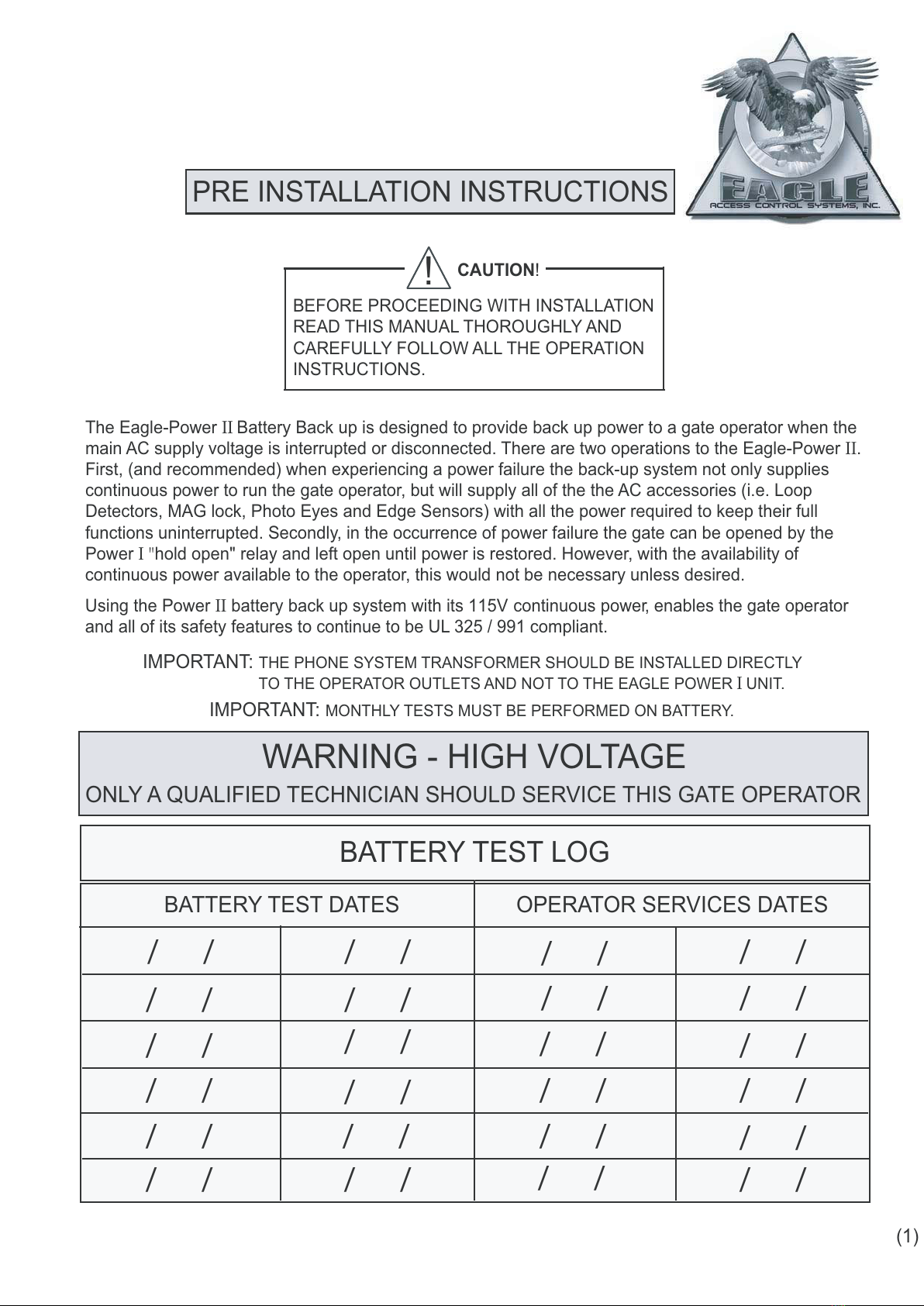

PRE INSTALLATION INSTRUCTIONS
CAUTION!
!
BEFORE PROCEEDING WITH INSTALLATION
READ THIS MANUAL THOROUGHLY AND
CAREFULLY FOLLOW ALL THE OPERATION
INSTRUCTIONS.
WARNING - HIGH VOLTAGE
ONLY A QUALIFIED TECHNICIAN SHOULD SERVICE THIS GATE OPERATOR
IMPORTANT: THE PHONE SYSTEM TRANSFORMER SHOULD BE INSTALLED DIRECTLY
TO THE OPERATOR OUTLETS AND NOT TO THE EAGLE POWER IUNIT.
The Eagle-Power II Battery Back up is designed to provide back up power to a gate operator when the
main AC supply voltage is interrupted or disconnected. There are two operations to the Eagle-Power II.
First, (and recommended) when experiencing a power failure the back-up system not only supplies
continuous power to run the gate operator, but will supply all of the the AC accessories (i.e. Loop
Detectors, MAG lock, Photo Eyes and Edge Sensors) with all the power required to keep their full
functions uninterrupted. Secondly, in the occurrence of power failure the gate can be opened by the
Power I "hold open" relay and left open until power is restored. However, with the availability of
continuous power available to the operator, this would not be necessary unless desired.
Using the Power II battery back up system with its 115V continuous power, enables the gate operator
and all of its safety features to continue to be UL 325 / 991 compliant.
IMPORTANT: MONTHLY TESTS MUST BE PERFORMED ON BATTERY.
(1)
All manuals and user guides at all-guides.com

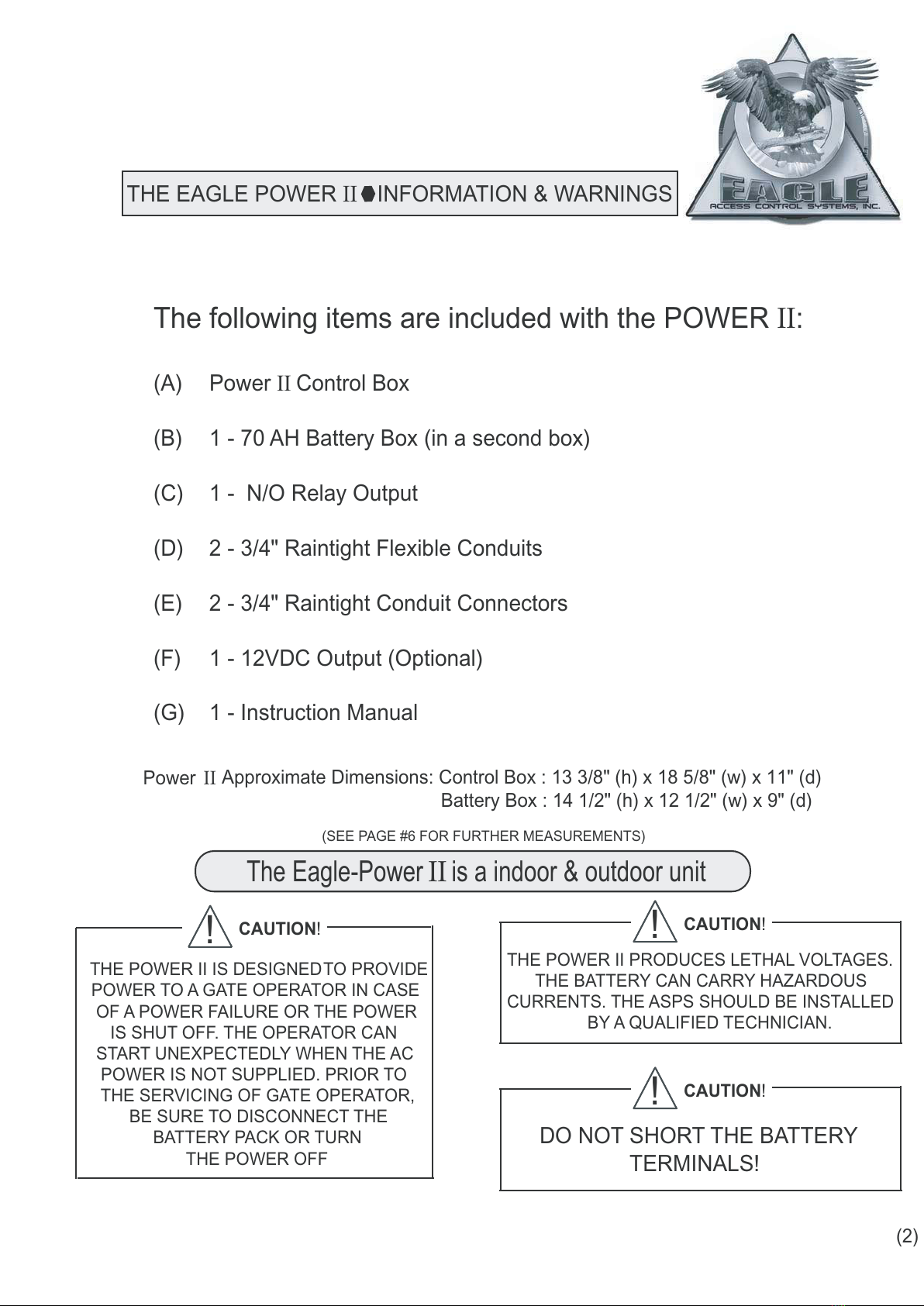

The following items are included with the POWER II:
(A) Power II Control Box
(B) 1 - 70 AH Battery Box (in a second box)
(C) 1 - N/O Relay Output
(D) 2 - 3/4" Raintight Flexible Conduits
(E) 2 - 3/4" Raintight Conduit Connectors
(F) 1 - 12VDC Output (Optional)
(G) 1 - Instruction Manual
CAUTION!
!
THE POWER II PRODUCES LETHAL VOLTAGES.
THE BATTERY CAN CARRY HAZARDOUS
CURRENTS. THE ASPS SHOULD BE INSTALLED
BY A QUALIFIED TECHNICIAN.
CAUTION!
!
THE POWER II IS DESIGNEDTO PROVIDE
POWER TO A GATE OPERATOR IN CASE
OF A POWER FAILURE OR THE POWER
IS SHUT OFF. THE OPERATOR CAN
START UNEXPECTEDLY WHEN THE AC
POWER IS NOT SUPPLIED. PRIOR TO
THE SERVICING OF GATE OPERATOR,
BE SURE TO DISCONNECT THE
BATTERY PACK OR TURN
THE POWER OFF
The Eagle-Power II is a indoor & outdoor unit
CAUTION!
!
DO NOT SHORT THE BATTERY
TERMINALS!
Power II Approximate Dimensions: Control Box : 13 3/8" (h) x 18 5/8" (w) x 11" (d)
Battery Box : 14 1/2" (h) x 12 1/2" (w) x 9" (d)
(SEE PAGE #6 FOR FURTHER MEASUREMENTS)
THE EAGLE POWER II INFORMATION & WARNINGS
(2)
All manuals and user guides at all-guides.com

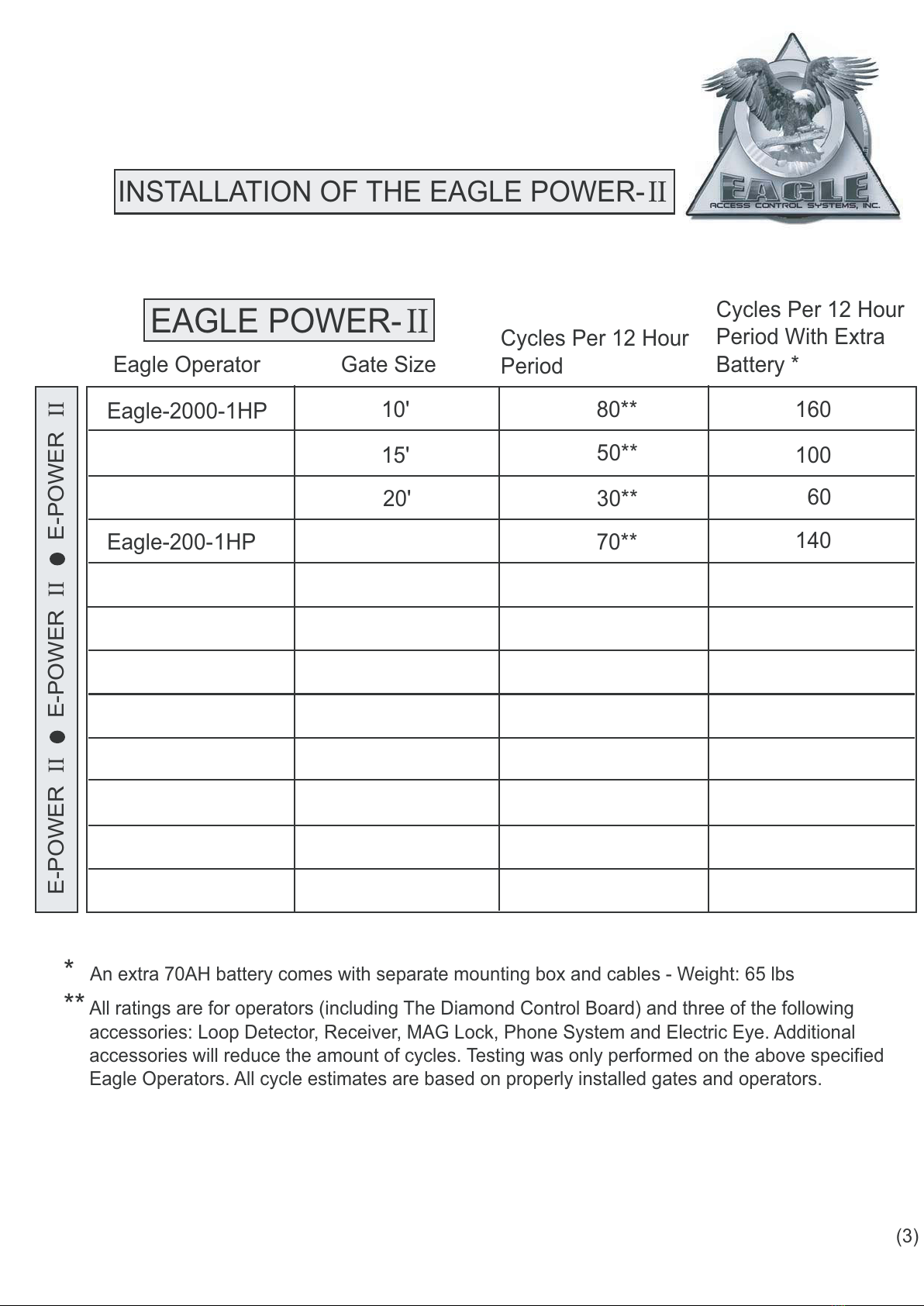

INSTALLATION OF THE EAGLE POWER-II
Eagle Operator Gate Size
Cycles Per 12 Hour
Period
Cycles Per 12 Hour
Period With Extra
Battery *
Eagle-2000-1HP
Eagle-200-1HP
15'
20'
10' 80**
50**
30**
160
100
60
140
70**
E-POWER IIE-POWER II E-POWER II
EAGLE POWER- II
*An extra 70AH battery comes with separate mounting box and cables - Weight: 65 lbs
** All ratings are for operators (including The Diamond Control Board) and three of the following
accessories: Loop Detector, Receiver, MAG Lock, Phone System and Electric Eye. Additional
accessories will reduce the amount of cycles. Testing was only performed on the above specified
Eagle Operators. All cycle estimates are based on properly installed gates and operators.
(3)
All manuals and user guides at all-guides.com

CONNECTING THE AC LINE VOLTAGE:
Electrically, the Power II is wired in series with the incoming AC supply
from the breaker box to the operator. The connector labeled "AC In" is
connected to the main AC supply. The "AC Out" is connected to the
operator.
Connect the incoming AC line to the AC In as follows:
L - AC Line In (Live): Black
N - AC neutral (Common): White
G - AC Ground (Earth): Green
Connect the outgoing AC Out line to the Operator as follows:
L - AC Line Out: Black
N - AC neutral: White
G - AC Ground: Green
Refer to the installation manual provided with operator for the
proper connections to the operator
APPLYING THE POWER AND CONNECTING THE SYSTEM RELAY
INSTALLATION OF THE EAGLE POWER-II
Eagle recommends surge protection be installed on the
incoming 110 AC Line to the battery back-up unit.
IMPORTANT!
(4)
With the power to the operator and breaker box turned off and all of the AC line
connections are complete, install the provided relay. After 5 to 10 seconds the
green inverter light will turn on. Then run the operator with the main breaker off
to test the Power I. When testing is completed, turn on the breaker and the green
inverter light will go off, then the charger green or yellow light will go on.
Connect the two orange wires from the sub panel to the "exit open" on the operator.
Using this connection will immediatly open the gate upon power failure. The operator
will resume normal operation when power is resumed.
FOR HOLD OPEN APPLICATION
REMINDER: There is a time delay of approximately 1-3 seconds between a power
failure and the initial functioning of the Power II.
All manuals and user guides at all-guides.com

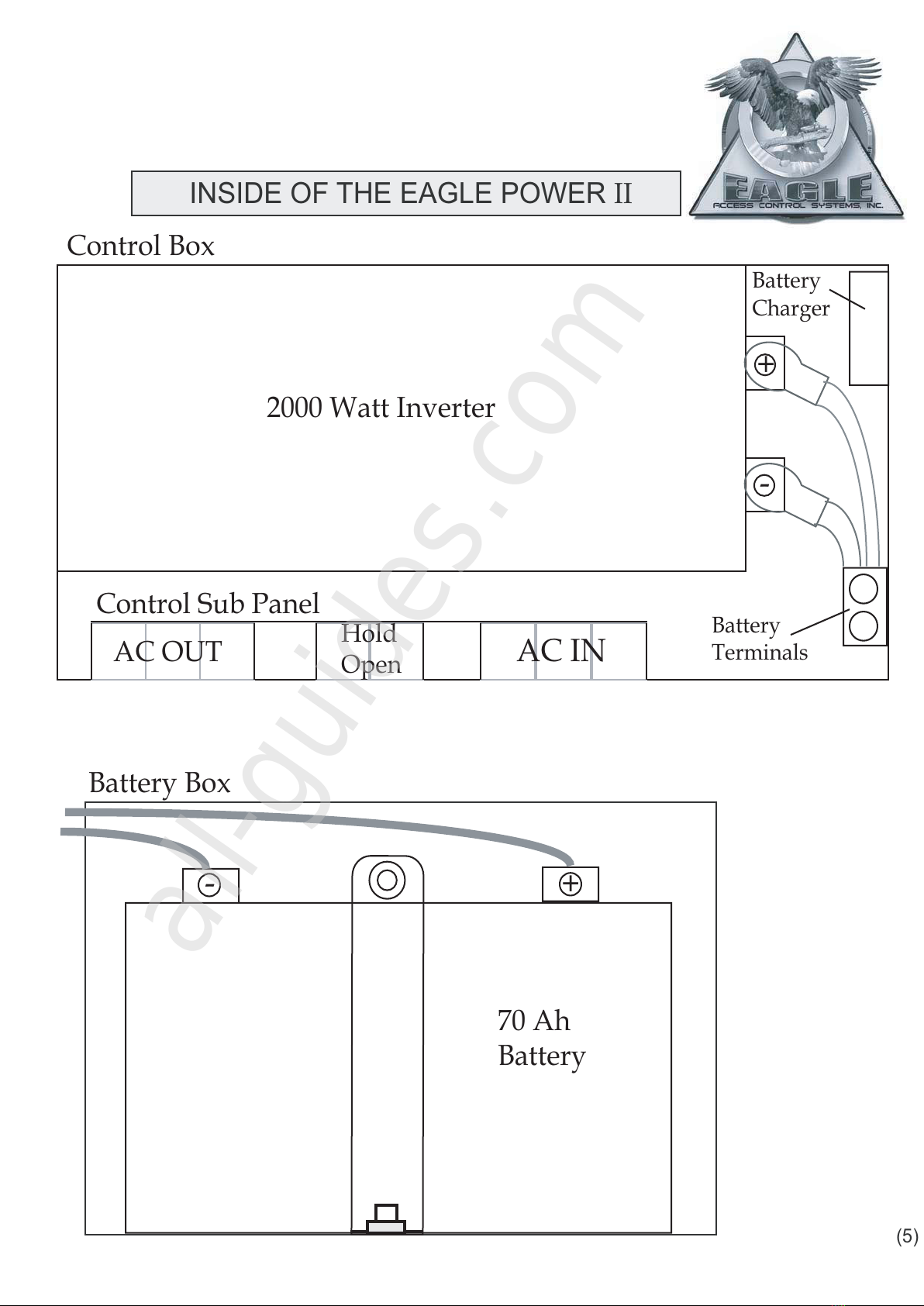

INSIDE OF THE EAGLE POWER II
(5)
2000 Watt Inverter
Battery
Terminals
Battery
Charger
Control Box
Control Sub Panel
Battery Box
70 Ah
Battery
AC OUT Hold
Open AC IN
+
+
-
-
All manuals and user guides at all-guides.com
all-guides.com

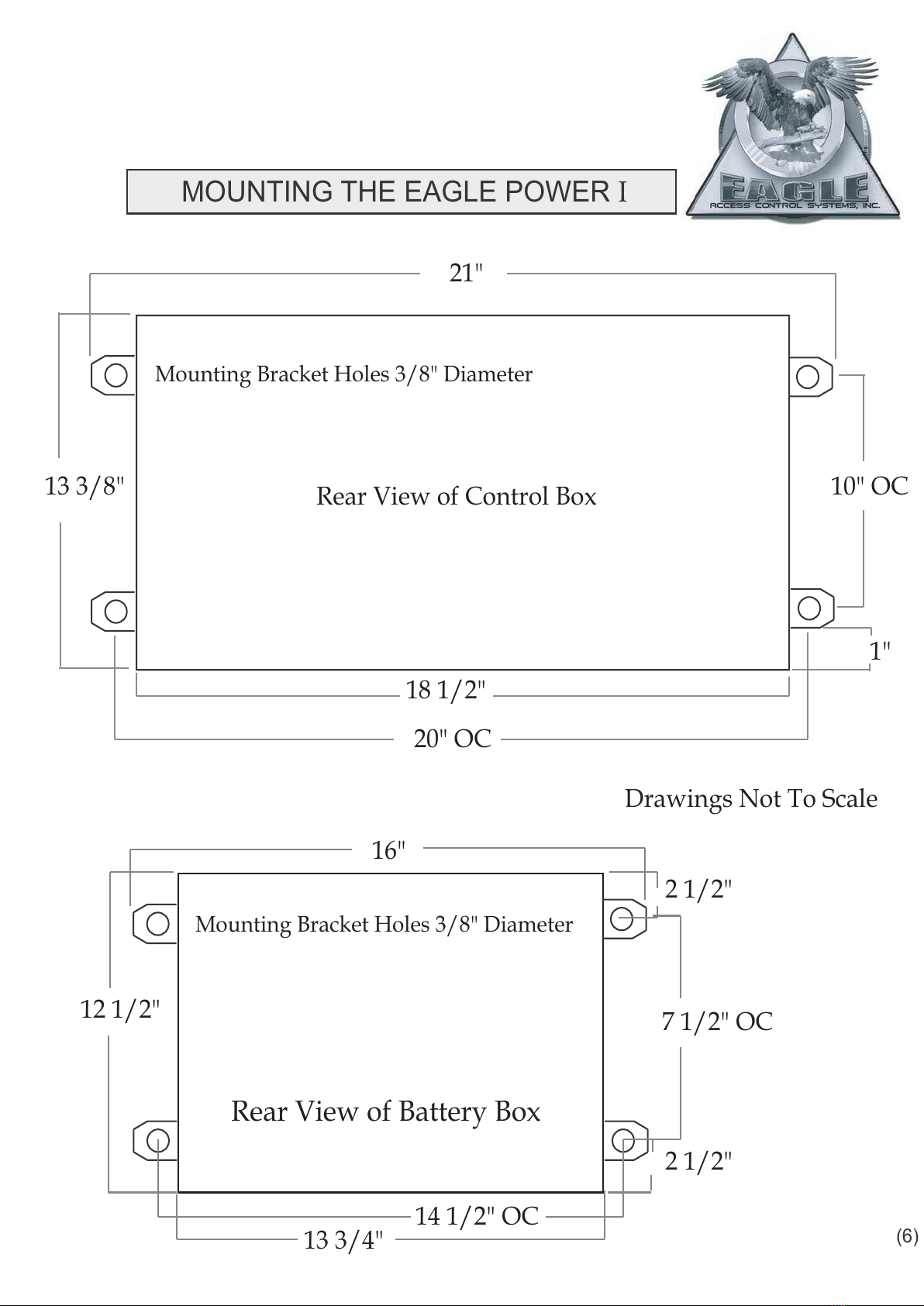

INSTALLATION OF THE E-I PSMOUNTING THE EAGLE POWER I
(6)
Rear View of Control Box
21"
10" OC
1"
13 3/8"
18 1/2"
20" OC
Mounting Bracket Holes 3/8" Diameter
Rear View of Battery Box
Mounting Bracket Holes 3/8" Diameter
16"
2 1/2"
2 1/2"
7 1/2" OC
12 1/2"
14 1/2" OC
13 3/4"
Drawings Not To Scale
All manuals and user guides at all-guides.com

THE EAGLE POWER II
(7)
Recommended Installation with flex conduit
Control Box
Battery Box
3/4" Water-tight
flexible conduit
with fittings
All manuals and user guides at all-guides.com

S PE CIFICATIONS & WAR R ANTY
INPUT VOLTAGE : 105 - 125 VAC
BATTERY: 12VDC /70AH
RECHARGE TIME: 8 HOURS
OUTPUT VOLTAGE : 115 VAC
OUTPUT FREQUE NCY: 60 Hz
OUTPUT CURRENT: 15 AMPS
SURGE CURRENT: 30AMPS
AC OUTPUT POWE R : 2000 WATTS
S UR GE POWE R : 4000 WATTS
RELAY OUTPUTS: 10AMPS
TECHNICAL SPECIFICATIONS
CAUTION!
!
DO NOT E XCE E D THE
OUTPUT CAPACITY
OF THE POWER II.
CONNECTING A
MOTOR LOAD LAR GE R
THAN R E C OMME NDE D
MAY DAMAGE THE
POWER II AND VOID
THE WARRANTY.
MANUFACTUR E R 'S L IMITE D WAR R ANTY
E agle Access C ontrol S ystems , Inc. warrants its P ower II to be free from defect in material and workmanship for a period of one(1) year
from the date of purchas e for s ingle family home or multi-family and commercial us e. To obtain s ervice contact your dealer.
To obtain service under this warranty the buyer must obtain authorization ins tructions for the return of any goods from E agle before
returning the goods. The goods must be returned with complete identification, with copy of proof-of-purchase, freight prepaid and in
accordance with E agle's instructions or they will not be accepted. In no event will E agle be responsible for goods returned without proper
authorization or identification.
G oods returned to E agle for warranty repair within the warranty period , which upon receipt by E agle are confirmed to be defective and
covered by this limited warranty, will be repaired or replaced at E agle's s ole option, at no cos t and returned prepaid. Defective parts will
be repaired or replaced with new or factory rebuilt parts E agle's s ole option.
T his limited warranty does not cover non-defect damage, damage caus ed by unreasonable us e, damage caus ed by improper ins tallation
or care, vandalis m, or lightning, fire or exces s ive heat or other acts of G od (including, but not limited to misuse, abuse or alterations, failure
to provide reasonable and necessary maintenance), labor charges for dismantling or reinstalling a repaired or replaced unit, or
replacement batteries.
T hese warranties are in lieu of all other warranties, either express ed or implied. All implied warranties of merchantability and/or a particular
purpose are hereby disclaimed and excluded. Under no circumstances s hall E agle be liable for consequential , incidental or special
damages arising in connection with the use or inability to use this product. In no event s hall E agle's liability for breach of warranty, breech
of contract, negligence or s trict liability exceed the cost of this product hereby. No person is authorized to as s ume for E agle any other
liability in connection with the s ale of this product.
For Further Information: Phone [phone] / Fax [phone]
(8)
