THE EAGLE POWER IBATTERY BACK UP
Upswung.com

//
//
//
//
//
//
//
//
//
//
//
//
//
// // //
//////
//
//
// // //
BATTERY TEST LOG
OPERATOR SERVICES DATESBATTERY TEST DATES

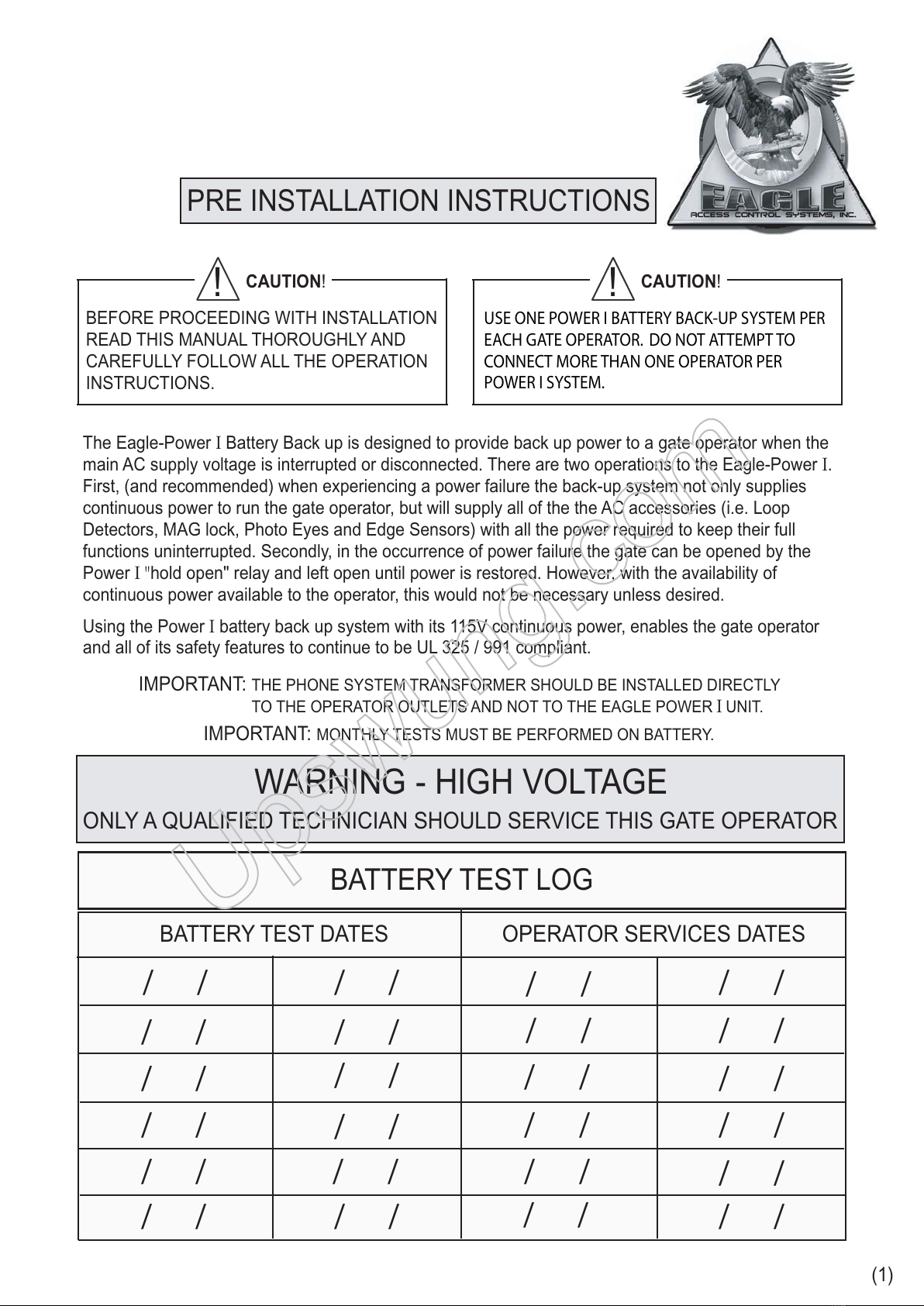

PRE INSTALLATION INSTRUCTIONS
BEFORE PROCEEDING WITH INSTALLATION
READ THIS MANUAL THOROUGHLY AND
CAREFULLY FOLLOW ALL
CAUTION!
!
THE OPERATION
INSTRUCTIONS.
WARNING - HIGH VOLTAGE
ONLY A QUALIFIED TECHNICIAN SHOULD SERVICE THIS GATE OPERATOR
IMPORTANT: THE PHONE SYSTEM TRANSFORMER SHOULD BE INSTALLED DIRECTLY
TO THE OPERATOR OUTLETS AND NOT TO THE EAGLE POWER IUNIT.
The Eagle-Power IBattery Back up is designed to provide back up power to a gate operator when the
main AC supply voltage is interrupted or disconnected. There are two operations to the Eagle-Power I.
First, (and recommended) when experiencing a power failure the back-up system not only supplies
continuous power to run the gate operator, but will supply all of the the AC accessories (i.e. Loop
Detectors, MAG lock, Photo Eyes and Edge Sensors) with all the power required to keep their full
functions uninterrupted. Secondly, in the occurrence of power failure the gate can be opened by the
Power I"hold open" relay and left open until power is restored. However, with the availability of
continuous power available to the operator, this would not be necessary unless desired.
Using the Power Ibattery back up system with its 115V continuous power, enables the gate operator
and all of its safety features to continue to be UL 325 / 991 compliant.
IMPORTANT: MONTHLY TESTS MUST BE PERFORMED ON BATTERY.
(1)
CAUTION!
!
USE ONE POWER I BATTERY BACK-UP SYSTEM PER
EACH GATE OPERATOR. DO NOT ATTEMPT TO
CONNECT MORE THAN ONE OPERATOR PER
POWER I SYSTEM.
Upswung.com

The following items are included with the POWER I:
(A) Power IControl Box
(B) 2 - 35 AH Batteries
(C) 1 - Relay Output
(D) 2 - AC Power In and Power Out Wire Connections
(E) 1 - 3 AMP Battery Charger
(F) 1 - 12VDC Output
(G) 1 - Instruction Manual
CAUTION!
!
THE POWER I PRODUCES LETHAL VOLTAGES.
THE BATTERY CAN CARRY HAZARDOUS
CURRENTS. THE ASPS SHOULD BE INSTALLED
BY A QUALIFIED TECHNICIAN.
CAUTION!
!
THE POWER I IS DESIGNED TO PROVIDE
POWER TO A GATE OPERATOR IN CASE
OF A POWER FAILURE OR THE POWER
IS SHUT OFF. THE OPERATOR CAN
START UNEXPECTEDLY WHEN THE AC
POWER IS NOT SUPPLIED. PRIOR TO
THE SERVICING OF GATE OPERATOR,
BE SURE TO DISCONNECT THE
BATTERY PACK OR TURN
THE POWER OFF
The Eagle-Power Iis a indoor & outdoor unit
CAUTION!
!
DO NOT SHORT THE BATTERY
TERMINALS!
Power IApproximate Dimensions: 12 3/8" (h) x 17 1/2" (w) x 11 1/2" (d) - 85 lbs
(SEE PAGE #6 FOR FURTHER MEASUREMENTS)
THE EAGLE POWER IINFORMATION & WARNINGS
(2)
Upswung.com

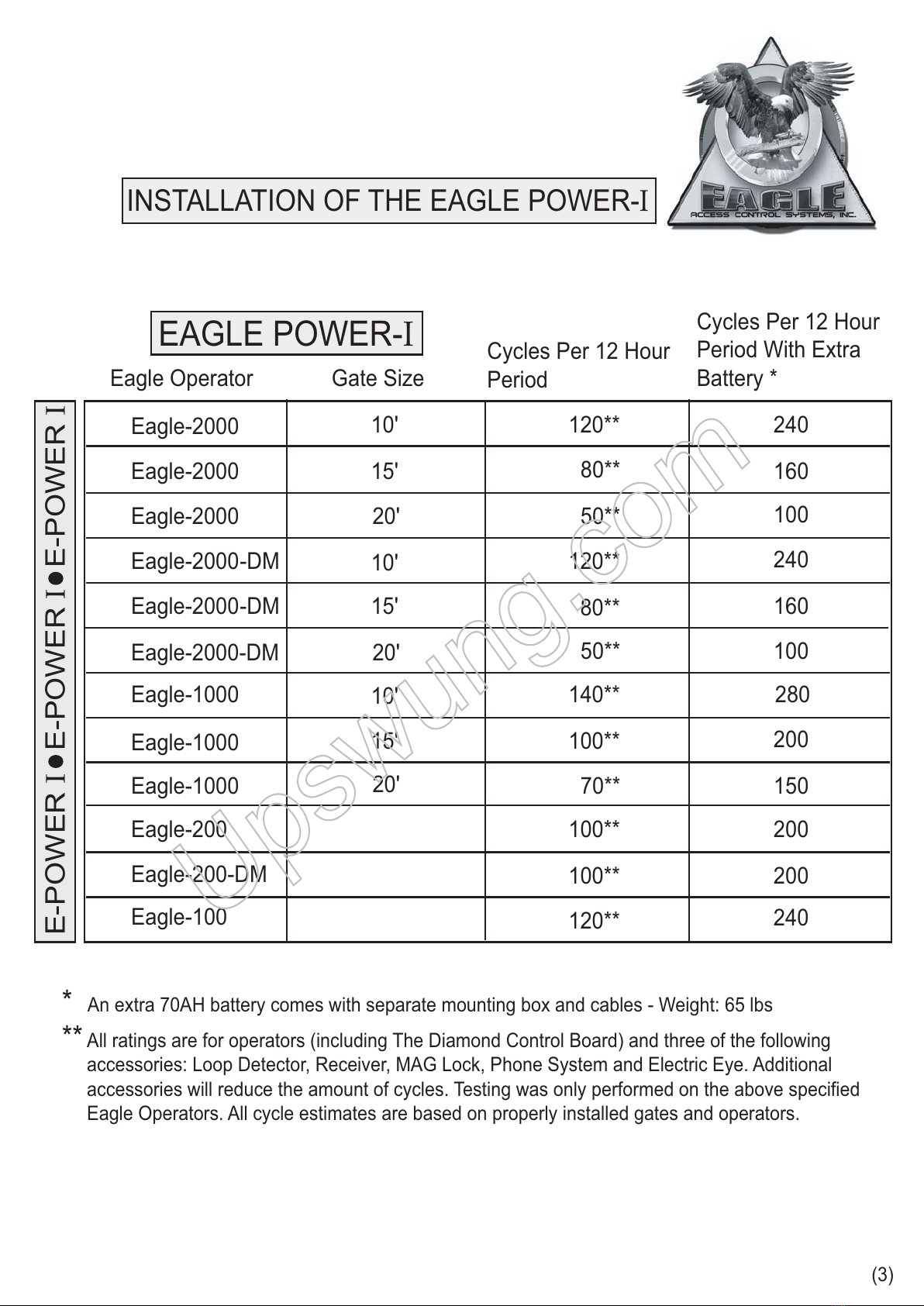

INSTALLATION OF THE EAGLE POWER-I
Eagle Operator Gate Size
Cycles Per 12 Hour
Period
Cycles Per 12 Hour
Period With Extra
Battery *
Eagle-2000
Eagle-2000
Eagle-2000
Eagle-2000-DM
Eagle-2000-DM
Eagle-2000-DM
Eagle-1000
Eagle-1000
Eagle-1000
Eagle-200
Eagle-200-DM
Eagle-100
15'
20'
10'
10'
10'
15'
15'
20'
20'
120**
80**
50**
140**
100**
70**
100**
120**
240
160
100
280
200
150
100**
200
240
240
160
100
120**
80**
50**
200
E-POWER IE-POWER IE-POWER I
EAGLE POWER-I
*An extra 70AH battery comes with separate mounting box and cables - Weight: 65 lbs
** All ratings are for operators (including The Diamond Control Board) and three of the following
accessories: Loop Detector, Receiver, MAG Lock, Phone System and Electric Eye. Additional
accessories will reduce the amount of cycles. Testing was only performed on the above specified
Eagle Operators. All cycle estimates are based on properly installed gates and operators.
(3)
Upswung.com

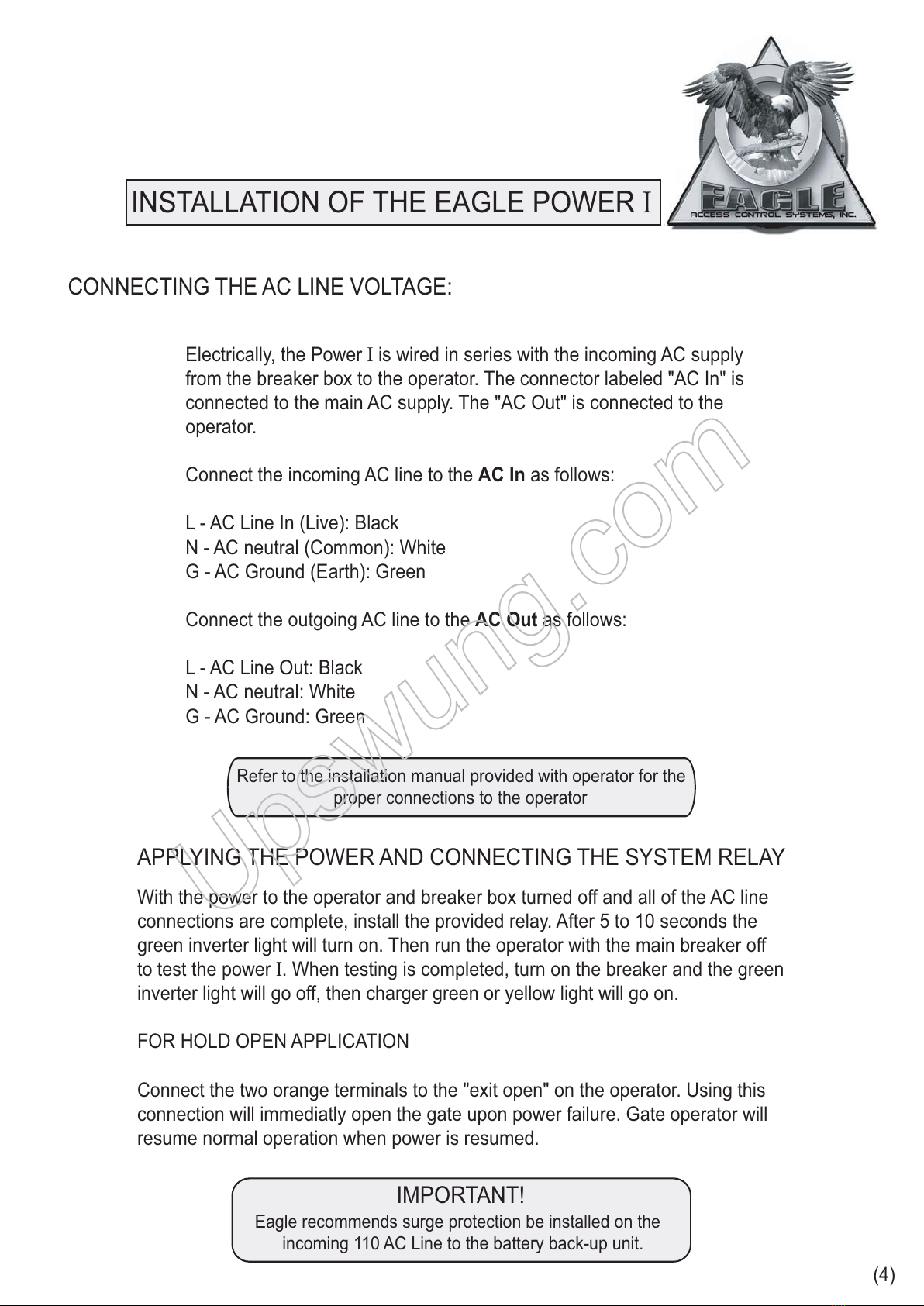

CONNECTING THE AC LINE VOLTAGE:
Electrically, the Power Iis wired in series with the incoming AC supply
from the breaker box to the operator. The connector labeled "AC In" is
connected to the main AC supply. The "AC Out" is connected to the
operator.
Connect the incoming AC line to the AC In as follows:
L - AC Line In (Live): Black
N - AC neutral (Common): White
G - AC Ground (Earth): Green
Connect the outgoing AC line to the AC Out as follows:
L - AC Line Out: Black
N - AC neutral: White
G - AC Ground: Green
Refer to the installation manual provided with operator for the
proper connections to the operator
APPLYING THE POWER AND CONNECTING THE SYSTEM RELAY
With the power to the operator and breaker box turned off and all of the AC line
connections are complete, install the provided relay. After 5 to 10 seconds the
green inverter light will turn on. Then run the operator with the main breaker off
to test the power I. When testing is completed, turn on the breaker and the green
inverter light will go off, then charger green or yellow light will go on.
FOR HOLD OPEN APPLICATION
Connect the two orange terminals to the "exit open" on the operator. Using this
connection will immediatly open the gate upon power failure. Gate operator will
resume normal operation when power is resumed.
INSTALLATION OF THE EAGLE POWER I
Eagle recommends surge protection be installed on the
incoming 110 AC Line to the battery back-up unit.
IMPORTANT!
(4)
Upswung.com

INSIDE OF THE EAGLE POWER I
INVERTER
SUB-PANEL
AC OUT AC IN
LNG LNG
FRONT
BATTERY
REAR
BATTERY
+
+
-
-
RED
WIRES
(+)
BLACK
WIRES
(-)
RELAY
SOCKET TIMER
(5)
HOLD OPEN
COM N/O
_+
Upswung.com

INSTALLATION OF THE E-I PS
17 1/2"
15"
REAR VIEW OF CONTROL BOX
MOUNTING BRACKETS
MOUNTING BRACKETS
7"12 3/8"
16 1/2"
3"
(Drawing N.T.S.)
Mounting Holes 3/8" Diameter
MOUNTING THE EAGLE POWER I
(OC)
(OC)
(6)
Upswung.com

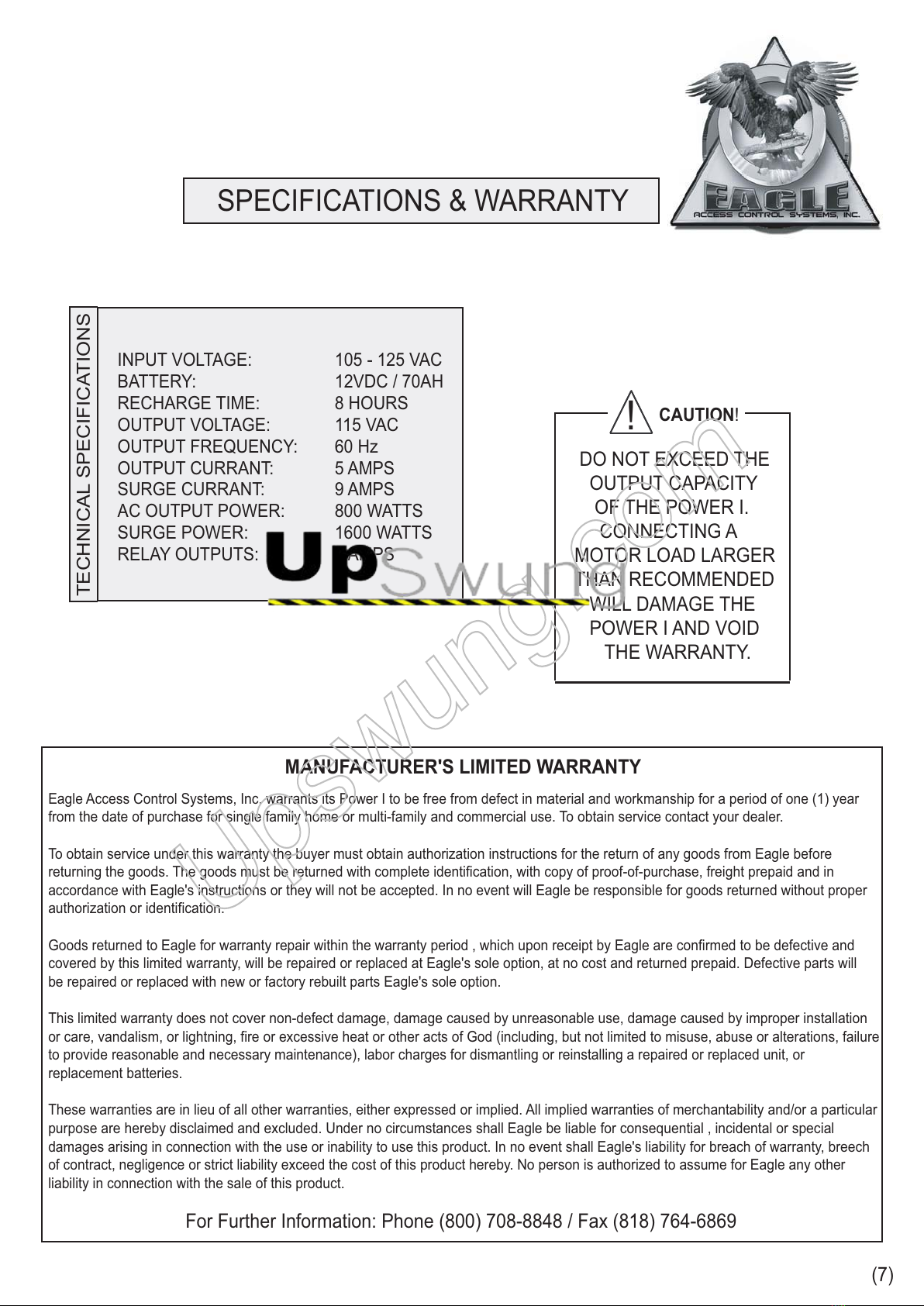

SPECIFICATIONS & WARRANTY
INPUT VOLTAGE: 105 - 125 VAC
BATTERY: 12VDC / 70AH
RECHARGE TIME: 8 HOURS
OUTPUT VOLTAGE: 115 VAC
OUTPUT FREQUENCY: 60 Hz
OUTPUT CURRANT: 5 AMPS
SURGE CURRANT: 9 AMPS
AC OUTPUT POWER: 800 WATTS
SURGE POWER: 1600 WATTS
RELAY OUTPUTS: 2 AMPS
TECHNICAL SPECIFICATIONS
CAUTION!
!
DO NOT EXCEED THE
OUTPUT CAPACITY
OF THE POWER I.
CONNECTING A
MOTOR LOAD LARGER
THAN RECOMMENDED
WILL DAMAGE THE
POWER I AND VOID
THE WARRANTY.
MANUFACTURER'S LIMITED WARRANTY
Eagle Access Control Systems, Inc. warrants its Power I to be free from defect in material and workmanship for a period of one (1) year
from the date of purchase for single family home or multi-family and commercial use. To obtain service contact your dealer.
To obtain service under this warranty the buyer must obtain authorization instructions for the return of any goods from Eagle before
returning the goods. The goods must be returned with complete identification, with copy of proof-of-purchase, freight prepaid and in
accordance with Eagle's instructions or they will not be accepted. In no event will Eagle be responsible for goods returned without proper
authorization or identification.
Goods returned to Eagle for warranty repair within the warranty period , which upon receipt by Eagle are confirmed to be defective and
covered by this limited warranty, will be repaired or replaced at Eagle's sole option, at no cost and returned prepaid. Defective parts will
be repaired or replaced with new or factory rebuilt parts Eagle's sole option.
This limited warranty does not cover non-defect damage, damage caused by unreasonable use, damage caused by improper installation
or care, vandalism, or lightning, fire or excessive heat or other acts of God (including, but not limited to misuse, abuse or alterations, failure
to provide reasonable and necessary maintenance), labor charges for dismantling or reinstalling a repaired or replaced unit, or
replacement batteries.
These warranties are in lieu of all other warranties, either expressed or implied. All implied warranties of merchantability and/or a particular
purpose are hereby disclaimed and excluded. Under no circumstances shall Eagle be liable for consequential , incidental or special
damages arising in connection with the use or inability to use this product. In no event shall Eagle's liability for breach of warranty, breech
of contract, negligence or strict liability exceed the cost of this product hereby. No person is authorized to assume for Eagle any other
liability in connection with the sale of this product.
For Further Information: Phone [phone] / Fax [phone]
(7)
