Earth T-REX SP 27.5INCH 650B HARDTAIL 2021 User manual

ELECTRIC BIKE MANUAL - PLEASE READ ME FIRST!

YOUR NEW EARTH ELECTRIC BIKE
INTRODUCTION
For your safety and for the safety of others, we recommend that you obey all
road regulations and wear a protective helmet. For optimal, safe and enjoyable use
of your EARTH e-bike, make sure you thoroughly read this user guide before you
first ride.
EARTH >GREENER >> SMARTER >>> FURTHER >>>>>>>>
EARTH T-REX SP 27.5INCH (650B) HARDTAIL
EARTH T-REX SP 29 INCH HARDTAIL EMTB

1. SPECIFICATIONS
EARTH T-REX 650B/29 INCH - SP - HARDTAIL - EMTB
BIKE COMPONENTS
Frame Material
Aluminum 6061 Alloy 27.5”*47MM / 29”* 51MM
Fork
Hydraulic Lockout Suspension Fork
Gearing
ALIVIO 9-Speed Shimano
Crankset
Sprocket 44T
Shifters
Shimano Rapid Shifter Lever
Rear Derailleur
Shimano ALIVIO
Brakes/Lever
Shimano/Tektro Hydraulic Disc Brakes
Rim
27.5 Inch - 650B / 29 Inch Rivet Rim
Tyres
27.5 Inch Smart Sam x 2.25 / 29 Inch Smart Sam x 2.35
Chain
KMC e9 EPT Rust Resistance
Freewheel/Cassette
Shimano - 9 Sprocket 11-32T
Handlebars
720mm Bar
Stem
EMTB 100mm Fixed Stem
Seatpost / Saddle
Promax 350mm / SR Selle RIO Plush Saddle
Rear Rack / Mudguard
Optional ( Rear Rack/Mudguard )
Weight
Approx 26kg Including Battery
ELECTRICAL COMPONENTS
Motor
EARTH T-Rex 48V / Mid Drive 85N.m 250W
Display Unit
Side Mount TFT COLOUR Multi Function Display
Drive/Sensor
Dual Torque & Cadence Sensor
Lights
Optional Front / Rear Light with Rack
Battery
48V 14.5Ah Li-Ion Battery (700Wh)/ Optional 48V10.4Ah (500Wh) Battery
Range Performance
Depend on Level of Motor Assist. Range 60~100km EN15194 (48V14.5Ah)

2. TFT DISPLAY PANEL
Features:
- TFT colour multi function display panel.
- High quality contrast 2.2inch IPS colorful matrix screen.
- Suitable for High & low temperature. Max +45/-10”C
- Ergonomic external button design, easy to operate, water resistance
-Speed display : AVG SPEED, MAX SPEED, SPEED(Real-time).
- Kilometer: speed display in KM.
- Battery indicator : Provide approx battery level indicator.
- Up to 9-level Assist : 3-level/5-level/9-level optional.
- Mileage indicator : Odometer/Trip distance/Riding time.
- Power indicator : real time power indicator, digital / analog.
- Error code indicator.
Maximum Speed
25~27kph with Power Assist EN15194
Charging Time
From 2-8 Hours Depending on Battery Level Indicator
WARRANTY
Frame
3 Year
Battery & Motor &
Controller
1 Year (MUST Register your EARTH bike online for an extra 1 year warranty )
Bike Parts & Components
& Display Panel
1 Year

UP
3.DISPLAY PANEL FUNCTIONS
3.1 Power On/Off
Press and hold Power button for 1 second to turn on/off the display. The Display
will automatically turn off when there is no operate & ride for 5 minutes.
*If the display has been set for password power on, you will need to input the right password before start.
3.2 Motor Power Assist Level
Short press UP/DOWN button will change the motor assist level. Top assist level is
9, 0 for neutral. Level options can be adjusted according to the rider requirements.
3.3 Speed & Mileage Mode
Short press POWER button will change the speed and mileage mode, TRIP→TIME
→ODO→AVG SPEED→MAX SPEED.
**If there is no operation for 5 seconds, display will return to Speed (Real-Time) display automatically.
3.4 Backlight On/Off
Press and hold button for 1 second will turn on/off the backlight.

MENU
System
Metric
Battery Ind
Voltage
More
>
Battery
36 V
Auto off
5 min
Brightness
|||||
3.5 Walking mode (6km)
Press and hold DOWN button for more then 2 second will activate walking mode,
release the button to stop walk mode
3.6 Data Reset
Press and hold UP & DOWN buttons together for 1 second can reset several temporary
data, temporary data include AVG Speed / MAX Speed / Trip / Time.
* These temporary data will not erased by powering off.
4.DISPLAY PARAMETER SETTING
Press M button (press no less than 2second) get into setting menu, press UP/DOWN
buttons to change the parameter setting, press M button can switch to next item. Press
M (press no less than 2second) button will exit from menu.
* Display will automatically leave menu screen when there is no operation for 30 seconds.
* For safety, display MENU cant not be access when riding.
* Display will quit MENU when you start riding.
The order of parameters are as follows.
4.1 System : Press Up / Down button to move to next setting.
Please note that the above is for illustration only. NOT all setting are accessible to change.

4.2 Brightness : Press Up / Down button to change the brightness of the backlight,  is
darkness， is brightness
Auto off : Press UP/DOWN button to change the auto power off time, from 1 to 9/OFF, the
number represent time (minutes) for display shutdown, OFF means disable auto off function,
default value is 5 minutes.
Motor / Battery Power OFF : To safeguard the battery pack, Battery will auto turn OFF at
20% level or 45.5V ( RED level indicator on display panel )
5.ERROR CODE DEFINITION
If error occurs , display panel will show warning ERROR code message, icon on
the screen, and show error code at the bottom of the screen, error code is from 01
E~07 E. The table below are the error definitions.
Error Code
Error description
Handle
01E
Communication Error
Check the cable connection
02E
Controller protection
Check three-phase power line.
03E
three-phase power error
Check three-phase power line connection
04E
Battery low
Charge the battery
05E
Brake error
Check the brake connection.
06E
Throttle error
Check turn to connect.
07E
Hall error
Check the hall connection
08-99E
Reserved
Please contact the us for error definitions

6.REQUIREMENTS PRIOR TO EACH RIDE
6.1 QUICK-RELEASE DEVICES/SEAT POST/ BRAKES/ TIRE PRESSURE
Tighten the adjusting nut by hand and move the quick release lever to the closed
position.You should feel considerable resistance while moving the lever. If not, re-
open and re-tighten the lever, then move it to the closed position so it is in line with
the frame.

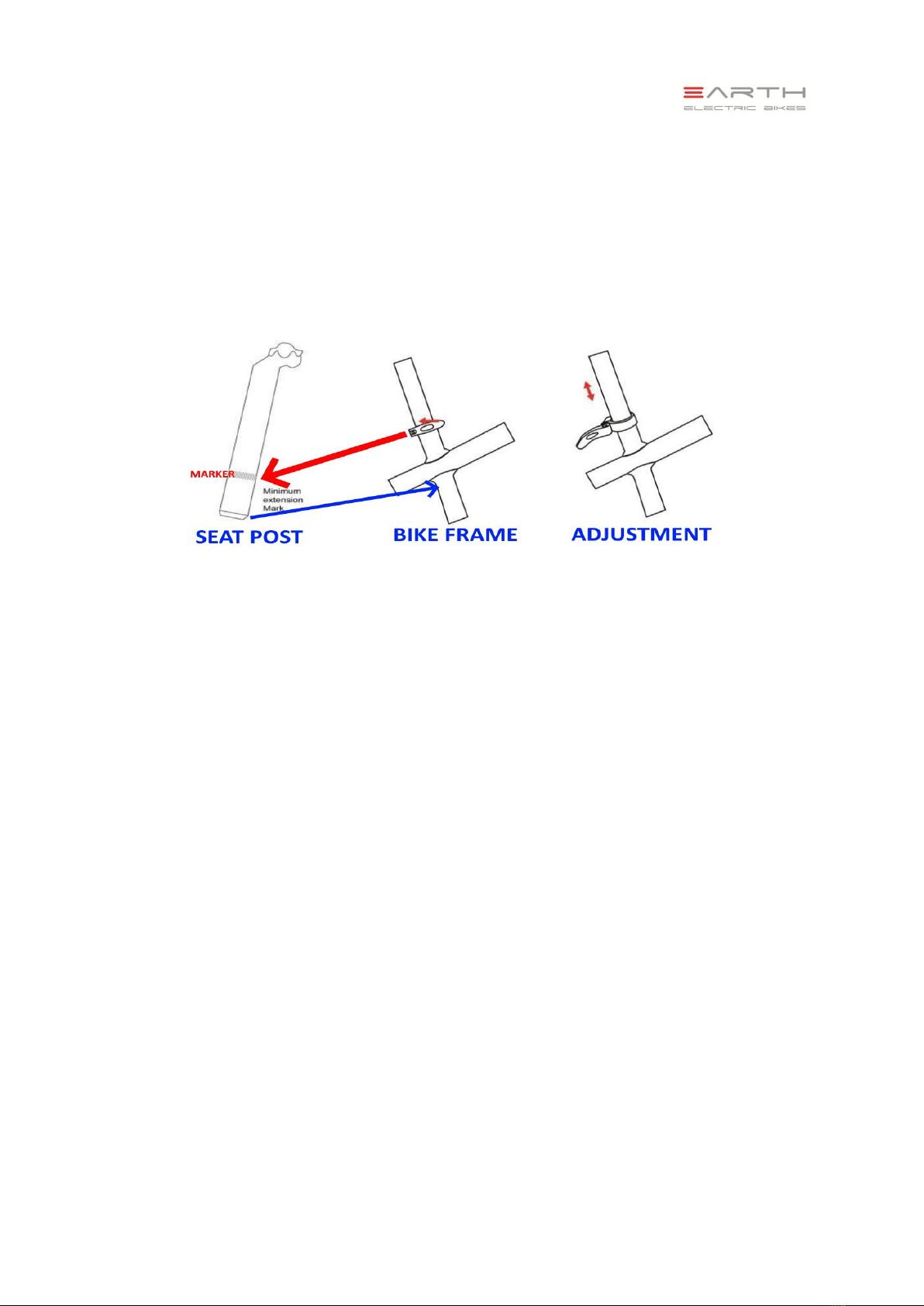

*** SEAT POST HEIGHT- DO NOT GO ABOVE THE RECOMMENDED HEIGHT
FOR TALLER RIDERS, PLEASE BUY LONGER SEAT POST 400MM.
***** DO NOT MOUNT ANY QUICK RELEASE RACK TO SEAT POST*****
WE KNOW FROM PAST EXPERIENCE THAT GOING ABOVE OUR
RECOMMENDED SEAT POST HEIGHT 5 & ATTACHING QUICK RELEASE
RACK MAY DAMAGE THE FRAME. WE WILL NOT COVER UNDER
WARRANTY IF THE TOP SEAT POST FRAME CRACK OR BREAKS.
- Check that the brakes are all working properly. Check the pressure of the tires.
Make sure that the hinges on your bike are properly locked. When using the bike on a
regular basis, the tension of the hinges’ adjustment and locking systems will move
slightly. Whenever necessary, adjust the tension again.
This bike is not designed for rough usage condition, such as jumps or stunts.
For your own safety, DO NOT modify the bike.WARRANTY WILL VOID for bike
modification that may cause damage to the E-bike.Please note: if you use the bike
frequently, it is recommended that you inspect the state of the fork, the frame, the
suspension and the fasteners. The materials and components may be subject to
different reactions to usage and wear.

7. SAFETY MAINTENANCE AND
RECOMMENDATIONS
7.1 SAFETY RECOMMENDATIONS
Helmet
For safe riding- use of a bicycle helmet.
Tyres
Inspect the wear of your tyres on a regular basis and verify the tyre pressure at least
once a month. Tyre pressure: depending on the weight of the user, check tire for
PSI pressure.
Wheel-rims-spokes
Please check regularly of spokes and rim-wear.
Brakes
Please check your brakes are working properly before attempting to ride the e-bicycle.
Secure the front wheel to the bicycle by tightening the quick release mechanism and
clamping the lever to the closed position. Important: braking distance increases on humid
or slippery ground.
Saddle-post
Do not go above the recommended height. For taller rider
please buy the right size frame EARTH ebike or use
longer 400mm seat post. DO NOT mount rack on seat
post.
Reflector
Positioning of reflectors and lights such
that these are not obscured when pannier is attached to
the rack carrier.
Gears
Like the chain, the freewheel must be kept clean and well
lubricated. If the chain has become worn and needs replacing,
then it is likely that the freewheel will also have become worn and should also be
replaced. Take the chain off the freewheel and rotate it with your hand. If you hear a
grinding noise or the freewheel stops suddenly after spinning it, it may
need adjustment .
Carrier /Rack
Maximum load: 25kg. This carrier is not designed to pull a trailer. Don't install the
child-seat on the carrier. The bicycle may behave differently (particularly with
regard to steering and braking) when the carrier is loaded. Please ensure that
any pannier fitted to the carrier is securely fitted in accordance with the
manufacturer’s instructions and that there are no loose straps that can get caught in
any of the wheels.

Rack
The rack is able to hold a maximum, evenly balanced load of 25kg.
Signaling device /Bell
The bike is silent. In order to alert others as to your presence, you have a signaling
device(Bell): use it only when absolutely necessary, don’t abuse it!
WARNING: As with all mechanical components, the bicycle is subjected to wear and
high stresses. Different materials and components may react to wear or stress
fatigue in different ways. If the design life of a bike component has been exceeded, it
may suddenly fail possibly causing injuries to the rider. Any form of crack, scratches
or change of coloring in highly stressed areas indicate that the life of the
component has been reached and it should be replaced.
LUBRICATION
Note: The frequency of maintenance should increase with use in wet or dusty
conditions. Do not over lubricate - remove excess lubricant to prevent dirt build up.
Never use a degreaser to lubricate your chain.
Frequency
Component
Lubricant
How to Lubricate
Monthly
Chain
Derailleur Pulleys
Derailleurs
Brake Calipers
Brake Levers
Chain Lube or Light Oil
Chain Lube or Light Oil
Oil
Oil
Oil
Brush On or Squirt
Brush On or Squirt
Oil Can
3 drops from oil can
2 drops from oil can
Monthly
Shift Levers
Lithium Based Grease
Every Six Months
Freewheel
Brake Cables
Oil
Lithium Based Grease
2 squirts from oil can
Disassemble
Yearly
Bottom Bracket
Pedals
Derailleur Cables
Wheel Bearings
Headset
Seat Post
Lithium Based Grease
Lithium Based Grease
Lithium Based Grease
Lithium Based Grease
Lithium Based Grease
Lithium Based Grease
Disassemble
Disassemble
Disassemble
Disassemble
Disassemble
Disassemble

Service Checklist
Frequency
Task
Before every ride
Make sure battery are fully
charged
Check tire pressure
Check brakes
Check wheels for loose spokes
After every ride
Be sure to fully charge battery
Quick wipe down with damp cloth
Monthly
Inspect wires
Inspect connectors
Check derailleur adjustment
Check brake adjustment
Check brake and gear cable adjustment
Check tire wear and pressure
Check wheels are true and spokes tight
Check hub, head set and crank bearings for looseness
Check pedals are tight
Check handlebars and stem are tight
Check seat and seat post are tight and comfortably adjusted
Check frame and fork
Lubrication as per schedule
Perform safety check
Every six months
Lubrication as per schedule
Check all points as per monthly service
Check and replace brake pads, if required
Check chain for excess play or wear
Book general bike service (EARTH
electric bike dealer )
Yearly
Lubrication as per schedule
Book general bike service (EARTH electric bike dealer)

MAINTENANCE
Caution
Bike maintenance and repair require specific skills and appropriate tools. Do not repair
your bike or change any of its settings if you have the slightest doubt regarding your ability
to correctly proceed with such work. Contact your dealer. Any adjustments or repairs that
are not properly done can damage the bike and lead to accidents resulting in injuries. Using
only genuine replacement bike parts for safety-critical components;
Electric Bicycle - Cleaning
Always remove the battery when cleaning. Use soapy water or water mixed with a gentle
detergent, and then rinse with clean water. Make sure all electrical components are wipe clean
and dry from any water or moisture.
Store your EARTH electric bicycle inside and do not leave outdoor for long period of time.
DO NOT USE HOSE OR HIGH PRESSURE WASHER!
DO NOT use a Hose or High Pressure Washier to Clean Bike!

8. BATTERY

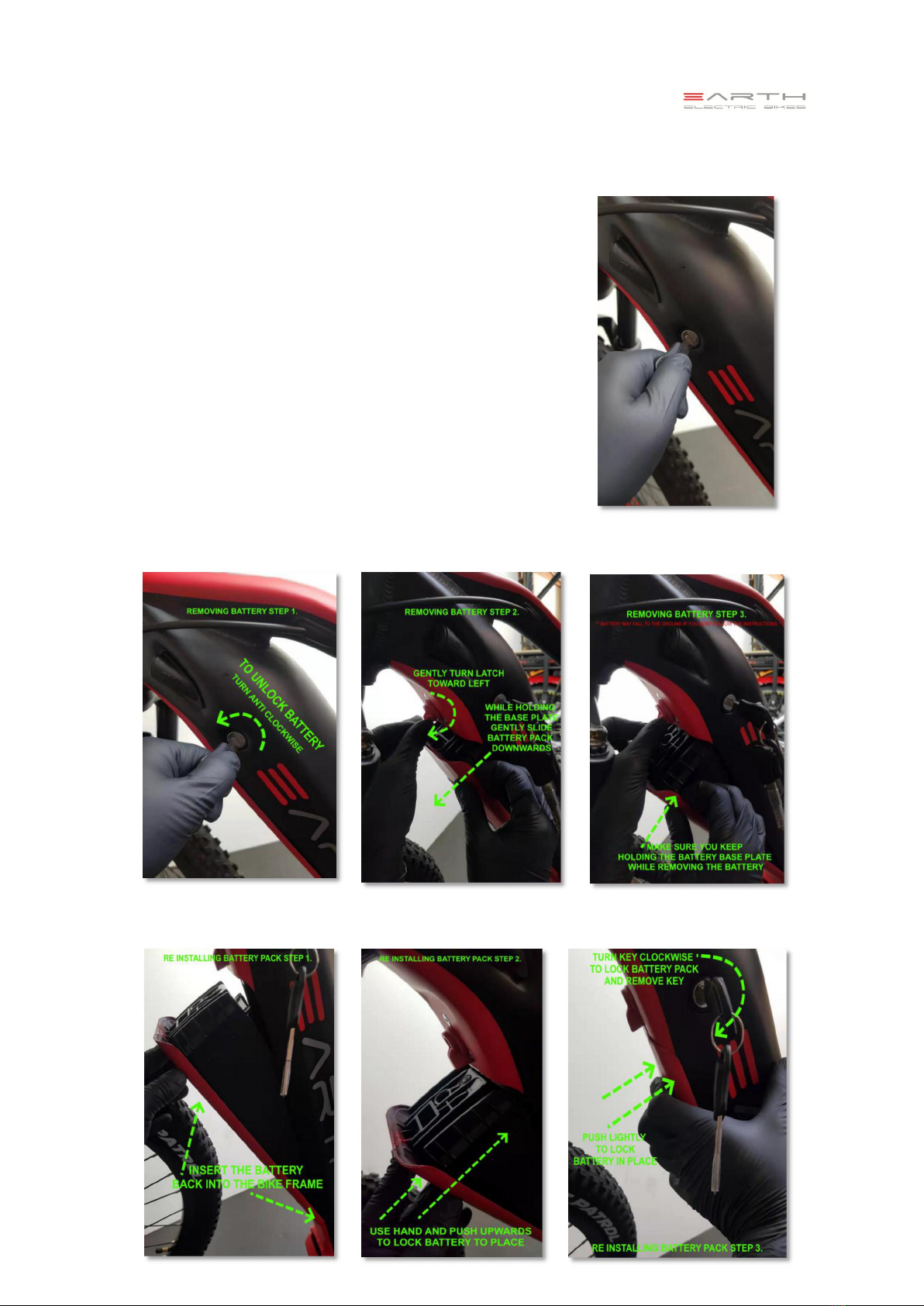

8.1 INSTALLING AND REMOVING THE BATTERY
To remove the battery, use key and turn anti clockwise.
The lock is located along the top side of frame. Use
your finger and turn latch anti clockwise, hold at that
position and then use your other hand to flip down the
battery as shown on pictures below. Remove the
battery by pulling downwards and making sure you
hold the battery so it does not fall to ground. To put the
battery back into place, insert the battery then gently
push up against the frame until you hear a click. Turn
key to lock and remove key.
REMOVING - BATTERY PACK
INSTALLING - BATTERY PACK

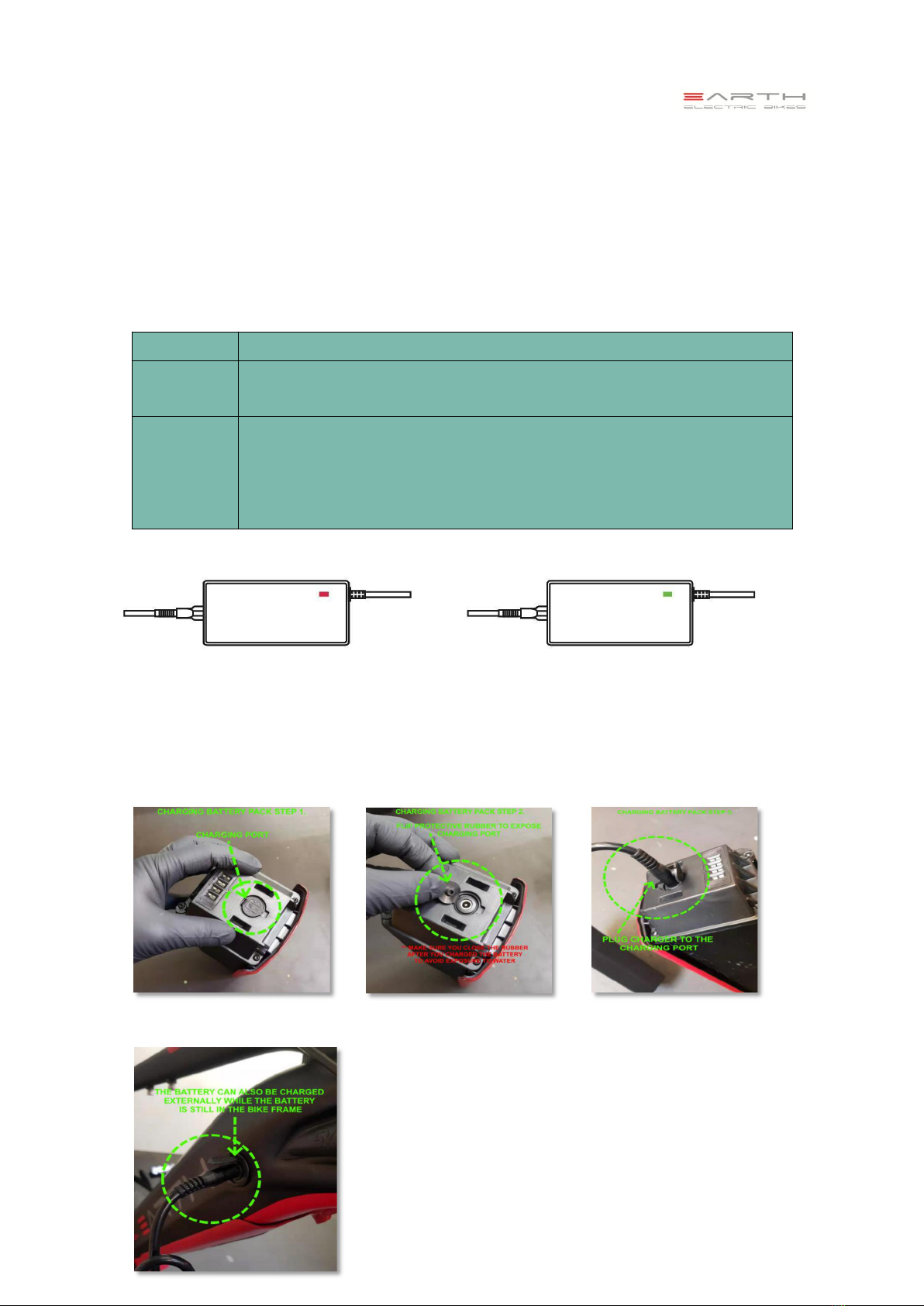

8.2 CHARGING THE BATTERY
Never let a battery be charged unattended. We recommend charging battery during the
day and NOT over night. The battery’s voltage is indicated by the LED lights located on the
battery, and also on the display unit located on the handlebar.
Your battery must be charged in an ambient temperature, on a non-flammable and dry
surface, away from any sources of heat, humidity or flammable materials. Also, it must
not be covered.
Here are the steps to be followed when charging your battery:
Step A
Remove battery from the bike.
Step B
Plug the charger into the socket and then insert the charger’s plug into
the battery, which is also off.
Step C
The charger’s LED indicators lit up in the following manner:
• The red LED light will be on:（A）the battery is beingcharged.
• The red LED light becomes green :（B）the battery is fully charged;
You can unplug the charger.
(A) (B)
It takes 2-8 hours for the battery to be fully charged when using the standard
charger that’s supplied with your bike. Will Vary depending on battery capacity.
Charging Battery off Bike
Charging Battery on Bike

8.3 BATTERY AUTONOMY AND LIFESPAN
Autonomy
The bike’s autonomy ranges from 60 to 110 kilometers EN15194 , as it
depends on many different factors (degree of assistance used, , rider’s
weight, frequent stops/start-ups, hills, tyre pressure, etc.…)
Battery
Your battery is just like a household battery. It contains a limited amount of energy,
which diminishes as it is being used over time. EARTH electric bike battery comes
with 2 Year limited warranty.
Maintenance
If you don’t use your bike for a period of time exceeding 2 months, store it in
a humidity-free area to protect the electronic components and make sure
that the battery is neither completely charged nor completely discharged .
8.4 BATTERY SAFETY INSTRUCTIONS
The battery is an electric component made up of chemical elements. For your safety, it
is imperative that you READ the following rules:
Note: Never store a completely discharged battery as it might result in permanent damage.
During the winter or long storage periods, it is recommended that you charge the battery halfway
every 2 months. Don’t forget to remove battery pack from your ebike. Store your battery at a
temperature between 15° and
Do not take it apart or drop, pierce or submerge in water
Keep it away from temperatures exceeding 45°C
Never create a connection between the contacts located at the bottom of the battery
Never leave battery charge unattended; Never sleep near a battery that
is charging
Only use the charger that came with your EARTH electric bike.
If your battery is damaged, do not use it and take it back to your dealer as soon as
possible.
Always handle with great care; Always keep it away from children
Keep away from flame or fire.

WARRANTY
Your EARTH electric bike comes with;
* 3 years frame warranty
* 1 years motor warranty
Register your EARTH bike online for an extra 1 year warranty
* 1 year bike parts & display panel warranty
Warranty is not transferable, NO exceptions
Details regarding the warranty coverage terms is
available from our EARTH website
www.earthbikes.com.au
Please make sure that you register your bike
serial number to activate warranty.
The serial number is located in front of the head tube.
