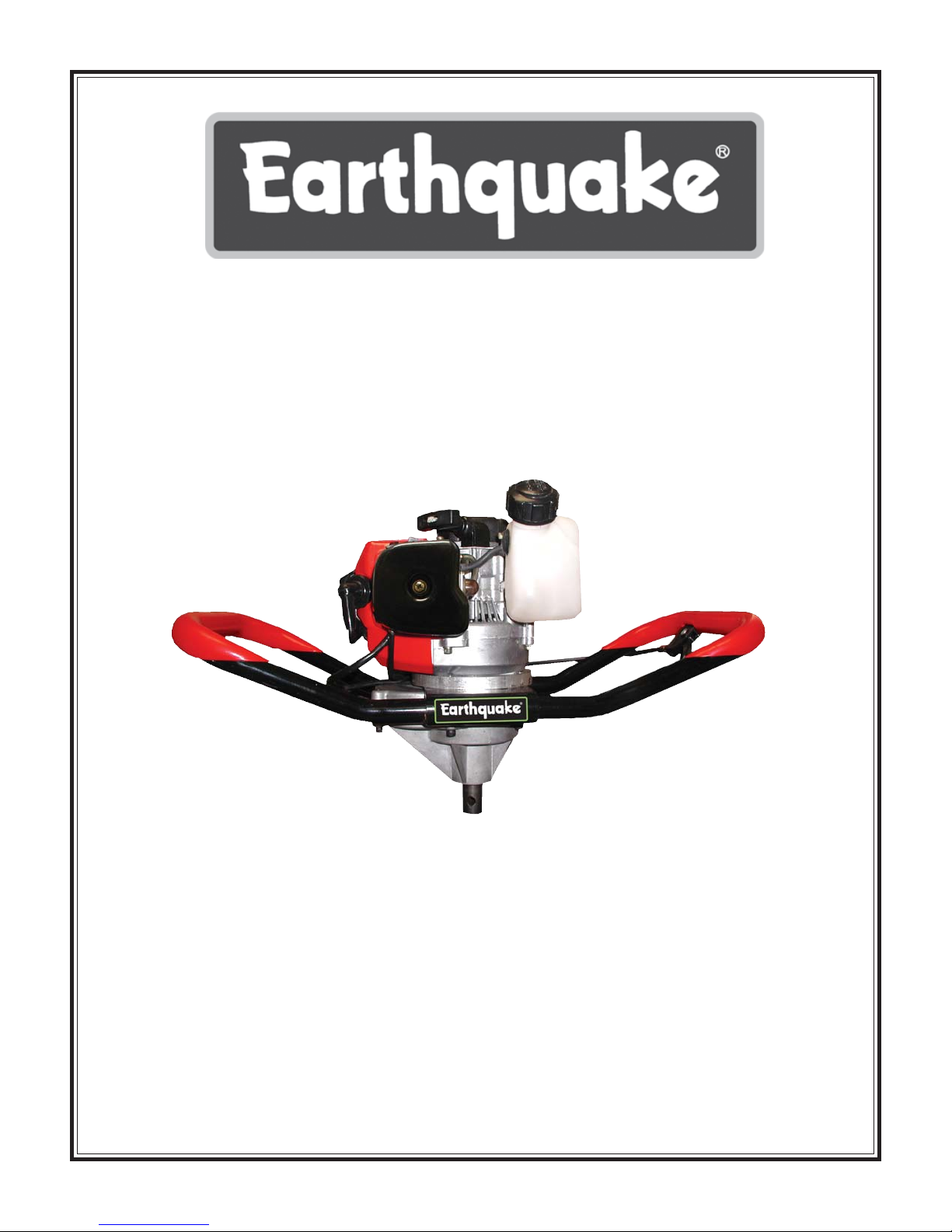

EarthQuake E43 earth auger powerhead User manual

E43 Power Earth Auger
Operator's Manual
IBE43
2/8/05
© Copyright 2005 Ardisam, Inc.
All Rights Reserved. Printed in USA.

1-800-345-6007 Page 2 www.ardisam.com
INTRODUCTION, REGISTRATION AND WARRANTY
THANK YOU . . .THANK YOU . . .
THANK YOU . . .THANK YOU . . .
THANK YOU . . .
for purchasing an Earthquake®Power Earth Auger from
Ardisam, Inc. We have worked to ensure that it meets high
standards for usability and durability. With proper care,
your auger will provide many years of service. Please take
the time to read this manual carefully to learn how to
correctly operate and maintain your auger. Congratulations
on your investment in quality.
WW
WW
WARRANTYARRANTY
ARRANTYARRANTY
ARRANTY
One Year Limited Warranty
The Ardisam, Inc., Manufacturing Company warrants this Earthquake®Earth Auger to be free from defects in
material or workmanship. Conditions of this warranty include:
What is covered under warranty:
Ardisam, Inc. will repair or replace any part defective in workmanship or material within one year after delivery of
the earth auger to the original purchaser.
What is not covered under warranty:
This warranty applies only to products which have not been repaired or altered outside our factory. It covers only
defects resulting from normal use, and does not cover defects arising from misuse, alteration, negligence,
commercial use, or accident. This warranty applies only to the original purchaser, and is not transferrable.
How to obtain service:
Return the product to us at the address below with transportation charges prepaid.
This warranty supersedes all other warranties either expressed or implied and all other obligations or liabilities on
our part. Ardisam, Inc., does not assume, and does not authorize any other person to assume for us, any liability
in connection with the sale of our products. This guarantee is void unless warranty card is properly filled out and
returned to Ardisam, Inc., Cumberland, Wisconsin, at time of purchase.
REGISTRAREGISTRA
REGISTRAREGISTRA
REGISTRATIONTION
TIONTION
TION
Fill out and mail the registration card located in your parts
packet. Warranty is valid only if your completed registration
card is received by Ardisam, Inc., at time of purchase.
Model Number _________________________________
Serial Number _________________________________
Engine Serial Number ___________________________
Date of Purchase ______________________________
Place of Purchase ______________________________
ARDISAM
Ardisam, Inc.
1690 Elm Street, Cumberland, WI 54829
Phone [phone] Fax [phone]
1-800-345-6007
Email [email protected]
www.ardisam.com

1-800-345-6007 Page 3 www.ardisam.com
SAFETYSAFETY
SAFETYSAFETY
SAFETY
Owner's ROwner's R
Owner's ROwner's R
Owner's Responsibilityesponsibility
esponsibilityesponsibility
esponsibility
Accurate assembly and safe and effective use of the auger
is the owner's responsibility.
•Read and follow all safety instructions.
•Carefully follow all assembly instructions.
•Maintain the auger according to directions and
schedule included in this earthquake operator’s manual.
•Ensure that anyone who uses the auger is familiar with
all controls and safety precautions.
Special MessagesSpecial Messages
Special MessagesSpecial Messages
Special Messages
Your manual contains special messages to bring attention
to potential safety concerns, machine damage as well as
helpful operating and servicing information. Please read all
the information carefully to avoid injury and machine
damage.
NOTE: General information is given throughout the
manual that may help the operator in the operation or
service of the machine.
Avoid damage! This text is used to tell the operator
of actions or conditions that might result in damage
to the machine.
Avoid injury! This symbol and text highlight potential
hazards or death to the operator or bystanders that
may occur if the hazards or procedures are ignored.
Important Safety PImportant Safety P
Important Safety PImportant Safety P
Important Safety Precautionsrecautions
recautionsrecautions
recautions
Please read this section carefully. Operate the auger
according to the safety instructions and recommendations
outlined here and inserted throughout the text. Anyone
who uses this auger must read the instructions and be
familiar with the controls.
This symbol points out important safety instructions
which if not followed could endanger your personal
safety. Read and follow all instructions in this manual
before attempting to operate this equipment.
•Do not carry the auger powerhead between holes with
the engine running.
•The auger should not rotate when the engine is idling. If
it does rotate when engine is idling, contact Ardisam, Inc.
for instructions.
•Always keep hands, feet, hair and loose clothing away
from any moving parts on engine and auger.
•Do not allow children to operate this power auger. Do not
allow adults to operate the auger without proper instruction.
•Do not operate any power equipment under the influence
of alcohol or drugs.
•Keep all screws, nuts and bolts tight.
•Engine should be turned off and cool, spark plug wire
must be removed from spark plug before any repairs are
attempted.
•Temperature of muffler and nearby areas may exceed
150° F (65° C). Avoid these areas.
•Never run engine indoors or in an enclosed area.
Engine exhaust contains carbon monoxide, an odorless
and deadly gas.
•If the earth auger becomes unturnable in a hole, turn
engine off and allow to cool before attempting to remove it
manually.
•Use only original equipment parts from Ardisam, Inc.
including all nuts and bolts.
CAUTION
CALIFORNIA PROPOSITION 65 WARNING
Engine exhaust from this product contains
chemicals known to the State of California to cause
cancer, birth defects, or other reproductive harm.
WARNING

1-800-345-6007 Page 4 www.ardisam.com
SAFETYSAFETY
SAFETYSAFETY
SAFETY
Engine Safety PEngine Safety P
Engine Safety PEngine Safety P
Engine Safety Precautionsrecautions
recautionsrecautions
recautions
Warning Carbon Monoxide Poisoning
All engines contain carbon monoxide in their exhaust.
Carbon monoxide is a deadly, colorless, tasteless,
odorless gas which may be present even if you do not
smell or see any engine exhaust. Levels of carbon
monoxide, which can be deadly, can be present for days in
an enclosed area that has poor ventilation. Any level of
carbon monoxide, if inhaled, can cause headaches,
drowsiness, nausea, dizziness, confusion and eventually
death. If you experience any of these symptons, seek
fresh air and medical attention immediately.
Preventing Carbon Monoxide Poisoning
•Never run engine indoors.
•Never try to ventilate engine exhaust indoors. Carbon
monoxide can reach dangerous levels very quickly.
•Never run engine outdoors where exhaust fumes may
be pulled into a building.
•Never run engine outdoors in a poorly ventilated area
where the exhaust fumes may be trapped and not easily
taken away. (Examples include: in a large hole or areas
where hills surround your working area.)
•Never run engine in an enclosed or partially enclosed
area. (Examples include: buildings that are enclosed on
one or more sides, under tents, car ports or basements.)
•Always run the engine with the exhaust and muffler
pointed in the direction away from the operator.
•Never point the exhaust muffler towards anyone. People
should always be many feet away from the operation of the
engine and its attachments.
Gasoline Fires and Handling Fuel Safely
Fuel and fuel vapors are highly flammable. Never use fuel
where a spark or flame may be present. Never use fuel
where a potential source of ignition could occur. (Examples
include: hotwater or space heaters, clothes dryer, electric
motors, etc.) Keep flames and sparks away from engine
and fuel to prevent fires. Fuel fires spread very quickly and
are highly explosive.
Prevention of Gasoline Fires
•Never fill your fuel tank with fuel indoors. (Examples
include: basement, garage, barn, shed, house, porch, etc.)
•Always fill fuel tank outside in a well ventilated area.
•Never remove the fuel cap or add fuel with the engine
running. Stop engine and allow to cool before filling.
•Never drain fuel from engine in an enclosed area.
•Always wipe up excess (spilled) fuel from engine before
starting. Clean up spilled fuel immediately.
•Allow spilled fuel to dry, after wiping and before starting.
•Allow fuel fumes/vapors to escape from the area before
starting engine.
•Test the fuel cap for proper installation before starting
and using engine.
•Always run the engine with fuel cap properly installed
on the engine.
•Never smoke while refilling engine fuel tank.
•Prevent fire and explosion caused by static electric
discharge. Use only non-metal, portable fuel containers
approved by the Underwriter’s Laboratory (U.L.) or the
American Society for Testing & Materials (ASTM).
•Do not store engine with fuel in fuel tank indoors. Fuel
and fuel vapors are highly explosive.
•Never pour fuel from engine fuel tank.
•Never siphon fuel by mouth to drain fuel tank.
•Always have an adult fill the fuel tank.
•Never allow an adult or anyone under the influence of
drugs or alcohol to fill engine.
•Never allow children to fill the engine.
•The clutch will transfer maximum power after about two
hours of normal operation. During this break-in period clutch
slippage may occur. The clutch should be kept free of oil or
other moisture for efficient operation.

1-800-345-6007 Page 5 www.ardisam.com
SAFETYSAFETY
SAFETYSAFETY
SAFETY
Burns and FiresBurns and Fires
Burns and FiresBurns and Fires
Burns and Fires
The muffler, muffler guard and other parts of the engine
become extremely hot during the operation of the engine.
These parts remain extremely hot after the engine has
stopped.
Prevention of Burns and Fires
•Never remove the muffler guard from the engine.
•Never touch the muffler guard because it is extremely
hot and will cause severe burns.
•Never touch parts of the engine that become hot after
operation.
•Always keep materials and debris away from muffler
guard and other hot parts of the engine to avoid fires.
Steps for WSteps for W
Steps for WSteps for W
Steps for Working on Engine or Attachmentorking on Engine or Attachment
orking on Engine or Attachmentorking on Engine or Attachment
orking on Engine or Attachment
1. Turn off engine switch.
2. Disconnect the spark plug wire from the spark plug.
3. Securely place the disconnected spark plug wire away
from the spark plug and any metal parts. This must always
be done or arcing may occur between spark plug wire and
metal parts.
4. Replace or repair the part on the engine or attachment.
5. Check all parts that were repaired, or removed during
repair, that they are secure and fit correctly.
NOTE: All repair parts must come from the factory.
Never replace parts that are not specifically designed
for the engine or attachment.
6. Replace spark plug wire.
Avoid injury! When working on or replacing parts for
the engine or attachments you must always
disconnect spark plug wire from the spark plug and
keep it away from the spark plug.
CAUTION
Avoid injury! Always wear hearing protection while
operating engine.
CAUTION
Avoid injury! Please do not start your auger until you
have read the previous section of this manual. If you
have read these, follow the steps below to start your
auger.
CAUTION
PP
PP
Preparing Engine for Startingreparing Engine for Starting
reparing Engine for Startingreparing Engine for Starting
reparing Engine for Starting
GAS AND OIL
Quality
To operate the engine you must use a high quality 2-cycle
oil to ensure that the engine operates correctly during the
break-in period and the life of the engine. Use unleaded
regular or unleaded premium gas only.
Mixture
Run earth auger with a 20:1 ratio for the first 20 hours of
operation. After 20 hours of use, mix at a ratio of 25:1. See
charts 1 & 2.
CHART 1
CHART 2
Do Not Alter/Modify Engine or Attachments:
Avoid injury! Never alter or modify the engine from
the factory. Serious injury or death may occur if
engine is modified or altered.
CAUTION
SAG LIO 1OITAR
nollag1secnuo61:02
snollag2secnuo211:02
snollag5secnuo031:02
SAG LIO 1OITAR
nollag1secnuo51:52
snollag2secnuo011:52
snollag5secnuo621:52

1-800-345-6007 Page 6 www.ardisam.com
Mixing FMixing F
Mixing FMixing F
Mixing Fuel and Filling Fuel and Filling F
uel and Filling Fuel and Filling F
uel and Filling Fuel Tuel T
uel Tuel T
uel Tankank
ankank
ank
Mixing Fuel
1. Fuel must be mixed in a container outside in a well
ventilated area.
2. Fill certified fuel container 1/4 full of recommended fuel.
3. Add recommended amount of 2-cycle oil.
4. Screw container cap on straight and tight.
5. Shake the container to mix fuel and oil.
6. Unscrew cap slowly to vent. Add the remainder of fuel
requirements.
7. Wipe away any spilled fuel or oil and allow to
evaporate before moving or transporting.
Avoid injury! Never store engine with fuel in the tank
indoors. Fuel and fuel vapors are highly flammable.
CAUTION
Avoid injury! Never mix fuel and oil directly in engine
fuel tank. Use only non-metal, portable fuel containers
approved by the Underwriter’s Laboratory (U.L.) or
the American Society forTesting & Materials (ASTM).
CAUTION
Avoid injury! An adult must always handle and fill
the engine with fuel.
CAUTION
Avoid injury! Always handle gas in a well ventilated
area, outdoors, away from flames or sparks.
CAUTION
This engine uses a gas/oil mixture. DO NOT run on
straight gas only, engine damage will result.
Filling Fuel Tank
1. Shut-off engine and allow engine to completely cool
before refilling the fuel tank.
2. Move to a well ventilated area, outdoors, away from
flames and sparks.
3. Clean debris from area around the fuel cap.
4. Loosen fuel cap slowly. Place the cap on a clean, dry
surface.
5. Carefully add fuel without spilling.
6. Do not fill gas tank completely full, allow space for fuel
to expand.
7. Immediately replace fuel cap and tighten. Wipe off
spilled fuel and allow to dry before starting engine.
AssemblyAssembly
AssemblyAssembly
Assembly
To attach the throttle control trigger assembly (#4809) to the
handlebar, screw the provided 10-24 x 1-1/4” phillips head
bolt through the handlebar and into the trigger assembly.
There is a 10-24 square nut fastened inside the trigger
housing. Screw the bolt into the square nut and tighten
securely. DO NOT OVERTIGTEN!
To attach auger to powerhead, align hole in at top of shaft
with output shaft hole. Insert bolt and secure bolt with
provided nut or allen wrench depending on size of auger.
NOTE:The ends of the bolt should be flush with auger
collar. Bolt head and thread end should never go
beyond earth collar.
Avoid injury! DO NOT start engine if fuel is spilled.
Wipe off excess fuel and allow to dry. Remove engine
from area to avoid sparks.
CAUTION
OPERAOPERA
OPERAOPERA
OPERATIONTION
TIONTION
TION

1-800-345-6007 Page 7 www.ardisam.com
Starting and Stopping EngineStarting and Stopping Engine
Starting and Stopping EngineStarting and Stopping Engine
Starting and Stopping Engine
1. Move engine to a well ventilated area, outdoors, to
prevent carbon monoxide poisoning.
2. Move to an area away from flames or sparks, to avoid
ignition of vapors if present.
3. Remove all debris from air cleaner holes and fuel cap
to ensure proper air flow.
4. Turn switch to the ON position.
5. Priming:
•When using the primer bulb, allow the bulb to return
completely to its original position between pushes.
•Choke must be in the OFF position when pushing or
using the primer bulb.
First Start: Starting new engine for first time or after
running out of gas, prime 3 times.
Cold Start: Starting engine after it has been sitting or
stored briefly with fuel in the tank, prime 1 time above 55°
Farenheit or 2 times below 55°Farenheit.
Warm Start: Do not use primer or full choke if engine did
not run out of gas or has not cooled completely. Flooding
of engine will occur.
6. Choke:
•Full choke position is defined by moving the choke lever
as far to the ON position as possible. Half choke is
defined when the choke lever is between ON and OFF.
First Start & Cold Start: After priming, move choke lever
to full choke.
Warm Start: No choke or half choke is needed.
7. Grasp starter handle and pull out slowly, until it pulls
slightly harder.Without letting it retract, pull rope with a rapid
full arm stroke. Let it return to its original position very
slowly. Repeat this step everytime the starter rope is pulled.
Avoid injury! Starter rope can cause an unanticipated
jerk towards engine. Please follow instructions to
avoid injury.
CAUTION
8. Pull recoil until engine fires or runs.
NOTE: If engine fails to start after 5-6 pulls, push
primer 1 time and pull starter rope again.
9. After engine starts running, move choke lever to HALF
CHOKE.
10. Run engine for 30 to 45 seconds at half choke position
until engine warms up.
11. Move choke lever to OFF position and move throttle to
desired speed.
12. To stop, flip switch to OFF position.
DO NOT attempt to start engine in the following ways:
••
••
•DO NOT use starting fluid.
••
••
•DO NOT spray flammable liquids or vapors into air
cleaner, carburetor or spark plug chamber.
••
••
•DO NOT remove spark plug and pull on starter
rope. Flammable fuel can spray out & ignite from a
spark from spark plug.
Avoid injury! If engine fails to start after the above
operations, please contact Ardisam, Inc. at 1-800-345-
6007.
CAUTION
Avoid injury! Never leave engine running while
unattended. Turn off after every use.
CAUTION
Avoid injury! Never carry powerhead and auger
between holes while engine is running.
CAUTION
OPERAOPERA
OPERAOPERA
OPERATIONTION
TIONTION
TION
Normal OperationNormal Operation
Normal OperationNormal Operation
Normal Operation
1. The clutch will transfer maximum power after
about two hours of normal operation. During this break-in
period clutch slippage may occur. The clutch should be
kept free of oil and other moisture for efficient operation.
2. Dig holes without placing excessive body weight on the
unit. The auger operates most efficiently with a shaving
action caused by the weight of the unit itself.
3. Never run engine indoors. Exhaust fumes are deadly.

1-800-345-6007 Page 8 www.ardisam.com
To prevent accidental starting:
Avoid injury! Engine must be turned off and cool,
and spark plug wire must be removed from spark plug
before checking and adjusting engine or equipment.
CAUTION
Avoid injury! Engine must be shut-off, cool, and spark
plug wire removed before any repair or maintenance
can be done.
CAUTION
Avoid injury! Temperature of muffler and nearby
areas may exceed 150° F (65° C). Avoid these areas.
CAUTION
Avoid injury! Check auger often for loose nuts and
bolts. Keep these items tightened.
CAUTION
Cooling Fins
•Cooling fins, air inlets and linkages must be free from
any debris before each use.
Air Filters
•Never run engine without air cleaner properly installed.
Added wear and engine failure may occur if air cleaner is
not installed on engine.
•Service air cleaner every 3 months or after 20 hours of
operation. Clean and oil filter daily in extremely dusty
conditions.
Steps for Cleaning Air Filters
1. Wash in warm water with mild soap until dirt and debris
are removed. Press filter when washing, do not twist.
2. Rinse in warm water until soap and dirt are removed.
3. Dry filter by wrapping in a clean cloth and pressing filter
until it is dry.
4. Apply oil to the entire filter.
5. Remove excess oil.
6. Attach the filter and filter cover to the engine.
Spark Plug
•Check spark plug every 50 operating hours.
1. Remove dirt and debris around the spark plug before
removing.
2. Remove spark plug and replace if any of the following
have occured: pitted electrodes, burned electrodes,
cracked porcelain, or deposits around the electrodes.
3. Check spark plug for proper gap (.025” to .030”).
4. After analysis of the spark plug, install original or a new
spark plug and tighten securely.
NOTE: DO NOT OVERTIGHTEN!
NOTE: CROSS REFERENCE SPARK PLUG IS
CHAMPION CJ8.
Carburetor
•Never tamper with factory setting of the carburetor.
MAINTENANCE AND STMAINTENANCE AND ST
MAINTENANCE AND STMAINTENANCE AND ST
MAINTENANCE AND STORAGEORAGE
ORAGEORAGE
ORAGE
Auger MaintenanceAuger Maintenance
Auger MaintenanceAuger Maintenance
Auger Maintenance
1. The gear case has 4 oz. of grease installed at the
factory. It is recommended that once a year the gear case
be split and the grease level checked. Add grease only if
level of grease is below top of the gears. A high quality
lithium grease is recommended, which can be purchased at
most automotive and hardware stores.DO NOT OVERFILL.
2. Keep all screws, nuts, and bolts tight.
3. For cold weather operation, store the unit in a cool
environment. Transferring the unit from a warm to a cold
place can cause the build up of harmful condensation.
Engine MaintenanceEngine Maintenance
Engine MaintenanceEngine Maintenance
Engine Maintenance
Avoid injury! Never store engine with fuel in the tank
inside a building. Potential sparks may be present
for ignition of fuel and fuel vapors.
CAUTION
Avoid injury! An adult must always do maintenance
and repair on engine and atachments.
CAUTION
Never twist air filters when cleaning. Always press.

1-800-345-6007 Page 9 www.ardisam.com
Avoid injury! To avoid injury or death, never siphon
fuel by mouth.
CAUTION
Long TLong T
Long TLong T
Long Term Storageerm Storage
erm Storageerm Storage
erm Storage
•If your earth auger will not be used for more than one
month, prepare it for long term storage.
Steps for Long Term Storage
1. Add fuel stabilizer according to manufacturer’s
instructions.
2. Run engine for 10-15 minutes to ensure that the
stabilizer reaches the carburetor.
3. Remove the remainder of the fuel from the gas tank into
an approved fuel container.
4. Remove auger from powerhead and apply a thin layer of
grease to the output shaft (8913).
5. Store auger and powerhead (engine) in a vertical position.
6. Remove all debris from auger and powerhead (engine).
Avoid injury! Never store earth auger with fuel in the
fuel tank inside an enclosed area or building.
CAUTION
MAINTENANCE AND STMAINTENANCE AND ST
MAINTENANCE AND STMAINTENANCE AND ST
MAINTENANCE AND STORAGEORAGE
ORAGEORAGE
ORAGE
TT
TT
Transporting Yransporting Y
ransporting Yransporting Y
ransporting Your Earth Augerour Earth Auger
our Earth Augerour Earth Auger
our Earth Auger
1. Never transport engine inside an enclosed space or
vehicle. Fuel or fuel vapors may ignite causing serious
injury or death.
2. If fuel is present in the fuel tank, transport in an open
vehicle in an upright position.
3. If an enclosed vehicle must be used, remove gas into
an approved red gasoline container. DO NOT siphon by
mouth.
4. Run engine to use up the fuel in the carburetor and
fuel tank. Always run engine in a well ventilated area.
5. Wipe away any spilled fuel from engine and earth
auger. Allow to dry.

1-800-345-6007 Page 10 www.ardisam.com
ORDERING REPORDERING REP
ORDERING REPORDERING REP
ORDERING REPAIR PARTSAIR PARTS
AIR PARTSAIR PARTS
AIR PARTS
Parts can be obtained from the store where your auger
was purchased or direct from the factory. To order from the
factory, call or write to:
Please include the following information with your order:
1. Part numbers
2. Part description
3. Quantity
4. Model number and serial number
Ardisam, Inc.
1690 Elm Street, Cumberland, WI 54829
Phone [phone] Fax [phone]
1-800-345-6007
Email [email protected]
www.ardisam.com
SERVICE INFORMASERVICE INFORMA
SERVICE INFORMASERVICE INFORMA
SERVICE INFORMATIONTION
TIONTION
TION
At Ardisam, we build quality and durability into the design
of our products; but no amount of careful design by us,
and careful maintenance by you, can guarantee a repair-
free life for your auger. Most repairs will be minor, and
easily fixed by following the suggestions in the
troubleshooting guide in this section.
The guide will help you pinpoint the causes of common
problems and identify remedies.
For more complicated repairs, you may want to rely on
your retailer, an authorized mechanic or Ardisam, Inc.
(contact your retailer for a list of authorized mechanics in
your area). A parts catalog is included in this section.
We will always be glad to answer any questions you have,
or help you find suitable assistance. To order parts or
inquire about warranty, call or write us at the address
found in the next column under the section ordering repair
parts or check out our website - www.ardisam.com.
SERVICESERVICE
SERVICESERVICE
SERVICE, TROUBLESHOO, TROUBLESHOO
, TROUBLESHOO, TROUBLESHOO
, TROUBLESHOOTING AND REPTING AND REP
TING AND REPTING AND REP
TING AND REPAIRAIR
AIRAIR
AIR
IN CASE OF A SERVICE PROBLEM, DO NOT SEND
UNIT BACK TO RETAILER. CONTACT ARDISAM, INC.
AT 1-800-345-6007.WE WELCOME YOUR CALL.

1-800-345-6007 Page 11 www.ardisam.com
TROUBLESHOOTROUBLESHOO
TROUBLESHOOTROUBLESHOO
TROUBLESHOOTINGTING
TINGTING
TING
Problem Possible cause Remedy/Action
Engine will not start
Engine runs rough, floods during opera-
tion
Engine is hard to start
Engine misses or lacks power
Auger turns at idle
Auger turns, but has no power
Auger jumps
Auger cuts slowly
Engine runs, then quits
Engine revs too high
1. Flip switch to on position
2. Connect spark plug wire to spark plug
1. Clean or replace air cleaner
2. Turn off choke
3. Call factory
1. Drain old fuel and replace with fresh.
Use gas stabilizer at end of season
2. Make sure spark wire is securely
attached to spark plug
3. Clean carburetor, use gas stabilizer,
new gas can
1. Remove and clean
2. Clean or replace
3. Call factory
4. Replace spark plug and adjust gap
1. Adjust idle speed lower
2. Replace both springs
1. Turn off choke after engine is running
2. Call factory
3. Call factory
4. Replace clutch shoes and springs
5. Call factory
1. Install new blades
1. Replace blades
2. Replace fishtail point
1. Check self venting gas cap
1. Add fuel to tank
1. Power switch off
2. Spark plug wire disconnected
1. Dirty air cleaner
2. Choke partially engaged
3. Carburetor out of adjustment
1. Stale fuel
2. Spark plug wire loose
3. Dirty carburetor
1. Clogged fuel tank
2. Clogged air cleaner
3. Improper carburetor adjustment
4. Spark plug dirty, improper gap, or
wrong type
1. Idle speed too high
2. Broken clutch spring
1. Choke on
2. Carburetor out of adjustment
3. Broken transmission
4. Worn clutch shoes
5. Worn engine lower seal
1. Blades damaged
1. Dull blades
2. Damaged fishtail point
1. Gas cap not venting
1. Low fuel in tank
SERVICESERVICE
SERVICESERVICE
SERVICE, TROUBLESHOO, TROUBLESHOO
, TROUBLESHOO, TROUBLESHOO
, TROUBLESHOOTING AND REPTING AND REP
TING AND REPTING AND REP
TING AND REPAIRAIR
AIRAIR
AIR
Practice safety at all times. Engine must be turned off
and allowed to cool, and spark plug wire must be
disconnected before attempting any maintenance or
repair.
CAUTION

1-800-345-6007 Page 12 www.ardisam.com
E43 ENGINE PE43 ENGINE P
E43 ENGINE PE43 ENGINE P
E43 ENGINE PARTS LISTARTS LIST
ARTS LISTARTS LIST
ARTS LIST

1-800-345-6007 Page 13 www.ardisam.com
E43 ENGINE PE43 ENGINE P
E43 ENGINE PE43 ENGINE P
E43 ENGINE PARTS LISTARTS LIST
ARTS LISTARTS LIST
ARTS LIST
MINIMUM ORDER ........................................................................... $10.00
POWERHEAD PARTS
Part # Description Qty.
1021 Rocker Switch 1
4812 Muffler Cover, Metal 1
300401 Fuel Tank Cap 1
300412 Clutch Spring 1
300429 Recoil Plate 1
300430 Recoil Assembly 1
300435 Air Filter 1
300437 Fuel Tank 1
300438 Bolt w/washer, M5 x 25mm 6
300439 Bolt w/washer, M5 x 18mm 9
300442 Clutch Rotor Shoe 2
300444 Fuel Tank Support 2
300445 Washer, M5 2
300449 Rotor Shoulder Bolt Spring Washer 2
300450 Rotor Assembly Shoulder Bolt 2
300454 Intake Cover 1
300455 Intake Cover Adapter Plate 1
300456 Bolt, M5 x 50mm 2
300457 Air Filter Cover 1
300458 Intake Cover 1
300462 Rotor Washer 2
300463 Engine Shroud Grommet 1
300466 Fuel Tank Grommet 1
300467 Locating Pin 2
Part # Description Qty.
300470 Fuel Line Hose & Filter 1
300471 Bolt, M5 x 12mm 3
300472 Ignition Coil 1
300474 Catylatic Converter Muffler 1
300475 Muffler Gasket 1
300476 Intake Gasket 2
300477 Heat Disk 1
300478 Intake Windpipe 1
300479 Carburetor Gasket 1
300480 Fuel Tank Threaded Spacer 2
300482 Engine Shroud 1
300483 Engine Shroud Cover 1
300484 Magneto Flywheel 1
300485 Air Deflector 1
300486 Carburetor 1
300487 Engine Mounting Cover 1
300488 Choke 1
300489 Choke Lever 1
300490 Primer Line Hose 1
300491 Recoil Clutch 1
300492 Nut, M6 2
300493 Stud Bolt, M6 x 62mm 2
BM6A Spark Plug 1

1-800-345-6007 Page 14 www.ardisam.com
E43 PE43 P
E43 PE43 P
E43 PARTS LISTARTS LIST
ARTS LISTARTS LIST
ARTS LIST

1-800-345-6007 Page 15 www.ardisam.com
MINIMUM ORDER ........................................................................... $10.00
E43 PE43 P
E43 PE43 P
E43 PARTS LISTARTS LIST
ARTS LISTARTS LIST
ARTS LIST

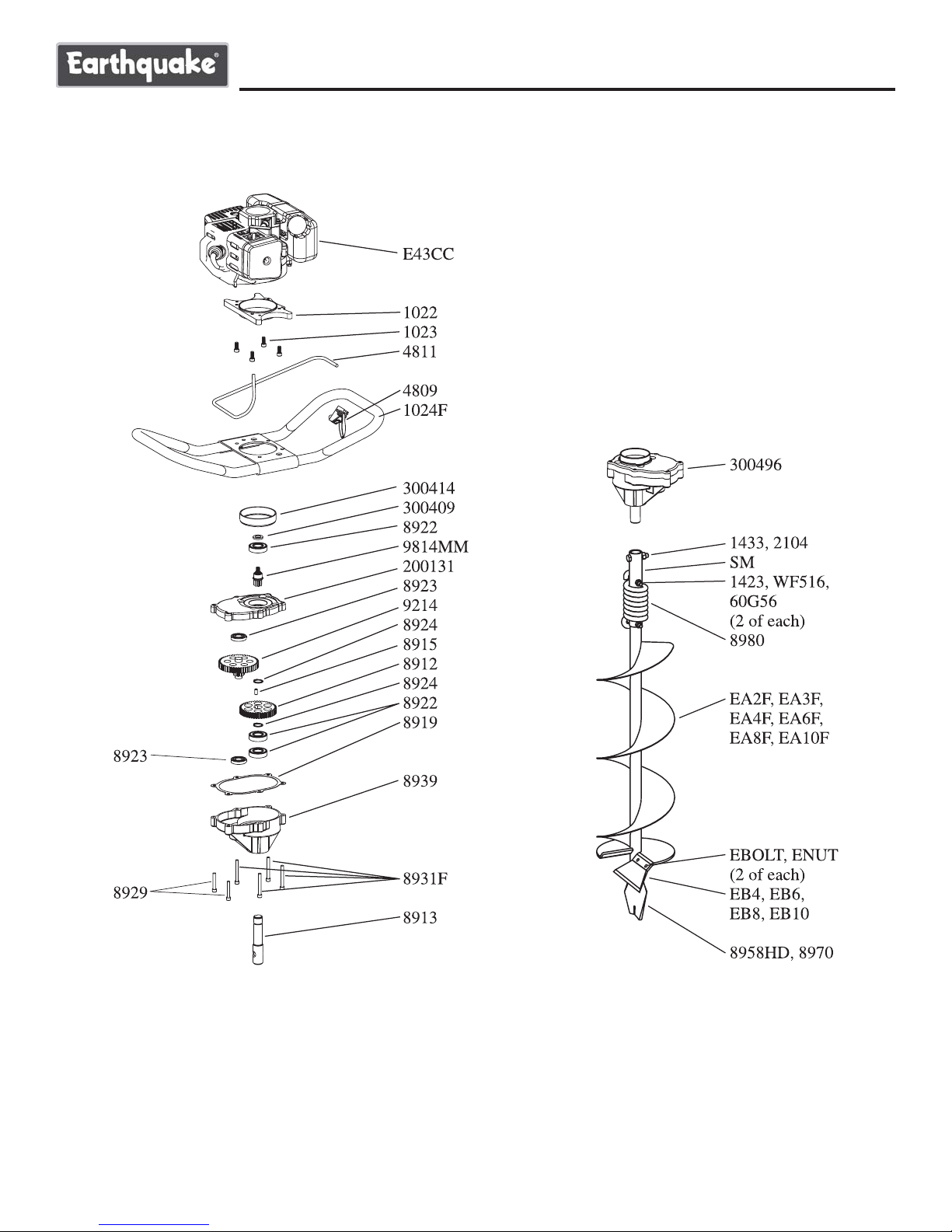

POWERHEAD PARTS
Part # Description Qty.
1022 Adapter Ring 1
(engine to handlebar plate)
1023 Bolt, M6 x 1 x 16mm 4
(ring to engine)
1024F HandleBar 1
4800 Throttle Housing 1
4802 Trigger Torsion Spring 1
4803 Grooved Clevis Pin, 188 dia. 1
4804 E-Clip 1
4806 Throttle Trigger 1
4807 Screw-Soc Hd Cap, 6-32 UNC x 1/2” 1
4809 Throttle Trigger Assembly 1
(includes 4800, 4802, 4803, 4804, 4806, 4807, 4810)
4810 1
4811 Throttle Cable 1
8904WC Screw, Philips Pan Hd, #10 x 1-1/4” 1
8912 44T Gear 1
8913 Output Shaft, 7/8" 1
8915 Dowel Pin, 1/4” x 1/2”, hardened steel 1
8919 Gasket 1
8922 Ball Bearing 3
8923 Ball Bearing 2
8924 Snap Ring 2
8929 Bolt-SHCS, 1/4-20 x 1-1/2" 2
(gear case bottom to gear case top)
8931F Bolt-SHCS, 1/4-20 x 2" 4
(gear case to ring)
8939 Gear Case Bottom 1
9214 48T & 10T Pinion Gear Cluster, left hand thread 1
9814MM Pinion Gear, 7 tooth threaded 1
200131 Gear Case Top 1
300409 Spacer-Drum 1
300414 Clutch Drum 1
300496 Complete Transmission 1
E43CC Gas Engine, 43cc 1
EARTH AUGER PARTS
Part # Description Qty.
60G56 Nut-Hex 2-way reversible locknut, 5/16-18 2
1423 Bolt-HHCS, 5/16-18 x 2”, Grade 5 2
(auger shock spring)
1433 Bolt-HHCS, 3/8-16 x 1-1/2” 2
(auger to powerhead)
2104 Nut-Hex Locking, 3/8-16 2
8958HD Fishtail Point 1
(used on 4” or larger earth auger)
8970 Fishtail Point 1
(used on 2” & 3” earth auger)
8980 Shock Spring 1
EA2F Earth Auger, 2” w/fishtail point 1
EA3F Earth Auger, 3” w/fishtail point 1
EA4F Earth Auger, 4” w/fishtail point 1
EA6F Earth Auger, 6” w/fishtail point 1
EA8F Earth Auger, 8” w/fishtail point 1
EA10F Earth Auger, 10” w/fishtail point 1
EB4 Earth Blade, 4” 1
(includes EBOLT & ENUT)
EB6 Earth Blade, 6” 1
(includes EBOLT & ENUT)
EB6HD Heavy Duty Earth Blade, 6” 1
(includes EBOLT & ENUT)
EB8 Earth Blade, 8” 1
(includes EBOLT & ENUT)
EB8HD Heavy Duty Earth Blade, 8” 1
(includes EBOLT & ENUT)
EB10 Earth Blade, 10” 1
(includes EBOLT & ENUT)
EB10HD Heavy Duty Earth Blade, 10” 1
(includes EBOLT & ENUT)
EBOLT Bolt-Hex, 1/4-28 x 5/8”, Grade 5 2
(earth blade to auger)
ENUT Nut-Nyloc, 1/4-28 2
SM Shock Mechanism 1
(used on 6” or larger earth auger)
WF516 Washer-Flat, 5/16” 2
ACCESSORIES
EXT6 Depth Extension, 6"
EXT12 Depth Extension, 12"
EXT18 Depth Extension, 18"

Ardisam, Inc.
1690 Elm Street, Cumberland, Wisconsin 54829
Phone [phone] •Fax [phone]
1-800-345-6007
Email [email protected]
www.ardisam.com
