Earthworks QTC Series User manual

Technical Support
Should you have any questions regarding your
QTC50 microphone please contact us:
e-mail: [e-mail]
phone: [phone], ext. 19
(9am – 5pm ET)
For warranty and product return/ex-
change information please refer to the
back of the enclosed Calibration Chart.
FIFTEEN-YEAR WARRANTY
All Earthworks products (excluding acces-
sories) carry a fifteen-year limited warranty
(parts and labor). If you have any problems
with your Earthworks products, please con-
tact our warranty/repair department by email
at: [e-mail] or by tele-
phone at [phone], Ext. 19.
Earthworks, Inc.
37 Wilton Rd.
Milford, NH 03055 USA
Phone: [phone]
Fax: [phone]
earthworksaudio.com
Made in U.S.A.
Printed in U.S.A.

Description
Earthworks QTC50 is an omnidirectional
(pressure) pre-polarized condenser micro-
phone directly coupled to a dedicated wide-
band, low output impedance preamplifier.
The QTC50 requires a standard 48V phan-
tom power supply. It features an extended
linear free-field frequency response from
3Hz to 50kHz (Fig. 2), extremely fast im-
pulse response (Fig. 3), low self-noise, very
low handling noise, uniform polar pattern,
and high SPL handling capabilities. It exhib-
its no proximity effect.
Each microphone is delivered with its own
calibration chart providing the individu-
ally measured frequency response curve. A
mounting clip is included with the micro-
phone.
Applications
Earthworks QTC50 is easy to operate. Con-
nect the microphone to a microphone pre-
amplifier supplying 48V phantom power us-
ing a standard XLR microphone cable. Please
allow up to one minute for the microphone
to settle. Plugging in the microphone “hot”
(phantom power already present at the in-
put) will not damage the microphone, and is
actually preferred for faster settling. It is nor-
mal for any phantom powered mic to “pop”
when plugged in or powered up. Make sure
to mute the signal to speakers or headphones
when phantom power is first applied.
The QTC50 is a premium microphone de-
signed for recording quieter sources such
as vocals, strings, woodwinds, and distant-
miked orchestras or choirs. For classical loca-
tion recording a matched pair will provide
spectacular results.It is ideal for quieter, more
detailed sources and does not have most of
the problems and limitations generally as-
sociated with competitive microphones. Its
impulse response and diaphragm settling time
is extraordinary, resulting in the most pure and
uncolored sound.
This microphone has no removable parts.
Care of Microphones
Earthworks QTC50 microphone is a precision
instrument designed and built to provide years
of top performance. Following these simple
rules will help to protect your investment in
the QTC50:
•Avoidtouchingthefrontprotectivescreen.
•Neverattempttodisassemblethemicro-
phone – it cannot be opened.
•Avoidextremeheatandcondensinghu-
midity.Allow the microphone to warm
up in the case when bringing it in from
the cold weather.
•Roughhandlingmaydamagethemicro-
phone even if no visible marks are left.
•WhennotinusekeeptheQTC50initscase
Specications
Frequency response: 3Hz to 50kHz +1/-3dB
Polar Pattern: Omnidirectional (Fig. 4)
Sensitivity: 30mV/Pa (Typical)
Power Requirements: 48V Phantom, 10mA
Peak Acoustic Input: 142dB SPL
Output: XLR-3 (Fig. 1)
Output Impedance: 100Ω, balanced
(50Ωea. pin 2 & 3)
Minimum Load: 600Ωbtw. pins 2 & 3
Noise: 22dBA equivalent
Dimensions L x D: 9 x .860 in.
(229 x 22 mm)
Weight: 0.5lb (225g)
Compliant

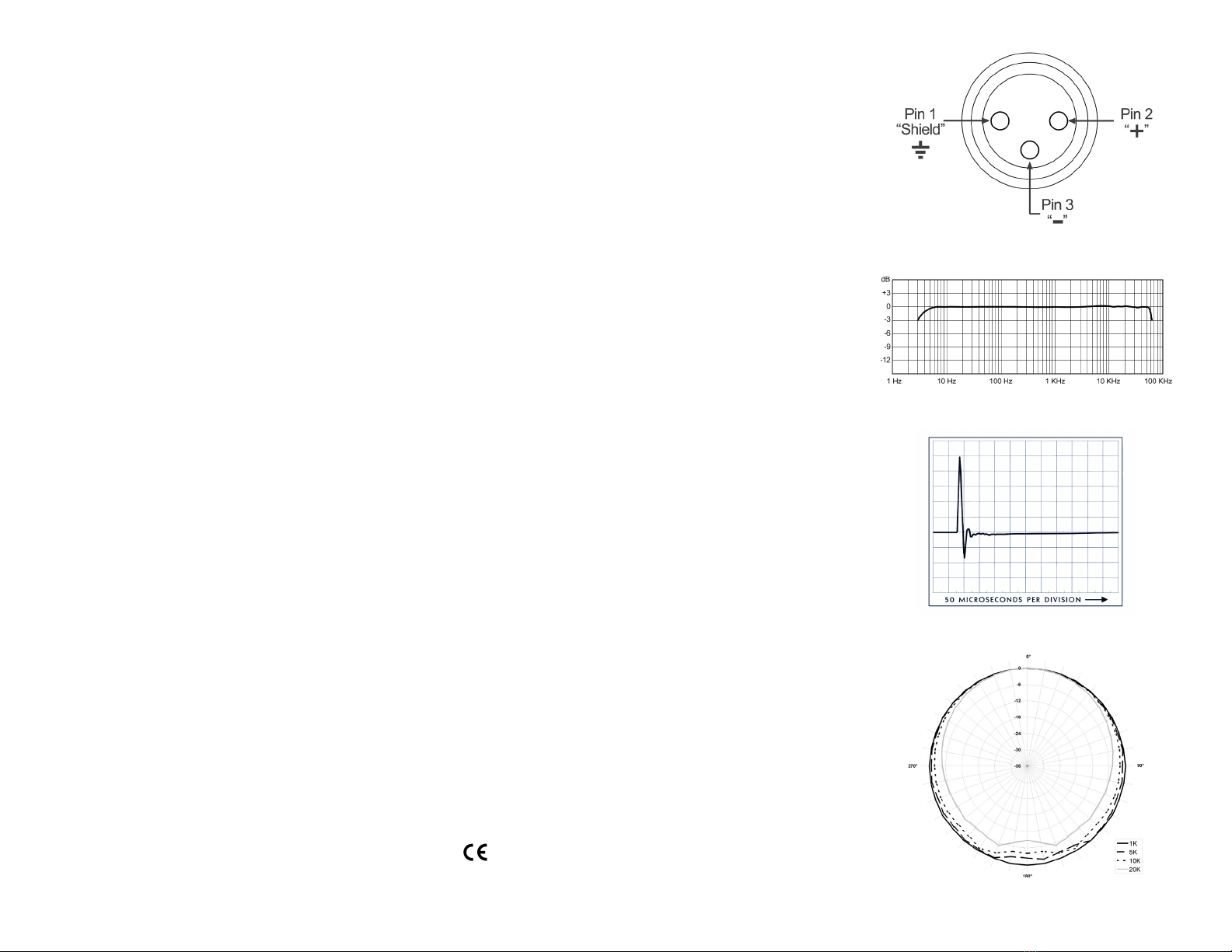

Fig 1. XLR Output Connector Assignment of QTC50
Fig 3. Impulse Response (Typical) of QTC50
Fig 4. Polar Response (Typical) of QTC50
Fig 2. Frequency Response (Typical) of QTC50
Specications are subject to change without notice.
Version 3, July 7, 2011
