East EA990 Super User manual

200 kVA-1200 kVA

User Manual 200 kVA-1200 kVA UPS Legal Information
1
Legal Information
Without the written permission of the company, no unit or individual is allowed to partially or wholly extract or
copy, and distribute the contents of this document in any form.
NOTICE
The products, services or features purchased by you are subject to commercial contracts and terms, and all or
some of the products, services or features described in this document may not be consistent with your purchase or
use purpose. Unless otherwise agreed in the contract, we do not make any express or implied representations or
warranties regarding the contents of this document.
Due to product version upgrade or other reasons, the contents of this document will be updated from time to time.
Unless otherwise agreed, this document serves only as a use guidance, and all statements, information, images and
recommendations contained in this document do not constitute any express or implied warranty.

User Manual 200 kVA-1200 kVA UPS Table of Contents
2
Table of Contents
1 Safety Information ................................................................................................................................................ 4
1. 1 General Information .................................................................................................................................... 4
1. 2 UPS Safety .................................................................................................................................................. 4
1. 3 Battery Safety ............................................................................................................................................. 5
1. 4 Symbol Descriptions ................................................................................................................................... 5
2 Product Overview ................................................................................................................................................. 6
2. 1 Product Description .................................................................................................................................... 6
2. 2 Model Description ...................................................................................................................................... 6
2. 3 Working Principles ..................................................................................................................................... 6
2. 3. 1 Functional Block Diagram .................................................................................................................. 6
2. 3. 2 Operation Modes ................................................................................................................................ 7
2. 4 System Structure ....................................................................................................................................... 10
2. 4. 1 System Structure of 200 kVA/250 kVA/300 kVA ............................................................................. 10
2. 4. 2 System Structure of 400 kVA/500 kVA/600 kVA ..............................................................................11
2. 4. 3 System Structure of 750 kVA/900 kVA ............................................................................................ 13
2. 4. 4 System Structure of 1000k/1200 kVA .............................................................................................. 13
2. 5 Optional Accessories ................................................................................................................................ 14
3 Installation ........................................................................................................................................................... 15
3. 1 Installation Preparation ............................................................................................................................. 15
3. 1. 1 Site Preparation ................................................................................................................................. 15
3. 1. 2 Installation Tools ............................................................................................................................... 16
3. 1. 3 Preparation of Power Cables ............................................................................................................. 17
3. 1. 4 Unpacking ......................................................................................................................................... 19
3. 2 Installation of Single UPS ........................................................................................................................ 20
3. 2. 1 Installation of UPS ............................................................................................................................ 20
3. 2. 2 Installation of Fixture ....................................................................................................................... 22
3.2. 3 Installation of Battery ........................................................................................................................ 23
3. 2. 4 Connection of Power Cable .............................................................................................................. 24
3.2.5 Communication Signal Interface ........................................................................................................ 32
3.3 Installation of Parallel UPS ....................................................................................................................... 37
3.3.1 Connection of Power Cable ................................................................................................................ 37
3.3.2 Connection of Control Cable .............................................................................................................. 38
3.4 Installation Inspection ................................................................................................................................ 40
4 Monitoring Display Interface ............................................................................................................................ 42
4.1 Description of Monitoring Display Panel .................................................................................................. 42
4.1.1 Appearance of Monitoring Panel ........................................................................................................ 42
4.1.2 LCD and Indicator Lamp .................................................................................................................... 42
4.2 Menu Structure .......................................................................................................................................... 43
4.2.1 Starting for First Time ......................................................................................................................... 43

User Manual 200 kVA-1200 kVA UPS Table of Contents
3
4.2.2 Home .................................................................................................................................................. 44
4.2.3 System ................................................................................................................................................ 46
4.2.4 Alarms ................................................................................................................................................. 50
4.2.5 Control ................................................................................................................................................ 52
4.2.6 Settings ............................................................................................................................................... 53
5 Operation ............................................................................................................................................................. 65
5.1 Turn On the UPS ........................................................................................................................................ 65
5.2 Manually Open and Close Bypass ............................................................................................................. 67
5.2.1 Manually Open Bypass ....................................................................................................................... 67
5.2.2 Manually Close Bypass ...................................................................................................................... 68
5.3 Turn Off the UPS ....................................................................................................................................... 68
5.4 ECO Operating Mode ................................................................................................................................ 69
5.5 Emergency Power Off (EPO) .................................................................................................................... 70
5.6 EPO Recovery ........................................................................................................................................... 71
5.7 Switch to Maintenance Bypass .................................................................................................................. 71
5.8 Exit from Maintenance Bypass to Mains Mode ........................................................................................ 72
5.9 Operation of Parallel UPS System ............................................................................................................. 74
5.9.1 Start Up Parallel System ..................................................................................................................... 74
5.9.2 Shut Down Parallel System ................................................................................................................ 75
5.9.3 Emergency Power Off (EPO) ............................................................................................................. 75
5.9.4 Single UPS Exits from Maintenance .................................................................................................. 75
5.9.5 Add a Single UPS After Maintenance ................................................................................................. 76
6 Maintenance ........................................................................................................................................................ 77
6.1 Important Safety Information .................................................................................................................... 77
6.2 Room Management .................................................................................................................................... 77
6.3 Preventative Maintenance .......................................................................................................................... 78
6.3.1 Monthly Maintenance ......................................................................................................................... 78
6.3.2 Quarterly Maintenance ....................................................................................................................... 78
6.3.3 Annual Maintenance ........................................................................................................................... 79
6.4 Battery Maintenance .................................................................................................................................. 79
6.4.1 Battery Charge and Discharge ............................................................................................................ 79
6.4.2 Selection of Battery ............................................................................................................................ 79
6.4.3 Considerations During Use and Maintenance of Battery .................................................................... 79
7 Troubleshooting .................................................................................................................................................. 80
8 Technical Parameters ......................................................................................................................................... 81
8.2.1 UPS System Input ............................................................................................................................... 81
8.2.2 UPS System Output ............................................................................................................................ 81
8.2.3 Operating Environment ...................................................................................................................... 82
8.2.4 System ................................................................................................................................................ 82
Appendix 1 Alarm List ............................................................................................................................................ 83

User Manual 200 kVA-1200 kVA UPS 1 Safety Information
4
1 Safety Information
1. 1 General Information
 Before installing and using this product, please read Safety Information carefully to ensure correct and safe
installation and use, and keep this manual properly.
 UPS must be installed, adjusted and maintained by an engineer authorized by the manufacturer or its agent,
otherwise it is possible to endanger personal safety and cause equipment failure. The damage to UPS caused
hereon will excluded from the warranty scope.
 In no event is it allowed to dismantle or change the structure or components of the equipment without the
manufacturer's permission, otherwise the damage to UPS caused hereon will excluded from the warranty
scope.
 Local laws and regulations should be observed during use of the equipment. The safety instructions provided
herein are only supplementary to local safety codes.
 Due to product version upgrade or other reasons, the contents of this document will be updated from time to
time. Unless otherwise agreed, this document serves only as a use guidance, and all statements, information,
images and recommendations contained in this document do not constitute any express or implied warranty.
1. 2 UPS Safety
 Before installing the equipment, wear insulating protective clothing and insulating appliances, and remove
easily conductive objects such as jewelry and watches to avoid electric shock or burns.
 The service environment has a certain impact on the service life and reliability of UPS, and the use and
storage of equipment must follow the requirements set in the manual.
 Avoid using the equipment in the environment with direct sunlight, rain or dust containing electric charge.
 During storage of UPS, keep a safe distance around it to ensure ventilation. Do not block the air vent while
the system is running.
 Do not allow liquids or other foreign objects into the UPS cabinet or case.
 Before using UPS, check whether the local power characteristics are consistent with the information on the
product nameplate.
 UPS is a large leakage current equipment, and it is not recommended to conFig. an air switch with leakage
protection function.
 Before wiring UPS, please further confirm whether the mains input power supply, bypass power supply,
battery switch and mains power distribution switch are disconnected.
 When it is required to move or rewire UPS, AC input power, battery and other input must be disconnected,
and the corresponding operation should be carried out after UPS is fully powered down (more than 9min),
otherwise there may still be power on the port and inside of the device, which may cause risk of electric
shock.
 Before powering on, please make sure the equipment is properly grounded, and check the connection and
battery polarity to make sure they are correct. In order to ensure personal safety and the normal use of UPS,
UPS should be reliably grounded before use.
 UPS can be used for resistance-capacitance (such as computer), resistance-resistance and micro-inductive
load, and not for half-wave rectifying load.
 When the equipment is cleaned, please wipe it with dry articles. Do not use water to clean the internal and
external electrical components of the cabinet under any circumstances.

User Manual 200 kVA-1200 kVA UPS 1 Safety Information
5
 Check immediately after the maintenance operation to ensure that no tools or other items are left in the
cabinet.
 In case of fire, please use the dry powder extinguisher correctly. It is possible to cause the risk of electric
shock if a liquid fire extinguisher is used.
 Do not close the switch until the UPS installation is complete. Do not power on UPS without the permission
of an authorized engineer.
1. 3 Battery Safety
 The battery can only be installed and maintained by personnel with battery expertise.
 The battery has electric shock hazard and short circuit current hazard. In order to avoid safety accidents,
when installing or replacing the battery, please pay attention to the following matters: do not wear jewelry,
watch and other conductive objects; use special insulation tools; use facial protection; wear protective
insulating clothing; do not invert or tilt the battery; and keep the battery input switch disconnected.
 The installation environment of the battery must be far away from the hot area. It is not allowed to use or
keep the battery near the fire source. The battery or battery pack cannot be disposed by fire, otherwise it
possible to cause explosion and personal injury.
 The battery life decreases with the increase of ambient temperature. The batteries should be installed and
stored in cool and dry environment.
 Regular battery replacement can ensure that the UPS works properly and can ensure adequate backup time.
 Check the screws of battery connection parts regularly to make sure they are tight. The loosening must be
tightened immediately.
 Please do not short the positive and negative electrode of the battery, otherwise it is possible to cause electric
shock or fire.
 Do not touch the battery terminals. If the battery circuit is not isolated from the input voltage circuit, it is
possible to cause high voltage hazard between the battery terminal and the earth.
 Do not open or damage the battery, otherwise it is possible to cause the short circuit and leakage of the
battery. Battery electrolyte may cause damage to the skin and eyes.
1. 4 Symbol Descriptions
The following symbols may be used in this manual, which have the following meanings.
Symbol Descriptions
DANGER Used to warn of urgent dangerous situations. If not avoided, it is possible to result in
death or serious personal injury.
WARNING Used to warn of potentially dangerous situations. If not avoided, it is possible to result in
a certain degree of personal injury.
CAUTION Used to provide the safety warning information of the equipment or environment. If not
avoided, it is possible to cause equipment damage, data loss, equipment performance
degradation or other unpredictable results.
NOTE Used to elaborate further what is being described, highlight important/key information,
etc.

User Manual 200 kVA-1200 kVA UPS 2 Product Overview
6
2 Product Overview
2. 1 Product Description
This series of UPS is our high-end online UPS power supply products, which can provide continuous three-phase
alternating current, and solve the users’ 9 major power supply problems. The whole equipment adopts modular
design, and is easy to upgrade, expand and maintain. This series of products have excellent electrical performance,
high system reliability, perfect software and firmware protection functions, and can adapt to different power grid
environment to provide safe and reliable power supply guarantee for various loads.
2. 2 Model Description
This manual mainly involves the following product models:
200 kVA/250 kVA/300 kVA/400 kVA/500 kVA/600 kVA/750 kVA/900 kVA/1000 kVA, 1200 kVA. This series of
equipment is divided into standard model and full-equipped model, where 200 kVA/250 kVA/300 kVA models are
full-equipped models, 400 kVA/500 kVA/600 kVA and higher power models include standard models and
full-equipped models. The full-equipped model includes a main switch, a bypass switch, an output switch and a
maintenance bypass switch. UPS model description is shown in Table 2-1.
Table 2-1 Model description of UPS
Model Configuration
200 kVA Full-equipped
250 kVA Full-equipped
300 kVA Full-equipped
400 kVA Standard and full-equipped
500 kVA Standard and full-equipped
600 kVA Standard and full-equipped
750 kVA Standard and full-equipped
900 kVA Standard and full-equipped
1000 kVA Standard and full-equipped
1200 kVA Standard and full-equipped
2. 3 Working Principles
2. 3. 1 Functional Block Diagram
This series of UPS adopts online double transformation design, based on DSP digital control, provides the
customers with high efficiency, high power density power supply guarantee. Its functional block diagram is shown
in Fig. 2-1.

User Manual 200 kVA-1200 kVA UPS 2 Product Overview
7

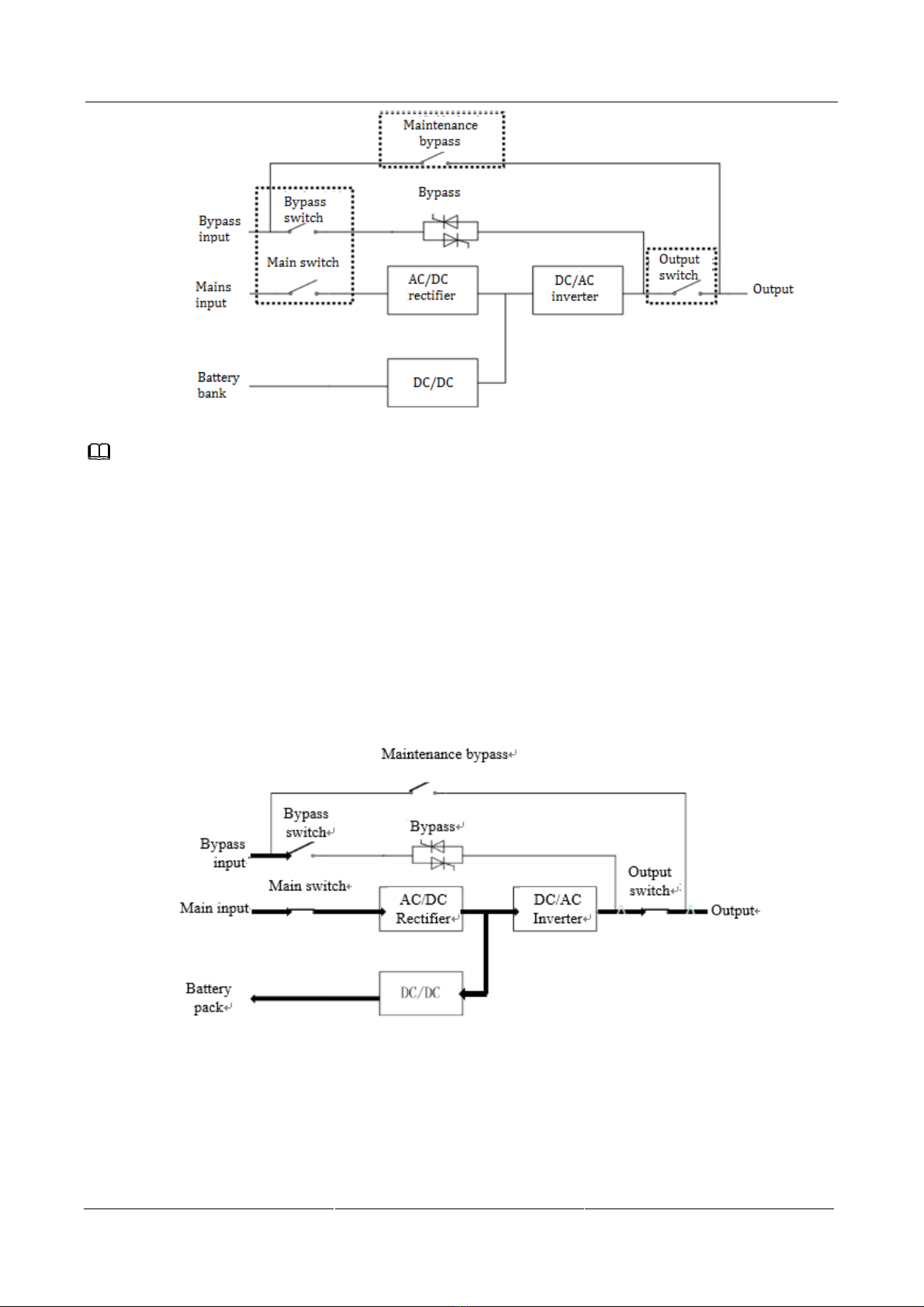

Fig. 2-1. Functional block diagram
Note:
The functional block diagram shows the full-equipped model, while the standard matched model has no
components shown in the dotted line (the components shown in dotted line includes: maintenance bypass switch,
main switch, bypass switch and output switch).
2. 3. 2 Operation Modes
Normal mode
The UPS rectifier is supplied with AC power by the mains, and the inverter is supplied with DC power by the
rectifier, which provides continuous and uninterrupted AC power for the load. Meanwhile, the rectifier supplies a
uniform charging current or floating charging voltage to the battery. The schematic diagram of normal mode is
shown in Fig. 2-2.
Fig. 2-2 Schematic diagram of normal mode

User Manual 200 kVA-1200 kVA UPS 2 Product Overview
8
Bypass mode
In the inverter power supply mode, if the inverter fails, after the overload time of the inverter or the bypass is
manually switched, the static switch will switch the power supply of the load from the inverter power supply to
the static bypass power supply without interruption of the power supply of the load. The operating principle of the
bypass mode is shown in Fig. 2-3.
Fig. 2-3 Schematic diagram of bypass mode
Battery mode
The battery mode refers to the operation mode where the battery provides backup power to the load through the
inverter. When the mains power fails, the system automatically operates in the battery mode, and the battery DC
voltage is converted into pure and stable sinusoidal AC power supply for the load by the inverter. After the mains
power supply is restored, the system will automatically switch back to the normal mode without any manual
intervention, and interruption of the power supply for the load. If the mains is not restored after the battery backup
time, the system will automatically switch to bypass mode without interruption.
The operating principle of the battery mode is shown in Fig. 2-4.
Fig. 2-4 Schematic diagram of battery mode
Maintenance bypass mode
The maintenance bypass mode refers to the mode in which the power is supplied to the load through the
maintenance switch. If it is required to maintain or repair UPS after disconnection of the power supply, the
maintenance mode may be used according to the operation steps. When UPS is working in the maintenance
Battery bank
Maintenance bypass
Bypass input
Mains input
Bypass
Bypass
switch
Main switch
AC/DC
Rectifier
DC/AC
Inverte
r
Battery bank
Output
Output
switch
Maintenance bypass
Bypass input
Mains input
Bypass
Bypass
switch
Main switch
AC/DC
Rectifier
DC/AC
Inverter
Battery bank
Output
Output
switch

User Manual 200 kVA-1200 kVA UPS 2 Product Overview
9
bypass mode, the UPS can be completely powered down, and the PCBA board and dual-conversion power devices
are not live. The operating principle of maintenance bypass mode is shown in Fig. 2-5.

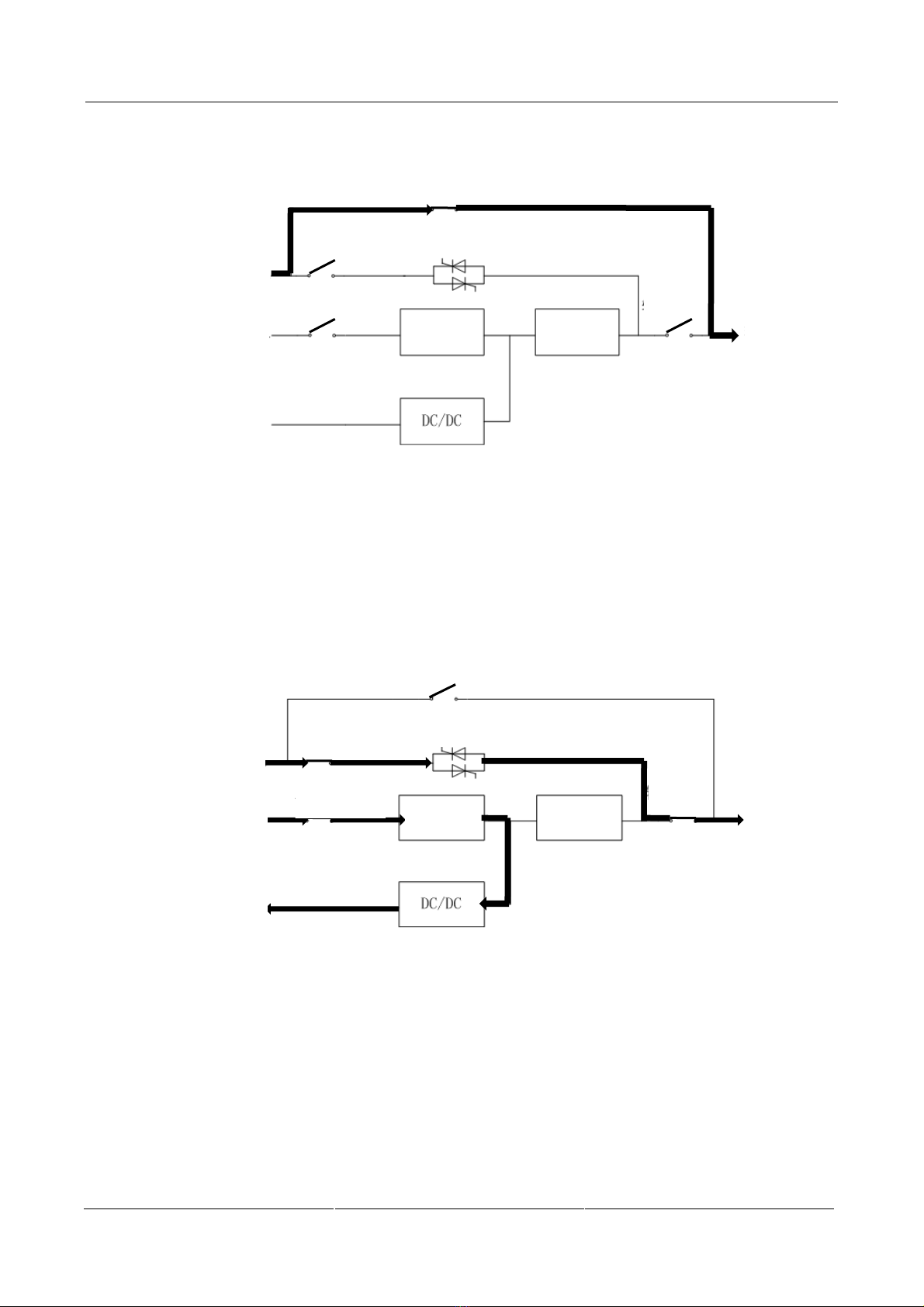

Fig. 2-5 Schematic diagram of maintenance bypass mode
ECO mode
ECO mode is the economic operation mode of UPS, which can be set through LCD interface. In ECO mode, when
the bypass range is within the working range of ECO, the power is supplied for the load by the bypass and the
inverter is in standby state. When the bypass range exceeds the ECO working range, the power supply will be
switched for the load from bypass power supply to inverter power supply. ECO mode has higher system efficiency.
The operating principle of ECO mode is shown in Fig. 2-6.
Fig. 2-6 Schematic diagram of ECO mode
Mains-battery combination mode
When UPS is in normal operation, the load power exceeds the supply capacity of the mains for a short time, and
the battery will invert with the mains to supply the load.
Maintenance bypass
Bypass input
Mains input
Bypass
Bypass switch
Main switch
AC/DC
Rectifie
r
DC/AC
Inverte
r
Battery bank
Output
Output
switch
Maintenance bypass
Bypass input
Mains input
Bypass
Bypass switch
Main switch
AC/DC
Rectifier
DC/AC
Inverter
Battery bank
Output
Output
switch

User Manual 200 kVA-1200 kVA UPS 2 Product Overview
10

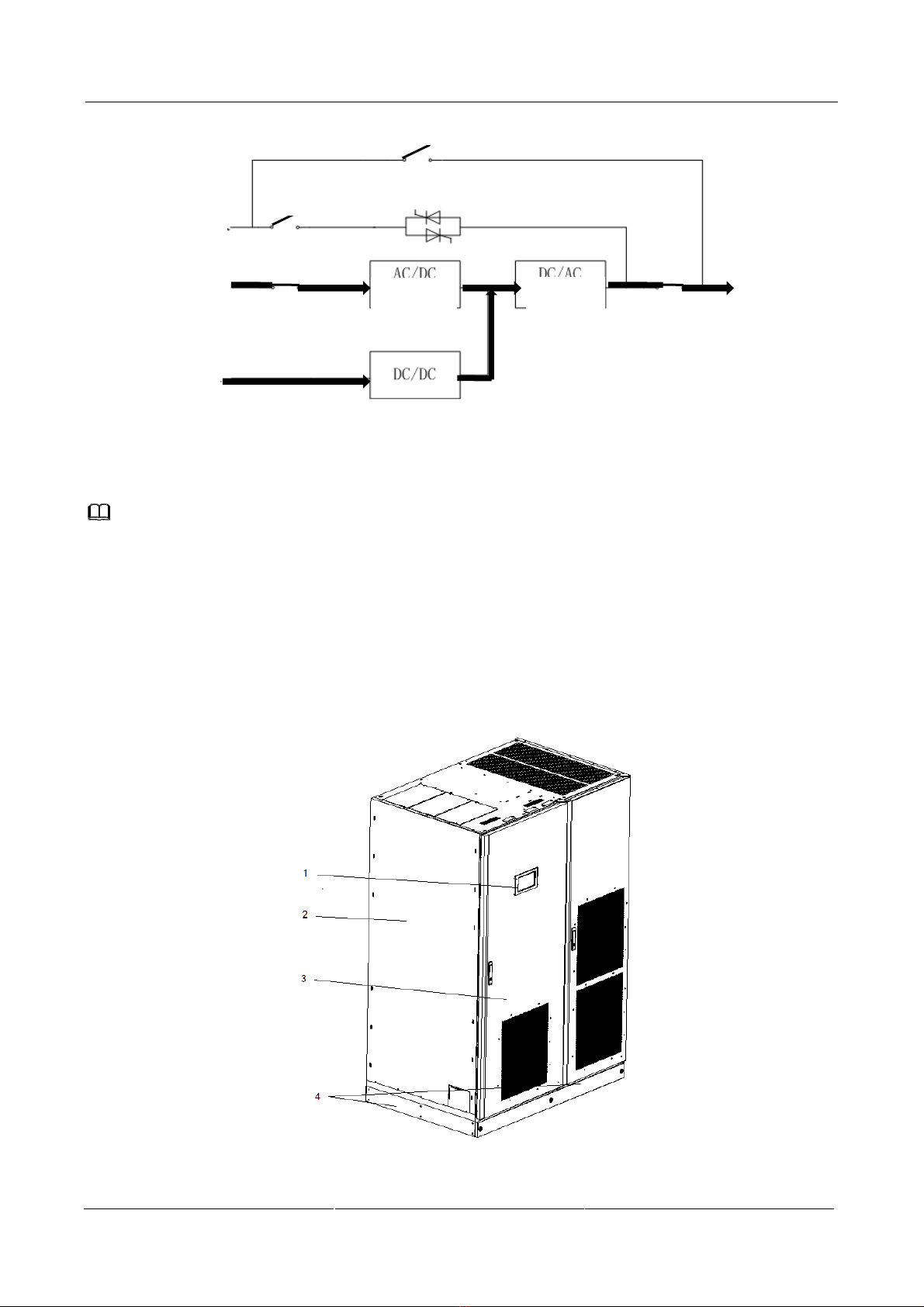

Fig. 2-7 Schematic diagram of mains-battery combination mode
2. 4 System Structure
Note:
This section describes the system structure, appearance and functional parts of all models. This series of
equipment can be divided into standard model and full-equipped model where 200 kVA/250 kVA/300 kVA are
fully equipped, 400 kVA/500 kVA/600 kVA and higher power models include standard and fully equipped models.
The fully equipped models include main switch, bypass switch, output switch and maintenance bypass switch.
2. 4. 1 System Structure of 200 kVA/250 kVA/300 kVA
The appearance of 200 kVA/250 kVA/300 kVA models is shown in Fig. 2-8.
Fig. 2-8 Appearance of 200 kVA/250 kVA/300 kVA models
Maintenance bypass
Bypass input
Mains input
Bypass
Bypass switch
Main switch
AC/DC
Rectifie
r
DC/AC
Inverte
r
Battery bank
Output
Output
switch

User Manual 200 kVA-1200 kVA UPS 2 Product Overview
11
1 Monitoring display unit 2 Case 3 Front
4 Bottom baffle
The functional parts of 200 kVA/250 kVA/300 kVA models are shown in Fig. 2-9, which shows the state of UPS
after the front door plate is opened.
Fig. 2-9 Functional parts of 200 kVA/250 kVA/300 kVA (front view)
1 Mains input switch 2 Bypass input switch 3 Bypass maintenance switch
4 System output switch 5 Smart card slot 6 Communication unit
7 Independent bypass module 8 Power unit
2. 4. 2 System Structure of 400 kVA/500 kVA/600 kVA
The appearance of 400 kVA/500 kVA/600 kVAmodels is shown in Fig. 2-10.
1
2
3
8
7
6
5
4
Mains input
Bypass input
Maintenance bypass
Output

User Manual 200 kVA-1200 kVA UPS 2 Product Overview
12

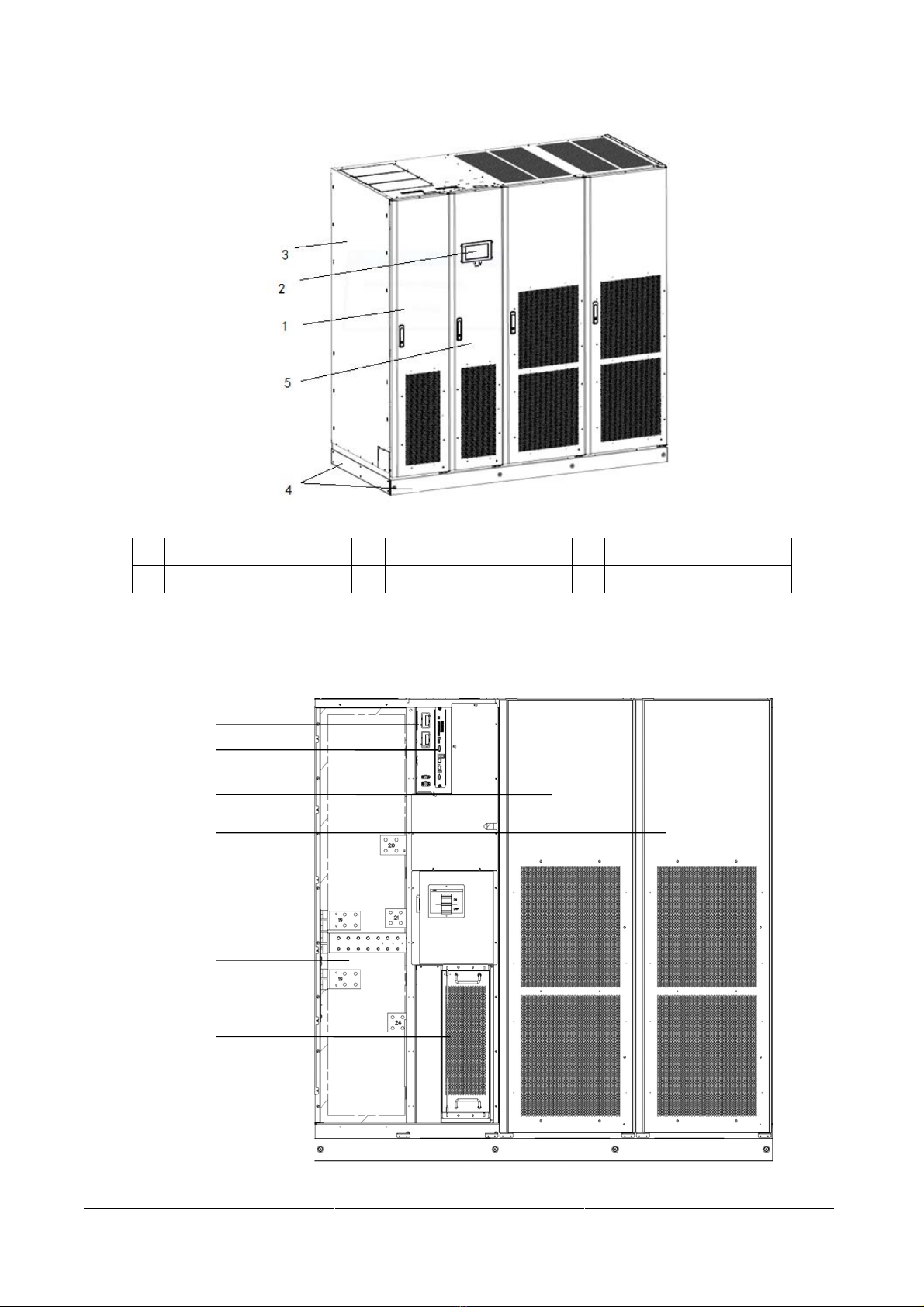

Fig. 2-10 Appearance of 400 kVA/500 kVA/600 kVA
1 Wiring cabinet 2 Monitoring display unit 3 Case
4 Bottom baffle 5 Bypass cabinet
The functional parts of standard 400 kVA/500 kVA/600 kVA models are shown in Fig. 2-11, where Fig. 2-11
shows the state of UPS after the wiring cabinet and door panel of the bypass cabinet are opened (if the user selects
the fully equipped model of this power segment, the wiring cabinet will be replaced by the distribution cabinet.
The appearance can be referred in the left side of the distribution switch shown in Fig. 2-9).
Fig.2-11 Functional parts of 400 kVA/500 kVA/600 kVA (front view)
1
3
2
5
4
6

User Manual 200 kVA-1200 kVA UPS 2 Product Overview
13
1 Smart card slot 2 Communication interface 3 Wiring cabinet
4 Independent bypass module 5 Power unit 1 6 Power unit 2

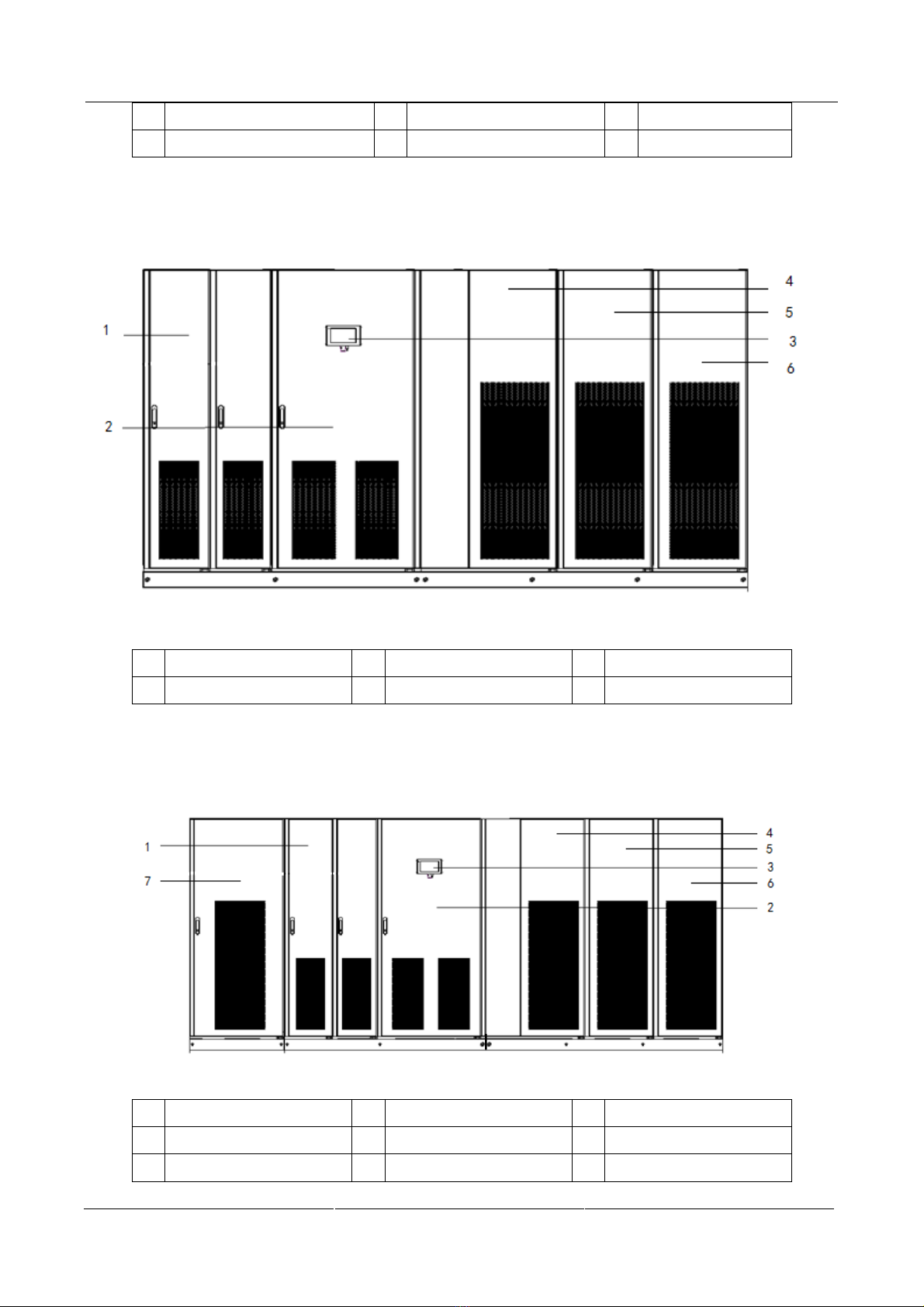

2. 4. 3 System Structure of 750 kVA/900 kVA
The appearance of 750 kVA/900 kVA is shown in Fig. 2-12.
Fig. 2-12 Appearance of 750 kVA/900 kVA (front view)
1 Wiring cabinet 2 Bypass cabinet 3 Monitoring display unit
4 Power module 1 5 Power module 2 6 Power module 3
2. 4. 4 System Structure of 1000k/1200 kVA
The appearance of 1000k/1200 kVA is shown in Fig. 2-13.
Fig. 2-13 Appearance of 1000k/1200 kVA (front view)
1 Wiring cabinet 2 Bypass cabinet 3 Monitoring display unit
4 Power module 1 5 Power module 2 6 Power module 3
7 Power module 4

User Manual 200 kVA-1200 kVA UPS 2 Product Overview
14
2. 5 Optional Accessories
Various optional accessories are provided for EA990super series UPS, as shown in Table 2-2, to meet different
configuration requirements of the users.
Table 2-2 Optional accessories of 200 kVA-1200 kVA UPS
Optional accessories Function
WIFI card Used for remote monitoring via WIFI network. Monitoring operation status, issuing
emergency orders, reporting system information and other functions.
GPRS card Used for remote monitoring via GPRS data network. Monitoring operation status,
issuing emergency orders, reporting system information and other functions.
SNMP card Used for remote monitoring through SNMP data network. Monitoring operation
status, issuing emergency orders, reporting system information and other functions.
Lightning protector Used to prevent lightning current from entering the UPS from the power grid, and
protect the UPS
Battery inspector
Used to test the voltage and temperature of single battery and the charging and
discharging current of the battery pack, and communicate with host computer
through MODBUS communication protocol.
Battery cold starting
assembly
When the mains is unavailable, the battery can be switched on inversely.
Battery temperature
sensor
Used for test the battery temperature, and make the charging voltage compensation
according to the change of the ambient temperature of the battery to extend the
battery life.
Parallel operation kit Used for parallel functions between single unit.
LBS synchronous
controller
Used to realize phase synchronization of output voltage of two independent UPS
systems.
Watertight baffle Used to protect the upper air outlet of the equipment, prevent the short circuit of the
equipment caused by the rainwater.

User Manual 200 kVA-1200 kVA UPS 3 Installation
15
3 Installation
3. 1 Installation Preparation
3. 1. 1 Site Preparation
Installation weight and dimensions
Ensure that t that the ground and installation platform can bear the weight of UPS, batteries and battery rack. The
weight of the batteries and battery rack should be calculated according to actual usage. Ensure that the elevator
and other transportation equipment can withstand the weight of UPS and its equipment dimension. The
installation weight and dimension of UPS are shown in Table 3-1.
Table 3-1 Installation weight and dimension of UPS
Capacity Dimension (W x D x H) Net weight (full-equipped) Net weight (standard)
200/250/300 kVA 1350mm×900mm×1950mm 900 kg 880kg
400/500/600 kVA 1950mm×900mm×1950mm 1650 kg 1600 kg
750/900 kVA 3700mm×900mm×1950mm 2350 kg 2300 kg
1000/1200 kVA 4500mm×900mm×1950mm 2990 kg 2950 kg
Installation environment
 Do not install UPS in high, low temperature or damp places beyond the technical specifications (see the
section of technical parameters for environmental specifications).
 Keep UPS away from water source, heat source and inflammable and explosive articles. Avoid installing
UPS in the environment with direct sunlight, dust, volatile gases, corrosive substances and excessive salt
content. It is forbidden to install UPS in the working environment with metal conductive dust.
 The optimal operating temperature of valve controlled sealed lead-acid battery is 20℃ ~ 30
℃, and it is
possible to reduce the battery service life when the temperature is higher than 30℃, and shorten the battery
standby time when the temperature is lower than 20℃.
Clearance
The cabinet adopts forced cooling measures to cool internal components. The air inlet is at the front of the cabinet
and the outlet is at the top. To ensure good air circulation, gaps must be reserved between the front and top of each
cabinet. The gaps reserved around the UPS cabinet are shown in Table 3-2. See Table 3-2 and Fig. 3-1 for the
gaps.
Table 3-2 Clearance dimensions
Top of cabinet Min. 500 mm clearance is left for air circulation at the top of the cabinet
Front of cabinet At least 1000 mm working space
Rear of cabinet Not required
Right side of cabinet Not reserved, 500 mm space recommended
Left side of cabinet Not required

User Manual 200 kVA-1200 kVA UPS 3 Installation
16

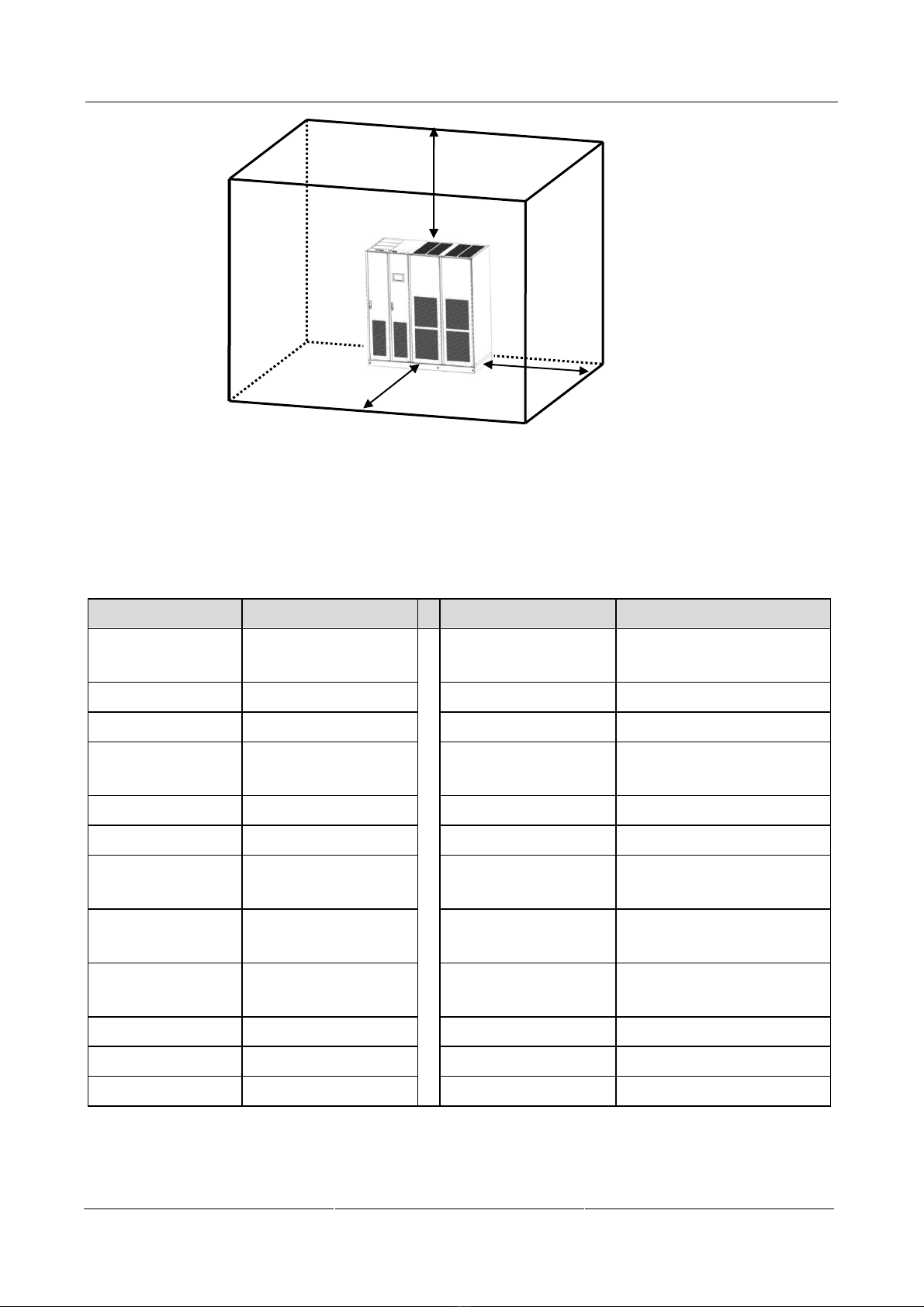

Fig. 3-1 Clearance dimensions
If the user buys 1000 kVA/1200 kVA, same clearance is reserved at left and right sides.
3. 1. 2 Installation Tools
To ensure safety, the installation tools for hot-line work should be insulated. The installation tools that may be
involved in the installation process are shown in Table 3-3 and are used as needed.
Table 3-3 Installation tools
Tool name Main function Tool name Main function
Forklift Handle UPS Nail hammer Knock, install and remove
components
Herringbone ladder High-place operation Rubber hammer Knock and install components
Clip-on ammeter Current test Cable drilling tool, drill Drill
Multimeter Test electrical connection
and electrical parameter Insulating tape Electrical insulation
Cross screwdriver Tighten screws Heat-shrinkable T bush electrical insulation
Levelling instrument Levelling Heat gun Heat heat-shrinkable T bush
Insulated monkey
wrench Tighten and loosen bolts Electrician's knife Wire stripping
Insulated torque
spanner Tighten and loosen bolts Cable ties Cable tying
Crimping pliers Connect cold-pressed
terminal Leather working gloves Protect the operator’s hands
Hydraulic tongs Connect OT terminal Anti-static gloves Anti-static
Diagonal pliers Cut cables Insulating gloves Insulating
Wire stripper Wire stripping Insulating shielding shoes Protect the operator
500 mm
1000 mm
No clearance
500 m
m
recommended

User Manual 200 kVA-1200 kVA UPS 3 Installation
17
3. 1. 3 Preparation of Power Cables
Recommended cable diameters for UPS power cables are shown in Table 3-4, and requirements for power cable
bolts are shown in Table 3-5.
Table 3-4 Recommended cable diameters for power cables
Item 200 kVA 250 kVA 300 kVA 400 kVA 500 kVA
Mains
input
Mains input current (A) 332 414 452 664 828
Recommended cable
diameter (mm2) A/B/C/N 1×120 1×185 1×185 2×120 2×185
Recommended
terminal A/B/C/N DT120-14 DT185-1
6 DT185-16 DT120-14 DT185-16
Bypass
input
Bypass input current (A) 290 361 434 607 759
Recommended cable
diameter (mm2) A/B/C/N 1×120 1×150 1×185 2×120 2×150
Recommended
terminal A/B/C/N DT120-14 DT150-1
4 DT185-16 DT120-14 DT150-14
Output
Output current (A) 290 361 434 580 722
Recommended cable
diameter (mm2) A/B/C/N 1×120 1×150 1×185 2×120 2×150
Recommended
terminal A/B/C/N DT120-14 DT150-1
4 DT185-16 DT120-14 DT150-14
Battery
input
Nominal discharge current (A) of
4 x 12V battery 448 559 605 896 1118
Recommended cable
diameter (mm2)
BAT+/BA
T- 1×185 2×95 2×95 2×185 2*240
Recommended
terminal
BAT+/BA
T- DT185-16 DT95-12 DT95-12 DT185-16 DT240-16
Ground
wire
Recommended cable
(mm2) PE 1×70 1×70 1×95 1×150 1×185
Recommended
terminal PE DT70-12 DT70-12 DT95-12 DT150-14 DT185-16
Item 600 kVA 750 kVA 900 kVA 1000 kVA 1200 kVA
Main
Mains input current (A) 904 1242 1356 1656 1808
Recommended cable
diameter (mm2) A/B/C/N 2×185 2×185 3×240 4×240 4×300
Recommended
terminal A/B/C/N DT185-16 DT185-1
6 DT240-16 DT240-16 DT300-20
Bypass
input
Bypass input current (A) 868 1083 1302 1444 1736
Recommended cable
diameter (mm2) A/B/C/N 2×185 3×150 3×240 4×240 4×300
Recommended
terminal A/B/C/N DT185-16 DT150-1
4 DT240-16 DT240-16 DT300-20

User Manual 200 kVA-1200 kVA UPS 3 Installation
18
Output
Output current (A) 868 1083 1302 1444 1736
Recommended cable
diameter (mm2) A/B/C/N 2×185 3×150 3×240 4×240 4×300
Recommended
terminal A/B/C/N DT185-16 DT150-1
4 DT240-16 DT240-16 DT300-20
Battery
input
Nominal discharge current (A) of
40*12V battery 1210 1677 1815 2236 2420
Recommended cable
diameter (mm2)
BAT+/BA
T- 1210 1677 1815 2236 2420
Recommended
terminal
BAT+/BA
T- DT300-20 DT240-1
6 DT240-16 DT300-20 DT300-20
Ground
wire
Recommended cable
(mm2) PE 1×185 1×240 1×240 1×300 1×300
Recommended
terminal PE DT185-16 DT185-1
6 DT240-16 DT240-16 DT300-20
Note:
The recommended cables in Table 3-4 are only applicable to the following service conditions:
 Installation mode: bridge installation (iec60364-5-52).
 Ambient temperature: 30℃.
 Cable type: XLPE/EPR insulation, 90℃ PVC sheath, flexible wire with copper conductor.
 For same power supply is used for main circuit and bypass, the input cable is conFig.d according to the
mains input cable.
 The current value in the data calculated at rated voltage 230V. The current value should be multiplied by
1.05 for rated voltage 220V and 0.96 for rated voltage 240V.
 When the main load is nonlinear load, the section of Null line should be increased by 1.5 ~ 1.7 times.
Table 3-5 Requirement of power cable bolt
Main Copper platoon
Bypass Copper platoon
Output Copper platoon
Battery Copper platoon
Model Terminal hole/
bolt diameter (9 mm)
Specification
of screws Quantity of screws
200 kVA
12 M10*40 52
250 kVA
300 kVA
400 kVA
14 M12*40
52 for power distribution
61 for no power
distribution
500 kVA
600 kVA
750 kVA
16 M16*40
52 for power distribution
61 for no power
distribution
900 kVA
1000 kVA
18 M18*40
52 for power distribution
61 for no power
distribution
1200 kVA
Null line
200 kVA
9 M8*40 9 250 kVA
300 kVA

User Manual 200 kVA-1200 kVA UPS 3 Installation
19
400 kVA
11 M10*40
9 for power distribution
16 for no power
distribution
500 kVA
600 kVA
750 kVA
16 M16*40
9 for power distribution
16 for no power
distribution
900 kVA
1000 kVA
18 M18*40
9 for power distribution
16 for no power
distribution
1200 kVA
Ground wire
200 kVA
9 M8*40 5
250 kVA
300 kVA
400 kVA
11 M10*40 5 for power distribution
8 for no power distribution
500 kVA
600 kVA
750 kVA 16 M16*40 5 for power distribution
8 for no power distribution
900 kVA
1000 kVA 18 M18*40 5 for power distribution
8 for no power distribution
1200 kVA
Note:
 The fully equipped model can be purchased, and includes built-in mains input air switch, bypass input air
switch, maintenance air switch and output air switch.
 UPS is a large leakage current equipment, it is not recommended to conFig. an air switch with leakage
protection function.
 When the input front end has multi-stage load, the specification of the circuit breaker conFig.d in the front
bus must be larger than that of the mains input air switch of UPS and the bypass input air switch.
 When the output rear end has multi-stage load, the setting current of the circuit breaker installed on the
rear-level branch shall not be more than 50% of the rated current of the output air switch of UPS. Table 3-6
shows the recommended circuit breakers.
Table 3-6 Recommended circuit breakers
Model 200 kVA 250 kVA 300 kVA 400 kVA 500 kVA 600 kVA
Input circuit breaker 500 500 630 800 1000 1000
Output circuit breaker 500 500 630 800 1000 1000
Bypass circuit breaker 500 500 630 800 1000 1000
Battery circuit breaker 800 800 1000 1400 1600 1600
3. 1. 4 Unpacking
 The equipment must be handled by professionally trained personnel.
 Carefully move the equipment to ensure that it is stable. Any impact or fall may cause damage to the
equipment.
CAUTION
