1: INSTALLATION
Introduction
The IBM®UPS 7500XHV and UPS 10000XHV models are high-performance uninterruptible power supplies, designed to pre-
vent blackouts, brownouts, sags, and surges from reaching your computer and other sensitive electronic equipment. The uninter-
ruptible power supply filters small utility line fluctuations and isolates your equipment from large disturbances by internally
disconnecting from the utility line. The uninterruptible power supply provides continuous power from its internal battery until
the utility line returns to safe levels or the battery is fully discharged.
Unpacking
Attention:
 Read the Safety Instructions in this documentation before you install the uninterruptible power supply.
 The uninterruptible power supply comes with its battery disconnected.
Note: The illustrations in this documentation might differ slightly from your hardware.
Inspect the uninterruptible power supply upon receipt. Accidents and damage can occur during shipment. Notify the carrier and
your IBM marketing representative or authorized reseller if there is damage.
The packaging is recyclable; save it for reuse or dispose of it properly.
Check the package contents:
 Uninterruptible power supply
 Two front bezels
 Rail kit
 Tower conversion kit
 Accessory kit containing:
 Quick Installation Guide
 Documentation CD
 PowerChute® Business Edition CD
 Network Management Card CD
 Warranty Flyer
 Rack-mounting brackets
 Temperature probe
 Serial communication cable – 4.6 m (15 ft)
 Serial to USB adapter cable – 2 m (6.5 ft)
 Four output power cables – 2 m (6.5 ft)
You will need the following tools to install the uninterruptible power supply:
 Utility knife or scissors
 Two Philips screwdrivers (#1 and #2)
 Two wrenches (.438” and .250”)
 Cage-nut-insertion tool or flat-blade screwdriver (for installing cage-nuts in some rack cabinets)
Removing the Battery Modules
The uninterruptible power supply is heavy. To lighten the weight of the unit, remove the battery modules.

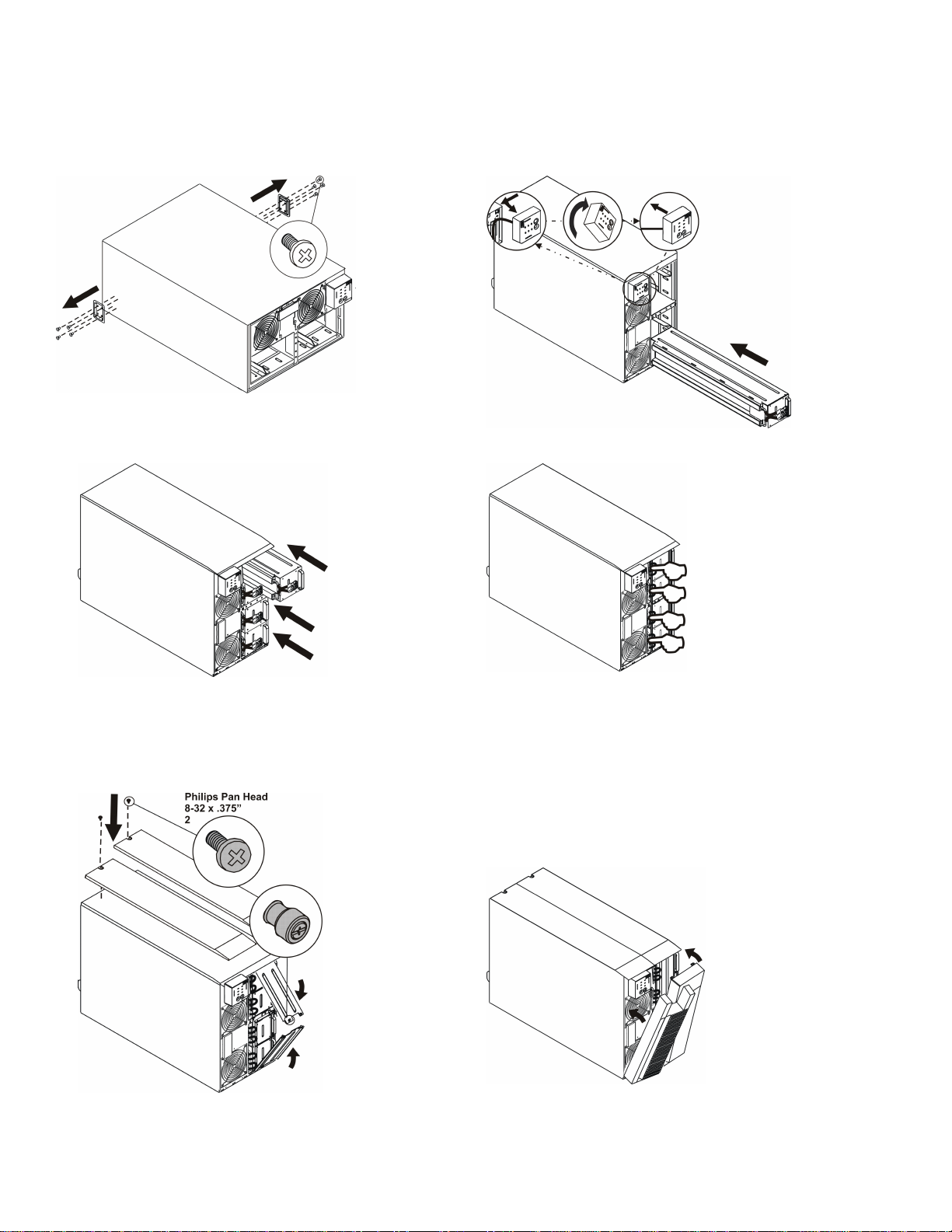

Remove the battery doors. Remove all battery modules.
Note: Write down the MAC address from under the uninter-
ruptible power supply.

5
Positioning the Uninterruptible Power Supply
32–55 kg
(70–120 lb)
Attention: The uninterruptible power supply will remain heavy without the battery modules. Select a location
sturdy enough to handle the weight.
Do not operate the uninterruptible power supply in excessive dust or in temperature and humidity conditions outside the speci-
fied limits.
Make sure that the air vents on the front and rear of the uninterruptible power supply are not blocked.
Placement of the unit should correspond with the following graphical depiction.
Hardwiring the Uninterruptible Power Supply
Attention: Wiring must be performed by a qualified electrician.
1. Install a utility circuit breaker according to local electrical codes (see tables below) for input wiring.
Input Connections Output Connection (optional)
Single-Phase: Wire to L1, N, and .
Three-Phase: Wire to L1, L2, L3, N, and .
Wire to L1A, N1, and .
System Wiring Number
of
Phases
Voltage Current
Full Load
(Nominal)
External
Circuit Breaker
(typical)
Wire Size
(typical)
Input 1 200/208/220/230/240 V 38 amps 50 amps / 2-pole 10 mm2
Input 3+
Neutral 380/400/415 V 14 amps / phase when online, 38
amps on L1 in
bypass
50 amps / 4-pole 10 mm2
UPS 7500XHV
Output 1 200/208/220/230/240 V 38 amps (as needed) 10 mm2
Input 1 200/208/220/230/240 V 50 amps 63 or 70 amps / 2-pole 16 mm2
Input 3+
Neutral 380/400/415 V 18 amps / phase when online, 50
amps on L1 in
bypass
63 amps / 4-pole 16 mm2
UPS 10000XHV
Output 1 200/208/220/230/240 V 50 amps (as needed) 16 mm2

6

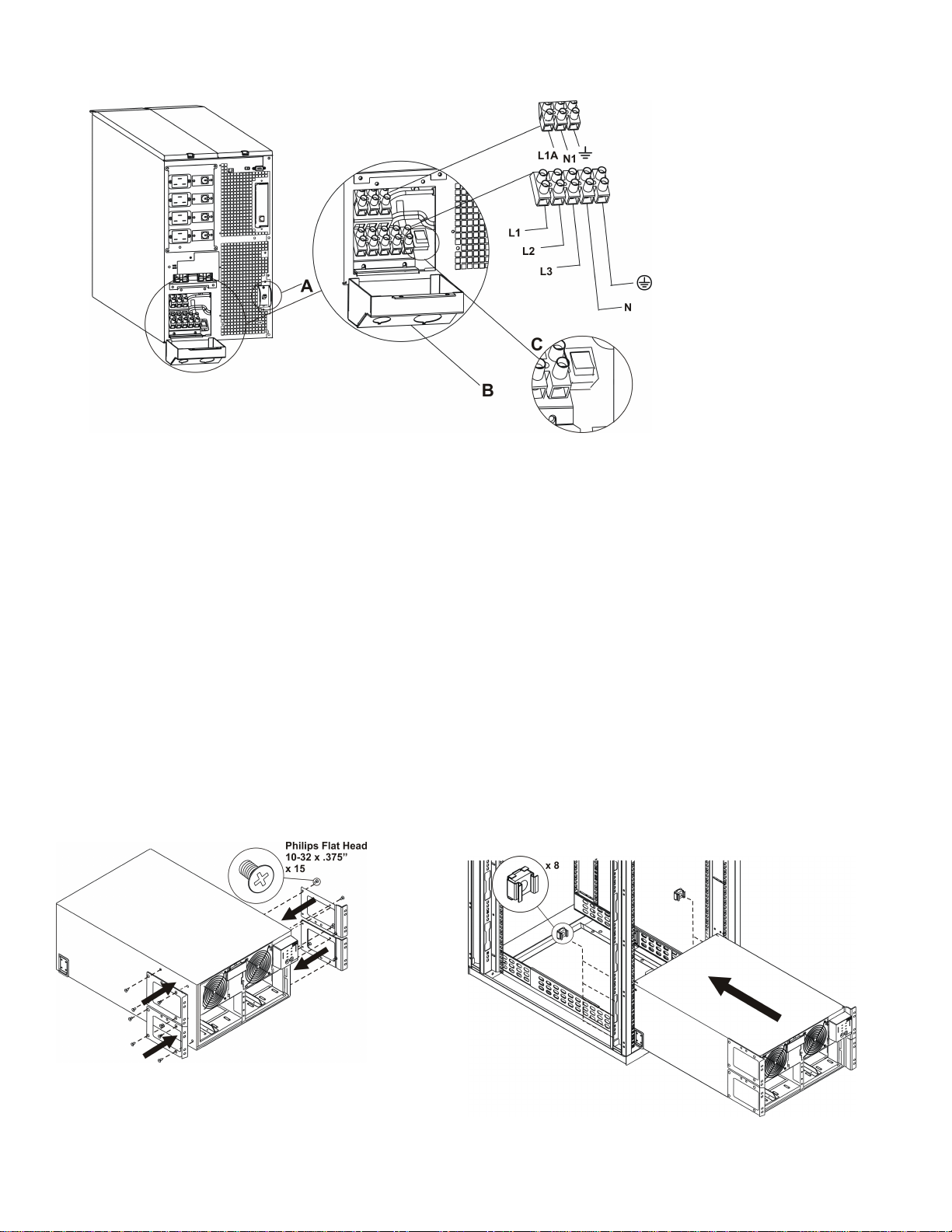

2. Switch the uninterruptible power supply input circuit breaker (see Ain the diagram that follows) and the utility circuit
breakers off.
3. Remove the access panel (see Bin the diagram).
4. Remove the circular knockouts on the access panel.
5. Run wires through the access panel to the terminal blocks. Connect the wire to the ground block first. Adhere to all national
and local electrical codes. (See tables and diagram.)
6. Use appropriate cable fitting to achieve strain-relief on the hardwired input and output power cables.
7. For three-phase input, set the Input Phase Selector switch (see Cin the diagram) to ‘3’. For single-phase input, leave the
switch in the default position of ‘1’.
8. Switch the circuit breakers on.
9. Check the line voltages.
10. Replace the access panel.
Mounting the Uninterruptible Power Supply in a Rack and Attaching the Front Bezel
Attach the mounting brackets. Install the rails per the rail installation diagram in the
Rail Kit. Install the cage-nuts (or clip-nuts) and mount the
uninterruptible power supply at the bottom of the rack.
Note: Leave 3U of space below the uninterruptible power
supply for each battery pack that you plan to install.
