SDM220-MBUS
Single-Phase Two Module DIN rail Meters
Measures kWh, Kvarh, KW, Kvar, KVA, PF, Hz, dmd, V, A, etc.
Bi-directional measurement IMP & EXP
Two pulse outputs
MBUS
Din rail mounting 36mm
100A direct connection
Better than Class 1 / B accuracy
User Manual V1.8
2016

Eastron SDM220MBUS User Manual
Jiaxing Eastron Electronic Instruments Co.,Ltd. Tel: [phone] 83698882 Fax: [phone]
Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China. Web: www.eastron.com.cn Email: [e-mail]
- 2 -
Application
The energy-meters “with a blue back-lighted LCD screen for prefect reading” are used to measure single-phase like
residential, Utility and Industrial application. The unit measures and displays various important electrical
parameters, and provide a communication port for remote reading and monitoring. Bi-directional energy
measurement makes the unit a good choice for solar PV energy metering.
PART 1 Specification
General Specifications
Voltage AC (Un) 230V
Voltage Range 176~276V AC
Base Current (Ib) 5A
Max. Current (Imax) 100A
Mini Current (Imin) 0.25A
Starting current 0.4% of Ib
Power consumption <2W/10VA
Frequency 50/60Hz(±10%)
AC voltage withstand 4KV for 1 minute
Impulse voltage withstand 6KV-1.2uS wavform
Overcurrent withstand 30Imax for 0.01s
Pulse output rate 1000imp/kWh (default)
100/10/1 imp/kWh/kVarh (configurable)
Display LCD with blue backlit
Max. Reading 99999.99kWh
Accuracy
Voltage 0.5% of range maximum
Current 0.5% of nominal
Frequency 0.2% of mid-frequency
Power factor 1% of Unity
Active power 1% of range maximum
Reactive power 1% of range maximum
Apparent power 1% of range maximum
Active energy Class 1 IEC62053-21
Class B EN50470-3
Reactive energy 1% of range maximum

Eastron SDM220MBUS User Manual
Jiaxing Eastron Electronic Instruments Co.,Ltd. Tel: [phone] 83698882 Fax: [phone]
Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China. Web: www.eastron.com.cn Email: [e-mail]
- 3 -
Environment
Operating temperature -25℃to +55℃
Storage and transportation temperature -40℃to +70℃
Reference temperature 23℃±2℃
Relative humidity 0 to 95%, non-condensing
Altitude up to 2500m
Warm up time 10s
Installation category CAT II
Mechanical Environment M1
Electromagnetic environment E2
Degree of pollution 2
Output
Pulse Output
The meter provides two pulse outputs. Both pulse outputs are passive type.
Pulse output 1 is configurable. The pulse output can be set to generate pulses to represent total / import/export
kWh or kVarh.
The pulse constant can be set to generate 1 pulse per: 0.001(default) /0.01/0.1/1kWh/kVarh.
Pulse width: 200/100(default)/60ms
Pulse output 2 is non-configurable. It is fixed up with Import kWh. The constant is 1000imp/kWh.
MBUS
M-Bus (Meter Bus) is a hierarchical system that consist of a Master,several Slaves and a pair of connecting
cables.All the devices are serially connected to the Bus,and all the the serial communication process on the Bus
are controlled by the major device.
The work status of Mbus are Data transmission status and idle work status,the data are bidirectional transported
between the Master and Slave.Only one Master is allowed to connect to the Bus when the data transmission
happens from Mater to Slave direction,and the Master need to provide power to the Bus. Household utility meters
can realize the function of remote meter reading via expanded to a Meter Bus and gain the ability of Bus
communication.
Eastron SDM220-Mbus single phase two wires meter supports MBUS remote communication function,its protocol
standard is EN 13757-3-2004.
Baud rate : 300, 600, 1200, 2400(default), 4800, 9600bps
Parity : NONE(default)/EVEN/ODD
Stop bit : 1 or 2
Primary address : 001 to250
Secondary address : 00 00 00 01 to99 99 99 99

Eastron SDM220MBUS User Manual
Jiaxing Eastron Electronic Instruments Co.,Ltd. Tel: [phone] 83698882 Fax: [phone]
Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China. Web: www.eastron.com.cn Email: [e-mail]
- 4 -

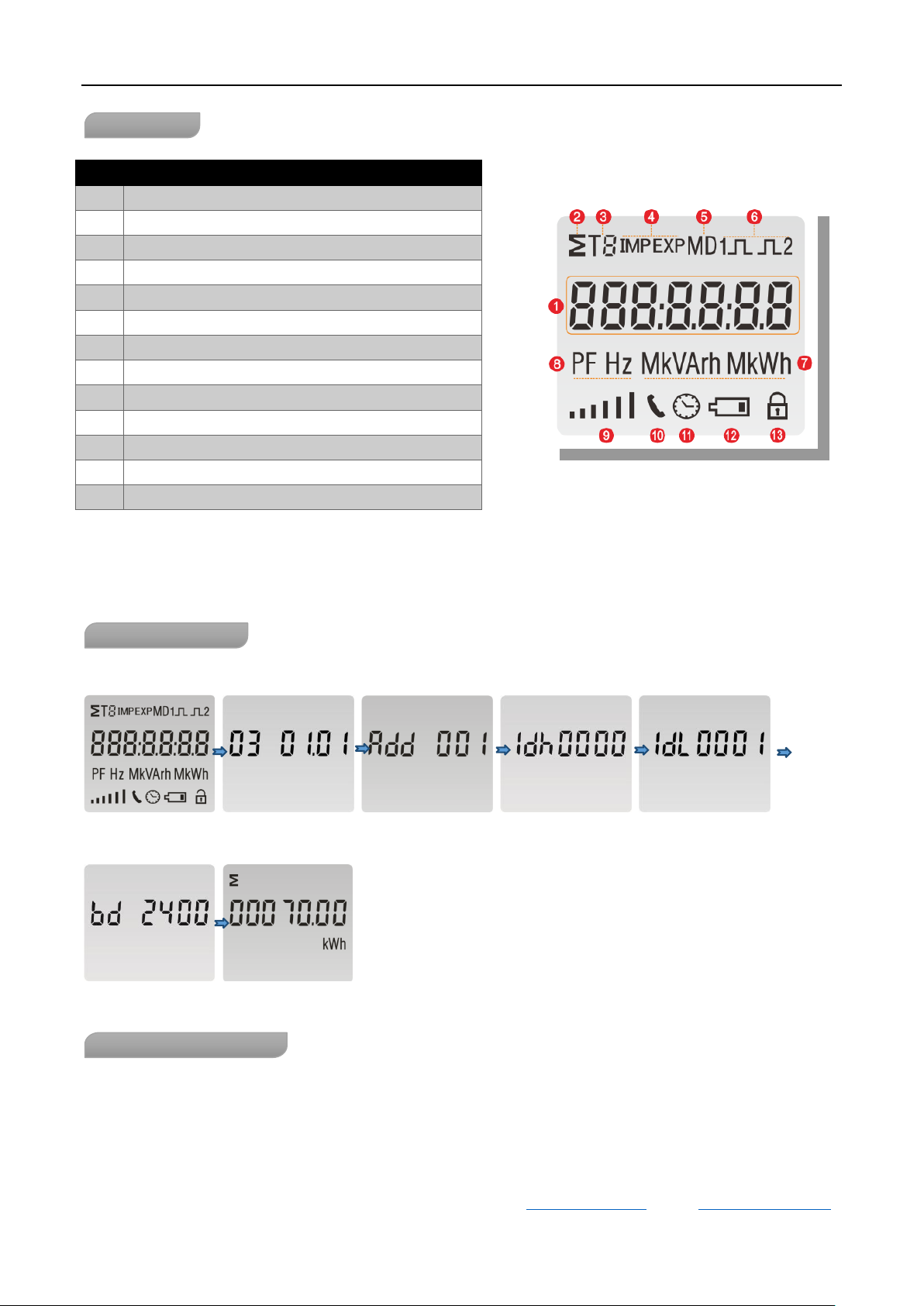

LCD display
Item
Descriptions
1
7 digits used to display measured values or RTC
2
Total value
3
Tariff information
4
Import information, Export information
5
Max. Demand for Power or Current
6
Pulse output 1 and Pulse output 2
7
Measurement units
8
PF = power factor Hz = frequency
9
Bar display of Power
10
Communication indicator
11
Time information
12
Low battery warning
13
Lock symbol
PART 2 Operation
Initialization Display
When it is powered on, the meter will initialize and do self-checking.
Full screen software version MBUS ID Secondary addressSecondary address
(high bit) (low bit)
Baud rate total kWh
Scroll display by Button
After initialization and self-checking program, the meter display the measured values. The default page is total
kWh. If the user wants to check other information, he needs to press the scroll button on the front panel.

Eastron SDM220MBUS User Manual
Jiaxing Eastron Electronic Instruments Co.,Ltd. Tel: [phone] 83698882 Fax: [phone]
Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China. Web: www.eastron.com.cn Email: [e-mail]
- 5 -
The display order by scroll button :
Total kWhimport kWhexport kWhtotal kVarhimport kVarhexport kVarh
Max. power demandvoltagecurrentWVarVApower factor 
frequency pulse constantMBUS primary addressMBUS secondary addressbaud rate.
Page
Display
Descriptions
1
Total active energy
Example:70.00kWh
2
Import active energy
Example: 50.00kWh
3
Export active energy
Example: 20.00kWh
4
Total reactive energy
Example: 10.00kVarh
5
Import reactive energy
Example: 5.00kVarh

Eastron SDM220MBUS User Manual
Jiaxing Eastron Electronic Instruments Co.,Ltd. Tel: [phone] 83698882 Fax: [phone]
Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China. Web: www.eastron.com.cn Email: [e-mail]
- 6 -

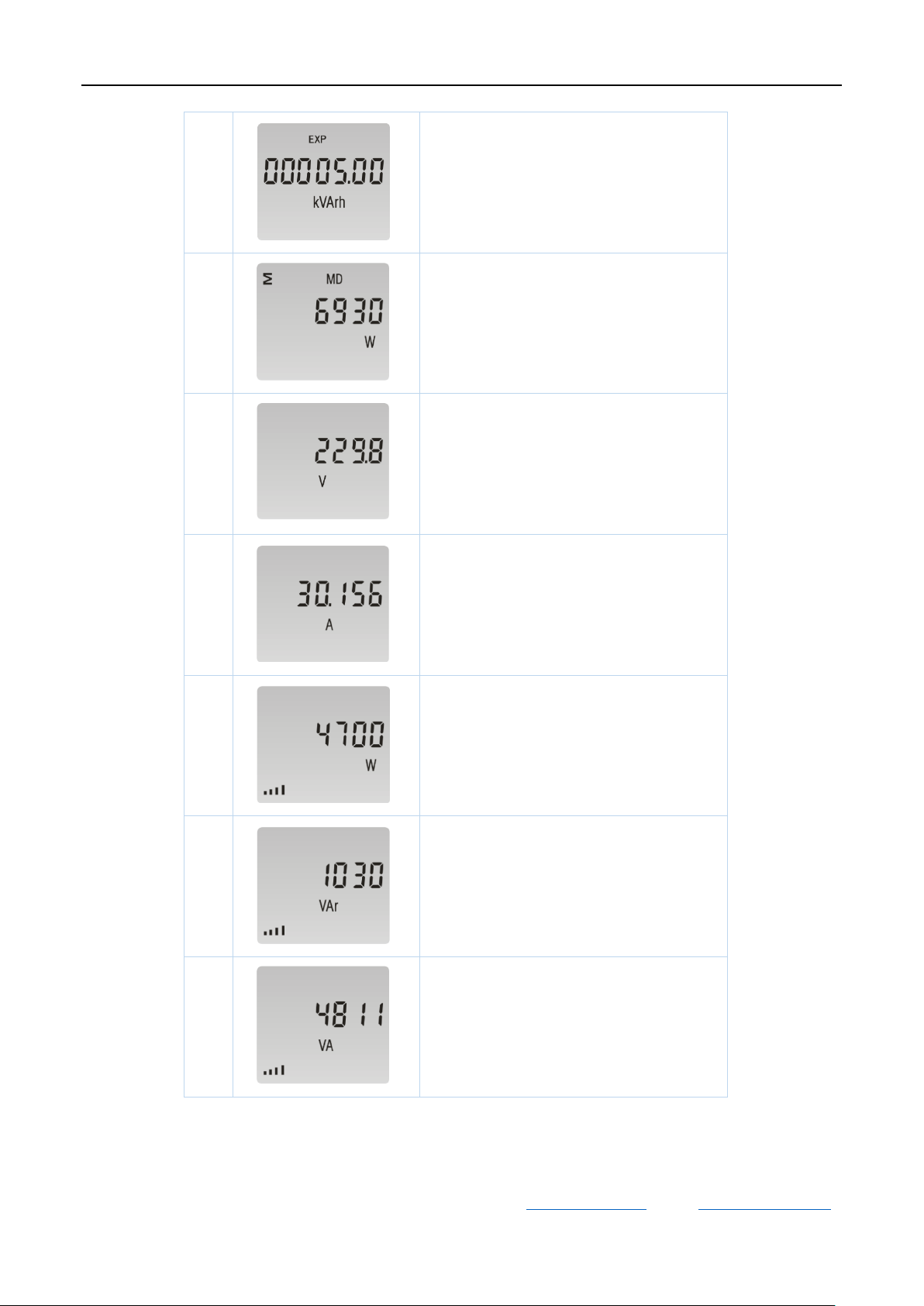

6
Export reactive energy
Example: 5.00kVarh
7
Total max. demand
Example: 6930W
8
Voltage
Example: 229.8V
9
Current
Example: 30.156A
10
Active Power
Example: 4700W
11
Reactive Power
Example: 1030Var
12
Apparent power
Example: 4811VA

Eastron SDM220MBUS User Manual
Jiaxing Eastron Electronic Instruments Co.,Ltd. Tel: [phone] 83698882 Fax: [phone]
Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China. Web: www.eastron.com.cn Email: [e-mail]
- 7 -
13
Power factor
Example: 1.000
14
Frequency
Example: 49.99Hz
15
Pulse Constant
Example: 1000
16
MBUS primary address
Example: 001
MBUS Secondary address
17
High bit of MBUS Secondary address
(Default 00 00）
18
Low bit of MBUS Secondary address
(Default 00 01）
Example: if the Secondary address high bit
is 0000,low bit is 0001,that means the
integral Secondary address is 00 00 00 01
19
Baud rate
Example: 2400

Eastron SDM220MBUS User Manual
Jiaxing Eastron Electronic Instruments Co.,Ltd. Tel: [phone] 83698882 Fax: [phone]
Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China. Web: www.eastron.com.cn Email: [e-mail]
- 8 -
Set-up Mode
To get into Set-up Mode, the user need press the “Enter” button for 3 second.
Page
Display
Descriptions
The setting is done correctly
The entering information is wrong. The
operation fails.
1
Password
To get into Set-up mode, it asks a password
confirmation.
Default password: 1000
2
Address ID
Default ID is 001
Range: 001~250
2-1
Press the “Enter” button, the first digit
flash. Press the “Scroll” button to change
the value.
After choose the new address value, the
user need pressing the “Enter” button to
confirm the setting.
3-1
High bit of MBUS Secondary address
(Default 00 00）

Eastron SDM220MBUS User Manual
Jiaxing Eastron Electronic Instruments Co.,Ltd. Tel: [phone] 83698882 Fax: [phone]
Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China. Web: www.eastron.com.cn Email: [e-mail]
- 9 -
3-2
Low bit of MBUS Secondary address
(Default 00 01）
4
Baud rate
Default value: 2400bps
Range:300, 600,1200, 2400, 4800, 9600bps.
4-1
Press the “Enter” button, the red digit flash.
Press the “Scroll” button to change the
value.
After choose the new baud rate, the user
need pressing the “Enter” button to
confirm the setting.
5
Parity
Default: None
Option：None, Even, Odd
5-1
Press the “Enter” button, the red part flash.
Press the “Scroll” button to change the
option.
After choose the new Parity, the user need
pressing the “Enter” button to confirm the
setting.
6
Pulse Output
Default: kWh
Option ：kWh / KVarh / Imp. Kwh /
Exp.kWh / Imp.kVarh / Exp.kVarh
6-1
Press the “Enter” button, the red part flash.
Press the “Scroll” button to change the
option.
After choose the new Pulse output option,
the user need pressing the “Enter” button
to confirm the setting.

Eastron SDM220MBUS User Manual
Jiaxing Eastron Electronic Instruments Co.,Ltd. Tel: [phone] 83698882 Fax: [phone]
Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China. Web: www.eastron.com.cn Email: [e-mail]
- 10 -
7
Pulse Constant
Default: 1000
Option: 1000 / 100 / 10 / 1
7-1
Press the “Enter” button, the red part flash.
Press the “Scroll” button to change the
option.
After choose the new Pulse constant
option, the user need pressing the “Enter”
button to confirm the setting.
8
Pulse duration
Default: 100mS
Option: 200 / 100 / 60ms
8-1
Press the “Enter” button, the red part flash.
Press the “Scroll” button to change the
option.
After choose the new Pulse duration
option, the user need pressing the “Enter”
button to confirm the setting.
9
Demand Integration Time
Default: 15 minutes
Option: 0 / 5 / 10 / 15 / 30 / 60
9-1
Press the “Enter” button, the red part flash.
Press the “Scroll” button to change the
option.
After choose the new DIT option, the user
need pressing the “Enter” button to
confirm the setting.
10
Automatic Scroll Time Interval
Default: 0 S
Option: 0 ~ 30S

Eastron SDM220MBUS User Manual
Jiaxing Eastron Electronic Instruments Co.,Ltd. Tel: [phone] 83698882 Fax: [phone]
Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China. Web: www.eastron.com.cn Email: [e-mail]
- 11 -
10-1
Press the “Enter” button, the red part flash.
Press the “Scroll” button to change the
option.
After choose the new “Scrl” option, the
user need pressing the “Enter” button to
confirm the setting.
11
Password
Default: 1000
11-1
Press the “Enter” button, the red part flash.
Press the “Scroll” button to change the
value.
After choose the new password, the user
need pressing the “Enter” button to
confirm the setting.

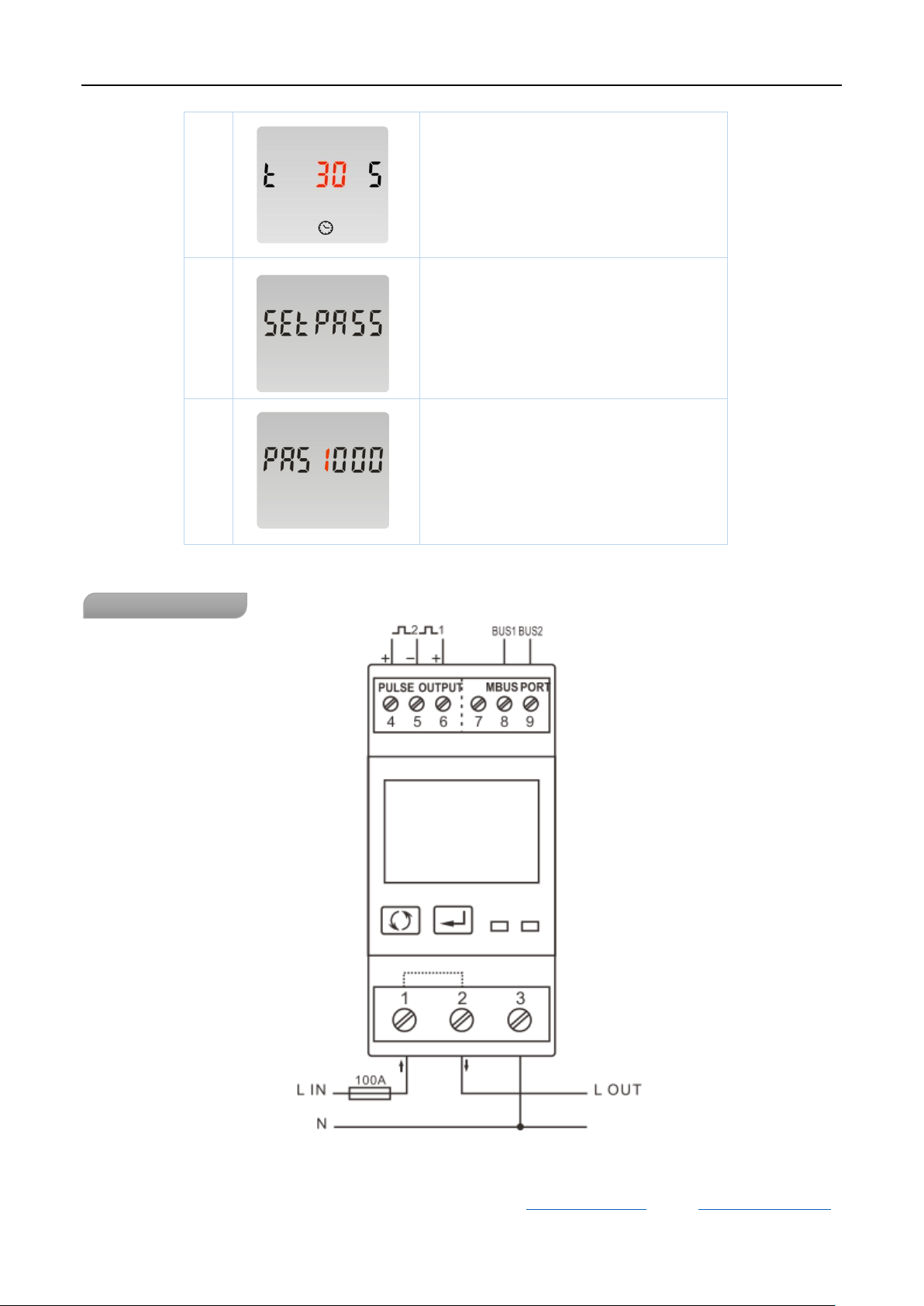

Wiring diagram

Eastron SDM220MBUS User Manual
Jiaxing Eastron Electronic Instruments Co.,Ltd. Tel: [phone] 83698882 Fax: [phone]
Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China. Web: www.eastron.com.cn Email: [e-mail]
- 12 -
Dimensions
Installation
