Eastron SDM630MV-2L User manual

EASTRON SDM630MV-2L Dual Load User Manual
Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China.
Tel: [phone] Fax: [phone] Web: www.eastron.com.cn
SDM630MV-2L
Dual load 3 Phase Wiring Smart Energy Meter
Dual load split load measuring
Measures kWh, kVarh, kW, kVar, KVA, P,
F, PF, Hz, dmd, V, A,THD, etc.
Bi-directional measurement IMP & EXP
CT / PT is programmable
RS485 port for Modbus
Din rail mounting 35mm
RJ12 Plug-in CT connection
USER MANUAL
V1.3 2017

EASTRON SDM630MV-2L Dual Load User Manual
Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China.
Tel: [phone] Fax: [phone] Web: www.eastron.com.cn
Introduction
SDM630MV-2L Dual Load measures and displays the characteristics of two three phase four wires
circuits, including voltage, frequency, current, power and active and reactive energy, imported or
exported. Energy is measured in terms of kWh, kVArh. Maximum demand current can be
measured over preset periods of up to 60minutes. In order to measure energy, the unit requires
voltage and current inputs in addition to the supply required to power the product. The requisite
current input(s) are obtained via current transformers (CT).
This meter has two RJ12 sockets for fast connecting with current transformer CTs with 0.333V
output. This meter also provides 1 digital output ( solid state) with capability to command most
of the circuit breaker coils directly.
Unit Characteristics
The Unit can measure and display:
L-N voltage and THD% (total harmonic distortion) of all phases
Line Frequency
Currents, Current demands and current THD% of all phases
Power, maximum power demand and power factor
Active energy imported and exported
Reactive energy imported and exported
The unit has password-protected set-up screens for:
Changing password
Supply system 3phase 4wires
CT1 value
PT ratio (1 to 9999)
Demand Interval time
Reset for demand measurements
An RS485 output allows remote monitoring from another display or a computer.
Current Transformer Primary Current
The unit can be configured to operate with Primary Current.
The secondary CT is fixed at 0.333V
RS485 Serial – Modbus RTU
This uses an RS485 serial port with Modbus RTU protocol to provide a means of remotely
monitoring and controlling the Unit
Set-up screens are provided for setting up the RS485 port.
Start Up Screens

EASTRON SDM630MV-2L Dual Load User Manual
Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China.
Tel: [phone] Fax: [phone] Web: www.eastron.com.cn

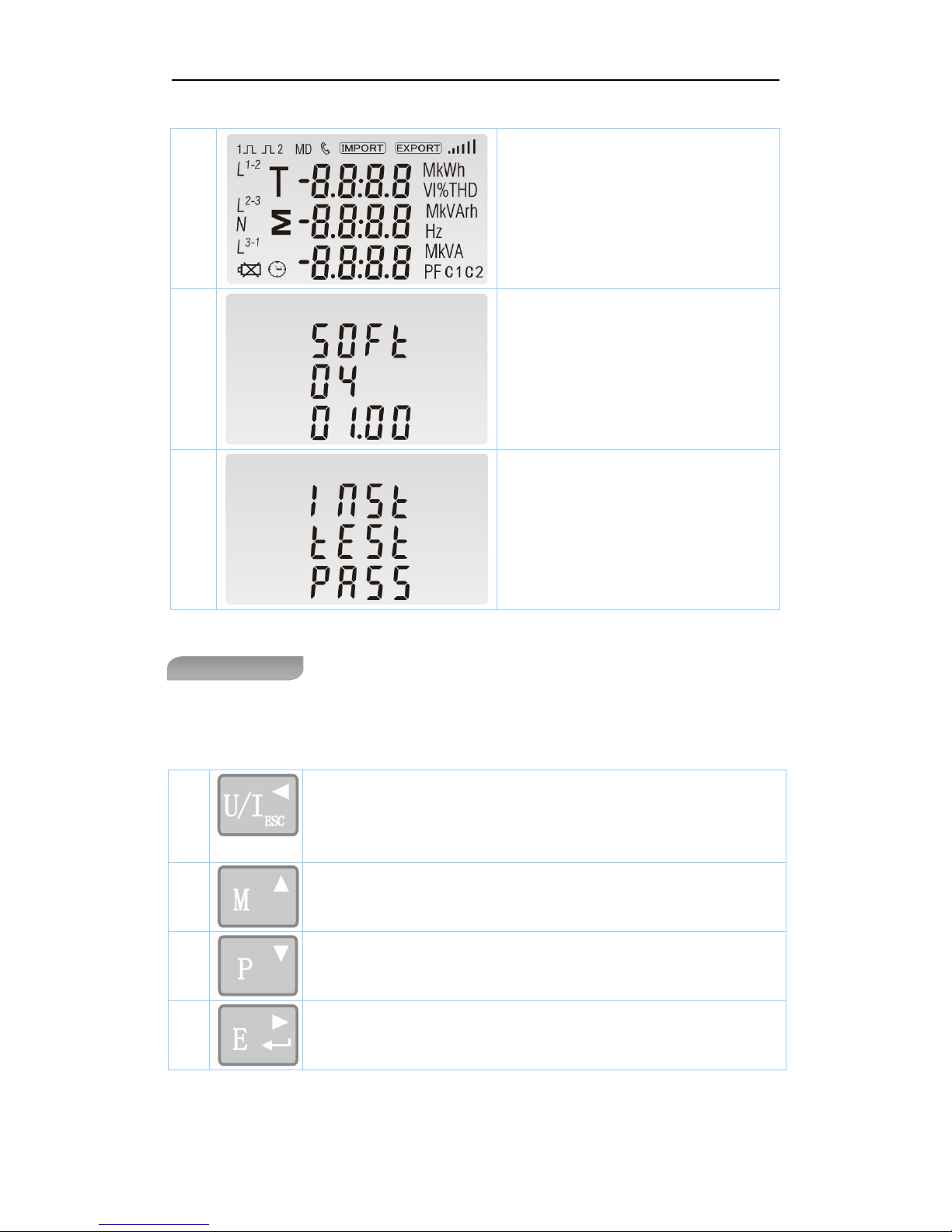

1
The first screen lights all display segments
and can be used as a display check.
2
The second screen indicates the firmware
installed in the unit and its build number.
3
Next the unit performs a self-test and
indicates if the test passes.
After a short delay, the screen will display active energy measurements.
Measurements
The SDM630MV-2L measures all important electrical parameters, which is shown on the LCD
display and approachable via RS485. On the front panel there are four sensitive buttons and two
LED indicators.
The buttons operate as follows:
1
Selects the Voltage and Current display screens
In Set-up Mode, this is the “Left” or “Back” button.
Long Press for 3s to change the shift “C1” circuit information to “C2” circuit
information
2
Select the Frequency and Power factor display screens
In Set-up Mode, this is the “Up” button
3
Select the Power display screens
In Set-up Mode, this is the “Down” button
4
Select the Energy display screens
In Set-up mode, this is the “Enter” or “Right” button
There are two LED indicators on the front panel, namely Pulse1 and Pulse2. Pulse 1 is for total

EASTRON SDM630MV-2L Dual Load User Manual
Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China.
Tel: [phone] Fax: [phone] Web: www.eastron.com.cn
active energy of C1 circuit, and Pulse 2 is for total active energy of C2 circuit. Pulse constant is
1000imp/kWh.

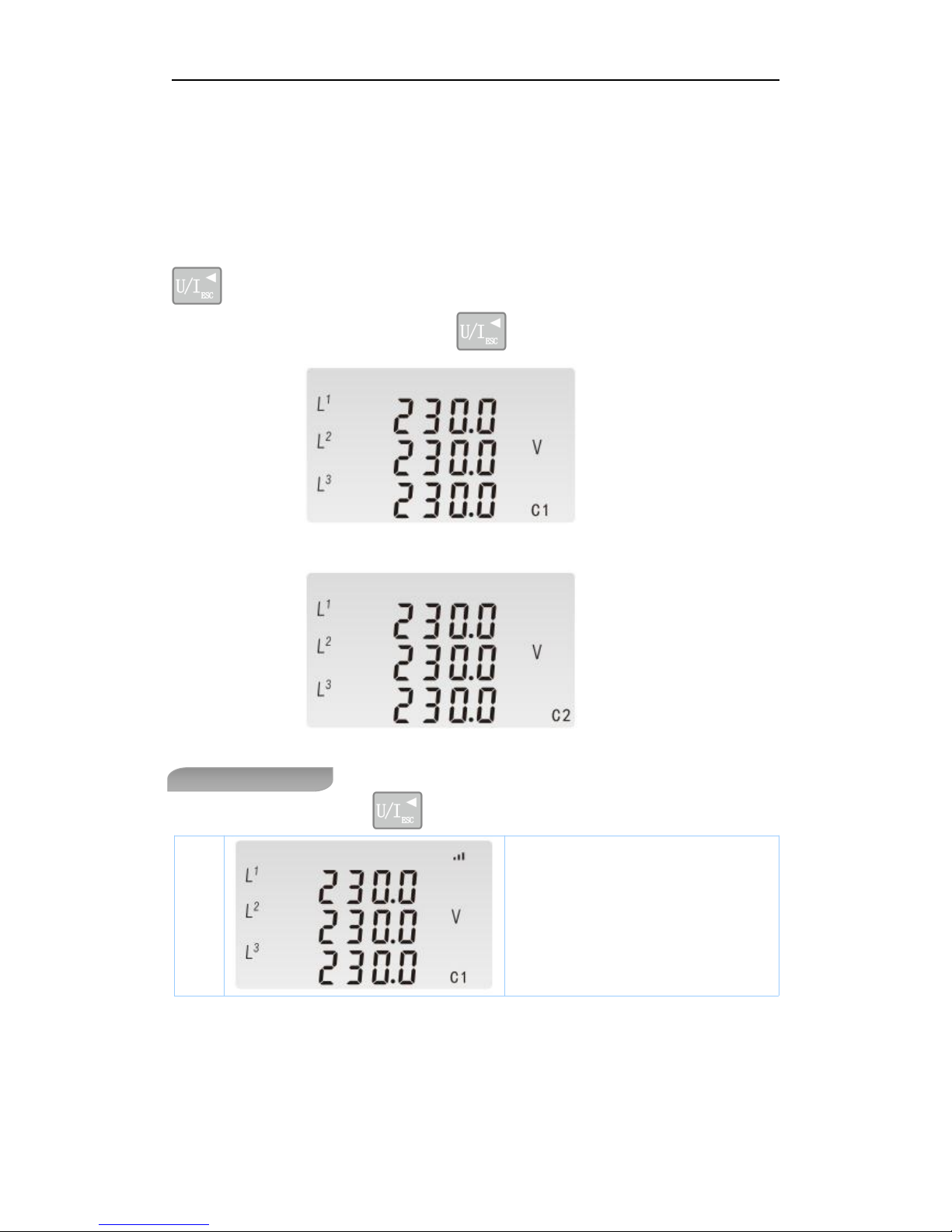

The unit can measures and displays data of two three phase circuits: C1 circuit and C2 circuit. If
C1 LED shows, that means the reading on the LCD are for C1 circuit. While C2 is there, it means
the measurements on the LCD are for C2 circuit.
The default display after the meter is power on, the LCD show “C1” circuit information. The way
to shift “C1” circuit information to “C2” circuit information is by pressing the “U/I” button
for 3s. If the meter are showing “C2”, and the user wants to shift it to be “C1” circuit,
Then he shall keep pressing the “U/I” button .
(Circuit 1)
(Circuit 2)
Voltage and Current
Each successive pressing of the button selects a new range:
1
Phase to neutral voltages

EASTRON SDM630MV-2L Dual Load User Manual
Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China.
Tel: [phone] Fax: [phone] Web: www.eastron.com.cn
2
Phase to Phase voltages
3
Current for each phase
4
Phase to neutral voltage THD%
5
Current THD% for each phase
Frequency and Power factor and demand
Each successive pressing of the button selects a new range:
1
Frequency
Power factor (total)

EASTRON SDM630MV-2L Dual Load User Manual
Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China.
Tel: [phone] Fax: [phone] Web: www.eastron.com.cn
2
Power factor of each phase
3
Max. Current demand
4
Max. Demand of W
Max. Demand of Var
Max. Demand of VA
Power
Each successive pressing of the button select a new range:
1
Instantaneous active power (kW)
2
Instantaneous reactive power (kVAr)

EASTRON SDM630MV-2L Dual Load User Manual
Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China.
Tel: [phone] Fax: [phone] Web: www.eastron.com.cn

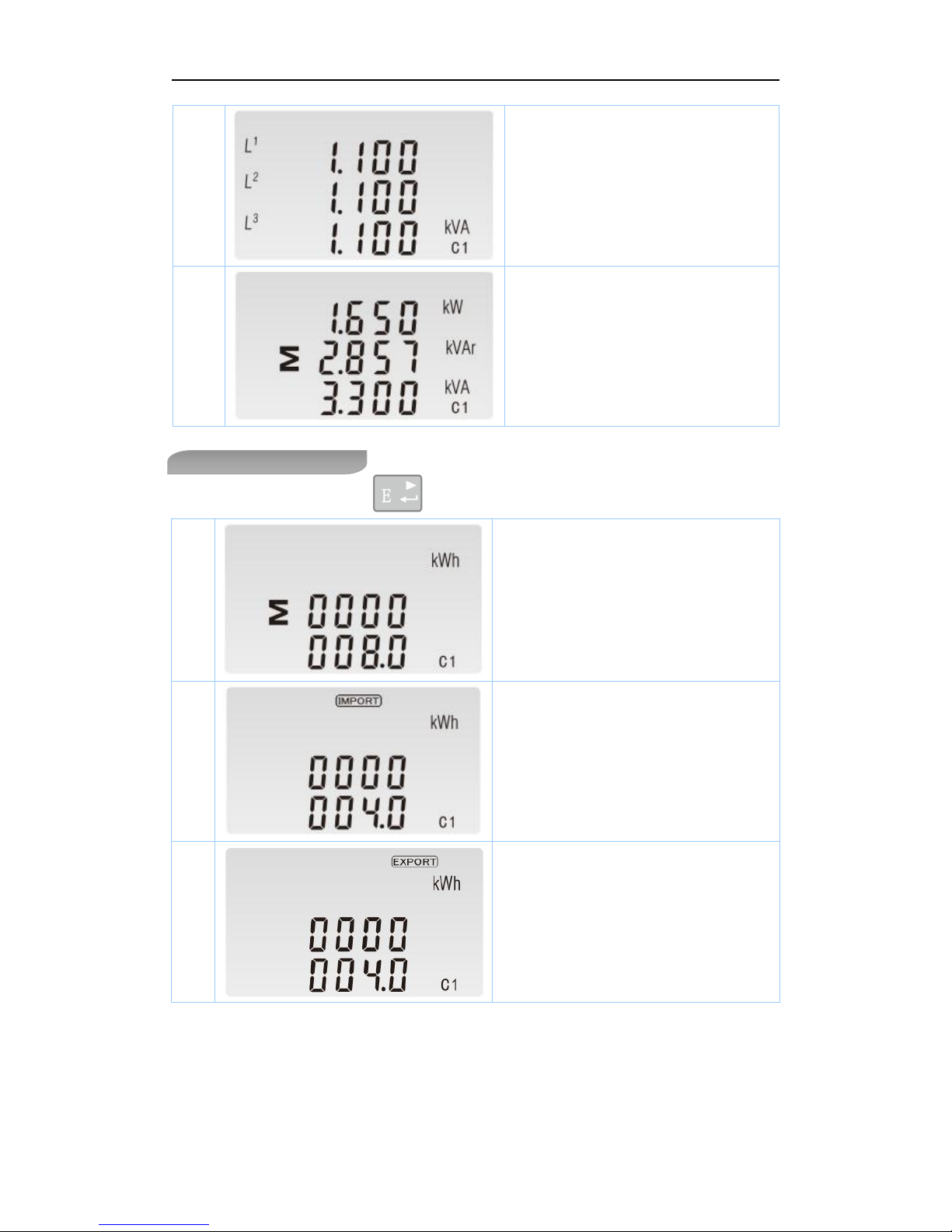

3
Instantaneous Volt-amps (KVA)
4
Total kW, kVAr, kVA
Energy Measurements
Each successive pressing of the button selects a new range:
1
Total active energy in kWh
2
Imported active energy in kWh
3
Exported active energy in kWh

EASTRON SDM630MV-2L Dual Load User Manual
Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China.
Tel: [phone] Fax: [phone] Web: www.eastron.com.cn
4
Total reactive energy in kVAh

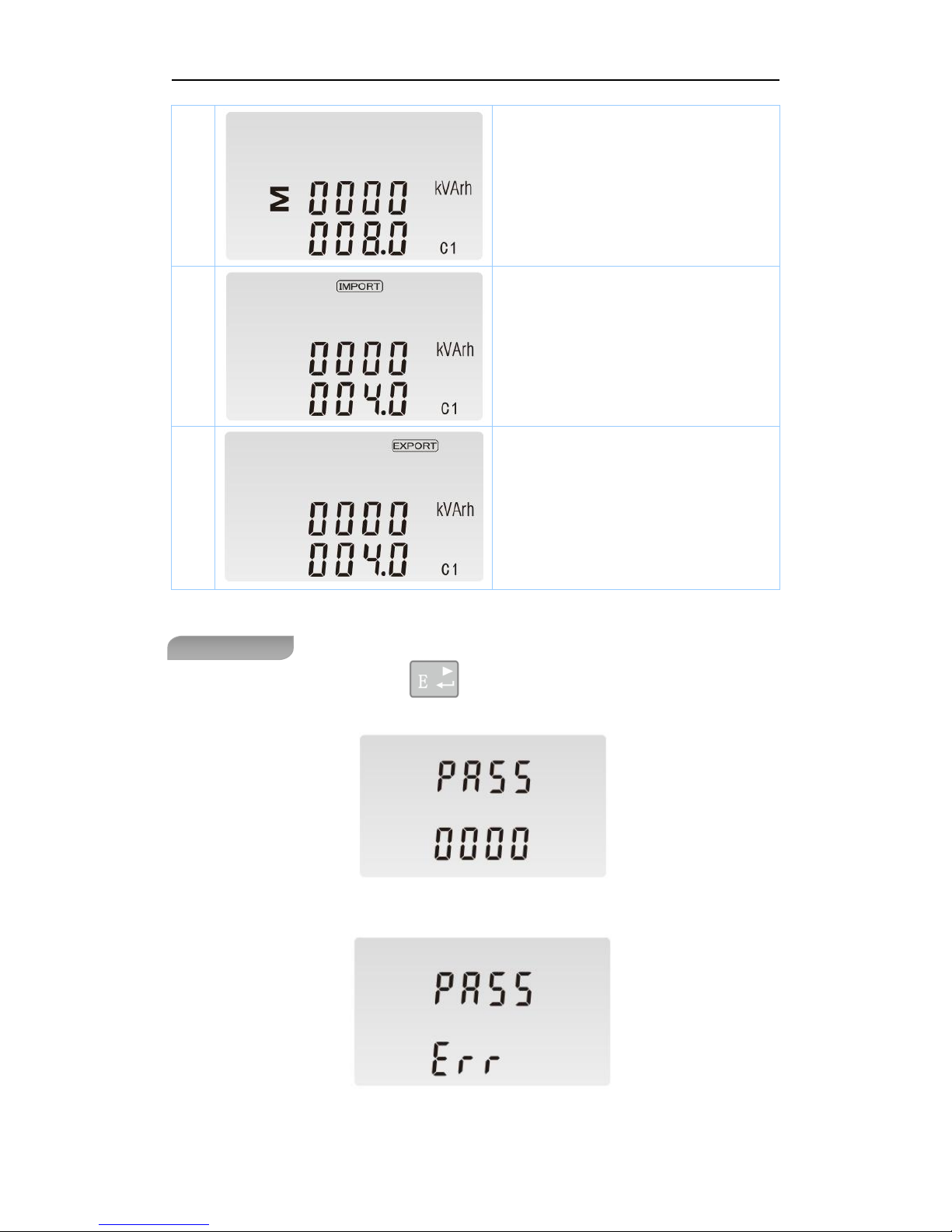

6-1
Imported reactive energy in kVArh
6-2
Exported reactive energy in kVArh
Setting Up
To enter set-up mode, pressing the button for 3 seconds, until the password screen
appears.
Setting up is password-protected so you must enter the correct password (default ‘1000’) before
processing. If an incorrect password is entered, the display will show: PASS Err

EASTRON SDM630MV-2L Dual Load User Manual
Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China.
Tel: [phone] Fax: [phone] Web: www.eastron.com.cn
To exit setting-up mode, press repeatedly until the measurement screen is restored.
Set-up Menu Structure
Change password
nnnn 4-digit number – default ‘1000’
CT Set the value of the CT1
nnnn 4-digit number 0005~9999.
PT set the value of PT Ratio
Nnnn 4-digit number 0001~9999
DIT Demand Integration Time
This is the period in minutes over which the current and power readings are integrated for
maximum demand measurement. Options are: 5 , 10, 15, 30 and 60minutes.

EASTRON SDM630MV-2L Dual Load User Manual
Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China.
Tel: [phone] Fax: [phone] Web: www.eastron.com.cn
Set-up Entry Methods
Some menu items, such as password and CT, require a four-digit number entry while others, such
as supply system, require selection from a number of menu options.
Menu Option Selection
1) Use the and buttons to select the required item from the menu
2) Press to confirm your selection
3) If an item flashes, then it can be adjusted by the and buttons. If not, there
maybe a further layer.
4) Having selected an option from the current layer, press to confirm your selection.
The SET indicator will appear.
5) Having completed a parameter setting, press to return to a higher menu level. The
SET indicator will be removed and you will be able to use the and buttons for
further menu selection.
6)On completion of all setting-up, press repeatedly until the measurement screen is
restored.
Number Entry Procedure
When Setting up the unit, some screens require the entering of a number. In particular, on entry
to the setting up section, a password must be entered. Digits are set individually, from left to
right. The procedure is as follows:
1)The current digit to be set flashes and is set using the and buttons
2)Press to confirm each digit setting. The SET indicator appears after the last digit has
been set.
3)After setting the last digit, press to exit the number setting routine. The SET indicator
will be removed.

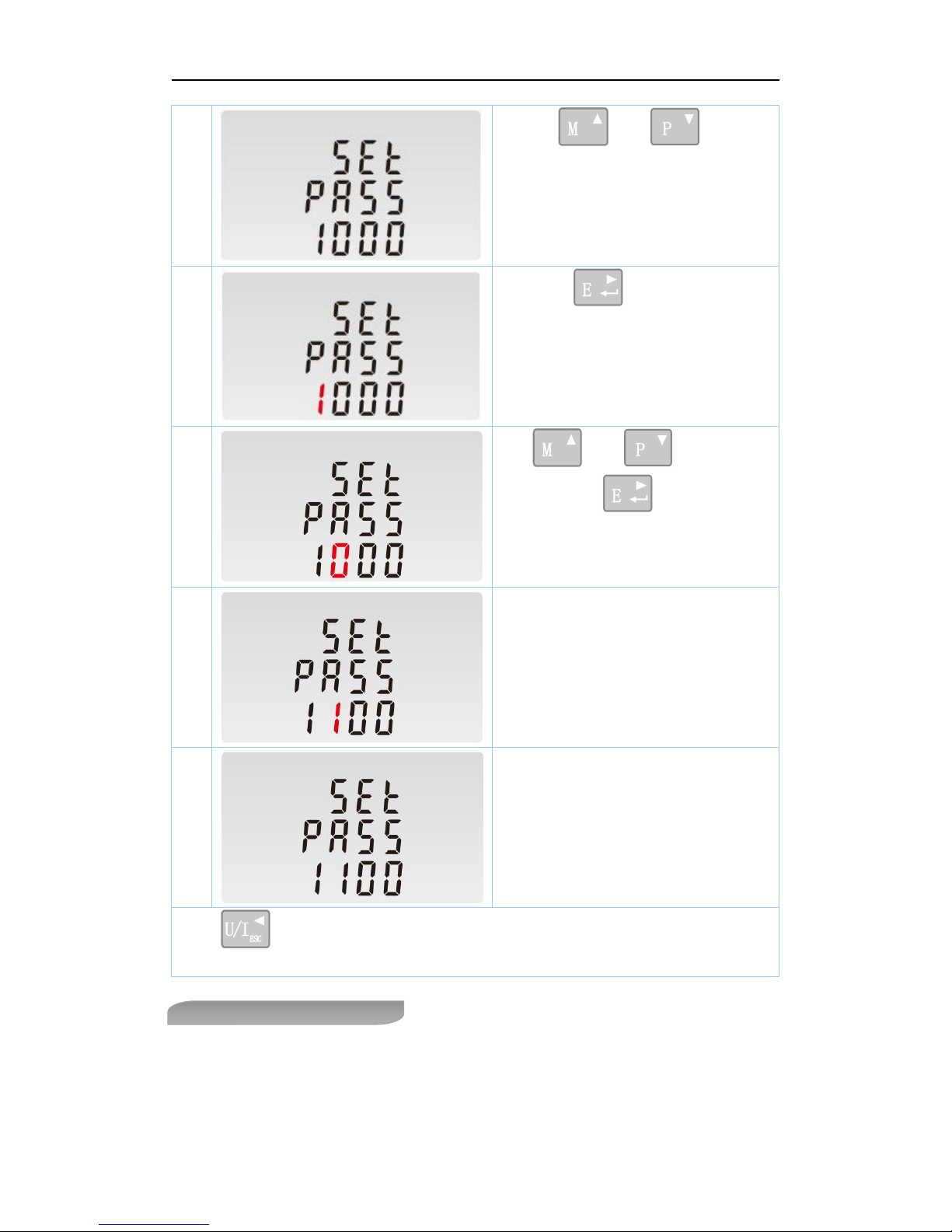

Change password

EASTRON SDM630MV-2L Dual Load User Manual
Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China.
Tel: [phone] Fax: [phone] Web: www.eastron.com.cn
1
Use the and to choose
the change password option
2-1
Press the to enter the change
password routine. The new password
screen will appear with the first digit
flashing
2-2
Use and to set the first
digit and press to confirm your
selection. The next digit will flash.
2-3
Repeat the procedure for the remaining
three digits
3
After setting the last digit, SET will show.
Press to exit the number setting routine and return to the Set-up menu. SET will be
removed

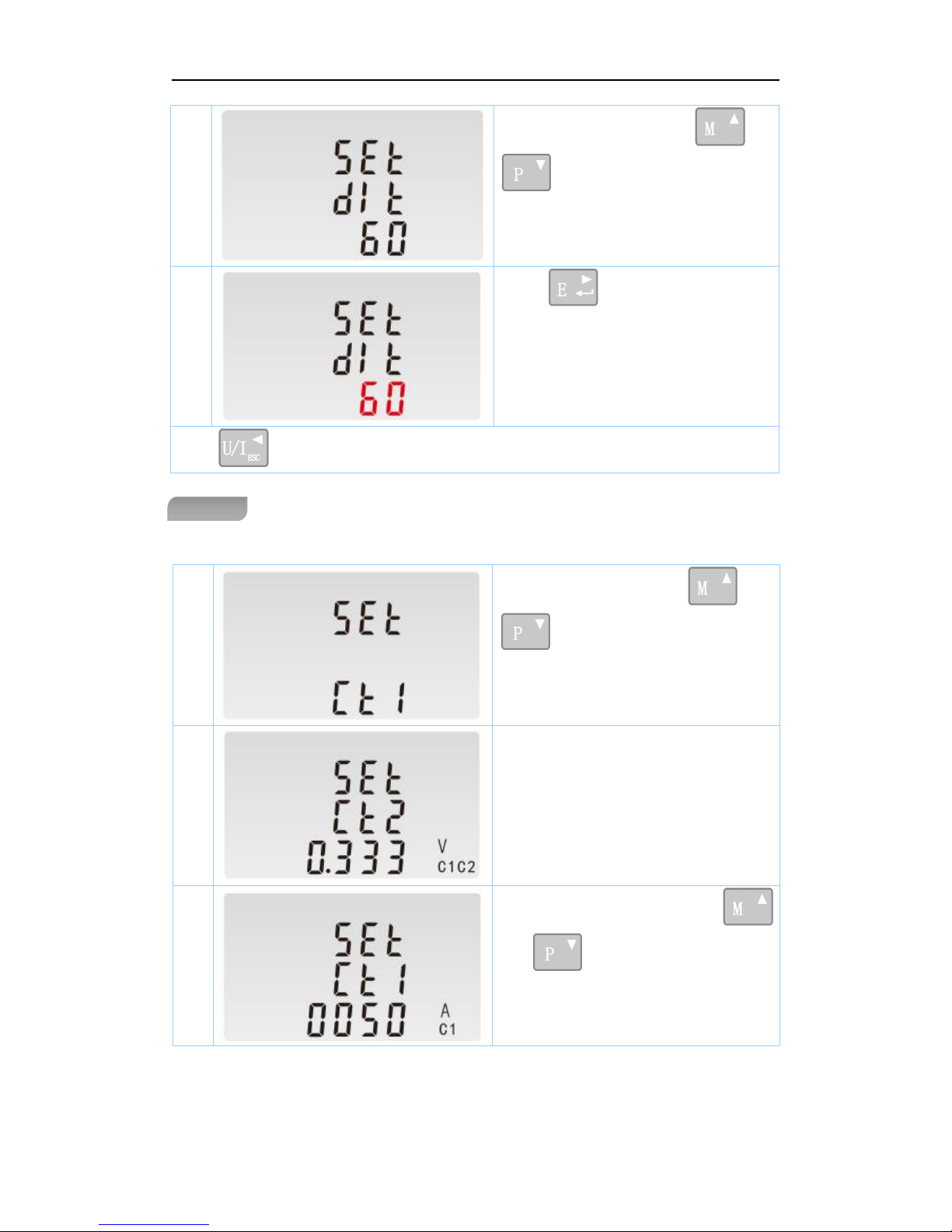

DIT Demand Integration Time
This sets the period in minutes over which the current and power readings are integrated for
maximum demand measurement. The options are: 5, 10, 15, 30,60 minutes

EASTRON SDM630MV-2L Dual Load User Manual
Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China.
Tel: [phone] Fax: [phone] Web: www.eastron.com.cn
1
From the set-up menu, use and
buttons to select the dIt option.
The screen will show the currently selected
integration time.
2-1
Press to enter the selection
routine. The current time interval will flash
Press to exit the dIt selection routine and return to the menu.
CT
The CT option sets the primary current(CT2 fixed 0.333V) of the current transformer (CT) that
wires to the meter.
1
From the Set-up menu, use and
buttons to select the CT option.
The screen will show the current CT
primary current value.
2
Secondary CT(CT2)
It’s fixed 0.333V, and can not be set.
C1.CT2 Circuit 1 C2.CT2Circuit 2
From the Set-up menu, use
and buttons to select the CT
primary(CT1).
Its’ default 5A,and ranged from 0005 to
9999

EASTRON SDM630MV-2L Dual Load User Manual
Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China.
Tel: [phone] Fax: [phone] Web: www.eastron.com.cn

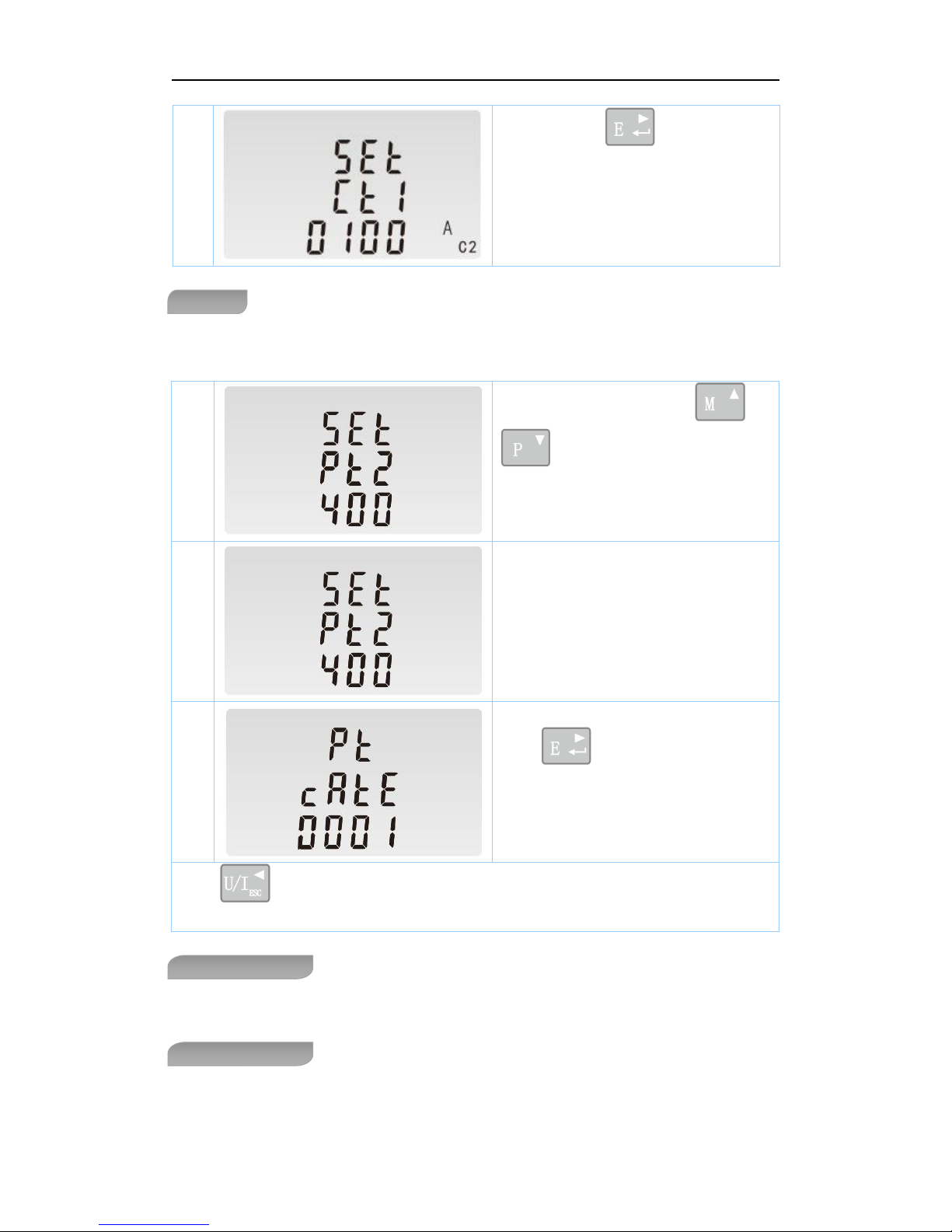

And long press for confirmation.
For example: CT1 100A for C2
PT
The PT option sets the secondary voltage (PT2 100~500V) of the Voltage transformer (PT) that
wires to the meter and the PT ratio between PT1 to PT2. The default value is 400V for Secondary
PT (L-L), and the ratio between PT1 and PT2 is 1.
1
From the Set-up menu, use and
buttons to select the PT option.
The screen will show the voltage PT
secondary voltage value.
2
Secondary PT setting
The setting method is same as Primary
voltage setting PT1
Max PT2 value is 500V
3
Set PT Ratio Value
Press to enter the PT Ratio
The range is from 0001~9999.
Press to exit the system selection routine and return to the menu. SET will disappear
and you will be returned to the main Set-up Menu
Communication
There is a RS485 port can be used for communication using Modbus RTU protocol. For Modbus
RTU, parameters are selected from Front panel.
RS485 Address

EASTRON SDM630MV-2L Dual Load User Manual
Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China.
Tel: [phone] Fax: [phone] Web: www.eastron.com.cn
(The range is from 001 to 247)
1
From the Set-up menu, use
and buttons to select the Address
ID
2-1
Press button to enter the
selection routine. The current setting will
be flashing.

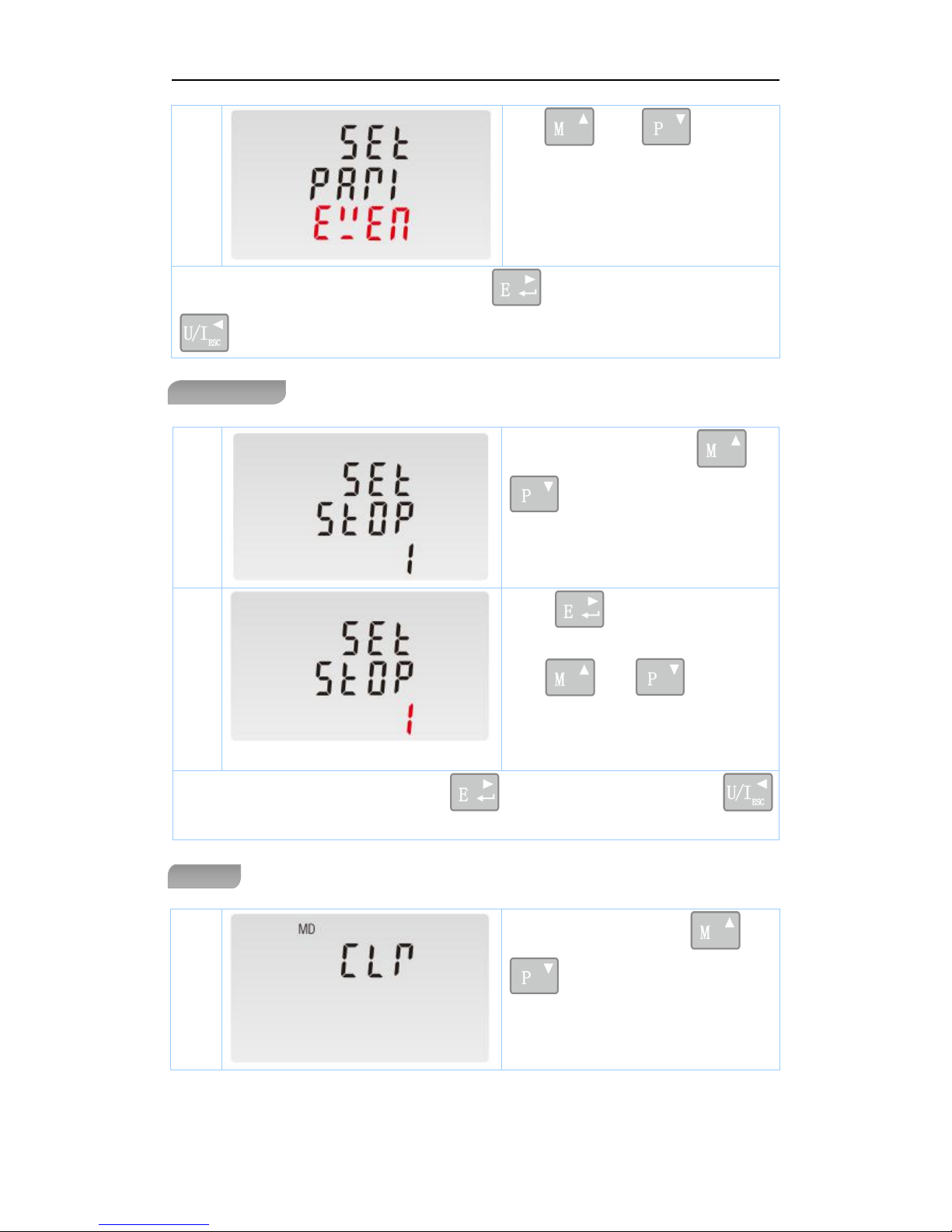

2-2
Use and buttons to
choose Modbus Address (001 to 247)
For example: Modbus Address 002 for C2.
On completion of the entry procedure, press button to confirm the setting and press
button to return the main set-up menu.
Baud Rate

EASTRON SDM630MV-2L Dual Load User Manual
Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China.
Tel: [phone] Fax: [phone] Web: www.eastron.com.cn
1
From the Set-up menu, use and
buttons to select the Baud Rate
option.
2-1
Press to enter the selection
routine. The current setting will flash.
2-2
Use and buttons to
choose Baud rate 2.4k. 4.8k, 9.6k, 19.2k,
38.4k
On completion of the entry procedure, press to confirm the setting and press
to return to the main set up menu.
Parity
1
From the Set-up menu, use and
buttons to select the Parity
option.
2-1
Press to enter the selection
routine. The current setting will flash.

EASTRON SDM630MV-2L Dual Load User Manual
Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China.
Tel: [phone] Fax: [phone] Web: www.eastron.com.cn
2-2
Use and buttons to
choose Parity (EVEN / ODD / NONE)
Default is NONE
On completion of the entry procedure, press to confirm the setting and press
to return to the main set up menu.
Stop bits
1
From the Set-up menu, use and
buttons to select the Stop Bit
option.
2-1
Press to enter the selection
routine. The current setting will flash.
Use and buttons to
choose Stop Bit (2 or 1)
On completion of entry procedure, press to confirm the setting and press
to return to the main set up menu.

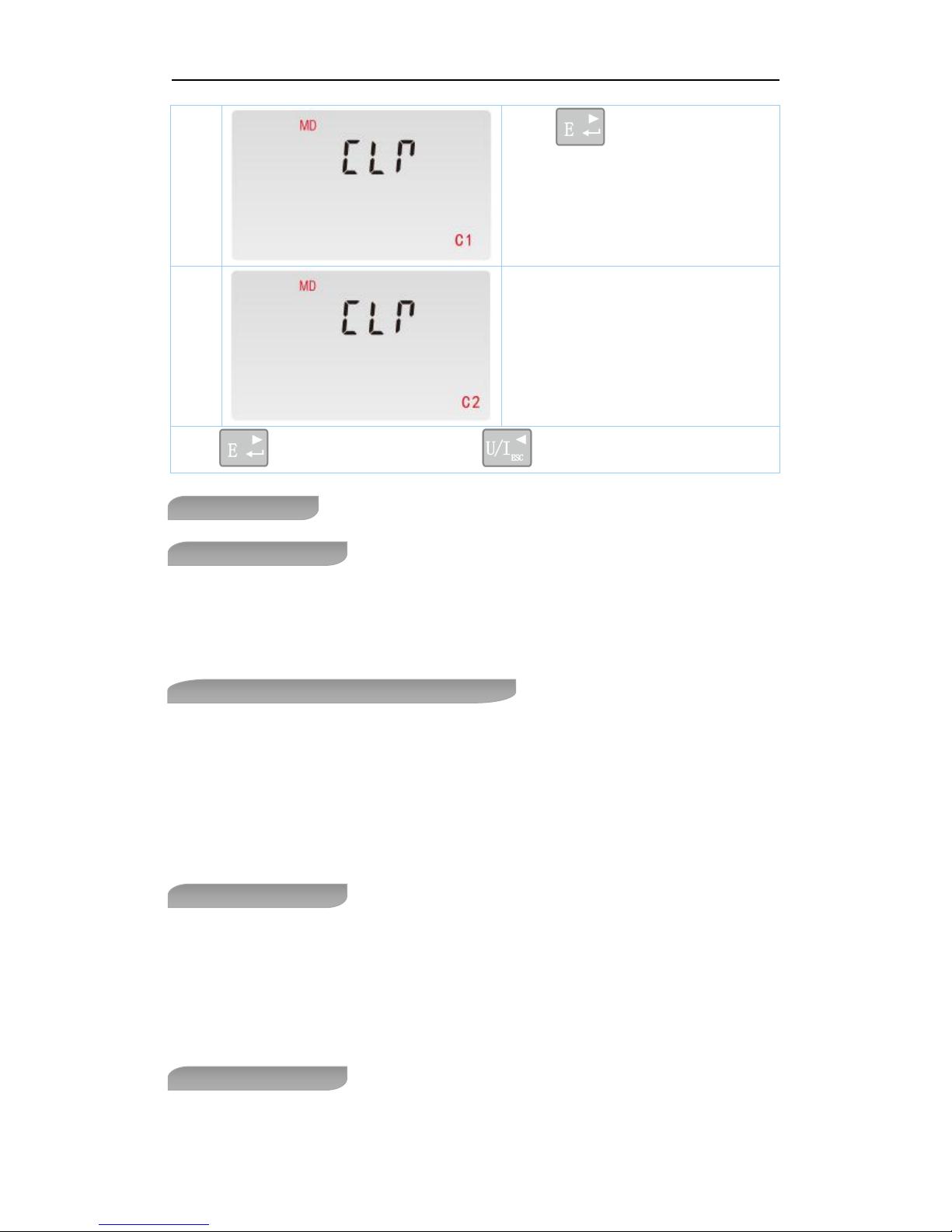

CLR
The meter provides a function to reset the maximum demand value of current and power.
1
From the Set-up menu, use and
buttons to select the reset
option.

EASTRON SDM630MV-2L Dual Load User Manual
Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China.
Tel: [phone] Fax: [phone] Web: www.eastron.com.cn
Press to enter the selection
routine. The dIt will flash.
2
For example, reset for maximum demand
value of C2.
Press to confirm the setting and press to return to the main set up menu.
Specifications
Voltage and Current
Phase to neutral voltages 100 to 289V a.c.
Voltages between phases 173 to 500V a.c.
Percentage total voltage harmonic distortion (THD%) for each phase to N
Current THD% for each phase
Power factor and Frequency and Max. Demand
Frequency in Hz
Instantaneous power:
Power 0 to 3600 MW
Reactive Power 0 to 3600 MVAr
Volt-amps 0 to 3600 MVA
Maximum demanded power since last Demand reset Power factor
Maximum neutral demand current, since the last Demand reset
Energy Measurements
Imported active energy 0 to 9999999.9 kWh
Exported active energy 0 to 9999999.9 kWh
Imported reactive energy 0 to 9999999.9 kVArh
Exported reactive energy 0 to 9999999.9 kVArh
Total active energy 0 to 9999999.9 kWh
Total reactive energy 0 to 9999999.9 kVArh
Measured Inputs
Voltage inputs through 4-way fixed connector with 2·5mm2 stranded wire capacity. Line

EASTRON SDM630MV-2L Dual Load User Manual
Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China.
Tel: [phone] Fax: [phone] Web: www.eastron.com.cn
frequency measured from L1 voltage or L3 voltage.
Three current inputs with stranded RJ12 socket for connection of external CTs. Nominal rated
input current is 0.333V.
Accuracy
Voltage 0·5% of range maximum
Current 0·5% of nominal
Frequency 0·2% of mid-frequency
Power factor 1% of unity (0.01)
Active power (W) ±1% of range maximum
Reactive power (VAr) ±1% of range maximum
Apparent power (VA) ±1% of range maximum
Active energy (Wh) Class 1 IEC 62053-21
Reactive energy (VARh) ±1% of range maximum
Total harmonic distortion 1% up to 31st harmonic
Power Supply
Two-way fixed connector with 2·5mm2 stranded wire capacity.
The meter is powered from Phase L1. The user must make sure the meter Phase 1 has power on.
Interfaces for External Monitoring
Three interfaces are provided: an RS485 communication channel that can be programmed for
Modbus RTU protocol.
RS485 Output for Modbus RTU
For Modbus RTU, the following RS485 communication parameters can be configured from the
Set-up menu:
Baud rate 2400, 4800, 9600, 19200, 38400
Parity none/odd/even
Stop bits 1 or 2
RS485 network address nnn – 3-digit number, 00 1 to 247
Modbus™ Word order Hi/Lo byte order is set automatically to normal or reverse. It cannot
be configured from the set-up menu.
Reference Conditions of Influence Quantities
Influence Quantities are variables that affect measurement errors to a minor degree. Accuracy is
verified under nominal value (within the specified tolerance) of these conditions.
Ambient temperature 23°C ±1°C
Input waveform 50 or 60Hz ±2%
Input waveform Sinusoidal (distortion factor < 0·005)
Magnetic field of external origin Terrestrial flux
Environment

EASTRON SDM630MV-2L Dual Load User Manual
Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China.
Tel: [phone] Fax: [phone] Web: www.eastron.com.cn
Operating temperature -25°C to +55°C*
Storage temperature -40°C to +70°C*
Relative humidity 0 to 90%, non-condensing
Altitude Up to 3000m
Warm up time 1 minute
Vibration 10Hz to 50Hz, IEC 60068-2-6, 2g
Shock 30g in 3 planes
Case Dimensions
Wiring diagram

EASTRON SDM630MV-2L Dual Load User Manual
Address: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China.
Tel: [phone] Fax: [phone] Web: www.eastron.com.cn
