Eastsign RS-1800R User manual

Eastsign
SRS20210302
Eastsign
RollSlitter
UserManual

Eastsign
ROLL SILTTER USER MANUAL
Content
1. Information..............................................................................................................................................1
2. Specifications...........................................................................................................................................2
3. Machine Structure ...................................................................................................................................3
4. Control Panel Instruction..........................................................................................................................4
4.1 Control panel on machine body...............................................................................................................4
5. Installation...............................................................................................................................................5
6. Parameters ..............................................................................................................................................6
7. Operation Guide ......................................................................................................................................7
7.1. Cutting Only.............................................................................................................................................7
7.2. Cutting and Rewinding ............................................................................................................................7
8. Important Notice .....................................................................................................................................8
9. Electrical Diagram ....................................................................................................................................9
9.1 Transfer of Garment in sheets..................................................................................................................9
Warranty ...................................................................................................................................................10
Limitation of liability..................................................................................................................................11
Contact us.................................................................................................................................................. 12

Eastsign
ROLL SILTTER USER MANUAL
1
1. Information
Eastsign Roll Slitters is possible to slit most kinds of material such Polyester, PVC Banners & Mesh, Vinyl, Single
or Double-sided Adhesive Tape, Reflective Sheetings, Application Tape, Electrical Tape, Paper Rolls, Masking
Tape, Window Film, Photo Paper. Blade holder is driven by spiral shaft, which width accuracy is up to
1mm."Auto” or "Manual” mode are available. Unit is displayed as mm or inch.
Rewinding shaft is available. There is length counter, which helps you convert the jumbo roll to small roll. This
is excellent machine for consumable distributors to cope with urgent order from end-users.
Main shaft outer diameter of RS-3300R is 3". 2" Main shaft is available for loading inkjet media.
Roll slitter is available in 1.8m and 3.3m wide. Maximum cutting diameter is 250mm.

Eastsign
ROLL SILTTER USER MANUAL
2
2. Specifications
Model
RS-1800R
RS-3300R
Max Media Loading Width
2000mm or 78"
3300mm or 130"
Max Loading Weight
400kg or 880lb
Max Diameter of Blade
300mm or 11.8"
Max Cutting Diameter
250mm or 10"
Max Diameter of Media
on Rewinding Shaft
350mm or 13.8"
Motor power
0.75kW
Voltage
AC110/220V, 50/60Hz
Rotary speed
200 Round per Minute
Width Cutting Tolerance
1mm
Air Compressor / Rewinding Shaft
Optional
Cutting Width
230mm-1730mm or 9"-68"
230mm-3050mm or 9"-120"
Core Diameter
76.2mm or 3" / 50.8mm or 2"
76.2mm or 3"
Max Weight of Material
70kg
120kg
Weight
350kg or 772lb
480kg or 1058lb
Machine Size
2600 x 1000 x 1300mm
101" x 40" x 51"
4000 x 1000 x 1300mm
158" x 40" x 51"
Packing Size
2700 x 700 x 1400mm
106" x 28" x 55"
4300 x 700 x 1400mm
170" x 28" x 55"

Eastsign
ROLL SILTTER USER MANUAL
3

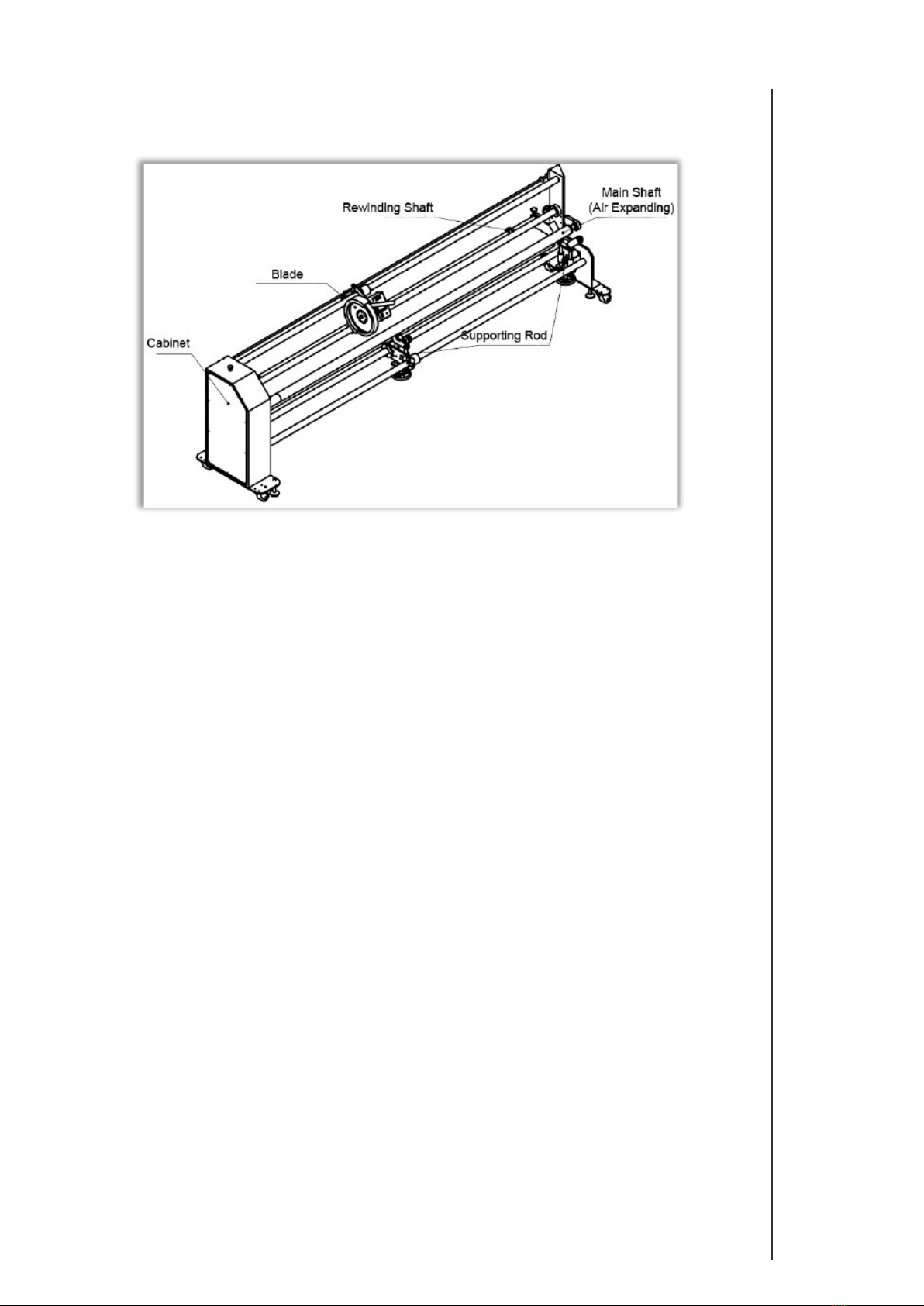

3. Machine Structure

Eastsign
ROLL SILTTER USER MANUAL
4
4. Control Panel Instruction

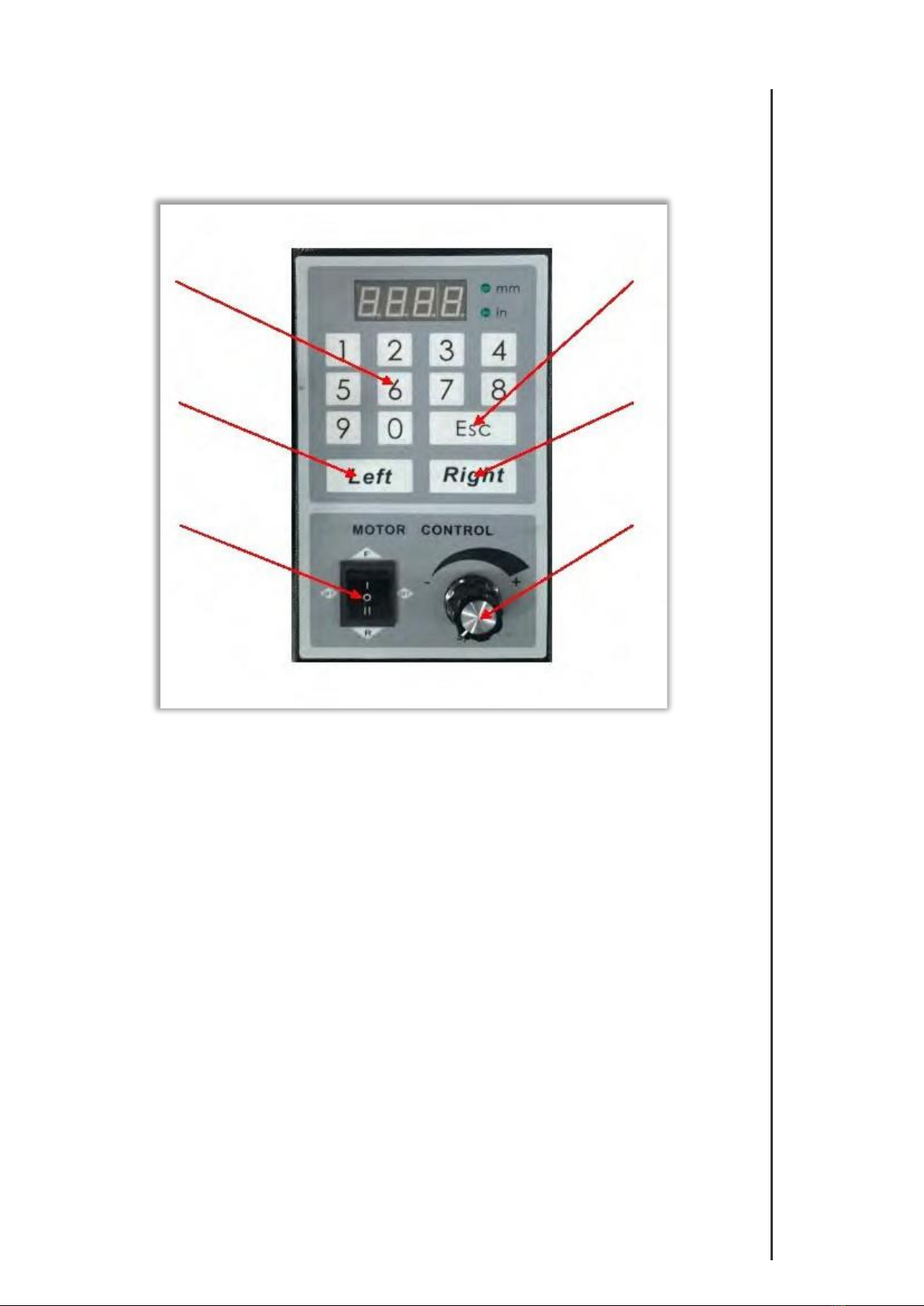

4.1 Control panel on machine body
[1] Number Pad ‒ Input number to move
[4] Esc ‒ Cancel input number or stop the
the blade or change the parameter
machine to move
[2] Left ‒ Move blade to the left
[5] Right ‒Move blade to the right
[3] Direction ‒ Change direction of main
[6] Speed ‒ Change the speed of main
shaft rotation (Forward/Null/ Backward)
shaft rotation
Auto Mode: Input width value and press “Left” or “Right” to
move automatically. Manual Mode: Press“ Left” or“ Right” continuously to move

Eastsign
ROLL SILTTER USER MANUAL
5
5. Installation
5.1. Open wooden crate and loosen all bolts (under machine) which fasten the machine to pallet.
5.2. Unload the machine to clean, flat and dry concrete open indoor space. There should be enough room for
loading and unloading roll material on the right of the machine.
5.3. Connect the machine to current voltage. Rated voltage is marked on machine nameplate.

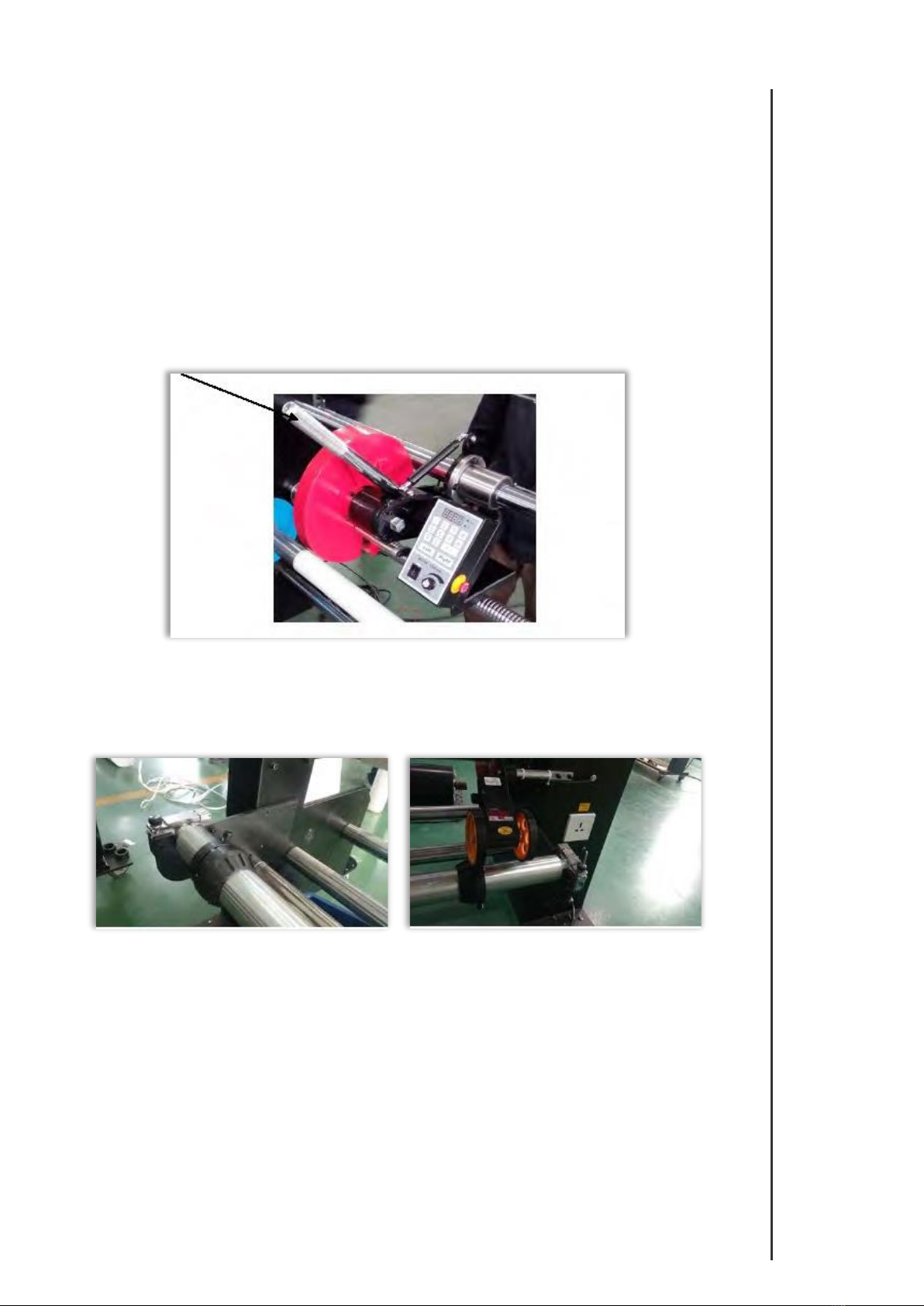

5.4. Install handle to the machine
5.5. Install rewinding rod holder to the back of the machine. Put rewinding rod on the holder and length
counter as shown in the following images.

Eastsign
ROLL SILTTER USER MANUAL
6
6. Parameters
Mode
Range
Default
Remarks
D-1
Content Unit Blade Maximum Moving
0=millimeter
1=inch
1-3000
0(mm)
D-2
Distance(mm) Blade Maximum Moving
1-118
1500/3000
RS-1800R/
RS-3300R
D-3
Distance(inch) Blade Maximum Moving
200-253
59/118
RS-1800R/
RS-3300R
D-4
Setting Finished
247
6.1. Press“ Left” or“ Right” for 3 seconds
6.2. It shows“ D‐1” in the monitor. Press“ Right” to show parameter of D‐1. Press number to
change the parameter.
6.3. Press“ Right” to again show parameter of D‐2 / D‐3 / D‐4
6.4. If it is idle for 1 minute, it will return to operation mode.

Eastsign
ROLL SILTTER USER MANUAL
7
7.Operation Guide
7.1. Cutting Only
7.1.1Before loading the media, check if the blade just touches the plastics tube. If the blade cut though plastic
tube, steel shaft may damage the blade. Adjust the screw under the handle to protect the blade.
7.1.2Unlock the shaft support on the right. Load the roll materials on main shaft from right hand side of the
machine. Use the media support if the roll is heavy.
7.1.3Switch on air compressor. Air hole is on the left side of the main shaft. Inject the compressed air for
around 3 seconds. The pressure input should be within 0.4MPa.
7.1.4Check if the roll is tightly fastened on main shaft. Input width value and press“ Left” or“ Right” to
move automatically
7.1.5Control rotating direction of main shaft. Make sure that it is the same as rewinding direction of the roll.
Control the rotating speed of main shaft and let it reach stable speed for a short moment. Press the
handle gently to open a small trough on the media. Then, press harder to cut the paper core.
7.1.6Reduce the speed to minimum and change the direction to “ Null” mode. Unlock the shaft support
and unload the media from the right.
7.2. Cutting and Rewinding
7.2.1Load the jumbo roll on rewinding shaft and fasten the roll on plug. Load the paper core on main shaft.
Stick the media on paper core.
7.2.2Lay down the length counter on the media. Control rotating direction of main shaft and rotating speed of
main shaft.
7.2.3When the media is tracking to one side, adjust the tension on rewinding rod support.

Eastsign
ROLL SILTTER USER MANUAL
8
8. Important Notice
8.1. Slitter must be placed on flat, dry, open and solid concrete ground. Working place must be dry, clean and
well-ventilated. Reserve at least 1m working space around the machine for operation and at least 2m (RS
-1800R) or 3.5m (RS-3300R) on the right side of the machine for loading or unloading.
8.2. Electricity of equipment is 220V, 50HZ, single phase. If power supply is 110V inform Eastsign to add
transformer in advance.
8.3. Check the voltage from main power supply if it matches rate voltage marked on machine. Make sure that
it is connected to ground and avoid short circuit.
8.4. Non‐operators should stay away from the machine during cutting
8.5. Lubricate the machine regularly
8.6. Check and fasten all screws or bolts regularly
8.7. Conceal the blade by blade cover when it is not working
8.8. Switch off the machine when the machine is under maintenance
8.9. Report to Eastsign engineers by sending images or video if the machine is not working properly

Eastsign
ROLL SILTTER USER MANUAL
9
9. Electrical Diagram
9.1 Transfer of Garment in sheets
.

Eastsign
ROLL SILTTER USER MANUAL
10
Warranty
1. The warranty for the machine will be offered within one year stating from the date of the commercial
invoice. When filing the each claim the buyer must provide details of problem and serial number with
clear pictures or video. Eastsign shall not be liable to honor the terms of this warranty if the product has
been used in any application other than that for which it was intended, or if it has been subjected to
misuse, abuse, accidental damage, modification, improper wiring, improper repair, incorrect repair or
improper installation procedures.
2. If the machine is under warranty, parts will be provided free, the buyer will be responsible for the
shipping cost.
3. If the machine is not under warranty, parts and shipping cost will be charged.

Eastsign
ROLL SILTTER USER MANUAL
11
Limitation of liability
1. Eastsign is not liable for any damaging consequences resulting from the execution of repairs on the
Machinery without its prior approval, executed by the Buyer or by a third party;
2. The warranty does not apply, for example but not limited to: to parts subject to normal wear; to damages
caused by improper or inadequate maintenance, incorrect positioning, incorrect operations of the
Buyer’s personnel, use of incorrect raw materials, faulty or careless treatment, overexploitation of the
devices; to use in any application other than that for which it was intended; to subject to misuse, abuse,
accidental damage, modification, improper wiring; to damages or deterioration caused or aggravated by
missed interruption of use of the machinery in case of technical problems or sudden change in voltage or
in processing temperature or excessive humidity power or any other cause which does not relate to
Eastsign.
3. The warranty loses all its effects when any equipment or devices or supplies not provided by Eastsign is
installed on the Machinery, when the Machinery is modified without prior written approval of Eastsign.
