EASY DRIVE ED3000 Series Mounting instructions

ED3000/2006-01-01 VER：1.0
ED3000 series inverter
Use manual(V1.0)
EASY DRIVE Technology Ltd, ShenZhen
Address：Guangxian gongye zone ,Bagua 3 road,Futian district,Shenzhen
- 1 -

ED3000/2006-01-01 VER：1.0
Preface
Thank you for using ED3000 series inverter manufactured by company.
ED3000 series inverter is another series driver inverter with high-torque,
high-precision and wide-timing. It is developed by company with the new theory.
On the premise of improving stability, it provides a advanced series of running and
controlling function of simple PLC,PI adjust, flexible I/O port, parameter revisable
on-line, pulse frequency given, parameter saved while power-off or closing down,
fixed length control, swing frequency control,RS485 control and multi-pump
constant voltage water supply control. A set of integrative solving scheme is
provided for terminal customers. That is valuable and helpful for reducing the cost
and improving the reliability of system.
Before using ED3000 series inverter, the user should read the use manual
carefully to make sure that ED3000 series inverter can be installed and operated
correctly.
If this manual is changed, please refer to the new edition.
Reader range
This use manual is suitable for:
Inverter erector, relevant technician (electrical engineer, electrical manipulator etc),
designer.
Please make sure this manual reach the terminal user.
Safety precautions
There are two kinds of safe relevant warnings in this manual:
Attention If do not operate on request, may make the body injured .
Danger If do not operate on request, may cause death or severely
injured.
- 2 -

ED3000/2006-01-01 VER：1.0
－catalogue－
Chapter 1 Summary
1.1 product affirmance ---------------------------------------（5）
1.2 safety notice points --------------------------------------（6）
1.3 use notice points -----------------------------------------（8）
1.4 scrap notice points---------------------------------------（10）
Chapter 2 Product criterion and order notice
2.1 series type ------------------------------------------------（11）
2.2 product criterion -----------------------------------------（12）
2.3 appearance explanation----------------------------------（13）
2.4 outer size--------------------------------------------------（14）
2.5 choose fittings---------------------------------------------（16）
Chapter 3 Installation and wiring
3.1 installation ambient--------------------------------------（18）
3.2 panel disassembly and installation---------------------（18）
3.3 wiring notice points--------------------------------------（19）
3.4 main loop terminal wiring-------------------------------（20）
3.5 basic running wiring diagram---------------------------（23）
3.6 control loop collocation and wiring--------------------（23）
3.7 installation guidance accord with EMC---------------（27）
Chapter 4 Run and operation explanation for inverter
4.1 run of inverter -----------------------------------------（30）
4.2 operation and use of keyboard-----------------------（32）
Chapter 5 Function parameter schedule graph
5.1 symbol description-------------------------------------（40）
5.2 function parameter schedule graph------------------（40）
- 3 -

ED3000/2006-01-01 VER：1.0
- 4 -
Chapter 6 Function parameter schedule graph explanation
6.1 basic parameter（P000－P032）-----------------------（53）
6.2assistantparameter（P033－P066）-------------------（60）
6.3 protection parameter（P067－P070）-----------------（66）
6.4 switch input & output parameter（P071－P084）---（67）
6.5 multi-step speed running parameter（P085－P113）（74）
6.6 swing frequency and measure parameter
（P114－P127）--------------------------------------------（77）
6.7processPID control parameter（P128－P147）-（80）
6.8 communication parameter（P148－P151）-----------（85）
6.9 code and manufacturer function parameter
（P152－P187）--------------------------------------------（87）
Chapter 7 Troubleshooting
7.1 failure and countermeasure--------------------------------（88）
7.2 failure record search----------------------------------------（91）
7.3 failure settlement--------------------------------------------（91）
Chapter 8 Maintenance
8.1 daily maintenance-------------------------------------------（92）
8.2 maintenance term-------------------------------------------（93）
8.3 repair guarantee----------------------------------------------（93）

ED3000 系列高性能通用变频器使用说明书
Chapter 1 Summary
1.1 Incoming inverter inspect
Check if there is damage during transportation and inverter itself has damage or
fall-off parts. Check if parts presented in packing list are all ready. Please confirm
rated data of the inverter is in line with your order requirement.
Please contact our company or local agent rapidly if some careless omission or
mistake arise, we'll deal with it as soon as possible.
Type explanation：
ED3000 – 4 T 0015 M B
B Buil
t
-in brake uni
t
Inverter serial no.
code Inverter t
yp
e
Volt.
g
rade code M 恒转矩
220V 2 FP 风机水泵型
380V 4
code Motor
p
owe
r
In
p
ut volt. code 0015 1.5K
W
Sin
g
le
p
hase S 0075 7.5K
W
Three
p
hase T 0110 11K
W
0185 18.5K
W
1100 110K
W
Fig. 1-1 type description
Nameplate presented as figure 1-1 with type and rating data at the bottom of inverter
right side.
- 5 -

ED3000 系列高性能通用变频器使用说明书
Fig.1-2 Nameplate
1.2 Safety precautioins
Incoming inverter inspect
Pay attention
1．Don’t fix the inverter which is injured or lack of
components.
May make the body injured
fixing
Pay attention
- 6 -

ED3000 系列高性能通用变频器使用说明书
1．Please hold the bottom of the inverter.
May make the feet injured if only hold the panel.
2．The inverter is forbidden to install on the flammables,
otherwise have danger of fire.
3．If two or more than two inverter are fixed in one control
tank, please fix the cooling fan, make sure that the
temperature of the entry is below 40℃.
May cause fire or other accident.
wiring
Danger
1．Make sure the power is cut off before wiring.
Have danger of fire or an electric shock.
2．Invite the electrician to connect wire.
Have danger of fire or an electric shock.
3．The ground terminal of the inverter must be grounded
well.
（380V：especially the third grounding）
Have danger of fire or an electric shock.
4．After the urgency shut-down terminal is connected, make
sure it is in effect.
Have danger of body injured.
5．Don’t touch the output terminal directly, and don’t make
the output terminal and the shell short-circuited. Make
sure the output terminals isn’t short-circuited.
Have danger of electric shock.
- 7 -

ED3000 系列高性能通用变频器使用说明书
Pay attention
1．Make sure the rating voltage of AC main loop power and
the inverter is the same.
Have danger of body injured and fire.
2．Do not test the endurance voltage of the inverter.
May make the inverter damaged, such as semiconductor
parts.
3．Please connect the braking resistance or braking cell with
the help of wiring diagram.
Have danger of fire.
4．Please use screwdriver to fix terminals with moment
appointed.
Have danger of fire.
5．Don’t connect the power supply to the output terminal U,
V, W directly.
May make the inverter damaged.
6．Don’t connect the phase-shifting capacitor and the
LC/RC noise filter to the output circuit.
May make the inverter damaged.
7．Don’t connect the electromagnetic switch and the
electromagnetic contactor to the output loop.
Inverter running load may over-current for the surge current
by the electromagnetic switch and the electromagnetic
contactor.
8．Do not take down the panel cover, and only have to take
down the terminal cover when wiring.
- 8 -

ED3000 系列高性能通用变频器使用说明书
May make the inverter damaged.
Maintenance and inspection
Danger
1．Do not touch the wiring terminal of the inverter, which is
high voltage.
Have danger of electric shock.
2．Before power on, must install the terminal cover
completely, and cut off the power when have to take down
the cover.
Have danger of electric shock.。
3．Only the qualified personnel may do the maintennce and
inspection job.
Have danger of electric shock.
Pay attention
- 9 -

ED3000 系列高性能通用变频器使用说明书
1．Please pay attention to the CMOS IC in the keyboard,
control circuit board and the drive circuit board.
If touch the PCB with the finger directly, the electrostatic
induction may damage the IC circuit board.
2．Do not change wiring and take down the terminal wiring
when power on.
If check the signal when running, may damage the
equipment.
1.3 Use notice points
Using ED3000 series inverter，please notice that：
1、Run with constant torque of low-speed
If need to run for a long time with constant torque of low-speed, must select
motor of frequency conversion for use. Use general asynchronous AC motor when
running at a low speed, should control temperature of the motor or carry on heat
dissipation measure forcedly, so as not to burn the generator.
2、Insulation check to the motor
Should make insulation check to the motor before using it for the first time or
after a long time placement, otherwise inverter may be damaged. Moreover, please
make insulation check to the motor regularly when the environment is tough for the
safety of the system.
3、Negative torque load
For hoist and great inertia load, etc., the inverter would shut off frequently due
to over-current or over-voltage failure, in order to guarantee normal work, should
consider choosing proper brake package.
4、Mechanical resonance of the load
The inverter may meet with mechanical resonance of the load within certain
- 10 -

ED3000 系列高性能通用变频器使用说明书
range of frequency output, can set up jumping frequency to evade.
5、Capacitance or varistor for improving power factor
If need to install such switch as the magnetic control conductor, etc. between
inverter output and the motor, please guarantee the inverter is switched on/off
without output, otherwise may damage the inverter. To forbid assembling capacitor
for improving power factor or lightmngproof voltage-sensible resistance etc.,
otherwise will cause malfunction tnp of the inverter or damage of the parts, shown
as fig. 1-3.
M
变频调速器
U
V
W
KM

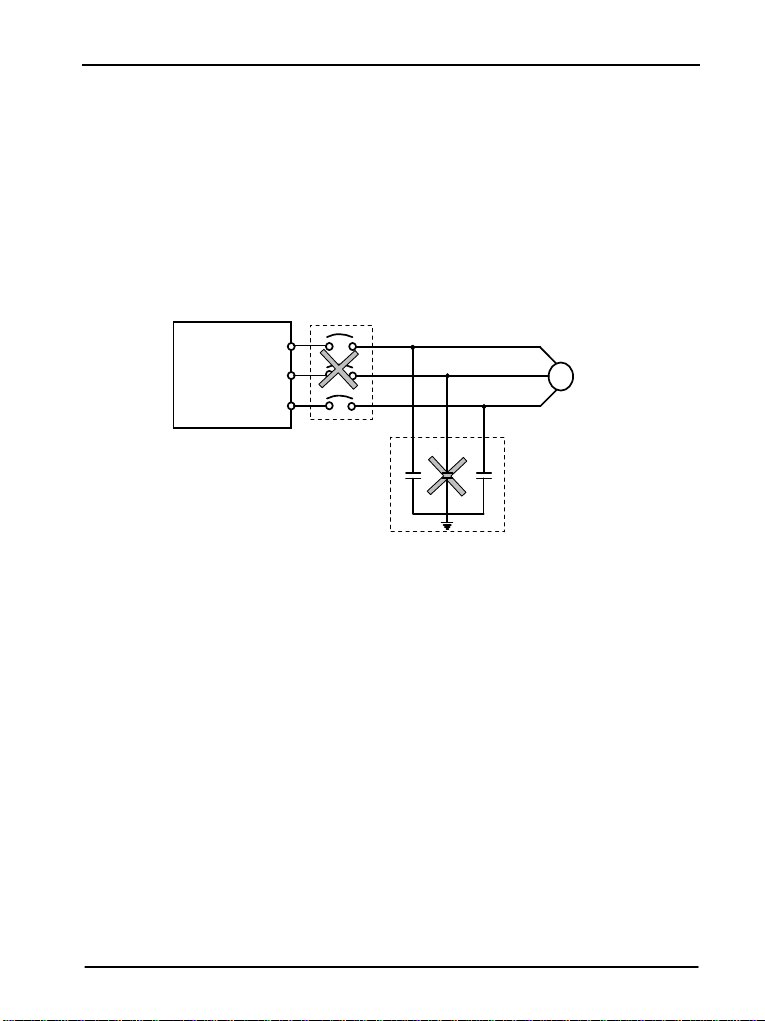

fig.1-3 capacitor at output side forbidden
6、Using with drop rating when frequency setting
When the setting frequency is below the rated frequency, please note the runing
of the motor, in order to avoid overheating.
7、Running in the frequency above 50Hz
If running in the frequency above 50Hz, must take the increased vibration and
noise of motor into account, and make sure the speed range of the motor bearings
and mechanical devices.
8、The motor’s electronic thermal protection
When the right motor is chosen, the inverter can provide the thermal protection
for the motor. If the motor and the rated capacity of the inverter is not matched, it is
important to adjust the protection value or take other protective measures, to ensure
- 11 -

ED3000 系列高性能通用变频器使用说明书
the safe operation of motor.
9、Altitude and drop rating using
In the condition of altitude above 1000 meters, should use the inverter in lower
volume. The curve of inverter rated current and altitude is shown in fig.1-4.
80%
90%
100%
1000 2000 3000 4000
Iout
（米）

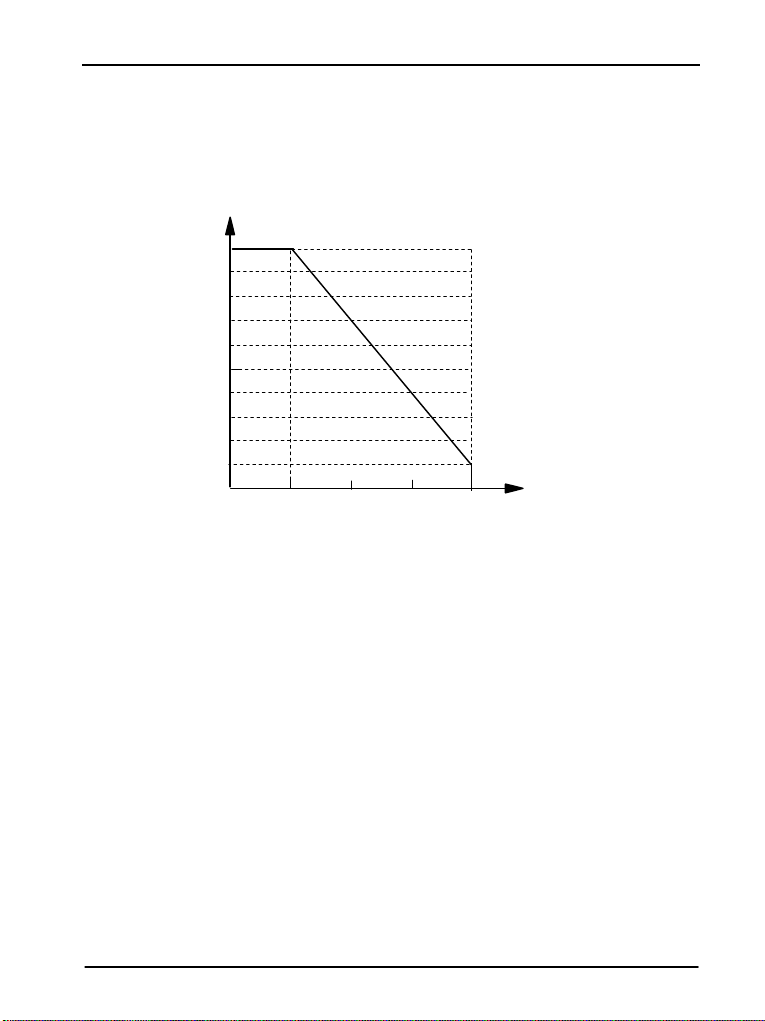

Fig 1-4 The curve of inverter rated current and altitude
10、Protection grades
ED3000 inverter’s protection grade IP20 is in running state or in the case of
keyboard displaying.
1.4 Scrap notice points
When disposing scrap inverter and its parts, please note:
(1) The unit: please discard as industrial useless.
(2) Electrolytic capacitor: when burning the inverter electrolytic capacitor in
it may explode.
(3) Plastic: when plastic, rubber parts etc. in the inverter are burning, they
may bring bad, poisonous gas, so please be ready to safeguards.
- 12 -

ED3000 系列高性能通用变频器使用说明书
Chapter 2 product spec and ordering notes
2.1 Inverter series type
ED3000 series inverter includes two volt grade:220V and 380V.Range for
adapted motor power：0.75KW~280KW。Type of ED3000 series inverter presented
as Table 2-1.
Volt grade Inverter type Rate power（KVA）
Rate ouput current
（A）
Adapted motor
（KW）
ED3000-4T0007M 1.5 2.3 0.75
ED3000-4T0015M 3.7 3.7 1.5
ED3000-4T0022M 4.7 5.0 2.2
ED3000-4T0040M 6.1 8.5 4.0
ED3000-4T0055M 11 13.0 5.5
ED3000-4T0075M 14 17.0 7.5
ED3000-4T0110M 21 25.0 11
ED3000-4T0150M 26 33.0 15
ED3000-4T0185M 31 39.0 18.5
ED3000-4T0220M 37 45.0 22
ED3000-4T0300M 50 60.0 30
ED3000-4T0370M 61 75.0 37
ED3000-4T0450M 73 90.0 45
ED3000-4T0550M 98 110.0 55
ED3000-4T0750M 130 150.0 75
ED3000-4T0900M 170 176.0 90
ED3000-4T1100M 138 210.0 110
ED3000-4T1320M 167 250.0 132
ED3000-4T1600M 230 310.0 160
ED3000-4T2000M 250 380.0 200
ED3000-4T2200M 280 415.0 220
380V
3 phase
ED3000-4T2450M 340 475.0 245
- 11 -

ED3000 系列高性能通用变频器使用说明书
ED3000-4T2800M 450 510.0 280
ED3000-4T3150M 460 605 315
ED3000-2S0007M 1.4 4.0 0.75
ED3000-2S0015M 2.6 7.0 1.5
220V
sigle phase
ED3000-2S0022M 3.8 10.0 2.2
Note:220V series and other type can be manufactured non-standardly
according to custom request.
P seriers only provide 5.5KW and above，mounting size is reserved by
manufacturer.
2.2 Product technic index and spec
Item Standard specification
Rating volt.、
frequency
Single phase 220V、3 phase 200V、3 phase 380V；50Hz/60Hz
Input Allowed
change range
voltage：-20% ～+20％voltage unbalance rate：<3%
frequency：±5％
Rated voltage 0～200V/220V/380V
Frequency 0Hz～400Hz
Output Over loading
capacity
G type：150% 1 minute，180% 1 second，200% instant
protection;
P type：120% 1 minute，150% 1 second，180% instant
protection
Modulation
mode
Optimized space voltage vector PWM
Control mode Space voltage vector PWM control（possess optimized
low-frequency compensation characteristic）
Frequency
precision
Digital setting：max.frequency×±0. 01%；
Analog setting：max.frequency×±0.2%
Frequency
resolution
Digital setting：0.01Hz；
Analog setting：max.frequency×0.1%
Start
frequency
0.2Hz～20.00Hz
Main control
performance
Torque boost Automatic torque boost, manual torque boost 1%～30.0%
- 12 -

ED3000 系列高性能通用变频器使用说明书
V/F curve 3 modes：linear V/F curve、square V/F curve、customed V/F
curve
Accelerating
decelerating
curve
Time unit(minute/second)can be optioned ，max.time 6000
seconds（0.1～6000 seconds can be optioned）
DC brake
Optional start-up and stop, action frequency 0～20Hz，action
volt. 0～20%，action time 0～20 seconds can be set
Jog Jog frequency range：0.1Hz～50.00Hz, jog accelerating
decelerating time 0.1～60.0 seconds
Interior PI
Be convenient to make closed-loop control system，adapt for
the pressure and flow process control
Multisection
speed running
Realized by interior PLC or control terminal
Weaving
traverse
Realize traverse function that central frequency can be adjusted
Automatic
volt.
regulation
(AVR)
Can keep constant output volt. by adjust PWM output ,When
power source voltage varies（AVR function）
Automatic
energy save
running
Optimize V/F curve automatically based on the load to
realize power save running
Automatic
current
limiting
Limit running current automatically to avoid frequent
over-current which will cause trip
Set length
control
After arriving at the set length,inverter will stop
Running
function
Running order
specified
channel
Key pad specified, control terminal specified,serial port
specifiedt;3 mode can be switched
- 13 -

ED3000 系列高性能通用变频器使用说明书
Frequency
specified
channel
Key analog potentiometer provision;key ▲ ▲、▼
provision;function fig. provision;serial port
provision;terminal UP/DOWN provision;analog voltage
provision;analog current provision；impulse
provision;combined provision; can be switched at any time
by kinds of method
Switch input
chanenl
FWD、REV instruction；6-channel programmable switch
input6;can set total 21 kinds of function。
Analog input
channel
2 channel of analog signal input，4～20mA、0～10V optional
Analog output
channel
Analog signal output0～10V，can realize output of physical
parameter such as setting frequency, output frequency etc
Switch、pulse
output channel
1-channel programmable OC output；1-channel relay output
signal;1-channel 0～20KHz impulse output signal，realize all
kinds of physical output.
LED display Can display setting frequency、output voltage、output current
etc
Keypad
External
instrument
display
Display physical parameter such as output frequency、output
current、output voltage etc.
Protection function Over-current protection、over-voltage protection、lack-voltage
protection、over-heat protection、over-load protection ect.
Fitting parts Brake subassembly、long-distance operation key board、
connecting cable for remote-control、key fixing-socket etc.
Use ambient Indoor, not bare to sunlight, no dust、no corrosive gas、no
flammable gas、no oil fog、no vapor etc.
Altitude Lower than 1000m（used by reducing power when higher
than 1000m）
Ambient
temperature
－10℃～＋40℃
Ambient
humidity
Smaller than 90%RH，no condensation water
vibration Smaller than 5.9m/s2（0.6M）
Ambient
Storage
temperature
－20℃～＋60℃
- 14 -

ED3000 系列高性能通用变频器使用说明书
Defending
grade
IP20（under using state display unit or key）configuration
Cooling mode Forced air cooling
Mounting mode Wall hanging、mounting in box
2.3 Appearance of inverter
2.4 Outer size
（a）、4.0KW and smaller outer dimension （b）、5.5KW～30KW outer dimensiong
- 15 -

ED3000 系列高性能通用变频器使用说明书
（a）、
37KW～132kW outer dimension （b）、160KW～280KW outer dimension
Table 2-2 Appearance and mounting size of inverter
Type W W1 H H1 H2 D D1 D2 D3 R
ED3000-4T0007M
ED3000-4T0015M
ED3000-4T0022M
ED3000-4T0040M
132 120 232 218 162 152 92 117 2.5
ED3000-4T0055M
ED3000-4T0075M
203 143 282 269.5 252 203.5 191.5 155 114 4.5
ED3000-4T0110M
ED3000-4T0150M
247 186 350 334 312 232 222 190 160 4.5
ED3000-4T0180M
ED3000-4T0220M
ED3000-4T0300M
261 160 486 470 443 279 267 233 200.5 4.5
- 16 -

ED3000 系列高性能通用变频器使用说明书
ED3000-4T0370M
ED3000-4T0450M
368 230 600 580 557 281 271 223.5 223.5 5
ED3000-4T0550M
ED3000-4T0750M
394 300 679 659 636 301 311 275 235 5
ED3000-4T0930M
ED3000-4T1100M
533 400 900 860 847 418 408 324.5 254.5 6
ED3000-4T1320M
ED3000-4T1600M
ED3000-4T2000M
600 575 1838 1817 1745 600 460 Box mounting
ED3000-4T2200M
ED3000-4T2450M
ED3000-4T2800M
660 635 2038 2020 1936 600 575 Box mounting
Note：The right to modify the size above is reserved by manufacturer，no additional notice
after being modified.
2.5 Fitting parts：if needing the following optional parts, please give the
additional order to our company.
2.5.1 long-distance operation key board
RS485 communication mode is adopted between ED3000 inverter and
long-distance keypad, only a eight-core cable is needed between them.ports are
connected by RJ45 network port, can easily be installed.Maximum electric distance
can reach 500m.
This series of inverter support usage of local keypad and long-distance keypad at
the same time,no priority order, both can operate the inverter
synchronously.Long-distance keypad can be used by hot-plug anytime.
Following function can be realized by long-distance keypad:
(1) Can control run、stop、jog、failure restoration、changing set frequency、modifying
function parameter and running direction.
- 17 -

ED3000 系列高性能通用变频器使用说明书
(2) Can monitor the parameter of auxiliary device as run frequency、set frequency、
output voltage、ouput current etc..
2.5.2 Communication cable
Long-distance keypad communication cable
Type：ED3000-LAN0020(2.0m)
Remark:1m、2m、5m、10m、20m are standard deployment for our company’s
inverter, it’s needed to subscribe for the cable if it exceeds 20m.
Used to connect long-distance keypad and inverter.
2.5.3 brake subassembly
Brake unit of ED3000 series inverter is optional subassembly,if need brake
unit,please subscribe for it when ordering.Power consumption brake resistance
can be choosed according to table 2-3.Brake resistance can be connected as Fig.
2-2.
Fig.2-2 connection of inverter and brake subassembly
Table 2-3 table for choosing brake resistance
Type Adapted motor
power（KW）
Resistance
values(Ω)
Resistance power
（W）
ED3000-4T0007M 0.75 300 400
ED3000-4T0015M 1.5 300 400
ED3000-4T0022M 2.2 200 500
ED3000-4T0040M 4.0 200 500
- 18 -
