Easy Travel ET1L User manual

Design Pending
USER’S MANUAL
EasyLightDeluxe

Easy Light Deluxe – ET1L User’sManualRev. 0511 PM-R2

EasyTravel Easy Light Deluxe User’sManualRev. 0511 PM-R3
Table of contents:
Page
1. Introduction 5
2. Safety 5
3. System Components 6
4. Folding Instructions 8
5. Operating your Easy Light Deluxe 10
6. Moving and Transporting your Easy Light Deluxe 14
7. Helpful Hints for Everyday Use 16
8. General Maintenance and Inspection 17
9. EMI – Electromagnetic Interference 19
10. Fault Finding 22
11. Disposal and Recycling 23
12. Technical Data 23
NOTE: Design details may change without notice.

EasyTravel Easy Light Deluxe User’sManualRev. 0511 PM-R4

Easy Light Deluxe Rev. 0511 PM-R5
1. INTRODUCTION
The Easy Light Deluxe is intendedfor use by individuals thatare able to walk,
but suffer from mild mobility limitations. The user must have sufficient arm
and leg strength toget on andoff the EasyLight Deluxe alone and to safely
steer under all driving conditions. The EasyLight Deluxe isintended for indoor
and restricted outdoor use on pavements or paved footpaths only during day-
light hours. The EasyLight Deluxe must not be used as a transportation vehicle
on roadsor freewaysused by cars. The EasyLight Deluxe does nothavelights
and reflectors and therefore must not be used in the dark or in limited visibility
conditions.
CAUTION: Failure to follow the instructions contained in this manual may re-
sult in injury to the user or to other persons.
2. SAFETY
During your initial use of the Easy Light Deluxe werecommend caution as you
practice operating the unit in various situations. Keep the speed at a reduced
level until you are comfortable controlling the scooter. Follow the safety tips
and instructions and you will be comfortable maneuvering through doorways,
on and off lifts, over moderate terrain and up and down ramps.
These safety considerations and tips will help you to operate the EasyLight
Deluxe safely. The Easy Light Deluxe is a powerful electric vehicle; these ruleswill
help you prevent personal injury and damage to your scooter.
1. Read this manual and all labels before operating.
2. Do not carry passengers or exceed the maximum weight capacity.
3. Do not mount or dismount the Easy Light Deluxe unless it has come to a
full stop and is turned off.
4. Do not back up on to uneven inclines or surfaces.
5. Always switch the speed selector to low when driving in a confined space.
6. Always reduce speed when turning.
7. Do not operate your scooter when under the influence of alcohol, medica-
tions or drugs that may impair your safety.
8. Always keep your feet on the foot platform when driving.

EasyTravel Easy Light Deluxe Rev. 0511 PM-R6
9. Do not sit on the scooter while being transported in a moving vehicle. Al-
ways fold down and secure yourEasy Light Deluxe and transfer yourself to
a vehicle seat.
10. Do not drive the EasyLight Deluxe if the rear anti-tip wheels are damaged
or removed.
3. SYSTEM COMPONENTS AND DETAILS

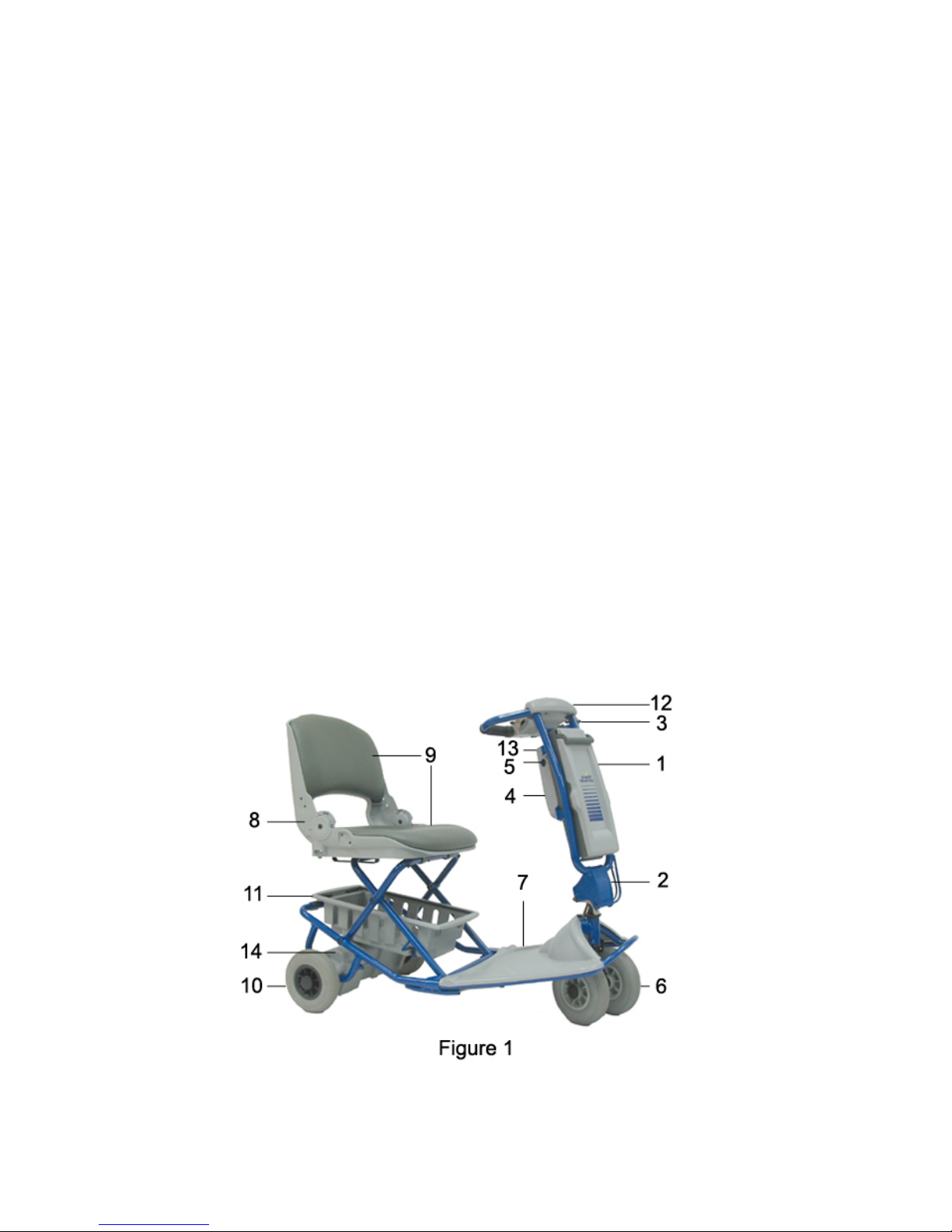

3.1.Easy Light Deluxetparts– (Figure 1)
1. Battery pack (detachable) 10. Rear wheel
2. Front column (foldable) 11. Utility basket (holding capacity
3. Column lock/release triggers 20lbs/9kg)
4. Controller cover 12. Control Panel
5. Charging socket 13. Freewheel switch
6. Front drive wheels 14. Transaxle motor
7. Foot platform 15. Freewheel Handle (Fig. 1A)
8. Seat shell 16. Charger and connecting cables
9. Seat cushions (Fig. 1B)

Easy Light Deluxe – ET1L User’sManualRev. 0511 PM-R7

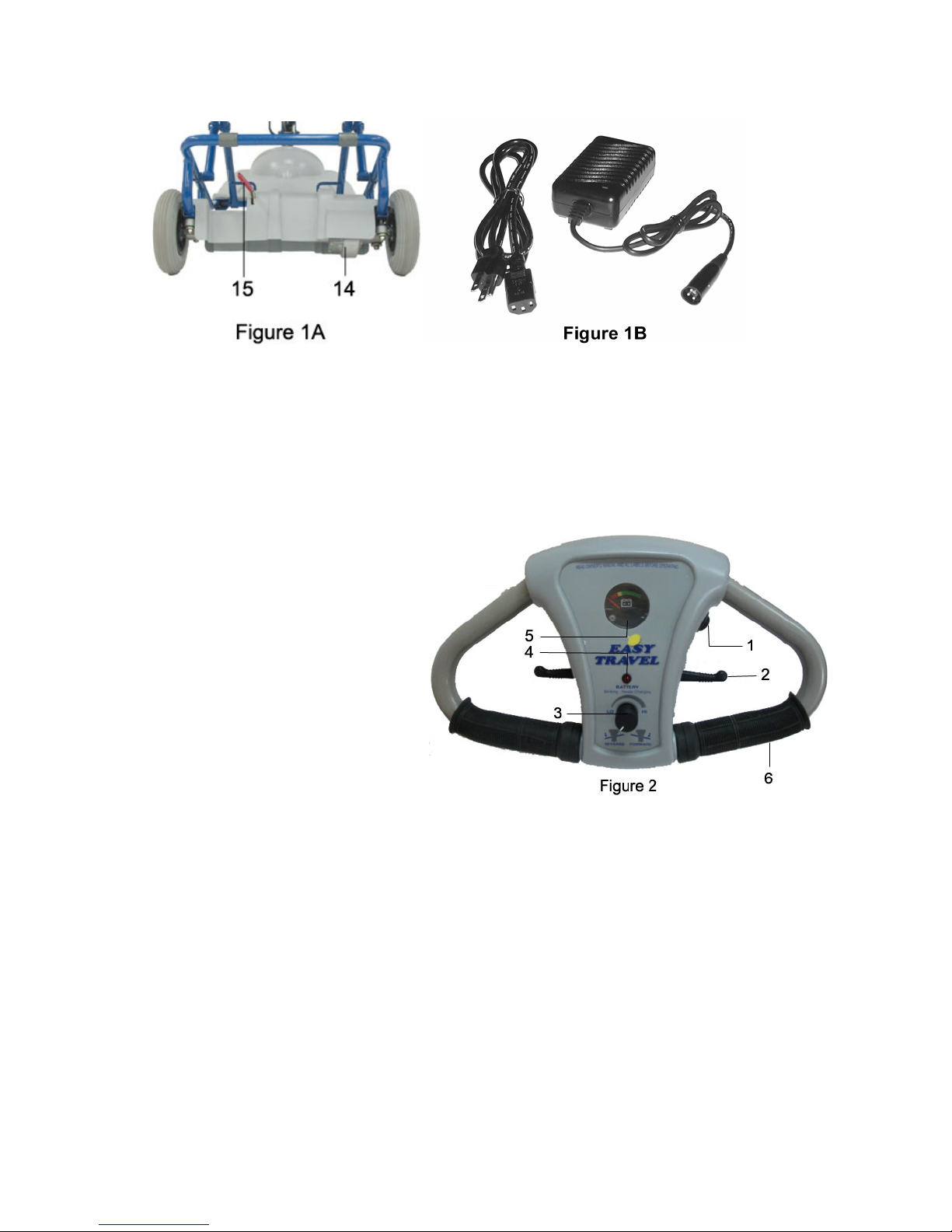

3.2. Control Panel – (Figure 2)
1. On-Off Switch
2. Hand control lever (right and left)
3. Speed adjusting knob
4. Indicator light (LED)
5. Battery Gauge
6. Hand-grips
BELL: If the user requires an audible warning device, a standard bicycle bell
can be attached to the handlebar.

Easy Light Deluxe Rev. 0511 PM-R8
Figure 3
4. FOLDING INSTRUCTIONS
4.1. Unfolding your EasyLight Deluxe
1. Pull the Column Lock Triggers
(Fig. 1/3) and lift Steering Col-
umn from Seat (Figure 3)
2. Lift the Seat Backrest upright
3. Grasp top of Backrest and pull
upwards to unfold the Seat
Frame and let the Crossbar (Fig.
4-A) fall into the Crossbar Sup-
ports (Fig. 4-B)
4.2. Folding your EasyLight Deluxe
1. Grasp top of Backrest, lift it a
little bit just to release the
Crossbar (Fig. 4-A) from the
Supports (Fig. 4-B) and fold the
Seat Frame down
2. Fold Seat Backrest down
3. Pull Column Lock Triggers (Fig.
1/3) and fold Column down over
Seat (Figure 3)
Figure 4

Easy Light Deluxe Rev. 0511 PM-R9

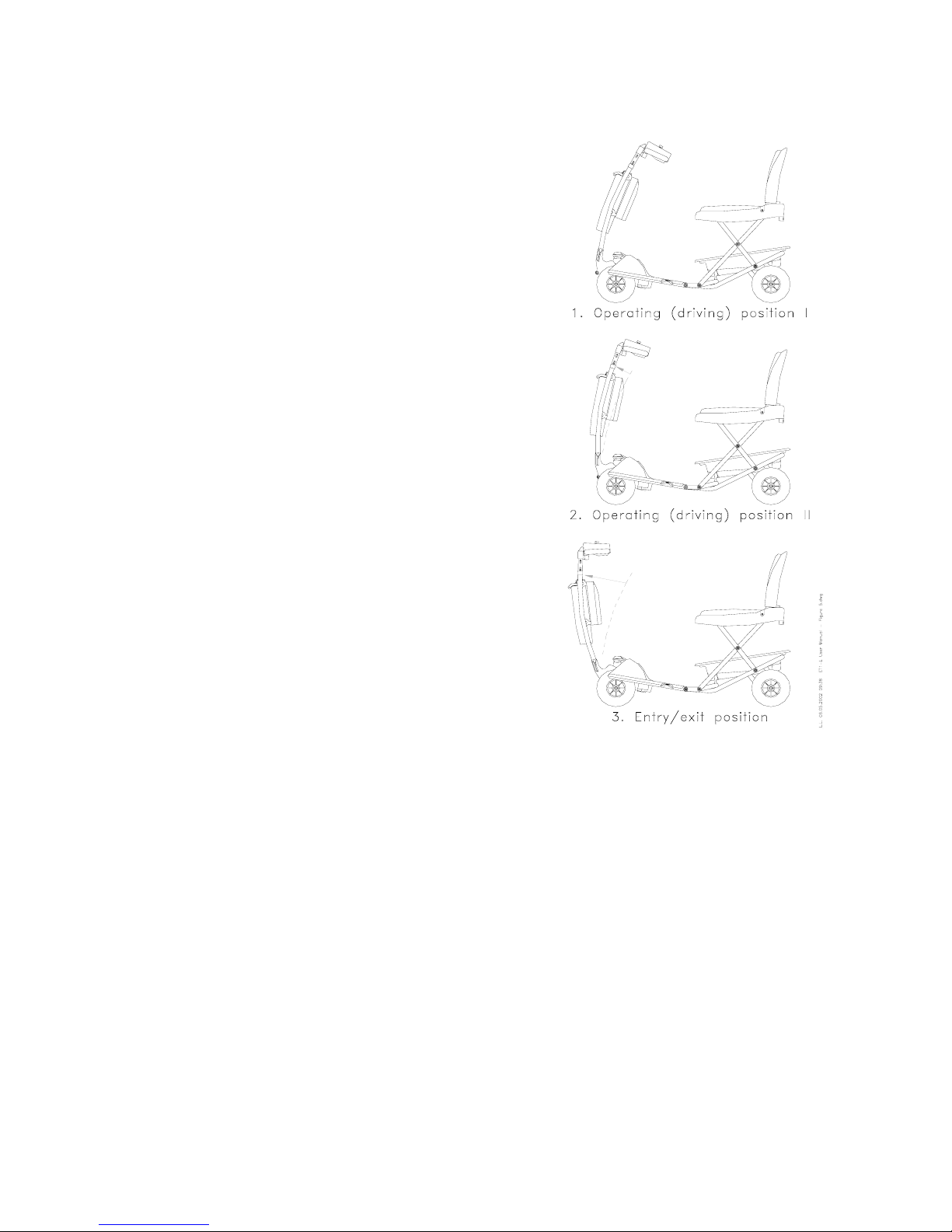

4.3. Front Column Adjustment (Figure 5)
To adjust the angle of the front
column, pull the column lock triggers
upward. Move the column into the
desired position and release. Push
lightly back and forth on the column to
ensure that it is locked in the desired
position.
1. For driving the EasyLight Deluxe
adjust column to one of the two
rear-most positions (Fig. 5/1, 2).
2. For getting in and out of the
EasyLight Deluxe seat comfort-
ably, the column may be moved
away from the seat to the
forward-most position (Fig. 5/3).
CAUTION: When getting in and out of
the Easy Light Deluxe seat, step only
on CENTER of foot platform. DO NOT
STEP ON SIDE OF FOOTPLATFORM toavoid tipping the EasyLight
Deluxe.
Figure 5

Easy Light Deluxe User’sManualRev. 0511 PM-R10
5. OPERATING YOUR Easy Light Deluxe
5.1. Control Panel operation features
The switch located on the right side of the handle control cover (Fig. 6/1),
will turnthe power of the Easy Light Deluxe ON or OFF.
NOTE: Turnyour Easy Light Deluxe switchto the OFF position when not in
use in order to conserve battery power, and prevent unintentional operation.
The top speed may be adjusted by turning the Speed-adjusting knob (fig
6/3). By turning the knob to the HIposition, yourEasy Light Deluxe top
speed will be up to 6kph/3.7mph. When the knob is set to the Lo position,
the speed will be reduced toa slow crawl, ideal for lessexperienced driv-
ers and for operating indoors.
5.2. Indicator Light (Fig. 6/4)
Indicator light steady - This indicates that all is well.
Indicator light flashes slowly - The controller is functioning cor-
rectly but batteries should be charged as soon as possible. The Bat-
tery Gauge (Fig. 6/5) shows the charge that is left
Fi
g
ure 6

Easy Light Deluxe – ET1L User’sManualRev. 0511 PM-R11
Indicator light flashes - This indicates a possible fault. Please fol-
low the following procedure:
1. Switchoff the EasyEasy Light Deluxe
2. Makesure that the Easy Light Deluxe is not in the FREEWHEEL
position.
3. Make surethatthe charger is not connected to the EasyLight
Deluxe.
4. Make sure that the control lever is in the middle position.
CAUTION: If control lever does not return by itself to the middle po-
sition - do not operate. Contact your service agent.
5. Switch the Easy Light Deluxe on again and the indicator light. If it
flashes rapidly again, switch off and do not operate. Contact
your service agent!
5.3. Battery Gauge (Fig. 6/5)
The Battery Gauge (Fig. 6/5) shows the battery charge that is left.
5.4.Drivingyour Easy Light Deluxe
To drive forward, pull the right side of the hand control lever (Fig. 2/2) to-
wards you. You can also move forward by pushing the left side of the
control lever away from you. By releasing the control lever, you will
gradually come toa stop, and the Easy Light Deluxe brake will be applied
automatically. To operate in reverse, pull the left side of the hand control
lever towards you.

Easy Light Deluxe – ET1L User’sManualRev. 0511 PM-R12
5.5. Safetyconsiderations when driving yourEasy Light Deluxe
Footpaths and sidewalks appear to be level but are usually slightly
sloped for drainage of rainwater. Counter-steering may be necessary
for overcoming excessive slopes. In such cases the speed should be
reduced as necessary.
When approaching ditches, bumps or similar obstacles – reduce
speed as necessary.
Do notoperateEasy Light Deluxe in places or on surfaces where a
loss of wheel grip could be hazardous, for example on wet grassy
slopes.

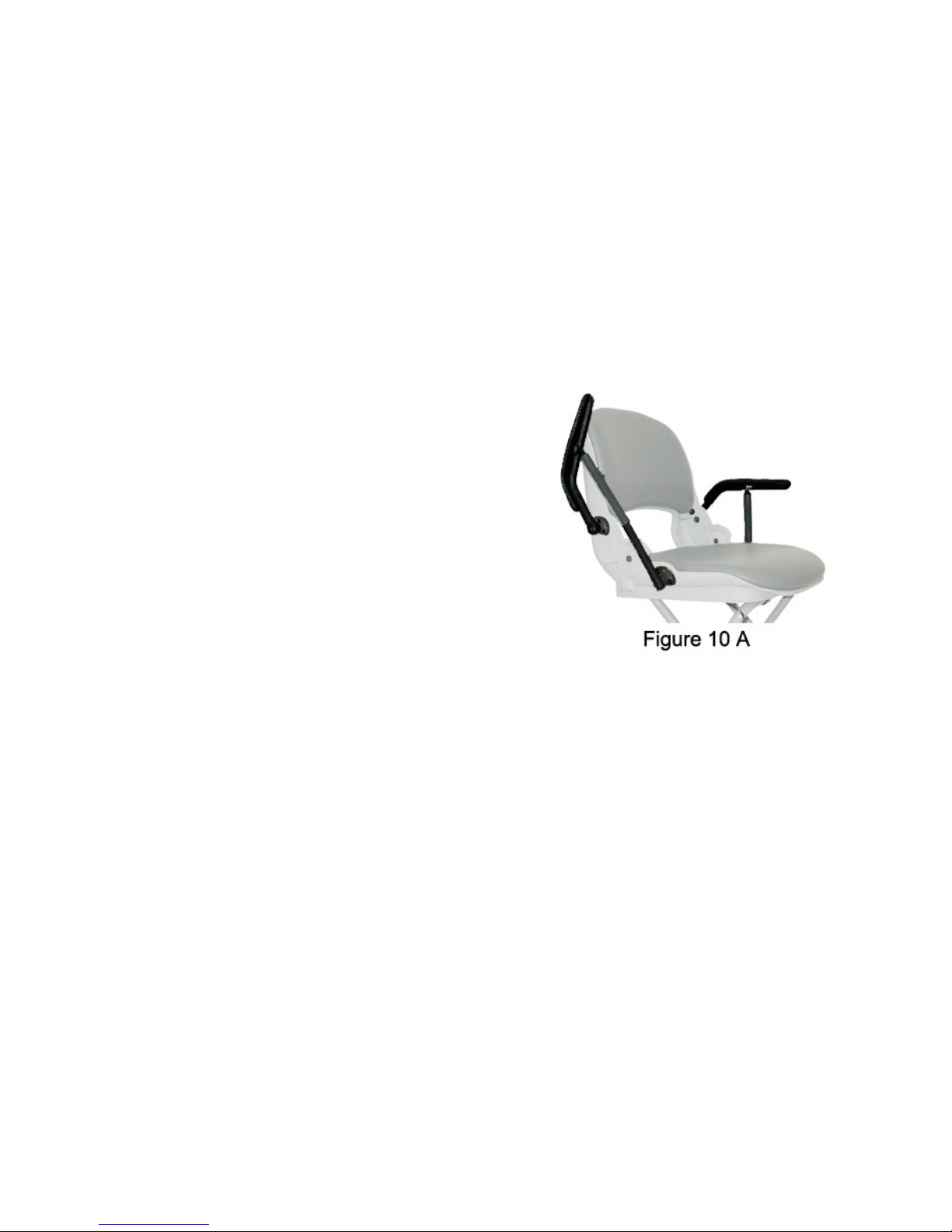

5.6. Armrests (optional)
To enable easier entry to and exit from
your EasyLight Deluxe the armrest can be
lifted, see Fig. 10A.
5.7. Batteries
Battery information
The Easy Light Deluxe is designed to use sealed lead acid, maintenance-
free, 12V batteries.
Always turnyourEasy Light Deluxe OFF before removing and installing
batteries. To get the maximum out of your batteries, it is recommended to
fully charge the batteries overnight after every day of use. Reconnecting
the charger when the batteries are partially discharged or fully
charged will not harm them. Extended charging is good for the batteries
and you cannot overcharge them.
Battery range depends on operator weight, terrain and the condition of
batteries used. Charge your batteries daily and/or overnight when the
Easy Light Deluxe is not in use.
Battery Recharging Instructions
To recharge, turnoff Easy Light Deluxe Itis possible to either charge the
battery while connected on the Easy Light Deluxe (see instruction 1 below)
or directly (instruction 2).

Easy Light Deluxe – ET1L User’sManualRev. 0511 PM-R13
1. Plug the charging connector into theEasy Light Deluxe charging
socket and then connect the charger to an electrical outlet socket.
2. Plug the charging connector in the back of the battery pack and then
connect the charger to an electrical outlet socket.
During charging, the indicator light on the charger will be red. When the
battery is approaching full charge the indicator light will turn green. In or-
der to achieve the maximum battery capacity and efficiency, it is advised
to charge them overnight, and at least four hours after the indicator light
has turned to green.
Safety Instructions
CAUTION: Failure to follow these instructions may result in personal in-
jury or property damage.
1. Never smoke or allow an open flame in the vicinity of the batteries.
2. Use the charger for charging lead acid batteries only. It is not in-
tended to supply power to an extra-low-voltage electrical system or to
charge dry cell batteries.
3. Never charge a frozen battery.
4. Do not operate the charger in a closed-in area or restrict ventilation.
5. Prevent external damage to AC and DC cords. Do not use charger if
cords are damaged.
6. Connect DC charging cord to the Charging Socket before connecting
charger AC supply cord to the electrical outlet, and disconnect the AC
cord from the electrical outlet before disconnecting charge cord.
7. Be extra cautious not to drop a metal object onto the battery case.
8. Remove jewelry.
Battery Storage
Before storage, battery packs should be fully charged, and should
be recharged at least once every three months.
Store batteries indoors in a dry environment.
Storage temperature range: -20ºC (-4ºF) to 40ºC (104ºF)
Charging temperature range: 0ºC (32ºF) to 40ºC (104ºF)
Operating temperature range: -20ºC (-4ºF) to 50ºC (122ºF)

Easy Light Deluxe – ET1L User’sManualRev. 0511 PM-R14
WARNING: Store batteries in the 'correct' position. (See Fig. 7).
Battery Replacement and Disposal
The Easy Light Deluxe batterypack containstwo 12V maintenance-free
batteries. Replacement of the batteries is only permitted to an authorized
dealer.
Battery cells may emit minor acid fumes.
Batteries must be recycled. Disposals of potentially damaged batteries
present hazards of injury from acid leakage and environmental pollution.
NOTE: When removing a battery, always set it on cardboard, newspaper,
or surfaces that cannot be damaged by acid fumes or liquid from the bat-
tery.
6. MOVING AND TRANSPORTING YOUR Easy Light Deluxe
6.1. Moving Your Easy Light Deluxe in Freewheel Mode when unfolded:
The Freewheel is used for releasing the brake and moving the Easy
Light Deluxe withoutoperating themotor. There are two ways to enter the
freewheel mode: the switch on the controller cover (Fig. 1/13) and the
handle on the motor (Fig. 1A/15).
Switch:before activating,make sure your Easy Light Deluxe is switched
on. Turn freewheel switch to the "freewheel" position and push or pull the
Easy Light Deluxe manually.
NOTE: The Freewheel mode can only be activated after the battery is in
place and the power switch (Fig. 6/1) is turned on. Doing otherwise will
cause a fault situation indicated by rapid flashing of the Indicator light
(Fig. 6/4). See section 4.2.
Fi
g
ure 7

Easy Light Deluxe – ET1L User’sManualRev. 0511 PM-R15
Figure 9
Figure 10
Fi
g
ure 8
Handle: pull the handle up to freewheel mode, push it down for driving
mode. This is the mechanical freewheel mode and can be activated with-
out the battery pack.
WARNING: The Freewheel switch should
never be engaged on a slope when
Easy Light Deluxe is occupied and without
assistance to prevent unintended rolling.
If Freewheel is activated on a slope unin-
tentionally, turnyour Easy Light Deluxe
power switch OFF immediately to acti-
vate brake.
CAUTION: The seat backrest must re-
main in the upright position.
6.2. “Walking” your Easy Light Deluxe in
the folded position
The folded Easy Light Deluxe may bepul-
led along suitcase style (Fig. 8). The bat-
tery may be carried in the utility basket.
6.3.TransportingYour Easy Light Deluxe
Lite Quickly And Easily
Your Easy Light Deluxe can be folded and
transported in most car trunks.
When folding for transportation or stor-
age:
1. Disconnect battery pack and place in
Utility basket
2. Fold the Easy Light Deluxe, see folding
instructions on page 7
3. For storage – set the Easy Light
Deluxe in anupright position (Fig. 9)
4. For transportation, place Easy Light
Deluxe components in car trunk as
shown in figure 10.

Easy Light Deluxe – ET1L User’sManualRev. 0511 PM-R16
7. HELPFUL HINTS FOR EVERYDAY USE
Before usingyour Easy Light Deluxe take the following precautions:
•Ensure that the front column is locked in the desired driving position.
•Ensure that the rear frame is locked open.
Speed Controls
Always operate your Easy Light Deluxe at a reasonable speed for both your
personal safety and others.
Stopping
Dynamic braking will gradually bring your Easy Light Deluxe to a stop when
hand control lever is released.
Ramps and Inclines
Lean forward and carefully manoeuvre your Easy Light Deluxe up a ramp or in-
cline. Be aware that not all ramps are constructed according to Government
standards. The Government standard for wheelchair ramps is 2.5 cm (1 inch)
rise per 30 cm (1 foot).
Lower the speed setting to a slow speed when climbing or descending in-
clines.
Using an elevator
Backing into an elevator allows you to exit forward. Be sure that the elevator
is level with the floor.
Opening Doors
When a door opens towards you, approach at an angle and just off to one
side. Adjust the speed knob to a low setting. Grasp the doorknob, reverse
and pull the door open. For doors that open away from you, position the front
bumper against the door, close to the doorjamb on the doorknob side of the
door. After you release the latch, use the bumper to push the door open.
WARNING: Be careful with glass doors to avoid personal injury!

Easy Light Deluxe – ET1L User’sManualRev. 0511 PM-R17
8. GENERAL MAINTENANCE AND INSPECTIONS
Minimum maintenance should prevent unnecessary repairs.
Keep YourEasy Light Deluxe Shining
Wipe the seat clean with a damp cloth. Protect the painted parts with a coat
of auto wax.
WARNING: Water or excessive moisture around the controller unit or electri-
cal connections may cause contamination of electrical circuitry, damage and
malfunction aswell as personal injury.Donot leave your Easy Light Deluxe in
the rain or in excessively humid locations.
Daily Checks
With the Easy Light Deluxe switched off, check that the hand control lever
mechanism returns to the rest position when you push and release it. If there is
a problem do not use the Easy Light Deluxe and contact your authorized dealer.
Weekly Checks
1. Throttle test: Pull the throttle to the full speed position and switch ON the
Power switch. The Easy Light Deluxe should not move and the LED on the
panel shouldflash.Ifthe Easy Light Deluxe does move– do not use your
Easy Light Deluxe.Contact your authorizeddealer.
2. Automatic brake and drive test: This test should be carried out on a level
surface with at least 3’ / 1 m.clear space around the Easy Light Deluxe:
Switch the Easy Light Deluxe on.
Move the control lever only slightly in the forward direction until you hear
a “click” when the brake disengages. The Easy Light Deluxe should start
to move forwards slowly.
Immediately release the throttle. You must be able to hear a “click” when
the brake engages back, within a few seconds.
Repeat the test in the reverse direction.
If you do not hearthe brake operating, or the Easy Light Deluxe does not move
slowly in the expected direction – do not use your Easy Light Deluxe. Contact
your authorized dealer.

Easy Light Deluxe – ET1L User’sManualRev. 0511 PM-R18
Monthly Care
Clean upholstery, plastic and metal parts with a mild surface cleaner.
CAUTION:Keep cleaning solvents away from electrical wires and connectors.
Half-Year Care:
1. Apply a lubricant/cleaner (such as WD40 or similar) these locations:
Column tilt lock pin and housing.
Battery pack handle axis and lock pins.
2. Lightly apply Vaseline or similar lubricant to battery contact pins and
springs on front column.
3. Check for tire wear.
Fuse Replacement Instructions
A fuse protects the wiring and
battery in the event of a short
circuit.If your Easy Light
stops abruptly, check the fuse.
If it has 'blown', check for
overloads or short circuits.
The fuse is located inside the
battery case. To replace the
fuse, open screws (Fig. 15/1)
and remove cover (Fig. 15/2).
Remove the fuse (Fig. 15/3)
from its socket. If 'blown', replace with the same style and size (automotive
“blade” type – 20 A). There is a spare fuse attached to the battery-pack cover.
NOTE: Fuses of a different rating should not be used!
WARNING: Do not attempt torepair or service the Easy Light Deluxe or any of
its components, as this will void your warranty.
SERVICE AND REPAIR: CONTACT YOUR AUTHORIZED DEALER.

Easy Light Deluxe – ET1L User’sManualRev. 0511 PM-R19
9. EMI – ELECTROMAGNETIC INTERFERENCE
CAUTION: It is important that you read this information regarding the possi-
ble effects ofelectromagnetic interferenceonyour Easy Light Deluxe.
Electromagnetic Interference (EMI) From Radio Wave Sources
Motorized scooters may be susceptible to electromagnetic interference (EMI),
which is interfering electromagnetic energy (EM) emitted from sources such
as radio stations, TV stations, amateur radio (HAM) transmitters, two-way ra-
dios, and cellular phones. The interference (from radio wave sources) can
cause scooters to release their brakes, come to a sudden stop, or move in an
uncontrolled manner. It can also permanently damage a scooter’s control sys-
tem. The intensity of the interfering EM energy can be measured in volts per
motor (V/m). Each Motorized scooter can resist EMI up to a certain intensity.
This is called its “immunity level". The higher the immunity level, the greater
the protection. The FDA has stated that all newly manufactured electric mobil-
ity vehicle models should have a resistance of at least 20 V/m, which would
provide a reasonable degree of protection from the more common sources of
radiated EMI.
Your Easy Light as shipped, withno further modification, has animmunity
level of 20 V/m. This immunity was tested with the inclusion of these accesso-
ries: a utility basket with a spare battery-pack and the charger unit carried in-
side it.
There are a number of sources of relatively intense electromagnetic
fields in the everyday environment. Some of these sources are obvious
and easy to avoid. Others are not apparent and exposure is unavoid-
able. However, we believe that by following the warnings listed below,
your risk to EMI will be minimized.

Easy Light Deluxe – ET1L User’sManualRev. 0511 PM-R20
The sources of radiated EMI can be broadly classified into three types:
1) Hand-held portable transceivers (transmitters-receivers) with the an-
tenna mounted directly on the transmitting unit. Examples include citi-
zens band (CB) radios, "walkie-talkies”, security, fire, and police trans-
ceivers, cellular telephones, and other personal communication devices.
**NOTE: Some cellular telephones and similar devices transmit signals
while they are ON, even when not being used;
2) Medium-range mobile transceivers, such as those used in police cars,
fire trucks, ambulances, and taxis. These usually have the antenna
mounted on the outside of the vehicle; and
3) Long-range transmitters and transceivers, such as commercial broad-
cast transmitters (radio and TV broadcast antenna towers) and amateur
(HAM) radios.
NOTE: Other types of hand-held devices, such as cordless phones, laptop
computers, AM/FM radios, TV sets, CD players, and cassette players, and
small appliances, such as electric shavers and hair dryers, so far as we know,
are not likely to cause EMI problems to motorized scooters.
Motorized scooter Electromagnetic Interference (EMI)
Because EM energy rapidly becomes more intense as one moves closer to
the transmitting antenna (source), the EM fields from hand-held radio wave
sources (transceivers) are of special concern. It is possible to unintentionally
bring high levels of EM energy very close to the motorized scooter’s control
system while using these devices. This can affect the scooter’s movement
and braking. Therefore, the warnings listed below are recommended to pre-
vent possible interference withthecontrol system of yourEasy Light Deluxe.
