Easymetal EASYRO 60 User manual

User Manual
EASYRO®60 / 120 / 240 / 480
Version 2017-V8.01 ML

IMPRINT
PUBLISHER
easymetal GmbH
Resselstrasse 12
A-2120 Wolkersdorf
Phone: [phone]
Fax: [phone]
[email protected]
www.easymetal.com
© easymetal GmbH
All rights reserved.
The information contained in this manual, supplied drawings, and any parts lists are the intellectual
property of easymetal GmbH and are subject to copyright law.
Neither this manual nor parts of it may be reproduced or transmitted without express written
permission of the company easymetal GmbH. Any disclosure to third parties is prohibited. This
manual must be returned to us upon request.

Page 3
Technical Documentation EASYRO®Water Treatment Systems© 2015 easymetal GmbH.
This information is subject to copyright laws and may not be reproduced or changed without express written permission of easymetal GmbH.
TABLE OF CONTENTS
GENERAL INFORMATION
Foreword 5
Certification 5
Manufacturer‘s Warranty 5
EU Declaration of Conformity 6
Explanation of Symbols and Information Types 7
DESCRIPTION AND OPERATION OF THE SYSTEM
Membranes 8
System Components and Connections 9-12
Control Elements and Functions 13
Technical Data 14-15
INSTALLATION AND COMMISSIONING
Delivery Scope 16
Selecting an Installation Site 17
Preparing for Installation 17

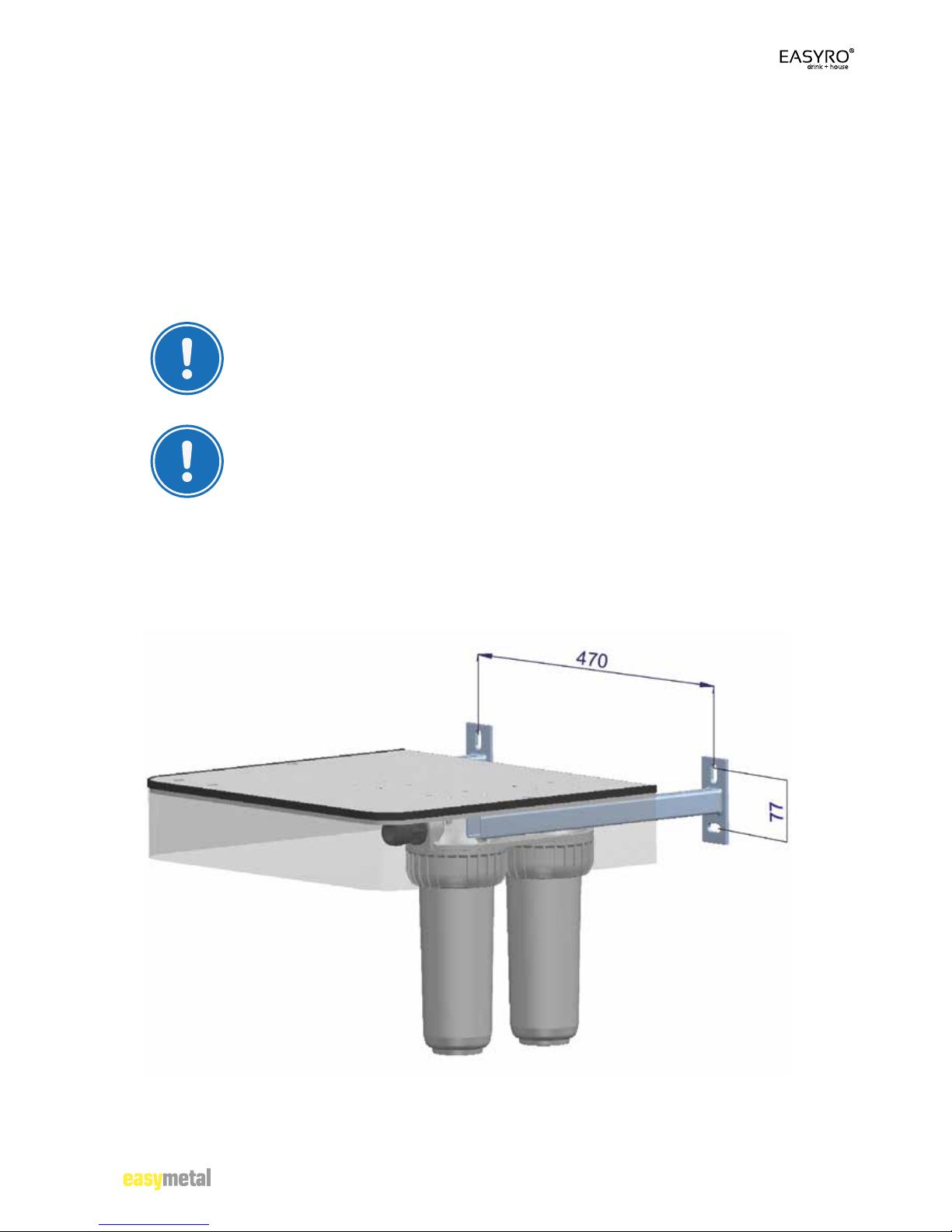

Mounting Bracket Drilling Template for 18-19
Pre-Filter System and Wall Panel
Important Information 20
Installation 21-24
Initial Start-Up 25-26
MAINTENANCE AND CARE
Maintenance Instructions 27-33
Maintenance by Qualified Personnel 34
Regular Cleaning and Care of the System 34
Decommissioning the System 34
APPENDIX
Faults and Troubleshooting 35-36
Accessories and Options 37-39

Page 4
Technical Documentation EASYRO®Water Treatment Systems© 2015 easymetal GmbH.
This information is subject to copyright laws and may not be reproduced or changed without express written permission of easymetal GmbH.

Page 5
Technical Documentation EASYRO®Water Treatment Systems© 2015 easymetal GmbH.
This information is subject to copyright laws and may not be reproduced or changed without express written permission of easymetal GmbH.
GENERAL INFORMATION
FOREWORD
We are pleased that you have decided to purchase the EASYRO®water treatment system. Please
take your time to read the User Manual carefully to ensure you are able to operate the system
correctly and optimally as well as in consideration of all relevant safety aspects.
This User Manual informs you about the different operating modes and the regular maintenance
of the system. Please carry out only those functions necessary for the proper operation of the
system. Do not carry out tasks reserved for trained and qualified personnel.
Keep the User Manual in a safe, easily accessible place.
This document is an integral part of the EASYRO®water treatment system.
If the User Manual is lost or destroyed, please request another copy from the manufacturer.
CERTIFICATION AND WARRANTY
The system corresponds with the statutes 443 from December 21, 1990 of the ministerial deci-
sion about technical precautions concerning systems to treat household drinking water. Each
system is equipped with a unit to mix water from the water supply with treated water to
maintain the conditions specied by regulation DPR No. 238/1988. The system is equipped with
a reverse exchange system. Components that come into contact with the water and are used for
drinking purposes or to prepare water comply with the rules and regulations applicable in the
food sector.
MANUFACTURER`S WARRANTY
The warranty period is 12 months and starts on the day of putting the system into operation for
the rst time or upon handover of the system.
For a warranty claim, the warranty card must have been completely lled in and returned to
the manufacturer previously.
The manufacturer´s warranty includes all components of the system except wear parts such as
lters and membranes.
It is possible to extend the warranty before the 12-month warranty period ends.
Further information about the manufacturer´s warranty or a warranty extension can be found
on the warranty card.

EC-Declaration of conformity
The manufacturer: easymetal GmbH
Resselstrasse 12
A-2120 Wolkersdorf
AUSTRIA
hereby declares that the following product
Product: EASYRO®Reverse Osmosis water treatment system
Type: 60/120/240/480/150/300/600
is designed and built in conrmity with the following directives.
Voltage limits 2006/95/EC
The product is designed and built in conrmity with the directives of 2006/95/EC of the European
Parliament and of the Council of 12 December 2006 on the harmonisation of the laws of Member
States relating to electrical equipment designed for use within certain voltage limits.
Electromagnetic Compatibility 2004/108/EC
The electrical equipment complies with all the provisions of Directive 2004/108/EU of the European
Parliament and of the Council as of 15 December 2004 on the harmonisation of the laws of the
Member States relating to electromagnetic compatibility and repealing Directive 89/336/EEU
(Gazette of the European Communities No. L 390 from 31 December 2004).
Hazardous substances in electrical and electronic equipment 2011/65/EU
The electrical equipment complies with all the provisions of Directive 2011/65/EU of the European
Parliament and the Council as of 8 June 2011 concerning the restriction for using certain hazardous
substances in electrical and electronic equipment.
Waste electrical and electronic equipment 2012/19/EU
The product is designed and built in conrmity with the directives of 2012/19/EU of the European
Parliament and of the Council of 4 July 2012 on waste electrical and electronic equipment
(WEEE).
Wolkersdorf, January 2015
easymetal GmbH
Resselstrasse 12, A-2120 Wolkersdorf
Phone: [phone] / 20 123, Fax: extn 45
offi[email protected], www.easymetal.com

Page 7
Technical Documentation EASYRO®Water Treatment Systems© 2015 easymetal GmbH.
This information is subject to copyright laws and may not be reproduced or changed without express written permission of easymetal GmbH.
EXPLANATION OF SYMBOLS AND INFORMATION TYPES
SAFETY INFORMATION
DANGER
Describes an imminent danger to life and health.
Non-compliance will result in death or serious injury!
WARNING
Describes a danger to life and health.
Non-compliance may result in death or serious injury!
CAUTION
Indicates a dangerous situation.
Non-compliance may result in minor injury or property damage!
MANDATORY ACTION
IMPORTANT
Describes instructions for an important task or an action or measure that must
be implemented. This information concerns the safe handling and use of the
water treatment system.
You are obligated to carry out these instructions!
USAGE NOTES
NOTE
Describes useful information and usage notes for the efcient and smooth
operation of the water treatment system.

Page 8
Technical Documentation EASYRO®Water Treatment Systems© 2015 easymetal GmbH.
This information is subject to copyright laws and may not be reproduced or changed without express written permission of easymetal GmbH.
DESCRIPTION OF THE SYSTEM
MEMBRANES
Describes useful information and usage notes for the efficient and smooth operation of the
water treatment system. EASYRO®model, the system includes one or several high efficiency type
TW30-3012 membranes.
EASYRO®60 - 1 membrane
EASYRO®120 - 2 membranes
EASYRO®240 - 5 membranes
EASYRO®480 - 10 membranes
NOTE
Treating highly turbid or polluted water can result in a lter blockage and/or
decreases the membrane ow rate.
WARNING
Destruction of the membranes.
It is prohibited to prepare return flow water or brine or to prepare physically,
chemically or bacteriologically treated water. Do not use water at temperatures
over 45°C. This procedure destroys the membranes.
CAUTION
Solid particles in the water line may damage the membranes and the interior
valves.
Only operate with original and properly installed pre-lters (ow rate at least
500 l/h). Operating the system with clogged lters may diminish the efciency
or effectiveness of the system and may void your warranty.

Page 9
Technical Documentation EASYRO®Water Treatment Systems© 2015 easymetal GmbH.
This information is subject to copyright laws and may not be reproduced or changed without express written permission of easymetal GmbH.

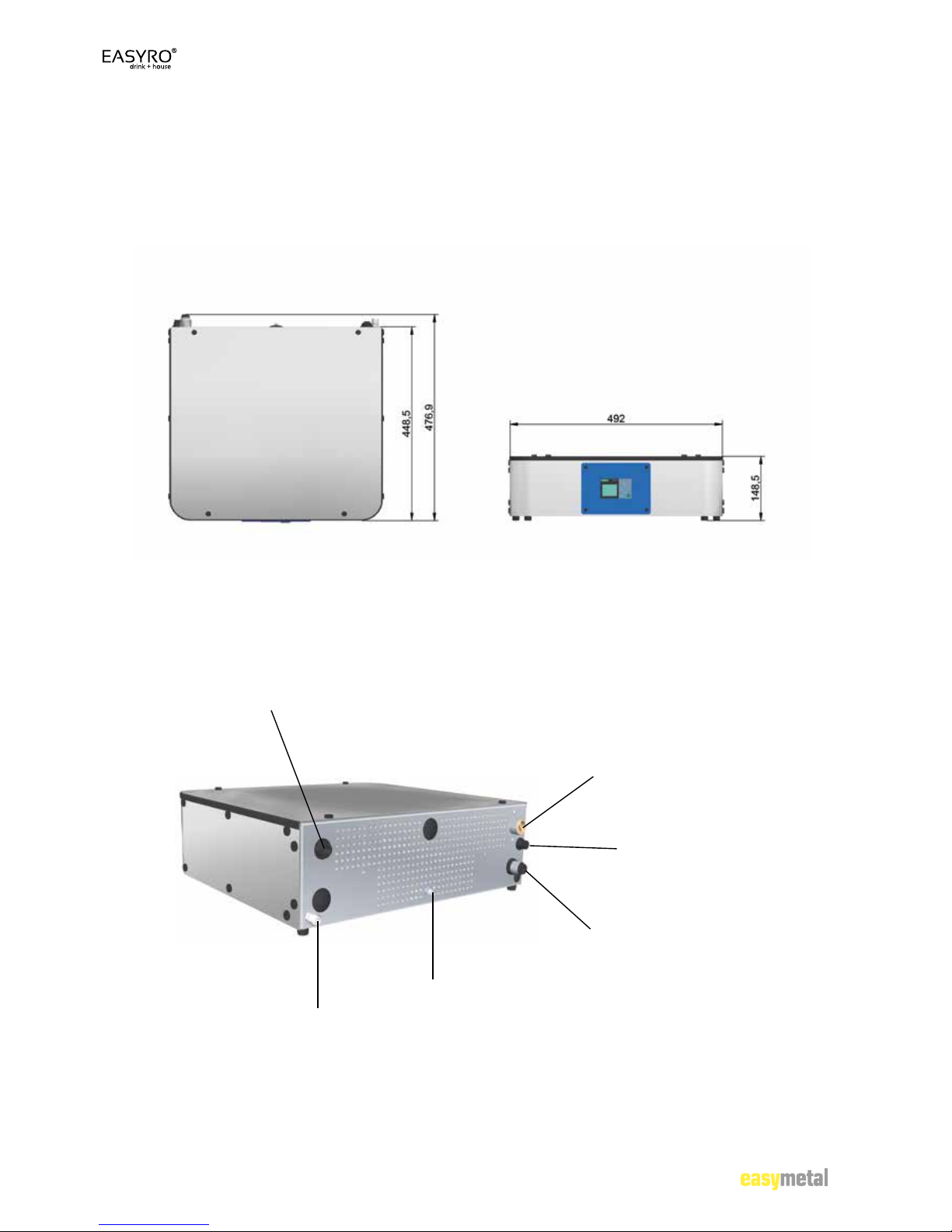

Clean water outlet
with mixing
10 mm JG
230 V AC/50 Hz
Fresh water supply
3/4“ outside thread
Mixture adjustment screw
Sewer outlet
10 mm JG
Coding of the EASYRO
®
60
SYSTEM COMPONENTS AND CONNECTIONS
EASYRO®60

Page 10
Technical Documentation EASYRO®Water Treatment Systems© 2015 easymetal GmbH.
This information is subject to copyright laws and may not be reproduced or changed without express written permission of easymetal GmbH.

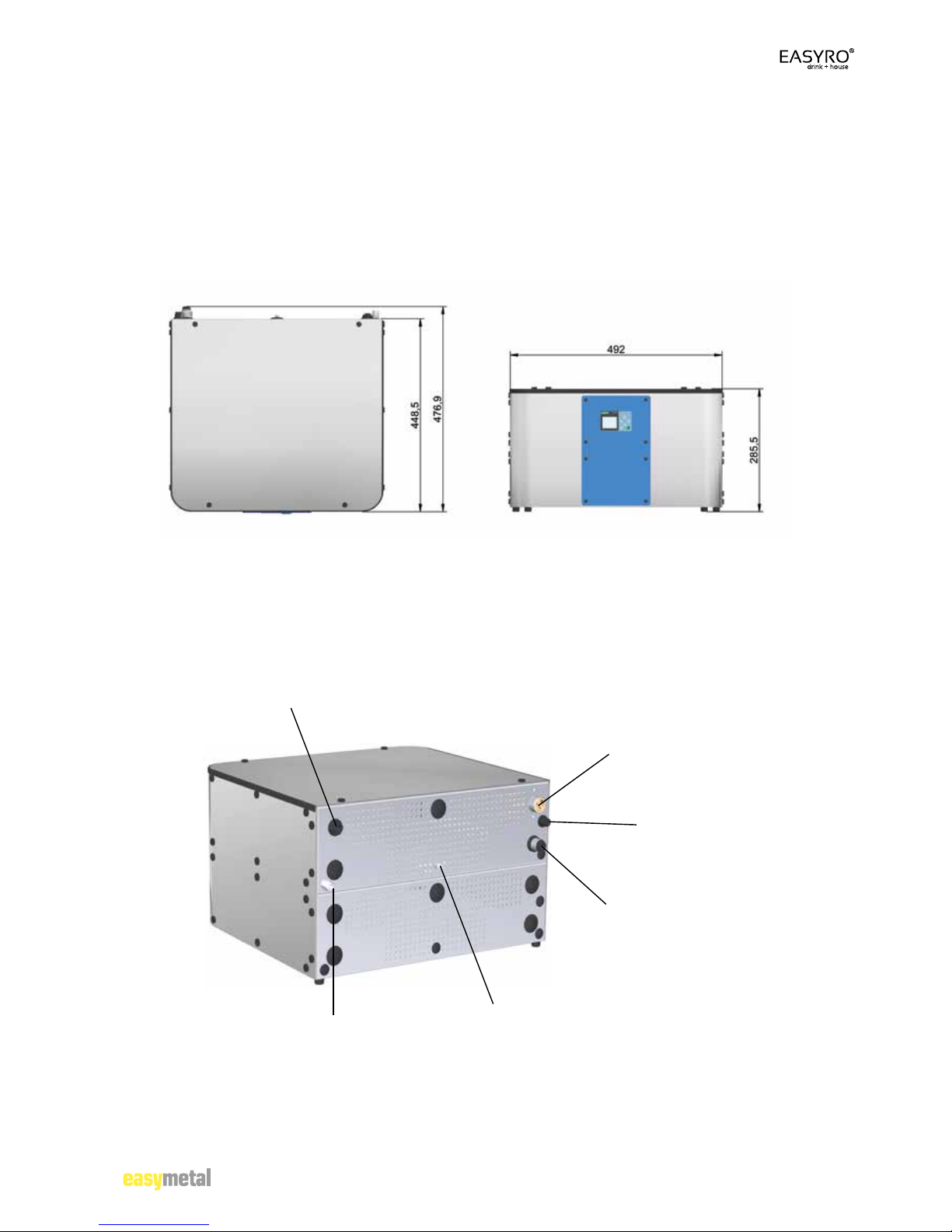

SYSTEM COMPONENTS AND CONNECTIONS
EASYRO®120
Coding of the EASYRO
®
120
Clean water outlet
with mixing
10 mm JG
230 V AC/50 Hz
Fresh water supply
3/4“ outside thread
Mixture adjustment screw
Sewer outlet
10 mm JG
Level regulator
connection

Page 11
Technical Documentation EASYRO®Water Treatment Systems© 2015 easymetal GmbH.
This information is subject to copyright laws and may not be reproduced or changed without express written permission of easymetal GmbH.
SYSTEM COMPONENTS AND CONNECTIONS
EASYRO®240
Clean water outlet
with mixing
10 mm JG Fresh water supply
3/4“ outside thread
Sewer outlet
10 mm JG
Level regulator
connection
Mixture adjustment screw
230 V AC/50 Hz
Coding of the EASYRO
®
240

Page 12
Technical Documentation EASYRO®Water Treatment Systems© 2015 easymetal GmbH.
This information is subject to copyright laws and may not be reproduced or changed without express written permission of easymetal GmbH.
SYSTEM COMPONENTS AND CONNECTIONS
EASYRO®480
Clean water outlet
with mixing
10 mm JG
Fresh water supply
3/4“ outside thread
Sewer outlet
10 mm JG
Level regulator
connection
Coding of the EASYRO
®
480
230 V AC/50 Hz
Mixture adjustment screw

Page 13
Technical Documentation EASYRO®Water Treatment Systems© 2015 easymetal GmbH.
This information is subject to copyright laws and may not be reproduced or changed without express written permission of easymetal GmbH.

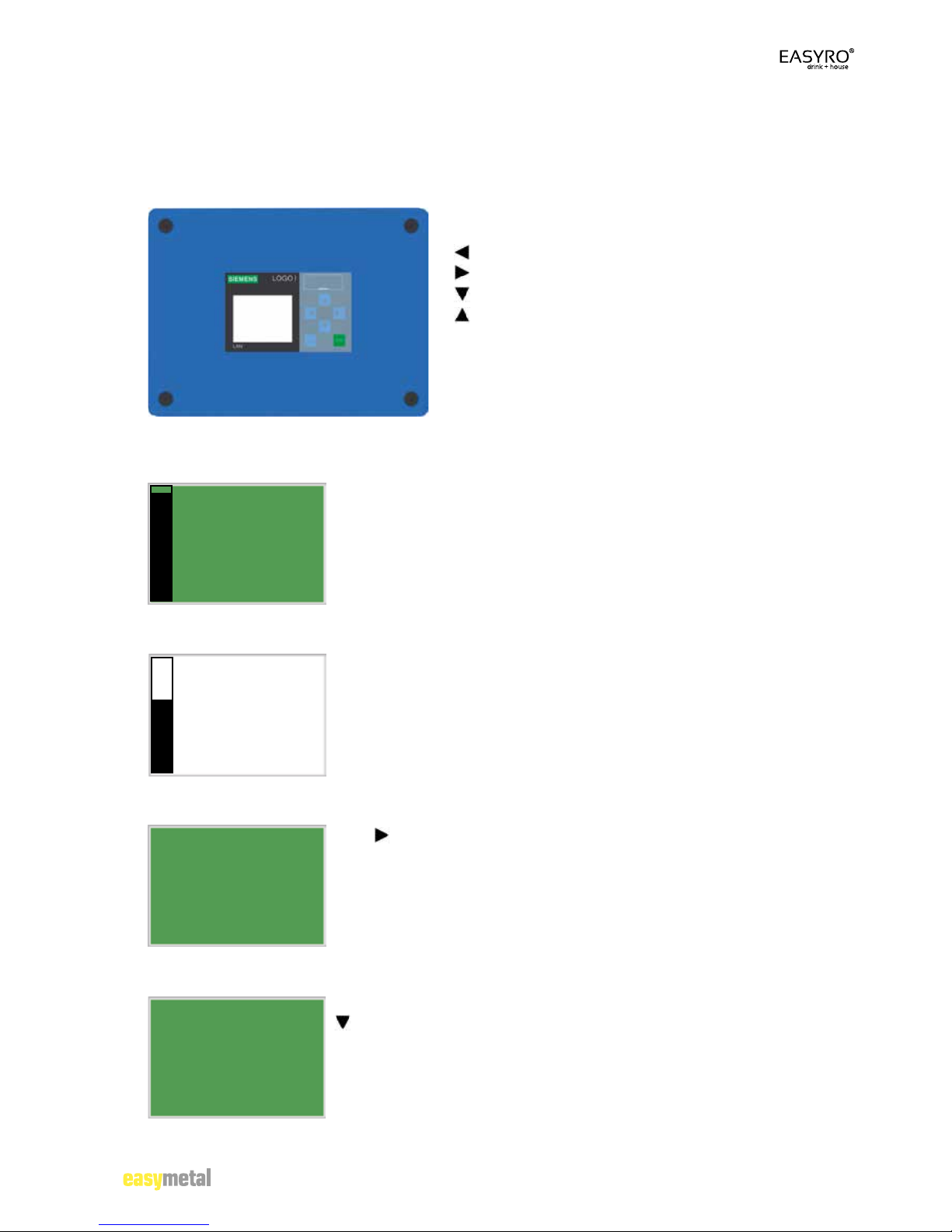

CONTROL ELEMENTS AND FUNCTIONS
EASYRO® 60 / 120 / 240 / 480
System during production
Displays Con = electrical conductance value in µS/cm1
Scrolling display for operating hours left until maintenance is due
(Maintenance is due after 4500 operating hours)
Indicator bar: tank filling level for unpressurized tank
pressure indication in bar for pressurized tank
EASYRO
Production
Con: 60
bar 5 (Pressure vessel)
Maintenance:489
EASYRO
Production
Con: 60
Maintenance: 3489
Control Elements and Keys
Left arrow
Right arrow
Down arrow
Up arrow
ESC
OK
EASYRO
We 11:12
Stand by
bar 5 (Pressure vessel)
2016 - 09 - 16
Display shows “STAND BY” mode
(The system is not in production mode – possibly the tank is full)
The fill level is displayed as a bar on the left side of the display
or pressure indication in bar for pressurized tank
Day of the week and time
Scrolling “Ready”
Date
ESC + right arrow = INFO
Displays software version, motor hours and operating hours
(Do not press longer than max. 5 seconds. Pressing this longer starts
the “Suction Membrane Cleaning” programme
S = shows the remaining operating hours until the next maintenance
(from 4500 downwards)
M = shows already passed motor hours
Firmware = shows software version
EASYRO
S 3489
M 51h26m
Firmware 2.0
Changing date and time
ESC = SETTINGS - DATE
Select menu option SETTINGS, select date and use the arrow keys to
set the time. Save with OK.
Set time
Tue 13:10
YYYY-MM-DD
2016-08-05
Dislay color
Withe: System active
Yellow: Warning/Information
Red: Alarm

Page 14
Technical Documentation EASYRO®Water Treatment Systems© 2015 easymetal GmbH.
This information is subject to copyright laws and may not be reproduced or changed without express written permission of easymetal GmbH.
XS S
Model EASYRO®60 EASYRO®60
Power draw 250 W 250 W
Voltage 230V AC/50 Hz 230V AC/50 Hz
Noise level >60 dB(A) >60 dB(A)
WATER CONNECTION
Line requirement 10 l/min 10 l/min
Line pressure (flowing) 2-6 bar 2-6 bar
Equipment connection 3/4“ outer thread 3/4“ outer thread
Wastewater connection JG 10 mm JG 10 mm
Faucet/tap incl. incl.
Dishwasher connection /incl.
HYDRAULIC OUTPUT
Output max. (24h) * 1000 l 1000 l
Adjustable output pressure 2-5 bar 2-5 bar
Membrane pressure vessel /optional
SYSTEM DATA
Pre-filter external YES YES
Desalination rate min. 95% 95%
Wastewater min. * 35% 35%
Outlet 1 x JG 10 mm 1 x JG 10 mm
Outlet Adjustable 0-200 µS/cm¹
Weight empty approx. 16 kg approx. 16 kg
Dimensions D/W/H 450/490/147 mm 450/490/147 mm
TECHNICAL DATA
for the Kitchen

Page 15
Technical Documentation EASYRO®Water Treatment Systems© 2015 easymetal GmbH.
This information is subject to copyright laws and may not be reproduced or changed without express written permission of easymetal GmbH.
BASIC STANDARD LARGE
Model EASYRO®120 EASYRO®240 EASYRO®480
Power draw 250 W 250 W 600 W
Voltage 230V AC/50 Hz 230V AC/50 Hz 230V AC/50 Hz
Noise level >60 dB(A) >60 dB(A) >60 dB(A)
WATER CONNECTION
Line requirement 10 l/min 15 l/min 20 l/min
Line pressure (flowing) 2-6 bar 2-6 bar 2-6 bar
Equipment connection 3/4“ outer thread 3/4“ outer thread 3/4“ outer thread
Wastewater connection JG 10/DN 20 JG 10/DN 20 JG 10/DN 20
Output Adjustable 0-200 µS/cm¹
HYDRAULIC OUTPUT
Output (24-hrs) * 2400 l 4800 l 9600 l
Adjustable output pressure 2-5 bar 2-5 bar 2-5 bar
Steel tank Nirosta 420 l Ø 600 H 1500mm Ø 600 H 1500mm Ø 600 H 1500mm
47 kg 47 kg 47 kg
SYSTEM DATA
Pre-filter external YES YES YES
Desalination rate min. 95% 95% 95%
Wastewater min. * 35% 35% 35%
Weight empty (System) approx. 17 kg approx. 24 kg approx. 48 kg
Dimensions D/W/H 450/490/147 mm 450/490/284 mm 450/490/558 mm
OPTIONAL ACCESSORIES
Softener cartridge up to 25°dH 10“ 20“ 20“
Submersible UV lamp Desinfection for steel tank 420 l
Oventrop valve Bypass and mixing function, 2 x 1“ inside thread
* depending on raw water quality and temperature as well as the membrane life
TECHNICAL DATA
for the Entire House

Page 16
Technical Documentation EASYRO®Water Treatment Systems© 2015 easymetal GmbH.
This information is subject to copyright laws and may not be reproduced or changed without express written permission of easymetal GmbH.
INSTALLATION AND
COMMISSIONING
DELIVERY SCOPE
• EASYRO® 60 / 120 / 240 or 480
• Pre-filter system with matching filter key in 10´´ or 20´´ depending on EASYRO®model
• Filter inserts for the pre-filter system – depending on water quality of the inlet water
• Add-on kit for the pre-filter system
• Optional wall panel for EASYRO®
Double pre-lter housing for different lter inserts (depending on water quality)
Wound thread lter
EASYRO
®
60/120/240 or 480
Filter key
Mounting bracket for double pre-lter housing

Page 17
Technical Documentation EASYRO®Water Treatment Systems© 2015 easymetal GmbH.
This information is subject to copyright laws and may not be reproduced or changed without express written permission of easymetal GmbH.
Relocating the pads to the side for vertical installation.
SELECTING AN INSTALLATION SITE
NOTE
The water treatment system should be installed in a cool, dry, ventilated, and
easily accessible location.
Please consider the distance of the water inlet for the water supply of the
EASYRO®and the distance of the sewer outlet to the sewer drain.
Make sure a sufficient number of grounded safety outlets (Schuko type F, 230 V)
are available depending on the selected system components (e.g. household
water system, UV radiation system, etc.).
The required installation space varies depending on the delivery scope and model of the
EASYRO®.
If you wish to use a 500-l tank, please determine the carrying capacity of the installation surface.
PREPARING FOR INSTALLATION
NOTE
If you have an EASYRO®whole house installation, an Oventrop valve with
emergency bypass function and a mixture adjustment screw must be installed
by a qualified, authorised technician according to the illustration.
Install a return valve upstream to the Oventrop valve.
Please inform your plumber that a ¾”´ connection is needed for the water
supply of the water treatment system.
If you wish to install the EASYRO®on a wall panel or some sort of shelf, please determine the
carrying capacity of the wall or masonry and use the correct tools and materials for the moun-
ting process (drill, dowels, screws).
USE AS A DRINKING WATER SYSTEM
If you wish to install an EASYRO®as a drinking water system in your kitchen, please provide
sufficient space in the cabinet under your sink.
The cabinet under your sink is the most suitable place because this means the distances to an
existing water supply and to the sewer drain are rather short.
EASYRO®units are designed for vertical or horizontal installation. This
requires unscrewing the pads on the bottom of the unit and reattaching them to
the side (for vertical installation).

Page 18
Technical Documentation EASYRO®Water Treatment Systems© 2015 easymetal GmbH.
This information is subject to copyright laws and may not be reproduced or changed without express written permission of easymetal GmbH.
MOUNTING BRACKET DRILLING TEMPLATE FOR PRE-FILTER
SYSTEM
Please measure and mark the available space on the wall before mounting the wall panel
for the double pre-filter housing. Select the mounting space in such a way that the pre-filter
system remains easily accessible for future maintenance work and filter replacements.
Use the drilling template to determine the distances of the required drill holes.
The holes must have a diameter of 10 mm. Use the enclosed fastening elements (dowels and
screws).
IMPORTANT
Please determine the carrying capacity of the wall or masonry and make sure
the mounting bracket is installed carefully and correctly.
Drilling template for the mounting bracket
Mounting bracket for the double pre-lter housing

Page 19
Technical Documentation EASYRO®Water Treatment Systems© 2015 easymetal GmbH.
This information is subject to copyright laws and may not be reproduced or changed without express written permission of easymetal GmbH.
DRILLING TEMPLATE FOR THE WALL PANEL (optional)
Please measure and mark the available space on the wall before mounting the wall panel.
If your delivery scope includes a wall panel, the pre-filter system is already mounted to the wall
panel. In this case, you do not have to install the pre-filters on the wall.
Use the drilling template to determine the distances of the required drill holes.
The holes must have a diameter of 10 mm. Use the enclosed fastening elements (dowels and
screws).
IMPORTANT
Please determine the carrying capacity of the wall or masonry and make sure
the wall panel is installed carefully and correctly.
IMPORTANT
The distance between the EASYRO®unit and the wall may not be diminished
by various lines. The clearance is usually 10 cm.
The clearance is necessary for subsequent installation steps. Here, the connecting
lines of the system must be installed.
Drilling template for the wall panel
Wall panel with double
pre-lter housing

Page 20
Technical Documentation EASYRO®Water Treatment Systems© 2015 easymetal GmbH.
This information is subject to copyright laws and may not be reproduced or changed without express written permission of easymetal GmbH.
IMPORTANT NOTES
IMPORTANT
EASYRO® systems must be installed by a qualied technician trained by
easymetal. Any other installation will render the warranty null and void.
WARNING
Do not expose the EASYRO®system to extreme temperature changes in
order to avoid the formation of condensation. The condensate may damage the
electronics of the system.
CAUTION
Make sure the ventilation slots on the unit are not covered and do not installed
the system too close to the wall, because inadequate ventilation causes overheating
of the internal pump!
CAUTION
The electrical connection of the EASYRO®unit must comply with the standards
of the ÖVE (Austrian Electrotechnical Association). The system must feature the
corresponding protection devices (residual-current-operated circuit breakers and
line protection switches/fuses).
IMPORTANT
Please note that that the line pressure and other line requirements must comply
with the Technical Data.
If values drop below the pressure limit, the system may no longer function reliably.
Values exceeding the maximum may damage the membranes.
IMPORTANT
Do not disconnect the EASYRO®system from the water or power supply
during operation. The system is programmed in such a way that the integrated
automatic ushing cycles rinse the membranes even when the system has not
been productive for an extended period of time. This automatic process is
important to avoid contaminants or particles accumulating on the membranes.
If the system will not be used for more than 10 days, there is a danger of bacterial
contamination.
The production of healthy and potable drinking water cannot be ensured any
more. In this case, all water lines and membranes must be renewed.
