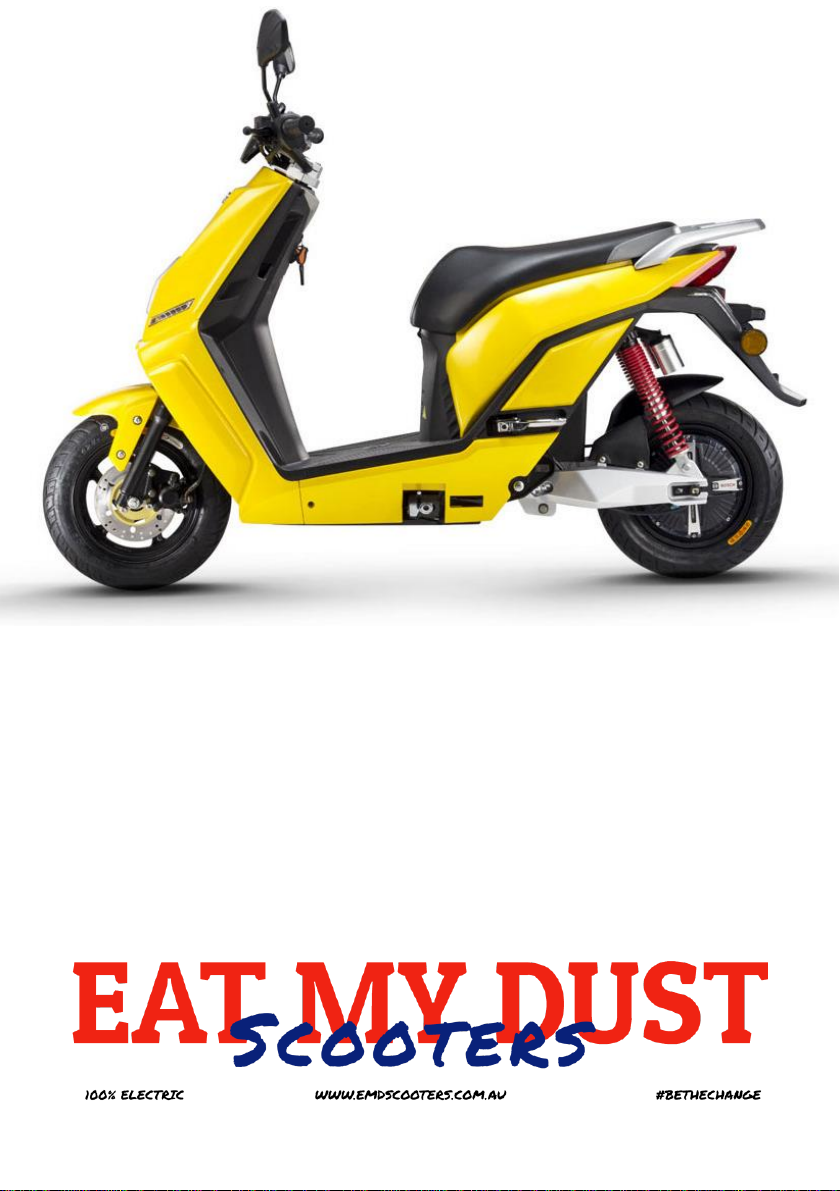

EAT MY DUST LF1200DT User manual

Australia's Favourite Electric Motorbike
Electric Scooter
LF1200DT
User Manual

Australia's Favourite Electric Motorbike
100% electric
www.emdscooters.com.au
#BETHECHANGE
2
PREFACE
Thank you for choosing TheO.G. We have worked extremely hard to bring this product
here to Australia and really hope you enjoy it as much as we think you will!
This manual provides all the technical information required to operate and maintain
your scooter safely.
PLEASE READ THIS MANUAL BEFORE OPERATING YOUR SCOOTER.
Taking the steps in here will extend the life of your brand new scooter.
IMPORTANT INFO
MAXIMUM LOAD
The vehicle is designed to carry <100kgs. It will be capable of carrying more but this
means sacrificing performance and battery life.
We recommend the total weight of the passenger and driver does not exceed 110km.
PURPOSE
The O.G. Scooter is classed a registered motorbike in all Australian States. This
means it is designed for use strictly on the road and not permitted in bicycle lanes.
Pay special attention to statements preceded by the following words:
WARNING: Indicates a strong possibility of severe personal injury or death if
instructions are not followed.
CAUTION: Indicates a possibility of equipment damage if instructions are not followed.
NOTE: Indicates a possibility of equipment damageif instructions are not followed.
Environmental Protection (EP): Indicates special precautions that must be taken to
meet environment protection laws and regulations. Improper use of a motorcycle may
cause environment pollution.
If the operator fails to follow safe operating and maintenancepractices, Co. will not
take any responsibility to any injury or damage occurred.
This manual should be considered as a permanent part of the motorcycle and should
remain with the motorcycle when resold.

Australia's Favourite Electric Motorbike
100% electric
www.emdscooters.com.au
#BETHECHANGE
3
CONTENTS
HOW TO STAY SAFE...............................................................................................4
Protective Clothes..............................................................................................................4
Refitting/Design Changes ..................................................................................................4
Permitted Accessories .......................................................................................................5
GENERAL INFORMATION........................................................................................6
Parts Diagram....................................................................................................................6
Vin Record.........................................................................................................................7
CONTROLLING PARTS............................................................................................8
Ignition Switch....................................................................................................................8
Left Handlebar Controls .....................................................................................................9
Right Handlebar Controls................................................................................................. 10
Rear Shock Absorber.......................................................................................................11
Stands.............................................................................................................................. 12
OPERATION GUIDE...............................................................................................13
Pre-Ride Inspection .........................................................................................................13
Attentions to Riding..........................................................................................................14
Notes of Post-Ride...........................................................................................................14
MAINTENANCE......................................................................................................15
Tool Kit............................................................................................................................. 15
Maintenance Schedule..................................................................................................... 15
Conventional security and performance...........................................................................15
Structural Inspection ........................................................................................................ 16
Importance Parts..............................................................................................................16
Operation of Throttle Grip ................................................................................................ 17
Maintenance of Lithium Battery........................................................................................18
Front Brake......................................................................................................................20
Rear Brake....................................................................................................................... 21
Front/Rear Shock Absorber and Suspension ...................................................................22
Tyre .................................................................................................................................22
Fuse................................................................................................................................. 23
Charger............................................................................................................................ 23
TROUBLESHOOTING, VEHICLE SAFETY AND OPTIONAL PART..........................24
Common Fault Disposal Methods ....................................................................................24
Optional Part.................................................................................................................... 25
Motor Fault Code Messages............................................................................................25
Controller Fault Code Messages...................................................................................... 25
Lithium Battery Fault Code Messages..............................................................................26
DMU Fault Code Messages.............................................................................................26
ELECTRIC DIAGRAM.............................................................................................27
SPECIFICATIONS...................................................................................................28

Australia's Favourite Electric Motorbike
100% electric
www.emdscooters.com.au
#BETHECHANGE
4
HOW TO STAY SAFE
Riding a motorbike safely involves more than obeying the road rules. You
must be aware of your surroundings and ride to survive.
Always perform a pre-ride inspection before you ride. Checking the brakes
are operating correctly and the mirrors are in position.
Ensure you are legally permitted to ride the motorbike where you are. This
means having a valid motorcycle license in NSW and VIC. A valid car
license in all remaining states. If these rules change, it is your
responsibility to check prior to riding.
Always be visible:
Wear bright or reflective clothing.
Don’t ride in another motorist’s “blind spot”.
Your scooter will feel zippy, try not to cut others off in traffic.
Obey all applicable road rules.
Obey the speed limits, and NEVER travel faster than conditions
warrant.
Use extra caution at intersections, parking lot entrances and exits.
Always ride with both hands and keep both feet on the platform while
the passenger grasps the handrail with both feet on the rear footrest.
Protective Clothes
We recommend that you; always wear a helmet, a face shield and protective
clothing. Your passenger needs the same protection.
Try to wear clothing that won’t blow in the wind too much. Doing up jackets
etc.
Refitting/Design Changes
ANY attachment or device that alters the performance of the scooter voids any
and all Warranty and guarantee provided by EMD Scooters. Any change to
the design of the scooter also voids all Warranty.

Australia's Favourite Electric Motorbike
100% electric
www.emdscooters.com.au
#BETHECHANGE
5
Permitted Accessories
WARNING: The addition of accessories and cargo may reduce the vehicle’s
stability, performance and safe operating speed.
Keep cargo weight low and close to the center of the vehicle. Load weight
equally on both sides to minimize imbalance.
Adjust tyre pressure and rear suspension to suit load weight and riding
conditions.
Make sure that cargo is fastened on the vehicle.
Do not attach items to the handlebars, fork or fender. Otherwise, unstable
handling or slow steering response may occur.
The maximum load weight of the motorcycle is 110kg. Please do not
overload.

Australia's Favourite Electric Motorbike
100% electric
www.emdscooters.com.au
#BETHECHANGE
8
CONTROLLING PARTS
METER
The charging indicator is green when battery charging reaches 100%. Power
is lower than 10%, the charge indicator keeps flashing (yellow). The indicator
shows yellow when the battery is charging.
Ignition Switch
“ON”:The circuit of the scooter can be operated, power indicator on the
dashboard is lit and the key cannot be removed.
“OFF”:The circuit of the scooter cannot be operated
and the key can be removed.
“LOCK”:To lock the steering head, turn the
handlebars to the left or right as far as possible, insert
the key into the ignition slot, turn to “OFF, then depress
and turn counter clockwise to “LOCK, remove the key.
To unlock the steering head, turn the key clockwise.
“OPEN”: Open the seat lock.

Australia's Favourite Electric Motorbike
100% electric
www.emdscooters.com.au
#BETHECHANGE
9
Left Handlebar Controls
Hi-beam
Lower-beam
Overtaking light - Hi-beam light flash
Left turn signal light
Right turn signal light
Press to sound the horn
Rear Brake Lever: Grasping in the lever will apply the rear brake.

Australia's Favourite Electric Motorbike
100% electric
www.emdscooters.com.au
#BETHECHANGE
10
Right Handlebar Controls
Power Level lever
Level 1: Suitable for carparks and tight spaces. This is used to maneuver the
bike more than.
Level 2: Useful for starting slowly and getting up to speed over a longer
distance
Level 3: The highest power mode and the mode we recommend you spend
the most time in when driving on the roads.
STARTER BUTTON: This is commonly referred to as a kill switch on petrol
scooters. This must be held in for 3 seconds prior to any power reaching the
motor. This ensures the rider is ready and reduces risk of any incident when
taking off. It is also a cruise control switch, once the scooter is travelling more
than 5km/hr, holding this button will engage cruise control. Braking at any time
will cancel the cruise control.
Front Brake Lever: Grasping in the lever will apply the front, hydraulic disc
brake.

Australia's Favourite Electric Motorbike
100% electric
www.emdscooters.com.au
#BETHECHANGE
11

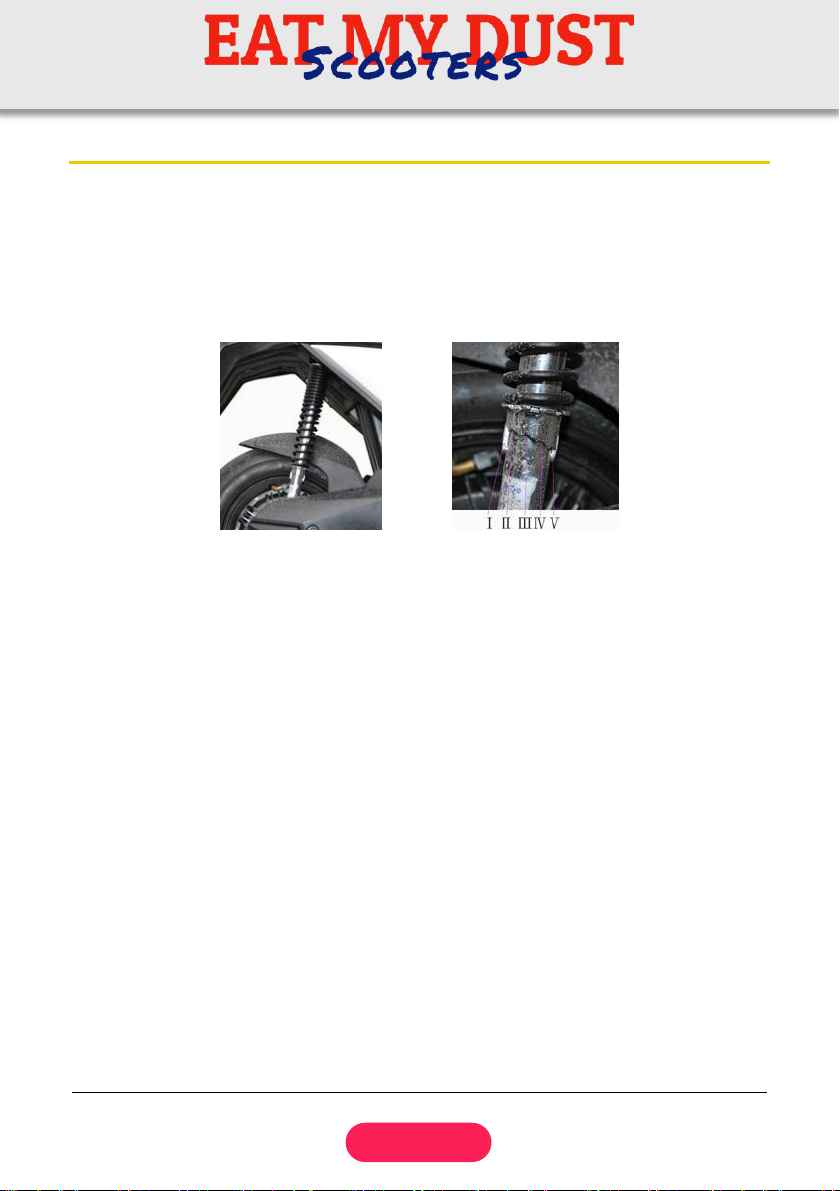

Rear Shock Absorber
The shock absorber has 5 adjustment positions for different loads and riding
conditions. Position I is for light loads and smooth road conditions. Position II
to V increase spring preload for a stiffer rear suspension, and can be used
when the motorcycle is heavily loaded or ridden in rugged roads.
NOTE: Be certain to adjust shock absorbers both left and right to the same
position.

Australia's Favourite Electric Motorbike
100% electric
www.emdscooters.com.au
#BETHECHANGE
12
Stands
Side Stand
When parking the vehicle, turn the side stand clockwise along the frame to
position. Before driving the vehicle, turn the stand to the initial position. After
returning the side stand, press and hold button for 3 seconds to switch "P"
to "READY" position.
Center Stand
When parking the vehicle, step on the center stand at the left of body while
rising therearportion of body with right handsoasto support thevehicle.Before
driving thevehicle,move the steering headforward to let the center stand return
automatically.

Australia's Favourite Electric Motorbike
100% electric
www.emdscooters.com.au
#BETHECHANGE
13
OPERATION GUIDE
Pre-Ride Inspection
Inspect your vehicle every time before you ride it. The items listed here will
only take a few minutes to inspect, and in the long run they can save time,
expense, and possibly your life.
S/N
Check Item
Contents
1
Tyres
Check condition and pressure
2
Front/rear brakes
Check operation
3
Horn
Check function
4
Lights
Check function
5
Meter
Check function
6
Ignition switch
Check function
7
Rearview mirror
Check clean
8
Grips
Check for its smoothness and reliability
9
Steering bearings
Check for looseness. Repack with all-purpose grease
10
Front/rear axles
Check all fasteners. Tighten and adjust as needed.
11
Fasteners
Check all fasteners and fittings. Tighten and adjust as
needed.
12
Electric quantity
Check that electric quantity if suitable. Recharge if
needed.
13
OL protection sw.
Check to see that the device is on, or switch to "ON"

Australia's Favourite Electric Motorbike
100% electric
www.emdscooters.com.au
#BETHECHANGE
14
Attentions to Riding
1. Developing your riding skills in an ongoing process. Even if you have
ridden other motorcycles, take time to become familiar with how this
vehicle works and handles. Practice in a safe area until you build your
skills and get accustomed to the vehicle’s size and weight. Because
accidents often involve inexperienced of untrained riders.
2. When using the vehicle, make sure that the OL protection switch is set to
ON, then turn on the ignition switch and set the travel switch to ON. When
P indicator switches into READY indicator, slowly turn the throttle grip to
activate the motor, thus, speed of vehicle achieves the best state. Do not
turn the grip fast.
3. It is a normal phenomenon when starting the motor with a "buzzing"
sound, due to the voice of high magnetic field work. The voice will
disappear as the motor speed achieves the best state.
4. Do not overload driving. In the case of security, try not to brake, starting
frequently.
5. Do not accelerate on downhill road; do not clench handle brake or else it
is easy to slip to sideways and fall over the vehicle.
6. When riding at night, please open the headlight. Please slow down and
turn on the winker when turning the corner; do not make sharp turn.
7. Please use caution in rain days. Don’t drive the vehicle in deep water area
avoid the damage of motor.
8. Please don't operate the vehicle with one hand. We urge all riders to take
a government-certified riding course.
Notes of Post-Ride
1. After using the vehicle, set the travel switch to OFF position. Turn off
power, and remove the key.
2. Please pay attention to support the vehicle smoothly when parking.
3. Check the battery and recharge if necessary.
4. Optimized methods to utilize the lithium battery: put is in a cool and dry
place, and recharge it every two weeks to maintain its capacity.

Australia's Favourite Electric Motorbike
100% electric
www.emdscooters.com.au
#BETHECHANGE
15
MAINTENANCE
Tool Kit
Some roadside repairs, minor adjustments and parts replacement can be
performed with the tools available in the kit.
Open-ended spanner, 8 × 10
Double-end screw driver
Screw driver grip
Tool bag
Maintenance Schedule
Initial Maintenance work should be performed at 500km’s drive or 1 month
after buy the vehicle whichever comes first. Then we recommend that
maintenance should be done once every 6 months to Lifan service stations to
evaluate the vehicle performance.
Conventional security and performance
S/N
ITEMS
CONTENTS
1
Tyres
Check air pressure, tread depth
2
Brake system
Check operation, fluid level, cable, etc.
3
Horn
Check the lines and insulation
4
Rear-view mirror
Check the mirror functions properly
5
Lights
Make sure all lights are working properly
6
Meter
Check indicators, lines, circuit
7
Fasteners
Tighten up nuts
8
Throttle grip
Twist the throttle to ensure smooth action

Australia's Favourite Electric Motorbike
100% electric
www.emdscooters.com.au
#BETHECHANGE
16
Structural Inspection
S/N
ITEMS
CONTENTS
1
Front/rear wheel hubs
Check end gag, etc.
2
Grips
Twist the grip to ensure smooth action
3
Frame, rear fork
Check all welded points and fasteners.
4
Front fork
Check fasteners, bearings
5
Shock absorber
Check the absorber works properly
6
Lock set
Check the lock functions properly
Importance Parts
S/N
ITEMS
CONTENTS
1
Battery
Voltage balancing, normal charging and discharging
2
Motor
End cover, bearings, hall, signal lines, electrical
circuits and casing insulation
3
Controller
Under voltage, over-current protection
4
Charger
Check charging current, voltage
5
Main cable
Check the welded points of lines and insulation
NOTES:
1.Such parts as front axle, rear axle, etc, should be lubricated with grease (No. 3,
lithium base grease).
2.Clean more frequently when riding in unusual wet or dusty area.

Australia's Favourite Electric Motorbike
100% electric
www.emdscooters.com.au
#BETHECHANGE
17
Operation of Throttle Grip
Check for smooth rotation of the throttle grip from the fully open to the fully
closed position at both full steering position.
Measure the throttle grip free play at the throttle grip flange. The standard free
play should be approx. 2-6mm.To adjust the free play, loosen the locknut, turn
the adjuster. Adjustment over, fasten the locknut.

Australia's Favourite Electric Motorbike
100% electric
www.emdscooters.com.au
#BETHECHANGE
18
Maintenance of Lithium Battery
1. Battery capacity will gradually decrease as the use of time and mileage
increases. The correct use and maintenance can effectively extend the life
of the battery.
2. Please charge lithium battery fully before first using newly purchased
electric motorcycle. First requirement when using battery recharged again
after use controller under-voltage protection. Pay attention as follows:
charging the battery for first 5 times should be not less than 8 hours, but
not more than 12 hours. When charging, bear in mind that the charger
operation method.
3. The battery should be fixed reliably to avoid damaging. Never throw, roll
and weight the battery when transferring it.
4. Keep the battery dry, clean to prevent the self-discharge too much.
5. Avoid losing electricity for a long time. As a rule, charge the battery in time
after using the vehicle every day. During long-term storage of vehicle,
remove the battery from the vehicle, and charge it, then put it in a cool and
dry place (-10℃~25℃) Then recharge it (after stored for 10~15 days).
6. To protect the battery from damage, slowly start the vehicle to avoid
instantaneous discharging too much.
7. Battery discharges to the termination voltage, and continue to discharge,
called as over-discharge. Pay attention to not let the battery discharge
during riding. In order to maximize the life of the battery, charge it when
the battery discharged to 50%.
8. Avoid over-charging as follows, the battery can be charged for 2 hours
when the charger indicator lights all bright. This done, do not use the
battery immediately, let it rest for 10 minutes or so to use again.
9. Battery applicable ambient temperature: 15-45 ℃
Optimum charging environment: 25 ℃
10. Reduce temperature of battery as far as possible when charging battery
temperature, ensure good heat dissipation, and away from heat source.

Australia's Favourite Electric Motorbike
100% electric
www.emdscooters.com.au
#BETHECHANGE
19
11. Avoid large current discharging for a long time.
Prevent it from exposure in the sun.
12. After discharge of the lithium battery, charge it in
time. Do not put discharged battery over 12 hours
NOTE: Please dispose of used battery in a manner
that is compatible with the environment. We suggest
you take it to local recycling center or service station
for reclamation. Do not throw it in the rubbish. At the
same time to remove the lithium battery is prohibited.
At the same time to remove the lithium battery is prohibited.
ELECTRIC QUANTITY
DISPLAY BUTTON

Australia's Favourite Electric Motorbike
100% electric
www.emdscooters.com.au
#BETHECHANGE
20
Front Brake
Check
The brake fluid level and brake pads shall be checked regularly. If any pad is
worn to its limit depth, replace both pads as a set in no time.
Check the brake fluid level through the sight glass. If the fluid level is below
the LOWER, loosen the cylinder cover screws, remove the cover, add brake
fluid up to UPPER level mark. If any doubt, see your dealer for help.
WARNING: Apply the specified brake fluid, or braking effectiveness and riding
safety will be affected adversely. Brake fluid may case irritation. Avoid contact
with skin or eyes. In case of contact, flush thoroughly with water and call a
doctor if your eyes were exposed. Do not allow contaminants such dirt or
water to enter the brake fluid tank.
Adjustment
1. Measured at the tip of the front brake lever moves before the brake starts
to engage is called free play. The free play should be maintained within 10
~20mm.
2. If the brake lever free play becomes excessive and the brake pads are not
worn beyond its minimum depth, there is probably air in the brake system
and bleed it. For which purpose, see your dealer for help.
NOTE: If such adjustment is still unsatisfactory, see your dealer for help.
3. Apply the brake several times and check for free wheel rotation after the
brake lever is released.
Table of contents
Popular Scooter manuals by other brands

MS ENERGY
MS ENERGY m100 instruction manual

Zero Motorcycles
Zero Motorcycles S 2010 owner's manual

Lance Power Sports
Lance Power Sports Interceptor 150 owner's manual

Pride Mobility
Pride Mobility raptor series owner's manual

APRILIA
APRILIA SR 50 - BROCHURE 2009 Workshop manual

Motus
Motus Scooty 8,5 user manual
