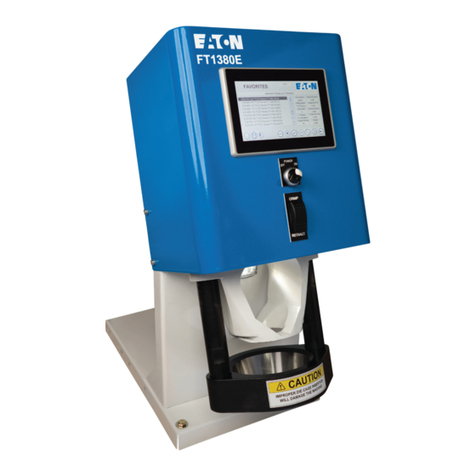

Eaton FT1380e Installation manual

WARNING: Failure to follow Eaton process and product instructions and
limitations could lead to premature hose assembly failures, resulting in property
damage, serious injury or death. Read and understand the operator’s manual
before attempting to operate any equipment.
LIFTING INSTRUCTIONS: Place pallet on level surface prior to unbolting.
Gloves are recommended for the unbolting process. Lag bolts are located at
each of the 4 corners of the machine base. Remove the lag bolts using a ½”
open end wrench or socket. Be careful when lifting machine so that it does not
tip over. Do not lift by hand. When moving the machine, secure the crimper to a
forklift. Any straps used to aid in the lifting process should not be placed around
the electrical box, which is positioned on the left side of the crimp machine.
SETUP AND INSTALLATION:
1. Mount your Eaton FT1380e crimp machine onto a stable work surface that will support at least 300 pounds.
Secure the unit using the holes provided in the corners of the crimp machine base.
*Ensure crimp machine placement allows adequate access to the electrical box per OSHA and local regulations.
CRIMP MACHINE DIMENSIONS
Width: 16.062 inches Depth: 25.75 inches Height: 29.875 inches Weight: 222 pounds
2. Remove the plug from the hydraulic reservoir vent port and replace it with the vent cap that is supplied with the unit.
CAUTION: Failure to do so will cause cavitation and damage to the pumping mechanism. Hand tighten the vent cap.
The FT1380e machine comes pre-lled with Hydraulic Oil. The MSDS can be found at eatoncrimpersupport.com.
3. Plug the machine into a dedicated outlet. Never use an extension cord, always plug directly into the power outlet.
CAUTION: Provide electrical service with a dedicated circuit (per the crimp machine electrical requirements) to
eliminate the possibility of a low-voltage situation.
ELECTRICAL REQUIREMENTS:
FT1380e-115, FT1380e-115CSA:
115-Volt AC single phase (50/60) Hz Circuit with a minimum of 20 amps
FT1380e-230, FT1380e-230CSA:
208 to 230-Volt AC single phase (50/60) Hz Circuit with a minimum of 15 amps
Eaton FT1380e
Electronic crimp machine start-up sheet
SEE BACK FOR OPERATOR’S INSTRUCTIONS

SOFTWARE UPDATES
The latest software version can be located on the Maintenance
screen when logged in as an admin user.
Check eatoncrimpersupport.com to verify that you have the
latest software revision on the machine. Software update
instructions can be found in the operator’s manual. A USB
drive is required and is included with the machine. It is located
in a cardboard box along with a stylus and wiping cloth. The
box is taped to the inside of the white pusher on the machine.
Note that the USB port is located on the right side of the
machine and has a black cover.
CALIBRATION
The FT1380e crimp machine will come pre-calibrated from
the factory. Please perform a calibration check to verify these
factory settings prior to use. Calibration instructions can be
found in the operator’s manual.
TECHNICAL SUPPORT
To access a PDF version of the operator’s manual and other
technical documents and support materials for the FT1380e
crimp machine, point the camera on your mobile device to the
QR code below or visit eatoncrimpersupport.com/ft1380e.
ADMIN FUNCTIONALITY
The FT1380e machine has administrative capabilities that can
only be performed by an administrator. This includes the ability
to set and view the machine calibration settings, set user
access privileges, and to access machine setting details such
as software revision number and crimp count.
© 2021 Eaton
All Rights Reserved
Printed in USA
Document No.: E-HOAS-TT007-E
Eaton
Hydraulics Group USA
14615 Lone Oak Road
Eden Prairie, MN 55344
USA
Tel: [phone]
Fax: [phone]
www.eaton.com/hydraulics

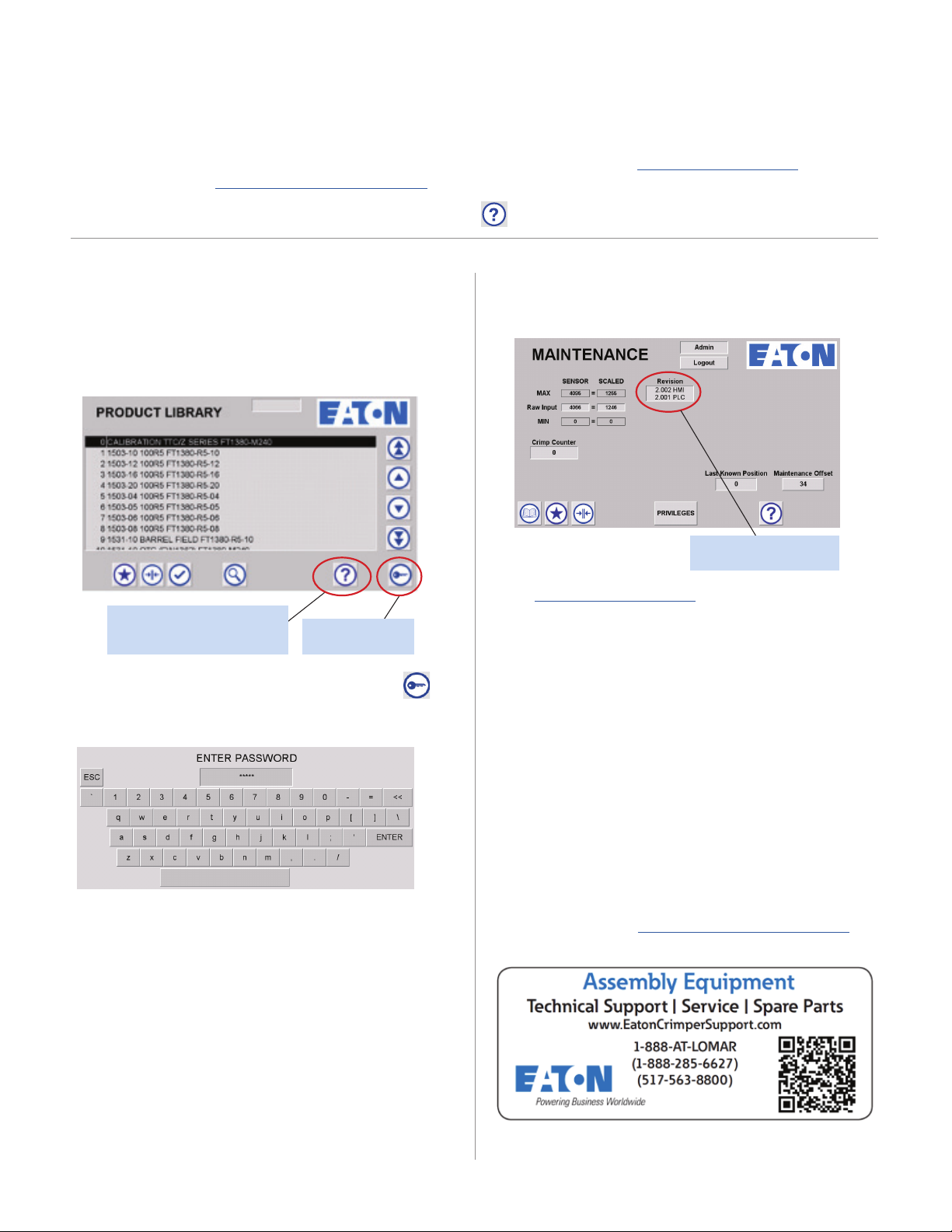

OPERATOR’S MANUAL
IMPORTANT! Read through the operator’s manual in its entirety prior to operation of the machine. Pay special attention to all
warnings and safety instructions.
Use the QR Code below to access the operator’s manual and other technical documents on eatoncrimpersupport.com
or access via the URL – eatoncrimpersupport.com/ft1380e.
The manual can also be accessed on the FT1380e by selecting the Help icon on the touch screen.
To log into the machine as an administrator, select the key
icon at the bottom right of the screen.
Then, enter the Admin password using the keypad.
SOFTWARE VERSION
HELP FEATURE INCLUDING
OWNER’S MANUAL ADMIN LOGIN
