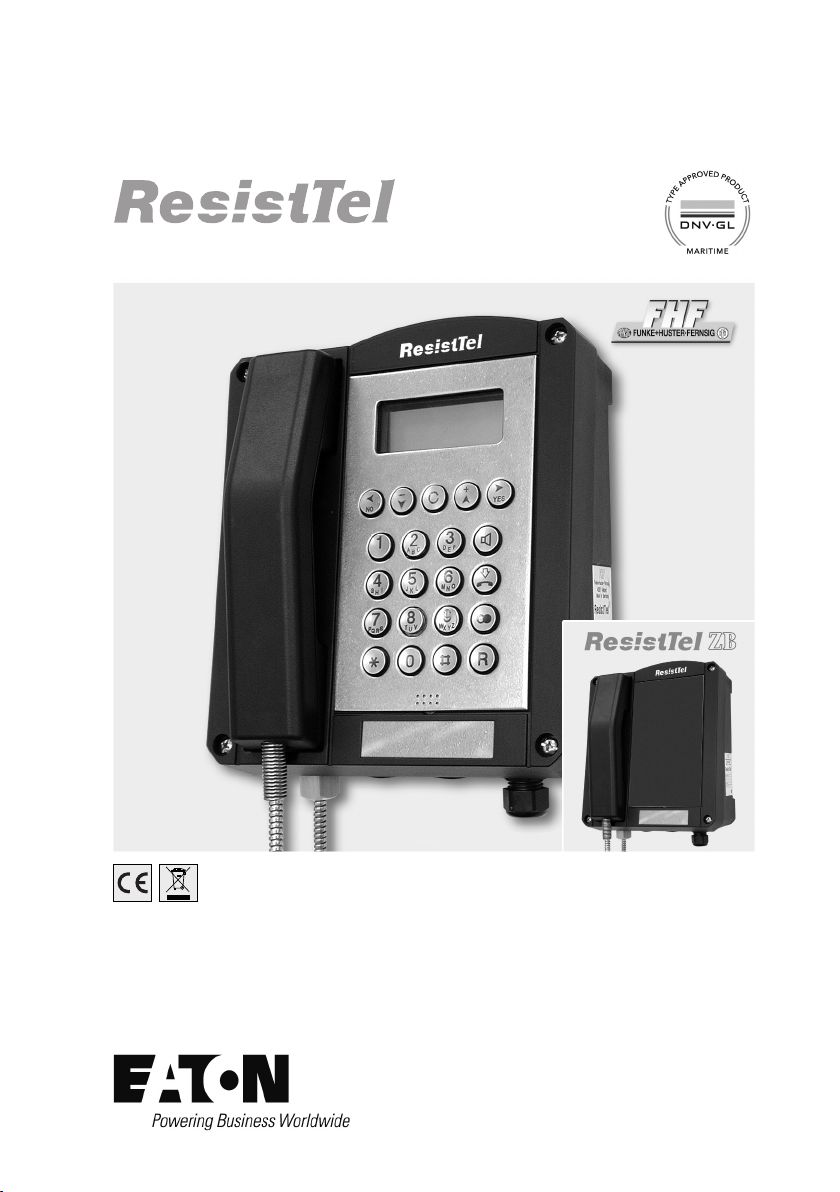

Eaton Resisttel User manual

Robust, weather-resistant telephone

Operating instructions

FHF BA 9700 01/17

Foreword

Our weather-resistant telephone is a captivating product on account of

its precision, convenience, long service life and reliability. It is freely

programmable and the optimum choice for adverse ambient conditions.

Be it seawater, high atmospheric humidity, dust or the toughest

mechanical strains, the weather-resistant telephone accomplishes its

aim in any conditions. The reason for this is the indestructible keypad

made of stainless steel and an extremely solid housing made of impact-

resistant and shockproof cast-moulding material. All of the components

utilised are even resistant to leeches and lubricants. The 21-part

stainless steel keypad - which can be operated by a user wearing

gloves - and the easily readable alphanumeric display as well as the

uncomplicated menus all ensure simple operation - thus fulfilling the

requirements for a leading-edge and operationally reliable means of

communication. As a telephone suitable for connecting to the public

telephone network and to private automatic branch exchanges, the

ResistTel always ensures reliable connections.

ResistTel ZB is designed for telephone exchange operation and

corresponds to the ResistTel, except for keypad and display.

Table of contents

General operating instructions ............................................................ 4

Overview of the device........................................................................ 5

Display and keyboard ......................................................................... 8

Contents after unpacking .................................................................... 9

ZB version notes ................................................................................. 9

Assembly and installation ................................................................. 10

Connection diagram .......................................................................... 11

Sling holder ....................................................................................... 11

Drilling diagram ................................................................................. 11

Handset mode................................................................................... 13

Open listening ................................................................................... 13

Hands-free talking ............................................................................. 13

Working with the headset.................................................................. 14

Menu ................................................................................................. 15

Main Menu ........................................................................................ 16

Submenu: Telephone Book .............................................................. 17

Submenu: Change Telephone Book................................................. 18

Submenu: Lock / PIN ........................................................................ 19

Submenu: Settings............................................................................ 20

Submenu: Languages....................................................................... 21

Default Settings................................................................................. 21

Menu overview .................................................................................. 22

Technical data................................................................................... 23

Use in marine and offshore segments .............................................. 26

Service ............................................................................................. 27

Maintenance and servicing ............................................................... 27

Waste disposal.................................................................................. 27

Warning and safety instructions ........................................................ 27

CE symbol......................................................................................... 28

Index of catchwords .......................................................................... 29

General operating instructions

1. Both the weather-resistant ResistTel telephone and the ZB version

are designed for connection to dial ports with analogue connection

points.

2. The handset is fitted with a stray-field coil for connecting hearing-

aids. People who use hearing-aids which have an inductive receiver

can receive the earphone signal directly.

3. The optional, external loudspeaker has three operating modes –

calling/ringing, open listening and hands-free. If the external

loudspeaker is switched on, the internal loudspeaker volume will be

reduced.

4. The ZB version is not equipped with keypad and display, therefore

not all the features are available with this version.

5. The ResistTel has a handset module with a dry reed contact as a

hook switch. In order to terminate an existing call connection, the

handset must be hung up. In order to interrupt an existing call

connection, it is sufficient to press the clearing key on the

keypad.(see page 8)

6. Use the menu to program the appropriate settings. To access the

menu, pick up the handset and press the "YES" key.

7. If you take longer than 2 minutes before you begin making a choice,

the power supply of the exchange may be switched off. If that

occurs, you will no longer hear a dialling tone. In that case, please

replace the handset and wait 2 seconds before picking it up again.

8. When a setting is stored successfully, this is confirmed by an

acknowledgement tone.

9. When you receive a call, the ResistTel rings at the ringer-volume

level selected by you and, for the duration of the calling sound, the

symbols ( ( ( ) ) ) appears on the display.

10. If you enter a PIN with the menu you can restrict or block dial

functions. Forgetting the PIN is the equivalent of losing a key. If you

forget the PIN, please contact our technical support.

11. You have a guarantee period of 24 months commencing from the

date of purchase. If you have a problem, please contact our

technical support in Germany, located in Mülheim an der Ruhr:

Telephone: 0208 82 68 256 ·Fax: 0208 82 68 377

e-mail: fhf-support@eaton.com

From outside of Germany, please prefix the country code:

Telephone: +49 208 82 68 256 ·Fax: +49 208 82 68 377

If a fault occurs which cannot be rectified by telephone, please send

the whole telephone along with a copy of the sales receipt to the

following address:

FHF

Support ResistTel

Gewerbeallee 15-19

D-45478 Mülheim an der Ruhr

Germany

If, on examination of the telephone, it is discovered that a fault is not

the case, you will be charged a service fee.

Overview of the device

Note: In case of the ZB version, the keypad and display are replaced by

a solid metal plate.

Overview of the device

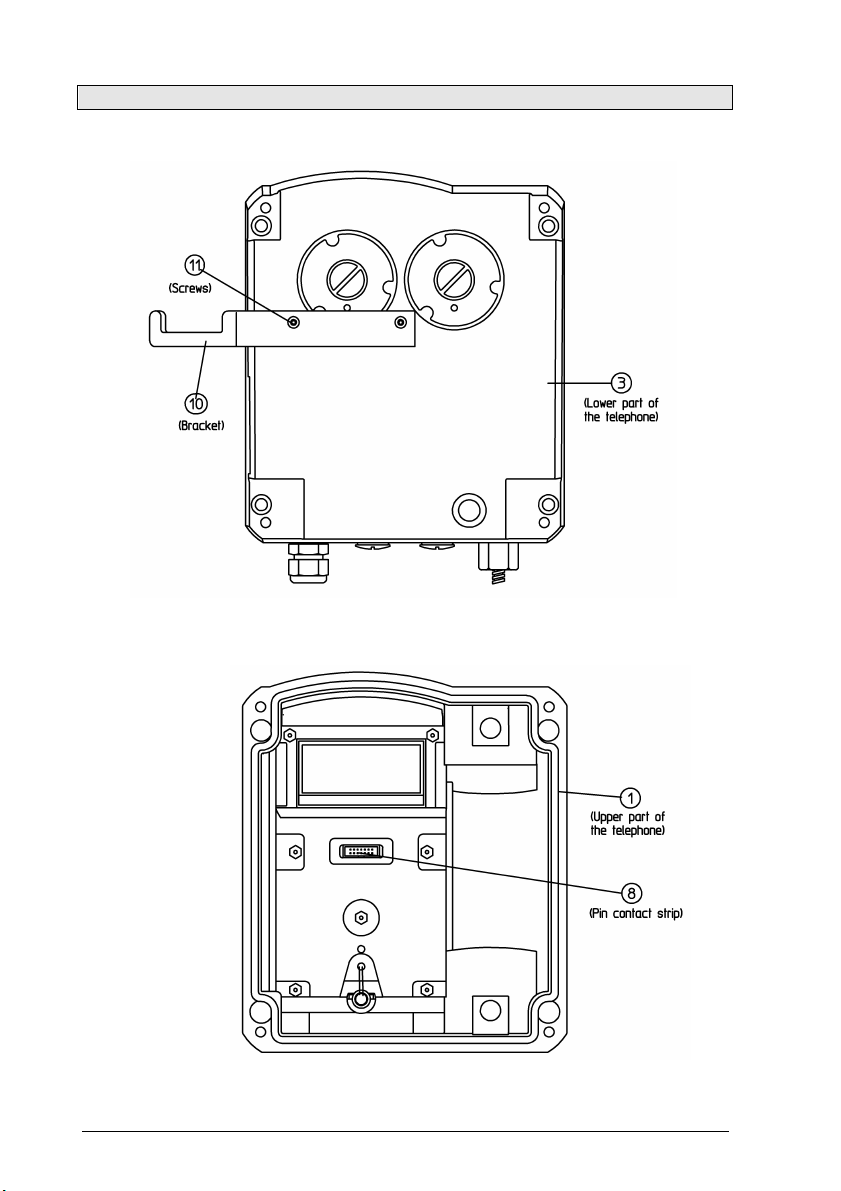

Outside view of telephone lower part

Inside view of telephone upper part

Overview of the device

Inside view of telephone lower part

Note: The ZB version is not equipped with a display

Cable entry

Display and keyboard (expect for ZB version)

Contents after unpacking

The delivery includes:

- ResistTel telephone

-Operating instructions ResistTel

-Operating instructions cable entry (optional)

-2 self-adhesive lettering plates

ZB version notes

The ResistTel / ZB connects – depending on the features of the PABX –

with the PABX while lifting the handset. The ResistTel / ZB can be

called also, because the ringing circuit is built in.

Furthermore there are interfaces for operating an optional second

earpiece, an optional secondary ringer and an optional external

loudspeaker.

The operating mode „external loudspeaker“ is set up by bridging the

terminals 9 and 10 (HSS1,HSS2). With the ZB version this is equivalent

to the open listening mode. The ringer sound is also output via the

external loudspeaker.

Note:

The set up of the external loudspeaker reduces the volume of the

internal ringer even if the external loudspeaker is not connected.

Thus the ZB version offers the following features:

•Establishing a connection by lifting up the receiver

•Ringing by means of integrated ringing device

•Connection of second earpiece

•Connection of secondary ringer

•Connection of external loudspeaker

Assembly and installation

The device must be installed on a plane surface only, in vertical

operating position. Loosen the cover screws (2) (see overview of the

device on page 5 to 7). and detach the upper part of the telephone (1).

If the optional accessory headset or a second earpiece is being

employed, attach the bracket (10) using two screws (11) to the rear

panel of the lower part of the telephone. (With the accessories named

before, the bracket and screws are in the scope of delivery. With all

accessories a cable gland is delivered.) Put four screws, having a head

diameter of 10 to 13 mm into the holes (20) and attach the lower part of

the telephone (3) to the wall or to a holder.

Installation differs depending on the type of telephone model. On the

telephone with factory equipped plastic cable entry, the telephone

network cable should be passed through the cable entry (4) and

connected to terminals 13 and 14 (A, B) in accordance with the

connection diagram.

In case of factory fitted cable glands the attached operating instructions

have to be considered.

Prior to assembly, check cover seal for tightness.

Using the plug connector (7), plug the ribbon cable onto the pin contact

strip (8) in the upper part of the housing.

Attach the upper part of the telephone and fasten it to the lower part of

the telephone with the four cover screws (2).

The locking torque of the upper part screws is: 1.2 ... 1.5 Nm.

Regarding the assembly and installation please observe the respectively

applicable installations regulations.

Connection diagram

Sling holder

The holding strength for the handset is continuously adjustable.

Loosen the screws (12) and move the stopping catches (13). Pushing

the stopping catches together increases the holding strength whereas

pulling them apart reduces it. Tighten the screws again.

Drilling diagram

For making a drilling template please use the following dimensions (in

mm).

The diameter of the drilled hole is dependent on the screw employed

(screw diameter max. 8 mm) and the type of supporting base material

(steel, wood, concrete, plasterboard etc.) and must be chosen

accordingly.

Handset mode (except ZB version)

When you pick up the handset, you are in handset mode. Using the

keys and , you can adjust the handset volume for talking. If you

wish to durably change the handset volume, use the menu "Settings /

Handset volume". Using the key you can switch into open listening

mode. If you keep the key depressed and replace the handset, you

switch to hands-free talking mode.

Open Listening mode (except ZB version)

Using the keys and , you can adjust the loudspeaker volume for

talking. If you wish to change the loudspeaker volume durably, use the

menu "Settings / Loudspeaker". The handset volume cannot be

changed in open listening mode. Using the key , you can switch to

handset mode. If you keep the key depressed and replace the

handset, you switch to hands-free-talking mode.

Hands-free mode (except ZB version)

If you switch on the ResistTel using the key you are in hands-free-

talking mode. Using the keys and you can adjust the

loudspeaker volume for talking. If you wish to durably change the

loudspeaker volume, use the menu "Settings / Loudspeaker". You end

the call using the key . If you pick up the handset, you switch to

handset mode.

Working with the headset (except ZB version)

If the headset has been connected correctly, it takes the place of hands-

free talking. For this reason, hands-free talking with the headset is not

possible. If you switch on the ResistTel with the key , you are

operating in headset mode. If you lift the handset while in headset

mode, the handset assumes a higher priority. That means that it is

possible to speak and listen using the handset but, in this mode, it is

only possible to listen with the headset.

Comparison of the operating states without and with connected

headset:

Operation without the headset

Operation with the headset

Handset mode

Handset mode with the headset

- Handset can speak and listen

- Headset can only listen

- Loudspeaker is off

Open Listening mode

Open Listening with the headset

- Handset can speak and listen

- Headset can only listen

- Loudspeaker is on

Hands-free mode

Headset mode

- Handset is replaced

- Headset can speak and listen

- Loudspeaker is off

Using the keys and you can adjust the headset volume for

talking. If you wish to durably change the headset volume, use the menu

"Settings / Headset Volume". You end the call using the key .

Menu (except ZB version)

Starting the menu

Press the key .

You are now situated in the main menu.

The top line of the display indicates the menu in which you are located.

The lower line indicates which menu item is selected.

Selecting menu items

Press the key or .

The upper line of the display remains unchanged. In the lower line, the

menu items available for selection change with each key-press.

Activating a menu item

Press the key .

The menu item which was indicated in the lower line is now located in

the upper line. In the lower line, you see the additional options available.

Exiting the menu

Press the key .

With each key-press, you jump to the previous menu. When you arrive

back in the main menu, you exit it with the next key-press .

Main Menu (except ZB version)

With the aid of the key or , you can make selections under the

following items:

•Telephone Book

For selecting a telephone number from the

telephone book memory.

•Change Phonebook

For creating new telephone book entries

For modifying existing telephone book entries

For deleting existing telephone book entries

•Lock / PIN

For changing to the submenu Direct call

For setting the complete lock

To permit selections from the telephone book

only

For disabling or enabling the main menu

items “Settings”, “Languages” and “Change

Phonebook”

For changing the PIN

•Settings

For adjusting the ringer volume and changing

the melody

Adjust the loudspeaker volume

Adjust the handset volume

Adjust the headset volume

Adjust the LCD contrast

Set the dialling method

Set the flash time

Set the exchange number and pause

Restoring to the default dettings

Switch on/off an external loudspeaker

Wecome text

•Languages

For selecting the menu language German

For selecting the menu language English

For selecting the menu language Spanish

For selecting the menu language French

For selecting the menu language Italian

When you select an item, you can activate it with the key . You can

exit the menu with the key .

Submenu – Telephone Book (except ZB version)

You have the option of dialling up to 50 telephone numbers from the

telephone book. To store and/or change numbers, see the menu item

"Change telephone book".

You can select from the telephone book entries using the key or .

Examples:

•FIRE BRIGADE

999
