Eaton 5P1000RC User manual

Page 1
ENGISH
Copyright © 2015 EATON
All rights reserved.
5P 750VA -1.5 KVA EU_EN
Installation and
user manual
5P750RC
5P1000RC
5P1500RC

Page 2
5P 750VA-1.5 KVA US_EN
Certification Standards
Uninterruptible power systems (UPS) directives:
•IEC 62040-1: General and safety requirements for UPS
•IEC 62040-2: Electromagnetic compatibility (EMC) requirements
•IEC 62040-3: Method of specifying the performance and test requirements
. IEC 62040-4: Environmental aspects - Requirements and reporting
CE mark
CE compliance contact: Eaton I.F. – 110 rue Blaise Pascal – 38330 Montbonnot Saint Martin - France
The EC Declaration of Conformity is available upon request for products with a CE mark.
For copies of the EC Declaration of Conformity, contact Eaton Power Quality or check Eaton website:
www.powerquality.eaton.com
Class B emission level CISPR 22(EN 55022)
Harmonics emission: IEC 61000-3-2
Flickers emission: IEC 61000-3-3
FCC 47 CFR Part 15, Subpart B - Unintentional Radiators Class B

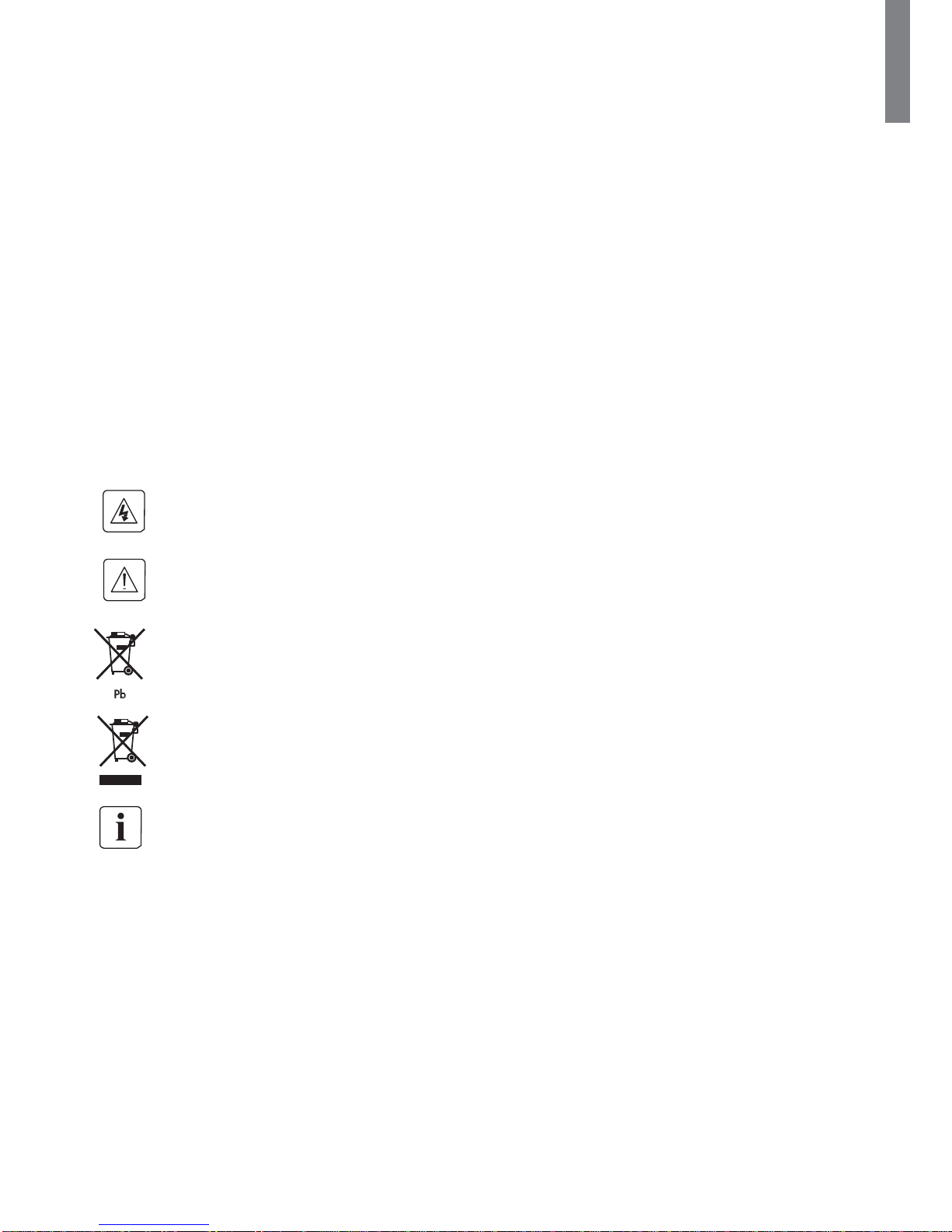

Special symbols
The following are examples of symbols used on the UPS or accessories to alert you to important
information:
RISK OF ELECTRIC SHOCK - Observe the warning associated with the risk of electric shock symbol.
Important instructions that must always be followed.
Do not discard the UPS or the UPS batteries in the trash.
This product contains sealed lead acid batteries and must be disposed as it's explain in this manual.
For more information, contact your local recycling/reuse or hazardous waste center.
This symbol indicates that you should not discard waste electrical or electronic equipment (WEEE)
in the trash. For proper disposal, contact your local recycling/reuse or hazardous waste center.
Information, advice, help.

Page 4
5P 750VA-1.5 KVA US_EN
Safety of Persons
Product Safety
Special Precautions
•The system has its own power source (the battery). Consequently, the power outlets may be energized
even if the systems is disconnected from the AC power source.
•Dangerous voltage levels are present within the system. It should be opened exclusively by qualified
service personnel.
•The system must be plugged to an earthed outlet.
•The battery supplied with the system contains small amounts of toxic materials.
To avoid accidents, the directives listed below must be observed:
-servicing of batteries should be performed or supervised by personnel knowledgeable about batteries
and the required precautions.
-when replacing batteries, replace with the same type and number of batteries or battery packs.
-do not dispose of batteries in a fire. The batteries may explode.
-batteries constitute a danger (electrical shock, burns). The short-circuit current may be very high.
Precautions must be taken for all handling:
•Wear rubber gloves and boots.
•Do not lay tools or metal parts on top of batteries.
•Disconnect charging source prior to connecting or disconnecting battery terminals.
•The UPS connection instructions and operation described in the manual must be followed in the indicated
order.
•A protection circuit breaker must be installed upstream and be easily accessible. The system can be
disconnected from the AC power source by unplugging the input cable.
•Check that the indications on the rating plate correspond to your AC powered system and to the actual
electrical consumption of all the equipment to be connected to the system.
•For PLUGGABLE EQUIPMENT, the socket-outlet shall be installed near the equipment and shall be easily
accessible
•Never install the system near liquids or in an excessively damp environment.
•Never let a foreign body penetrate inside the system.
•Never block the ventilation grates of the system.
•Never expose the system to direct sunlight or source of heat.
•If the system must be stored prior to installation, storage must be in a dry place.
•The admissible storage temperature range is -15 to +50 °C / 5 to 122 °F.
•The system is not for use in a computer room.
•All handling operations will require at least two people (unpacking, installation in rack system).
•Before and after the installation, if the UPS remains de-energized for a long period, the UPS must be
energized for a period of 24 hours, at least once every 6 months (for a normal storage temperature less
than 25 °C / 77 °F). This charges the battery, thus avoiding possible irreversible damage.
•During the replacement of the Battery Module, it is imperative to use the same type and number of
element as the original Battery Module provided with the UPS to maintain an identical level of
performance and safety. In case of doubt, don't hesitate to contact your EATON representative.

Page 4
5P 750VA-1.5 KVA US_EN
1. Introduction .................................................................................5
1.1 Environmental protection .............................................................5
2. Presentation.................................................................................6
2.1 Standard installations..................................................................6
2.2 Rear panel ...............................................................................7
2.3 Control panel............................................................................8
2.4 LCD description .........................................................................9
2.6 User settings........................................................................... 10
3. Installation................................................................................ 12

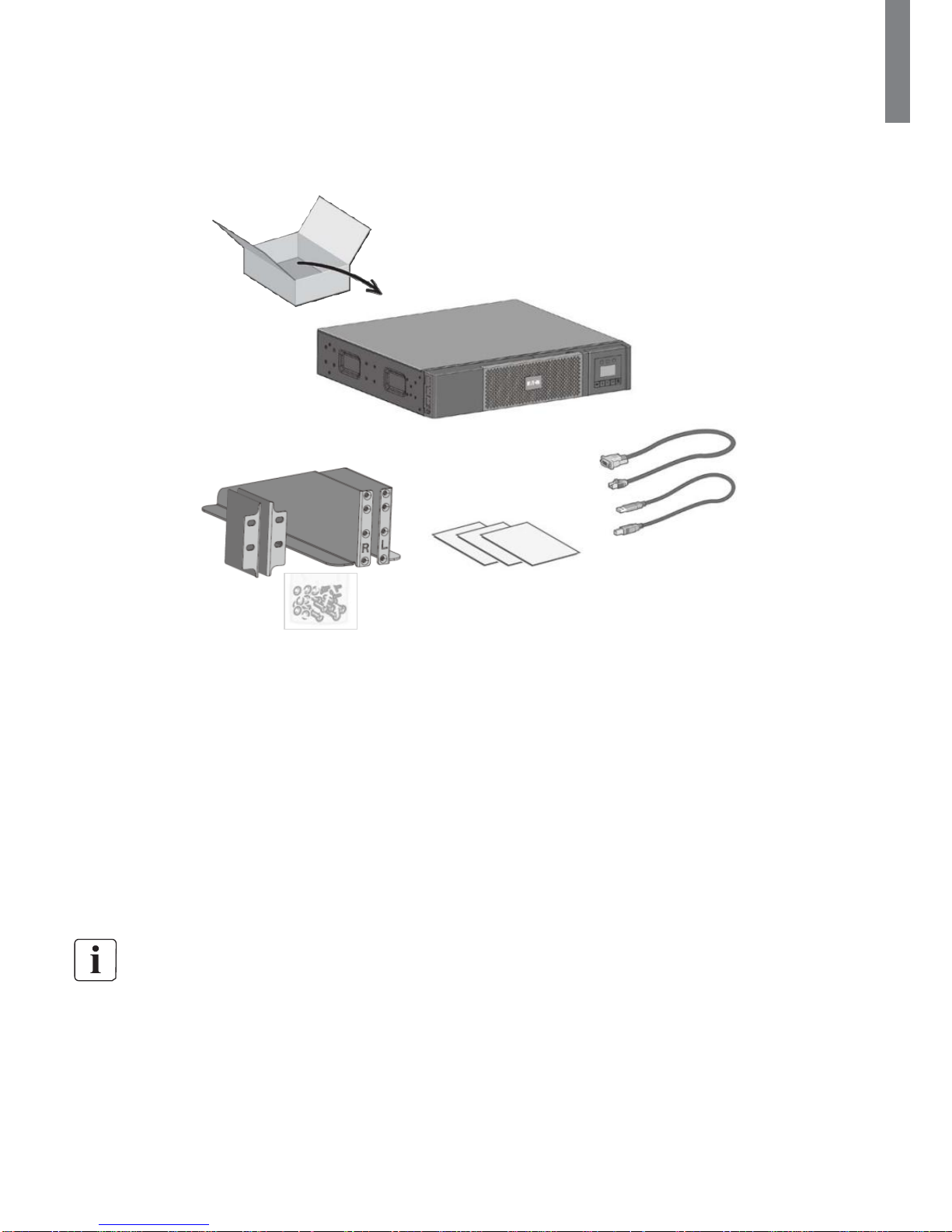

3.1 Unpacking and contents check ..................................................... 12

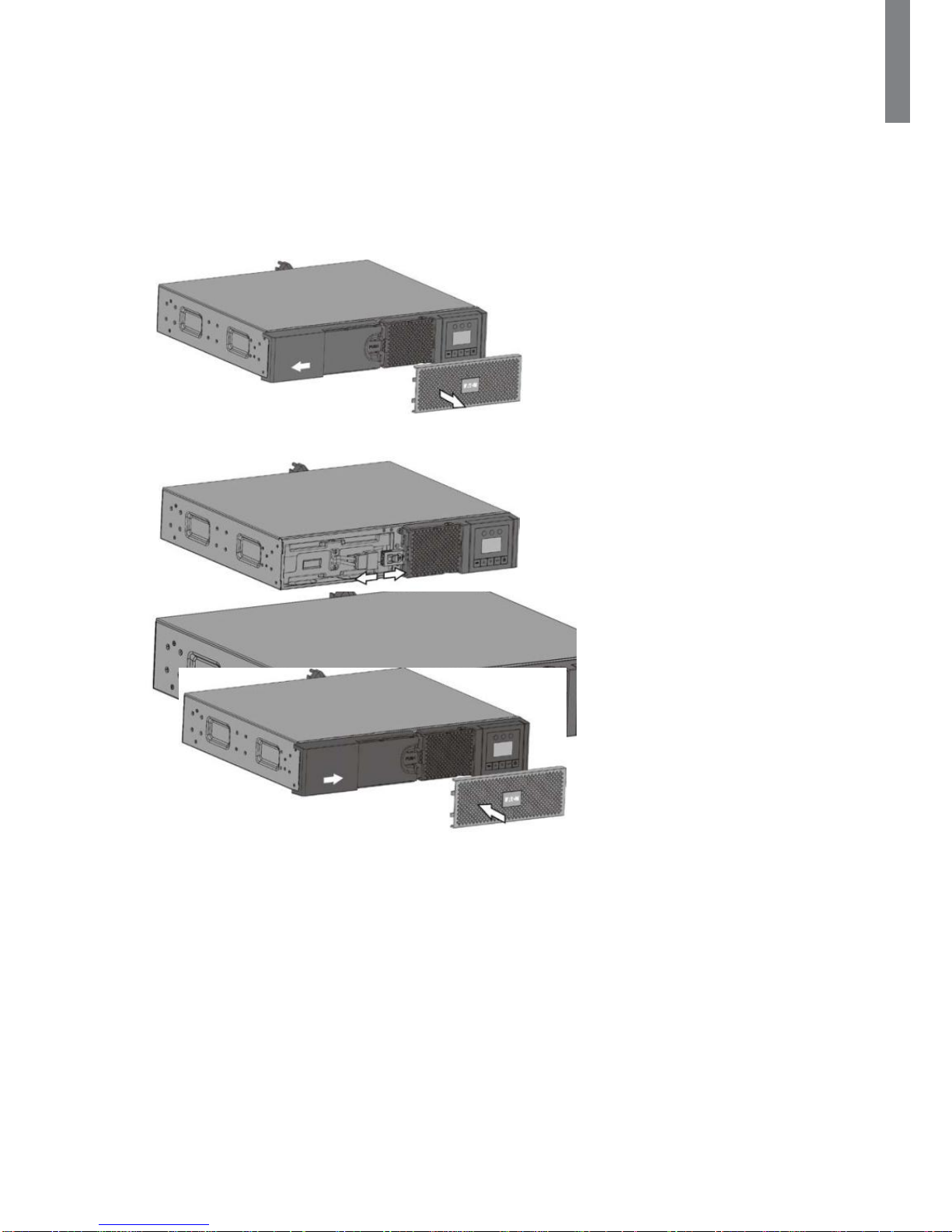

3.2 Battery module connection ......................................................... 13
3.3 Rack installation...................................................................... 14
3.4 Wall mounting of rack model ....................................................... 15

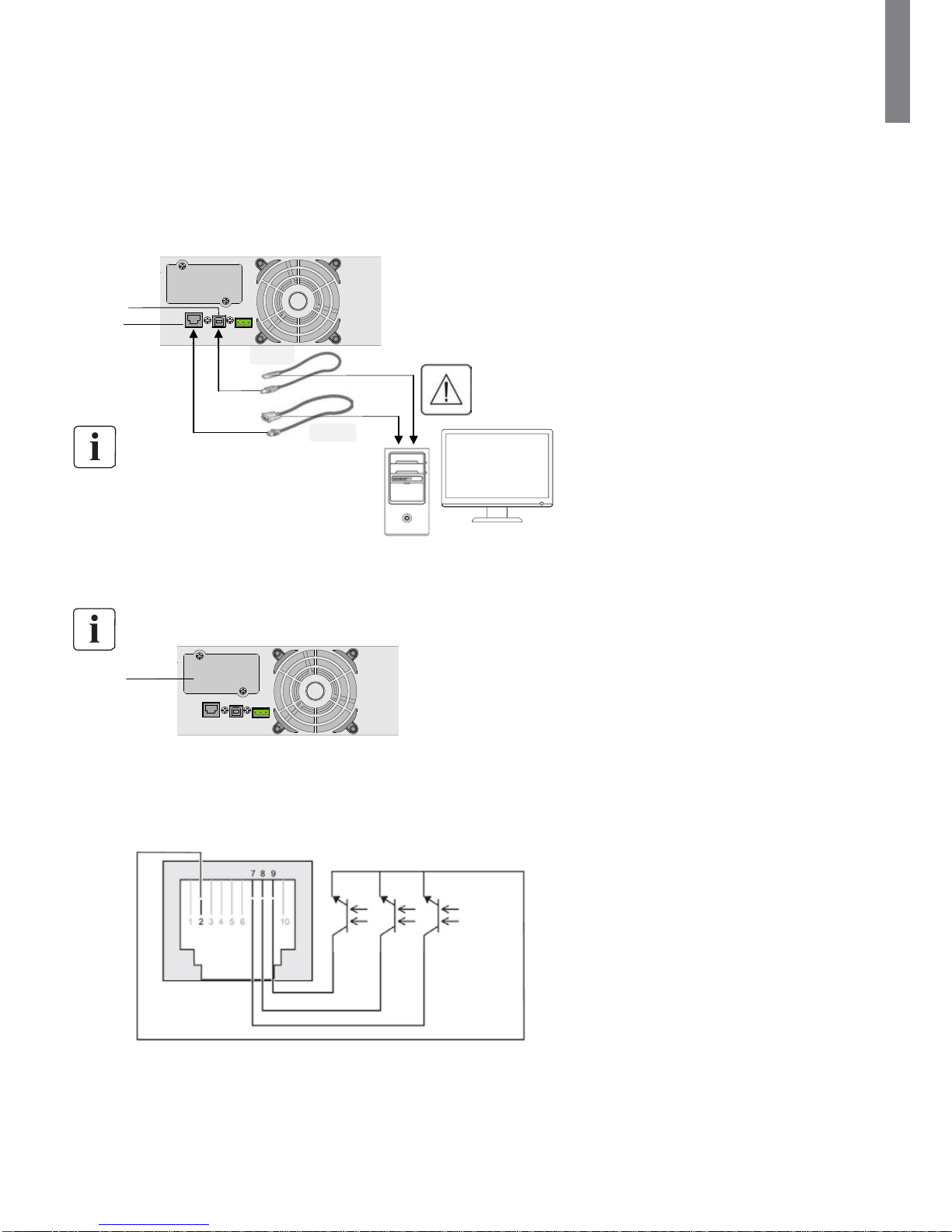

3.5 Communication ports ................................................................ 16
4. Operation .................................................................................. 17
4.1 Start-up and Normal operation ..................................................... 17
4.2 Starting the UPS on Battery......................................................... 17
4.3 UPS Shutdown......................................................................... 17
4.4 Operation on Battery Power ........................................................ 17
4.5 Return of AC Input Power ........................................................... 18

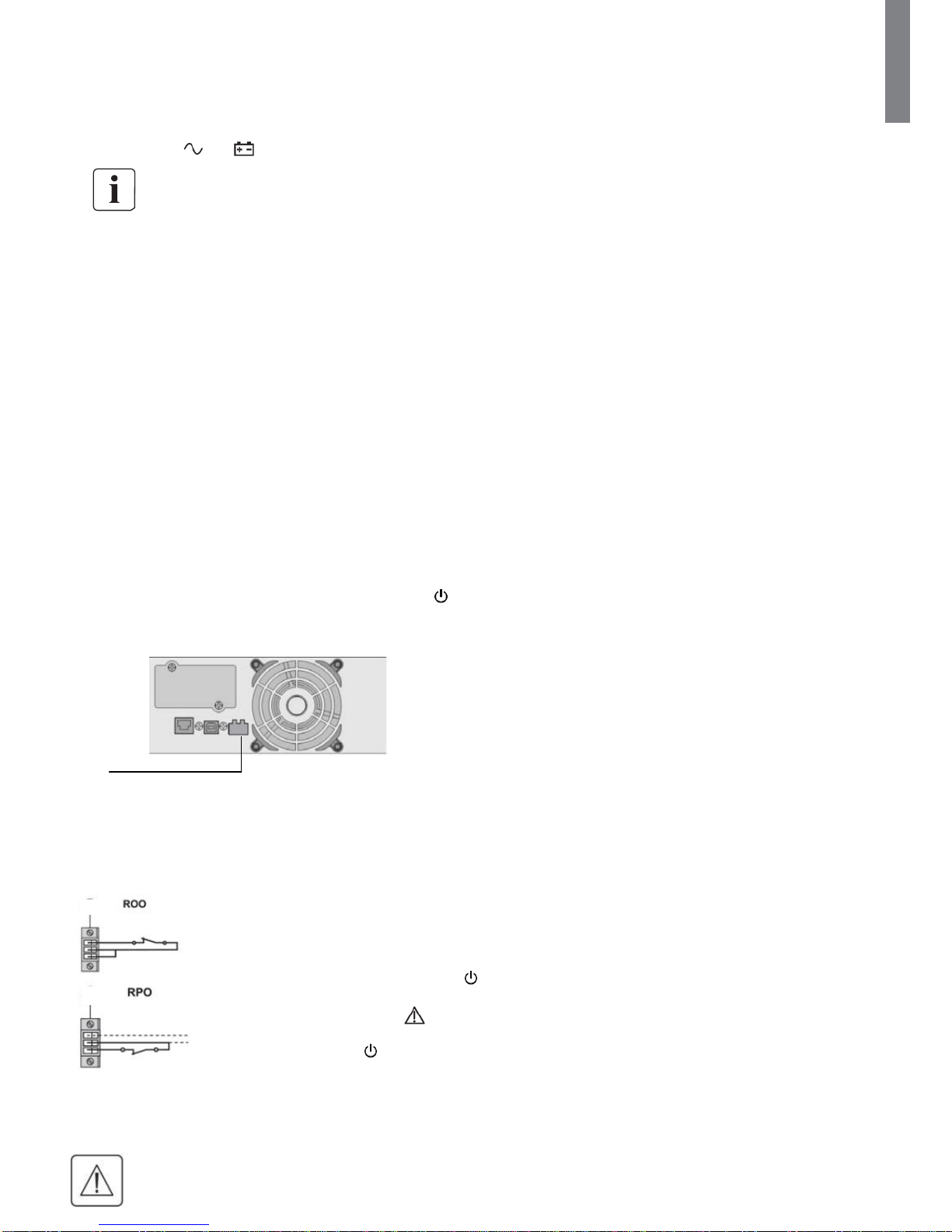

4.6 UPS remote control functions....................................................... 18
5. Maintenance............................................................................... 19

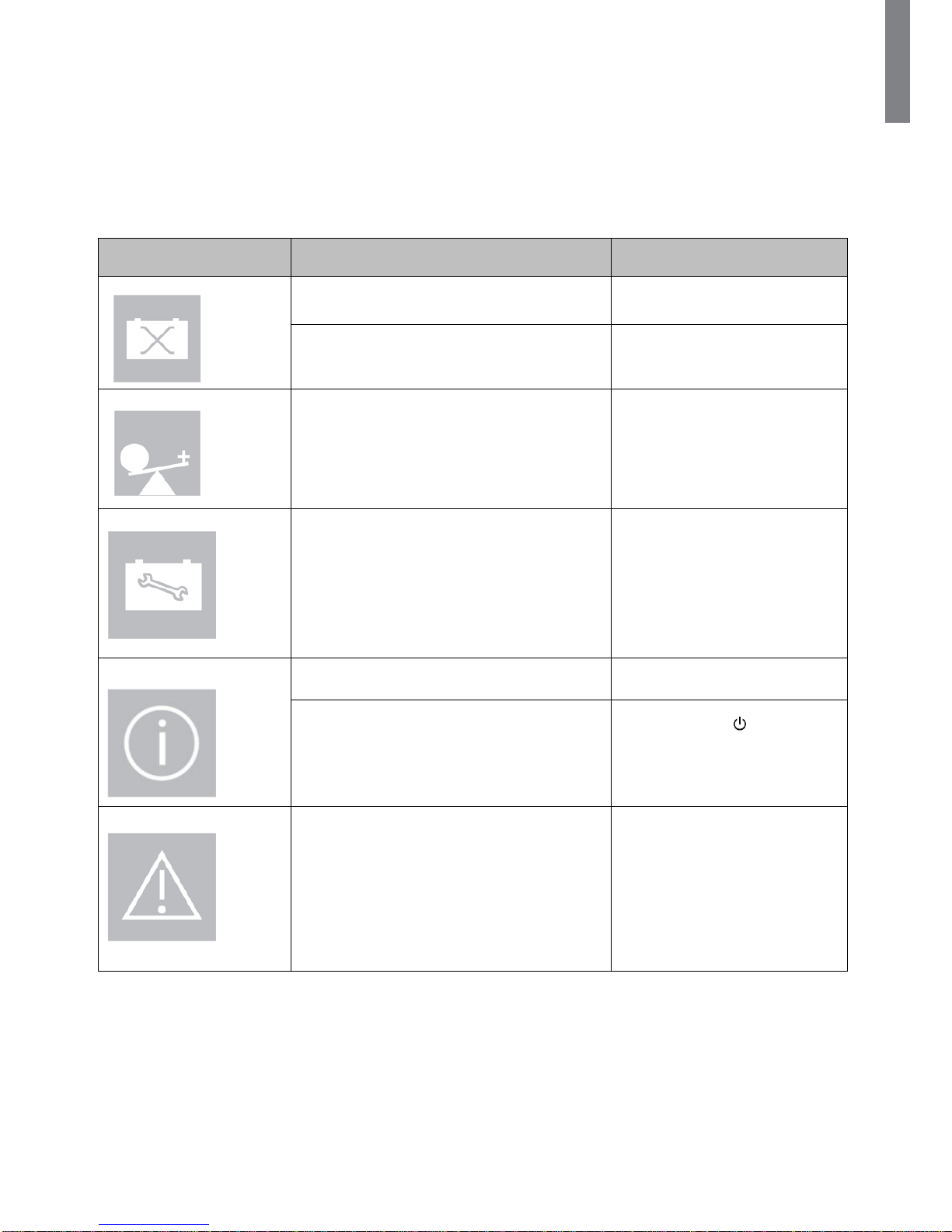

5.1 Troubleshooting....................................................................... 19

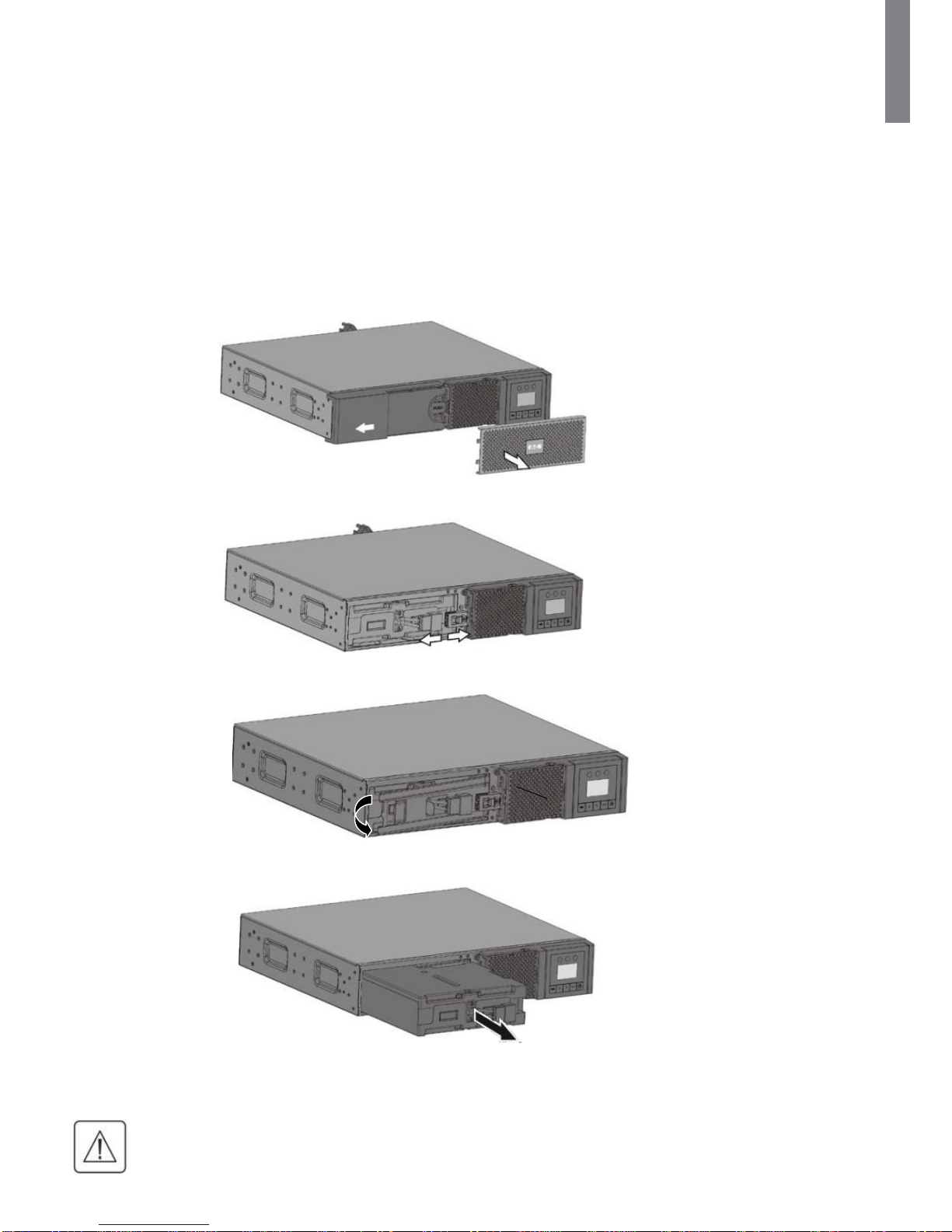

5.2 Battery-module replacement ....................................................... 20
6. Appendices ................................................................................ 21
6.1 Technical specifications ............................................................. 21
6.2 Glossary................................................................................ 22

Page 4
5P 750VA-1.5 KVA US_EN
1. Introduction
Thank you for selecting an EATON product to protect your electrical equipment.
The 5P range has been designed with the utmost care.
We recommend that you take the time to read this manual to take full advantage of the many features of your
UPS (Uninterruptible Power System).
Before installing your 5P, please read the booklet presenting the safety instructions. Then
follow the indications in this manual.
To discover the entire range of EATON products and the options available for the 5P range, we invite you to visit our
web site at www.eaton.com/powerquality or contact your EATON representative.
1.1 Environmental protection
EATON has implemented an environmental-protection policy. Products
are developed according to an eco-design approach.
Substances
This product does not contain CFCs, HCFCs or asbestos.
Packing
To improve waste treatment and facilitate recycling, separate the various packing components.
•The cardboard we use comprises over 50% of recycled cardboard.
•Sacks and bags are made of polyethylene.
•Packing materials are recyclable and bear the appropriate identification symbol 01
PET
Materials Abbreviations Number in 01
the symbols PET
Polyethylene terephthalate PET 01
High-density polyethylene HDPE 02
Polyvinyl chloride PVC 03
Low-density polyethylene LDPE 04
Polypropylene PP 05
Polystyrene PS 06
Follow all local regulations for the disposal of packing materials.
End of life
EATON will process products at the end of their service life in compliance with local regulations. EATON
works with companies in charge of collecting and eliminating our products at the end of their service life.
Product
The product is made up of recyclable materials.
Dismantling and destruction must take place in compliance with all local regulations concerning waste. At the end
of its service life, the product must be transported to a processing center for electrical and electronic waste.
Battery
The product contains lead-acid batteries that must be processed according to applicable local regulations
concerning batteries.
The battery may be removed to comply with regulations and in view of correct disposa

Page 6
5P 750VA-1.5 KVA US_EN
2. Presentation
2.1 Standard installations
Rack model
Description Weights
(kg/lb)
Dimensions (mm/inch)
D x W x H
5P750RC 14.1/31.1 370*440*86.2 / 14.6*17.3*3.4
5P1000RC 15.0/33.1 370*440*86.2 / 14.6*17.3*3.4
5P1500RC 18.4/45.5 370*440*86.2 / 14.6*17.3*3.4
D
W
H

Page 7
5P 750VA-1.5 KVA US_EN
2.2 Rear panel
5P750RC & 5P1000RC & 5P1500RC
1)
Attached 1.8 m input power cord for AC
power source
2) Slot for optional communication card
3) Primary group : Outlets for connection
of critical equipment
4) Group 1: programmable outlets for
connection of equipment
5) Group 2: programmable outlets for
connection of equipment
6) RS232 communication port
7) USB communication port
8) Connector for ROO (remote ON/OFF) or
RPO (Remote Power Off) control
①
②
③
④
⑥
⑦
⑧
⑤

Page 8
5P 750VA-1.5 KVA US_EN
ENGLISH

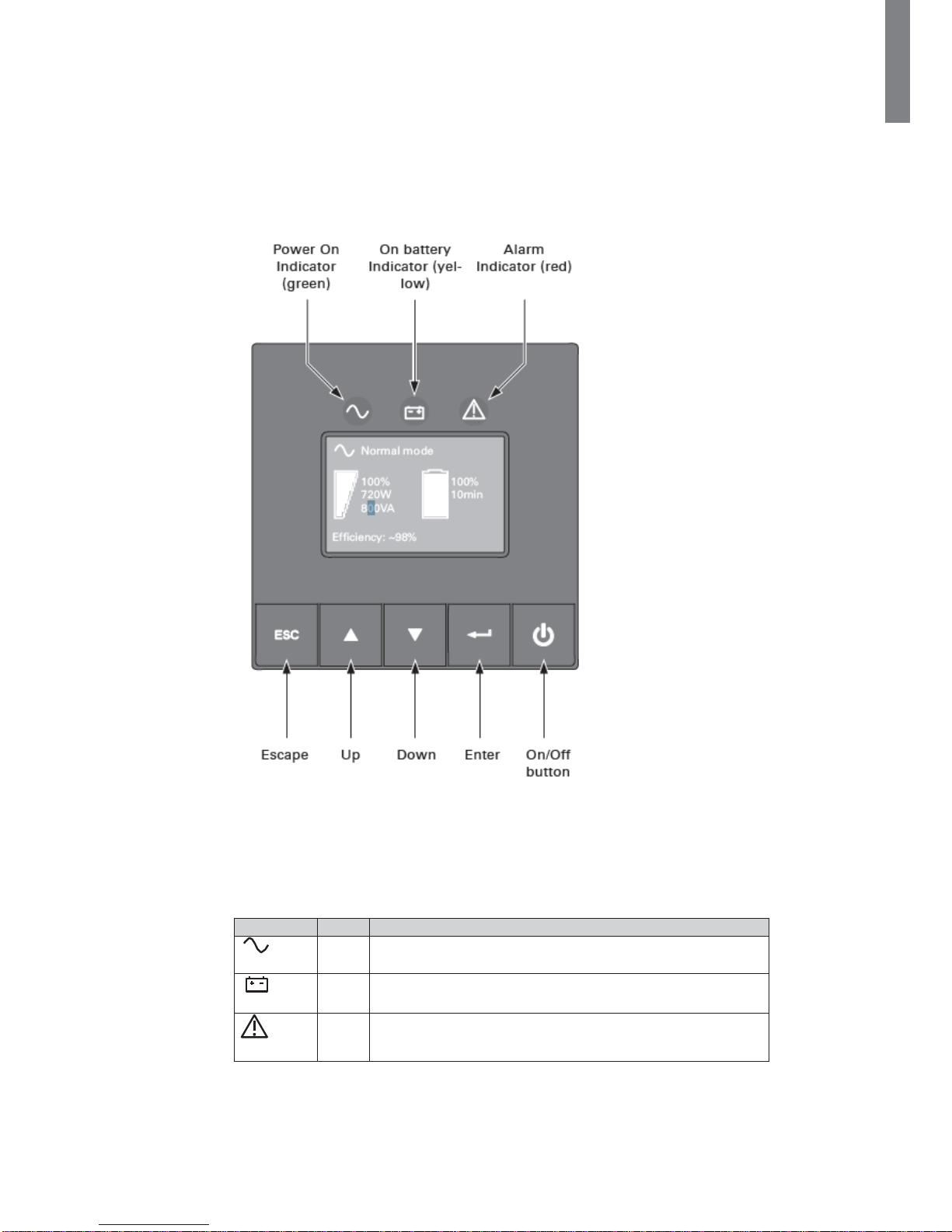

2.3 Control panel
The UPS has a five-button graphical LCD. It provides useful information about the UPS itself, load status,
events, measurements and settings.
100%
19min
1EBM
The following table shows the indicator status and description:
Indicator
Status
Description
Gree
n
On
The UPS is operating normally
Orange
On
The
UPS is on Battery mode.
R
ed
On
The
UPS has an active alarm or fault. See trouble- shooting in
section 5.1
for additional information.

Page 9
5P 750VA-1.5 KVA US_EN
2.4 LCD description
As default, or after 5 minutes of inactivity, the LCD displays the screen saver.
The backlight LCD automatically dims after 10 minutes of inactivity. Press any button to restore the screen.
The following table describes the status information provided by the UPS
Note: If other indicator appears, see troubleshooting on section 5.1 for additional information.
Operation status Cause Description
Standby mode
The UPS is Off, waiting for start- up
command from user. Equipment is not powered until button is pressed.
Online mode
The UPS is operating normally.
The UPS is powering and protecting
the equipment.
In AVR mode
1
beep every 10 seconds
The UPS is operating normally but
the utility voltage is outside
normal mode thresholds.
The UPS is powering the equipment
through a Automatic Voltage
Regulation device.
The equipment is still normally
protected.
On Battery
Battery LED is on
1 beep every 10 seconds
A utility failure has occurred and
the UPS is in Battery mode.
The UPS is powering the equipment
with the battery power. Prepar
e your
equipment for shutdown.
End of backup time
1 beep every 3 seconds
The UPS is in battery mode and
the battery is running low.
This warning is approximate, and
the actual time to shutdown may
vary significantly.
Depending on the UPS Load, the
"Battery Low" warning may occur
before the battery reaches 20 %
capacity.

Page 10
5P 750VA-1.5 KVA US_EN
ENGLISH
2.5 Display functions
Press the Enter () button to activate the menu options. Use the two middle buttons ( and ) to scroll through the
menu structure. Press the Enter ( ) button to select an option. Press the button to cancel or return to the
previous menu.
Main menu
Submenu
Display information or Menu function
Measurements
Load W VA / Load A pf / Output V Hz / Input V Hz /
Battery V min / Efficiency / Power usage
Control
Load Segments
Group 1: ON / OFF
Group 2: ON / OFF
These commands overrule user settings for load segments.
Start battery test
Starts a manual battery test
Reset fault state
Clears active faults
Restore factory settings Returns all settings to original values (UPS restart required)
Reset power usage
Clears power usage measurements
Settings
Local settings
Sets product general parameters
In/Out settings
Sets Input and Output parameters
On/Off settings
Sets On/Off conditions
Battery settings
Sets battery configuration
Fault log
Fault list
Displays the faults stored
Reset fault list
Clears faults
Identification
UPS Type / Part Number / Serial Number / Firmware release /
Com card address
2.6 User settings
The following table displays the options that can be changed by the user.
Submenu
Available settings
Default settings
Local settings
Language
[English] [Français] [Deutsch] [Español]
[Русский] [Português] [Italiano]
[Simplified Chinese] [Japanese]
Menus, status, notices and alarms, UPS
fault, Event Log data and settings are in
all supported languages.
[English]
User selectable when UPS is
powered for the first time.
LCD settings
Modify LCD screen brightness and
contrast to adapt to room light
conditions .
Audible alarm
[Enabled] [Disabled on battery]
[Always disabled]
Enable or disable the buzzer if an
alarm occurs.
Enable
In/Out settings
Output voltage
[100V] [120V] [125V]
User selectable when UPS
is powered for the first time
Input thresholds
[Normal mode] [Extended mode]
Extended mode reduces lower
input voltage to 150 V before UPS
transfers to battery.
Normal mode
Sensitivity
[High] [Low]
High: for sensitive equipment, UPS will
easily transfer to battery when utility
conditions are becoming bad.
High
Load segments -
Auto start delay
[No Delay] [1 s] [2 s]… [65354 s] The
connected load is powered after the
specified delay.
Group 1: 3 s
Group 2: 6 s
Load segments
-
Auto shutdown
delay
[Disable] [0s] [1 s] [2 s]…[65354 s]
During a power outage, authorises
to keep some equipment running
while turning off other equipment.
Group 1: Disable
Group 2: Disable
Overload prealarm
[10 %] [15 %] [20 %] ... [100 %]
[105 %]
Gives a warning when a predefined
critical percentage of load is
[105 %]

Page 11
5P 750VA-1.5 KVA US_EN
ENGLISH
Submenu
Available settings
Default settings
On/Off settings
Cold start
[Disable] [Enable]
Enables the product to be started
on battery power.
First cold start always disabled.
Enable
Forced reboot
[Disable] [Enable]
If mains recover during a shutdown
sequence:
- if enabled, shutdown sequence will
complete and wait 10 seconds prior
to restart
- if disabled, shutdown sequence will
not complete and restart will occur
immediately.
Enable
Auto restart
[Disable] [Enable]
Enables the product to restart
automatically when mains recovers
after a complete battery discharge.
Enable
Energy saving
[Disable] [Enable]
If enabled, UPS will shut down after
5min of back-up time, if no load is
detected on the output.
Disable
Sleep mode
[Disable] [Enable]
If disabled, LCD and communication
will turn OFF immediately after
UPS is OFF.
If enabled, LCD and communication
stays ON 1h30 min after UPS is OFF.
Disable
Remote command
[Disable] [Enable]
If enabled, shutdown or restart commands
from software are authorised.
Enable
RPO delay
[0 s] [1s ] [2 s]...[180 s]
Delays remote power off command
[0 s]
Battery settings
Automatic battery
test
[No test] [Every day] [Every week]
[Every month]
Available only if battery charge
mode is set to constant charge.
Every week(in constant charge,
otherwise following ABM
battery test method)
Low battery warning
[1 %] [2 %] ... [100 %]
The alarm triggers when the set
percentage of battery capacity is
reached during a back-up time.
20 %
Restart battery
level [1 %] [2 %] ... [100 %] If set, automatic restart will occur
only when percentage of battery
charge is reached.
0%
Battery charge mode
[ABM cycling] [Constant charge]
ABM cycling
External battery
[Auto detection] [Manual EBM set.]
[Manual battery set.]
[Auto detection]
Using standard EBM, UPS
detects automatically the
number of EBM connected
Deep discharge
protection
[Yes] [No]
If set to Yes, the UPS automatically
prevents battery from deep
discharge by adapting end of
back-up time voltage threshold.
Yes

Page 12
5P 750VA-1.5 KVA US_EN
3. Installation
3.1 Unpacking and contents check
(9)
5P UPS
(10)
Rail and wall mounting kits
(11)
Quick start, safety instructions and environmental document
(12)
RS232 communication cable
(13)
USB communication cable
Packing materials must be disposed of in compliance with all local regulations concerning waste.
Recycling symbols are printed on the packing materials to facilitate sorting.
⑨
⑩
⑪
⑫
⑬

Page 13
5P 750VA-1.5 KVA US_EN
3.2 Battery module connection
Cauti
on: Before starting the UPS, please connect the internal battery.
.
A. Remove the center panel
B. Remove the left-hand side of
the front panel
C. Connect the battery module
(never pull on the wires)
D. Attach the left-hand side of the
front panel by sliding it then by
locking the push button
E. Attach the center panel
○
A
○
B
○
C
○
E
○
D

Page 14
5P 750VA-1.5 KVA US_EN
3.3 Rack installation
Follow steps 14 to 16 for model mounting on the rails.
Use provided screws on step 15 of installation. Using a longer screw could present a safety risk.
The rails and necessary hardware are supplied by EATON.
③
⑮
⑭
⑮
⑯
⑯

Page 15
5P 750VA-1.5 KVA US_EN
3.4 Wall mounting of rack model
Use provided screws on step 17 of installation. Using a longer screw could present a safety risk.
⑰
⑰
⑱
⑱

Page 16
5P 750VA-1.5 KVA US_EN
3.5 Communication ports
Connection of RS232 or USB communication port
The RS232 and USB communication ports can operate simultaneously.
Installation of the communication cards (optional)
Characteristics of the contact RS232 communication port
When a signal is activated, the contact is closed between the common (pin 2) and the pin
for the corresponding signal.
Contact characteristics (optocoupler)
•Voltage: 48 V DC max
•Current: 25 mA max
•Power: 1.
⑥
⑦
②
It is not necessary to shut down the
UPS before installing a communication
card
1.
Remove the slot cover (2) secured
by screws;
2.
Insert the communication card in the
slot
3.
Secure the card cover with the 2
screws.
1.
Connect the RS232 (12) or USB (13)
communication cable to the serial or
USB port on the computer equipment.
2.
Connect the other end of the
communication cable (13) or (12) to the
USB (7) or RJ45 (6) communication
port on the UPS.
The UPS can now communicate with
EATON power management software.
•
Pins 1, 3, 4, 5, 6, 10: not used
•Pin 2: common (user)
•Pin 7: low battery
•Pin 8: operation on battery power
•Pin 9: UPS ON, equipment supplied
n.o.: normally open contact
⑬
⑫

Page 17
5P 750VA-1.5 KVA US_EN
4. Operation
4.1 Start-up and Normal operation
To start the UPS:
1. Verify that the UPS power cord is plugged in.
2. The UPS front panel display illuminates and shows EATON logo.
3. Verify that the UPS status screen shows .
4. Press the button on the UPS front panel for at least 2 seconds.
The UPS front panel display changes status to "UPS starting...".
5. Check the UPS front panel display for active alarms or notices. Resolve any active alarms before
continuing. See "Troubleshooting" in section 5.1.
If the indicator is on, do not proceed until all alarms are clear. Check the UPS status from the front
panel to view the active alarms. Correct the alarms and restart if necessary.
6. Verify that the indicator illuminates solid, indicating that the UPS is operating normally and any loads
are powered and protected.
The UPS should be in Normal mode.
4.2 Starting the UPS on Battery
Before using this feature, the UPS must have been powered by utility power with output enabled at
least once.
Battery start can be disabled. See the "Cold start" setting in "ON/OFF Settings" in section 2.6.
To start the UPS on battery:
1. Press the button on the UPS front panel until the UPS front panel display illuminates and shows
a status of "UPS starting...".
The UPS cycles through Standby mode to Battery mode. The indicator illuminates solid.
The UPS supplies power to your equipment.
2. Check the UPS front panel display for active alarms or notices besides the "Battery mode" notice
and notices that indicate missing utility power. Resolve any active alarms before continuing.
See "Troubleshooting" in section 5.1.
Check the UPS status from the front panel to view the active alarms. Correct the alarms and restart
if necessary.
4.3 UPS Shutdown
To shut down the UPS:
1. Press the button on the front panel for three seconds.
The UPS starts to beep and shows a status of "UPS shutting OFF...". The UPS then transfers to Standby
mode, and the indicator turns off.
4.4 Operation on Battery Power
Transfer to battery power
• The connected devices continue to be supplied by the UPS when AC input power is no longer available.
The necessary energy is provided by the battery.
• The and indicator illuminates solid.
• The audio alarm beeps every ten seconds.
The connected devices are supplied by the battery.

Page 18
5P 750VA-1.5 KVA US_EN
Low-battery warning
• The and indicator illuminates solid.
• The audio alarm beeps every three seconds.
The remaining battery power is low. Shut down all applications on the connected equipment because
automatic UPS shutdown is imminent.
End of battery backup time
• LCD displays "End of backup time".
• All the LEDs go OFF.
• The audio alarms stops.
4.5 Return of AC Input Power
Following an outage, the UPS restarts automatically when AC input power returns (unless the restart
function has been disabled) and the load is supplied again.
4.6 UPS remote control functions
The 5P offers a choice between two remote control functions.
• RPO: Remote Power Off allows a remote contact to be used to disconnect all the equipment connected to
the UPS. Restarting the UPS requires manual intervention.
• ROO: Remote ON/OFF allows remote action of button to shut down the UPS.
These functions are obtained by opening a contact connected between the appropriate pins of connector (8)
on the rear panel of the UPS (see figures below).
Remote control connection and test
1. Check that the UPS is OFF and disconnected from the AC input source.
2. Remove connector (8) after unscrewing the screws.
3. Connect a normally closed volt-free contact (60 V DC / 30 V AC max., 20 mA max., 0.75 mm2 cable
cross-section) between the two pins of connector (8) (see diagram).
Contact open: UPS shutdown
Contact closed: UPS start-up (UPS connected to AC power and AC power is available)
Note
. The local ON/OFF control using button overrides the remote-control function.
Contact open: UPS shutdown, LED goes ON.
To return to normal operation, deactivate the remote external contact and restart
the UPS by pressing button .
4. Plug connector (8) into the back of the UPS.
5. Connect and restart the UPS following the previously described procedures.
6. Activate the external remote shutdown contact to test the function.
Warning. This connector must only be connected to SELV (Safety Extra-Low Voltage) circuits.
⑧
⑧
⑧

Page 19
5P 750VA-1.5 KVA US_EN
5. Maintenance
5.1 Troubleshooting
Operation status
Possible cause
Action
Batteries disconnected
The UPS does not recognize the internal batteries
If the condition persists, contact your
service representative
The batteries are disconnected
Verify that all batteries are properly
connected. If the condition persists,
contact your service representative.
Overload
Power requirements exceeds the
UPS capacity (greater than 105 %
of nominal)
Remove some of the equipment from
the UPS. The UPS continues to
operate, but may shutdown if the load
increases. The alarm resets when the
condition becomes inactive.
End of battery life
The end of the battery life is reached.
Contact your service representative
for battery replacement.
Event
An UPS event occurs
Example:
Remote Power OFF, the RPO
contact has been activated to
shutdown the UPS and now
prevents restart.
Set the contact back to its normal
position and press button to
restart.
UPS fault
The UPS has an internal fault.
The UPS does not protect the
equipment anymore.
Note. the alarm message and
the UPS Serial Number, then contact
your service representative.

Page 20
5P 750VA-1.5 KVA US_EN
5.2 Battery-module replacement
Safety recommendations
The battery can cause electrocution and high short-circuit currents. The following safety precautions are required
before servicing the battery components:
• remove watches, rings, bracelets and all other metal objects from the hands and arms,
• use tools with an insulated handle.
Mounting the new battery module
Carry out the above instructions in reverse order.
• To ensure safety and high performance, use only batteries supplied by EATON.
• Take care to firmly press together the two parts of the connector during remounting.
A. Remove the center panel
B. Remove the left-hand side of the
front panel
C. Disconnect the battery module by
separating the two connectors
D. Remove the metal protection
cover in front of the battery (one
screw)
E. Remove the battery module and
replace it
○
A
○
B
○
C
○
D
○
E
