EAW KF760 Reference guide

DECLARATION OF WORKING LOAD LIMIT (WLL)
PRODUCT
Product Model: KF760 Flybar p/n 255099
Description: ASSEMBLY/FLYBAR[KF760/761]
Dimensions (h x w x d): 12.83” x 44.75” x 31.00”
Material: Steel
Supplied Accessories: Connecting Pin .38” x 4” p/n 179105
Accessories N/A
COUNTRY OF ORIGIN FOR THE PRODUCT AND COMPONENTS
United States of America
TECHNICAL SPECIFICATIONS
The KF760 Fly Bar is designed and intended for use only with the KF760 and KF761 products and only in
accordance with the KF760 / KF761 Loudspeaker Owner’s Manual.
Any combination of up to twenty (20) KF760 or KF761 Loudspeakers may be flown in the same array. The
minimum design factor and Working Load Limit of the fly bar are provided in the table below. This data is
applicable only when the fly bar is used in the manner described in the user’s manual, and may be
superceded by WLL documentation of other components within the array.
Nominal Fly Bar Weight 57 kg / 125 lb
WLL 1,946 kg / 4,290 lb
Ultimate Strength Design Factor > 9:1
The ultimate yield strength for the KF760 and KF761 Fly Bar was determined utilizing calibrated and
certified destructive pull tests.

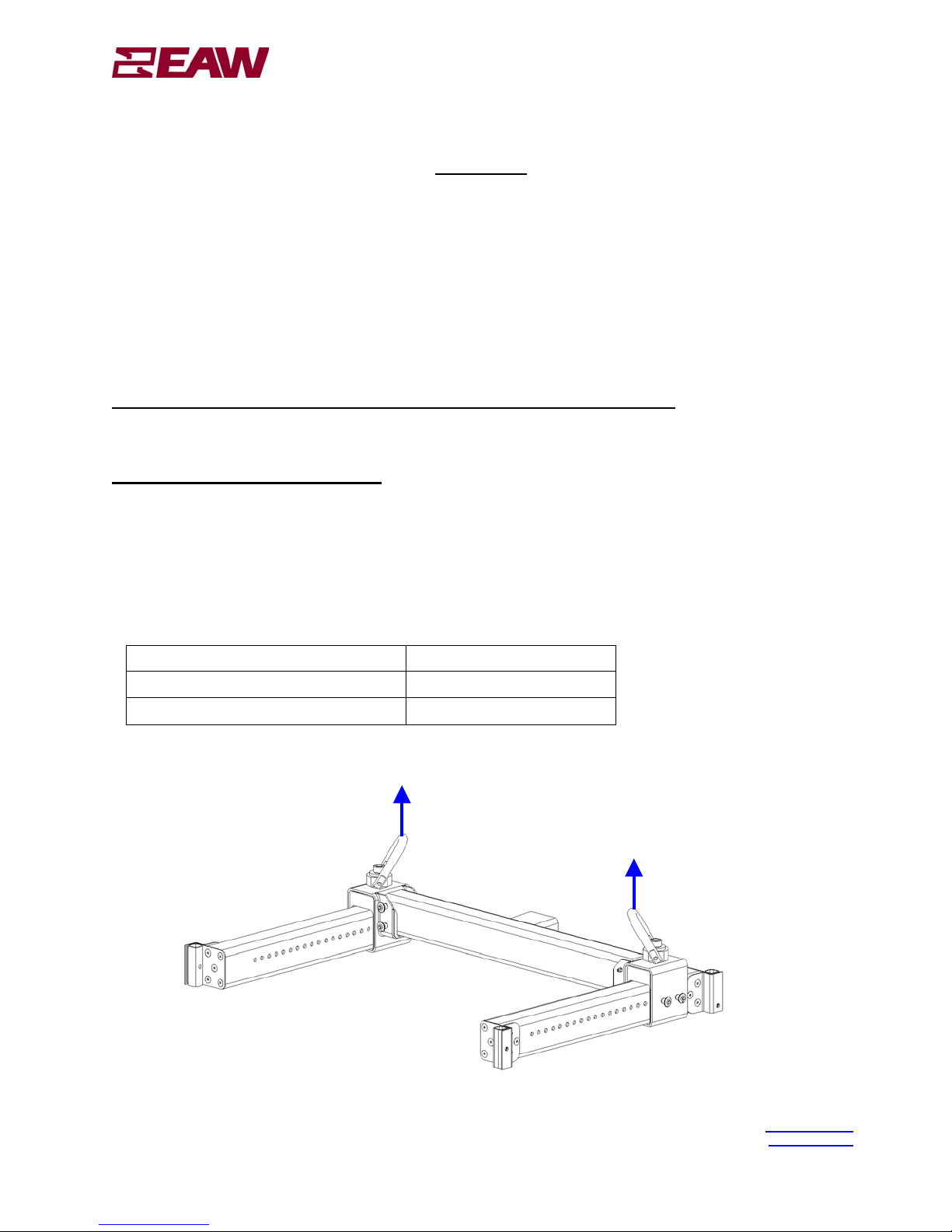

Forces applied vertically
September 2007
