SPECIFICATIONS LA460
EASTERN ACOUSTIC WORKS
One Main Street, Whitinsville, MA 01588 • (508) 234 - 6158 • FAX (508) 234 - 8251 • Email [email protected] • Web http://www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. • PUB# LA460 999680 (C)/2p/4/7/98 • Printed In USA
EASTERN ACOUSTIC WORKS
One Main Street, Whitinsville, MA 01588 • (508) 234 - 6158 • FAX (508) 234 - 8251 • Email [email protected] • Web http://www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. • PUB# LA460-888069 (B)/2 pp/5/1/00 • Printed In USA
FEATURES
• Compact Virtual Array Technology™ three-way system
• Horn-loaded MF/HF (60°x 45°coverage pattern)
• 15-in LF/8-in MF/1.4-in exit HF
• Switchable powering: full range passive or bi-amp
(passive LF/MF)
• For portable use or permanent installation
DESCRIPTION
A 3-way full range system in a trapezoidal enclosure.
Includes a 15-in woofer, a horn-loaded 8-in midrange cone
and a 1.4-in exit/1.75-in voice coil compression driver on a
60°x 45°constant directivity horn. The powering mode is
switchable: passive (3-way crossover) or bi-amplified (pas-
sive low/mid crossover).
APPLICATIONS
The LA460 applies Virtual Array Technology to small venue
performance in both portable applications and permanent
installations. With EAW’s mathematically correct midrange
flare, pattern control is maximized throughout the vocal
region providing exceptional speech intelligibility in a
compact enclosure. Six year warranty.
Applications include:
Band PA Dance Clubs Portable A/V
PHYSICAL
LF Subsystem 1x 15-in, vented
MF Subsystem 1x 8-in cone, horn-loaded
HF Subsystem 1x 1.4-in exit/1.75-in voicecoil
compression driver on constant
directivity horn
Configuration 3-way, full range
Powering Mode Switchable: passive (3-way
crossover) or bi-amplified (passive
LF/MF crossover)
Controls (switches, knobs) Powering mode switch
Cabinet Type (shape) Trapezoidal
Enclosure Materials Baltic birch plywood
Finish Black polyurethane
Connectors 2x Neutrik NL4 Speakon
Suspension Hardware (3) 3-position flytracks with
integral 3/8"-16 threaded
mounting points (2 top and 1 back)
Grille Vinyl Coated Perforated Steel, Arced
Options CP460 caste pallet (255042)
Flyclip w/ring (179001)
Flyclip w/hook (179002)
Recommended Complementary Systems
Sub Bass LA118/LA128
Dimensions Inches Millimeters
Height 36.0 914
Width (Front) 20.76 527
Width (Rear) 14.23 364
Depth 19.47 495
Trapezoid Angle 10°per Side
Weights Pounds Kilograms
Net Weight 114 51.8
Shipping Weight 125 56.5
PERFORMANCE
Frequency Response (1 Watt @ 1m)
±3 dB 62 Hz to 20 kHz
-10 dB 45 Hz
Axial Sensitivity (dB SPL, 1 Watt @ 1m)
Full Range 97
Bi-amped LF/MF 97
Bi-amped HF 108
Impedance (Ohms)
Full Range 8
Bi-amped LF/MF 8
Bi-amped HF 8
Power Handling, AES Standard (Watts)
Full Range 500
Bi-amped LF/MF 500
Bi-amped HF 150
Calculated Maximum Output (dB SPL @ 1m)
Full Range Peak 130.0
Bi-amped LF/MF Peak 130.0
Bi-amped HF Peak 136.0
Full Range Long Term 124.0
Bi-amped LF/MF Long Term 124.0
Bi-amped HF Long Term 130.0
Nominal Coverage Angle, -6 dB Points (degrees)
Horizontal 60
Vertical 45
Recommended High-Pass Frequency
24 dB/Octave 45 Hz

Acoustic Performance Partnership Eastern Acoustic Works LA460
One Main Street, Whitinsville MA, 01588 USA • Phone [phone] • Toll Free 800/992-5013 • Fax [phone] • Web http://www.eaw.com • email [e-mail]
A
C
O
U
S
T
I
C
A
L
P
E
R
F
O
R
M
A
N
C
E
P
A
R
T
N
E
R
S
H
I
P

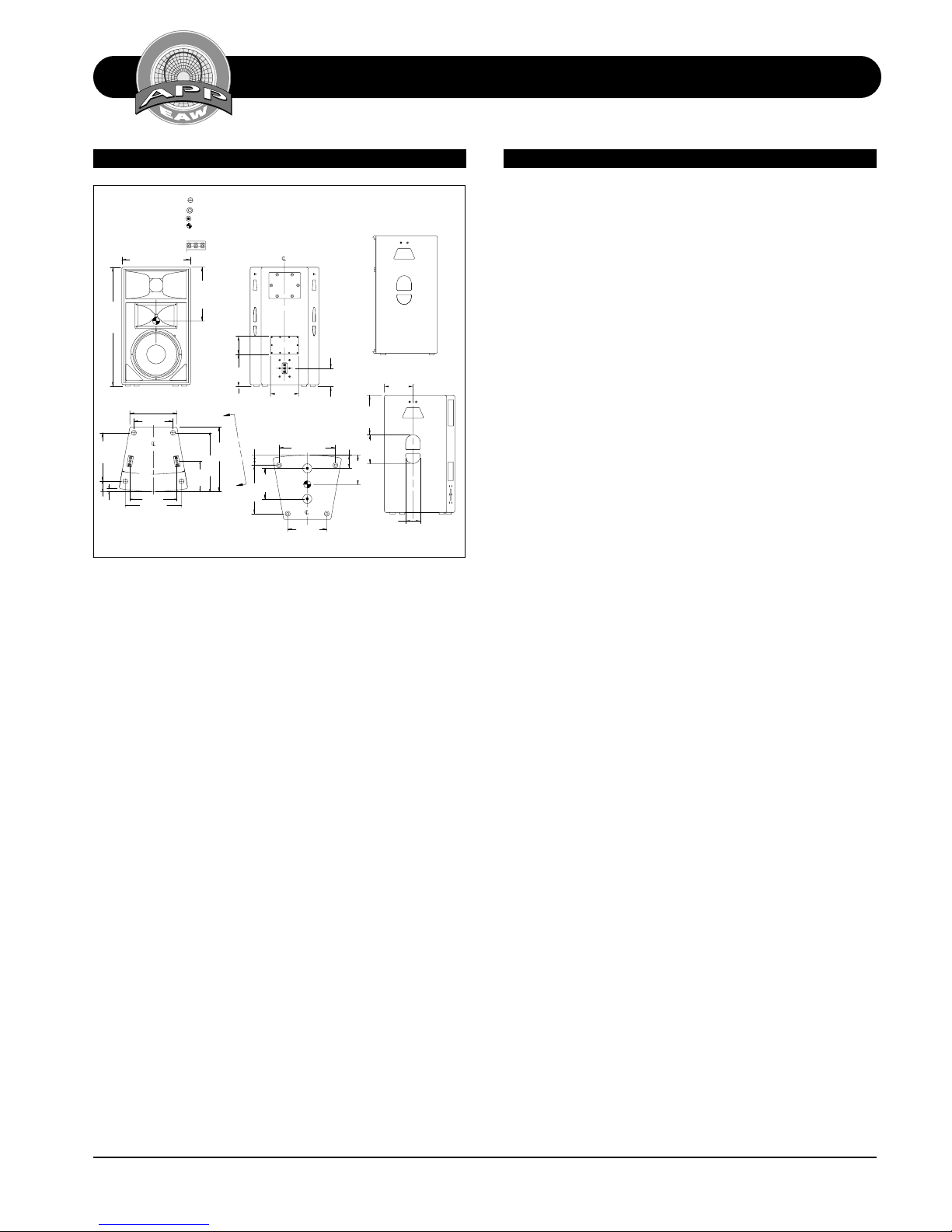

DIMENSIONAL DRAWINGS
DIMENSIONAL DRAWING A & E SPECIFICATIONS
The three-way full range loudspeaker systems shall incorpo-
rate a 15-in LF transducer, an 8-in MF transducer and a 1.4-
in exit/1.75-in voice coil compression driver HF transducer.
The LF driver shall be mounted in a vented enclosure tuned
for optimum low frequency response. The MF driver shall be
loaded into a midrange horn constructed of 1/8-in birch ply-
wood reinforced with high density polyurethane foam. The
MF horn shall incorporate a phase/displacement plug. The
HF driver shall be loaded on a constant directivity horn with
a nominal coverage pattern of 60°(h) x 45°(v).
Powering mode shall be switchable between full range pas-
sive and bi-amplified operation. In full range passive mode,
an internal passive filter network shall provide fourth order
acoustical crossover and system equalization between the
low, mid and high frequency sections. In bi-amplified mode,
an internal passive filter network shall provide fourth order
acoustical crossover and system equalization between the
low and mid frequency sections.
System frequency response shall vary no more than ±3 dB
from 62 Hz to 20 kHz measured on axis. The full range sys-
tem shall produce a Sound Pressure Level (SPL) of 97 dB SPL
on axis at 1 meter with a power input of 1 Watt and shall be
capable of producing a peak output of 130 dB SPL on axis at
1 meter. The low/mid section in bi-amplified mode shall pro-
duce a Sound Pressure Level (SPL) of 97 dB SPL on axis at 1
meter with a power input of 1 Watt, and shall be capable of
producing a peak output of 130 dB SPL on axis at 1 meter.
The high frequency section in biamplified mode shall pro-
duce a Sound Pressure Level (SPL) of 108 dB SPL on axis at
1 meter with a power input of 1 Watt, and shall be capable
of producing a peak output of 136 dB SPL on axis at 1 meter.
The full range system shall handle 500 Watts of amplifier
power (AES Standard) and shall have a nominal impedance
of 8 Ohms. The low/mid section in biamplified mode shall
handle 500 Watts of amplifier power (AES Standard) and shall
have a nominal impedance of 8 Ohms. The high frequency
section in biamplified mode shall handle 150 Watts of am-
plifier power and shall have a nominal impedance of 8 Ohms.
The loudspeaker enclosure shall be trapezoidal in shape. It
shall be constructed of 1/2-in thickness void-free cross-grain-
laminated Baltic birch plywood and shall employ extensive
internal bracing. It shall be finished in black catalyzed poly-
urethane. Input connectors shall be 2x Neutrik NL4 Speakon.
A total of 3x 3-position flytracks with integral 3/8"-16
threaded mounting points (2 top and 1 back) shall be pro-
vided. The front of the loudspeaker shall be covered with an
arced, vinyl-coated, perforated steel grille.
The 3-way full range loudspeaker shall be the EAW model
LA460.
SPECIFICATIONS LA460
8.63
A
8.50
9.71
5.46
5.50
BACK
8.71
4.43
VIEW A-A
RIGHT SIDE
17.02
19.47
17.74
9.12
20.76 T.S.C.
14.64
TOP
3.10
14.13
.94
3.10
4.00
17.02
FRONT
8.88
14.64
9.25
14.23 
T.S.C. 11.81
20°)
11.81
12.00
3" FLYTRACK STRIP.
CABINET TO BE SYMMETRICAL ABOUT CENTERLINE DESIGNATIONS.
RUBBER FOOT.
Ø1.56 X .19 DEEP RECESS.
ROUND FERRIC INSERT.
DIMENSIONS APPLY TO 
BOTH SIDES OF CABINET

A
BOTTOM
16.25
36.00
T.S.C.= THEORETICAL SHARP CORNER.
510630 (0)
exp 3/24/98 shb
LA460 CENTER OF GRAVITY.
