Eccotemp SMARTHOME Instruction and safety manual

Support: Support.Eccotemp.com Shop Online: eu.Eccotemp.com Store Locator: eu.Eccotemp.com/locator
2
ENGLISH
PLEASE NOTE: SH12 IS FOR INDOOR PERMANENT INSTALLATIONS ONLY. THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT
NOTICE. PLEASE VISIT SUPPORT.ECCOTEMP.COM FOR THE MOST UP TO DATE WARRANTY AND MANUAL.
Improper installation, adjustment, alteration, service or maintenance can cause property damage, personal injury, or death.
MODEL FLOW
U/M
TEMPERATURE RISE (IN DEGREES)
80 75 70 65 60 55 50 45 40 35 30
SH12 LPM 3.76 4.1 4.27 4.6 5 5.42 6 6.6 7.5 8.55 9.9
CEL5 LPM 1.56 1.64 1.78 1.92 2.04 2.25 2.48 2.77 3.11 3.56 4.21
CEL10 LPM 2.52 3.11 3.48 3.75 4.02 4.44 4.95 5.44 6.12 7.06 8.23
PLEASE VERIFY THIS WATER HEATER IS RIGHT FOR YOU.
STANDARD
APPLICATION FLOWS
SAFETY
Denmark France Italy Netherlands
Norway Sweden
Austria Germany Denmark Spain
Finland United Kingdom Ireland Italy
Portugal Sweden Switzerland
Belgium Ireland Portugal Spain
Switzerland United Kingdom
Austria Germany Switzerland
COUNTRY/MBAR CHART
3.8-7.5 LPM 5.6-7.5 LPM
15-19 LPM
3.8-5.6 LPM
Netherlands

3
ENGLISH
Support: Support.Eccotemp.com Shop Online: eu.Eccotemp.com Store Locator: eu.Eccotemp.com/locator
PLEASE NOTE: SH12 IS FOR INDOOR PERMANENT INSTALLATIONS ONLY. THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT
NOTICE. PLEASE VISIT SUPPORT.ECCOTEMP.COM FOR THE MOST UP TO DATE WARRANTY AND MANUAL.
WARNING: This water heater may not be suitable for use
in manufactured (mobile) homes! Please check local code
manufactured homes in your area.
The purpose of this manual is twofold: one, to provide
your professional plumber with the basic directions and
recommendations for the proper installation and adjustment
the features, operation, safety precautions, maintenance and
troubleshooting of the water heater. This manual also includes
a parts list.
It is imperative that all persons who will install, operate or
adjust this water heater read the instructions in this manual
carefully so they may understand how to perform these
operations. If you don’t understand these instructions or
any terms within it, please reach out to our support team at
support.eccotemp.com.
Any questions regarding the operation, maintenance, service
or warranty of this water heater should be directed to the
manufacturer at support.eccotemp.com.
Do not destroy this manual. Please read carefully and keep in a safe place for future reference.
Recognize this symbol as an indication of Important Safety Information!
WARNING:
result causing property damage, personal injury or death.
WARNING: WHAT TO DO IF YOU SMELL GAS:
• DO NOT try to light any appliances.
• DO NOT touch any electrical switch;
do not use any phone in your building.
• Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier,
• DO NOT return to your home until authorized
SAFETY
Use & Care Manual
With Installation Instructions for the Installer
SH12 WHOLE HOME TANKLESS WATER HEATER
Improper installation, adjustment, alteration,
service or maintenance can cause property
damage, personal injury, or death. Installation
installer, service agency or the gas supplier.
DO NOT store or use gasoline or other
combustible materials in the vicinity of this or
any other appliance. To do so may result in an

Support: Support.Eccotemp.com Shop Online: eu.Eccotemp.com Store Locator: eu.Eccotemp.com/locator
4
ENGLISH
PLEASE NOTE: SH12 IS FOR INDOOR PERMANENT INSTALLATIONS ONLY. THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT
NOTICE. PLEASE VISIT SUPPORT.ECCOTEMP.COM FOR THE MOST UP TO DATE WARRANTY AND MANUAL.
SAFETY
READ THE SAFETY INFORMATION
Your safety and the safety of others are very important. There are many important safety messages in this manual
and on your water heater. Always read and obey all safety messages. This is the safety alert symbol. Recognize
this symbol as an indication of Important Safety Information! This symbol alerts you to potential hazards that can
kill or hurt you and others.
All safety messages will follow the safety alert symbol and the words: “DANGER”, “WARNING”, “CAUTION” or
“NOTICE”. These words mean:
WARNING - A potentially hazardous situation that could result in death or serious injury and/or damage to property.
DANGER - An imminently hazardous situation that will result in death or serious injury.
CAUTION - A potentially hazardous situation that may result in minor or moderate injury.
FOR YOUR RECORDS
Write your serial number here: #_______________________________
Staple sales slip or canceled check here for easy record keeping. Proof of the
original purchase date is needed to obtain service under the warranty.
READ THIS MANUAL
heater properly. A little preventive care on your part can save you time and
problems in the Troubleshooting Guide. If you review the chart of Troubleshooting
CONGRATULATIONS!
You’ve just purchased a new Eccotemp SH12 Whole Home Tankless
Water Heater. This will open a world of enjoyment to going tankless!
We highly suggest taking the time to read through the safety and
installation procedures in this manual before having a professional
plumber install your SH12 Whole Home Tankless Water Heater.
Should you have any questions, please feel free to visit our helpdesk
located at support.eccotemp.com.
APPLICATION
Residential
INSTALLATION
Indoor
KW’S
3.98 - 23.7 KW
FLOW RATE
15.1 LPM
PLEASE RETAIN THE INSTRUCTION MANUAL FOR FUTURE REFERENCE
Use & Care Manual
With Installation Instructions for the Installer
SH12 WHOLE HOME TANKLESS WATER HEATER

5
ENGLISH
Support: Support.Eccotemp.com Shop Online: eu.Eccotemp.com Store Locator: eu.Eccotemp.com/locator
PLEASE NOTE: SH12 IS FOR INDOOR PERMANENT INSTALLATIONS ONLY. THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT
NOTICE. PLEASE VISIT SUPPORT.ECCOTEMP.COM FOR THE MOST UP TO DATE WARRANTY AND MANUAL.
IMPORTANT SAFETY PRECAUTIONS
READ ALL INSTRUCTIONS BEFORE USING
Be sure to read and understand the entire Use and Care Manual before your professional
plumber installs or you operate this water heater. It may save you time and money. Pay
particular attention to the Safety Instructions. Failure to follow these warnings could result in
serious bodily injury or death. Should you have problems understanding the instructions in this
local gas utility.
:
DANGER!
INSTALL AND PROPERLY VENT THE WATER HEATER
Failure to properly install the water heater indoors as outlined in the installation instructions in
for proper installation at initial start-up; and at least annually thereafter. Refer to the Care and
WARNING!
other appliance. Be sure to read and follow the labels on the water heater, as well as the warnings
printed in this manual. Failure to do so can result in property damage, bodily injury or death.
Water heater has a main burner
1. Can come on at any time.
Vapors:
1. Cannot be seen
2. Are heavier than air
4. Can be carried from other rooms to
Installation:
Read and follow water heater warnings and Instructions. If owners manual is missing, contact the retailer or
manufacturer.
solvents or adhesives in the same room or area near the
water heater.
1. Far away from heater
2. In approved containers
3. Tightly closed
4. Out of children‘s reach
SAFETY

Support: Support.Eccotemp.com Shop Online: eu.Eccotemp.com Store Locator: eu.Eccotemp.com/locator
6
ENGLISH
PLEASE NOTE: SH12 IS FOR INDOOR PERMANENT INSTALLATIONS ONLY. THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT
NOTICE. PLEASE VISIT SUPPORT.ECCOTEMP.COM FOR THE MOST UP TO DATE WARRANTY AND MANUAL.
DANGER!

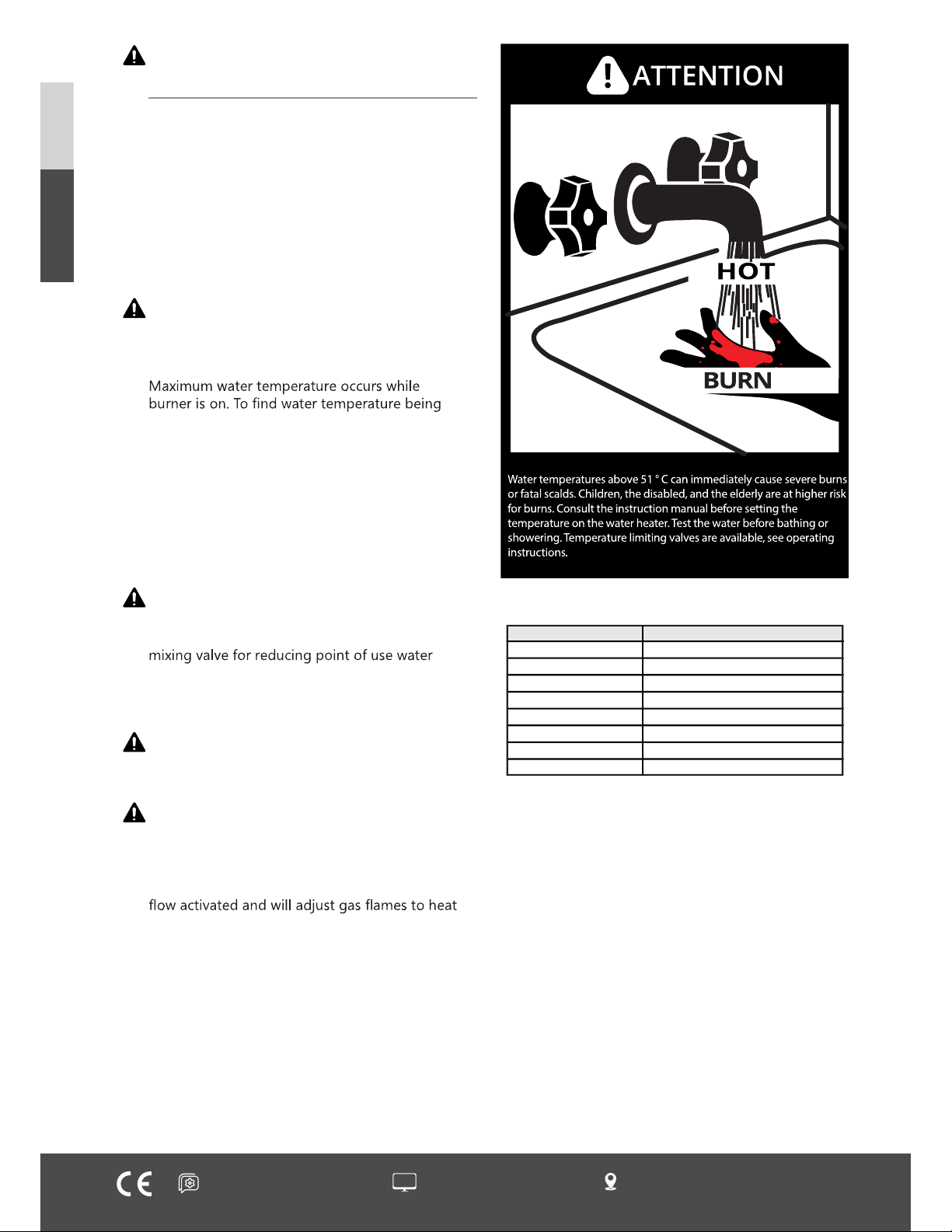

WATER TEMPERATURE SETTING
Safety and energy conservation are factors to be
considered when selecting the water temperature
setting. Water temperatures above 125°F(51°C) can
cause severe burns or death from scalding. The
thermostat is adjusted to 110°F(43°C) when shipped
from the factory. Be sure to read and follow the
warnings outlined on the label pictured below.
The chart shown to the right may be used
as a guide in determining the proper water
temperature for your home.
DANGER: Households with small children,
disabled, or elderly persons may require a
120°F(51°C) or lower temperature setting to
prevent contact with”HOT” water.
delivered, turn on a hot water faucet and place
a thermometer in the water stream and read the
thermometer.
The temperature of the water at the outlet of
the water heater can be regulated by setting
the temperature on the included remote control
or using the Eccotemp SMARTHOME app. The
default temperature was set at 110°F(43°C) before
it was shipped from the factory.
NOTICE: When this water heater is supplying
general purpose hot water requirements for
use by individuals, a thermostatically controlled
temperature is recommended to reduce the risk
of scald injury. Contact a licensed plumber or the
local plumbing authority for further information.
NOTICE: The factory setting allows operating
temperatures between 78°F(26°C) and
140°F(60°C).
NOTICE: This is a remotely controlled
temperature tankless water heater. This means
that the temperature must be set from the
included remote control or using the Eccotemp
SMARTHOME app. This tankless water heater is
water as necessary.
SAFETY
120°F
125°F
130°F
135°F
140°F
145°F
150°F
155°F
(48°C)
(51°C)
(54°C)
(57°C)
(60°C)
(62°C)
(65°C)
(68°C)
Time/Temperature Relationship in Scalds
Table courtesy of Shriners Burn Institute
More than 5 minutes
1 1/2to 2 minutes
About 30 seconds
About 10 seconds
Less than 5 seconds
Less than 3 seconds
About 1 1/2 seconds
About 1 second
Water Temperature Time To Produce a Serious Burn

7
ENGLISH
Support: Support.Eccotemp.com Shop Online: eu.Eccotemp.com Store Locator: eu.Eccotemp.com/locator
PLEASE NOTE: SH12 IS FOR INDOOR PERMANENT INSTALLATIONS ONLY. THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT
NOTICE. PLEASE VISIT SUPPORT.ECCOTEMP.COM FOR THE MOST UP TO DATE WARRANTY AND MANUAL.
SAFETY
DANGER!
NATURAL GAS AND LIQUEFIED PETROLEUM MODEL
Both liquid propane and natural gas has an odorant added to aid in detecting a gas leak. Some
people may not physically be able to smell or recognize this odorant. If you are unsure or unfamiliar
with the smell of liquid propane or natural gas, ask the gas supplier. Other conditions, such as
leak. Always check with commercial leak detector or soapy water.
• Gas detectors are recommended in liquid propane and natural gas applications and their
installation should be in accordance with the detector manufacturer’s recommendations and/or
local laws, rules, regulations or customs.
•
proper gas type is installed based on your current product gas type.
•
to a fuel type not in accordance with the water heater data plate; liquid propane is for LP water
fuel types.
•
in a basement) if such installation is prohibited by federal, state and/or local laws, rules,
regulations or customs. Please check with local municipalities for installation restrictions based
on location within your dwelling.
• Liquid propane and natural gas must be used with great caution. They are heavier than air and
• Before attempting to operate the water heater, make sure to look and smell for gas leaks. Use
also.
• It is recommended that more than one method, such as soapy solution, gas detectors, etc., be
used to detect leaks in gas applications.
NOTICE: If a gas leak is present or suspected:
•
• DO NOT try to light any appliances.
• DO NOT touch any electrical switch.
• DO NOT use any phone in your building.
• Leave the house immediately and make sure your family and pets leave also. Leave the
• Stay away from the house (or building) until the service call has been made, the leak is

Support: Support.Eccotemp.com Shop Online: eu.Eccotemp.com Store Locator: eu.Eccotemp.com/locator
8
ENGLISH
PLEASE NOTE: SH12 IS FOR INDOOR PERMANENT INSTALLATIONS ONLY. THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT
NOTICE. PLEASE VISIT SUPPORT.ECCOTEMP.COM FOR THE MOST UP TO DATE WARRANTY AND MANUAL.
electric shock, or to prevent property damage, personal injury, or loss of life.
SAFETY PRECAUTIONS
SAVE THESE INSTRUCTIONS
SAFETY
WARNING!
Turn
• Read this manual entirely before installing or operating the water heater.
• Use this water heater only for its intended purpose as described in this use and care manual.
• Be sure your water heater is properly installed in accordance with local codes and the provided
installation instructions.
• Unless recommended by an Eccotemp technician, all part replacements and servicing should be
Read and follow this safety information carefully.
Model SH12
M
Daily Electricity
Consumption Qelec kWh 0.081
Daily Fuel Consumption
Qfuel kWh 7.792
Indoor Sound Power
Level LWA dB 63
mg/kWh 53
Model: SH12
M
Water Heating Energy A
Water Heating Energy % 77.5
Annual Electricity
Consumption AEC kWh 18
Annual Fuel
Consumption AFC GJ 6
Indoor Sound Power
Level dB 63
Daily Electric
Consumption Qelec
kWh
kWh 0.081
Daily Fuel
Consumption Qfuel
kWh
kWh 7.792
ErP Data - EU 814/2013 Product Fiche

9
ENGLISH
Support: Support.Eccotemp.com Shop Online: eu.Eccotemp.com Store Locator: eu.Eccotemp.com/locator
PLEASE NOTE: SH12 IS FOR INDOOR PERMANENT INSTALLATIONS ONLY. THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT
NOTICE. PLEASE VISIT SUPPORT.ECCOTEMP.COM FOR THE MOST UP TO DATE WARRANTY AND MANUAL.
Installing the Eccotemp SMARTHOME SH12 Water Heater
• Installation distances may vary by local code. It is the installer’s responsibility to verify installation
requirements.
• Before installation, make sure that the gas type you will use is the same type as the model of SH12 that you
• This water heater cannot be installed in an un-vented bathroom, bedroom, basement, living room, closet,
•
obstruction and must be well vented.
• Horizontal Vent pipe should slope 3° downward to avoid condensing water and protect from rain entering.
• Vent pipe should avoid direct, strong wind because the downdraft will cause malfunction.
• The water heater should be installed far from any blockage, and with plenty of enough space for installation
and maintenance. Adequate clearances for servicing must be provided.
• The water heater should not be installed in the same room with a gas stove.
•
vent pipe and combustible material. A side wall clearance of 10 inches(25.4cm) and a top clearance of 16
inches(40.6cm) must be maintained.
• The vent pipe can be up to 32 ft.(9.75m) in length with one elbow.
•
• The power socket connecting the water heater should be grounded properly with a GFCI circuit protector.
•
avoided it is recommended that a suitable catch pan, adequately drained, must be installed under the water
• It in not recommended for this water heater to be installed within 6 ft.(1.82m) of laundry dryers. Laundry
• The water heater should be installed as close as practical to the vent termination to minimize vent length and
the number of elbows required for venting.
Location
INSTALLATION
The SH12 water heater should be installed by professionals. Improper installation may cause
Failure to have the water heater installed by a professional will void your warranty.

Support: Support.Eccotemp.com Shop Online: eu.Eccotemp.com Store Locator: eu.Eccotemp.com/locator
10
ENGLISH
PLEASE NOTE: SH12 IS FOR INDOOR PERMANENT INSTALLATIONS ONLY. THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT
NOTICE. PLEASE VISIT SUPPORT.ECCOTEMP.COM FOR THE MOST UP TO DATE WARRANTY AND MANUAL.
•
(butane or propane), paint or adhesives and their thinners, solvents or removers.
•
property damage.
• Raising the water heater will reduce, but not eliminate the possibility of lighting the vapor of any
• If the water heater is installed in a garage, it should be installed so that the direct ignition system
• Hot and cold-water lines should be insulated to conserve water and energy.
•
• For other than a direct vent appliance, the appliance must be located as close as practical to a
chimney or gas vent.
•
•
•
be maintained.
• If the clearances stated on the Instruction/Warning Label, located on the side panel of the heater
WARNING: Combustible construction refers to adjacent walls and ceilings and should
gas appliance.
Location
Corrosive Atmospheres
• The air in beauty shops, dry cleaning establishments, photo processing labs and storage areas for
liquid and powdered bleaches or swimming pool chemicals often contain aerosolized halogenated
hydrocarbons.
• An air supply containing halogenated hydrocarbons may be safe to breathe, but when it passes
appliance.
• Propellants from common spray cans or gas leaks from A/C and refrigeration equipment are highly
• The water heater warranty is voided when failure of the heater is due to operation in a corrosive
atmosphere.
NOTICE: The water heater should not be installed near any air supply containing halogenated
hydrocarbons.
INSTALLATION

11
ENGLISH
Support: Support.Eccotemp.com Shop Online: eu.Eccotemp.com Store Locator: eu.Eccotemp.com/locator
PLEASE NOTE: SH12 IS FOR INDOOR PERMANENT INSTALLATIONS ONLY. THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT
NOTICE. PLEASE VISIT SUPPORT.ECCOTEMP.COM FOR THE MOST UP TO DATE WARRANTY AND MANUAL.
INSTALLATION
Proper operation of the water heater requires air for combustion and ventilation. Provisions
for combustion and ventilation air must comply with referenced codes and standards.
Combustion and Ventilation Air
0.29 KW of the aggregate input of all appliances within that space.
The air must be supplied through two permanent openings of equal area.
be located within 12”(30.4cm) below the ceiling.
The minimum net free area of each opening must not be less than one
square inch per 0.29 KW of the total input rating of all the appliances in
the enclosure (but not less than 100 square inches(254cm), if each opening
Buildings of unusually tight construction shall have the combustion and
ventilation air supplied from outdoors, or a freely ventilated attic or crawl
space. If air is supplied from outdoors, directly or through vertical ducts,
a minimum net free area of not less than one square inch(2.5cm) per 1.17
KW of the total input rating of all the appliances in the enclosure.
If horizontal ducts are used to communicate with the outdoors, each
opening must have a minimum net free area of not less than one square
inch(2.5cm) per 0.59 KW of the total input rating of all the appliances in the
enclosure. If ducts are used, the minimum dimensions of rectangular air
ducts shall not be less than 4”(10.1cm).
Included Parts
Verify all included parts are present (see below).
ventilation air must be made.
NOTICE: If the duct openings which supply combustion and ventilation air are to be covered with a
protective screen or grill, the net free area (openings in the material) of the covering material must be
used in determining the size of openings. Protective screening for the openings MUST NOT be smaller
than ¼”(.63cm) to prevent clogging by lint or other debris.
Typical Installation
Recommended Not Included Parts
These items are not included but are recommended and available for purchase at eu.eccotemp.com
¾”(1.9cm)Threaded
Tee Fitting ¾”(1.9cm) Pressure Relief Valve

Support: Support.Eccotemp.com Shop Online: eu.Eccotemp.com Store Locator: eu.Eccotemp.com/locator
12
ENGLISH
PLEASE NOTE: SH12 IS FOR INDOOR PERMANENT INSTALLATIONS ONLY. THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT
NOTICE. PLEASE VISIT SUPPORT.ECCOTEMP.COM FOR THE MOST UP TO DATE WARRANTY AND MANUAL.

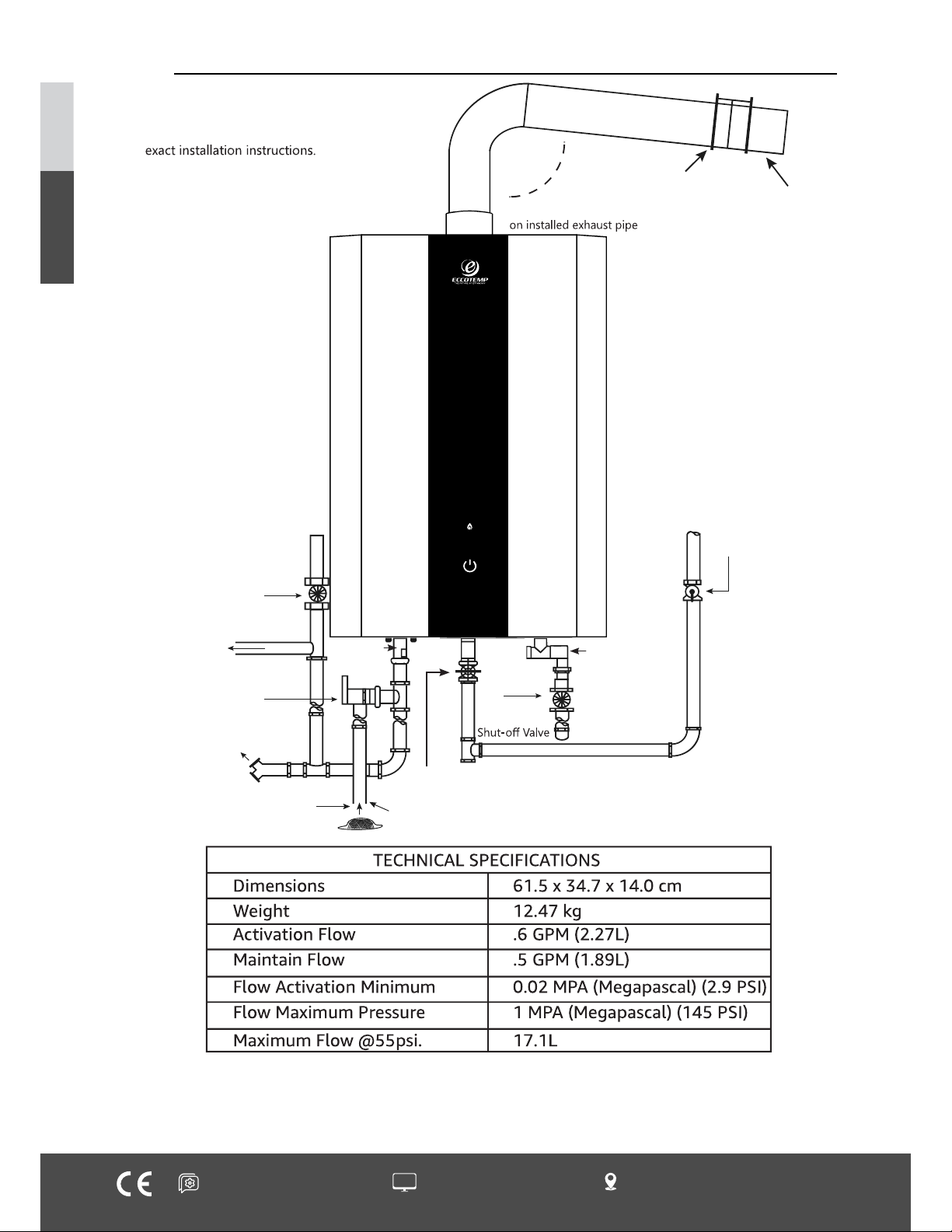

Typical Installation
INSTALLATION
*For demonstration purposes only.
Refer to local manicupalities for
(15.2cm)
Wall Thimble
Minimum 3° angle of descent
Manual
Gas Supply Line
Shut-off
Valve
Cold Water
Supply Line
Manual Gas
Appliance Shut-off Valve
1/2" BSPP(G) 1/2" BSPP(G)
(1.27cm) (1.27cm)
6" Air Gap
Discharge Line
(To Suitable Drain)
Drain Valve
Pressure
Relief Valve
To Hot
Water Faucet
Air Relief
Valve
Vent Termintion

13
ENGLISH
Support: Support.Eccotemp.com Shop Online: eu.Eccotemp.com Store Locator: eu.Eccotemp.com/locator
PLEASE NOTE: SH12 IS FOR INDOOR PERMANENT INSTALLATIONS ONLY. THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT
NOTICE. PLEASE VISIT SUPPORT.ECCOTEMP.COM FOR THE MOST UP TO DATE WARRANTY AND MANUAL.
INSTALLATION
•

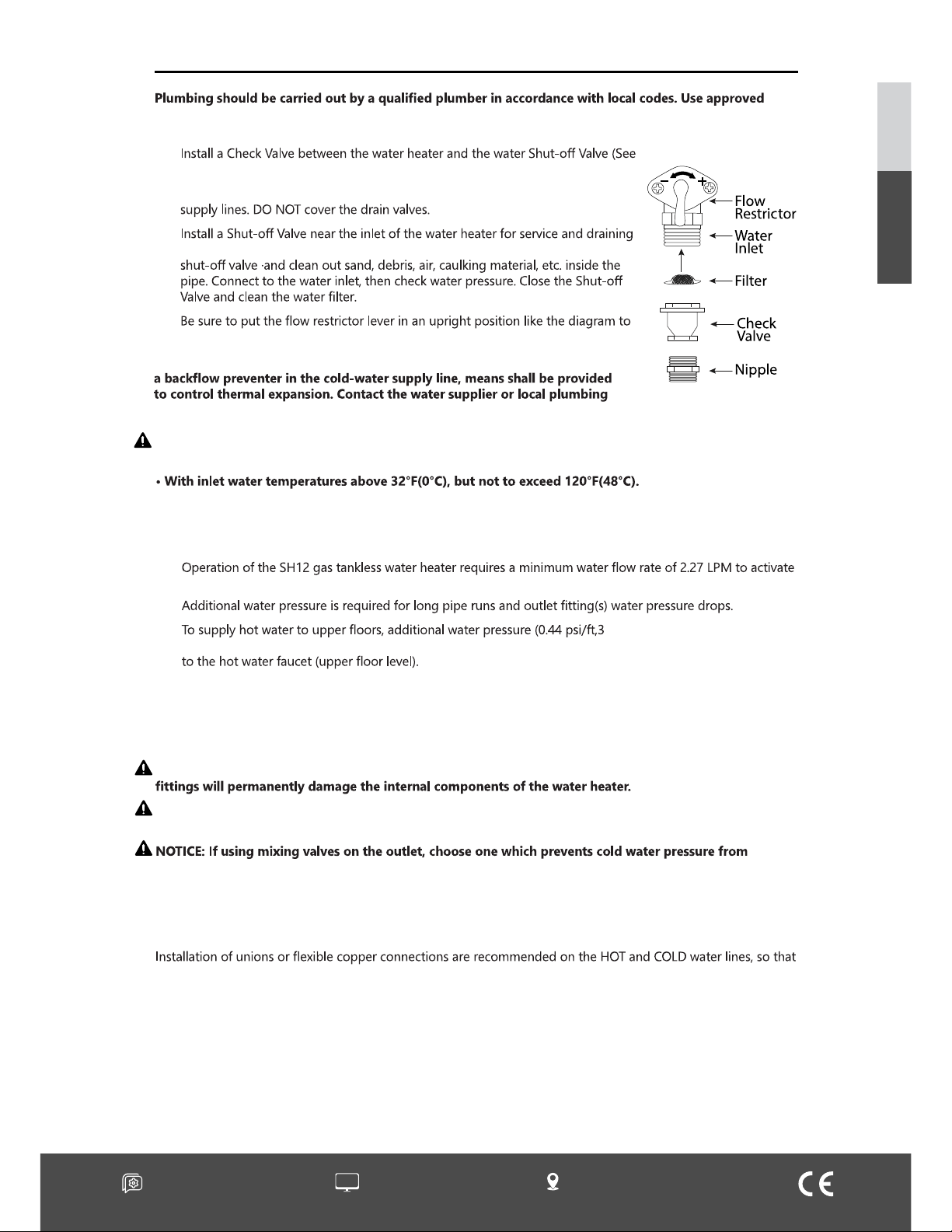

illustration to the right).
• To conserve energy and to prevent freezing, insulate both cold and hot water
•
purposes. Before connecting the water supply pipe to the water heater, open the
•
the right. You’ll adjust this as needed seasonally to achieve desired temperatures.
If a water heater is installed in a closed water supply system, such as one having
inspector on how to control this situation.
CAUTION: This water heater must only be used with the following water supply system conditions:
• With clean, potable water free of corrosive chemicals, sand, dirt, or other contaminates.
• Free of lime and scale deposits.
• DO NOT reverse the hot and cold water connections. The water heater will not operate.
To ensure proper operation of the water heater, the following water pressure guidelines should
be followed:
•
and 1.89 LPM to maintain activation.
•
• kPa) must be ensured. The
measurement should be calculated by the distance between the water inlet of the water heater (ground level)
• Well water systems should be set at a range of 50-60 psi(344-413 kPa).
• When the water is supplied from a water supply tank, the height of the tank and the diameter of the pipes
and their relation to water pressure, should be taken into consideration. Gravity water pressure is not
recommended.
NOTICE: Do not apply heat to the HOT or COLD water connections. Any heat applied to the water supply
NOTICE: If the water pressure resistance of a shower head is too high, the burner in the water heater will fail
to ignite. Keep the shower head clean from debris that could cause additional pressure drop.
overcoming hot water line pressure.
DO NOT use pipes with smaller diameters than the water supply connection of the water heater.
Be sure to connect the water inlet and the hot water outlet as shown on the water heater on page 12. If reversed,
the water heater will not function.
the water heater may disconnect easily for servicing if necessary.
plumbing materials and tools only.
Water Connections

Support: Support.Eccotemp.com Shop Online: eu.Eccotemp.com Store Locator: eu.Eccotemp.com/locator
14
ENGLISH
PLEASE NOTE: SH12 IS FOR INDOOR PERMANENT INSTALLATIONS ONLY. THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT
NOTICE. PLEASE VISIT SUPPORT.ECCOTEMP.COM FOR THE MOST UP TO DATE WARRANTY AND MANUAL.
•

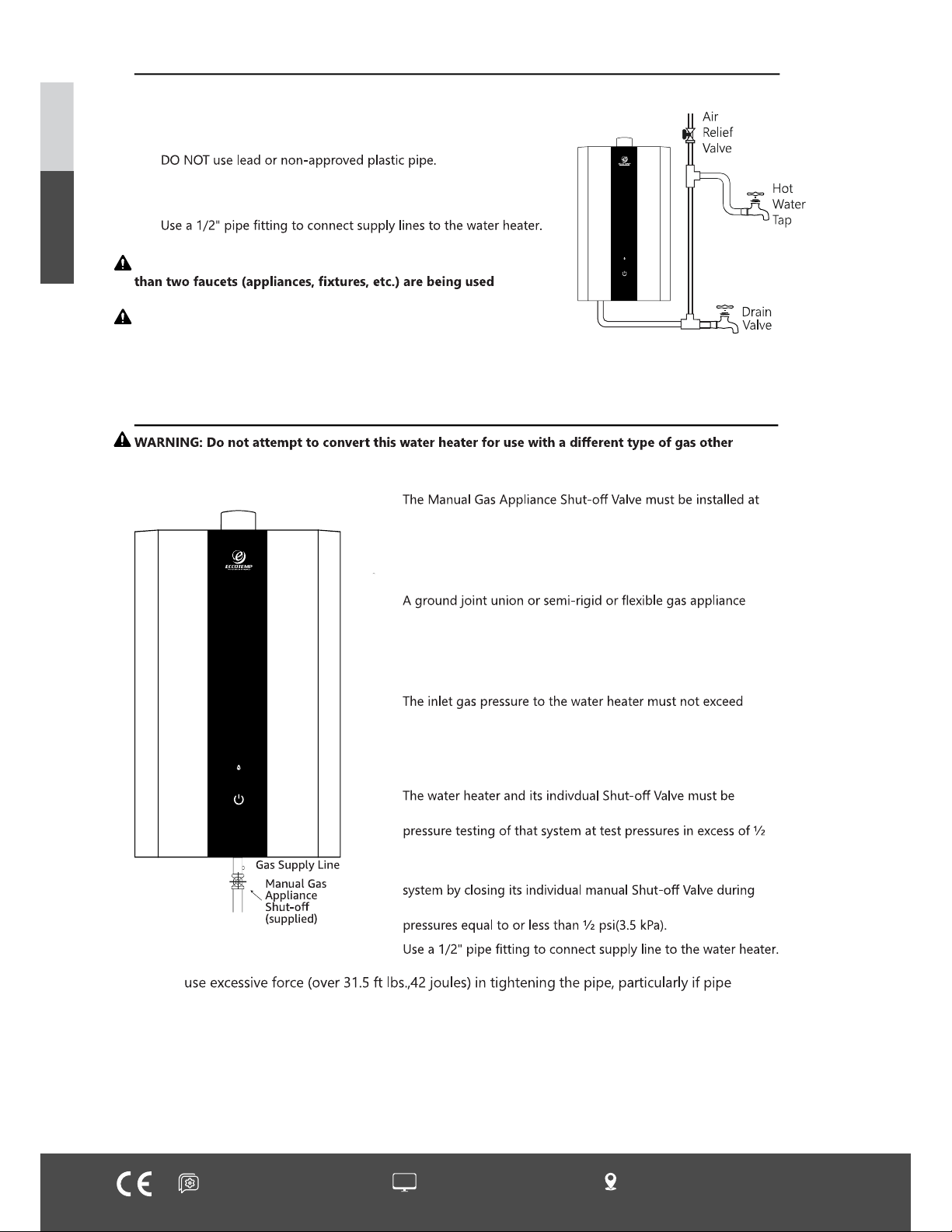

the gas connection of the water heater at the time of installation
(see diagram to the left).
• The branch gas supply line to the water heater should be clean
black steel pipe or other approved gas piping material.
•
connector should be installed in the gas line close to the water
heater.
• A sediment trap should be installed at the bottom of the gas
line.
•
14”(35.5cm) w.c. for liquid propane gas. For purposes of input
adjustment, the minimum inlet gas pressure (with main burner
on) is shown on the water heater data plate. If high or low gas
pressures are present, contact your gas supplier for correction.
•
disconnected from the gas supply piping system during any
psi (3.5 kPa).
• The water heater must be isolated from the gas supply piping
any pressure testing of the gas supply piping system at test
•
than the type shown on the data plate. Such conversion could result in hazardous operating conditions.
Please have a professional connect the gas pipe.
In regards to the HOT WATER OUTLET:
• Connections between the water heater and point(s) of use
should be as short and direct as possible.
•
• To conserve energy and minimize heat loss, insulation of hot
water piping is recommended.
•
NOTICE: The pressure rate of hot water may vary when more
simultaneously.
NOTICE: The pipes MUST be completely drainable. If the hot water
faucets are located at a point higher than the water heater, place a
drain valve at the lowest point (see diagram to the right).
DO NOT
compound is used, as the water heater may be damaged.
Compound used on the threaded joints of the gas piping must be of the type resistant to the action of
liquid propane gas. Use compound sparingly and use on male threads only.
Water Connections
Gas Supply
INSTALLATION
1/2" BSPP(G)
(1.27cm)

15
ENGLISH
Support: Support.Eccotemp.com Shop Online: eu.Eccotemp.com Store Locator: eu.Eccotemp.com/locator
PLEASE NOTE: SH12 IS FOR INDOOR PERMANENT INSTALLATIONS ONLY. THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT
NOTICE. PLEASE VISIT SUPPORT.ECCOTEMP.COM FOR THE MOST UP TO DATE WARRANTY AND MANUAL.
INSTALLATION
supply
pressure. DO NOT use an industrial type gas regulator.
The water heater and its gas connections must be leak tested at normal operating pressures before it is placed in
operation.
•
•
Bubbles indicate a gas leak that must be corrected.
• All connections should also be leak tested after the water heater is placed in operation.
any pressure testing of the gas supply piping at pressures equal to or less than 1/2 psi (14”w.c.).
The Eccotemp SMARTHOME SH12 Gas Tankless Water Heater has been tested for use at elevations up to 2000
ft.(609m). Installation and use of the Eccotemp SMART
SMARTHOME SH12 above 5000
ft.(1524m) is not recommended.
A new pressure relief valve, that complies with your local municipality's codes, must be installed at the hot
water outlet connection of the water heater at the time of installation. Local codes shall govern the installation
of relief valves. Pressure relief valves are not included with your water heater but are available for purchase at
eu.eccotemp.com
For safe operation of the water heater, be sure that:
• 1034 kPa)
the water heater as marked on the data plate.
•
plate.
•
• Discharge from the relief valve should be piped to a suitable drain to eliminate potential water damage. Piping
used should be of a type approved for the distribution of hot water.
• Hot and cold water lines should be insulated up to the water heater.
•
complete drainage (by gravity) of the relief valve and discharge line.
•
valve of any type, restriction or reducer coupling should be installed in discharge line.
NOTICE: The diagram below illustrates a pressure relief valve. If local codes require a combination temperature
NOTICE: Local codes govern the installation of relief valves. If local
codes require that a temperature and pressure relief valve should
be installed the manufacturer recommends a type 40XL Watts T&P
relief valve or an equivalent model be used.
NOTICE: Manual operation of relief valves should be performed
manual operation of the relief valve. You should take precaution to
avoid contact with the hot water coming out of the relief valve and
to prevent water damage.
NOTICE: If the relief valve on the system discharges periodically,
system. Contact the water supplier or local plumbing inspector
on how to correct this situation. Do not plug the relief valve.
Relief Valve
Leak Testing
High Altitude
(15.2cm)
Pressure Testing the Gas Supply System
1/2" BSPP(G) 1/2" BSPP(G)
(1.27cm) (1.27cm)

Support: Support.Eccotemp.com Shop Online: eu.Eccotemp.com Store Locator: eu.Eccotemp.com/locator
16
ENGLISH
PLEASE NOTE: SH12 IS FOR INDOOR PERMANENT INSTALLATIONS ONLY. THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT
NOTICE. PLEASE VISIT SUPPORT.ECCOTEMP.COM FOR THE MOST UP TO DATE WARRANTY AND MANUAL.
materials. A minimum clearance of 6”(15.2cm) between the vent pipe and ceiling should be maintained.
Follow local codes.
For maintenance and inspection purposes, the
following holes are required to be made:
• Two (2) inspection openings that allow access to
venting. One (1) of these openings should be close
to where the vent pipe enters the ceiling. The other
opening should be near the vent termination.
• A ventilation hole with a 16 sq. in.(103cm²) opening
should be made at least every 10 ft.(3m).
NOTICE : Vent pipes must be completely insulated
closets, and garages and must not touch any
The water heater must be vented to the outdoors. Termination must be 50 cm away from any
obstructions and the termination must be at least 5 cm away from the wall, as described in these
or ducts with internal plastic coatings.) It is recommended to use included venting. Refer to your local
municipality if additional venting is needed.
The included vent termination should be used. If not, a termination hood with a screen must be used.
(Refer to page 19). Do not remove the terminal guard. The terminal outlet must not be covered by
anything.
Use a vent pipe with an antidisconnection
structure. The use of a High Temperature
Silicone (500° F, 260°C) may be required to seal
vent connections. To prevent accidental gas
another bead against the joint side of the stop
bead.
Follow vent manufacturer’s installation instructions. The water heater can be vented either horizontally
or vertically.
Vent pipe runs must be adequately supported along both horizontal and vertical runs.
WARNING: Refer to pages 9-11 for clearances from combustible materials.
Venting
INSTALLATION
*Use Proper Support Straps
NO YES
DANGER: Failure to install the vent adapter and properly vent the water heater to the outdoors as
outlined in the Venting section of this manual will result in unsafe operation of the water heater causing
proper operation as outlined in the Venting section of this manual.
(15.2cm)
(61cm)
(.6 cm) (.3m)
(25 cm) (25 cm)
10" 10"
Typical Horizontal Termination
w/ 1/4"(.6cm) per foot(.3m)
UPWARD Slope

17
ENGLISH
Support: Support.Eccotemp.com Shop Online: eu.Eccotemp.com Store Locator: eu.Eccotemp.com/locator
PLEASE NOTE: SH12 IS FOR INDOOR PERMANENT INSTALLATIONS ONLY. THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT
NOTICE. PLEASE VISIT SUPPORT.ECCOTEMP.COM FOR THE MOST UP TO DATE WARRANTY AND MANUAL.
INSTALLATION
used provided there is only one 90° elbow in the system. If additional
elbows are required: two elbows can be used with 4m, and three
elbows can be used with 3m of vent pipe.
A 90° elbow is equivalent to 3.3 ft.(1m) of straight pipe. A 45°
elbow is equivalent to 2 ft. 6 inches(.7m) of straight pipe.
The termination elbow does not count as an elbow when
determining total vent lengths.
foot of horizontal run toward the vent terminal (see diagram below).
This ensures that any condensate formed during operation of the
water heater evacuated from the water heater.
possible to vent with a downward slope, however, a UL approved
Category III Stainless Steel condensate trap MUST be installed at
the beginning of the horizontal run (See page 20 “Typical Horizontal
Number of
90° elbows
(bends)
Length of
Straight Pipe
1
2
3
5m
4m
3m
One (1) 90° Elbow is
Equivalent to 3.3 Ft.
(1m) of Straight Pipe
Minimum Vent Length
The venting may be as short as 12”
(.3m) ,provided one vent termination
is installed to the outdoors through a
sidewall, one 90° elbow is included in
the installation, and the wall thimble is
installed.
NOTICE: Make sure that the seam
of the vent pipe in horizontal runs
is toward the top of the installation
(see illustration to the left).
Draining the Condensate
In certain conditions, installations in unconditioned space or having long horizontal or vertical
runs may accumulate condensate.
Condensate is known to be acidic; refer to local, state (provincial) or federal codes for proper
handling methods.
In order to prevent condensate from draining back into the water heater, we recommend a
condensate trap and drain to be installed in a horizontal vent section as close as practical to
the water heater vent connection.
NOTICE: Not following proper condensate procedures will void warranty.
Venting
12 in.
12 in.
(30.4cm)
(30.4cm)
(.63cm)

Support: Support.Eccotemp.com Shop Online: eu.Eccotemp.com Store Locator: eu.Eccotemp.com/locator
18
ENGLISH
PLEASE NOTE: SH12 IS FOR INDOOR PERMANENT INSTALLATIONS ONLY. THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT
NOTICE. PLEASE VISIT SUPPORT.ECCOTEMP.COM FOR THE MOST UP TO DATE WARRANTY AND MANUAL.

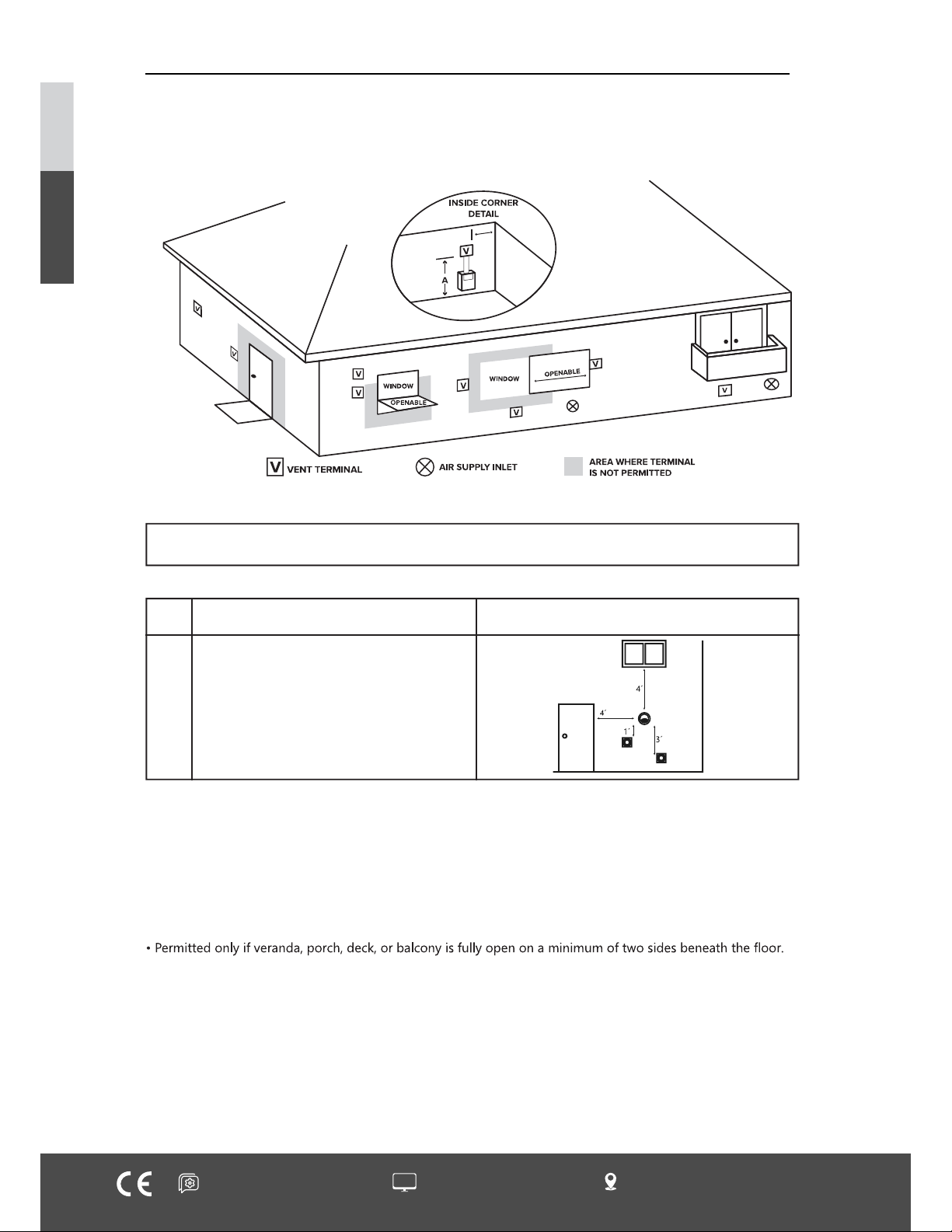

Clearance Requirements from Vent Terminations to Building Openings
Maintain the following clearances to any
opening in any building:
• 4’(1.2m) below, 4’(1.2m) horizontally from,
or 1’(0.3 m) above any door, operable
window, or gravity air inlet into any
building.
• 3’(1 m) above any forced air inlet within
10’(3m).
Vent Clearances When
Heater is Installed Indoors
Illustration
A) A minimum clearance value determined by testing in accordance with Clause 5.20, or;
B) A reference to the following footnote:
“Clearance in accordance with local installation codes and the requirements of the gas supplier.”
• A vent shall not terminate directly above a sidewalk or paved driveway that is located between two single family
dwellings and serves both dwellings.
Venting
Termination Clearances
INSTALLATION
(1.2m)
(1.2m)
(0.3m)
(1m)

19
ENGLISH
Support: Support.Eccotemp.com Shop Online: eu.Eccotemp.com Store Locator: eu.Eccotemp.com/locator
PLEASE NOTE: SH12 IS FOR INDOOR PERMANENT INSTALLATIONS ONLY. THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT
NOTICE. PLEASE VISIT SUPPORT.ECCOTEMP.COM FOR THE MOST UP TO DATE WARRANTY AND MANUAL.
INSTALLATION

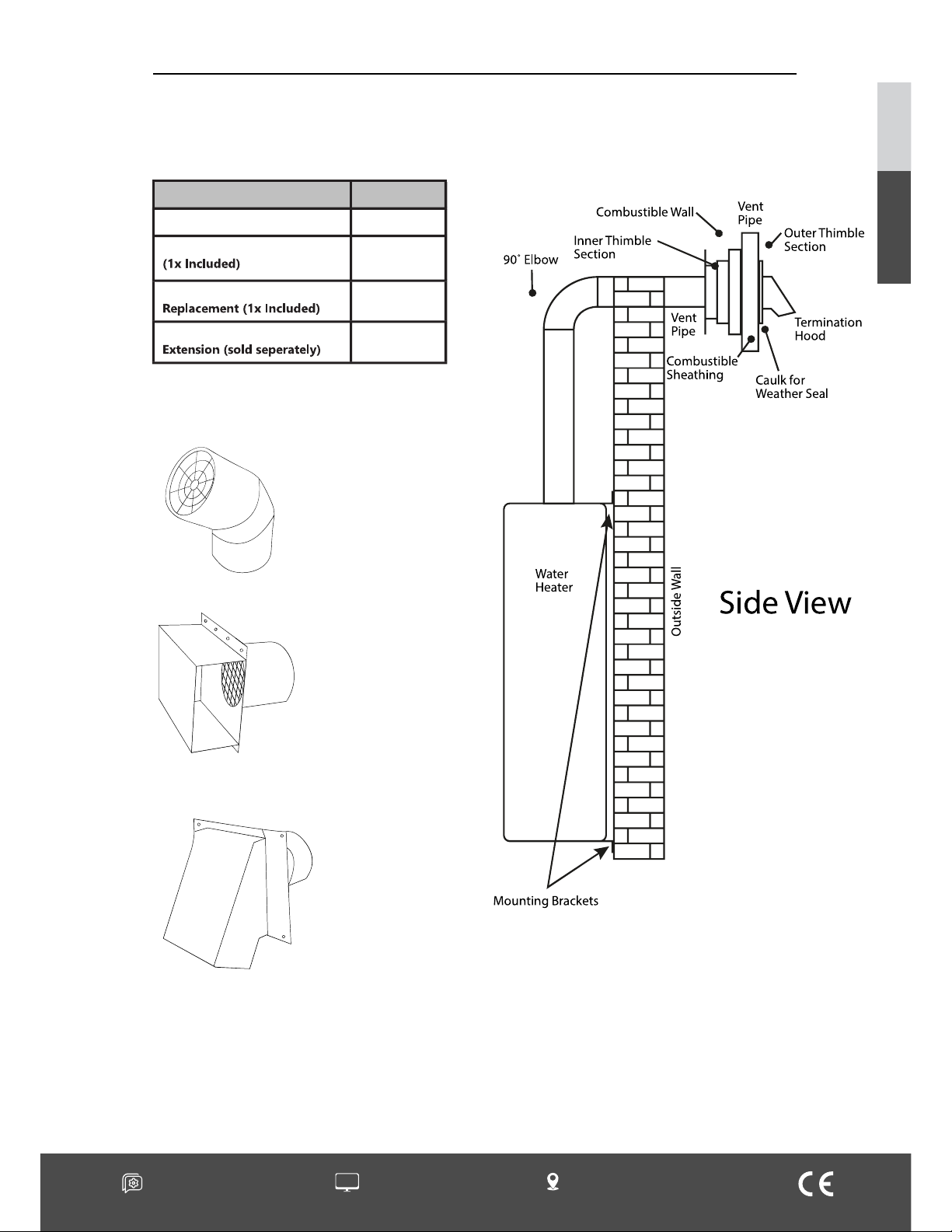

Please reference the below illustration and chart for the included/sold separately venting pieces.
Check with your local municipality for additional installation and venting requirements.
Part Name SKU#
Eccotemp 90 Degree Elbow 1200031
Eccotemp Termination Pipe 1001029
Eccotemp Wall Thimble 1200034
Eccotemp 18" (45.7cm) Vent 12000300
90° Termination Elbow
Termination Box
Termination Hood
Venting
Venting with included vent kit.
Optional Vent Terminations
Sold Separately

Support: Support.Eccotemp.com Shop Online: eu.Eccotemp.com Store Locator: eu.Eccotemp.com/locator
20
ENGLISH
PLEASE NOTE: SH12 IS FOR INDOOR PERMANENT INSTALLATIONS ONLY. THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT
NOTICE. PLEASE VISIT SUPPORT.ECCOTEMP.COM FOR THE MOST UP TO DATE WARRANTY AND MANUAL.

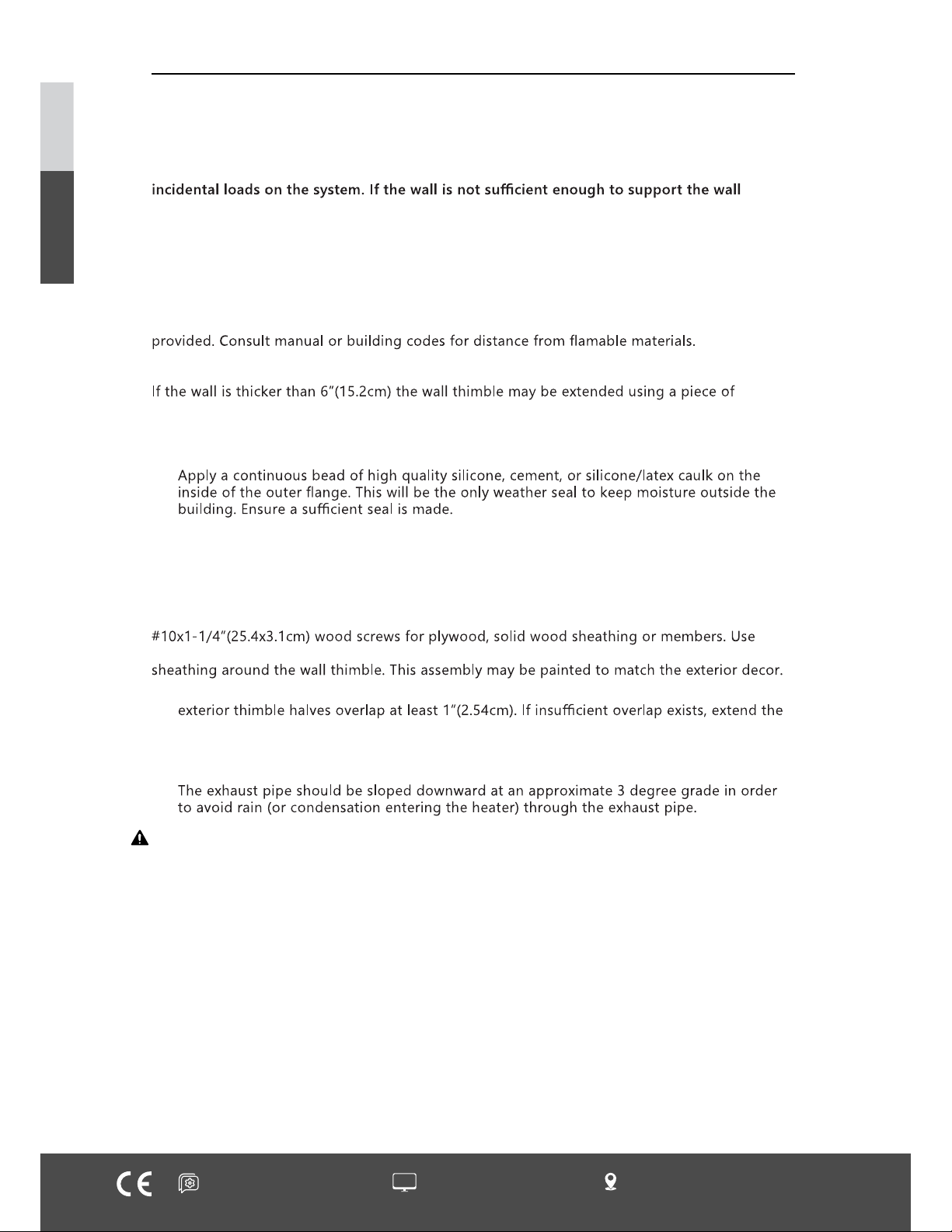

Only the 2.5”(6.3cm) vent kit provided with the Eccotemp SMARTHOME SH12 or approved
stainless steel venting should be used for installation.
The wall thimble requires mechanical support from the wall sufficient to support any
thimble, then appropriate additional framing and/or blocking is required.
Installation Procedure:
Prepare an opening for the wall thimble in the wall. The opening must be 6-1/2 inches(16.5cm)
in diameter for a 3”(7.6cm) vent system. The opening should be round.
The opening must be able to accommodate the 3”(7.6cm) vent system and wall thimble
The wall thimble is designed to adapt to any wall thickness from 3-1/2” to 6”(15.2cm) thick.
6”(15.2cm) diameter snaplock or welded seam galvanized pipe up to 6”(15.2cm) long.
Select the larger diameter half of the wall thimble for the outside of the wall.
•
• Position this portion of the wall thimble into the prepared hole from the outside. Secure
the assembly into the prepared opening using fasteners as indicated by sheathing or
structural members, sealing the screw heads with more caulking.
Use 4 hollow wall anchors, at least 1/8”(.3cm) in diameter and of appropriate length for the
thickness of the sheathing, if sheathing is particle board or other composite material. Use 4
suitable masonry anchors when passing through solid masonry walls. Reinstall the decorative
• Slide the interior portion of the thimble into the inside hole. Be certain the interior and
interior portion with single wall galvanized pipe.
• Secure the vent section that protrudes through the wall thimble to the 90 degree elbow
attached to the water heater.
•
Venting
Installation
INSTALLATION
CAUTION: Follow the vent manufacturers installation instructions as design might vary from
manufacturer to manufacturer.
