Echo DLM-2100 User manual

99922238025
© 06/2022 ECHO Incorporated
Operator’s
Manual
DLM-2100
Mower
This product contains chemicals known to the State of California
to cause cancer, birth defects, or other reproductive harm.
Cancer and Reproductive Harm www.P65Warnings.ca.gov
Read and understand all provided literature before use.
Failure to do so could result in serious injury.
Note: This product complies with CAN ICES-003(B) / NMB-003(B)

DLM-2100
999222380252
© 09/2022 ECHO Incorporated
Introduction......................................................................................................................3
Servicing Information.......................................................................................................3
Parts / Serial Number ................................................................................................3
Service.......................................................................................................................4
ECHO Consumer Product Support ...........................................................................4
Product Registration..................................................................................................4
Additional Literature...................................................................................................4
Packing List .....................................................................................................................4
Safety ..............................................................................................................................5
Manual Safety Symbols and Important Information...................................................6
International Symbols................................................................................................6
Lawn Mower Safety Warnings...................................................................................7
Environmentally Safe Battery Disposal .....................................................................13
FCC Statement..........................................................................................................14
Description.......................................................................................................................15
Preparation For Use ..................................................................................................17
Operation.........................................................................................................................23
Starting The Unit........................................................................................................23
Stopping The Unit......................................................................................................23
Operate on Slopes.....................................................................................................24
Empty the Grass Catcher ..........................................................................................24
Operation Tips ...........................................................................................................25
Maintenance....................................................................................................................26
Cleaning Battery and Battery Compartment..............................................................27
Replace The Blade ....................................................................................................28
Troubleshooting...............................................................................................................29
Storage............................................................................................................................30
Vertical Storage .........................................................................................................31
Storage After Use ......................................................................................................32
Specications ..................................................................................................................33
Product Registration........................................................................................................34
Warranty ..........................................................................................................................36
TABLE OF CONTENTS
TABLE OF CONTENTS

3
DLM-2100
99922238025
© 09/2022 ECHO Incorporated
INTRODUCTION
SERVICING INFORMATION
INTRODUCTION
Specications, descriptions and illustrative material in this literature are as
accurate as known at the time of publication, but are subject to change
without notice. Illustrations may include optional equipment and
accessories, and may not include all standard equipment.
For additional literature, including safety manuals where applicable, or
questions regarding terms used in this manual, visit:
https://www.echo-usa.com/manuals
Genuine ECHO Parts and
Assemblies for your ECHO products
are available only from an
Authorized ECHO Dealer. When
you do need to buy parts always
have the Model Number and Serial
Number of the unit with you. For
future reference write them in the
space provided below.
Model No. _______________ Serial No. _______________
Parts / Serial Number
Read and understand all provided literature.
Literature contains specications and
information for safety, operation,
maintenance, storage, and assembly
specic to this product. Scan QR codes for
more information.

DLM-2100
999222380254
© 09/2022 ECHO Incorporated
PACKING LIST
Service of this product during the warranty period must be performed by an
Authorized ECHO Service Dealer. For the name and address of the
Authorized ECHO Service Dealer nearest you, ask your retailer or call:
1-800-432-ECHO (3246). Dealer information is also available on our Web
Site www.echo-usa.com. When presenting your unit for Warranty service/
repairs, proof of purchase is required.
If you require assistance or have questions concerning the application,
operation, or maintenance of this product, call the ECHO Consumer
Product Support Department at 1-800-432-ECHO (3246) from 8:00 am to
5:00 pm (Central Standard Time) Monday through Friday. Before calling,
please know the model and serial number of your unit.
Register your ECHO equipment online at www.echo-usa.com or by lling
out the product registration sheet included in this manual. Registering your
product conrms warranty coverage and provides a direct link to ECHO if
we nd it necessary to contact you.
In addition to nding information online, information is available from your
Authorized ECHO Service Dealer, or by contacting ECHO Incorporated,
400 Oakwood Road, Lake Zurich, IL 60047, 1-800-432-ECHO (3246).
The ECHO product you purchased has been factory pre-assembled for your
convenience. Due to packaging restrictions, some assembly may be
necessary.
After opening the carton, check for damage. Immediately notify your retailer
or ECHO Dealer of damaged or missing parts. Use the contents list to check
for missing parts.
1 Mower
1 Operator's manual
1 Grass catcher
1 Mulch plug
Service
ECHO Consumer Product Support
Product Registration
Additional Literature
PACKING LIST

5
DLM-2100
99922238025
© 09/2022 ECHO Incorporated
SAFETY
Manual Safety Symbols and Important Information
Throughout this manual and on the product itself, you will nd safety alerts
and helpful, informational messages preceded by symbols or key words.
The following is an explanation of those symbols and key words and what
they mean to you.
The safety alert symbol accompanied by the word “DANGER”
calls attention to an act or condition which WILL lead to serious
personal injury or death if not avoided.
The safety alert symbol accompanied by the word “WARNING”
calls attention to an act or condition which CAN lead to serious
personal injury or death if not avoided.
The safety alert symbol accompanied by the word “CAUTION”
calls attention to an act or condition which might lead to minor
or moderate personal injury if not avoided.
The enclosed message provides information necessary for the
protection of the unit.
Note: This enclosed message provides tips for use, care and
maintenance of the unit.
CIRCLE AND SLASH SYMBOL
This symbol means the specic action shown is prohibited.
Ignoring these prohibitions can result in serious or fatal injury.

DLM-2100
999222380256
© 09/2022 ECHO Incorporated
SAFETY
Symbol Description Symbol Description
WARNING! Read
and follow all safety
precautions in the
operator's manual. Failure
to follow instructions could
result in serious personal
injury.
Use extra caution on
slopes. do not mow slopes
greater than 15 degrees.
Safety / Alert
Do not open or remove
safety devices while the
tool is running.
Always wear eye
protectionwith side
shields marked to comply
with ANSI Z87.1 when
operating this equipment.
Look down and behind
rst to avoid tripping when
pulling back.
Do not expose the product
to rain or moist conditions. Direct current
Remove objects that can
be thrown by the blade in
any direction.
Volts
All visitors should be kept
at a distance from work
area.
To reduce the risk of injury,
keep hands and feet away
from rotating parts. Do not
operate unless discharge
cover or grass bag is in its
proper place. If damaged,
replace immediately.
Environmentally safe
battery disposal
International Symbols
Some of the following symbols may be used on this product. Please study
them and learn their meaning. Proper interpretation of these symbols will allow
you to operate the product better and safer.

7
DLM-2100
99922238025
© 09/2022 ECHO Incorporated
SAFETY
SAFETY
Lawn Mower Safety Warnings
This machine was built to be operated according to the rules for
safe operation included in this manual. As with any type of power
equipment, carelessness or error on the part of the operator can
result in serious injury. This machine is capable of amputating
hands and feet and throwing objects. Failure to observe all safety
instructions could result in serious injury or death.
When using electric lawn mowers, basic safety precautions
should always be followed to reduce the risk of fire, electric
shock, and personal injury. These basic precautions include the
following:
Children and Bystanders
Tragic accidents can occur if the operator is not alert to the presence of
children or bystanders.
• Keep the area of operation clear of all persons, particularly small children,
and pets.
• Use extreme care when approaching blind corners, doorways, shrubs,
trees, or other objects that may obscure your vision of a child or bystander.
Keep children, bystanders, helpers and pets at least 100 feet (30m) from
the mower while it is in operation. Stop the machine if anyone enters the
area.
• Never allow children under 14 years old to operate a power mower.
Operators 14 years old and over should fully read and understand the
operator’s manual and safety rules. Only responsible individuals who are
familiar with these rules of safe operation should be allowed to use this
machine.
General Operation
• Read this operator’s manual carefully in its entirety before assembling or
operating this machine. Read, understand, and follow all instructions on
the machine and in the manuals before operation. Familiarize yourself with
the controls and proper use of this machine before operation. Save this
manual for future and regular reference.

DLM-2100
999222380258
© 09/2022 ECHO Incorporated
SAFETY
• Do not use the lawn mower for any job except that for which it is intended.
Your lawn mower has been designed to perform only one job: cut grass.
• Never attempt to make a wheel height adjustment while the motor is
running.
• Don’t force the lawn mower; it will do the job better and more safely at the
rate for which it was designed.
• Don’t overreach, keep proper footing and balance at all times. Many
injuries occur as a result of the mower being pulled over the foot during
a fall caused by slipping or tripping. A slip and fall can cause serious
personal injury. If you feel you are losing your footing, release the control
handle immediately and the blade will stop rotating within three seconds.
• Thoroughly inspect the area where the mower is to be used and remove
all stones, sticks, wires, dog bones, and other foreign objects.
• Prevent unintentional starting. Ensure the switch is in the off position
before connecting to battery, picking up or carrying the mower. Carrying
the mower with your finger on the switch or energizing mower that has the
switch on invites accidents.
• Never pull the mower back toward you while you are walking. If you must
back the mower away from a wall or obstruction, first look down and
behind you to avoid tripping, and then follow these steps:
1. Step back from the mower in order to fully extend your arms.
2. Be sure that you are well balanced.
3. Pull the mower back slowly.
• Remove the battery from the mower before making any adjustments,
changing accessories, or storing appliance. Such preventive safety
measures reduce the risk of starting the mower accidentally.
• Before and while moving backwards with the mower, look behind and
down for small children and other people.
• Do not operate the mower while under the influence of alcohol or drugs.
Stay alert and watch what you are doing at all times. Use common sense
and do not operate the lawn mower when you are tired.
• Always wear safety glasses or safety goggles during operation and while
performing an adjustment or repair to protect your eyes. Thrown objects
that ricochet can cause serious injury to the eyes. Always use a face or
dust mask if the operation is dusty.
• Keep clear of the discharge opening at all times. Do not put hands or feet
near rotating parts or under the cutting deck. Contact with the blade can
amputate hands and feet.
• Plan your mowing pattern to avoid discharge of material toward roads,
sidewalks, bystanders and the like. Also, avoid discharging material
against walls or obstructions, which may cause discharged material to
ricochet back toward the operator.

9
DLM-2100
99922238025
© 09/2022 ECHO Incorporated
SAFETY
• To help avoid the blade or an injury from thrown objects, stay in the
operator zone behind the handles.
• A missing or damaged discharge cover can cause blade contact or injuries
from thrown objects.
• Objects struck by the lawn mower blade can cause severe injuries to
persons. The lawn should always be carefully examined and cleared of all
objects prior to each mowing.
• Stop the blade when crossing gravel drives, walks or roads.
• Follow all charging instructions and do not charge the battery or mower
outside of the temperature range specified in the instructions. Charging
improperly or at temperatures outside of the specified range may damage
the battery and increase the risk of fire.
• If lawn mower strikes a foreign object, follow these steps:
1. Release the bail switch to disengage the motor.
2. Remove the battery.
3. Inspect for damage.
4. Repair any damaged parts before restarting and operating the lawn mower.
• Dress properly; do not wear loose clothing or jewelry that can be caught in
moving parts. Use of safety gloves and proper footwear is recommended
when working outdoors. Wear sturdy, rough-soled work shoes and close-
fitting slacks and shirts. Shirts and pants that cover the arms and legs and
steel-toed shoes are recommended. Never operate this machine in bare
feet, sandals, slippery or lightweight (e.g., canvas) shoes.
• Wear protective hair covering to contain long hair.
• Avoid dangerous environments; do not use the lawn mower in damp/wet
locations or if it is raining.
• Store idle lawn mower indoors. When not in use, appliances should be
stored indoors in dry, and high or locked-up places – out of reach of
children. Always remove the battery from the mower before storing.
• Mow only in daylight or good artificial light. Walk, never run while
operating.
• If the mower should start to vibrate abnormally, immediately stop the
motor, remove the battery and check for the cause. Vibration is generally a
warning that the mower is not functioning properly.
• Check bag frequently for deterioration and wear, and replace worn bags.
Check that replacement bags comply with the original manufacturer's
recommendations or specifications.
• Before cleaning the mower, unclogging or removing the grass bag,
mulching insert, or side discharge chute, turn the motor off and wait until
the blade comes to a complete stop, then remove the battery. The cutting
blade continues to rotate for a few seconds after the motor is shut off.
Never perform these functions until you are sure the blade has stopped
rotating.

DLM-2100
9992223802510
© 09/2022 ECHO Incorporated
SAFETY
• Never operate the mower without the proper discharge cover, grass bag,
mulching insert, side discharge chute, or other safety devices in place and
working. Never operate the mower with damaged safety devices. Failure
to do so can result in personal injury.
• Use only ECHO eFORCE™ 56V series batteries and chargers. Other
batteries and chargers may cause damage to the mower or injure the
operator.
• Do not dispose of the battery in a fire. The cells could catch fire or explode.
Check with local codes and waste management for proper disposal
instructions.
• When battery is not in use, keep it away from other metal objects, like
paper clips, coins, keys, nails, screws or other small metal objects that
can make a connection from one terminal to another. Shorting the battery
terminals together may cause burns or a fire.
• Do not open or destroy the battery. Electrolytes contained within the
battery are corrosive and may cause damage to eyes or skin if released. It
may be toxic if swallowed.
• Under abusive conditions, liquid may be ejected from the battery; avoid
contact. If contact accidentally occurs, flush with water. If liquid contacts
eyes, additionally seek medical help. Liquid ejected from the battery may
cause irritation or burns.
• Do not expose a battery or appliance to fire or excessive temperature.
Exposure to fire or temperature above130°C may cause explosion.
• Exercise care in handling batteries to avoid shorting the battery with
conducting materials such as rings, bracelets, keys, etc. The battery or
conductor may overheat and cause burns if contact with said materials is
made.
• Do not use a battery or appliance that is damaged or modified. Damaged
or modified batteries may exhibit unpredictable behavior resulting in fire,
explosion or risk of injury.
Service/Maintenance
• Check the blade and the motor (machine) mounting bolts at frequent
intervals for proper tightness.
• Replace the blade if it is bent or cracked. An unbalanced blade causes
vibration that could damage the motor drive unit or cause personal injury.
• Keep all nuts, bolts, and screws tight in order to ensure the equipment is
in safe working condition.
• Do not wash with a hose; avoid getting water in motor and electrical connections.
• Never remove or tamper with safety devices. Check their proper operation
regularly. Never do anything to interfere with the intended function of a
safety device or to reduce the protection provided by a safety device.
• Keep mower free of grass, leaves, or other debris build up. Allow mower to

11
DLM-2100
99922238025
© 09/2022 ECHO Incorporated
SAFETY
cool before storing.
• Never make any adjustments or repairs with the motor running.
• Always remove battery from mowers before adjusting, cleaning, or repairing.
• Check grass catcher components and the discharge guard frequently and
replace with manufacturer’s recommended parts, when necessary.
• Sharpen a dull blade equally at each end to maintain the balance.
• Keep guards in place and in working order. Mower blades are sharp, and can
cut. Wrap the blades or wear gloves, and use extra caution when servicing.
• Clean the blade thoroughly and check its balance by supporting it
horizontally on a thin nail through its center hole. The nail should also be in
a horizontal position. If either end of the blade rotates downward, remove
some metal from the heavy or lower end until the blade is balanced. It is
balanced when neither end drops.
• Use identical replacement blades only.
• Maintain lawn mower with care. Keep cutting edges sharp and clean
for best and safest performance. Follow instructions for lubricating and
changing accessories. Inspect lawn mower cord periodically and if
damaged, have it repaired by an authorized service facility.
• If situations occur that are not covered in this manual, use care and good
judgment or contact Customer Service for assistance.
• Never operate the mower without proper guards, plates, or other safety
protective devices in place.
• Before each use, examine the machine for damaged, missing, or loose
parts such as screws, nuts, bolts and caps.
• Tighten correctly all the fasteners and caps.
• Clean the machine with a dry cloth. Do not use water.
• Have servicing performed by a qualified repair person using only identical
replacement parts. This will ensure that the safety of the product is
maintained.
• Do not modify or attempt to repair the mower or the battery (as applicable)
except as indicated in the instructions for use and care.
• Never service damaged batteries. Service of batteries should only be
performed by the manufacturer or authorized service providers.

DLM-2100
9992223802512
© 09/2022 ECHO Incorporated
SAFETY
The recommended ambient temperature range:
Item Temperature
Mower storage temperature range 32 ˚F (0 ˚C) ~ 113 ˚F (45 ˚C)
Mower operation temperature range 32 ˚F (0 ˚C) ~ 113 ˚F (45 ˚C)
Battery charging temperature 39 ˚F (4 °C) ~ 104 ˚F (40 ˚C)
Charger operation temperature range 39 ˚F (4 °C) ~ 104 ˚F (40 ˚C)
Battery storage temperature range 32 ˚F (0 ˚C) ~ 113 ˚F (45 ˚C)
Battery discharging temperature range 32 ˚F (0 ˚C) ~ 113 ˚F (45 ˚C)
Slope Operation
Slopes are a major factor related to slip-and-fall accidents, which can result in
severe injury. Operation on slopes requires extra caution. If you feel uneasy on
a slope, do not mow it.
Do:
• Mow across the face of slopes; never mow up and down. Exercise
extreme caution when changing direction on slopes.
• Watch for holes, roots, rocks, hidden objects, or bumps which can cause
you to slip or trip. Tall grass can hide obstacles. Remove all obstacles
such as rocks and tree limbs.
• Make sure that your footing is stable. If you have lost your balance,
release the switch immediately.
Do not:
• Mow near drop-offs, ditches or embankments; you could lose your footing
or balance.
• Mow slopes greater than 15 degrees.
• Mow on wet grass. Unstable footing could cause slipping.
If you are not comfortable, do not mow on a slope.

13
DLM-2100
99922238025
© 09/2022 ECHO Incorporated
SAFETY
Environmentally Safe Battery Disposal
The toxic and corrosive materials below are in the batteries used in this
machine: Lithium-Ion, a toxic material.
Discard all toxic materials in a specied manner to prevent contamination of
the environment. Before discarding damaged or worn out Li-ion battery, contact
your local waste disposal agency, or the local Environmental Protection Agency
for information and specic instructions. Take the batteries to a local recycling
and/or disposal center, certied for lithium-ion disposal.
If the battery cracks or breaks, with or without leaks, do not recharge it and do
not use. Discard it and replace with a new battery. DO NOT TRY TO REPAIR
IT! To prevent injury and risk of re, explosion, or electric shock, and to avoid
damage to the environment:
• Cover the terminals of the battery with heavy-duty adhesive tape.
• DO NOT try to remove or destroy any of the battery components.
• DO NOT try to open the battery.
• If a leak develops, the released electrolytes are corrosive and toxic. DO
NOT get the solution in the eyes or on skin, and do not swallow it.
• DO NOT put these batteries in your regular household trash.
• DO NOT incinerate.
• DO NOT put them where they will become part of any waste landll or
municipal solid waste stream.
• Take them to a certied recycling or disposal center.

DLM-2100
9992223802514
© 09/2022 ECHO Incorporated
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy, and if not
installed and used in accordance with the instructions, may cause
harmful interference to radio or television reception. The reception
can be determined by turning the equipment off and on. The user is
encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference
that may cause undesired operation.
SAFETY

15
DLM-2100
99922238025
© 09/2022 ECHO Incorporated
DESCRIPTION
DESCRIPTION
Locate the safety label(s) on your unit. Make sure the label(s) is legible and
that you understand and follow the instructions on it. If a label cannot be read,
a new one can be ordered from your ECHO dealer. Safety label is for example
only. Your label my appear slightly different.
1
3
2
4
5
6
7
8
10
9
56V
MAX - 21
DLM-2100 Made in China
FabriquØ en Chine
Hecho en China
PUSH LAWN MOWER
TONDEUSE  POUSSER
CORTACSPED DE EMPUJE
Build date:
SN:
QR:
1›››››-800›››› -432-3246
Conforms to UL STD. 1447; Certified to CSA STD. C22.2 No.147
Conforme  la norme UL STD. 1447; CertifiØ  la norme CSA C22.2 No.147
Conformado a UL STD. 1447; Certificado a CSA STD. C22.2 No.147
5021527
ECHO Incorporated
400 Oakwood Road
Lake Zurich, IL 60047
WARNING:
AVERTISSEMENT:
ADVERTENCIA:
For safe operation,read andunderstandtheinstructionmanual.To reducetherisk of electricshock, donotexposetowateror operateonwetground.
Replacedamagedparts immediately.Removethebatterypackbeforeservicingor removingblade.Do notreachunderbladeguard.Donotoperateon
inclinesgreaterthan15.Donotoperatewithin100ft. of peopleor animals.Lookdownand behindbeforeandwhilemovingbackwards.Removeobjectsthatcouldbethrownby
theblade.Toreducetherisk ofeye injury,alwaysweareyeprotection.Toreducetheriskof injury,inspectgrasscatchbagfrequentlyandreplacewithrecommendedreplacement
if therearesignsof wearordeterioration.To reducetherisk ofinjury,donotoperatelawnmowerunlessgrasscatchbagis attached.Toreducerisk ofinjurytopersons,remove
batterypack whennotinuse.Donotoperatewithoutguardsinplace.Storeindoorsonly,avoidmoistureorwater.Donotopenor removesafetyshieldswhilemachineis running.
Meets CPSC blade safety requirements. For use only with ECHO eFORCE 56V battery series. Seeoperator’s manual for list of compatible model numbers.
PouruneutilisationsØcuritaire,assurez-vousde lireet decomprendrelemanueldinstructions.Pourdiminuerles risquesdechoc
Ølectrique,ne pasmouillerl’appareilnil’utilisersurun solhumide.RemplacezimmØdiatementles piŁcesendommagØes.Retirez
lebloc-pilesavantdeffectuerlentretienouderetirerla lame.Nepassezpasla mainsousle protŁge-lame.NetondezpasdansunepenteinclinØe plusde15.Nutili-
sez pas larticle
 moinsde30,48 m dautrespersonnesoudanimaux.RegardezderriŁrevousavantdereculeret en reculant.RetirezlesobjetsquipourraientŒtre
projetØsparla lame. Pourreduirele risquedeblessureaux yeux,portezdes lunettesde protection.PourrØduirele risquede blessures,inspectezrØguliŁrementle
dispositifdefixationdubacet remplacez-leparunepiŁcerecommandØeen prØsencedesignesd’usureoude dØtØrioration.PourrØduireles risquesdeblessure,
nutilisezpas la tondeuse gazonsi ellenestpasØquipØedunsac. PourrØduireles risquesde blessures,retirezla batterielorsquevousn’utilisezpasl’appareil.
Nepas faire fonctionnersans quetousles dispositifsdeprotectionsoientenplace.Entreposer lintØrieurseulement, labride lhumiditØou deleau.Ne pas
ouvrirniretirerles protectionsde sØcuritØpendantquela machineesten marche.Conformeaux exigencesde la CPSC sur la sØcuritØdeslames.  utiliser
uniquement avec la sØrie de batteries ECHO eFORCE 56V. Voir le manuel de l’opØrateur pour la liste des numØros de modŁle compatibles.
Para contarconun funcionamientoseguro,lea y comprendael manualdeinstrucciones.Para reducirel riesgode
descargaelØctrica,nola expongaal aguanila manejecuandoel sueloestØmojado.Reemplacelas piezasdaæadas
inmediatamente.Retireelpaquetedebaterasantesdedarmantenimientoo deretirarlacuchilla.Notoquedebajodela cubiertaprotectorade lacuchilla.
Noutilicelaunidadenpendientessuperioresa 15”. Nolautilicea menosde30,48 metrosde personaso animales.Mirehaciaabajoy haciaatrÆsantes
demoverlay mientraslohace. Retirelosobjetosquela cuchillapudieralanzar.Parareducirelriesgodelesionesoculares,utilicegafasdeseguridad.
Parareducirelriesgodelesiones,compruebeconregularidadla bolsade recoleccindecØspedy si hayseæalesdeuso ydeteriorosustitœyalocon
piezasrecomendadas.Parareducirelriesgodelesiones,noutiliceelcortacØspeda menosquelabolsaderecoleccinde cØspedestØfijado.Para
reducirelriesgode lesionespersonales,quitela bateracuandonovayaa utilizarel equipo.Noutiliceelequiposinlos mediosde proteccin
instalados.Alrealizaroperacionesdereparaciny mantenimiento,utilicesol piezas derepuestoidØnticas.Guardesoloen el interior.Evite
exponerloa lahumedado al agua.No abraniquitelosprotectoresdeseguridadmientraslamÆquinaestÆenfuncionamiento.Cumpleconlos
requisitosde seguridadparala cuchillade la CPSC. Slopara usocon la seriede baterasECHOeFORCE 56V. Consulteelmanualdel
operador para ver la lista de nœmeros de modelos compatibles.
CAN ICES-003(B) / NMB-003(B)

DLM-2100
9992223802516
© 09/2022 ECHO Incorporated
DESCRIPTION
1. Start button
2. Start handle
3. Upper handle
4. Lower handle
5. Rear discharge door
6. Height adjustment lever
7. Battery door
8. Grass catcher
9. Side discharge chute (sold separately)
10. Mulch plug

17
DLM-2100
99922238025
© 09/2022 ECHO Incorporated
DESCRIPTION
Preparation For Use
Do not damage the cable while installing the upper handle.
Install the Upper Handle
1. Place the mower upright in vertical
position.
2. Remove the packing material from
the cable.
3. Remove the rubber edge guard
from the upper handle.
4. Insert the upper handle (3) into the
lower handle (4).
5. Put the bolts (25) through the holes
and tighten with the nuts (26).
25
26
3
4

DLM-2100
9992223802518
© 09/2022 ECHO Incorporated
DESCRIPTION

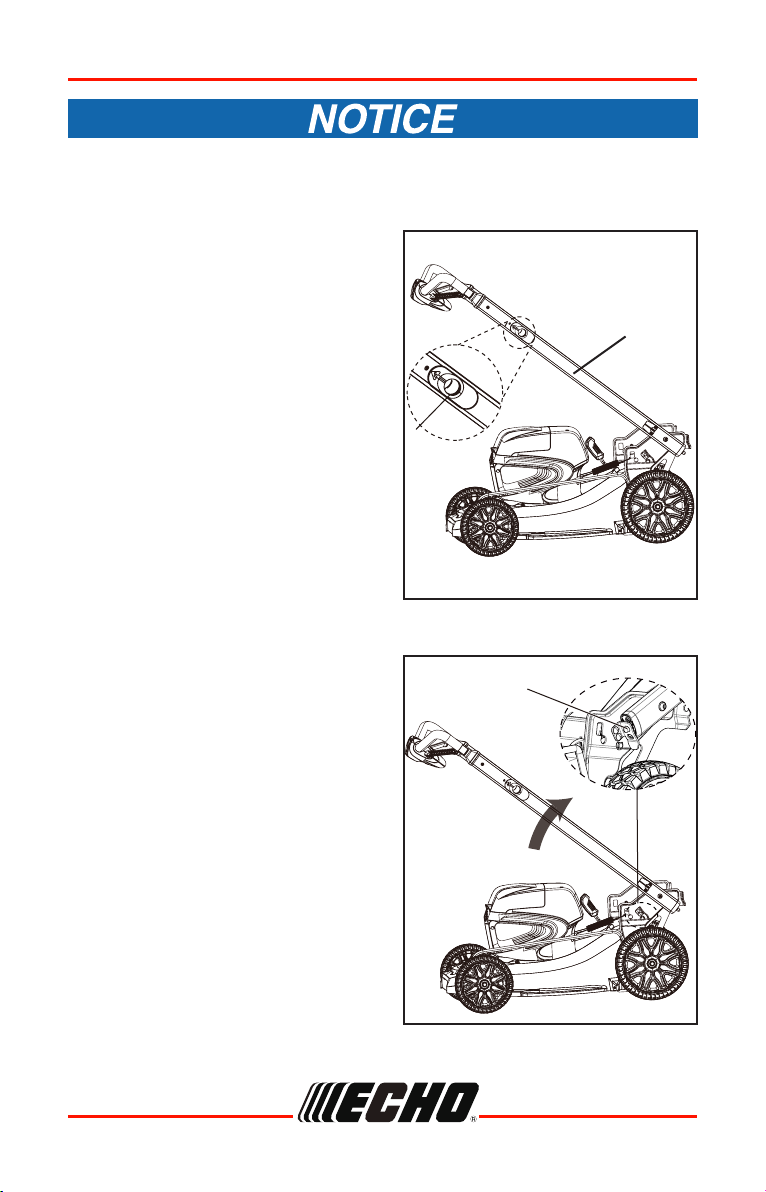

Make sure that the two handle pins are in the same position.
Unfold the Lower Handle
1. Pull up on the handle holes (13) to
release the lower handles (4).
2. Fold the lower handle up until the
handle pins (27) lock into position.
13
4
27

19
DLM-2100
99922238025
© 09/2022 ECHO Incorporated
DESCRIPTION
Install the Grass Catcher
1. Remove the battery and safety key.
2. Remove the mulch plug.
3. Remove the side discharge chute.
4. Open the rear discharge door and
hold it.
5. Hold the the grass catcher (8) by its
handle and engage the hooks (14)
on the door rod (15).
6. Close the rear discharge door.
8
5
15
14
Mower Functions
In general, a lawn mower is featured with three functions (rear bagging/
mulching/ side discharging). These functions can be converted by changing
accessories. Please see the following table for detail setting.
To Convert Mower Mulch Plug Grass Bag
Side Discharge
Chute(sold
separately)
For rear bagging ×√×
For mulching √× ×
For side discharging
√×√
10

DLM-2100
9992223802520
© 09/2022 ECHO Incorporated
DESCRIPTION
1. Remove the battery and safety key.
2. Open the side discharge door (16)
and hold it.
3. Line up the recesses of the side
discharge chute (9) below the pivot.
4. Close the side discharge door.
Install the Mulch Plug
1. Remove the battery and safety key.
2. Remove the grass catcher.
3. Open the rear discharge door (5)
and hold it.
4. Hold the mulch plug (10) by its
handle and t it in the discharge
chute.
5. Close the rear discharge door.
Install the Side Discharge Chute (sold separately)
When you use the side discharge chute,
• Do not install the grass catcher.
• Keep the mulch plug installed.
5
10
16
9
