X7507840200
©2/22 ECHO Inc.
Operator’s
Manual
RB-85/S
Broadcast
Spreader
INTRODUCTION RB-85/S
2 X7507840200
©2/22 ECHO Inc.
INTRODUCTION
Specifications, descriptions, and illustrative material in this literature are as
accurate as possible. Specifications are subject to change without notice.
Illustrations might include optional equipment and accessories, and might
not include all standard equipment. Your equipment might appear slightly
different than pictured equipment.
Read and understand all provided literature.
Literature contains specifications and
information for safety, operation,
maintenance, storage, and assembly
specific to this product. Scan QR codes for
more information.
For additional literature, including safety manuals where applicable, or
questions regarding terms used in this manual, visit:
https://www.echo-usa.com/manuals
OR
https://www.shindaiwa-usa.com/manuals
RB-85/S SERVICING INFORMATION
X7507840200 3
©2/22 ECHO Inc.
SERVICING INFORMATION
Parts and Serial Number
Genuine ECHO parts and
assemblies for your ECHO products
are available only from an
Authorized ECHO Dealer. When
you do need to buy parts always
have the model number and serial
number of the unit with you. For
future reference write them in the
space provided below.
Model No. _____________________ Serial No. ____________________
Service
Service of this product during the warranty period must be performed by an
Authorized ECHO Service Dealer. For the name and address of the
Authorized ECHO Service Dealer nearest you, ask your retailer or call:
1-800-432-ECHO (3246). Dealer information is also available on our Web
Site www.echo-usa.com. When presenting your unit for Warranty service/
repairs, proof of purchase is required.
ECHO Consumer Product Support
If you require assistance or have questions concerning the application,
operation, or maintenance of this product, call the ECHO Consumer
Product Support Department at 1-800-432-ECHO (3246) from 8:00 a.m. to
5:00 p.m. (Central Standard Time) Monday through Friday. Before calling,
please know the model and serial number of your unit.
Product Registration
Register your ECHO equipment online at www.echo-usa.com or by filling
out the product registration sheet included in this manual. Registering your
product confirms warranty coverage and provides a direct link to ECHO if
we find it necessary to contact you.
Additional Literature
In addition to finding information online, information is available from your
Authorized ECHO Service Dealer, or by contacting ECHO Incorporated,
400 Oakwood Road, Lake Zurich, IL 60047, 1-800-432-ECHO (3246).
SAFETY RB-85/S
4 X7507840200
©2/22 ECHO Inc.
SAFETY
Safety Information
Carefully read these instructions before use. Improper use or
failure to follow instructions can result in product failure or
injuries. For safe use of this product you must read and follow
all instructions before using.
Cancer and Reproductive Harm
www.P65Warnings.ca.gov
◆Do not allow anyone to operate the broadcast spreader
without proper instructions.
◆Do not permit children to operate the broadcast spreader.
◆Wear all personal protective equipment recommended by
chemical manufacturer.
◆Read and follow the chemical label instructions and
warnings for handling and applying the chemicals you plan
to spread – application settings provided are only a
guideline.
RB-85/S DESCRIPTION
X7507840200 5
©2/22 ECHO Inc.
DESCRIPTION

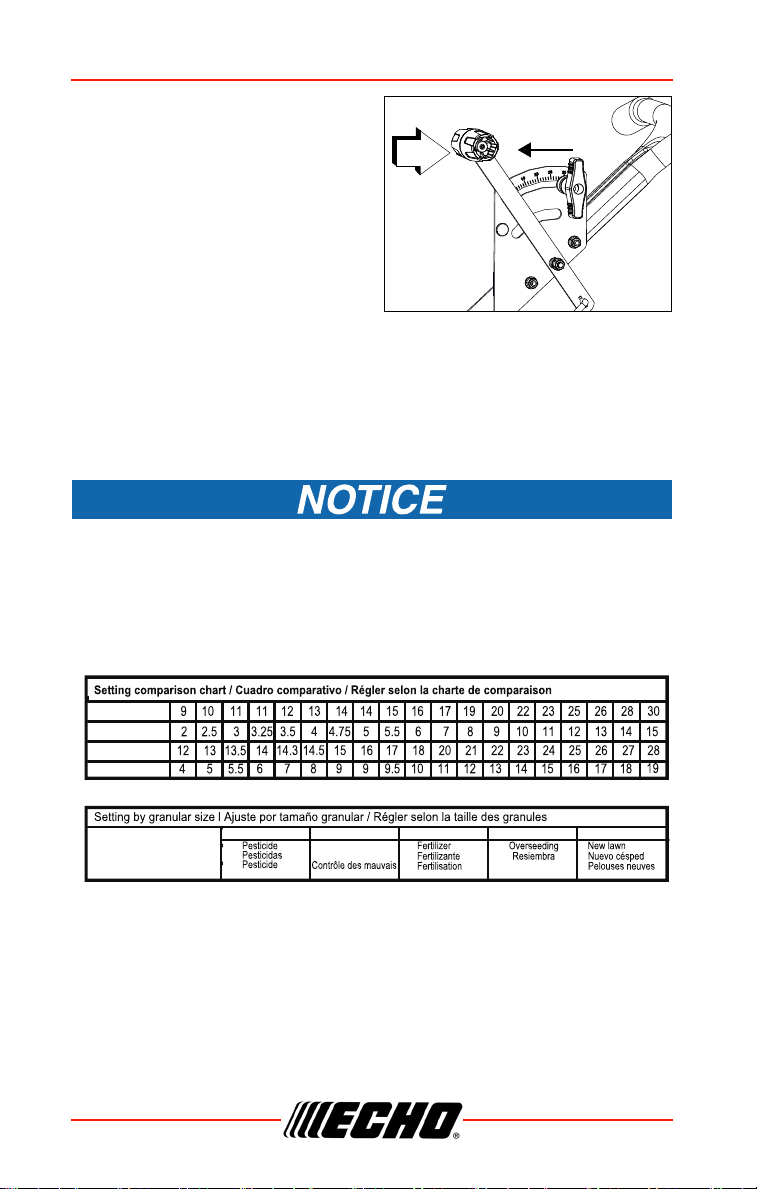

Locate the safety decal(s) on your unit. Make sure the decal(s) is legible
and that you understand and follow the instructions on it. If a decal cannot
be read, a new one can be ordered from your dealer. The safety decal is for
example only. Your label may appear slightly different.
7
3
2
4
1
6
Scotts
ECHO
Earthway
Setting
1 - 10
11 - 12 13 - 14 16 - 17 20 - 30
Weed Control
Start walking, then open the gate using the
Ajuste
Réglage
Control de hierba
herbes
Sursemer
afin d'effectuer le réglage optimal pour
ce matériel.
Consulte las instrucciones sobre el
LESCO
Gate Adjustment on the handlebar. / Comience
a caminar, luego abra la puerta usando el
ajuste de la manija. / Commencez à marcher
et ouvrez la vanne utilisant l'ajustement
de vanne située sur les guidons.
X532006010
With the spreader gate closed, fill spreader
hopper. / Con la puerta del distribuidor
cerrada, llene la tolva del distribuidor. / Avec
la trappe d'alimentation fermée, emplir le
trémie de l'épandeur.
5
CONTENTS RB-85/S
6 X7507840200
©2/22 ECHO Inc.
CONTENTS
The product you purchased has been partially factory pre-assembled for
your convenience. Due to packaging restrictions, some assembly may be
necessary.
After opening the carton, check for damage. Immediately notify your retailer
or Dealer of damaged or missing parts. Use the contents list to check for
missing parts.
1 Handles
2 Hopper
3 Wheels
4 Adjustable Deflector
5 Upper Control Rod
6 Gate Control Lever
7 Gate Adjustment Limiter
1 Hopper Assembly
2 Wheels
1 Upper Handle Assembly
1 Upper Control Rod
1 Lower Control Rod
1 Hinge Assembly
2 5 x 60 Bolts
15x50Bolt
4 Flange nuts
1HexNut
1 Washer
1CotterPin
1 Clevis Pin
1 Spiked Auger
1Grate
1 Hopper Cover
1 Rear Deflector
1 Operator’s Manual
RB-85/S ASSEMBLY
X7507840200 7
©2/22 ECHO Inc.
ASSEMBLY
Install Wheels and Handle
1. Install right wheel and
secure with washer (A)
cotter pin (B).
2. Install left wheel and
secure with 6 x 50 mm
bolt (C) and 6 mm flange
nut (D).
1 Warranty Statement
A
B
C
D
ASSEMBLY RB-85/S
8 X7507840200
©2/22 ECHO Inc.
3. Install upper handle
assembly (E) into lower
handle bracket (F). Attach
hinge (G) oriented as
shown, and secure with
two 6 x 60 mm bolts (H)
and two 6 mm flange nuts
(I).
Install Control Rods
1. Insert tab end of upper
control rod (A) into slotted
hole in gate control lever
(B). Turn rod clockwise
until it is parallel with
handle assembly.
E
F
G
H
I
B
A
RB-85/S ASSEMBLY
X7507840200 9
©2/22 ECHO Inc.
2. Thread 6 mm nut (C) onto
end of upper control rod to
a distance of 25.4 mm (1
in) from bottom of rod.
Insert threaded end of rod
into hole in hinge arm (D).
Then thread 6 mm flange
nut (E) onto rod.
3. Insert lower control rod (F)
into hinge (G), as shown.
4. Insert other end of lower
control rod into hole in
gate control (H), as
shown, and secure with
clevis pin (I).
Note: Some parts removed
from graphic for
clarity.
1.0 in
(25 mm)
C
D
E
F
G
H
I
ASSEMBLY RB-85/S
10 X7507840200
©2/22 ECHO Inc.
5. Pull lower control rod (F)
backward until gate is fully
closed.
6. Position gate control lever
fully forward, and tighten
upper control rod nut and
flange nut as shown.
F
