Echo SRM-225 User manual

X7722279402
© 2/2016 ECHO Inc.
Operator’s Manual
Specifications, descriptions and illustrative material in this literature are as
accurate as known at the time of publication, but are subject to change
without notice. Illustrations may include optional equipment and
accessories, and may not include all standard equipment.
x7722271404 / x772000164
SRM-225
GRASS TRIMMER /
BRUSH CUTTER
Burn Hazard
The muffler or catalytic muffler and surrounding cover may
become extremely hot.
Always keep clear of exhaust and muffler area, otherwise
serious personal injury may occur.
The engine exhaust from this product contains chemicals known to the
State of California to cause cancer, birth defects or other reproductive
harm.

TABLE OF CONTENTS SRM-225
2 X7722279402
© 2/2016 ECHO Inc.
Users of this equipment risk injury to themselves and others if
the unit is used improperly and/or safety precautions are not
followed. ECHO provides an operator’s manual and a safety
manual. Both must be read and understood for proper and safe
operation. Failure to do so could result in serious injury.
TABLE OF CONTENTS
Table of Contents .............................................................................................. 2
Introduction ....................................................................................................... 4
The Operator’s Manual .............................................................................. 4
The Safety Manual..................................................................................... 4
Servicing Information ........................................................................................ 4
Parts/Serial Number .................................................................................. 4
Service....................................................................................................... 4
Echo Consumer Product Support .............................................................. 5
Product Registration .................................................................................. 5
Additional or Replacement Manuals .......................................................... 5
Safety ................................................................................................................ 5
Manual Safety Symbols and Important Information ................................... 5
International Symbols ................................................................................ 6
Personal Condition and Safety Equipment ................................................ 8
Equipment................................................................................................ 12
Emission Control (Exhaust & Evaporative) .................................................... 13
CARB And EPA Emissions Control Information....................................... 13
Description ...................................................................................................... 14
Contents.......................................................................................................... 17
Assembly......................................................................................................... 18
Shield Installation..................................................................................... 18
Nylon Line Head Installation .................................................................... 18
To Advance Trimmer Line ........................................................................ 19
Remove Nylon Line Head ........................................................................ 20
Support Handle Installation...................................................................... 20
Operation ........................................................................................................ 20
Operation With Blades ............................................................................. 21
Blade Selection........................................................................................ 22
Fuel.......................................................................................................... 23
Starting Cold Engine................................................................................ 25
Starting Warm Engine.............................................................................. 26
Stopping Engine ...................................................................................... 28

X7722279402 3
© 2/2016 ECHO Inc.
SRM-225 TABLE OF CONTENTS
Maintenance.................................................................................................... 28
Skill Levels ............................................................................................... 28
Maintenance Intervals .............................................................................. 29
Air Filter.................................................................................................... 30
Fuel Filter ................................................................................................. 30
Spark Plug................................................................................................ 31
Cooling System ........................................................................................ 31
Exhaust System ....................................................................................... 33
Carburetor Adjustment ............................................................................. 34
Lubrication................................................................................................ 35
Nylon Line Head Disassembly Instructions .............................................. 36
Nylon Line Replacement .......................................................................... 37
Sharpening Metal Blades ......................................................................... 38
Troubleshooting ............................................................................................... 40
Storage ............................................................................................................ 41
Long Term Storage (Over 30 Days) ......................................................... 41
Specifications .................................................................................................. 43
Notes ............................................................................................................... 45
Product Registration ........................................................................................ 46
Notes ............................................................................................................... 48

INTRODUCTION SRM-225
4 X7722279402
© 2/2016 ECHO Inc.
INTRODUCTION
Welcome to the ECHO family. This ECHO product was designed and
manufactured to provide long life and on-the-job dependability. Read and
understand this manual and the SAFETY MANUAL. You will find both easy to
use and full of helpful operating tips and SAFETY messages.
The Operator’s Manual
Keep it in a safe place for future reference. Contains specifications and
information for safety, operation, maintenance, storage and assembly specific to
this product.
The Safety Manual
Keep it in a safe place for future reference. Explains possible hazards and the
measures you should take to insure safe operation.
SERVICING INFORMATION
Parts/Serial Number
Genuine ECHO Parts and ECHO
REPOWER™ Parts and
Assemblies for your ECHO
products are available only from
an Authorized ECHO Dealer.
When you do need to buy parts
always have the Model Number
and Serial Number of the unit with
you. You can find these numbers
on the engine housing. For future
reference, write them in the space
provided below.
Model No. _________________
SN. ___________________
Service
Service of this product during the warranty period must be performed by an
Authorized ECHO Service Dealer. For the name and address of the Authorized
ECHO Service Dealer nearest you, ask your retailer or call: 1-800-432-ECHO
(3246). Dealer information is also available on our Web Site. When presenting
your unit for Warranty service/repairs, proof of purchase is required.

X7722279402 5
© 2/2016 ECHO Inc.
SRM-225 SAFETY
Echo Consumer Product Support
If you require assistance or have questions concerning the application,
operation or maintenance of this product you may call the ECHO Consumer
Product Support Department at 1-800-673-1558 from 8:00 am to 5:00 pm
(Central Standard Time) Monday through Friday. Before calling, please know
the model and serial number of your unit.
Product Registration
To ensure trouble free warranty coverage it is important that you register your
ECHO equipment on-line at www.echo-usa.com or by filling out the product
registration sheet included in this manual. Registering your product confirms
your warranty coverage and provides a direct link between you and ECHO if we
find it necessary to contact you.
Additional or Replacement Manuals
Replacement Operator, Safety Manuals, and Parts
Catalogs are available from your ECHO dealer or at
www.echo-usa.com or by contacting ECHO Inc., 400
Oakwood Road, Lake Zurich, IL 60047 (800-673-1558).
Always check the ECHO Web Site for updated information.
Safety Videos are available from your Echo dealer. A $5.00 shipping charge
will be required for each video.
SAFETY
Manual Safety Symbols and Important Information
Throughout this manual and on the product itself, you will find safety alerts and
helpful, informational messages preceded by symbols or key words. The
following is an explanation of those symbols and key words and what they mean
to you.
The safety alert symbol accompanied by the word “DANGER” calls
attention to an act or condition which WILL lead to serious
personal injury or death if not avoided.
The safety alert symbol accompanied by the word “WARNING”
calls attention to an act or condition which CAN lead to serious
personal injury or death if not avoided.

SAFETY SRM-225
6 X7722279402
© 2/2016 ECHO Inc.
The safety alert symbol accompanied by the word “CAUTION” calls
attention to an act or condition which may lead to minor or
moderate personal injury if not avoided.
The enclosed message provides information necessary for the
protection of the unit.
Note: This enclosed message provides tips for use, care and
maintenance of the unit.
CIRCLE AND SLASH SYMBOL
This symbol means the specific action shown is prohibited.
Ignoring these prohibitions can result in serious or fatal injury.
International Symbols
Symbol Description Symbol Description
Warning, See
Operator’s Manual
Carburetor Adjustment -
High Speed Mixture
Wear Eye, Ear and
Head Protection
Carburetor Adjustment -
Idle Speed
Wear Hand
and Foot Protection
Carburetor Adjustment -
Low Speed Mixture
Safety/Alert Emergency Stop
Hot Surface Fuel and Oil Mixture

X7722279402 7
© 2/2016 ECHO Inc.
SRM-225 SAFETY
AVOID KICKOUT.
Keep Bystanders At Least
15 meters (50 feet) Away.
Beware Thrown Objects
Wear Eye Protection
DO NOT Allow Flames
or Sparks Near Fuel
Ignition
ON / OFF
DO NOT Smoke Near
Fuel Primer Bulb
Choke Control “RUN”
Position (Choke Open)
Choke Control “COLD
START” Position (Choke
Closed)
Keep Feet Away
From Blade
Rotating Cutting
Attachment
Keep Bystanders and Helpers
Away 15 m (50 ft.).
Thrown
Objects
Direction of
Blade
Symbol Description Symbol Description

SAFETY SRM-225
8 X7722279402
© 2/2016 ECHO Inc.
Personal Condition and Safety Equipment
Users of this product risk injury to themselves and others if the unit
is used improperly and/or safety precautions are not followed.
Proper clothing and safety gear must be worn when operating unit.
Physical Condition
Your judgment and physical dexterity may not be good:
• If you are tired or sick.
• If you are taking medication.
• If you have taken alcohol or drugs.
Operate unit only if you are physically and mentally well.
Eye Protection
◆Eye protection that meets ANSI Z87.1 or CE requirements
must be worn whenever you operate the unit.
◆For additional safety, a full-face shield may be worn over
safety glasses or goggles to provide protection from sharp
branches or flying debris.
Hand Protection
Wear sturdy, no-slip, rubber work gloves to improve your grip on the handles.
Gloves also provide protection against cuts and scratches, cold environments,
and reduce the transmission of machine vibration to your hands.
Hearing/Ear Protection
ECHO recommends wearing hearing protection whenever unit is used.
Breathing Protection
Operators who are sensitive to dust or other common airborne allergens may
need to wear a dust mask to prevent inhaling these materials while operating
unit. Dust masks can provide protection against dust, plant debris, and other
plant matter such as pollen. Make sure the mask does not impair your vision,
and replace the mask as needed to prevent air restrictions.
Proper Clothing
Wear snug-fitting, durable clothing:

X7722279402 9
© 2/2016 ECHO Inc.
SRM-225 SAFETY
• Pants should have long legs, shirts should have long sleeves.
• DO NOT WEAR SHORTS.
• DO NOT WEAR TIES, SCARVES, JEWELRY, or clothing with loose or
hanging items that could become entangled in moving parts or surrounding
growth.
• Keep clothing buttoned or zipped, and keep shirt tails tucked in.
Wear sturdy work shoes with nonskid rubber soles:
• DO NOT WEAR OPEN TOED SHOES.
• DO NOT OPERATE UNIT BAREFOOTED.
Keep long hair away from engine and air intake. Retain hair with cap or net.
Heavy protective clothing can increase operator fatigue, which may lead to heat
stroke. Schedule heavy work for early morning or late afternoon hours when
temperatures are cooler.
The components of this machine generate an electromagnetic field
during operation, which may interfere with some pacemakers. To
reduce the risk of serious or fatal injury, persons with pacemakers
should consult with their physician and the pacemaker
manufacturer before operating this machine. In the absence of
such information, ECHO does not recommend the use of this
machine by anyone who has a pacemaker.
Extended Operation / Extreme Conditions
Prolonged exposure to cold and/or vibration may result in injury.
Read and follow all safety and operation instructions to minimize
risk of injury. Failure to follow instructions may result in painful
wrist/hand/arm injuries.
It is believed that a condition called Raynaud’s Phenomenon, which affects the
fingers of certain individuals, may be brought about by exposure to vibration
and cold. Exposure to vibration and cold may cause tingling and burning
sensations, followed by loss of color and numbness in the fingers. The following
precautions are strongly recommended, because the minimum exposure, which
might trigger the ailment, is unknown.

SAFETY SRM-225
10 X7722279402
© 2/2016 ECHO Inc.
• Keep your body warm, especially the head,
neck, feet, ankles, hands, and wrists.
• Maintain good blood circulation by performing
vigorous arm exercises during frequent work
breaks, and also by not smoking.
• Limit the hours of operation. Try to fill each
day with jobs where operating the unit or other
hand-held power equipment is not required.
• If you experience discomfort, redness, and
swelling of the fingers followed by whitening
and loss of feeling, consult your physician
before further exposing yourself to cold and vibration.

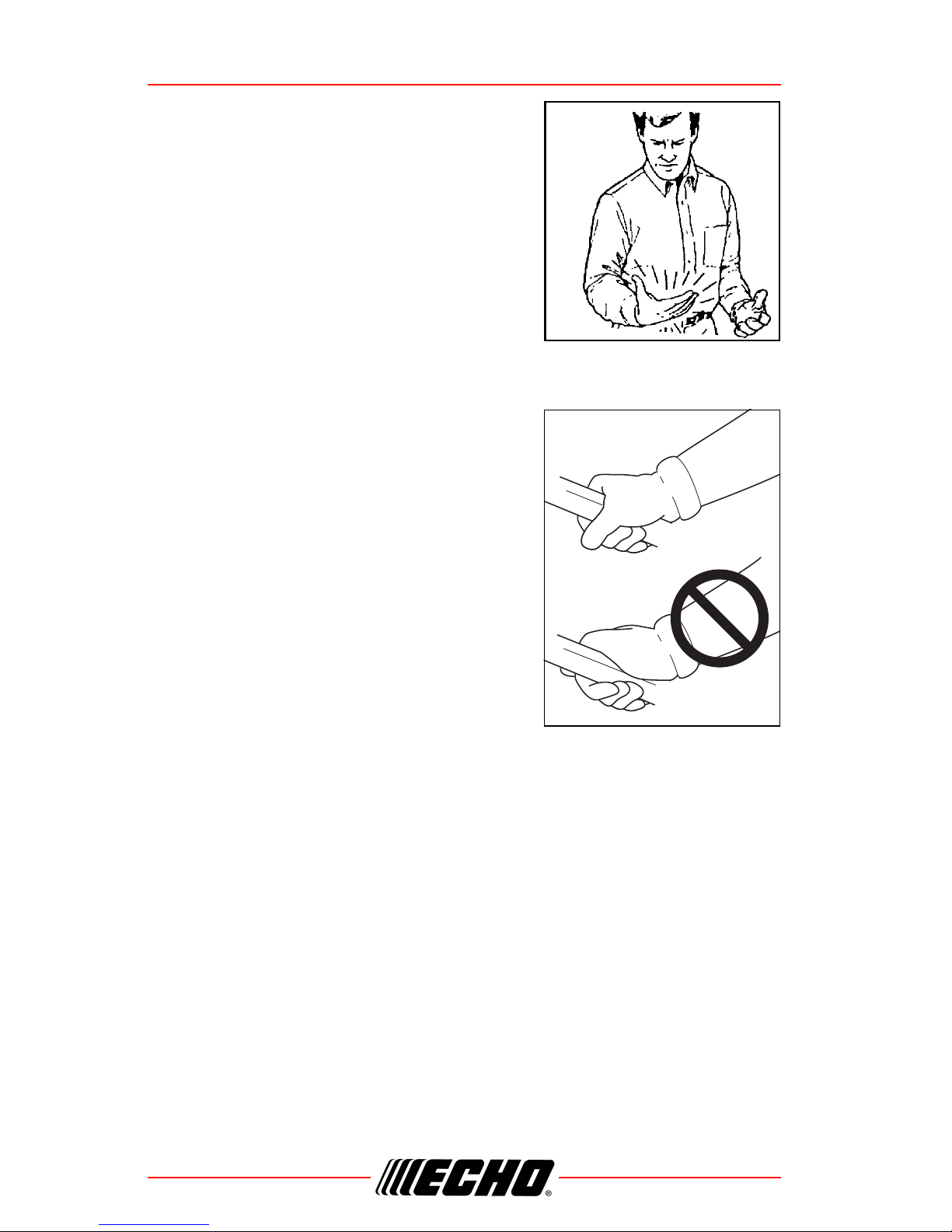

Repetitive Stress Injuries (RSI)
It is believed that overusing the muscles and
tendons of the fingers, hands, arms, and
shoulders may cause soreness, swelling,
numbness, weakness, and extreme pain in
those areas. Certain repetitive hand activities
may put you at a high risk for developing a
Repetitive Stress Injury (RSI). An extreme RSI
condition is Carpal Tunnel Syndrome (CTS),
which could occur when your wrist swells and
squeezes a vital nerve that runs through the
area. Some believe that prolonged exposure to
vibration may contribute to CTS. CTS can cause
severe pain for months or even years.
To reduce the risk of RSI/CTS, do the following:
• Avoid using your wrist in a bent, extended, or twisted position. Instead try to
maintain a straight wrist position. Also, when grasping, use your whole hand,
not just the thumb and index finger.
• Take periodic breaks to minimize repetition and rest your hands.
• Reduce the speed and force with which you do the repetitive movement.
• Do exercise to strengthen the hand and arm muscles.
• Immediately stop using all power equipment and consult a doctor if you feel
tingling, numbness, or pain in the fingers, hands, wrists, or arms. The sooner
RSI/CTS is diagnosed, the more likely permanent nerve and muscle damage
can be prevented.

X7722279402 11
© 2/2016 ECHO Inc.
SRM-225 SAFETY
All over head electrical conductors and communications wires can
have electricity flow with high voltages. This unit is not insulated
against electrical current. Never touch wires directly or indirectly,
otherwise serious injury or death may result.
Do not operate this product indoors or in inadequately ventilated
areas. Engine exhaust contains poisonous emissions and can
cause serious injury or death.
Read the Manuals
• Provide all users of this equipment with the Operator’s Manual and Safety
Manual for instructions on Safe Operation.
Clear the Work Area
• Spectators and fellow workers must be warned, and children and animals
prevented from coming nearer than 15 m (50 ft.) while the unit is in use.
Keep a Firm Grip
• Always hold throttle handle and support handle with thumbs and fingers
tightly encircling the handles.
Keep a Solid Stance
• Maintain footing and balance at all times. Do not stand
on slippery, uneven or unstable surfaces. Do not work in
odd positions or on ladders. Do not over reach. For more
information scan the QR code.
Avoid Hot Surfaces
• Keep exhaust area clear of flammable
debris. Avoid contact during and
immediately after operation.

SAFETY SRM-225
12 X7722279402
© 2/2016 ECHO Inc.
Equipment
Use only ECHO attachments. Serious injury may result from the
use of a non-approved attachment combination. ECHO, INC. will
not be responsible for the failure of cutting devices, attachments or
accessories which have not been tested and approved by ECHO.
Read and comply with all safety instructions listed in this manual
and safety manual.
• Check unit for loose/missing nuts, bolts, and screws. Tighten and/or replace
as needed.
• Inspect shield for damage and ensure that the cut-off knife is securely in
place. Replace if either is damaged or missing.
• Check that the cutting attachment is firmly attached and in safe operating
condition.
• Check that handle and harness (if included) are adjusted for safe,
comfortable operation. See Assembly Section for proper adjustment.
Moving parts can amputate fingers or cause severe injuries. Keep
hands, clothing and loose objects away from all openings.
◆ALWAYS stop engine, disconnect spark plug, and make sure
all moving parts have come to a complete stop before
removing obstructions, clearing debris, or servicing unit.
◆DO NOT start or operate unit unless all guards and protective
covers are properly assembled to unit.
◆NEVER reach into any opening while the engine is running.
Moving parts may not be visible through openings.
Periodically Check fuel system (fuel lines, vent, grommet,
fuel tank, and fuel cap) for leaks especially if the unit is
dropped. If damage or leaks are found, do not use unit,
otherwise serious personal injury or property damage may
occur. Have unit repaired by an authorized servicing dealer
before using.

X7722279402 13
© 2/2016 ECHO Inc.
SRM-225 EMISSION CONTROL
EMISSION CONTROL (EXHAUST &
EVAPORATIVE)
CARB And EPA Emissions Control Information
The emission control system for the
engine is EM (engine modification)
and, if the second to last character of
the Engine Family on the Emission
Control Information label (sample
below) is “B”, “C”, “K”, or “T”, the
emission control system is EM and
TWC (3-way catalyst). The fuel tank/
fuel line emission control system is
EVAP (evaporative emissions). Evaporative emissions for California models are
only applicable to fuel tanks.
An Emission Control Label is located
on the engine. (This is an EXAMPLE
ONLY, information on label varies by
engine FAMILY).
Product Emission Durability
(Emission Compliance Period)
The 50 or 300 hour emission
compliance period is the time span selected by the manufacturer certifying the
engine emissions output meets applicable emissions regulations, provided that
approved maintenance procedures are followed as listed in the Maintenance
Section of this manual.

DESCRIPTION SRM-225
14 X7722279402
© 2/2016 ECHO Inc.
DESCRIPTION
Locate the safety decal(s) on your unit. Make sure the decal(s) is legible and
that you understand and follow the instructions on it. If a decal cannot be read, a
new one can be ordered from your ECHO dealer. See PARTS ORDERING
instructions for specific information.
11 12
13
14
15
16
17
18
19
1
2
5
6
89
10
4
3
7

X7722279402 15
© 2/2016 ECHO Inc.
SRM-225 DESCRIPTION
1. POWER HEAD - Includes the Engine, Clutch, Fuel System, Ignition
System and Recoil Starter.
2. THROTTLE HANDLE - FOR RIGHT HAND - Contains Stop Switch,
Throttle Lockout, and Throttle Trigger.
3. THROTTLE TRIGGER LOCKOUT - This lever must be held during
starting. Operation of the throttle trigger is prevented unless throttle trigger
lockout lever is engaged.
4. STOP SWITCH - “SLIDE SWITCH” mounted on top of the Throttle Handle.
Move switch FORWARD to RUN, BACK to STOP.
5. SUPPORT HANDLE - FOR LEFT HAND - The support handle is factory
assembled to the Drive Shaft assembly but must be re-positioned for
proper cutting attitude and operator comfort.
6. DRIVE SHAFT ASSEMBLY - Includes the Throttle Handle, Gear Housing
assembly, Support Handle, Drive Shaft and Safety Decal.
7. NYLON CUTTER HEAD - Contains replaceable nylon trimming line that
advances when the trimmer head is tapped against the ground while the
head is turning at normal operating speed.
8. CUT-OFF KNIFE - Automatically trims line to the correct length: 13 cm (5
inches) after head is tapped on the ground. If trimmer is operated without a
cut-off knife, the line will become too long, the engine will overheat, and
engine damage may occur.
9. DEBRIS SHIELD with CUT-OFF KNIFE - Required when unit is equipped
with nylon line head. Do not operate unit without shield.
10. THROTTLE TRIGGER - Spring loaded to return to idle when released.
During acceleration, press trigger gradually for best operating technique
11. SPARK PLUG - Provides spark to ignite fuel mixture.
12. ARM REST - Provides arm rest during operation and protects arm from the
hot engine.
13. RECOIL STARTER HANDLE - Pull handle slowly until starter engages,
then quickly and firmly. When engine starts, return handle slowly. DO NOT
let handle snap back or damage to unit will occur.
Shaft Label
Hot Label

DESCRIPTION SRM-225
16 X7722279402
© 2/2016 ECHO Inc.
14. SPARK ARRESTOR MUFFLER OR SPARK ARRESTOR MUFFLER
WITH CATALYST -The muffler or catalytic muffler controls exhaust noise
and emission. The spark arrestor screen prevents hot, glowing particles of
carbon from leaving the muffler. Keep exhaust area clear of flammable
debris.
15. FUEL TANK - Contains fuel and fuel filter.
16. FUEL TANK CAP - Covers and seals fuel tank opening.
17. CHOKE - The choke control is located at the rear of the air cleaner
housing. Move choke lever to COLD START ( ) to close choke for cold
start. Move choke lever to “RUN” ( ) position to open choke.
18. AIR CLEANER - Contains replaceable filter element.
19. PURGE BULB - Pumping purge bulb before starting engine draws fresh
fuel from the fuel tank, purging air from the carburetor. Pump purge bulb
until fuel is visible and flows freely in the clear fuel tank return line. Pump
purge bulb an additional 4 or 5 times.

X7722279402 17
© 2/2016 ECHO Inc.
SRM-225 CONTENTS
CONTENTS
The ECHO product you purchased has been factory pre-assembled for your
convenience. Due to packaging restrictions, some assembly may be necessary.
After opening the carton, check for damage. Immediately notify your retailer or
ECHO Dealer of damaged or missing parts. Use the contents list to check for
missing parts.
_____ 1 - Power Head / Drive
Shaft Assembly
_____ 1 - Operator’s Manual
_____ 1 - Safety Manual
_____ 1 - Warranty Statement
_____ 1 - Safety Glasses
_____ 1 - Echo Power Blend XTM
2-Stroke Oil Sample

ASSEMBLY SRM-225
18 X7722279402
© 2/2016 ECHO Inc.
ASSEMBLY
Shield Installation
(Nylon line operation)
Shield with cutoff knife is for use
with the Nylon Line Head only.
Install shield without cutoff knife
when using plastic or metal
blades, or serious injury may
result.
1. Place the shield on the bottom of
the bearing housing flange.
2. Place shield plate (B) on shield,
align holes. Install three (3) screws
from bottom through plate and
shield into gear case.
3. Assemble adapter plate (C) onto
PTO shaft.
Nylon Line Head Installation
Wear Gloves or personal injury may result:
◆Cutoff knife is sharp.
◆Gearcase and surrounding area may be hot.
Parts Required: Debris Shield, Shield Plate,
three (3) 5 x 16 mm screws.
Parts Required: Nylon Line Head.
A
B
C

X7722279402 19
© 2/2016 ECHO Inc.
SRM-225 ASSEMBLY
1. Be sure adapter plate (C)
remains on PTO shaft (A).
2. Align locking hole in upper plate
with notch in edge of gear
housing and insert head locking
tool (D).
3. Thread line head (E) onto shaft
by turning it counterclockwise
until head is tight against adapter
plate (C).
4. Remove locking tool (D).
Semi-automatic nylon line heads
must be used only with debris
shield with cut-off knife. Using
nylonlineheadswithdebrisshield
without cutoff knife can result in
trimmer damage, caused by
operation with excessive line length.
Note: Your nylon line head may appear different than nylon line head
shown.
To Advance Trimmer Line
See Maintenance Section for nylon line replacement.
Note: To advance trimmer line, tap trimmer head against the ground
while the head is turning at normal operating speed.
D
A
C
D
E

OPERATION SRM-225
20 X7722279402
© 2/2016 ECHO Inc.
Remove Nylon Line Head
Note: Do not disassemble nylon
line head.
1. Align locking hole in upper plate
with notch in edge of gear
housing and insert head locking
tool (D).
2. Remove line head (E) by turning
it clockwise until head is
completely off of shaft.
3. Remove locking tool (D).
Support Handle
Installation
Note: Label shows
minimum spacing
for support handle
location.
1. If necessary, position
support handle for
comfortable operation
and securely tighten
screws.
OPERATION
Moving parts can amputate fingers or cause severe injuries. Keep
hands, clothing and loose objects away from all openings. Always
stop engine, disconnect spark plug, and make sure all moving
parts have come to a complete stop before removing obstructions,
clearing debris, or servicing unit.
Engine exhaust IS HOT, and contains Carbon Monoxide (CO), a
poison gas. Breathing CO can cause unconsciousness, serious
injury, or death. Exhaust can cause serious burns. ALWAYS
position unit so that exhaust is directed away from your face and
body.
D
E
MIN
SPACING
