Ecler DANTE DN44BOB User manual

v.20191010
DN44BOB
DIGITAL MATRIXES
DANTE®Digital Audio Interface
USER MANUAL

2
INDEX
1. IMPORTANT REMARK ..........................................................................................................3
2. IMPORTANT SAFETY INSTRUCTIONS ............................................................................. 3
3. IMPORTANT NOTE ................................................................................................................5
4. INTRODUCTION ..................................................................................................................... 5
5. INSTALLATION.......................................................................................................................6
5.1. AC connection and powering on........................................................................................... 6
5.2. Audio input connections .......................................................................................................... 6
5.3. Audio output connections........................................................................................................ 7
5.4. Ethernet / DANTE® port for programming and control................................................. 7
5.5. GPI remote control ports.......................................................................................................... 8
5.6. GPO remote control ports........................................................................................................ 8
6. FRONT PANEL LED INDICATORS...................................................................................... 9
7. LOCATION, SET UP, VENTILATION...................................................................................9
8. CLEANING................................................................................................................................9
9. TECHNICAL CHARACTERISTICS .....................................................................................10

3
1. IMPORTANT REMARK
The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
WARNING (If applicable): The terminals marked with symbol of “ ” may be of
sufficient magnitude to constitute a risk of electric shock. The external wiring connected
to the terminals requires installation by an instructed person or the use of ready-made
leads or cords.
WARNING:To prevent fire or shock hazard, do not expose this equipment to rain or
moisture.
WARNING:An apparatus with Class I construction shall be connected to a mains
socket-outlet with a protective earthing connection.
2. IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.

4
8. Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding type plug. A
polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or the third
prong are provided for your safety. If the provided plug does not fit into your
outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at the
plugs, convenience receptacles, and at the point where they exit from the
apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Unplug the apparatus during lightening sorts or when unused for long periods of
time.
13. Refer all servicing to qualified personnel. Servicing is required when the
apparatus has been damaged in any way, such as power supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.
14. Disconnecting from mains: Switching off the POWER switch all the functions
and light indicators of the amplifier will be stopped, but fully disconnecting the
device from mains is done unplugging the power cord from the mains input
socket. For this reason, it always shall remain readily operable.
15. Equipment is connected to a socket-outlet with earthing connection by means of
a power cord.
16. The marking information is located at the bottom of apparatus.
17. The apparatus shall not be exposed to dripping or splashing and that no objects
filled with liquids, such as vases, shall be placed on apparatus.
NOTE: This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
WARNING:This product must not be discarded, under any circumstance, as
unsorted urban waste. Take to the nearest electrical and electronic waste
treatment centre.
NEEC AUDIO BARCELONA, S.L. accepts no liability for any damage that may be
caused to people, animal or objects due to failure to comply with the warnings above.

5
3. IMPORTANT NOTE
Thank you for choosing our Ecler DN44BOB DANTE® Digital Audio Interface!
It is VERY IMPORTANT to carefully read this manual and to fully understand its
contents before any connection in order to maximize your use and get the best
performance from this equipment.
To ensure optimal operation of this device, we strongly recommend that its maintenance
be carried out by our authorised Technical Services.
Ecler DN44BOB comes with a 3-year warranty.
4. INTRODUCTION
DN44BOB is a digital interface for Dante® audio over IP protocol. Its main features are:
Ethernet interface.
Digital audio transmission and reception in Dante® format.
EclerNet compatibility.
4 balanced MIC/LINE inputs, phantom power and 3 levels of sensitivity, converted
to Dante® format and sent to the network.
4 balanced line outputs, converted from 4 Dante® channels fed by the network
Euroblock connectors for analogue audio inputs and outputs.
4 GPI ports (0-10VDC) on Euroblock connector.
4 GPO ports (NO/NC) on Euroblock connector.
To setup the DN44BOB, you have to use the EclerNet Manager*application. See the
EclerNet Manager Application manual for more information.
* The EclerNet Manager application is available for download from www.ecler.com
To setup Dante® transmission and reception channels, the Audinate® Dante Controller
application has to be used. See the EclerNet Manager Application manual for more
information.

6
5. INSTALLATION
5.1. AC connection and powering on
The audio interface is powered by alternating current (AC) through its external power
supply: 100-240 VAC, 50-60Hz.
The power supply must be correctly grounded (ground resistance, Rg = 30or less).
The operating environment should be dry and be totally free of dust. Do not expose the
unit to dripping or splashing. Do not place incandescent objects like candles on top of it.
If the device requires any intervention and/or connection/disconnection, it must
be powered off first. There are no user-serviceable parts within the unit.
To avoid buzzing, do not allow the power cable to intertwine with audio shielded cables.
5.2. Audio input connections
The DN44BOB rear panel provides 4 balanced analogue signal inputs labelled "IN" (7),
supporting line or mic levels. The input signal type selection and handling is managed
with EclerNet Manager Application. See the EclerNet Manager manual for more
information.

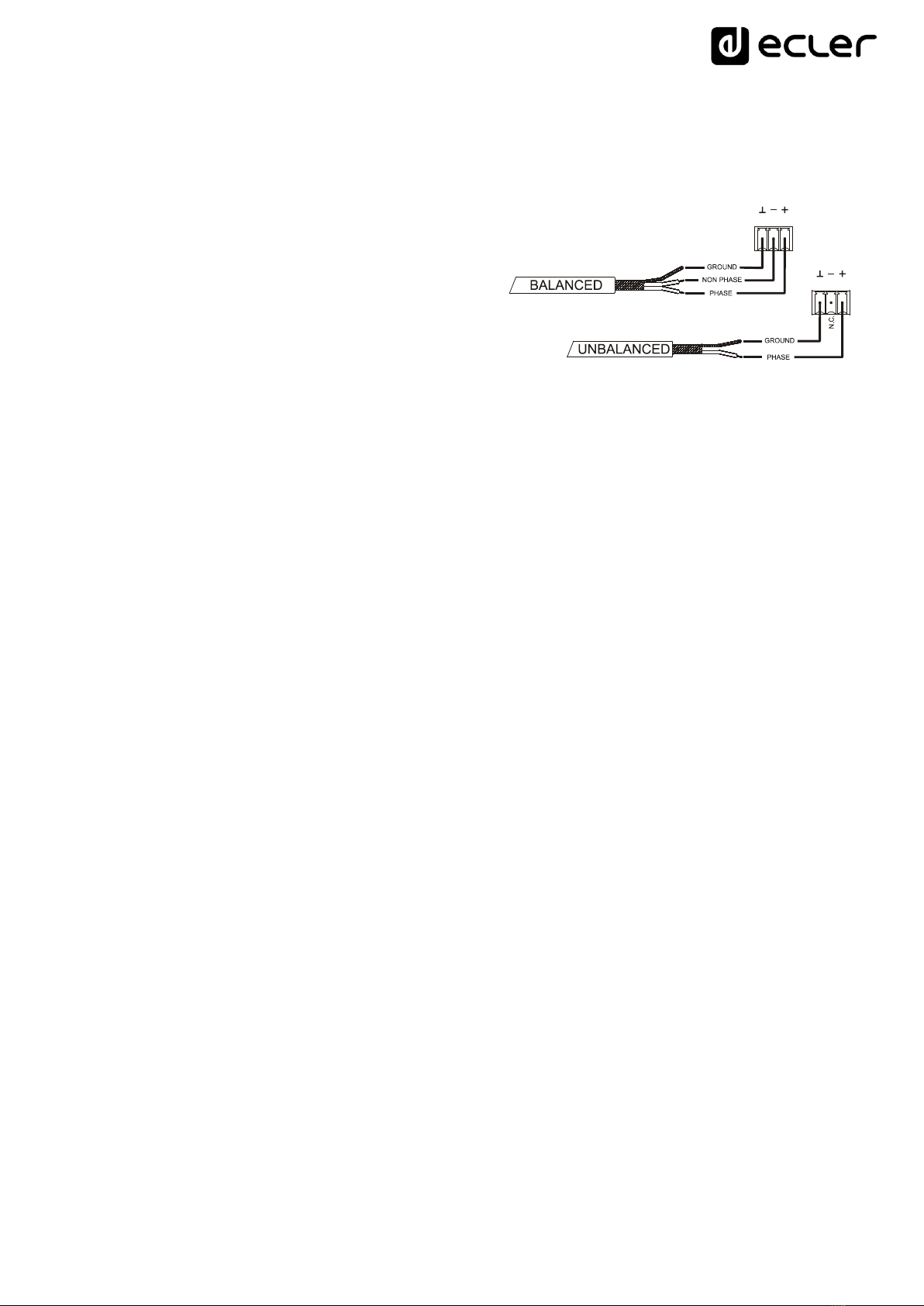

Signal inputs use 3-position screw terminal blocks. The wiring is as follows:
Hot or direct signal > + terminal
Cold or inverted signal > –terminal
Ground > terminal
For UNBALANCED connection, short circuit the terminal –to ground.

7
5.3. Audio output connections
The DN44BOB rear panel provides 4 balanced analogue line outputs labelled "OUT" (6).
Signal outputs use 3-position screw terminal
blocks. The wiring is as follows:
Hot or direct signal > + terminal
Cold or inverted signal > –terminal
Ground > terminal
For unbalanced connection, don't connect the terminal –.
5.4. Ethernet / DANTE® port for programming and control
A RJ45 connector (11) allows to connect the device to an Ethernet network:
Management from the EclerNet Manager application. See the EclerNet Manager
application manual for more information.
Direct connection (point-to-point) of a computer to a DN44BOB unit.
Transmission and reception of 4 Dante® channels
Connection to WPmSCREEN units (remote control of an entire network of
EclerNet devices through custom UCP (User Control Panels), even from third-
party devices, Android®, iOS®, etc.)

8
5.5. GPI remote control ports
The DN44BOB rear panel provides 4 GPI inputs (9) for 0-10VDC continuous voltage
control. Each of these inputs can be connected to an external physical device
(potentiometer, contact closure, variable 0-10V voltage, etc.) and assigned to a
DN44BOB function, such as:
Remote volume control of an input or output channel by external Ecler WPm
series hardware like a WPmVOL potentiometer or a WPmVOL-IR remote control.
For muting and unmuting, use a contact closure instead of potentiometer.
Preset recall using a five-way selector, like a WPmVOL-SR
GPI connectors use 3-position screw terminal blocks. The wiring is as follows:
Positive, +10 VDC > + terminal
Variable voltage, 0-10VDC > –terminal
Ground > terminal
Connection examples
Connecting cables can be up to 500 meters long with a minimum section of 0,5 mm2.
Please consult your ECLER dealer or www.ecler.com about the WPm series remote
control wall panels.
5.6. GPO remote control ports
The DN44BOB rear panel provides 4 NO/NC (normally open/normally closed) relay
outputs (8). The open or closed status of each relay can be saved in a DN44BOB preset.
So loading a preset will restore the GPO status (open/closed) as it was when saved. It is
then possible to interact with external equipment such as motorized projection screens
or movable partitions, lights, sirens, GPI inputs of other equipment, etc.

9
6. FRONT PANEL LED INDICATORS
The DN44BOB front panel provides the following elements :
POWER LED indicator (5): lights up when the unit is on.
DANTE LED indicator (3):
oRed LED: Ethernet network disconnected.
oGreen LED: Ethernet network connected and device operating as master
(transmitting Dante® clock on the network).
oAmber LED: Ethernet network connected and device operating as slave
(synchronized with the clock of the Dante® Master unit on the network).
DATA LED indicator (3): off when there is no connection with EclerNet Manager
even if connected to Ethernet. Lit when connected to EclerNet Manager. Blinking
to indicate data traffic with EclerNet Manager or other.
Audio input (analogue) LED indicators (1): indicate the presence of an audio signal
at the unit inputs and its intensity level (green, amber and red colours which
correspond, in this order, to an increasing level of intensity).
Audio output (analogue) LED indicators (2): indicate the presence of an audio
signal at the unit outputs and its intensity level (green, amber and red colours
which correspond, in this order, to an increasing level of intensity).
7. LOCATION, SET UP, VENTILATION
DN44BOB has been especially designed to be installed in a standard 19" rack, taking up
1U (height) and only half the width. It includes the PUM3 adapter, which allows two
rack width media devices to be mounted on racks of 1 standard unit of measure (19”).
The DN44BOB being a heat generator, it should not be enclosed or exposed to extreme
temperatures.
If multiple amplifiers are installed in the same rack or in a cabinet with closed doors, it is
highly recommended to install fans in their upper and lower ends for a forced air flow
from the bottom up. This upward air flow will favour the dissipation of heat generated
inside.
8. CLEANING
The casing should not be cleaned with solvents or abrasive materials since they can
damage the screen printing. To clean the product, please used a cloth dampened with a
mild liquid detergent and water, and wipe it off with a dry and clean cloth. Be careful
that water never gets into the unit through its holes.

10
9. TECHNICAL CHARACTERISTICS
DSP
DSP
32bit
Sampling Rate
44.1/ 48 / 88.2 / 96 kHz
Latency (fs = 48kHz)
1ms
AD/DA Converters
Resolution
24bit AKM
Dynamic Range
AD:110dB; DA: 115dB
Latency (fs = 48kHz)
AD 0,81ms; DA: 0,56
Analog Input/Output
4 Input/Output
Phoenix connector (Symmetrical)
Analog Input headroom
+27dBV = +30dBu
Max. output level
+18dBV = +21dBu
Input sensitivity @ 0dBV out
From -50dBV to +10dBV in 0.5dB step
Input Impedance
Balanced, >4kΩ
Phantom power
+18VDC, 5mA max. software switched
Frequency response (-3dB)
5Hz to 24kHz
Flatness
better than ±0.1dB
THD+Noise @ 1kHz, 0dBV input (line)
<0.004%
THD+Noise @ 1kHz, -40dBV input
(mic.)
<0.008%
Output Noise floor FFT (20Hz - 20kHz)
better than 115dB
Interchannel crosstalk (20Hz - 20kHz)
better than 90dB (100dB typ.)
Channel Leakage (20Hz - 20kHz)
better than 100dB (115dB typ.)
CMRR 20Hz- 20kHz
65dB typ.
DANTE® Audio Interface
DANTE® Network Inputs/Outputs
4 / 4
Latency
1 / 2 / 5ms (selectable)
Connector
1 x RJ45
Cable length between devices
100m CAT5 or CAT5e/CAT6

11
Processing
Input Level (x4)
Range: from Off to 0 dB
Mute: Yes
Signal Polarity reverse: Yes
Metering: VU+clip pre & post fader
Output Level (x4)
Range: from Off to 0 dB
Mute: Yes
Solo: Yes
Signal Polarity reverse: Yes
Metering: VU+clip pre & post fader
Output Gain (x4)
Range: from 0 to +6dB
Built in Signal Generator
Sine: from 20Hz to 20kHz
Polarity: from 20Hz to 20kHz
White noise
Pink noise
Output Limiter (x8)
Bypass On-Off
Mechanical
Dimensions (WxHxD)
241x44x152mm
Weight
1.1kg
Supply
DC supply
24 VDC
Mains (Using supplied DC adapter)
100-240VAC 50-60Hz
Power consumption
6.5 W
Miscellaneous
Management Connectivity
Ethernet Base-Tx 10/100Mb; Auto X-Over
CAT5 up to 100m.
GPI
4, from 0 to 10VDC or TTL level
GPO
4, 3 poles isolated relay; 1A, 48 VDC max
Software
EclerNet Manager
From v3.05r2 version
Operating System
Windows® 10; W8.1; W8; W7; Vista (SP1);
XP Prof. (SP3); W2000 Prof. (SP4)
Minimum EclerNet System
Requirements
Pentium IV ® 1GHz
512MB RAM
40MB HDD free space
800x600 pixels & 16bits colour display
10/100/1G Ethernet Network card

12
All product characteristics are subject to variation due to production tolerances.
NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or
manufacturing that may affect these product specifications.
Motors, 166‐168 08038 Barcelona ‐ Spain ‐ ([phone] | [e-mail] | www.ecler.com
