MPA4-150R
SERVICE MANUAL

SERVICE MANUAL MPA4-150R
INDEX
-BLOCK DIAGRAM

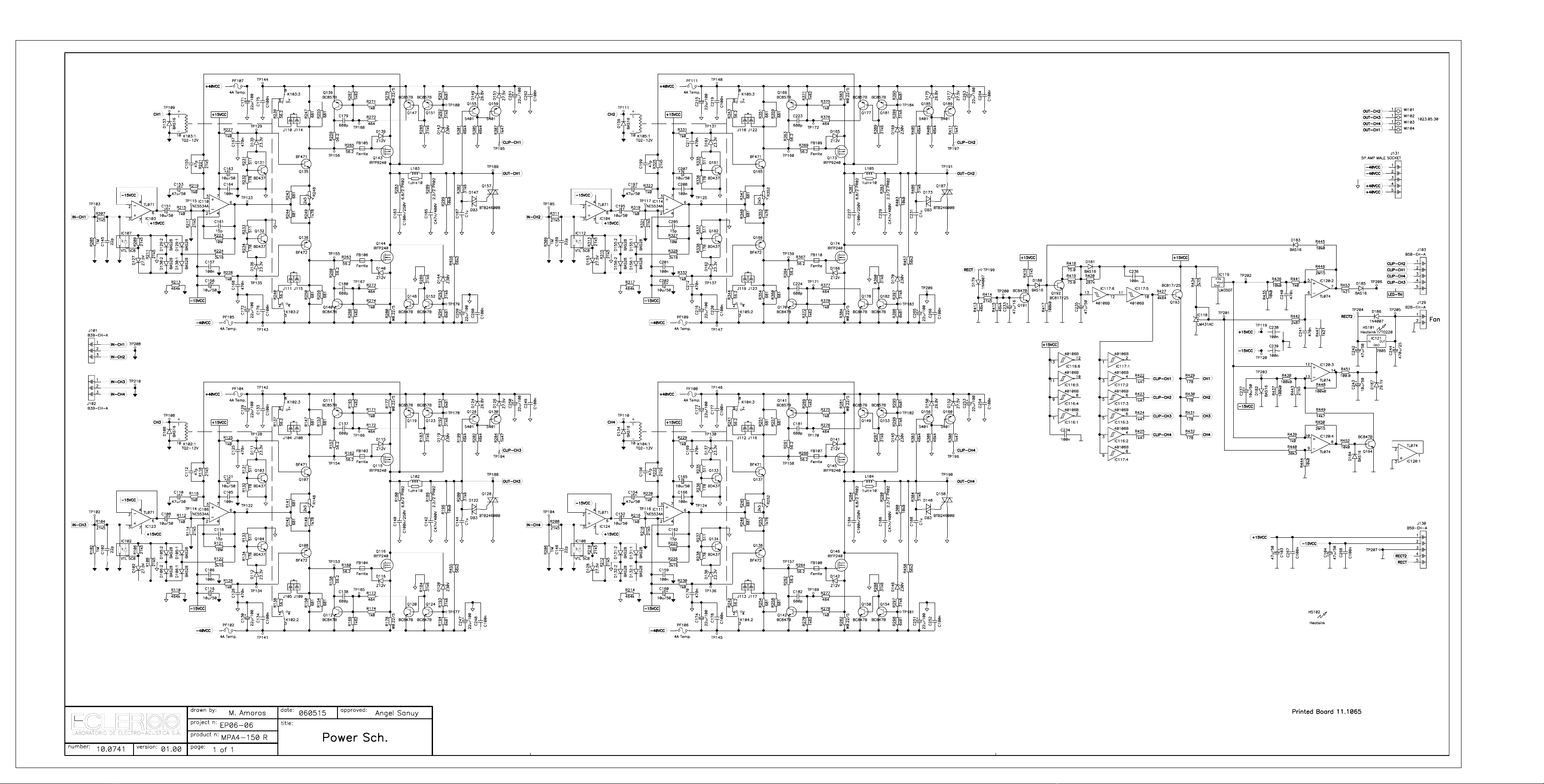

-SCHEMATICS

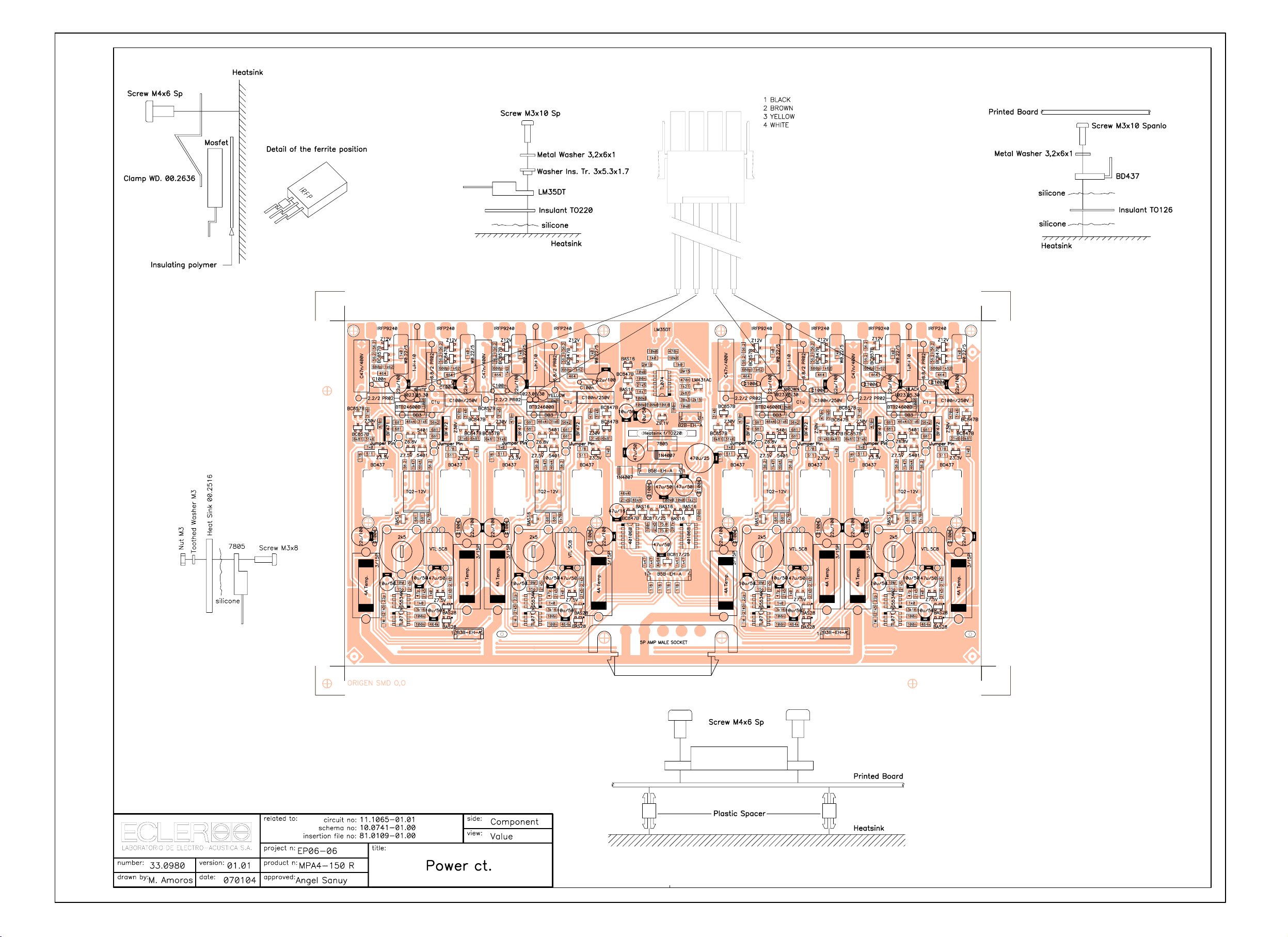

-COMPONENTS LOCATION SCHEMA
-TESTING AND QUALITY CONTROL
-TECHNICAL CHARACTERISTICS
-WIRING DIAGRAM
-CONFIGURATION DIAGRAM
-MECHANICAL DIAGRAM
-PACKING DIAGRAM

drawn: date: 060613 project: EP06-06 product: MPA4-150R
approved:
number: 10.0746 version: 01.00 A.S.
J. Colomines
title: BLOCK DIAGRAM
E
C
LE
R
1
3
2
1
3
2
1
3
2
1
3
2

PARTS LIST:
PRINTED CIRCUIT 11.1065.01.01
Code
Description
Reference
FCXCD1220000
22p
C102
FCCE25047000
47u/50
C103
FCCE25047000
47u/50
C104
FCXCD4100000
100n
C105
FCXCD4100000
100n
C106
FCCE25010000
10u/50
C108
FCCE25047000
47u/50
C110
FCXCD1470000
47p
C112
FCCE25010000
10u/50
C116
FCXCD1150000
15p
C118
FCCE25010000
10u/50
C121
FCXCD4470000
470n
C125
FCXCD4470000
470n
C126
FCCE35022000
22u/100
C129
FCCE35022000
22u/100
C130
FCCC15101000
C100n
C133
FCCC15101000
C100n
C134
FCXCD2680000
680p
C137
FCXCD2680000
680p
C138
FCCDN1100000
C100n/250V
C140
FCCDH7104700
C47n/400V
C142
FCCDK2001000
C1u
C144
FCXCD1220000
22p
C145
FCXCD1220000
22p
C146
FCCE25010000
10u/50
C151
FCCE25010000
10u/50
C152
FCCE25047000
47u/50
C153
FCCE25047000
47u/50
C154
FCXCD1470000
47p
C155
FCXCD1470000
47p
C156
FCXCD4100000
100n
C157
FCCE25010000
10u/50
C158
FCXCD4100000
100n
C159
FCCE25010000
10u/50
C160
FCXCD1150000
15p
C161
FCXCD1150000
15p
C162
FCCE25010000
10u/50
C163
FCXCD4100000
100n
C164
FCCE25010000
10u/50
C165
FCXCD4100000
100n
C166
FCXCD4470000
470n
C167
FCXCD4470000
470n
C168
FCXCD4470000
470n
C169
FCXCD4470000
470n
C170
FCCE35022000
22u/100
C171
FCCE35022000
22u/100
C172
FCCE35022000
22u/100
C173
FCCE35022000
22u/100
C174
FCCC15101000
C100n
C175
FCCC15101000
C100n
C176
FCCC15101000
C100n
C177
FCCC15101000
C100n
C178
FCXCD2680000
680p
C179
FCXCD2680000
680p
C180
FCXCD2680000
680p
C181
FCXCD2680000
680p
C182
40-0175-0101 EP06-06 MPA4-150R.xls 1 of 12

PARTS LIST:
PRINTED CIRCUIT 11.1065.01.01
Code
Description
Reference
FCCDN1100000
C100n/250V
C183
FCCDN1100000
C100n/250V
C184
FCCDH7104700
C47n/400V
C185
FCCDH7104700
C47n/400V
C186
FCCDK2001000
C1u
C187
FCCDK2001000
C1u
C188
FCXCD1220000
22p
C189
FCCE25010000
10u/50
C195
FCCE25047000
47u/50
C197
FCXCD1470000
47p
C199
FCXCD4100000
100n
C201
FCCE25010000
10u/50
C202
FCXCD1150000
15p
C205
FCCE25010000
10u/50
C207
FCXCD4100000
100n
C208
FCXCD4470000
470n
C211
FCXCD4470000
470n
C212
FCCE35022000
22u/100
C215
FCCE35022000
22u/100
C216
FCCC15101000
C100n
C219
FCCC15101000
C100n
C220
FCXCD2680000
680p
C223
FCXCD2680000
680p
C224
FCCDN1100000
C100n/250V
C227
FCCDH7104700
C47n/400V
C229
FCCDK2001000
C1u
C231
FCCE10000000
47u/16
C233
FCXCD4100000
100n
C234
FCCE25047000
47u/50
C235
FCXCD4100000
100n
C236
FCCE25010000
10u/50
C237
FCXCD4100000
100n
C238
FCXCD4100000
100n
C239
FCXCD4470000
470n
C240
FCXCD4470000
470n
C241
FCCE25047000
47u/50
C242
FCCE25010000
10u/50
C243
FCCE15470000
470u/25
C244
FCCE35022000
22u/100
C247
FCCC15101000
C100n
C248
FCCC15101000
C100n
C249
FCCE35022000
22u/100
C250
FCCE35022000
22u/100
C251
FCCC15101000
C100n
C252
FCCE35022000
22u/100
C253
FCCC15101000
C100n
C254
FCCE35022000
22u/100
C259
FCCC15101000
C100n
C260
FCCE35022000
22u/100
C261
FCCC15101000
C100n
C262
FCCE35022000
22u/100
C263
FCCC15101000
C100n
C264
FCCE35022000
22u/100
C265
FCCC15101000
C100n
C266
FCCC15101000
C100n
C267
FCCC15101000
C100n
C268
40-0175-0101 EP06-06 MPA4-150R.xls 2 of 12

PARTS LIST:
PRINTED CIRCUIT 11.1065.01.01
Code
Description
Reference
FCCI01065000
Printed Board 11.1065
CI101
FCXZ00007500
Z7.5V
D102
FCXDDBAS2800
BAS28
D105
FCXDDBAS2800
BAS28
D106
FCXDDBAS1600
BAS16
D108
FCXZ00003300
Z3.3V
D111
FCXZ00003300
Z3.3V
D112
FCXZ00012000
Z12V
D115
FCXZ00012000
Z12V
D116
FCXZ00030000
Z30V
D119
FCXZ00030000
Z30V
D120
FCDIDB300000
DB3
D122
FCXZ00006800
Z6.8V
D124
FCXZ00007500
Z7.5V
D126
FCXZ00007500
Z7.5V
D127
FCXZ00007500
Z7.5V
D128
FCXDDBAS2800
BAS28
D129
FCXDDBAS2800
BAS28
D130
FCXDDBAS2800
BAS28
D131
FCXDDBAS2800
BAS28
D132
FCXDDBAS1600
BAS16
D133
FCXDDBAS1600
BAS16
D134
FCXZ00003300
Z3.3V
D135
FCXZ00003300
Z3.3V
D136
FCXZ00003300
Z3.3V
D137
FCXZ00003300
Z3.3V
D138
FCXZ00012000
Z12V
D139
FCXZ00012000
Z12V
D140
FCXZ00012000
Z12V
D141
FCXZ00012000
Z12V
D142
FCXZ00030000
Z30V
D143
FCXZ00030000
Z30V
D144
FCXZ00030000
Z30V
D145
FCXZ00030000
Z30V
D146
FCDIDB300000
DB3
D147
FCDIDB300000
DB3
D148
FCXZ00006800
Z6.8V
D149
FCXZ00006800
Z6.8V
D150
FCXZ00007500
Z7.5V
D151
FCXZ00007500
Z7.5V
D152
FCXZ00007500
Z7.5V
D153
FCXDDBAS2800
BAS28
D155
FCXDDBAS2800
BAS28
D156
FCXDDBAS1600
BAS16
D159
FCXZ00003300
Z3.3V
D161
FCXZ00003300
Z3.3V
D162
FCXZ00012000
Z12V
D165
FCXZ00012000
Z12V
D166
FCXZ00030000
Z30V
D169
FCXZ00030000
Z30V
D170
FCDIDB300000
DB3
D173
FCXZ00006800
Z6.8V
D175
FCXZ00007500
Z7.5V
D177
FCXDD4007000
1N4007
D179
FCXDDBAS1600
BAS16
D180
FCXDDBAS1600
BAS16
D181
40-0175-0101 EP06-06 MPA4-150R.xls 3 of 12

PARTS LIST:
PRINTED CIRCUIT 11.1065.01.01
Code
Description
Reference
FCXDDBAS1600
BAS16
D182
FCXDDBAS1600
BAS16
D183
FCXDDBAS1600
BAS16
D184
FCXDDBAS1600
BAS16
D185
FCXDD4007000
1N4007
D186
FCXZ00009100
Z9.1V
D187
FCFUS5020000
4A Temp.
F102
FCFUS5020000
4A Temp.
F104
FCFUS5020000
4A Temp.
F105
FCFUS5020000
4A Temp.
F106
FCFUS5020000
4A Temp.
F107
FCFUS5020000
4A Temp.
F108
FCFUS5020000
4A Temp.
F109
FCFUS5020000
4A Temp.
F111
FCFER4322000
Ferrite
FB103
FCFER4322000
Ferrite
FB104
FCFER4322000
Ferrite
FB105
FCFER4322000
Ferrite
FB106
FCFER4322000
Ferrite
FB107
FCFER4322000
Ferrite
FB108
FCFER4322000
Ferrite
FB109
FCFER4322000
Ferrite
FB110
FP0251600000
Heatsink f/TO220
HS101
FCRAD2788000
Heatsink
HS102
FCOPTVTL5000
VTL 5C8
IC102
FCIC07101000
TL071
IC103
FCIC07101000
TL071
IC104
FCIC55341000
NE5534A
IC106
FCOPTVTL5000
VTL 5C8
IC107
FCOPTVTL5000
VTL 5C8
IC108
FCIC55341000
NE5534A
IC110
FCIC55341000
NE5534A
IC111
FCOPTVTL5000
VTL 5C8
IC112
FCIC55341000
NE5534A
IC114
FCIC40106000
40106B
IC116
FCIC40106000
40106B
IC117
FCIC43101000
LM431AC
IC118
FCIC35DT0000
LM35DT
IC119
FCIC07401000
TL074
IC120
FCREG7805000
7805
IC121
FCIC07101000
TL071
IC123
FCIC07101000
TL071
IC124
FCTIRKON0000
Insulating polymer
IN100
FCTIRKON0000
Insulating polymer
IN101
FCMICTO22000
Insulant TO220
IN102
FCMICTO12600
Insulant TO126
IN103
FCMICTO12600
Insulant TO126
IN104
FCMICTO12600
Insulant TO126
IN105
FCMICTO12600
Insulant TO126
IN106
FCMICTO12600
Insulant TO126
IN107
FCMICTO12600
Insulant TO126
IN108
FCMICTO12600
Insulant TO126
IN109
FCMICTO12600
Insulant TO126
IN114
FCCTM0003000
B3B-EH-A
J101
FCCTM0003000
B3B-EH-A
J102
FCCTM0005000
B5B-EH-A
J103
40-0175-0101 EP06-06 MPA4-150R.xls 4 of 12

PARTS LIST:
PRINTED CIRCUIT 11.1065.01.01
Code
Description
Reference
FCTERM010000
Jumper Pin
J104
FCTERM010000
Jumper Pin
J105
FCTERM010000
Jumper Pin
J108
FCTERM010000
Jumper Pin
J109
FCTERM010000
Jumper Pin
J110
FCTERM010000
Jumper Pin
J111
FCTERM010000
Jumper Pin
J112
FCTERM010000
Jumper Pin
J113
FCTERM010000
Jumper Pin
J114
FCTERM010000
Jumper Pin
J115
FCTERM010000
Jumper Pin
J116
FCTERM010000
Jumper Pin
J117
FCTERM010000
Jumper Pin
J118
FCTERM010000
Jumper Pin
J119
FCTERM010000
Jumper Pin
J122
FCTERM010000
Jumper Pin
J123
FCCTM0002000
B2B-EH-A
J129
FCCTM0005000
B5B-EH-A
J130
FCCTAMP15000
5P AMP MALE SOCKET
J131
FCREL0030000
TQ2-12V
K102
FCREL0030000
TQ2-12V
K103
FCREL0030000
TQ2-12V
K104
FCREL0030000
TQ2-12V
K105
FRIND0020000
1uH+10
L102
FRIND0020000
1uH+10
L103
FRIND0020000
1uH+10
L104
FRIND0020000
1uH+10
L105
FCMJ00010000
Jumper
MJ103
FCMJ00010000
Jumper
MJ104
FCMJ00010000
Jumper
MJ105
FCMJ00010000
Jumper
MJ106
FCMJ00010000
Jumper
MJ107
FCMJ00010000
Jumper
MJ108
FCMJ00010000
Jumper
MJ109
FCMJ00010000
Jumper
MJ110
FCPINZAM0000
Clamp WD. 00.2636
MP100
FCPINZAM0000
Clamp WD. 00.2636
MP101
FCTUE0030000
Nut M3
NV100
FCPORF315000
3/15P
PF102
FCPORF315000
3/15P
PF104
FCPORF315000
3/15P
PF105
FCPORF315000
3/15P
PF106
FCPORF315000
3/15P
PF107
FCPORF315000
3/15P
PF108
FCPORF315000
3/15P
PF109
FCPORF315000
3/15P
PF111
FCTR43700000
BD437
Q103
FCTR43700000
BD437
Q104
FCTR47100000
BF471
Q107
FCTR47200000
BF472
Q108
FCXTT0857000
BC857B
Q111
FCXTT0847000
BC847B
Q112
FCTR24300000
IRFP9240
Q115
FCTR24000000
IRFP240
Q116
FCXTT0857000
BC857B
Q119
FCXTT0847000
BC847B
Q120
40-0175-0101 EP06-06 MPA4-150R.xls 5 of 12

PARTS LIST:
PRINTED CIRCUIT 11.1065.01.01
Code
Description
Reference
FCXTT0857000
BC857B
Q123
FCXTT0847000
BC847B
Q124
FCTRX0540100
5401
Q126
FCTI24600000
BTB24600B
Q128
FCTRX0540100
5401
Q130
FCTR43700000
BD437
Q131
FCTR43700000
BD437
Q132
FCTR43700000
BD437
Q133
FCTR43700000
BD437
Q134
FCTR47100000
BF471
Q135
FCTR47200000
BF472
Q136
FCTR47100000
BF471
Q137
FCTR47200000
BF472
Q138
FCXTT0857000
BC857B
Q139
FCXTT0847000
BC847B
Q140
FCXTT0857000
BC857B
Q141
FCXTT0847000
BC847B
Q142
FCTR24300000
IRFP9240
Q143
FCTR24000000
IRFP240
Q144
FCTR24300000
IRFP9240
Q145
FCTR24000000
IRFP240
Q146
FCXTT0857000
BC857B
Q147
FCXTT0847000
BC847B
Q148
FCXTT0857000
BC857B
Q149
FCXTT0847000
BC847B
Q150
FCXTT0857000
BC857B
Q151
FCXTT0847000
BC847B
Q152
FCXTT0857000
BC857B
Q153
FCXTT0847000
BC847B
Q154
FCTRX0540100
5401
Q155
FCTRX0540100
5401
Q156
FCTI24600000
BTB24600B
Q157
FCTI24600000
BTB24600B
Q158
FCTRX0540100
5401
Q159
FCTRX0540100
5401
Q160
FCTR43700000
BD437
Q161
FCTR43700000
BD437
Q162
FCTR47100000
BF471
Q165
FCTR47200000
BF472
Q166
FCXTT0857000
BC857B
Q169
FCXTT0847000
BC847B
Q170
FCTR24300000
IRFP9240
Q173
FCTR24000000
IRFP240
Q174
FCXTT0857000
BC857B
Q177
FCXTT0847000
BC847B
Q178
FCXTT0857000
BC857B
Q181
FCXTT0847000
BC847B
Q182
FCTRX0540100
5401
Q185
FCTI24600000
BTB24600B
Q187
FCTRX0540100
5401
Q189
FCXTT0847000
BC847B
Q191
FCXTT0817000
BC817/25
Q192
FCXTT0817000
BC817/25
Q193
FCXTT0847000
BC847B
Q194
FCXR56100000
1M
R102
FCXR54215000
21k5
R104
40-0175-0101 EP06-06 MPA4-150R.xls 6 of 12

PARTS LIST:
PRINTED CIRCUIT 11.1065.01.01
Code
Description
Reference
FCXR54215000
21k5
R106
FCXR54215000
21k5
R108
FCXR55464000
464k
R110
FCXR53100000
1k0
R112
FCXR54215000
21k5
R114
FCXR53100000
1k0
R116
FCXR54215000
21k5
R118
FCXR57100000
10M
R121
FCXR53316000
3k16
R122
FCXR53100000
1k0
R125
FCXR53100000
1k0
R126
FCXR52511000
511
R131
FCXR52178000
178
R132
FCXR52511000
511
R133
FCXR52178000
178
R134
FCXR51562000
56.2
R137
FCXR51562000
56.2
R138
FCXR52681000
681
R141
FCXR52681000
681
R142
FCXR52681000
681
R147
FCRJG4250000
2k5
R148
FCXR53178000
1k78
R149
FCXR52681000
681
R150
FCXR52681000
681
R153
FCXR52681000
681
R154
FCXR51562000
56.2
R157
FCXR51562000
56.2
R158
FCXR51562000
56.2
R160
FCXR51562000
56.2
R162
FCXR53162000
1k62
R165
FCXR53162000
1k62
R166
FCXR53100000
1k0
R171
FCXR52464000
464
R172
FCXR52464000
464
R173
FCXR53100000
1k0
R174
FCRY00010000
W0.22/5
R177
FCRY00010000
W0.22/5
R178
FCRP51680000
6.8/2 PR02
R180
FCXR54316000
31k6
R183
FCXR54316000
31k6
R184
FCRP51220000
2.2/2 PR02
R186
FCXR53681000
6k81
R191
FCXR54316000
31k6
R192
FCXR54316000
31k6
R193
FCXR53681000
6k81
R194
FCXR54100000
10k0
R196
FCXR54464000
46k4
R199
FCXR54316000
31k6
R200
FCXR54464000
46k4
R202
FCXR53147000
1k47
R204
FCXR56100000
1M
R205
FCXR56100000
1M
R206
FCXR54215000
21k5
R207
FCXR54215000
21k5
R208
FCXR54215000
21k5
R209
FCXR54215000
21k5
R210
40-0175-0101 EP06-06 MPA4-150R.xls 7 of 12

PARTS LIST:
PRINTED CIRCUIT 11.1065.01.01
Code
Description
Reference
FCXR54215000
21k5
R211
FCXR54215000
21k5
R212
FCXR55464000
464k
R213
FCXR55464000
464k
R214
FCXR53100000
1k0
R215
FCXR53100000
1k0
R216
FCXR54215000
21k5
R217
FCXR54215000
21k5
R218
FCXR53100000
1k0
R219
FCXR53100000
1k0
R220
FCXR54215000
21k5
R221
FCXR54215000
21k5
R222
FCXR57100000
10M
R223
FCXR53316000
3k16
R224
FCXR57100000
10M
R225
FCXR53316000
3k16
R226
FCXR53100000
1k0
R227
FCXR53100000
1k0
R228
FCXR53100000
1k0
R229
FCXR53100000
1k0
R230
FCXR52511000
511
R231
FCXR52178000
178
R232
FCXR52511000
511
R233
FCXR52178000
178
R234
FCXR52511000
511
R235
FCXR52178000
178
R236
FCXR52511000
511
R237
FCXR52178000
178
R238
FCXR51562000
56.2
R239
FCXR51562000
56.2
R240
FCXR51562000
56.2
R241
FCXR51562000
56.2
R242
FCXR52681000
681
R243
FCXR52681000
681
R244
FCXR52681000
681
R245
FCXR52681000
681
R246
FCXR52681000
681
R247
FCRJG4250000
2k5
R248
FCXR53178000
1k78
R249
FCXR52681000
681
R250
FCXR52681000
681
R251
FCRJG4250000
2k5
R252
FCXR53178000
1k78
R253
FCXR52681000
681
R254
FCXR52681000
681
R255
FCXR52681000
681
R256
FCXR52681000
681
R257
FCXR52681000
681
R258
FCXR51562000
56.2
R259
FCXR51562000
56.2
R260
FCXR51562000
56.2
R261
FCXR51562000
56.2
R262
FCXR51562000
56.2
R263
FCXR51562000
56.2
R264
FCXR51562000
56.2
R265
FCXR51562000
56.2
R266
40-0175-0101 EP06-06 MPA4-150R.xls 8 of 12

PARTS LIST:
PRINTED CIRCUIT 11.1065.01.01
Code
Description
Reference
FCXR53162000
1k62
R267
FCXR53162000
1k62
R268
FCXR53162000
1k62
R269
FCXR53162000
1k62
R270
FCXR53100000
1k0
R271
FCXR52464000
464
R272
FCXR52464000
464
R273
FCXR53100000
1k0
R274
FCXR53100000
1k0
R275
FCXR52464000
464
R276
FCXR52464000
464
R277
FCXR53100000
1k0
R278
FCRY00010000
W0.22/5
R279
FCRY00010000
W0.22/5
R280
FCRY00010000
W0.22/5
R281
FCRY00010000
W0.22/5
R282
FCRP51680000
6.8/2 PR02
R283
FCRP51680000
6.8/2 PR02
R284
FCXR54316000
31k6
R285
FCXR54316000
31k6
R286
FCXR54316000
31k6
R287
FCXR54316000
31k6
R288
FCRP51220000
2.2/2 PR02
R289
FCRP51220000
2.2/2 PR02
R290
FCXR53681000
6k81
R291
FCXR54316000
31k6
R292
FCXR54316000
31k6
R293
FCXR53681000
6k81
R294
FCXR53681000
6k81
R295
FCXR54316000
31k6
R296
FCXR54316000
31k6
R297
FCXR53681000
6k81
R298
FCXR54100000
10k0
R299
FCXR54100000
10k0
R300
FCXR54464000
46k4
R301
FCXR54316000
31k6
R302
FCXR54464000
46k4
R303
FCXR54316000
31k6
R304
FCXR54464000
46k4
R305
FCXR54464000
46k4
R306
FCXR53147000
1k47
R307
FCXR53147000
1k47
R308
FCXR56100000
1M
R309
FCXR54215000
21k5
R311
FCXR54215000
21k5
R313
FCXR54215000
21k5
R315
FCXR55464000
464k
R317
FCXR53100000
1k0
R319
FCXR54215000
21k5
R321
FCXR53100000
1k0
R323
FCXR54215000
21k5
R325
FCXR57100000
10M
R327
FCXR53316000
3k16
R328
FCXR53100000
1k0
R331
FCXR53100000
1k0
R332
FCXR52511000
511
R335
40-0175-0101 EP06-06 MPA4-150R.xls 9 of 12

PARTS LIST:
PRINTED CIRCUIT 11.1065.01.01
Code
Description
Reference
FCXR52178000
178
R336
FCXR52511000
511
R337
FCXR52178000
178
R338
FCXR51562000
56.2
R343
FCXR51562000
56.2
R344
FCXR52681000
681
R347
FCXR52681000
681
R348
FCXR52681000
681
R351
FCRJG4250000
2k5
R352
FCXR53178000
1k78
R353
FCXR52681000
681
R354
FCXR52681000
681
R359
FCXR52681000
681
R360
FCXR51562000
56.2
R363
FCXR51562000
56.2
R364
FCXR51562000
56.2
R367
FCXR51562000
56.2
R369
FCXR53162000
1k62
R371
FCXR53162000
1k62
R372
FCXR53100000
1k0
R375
FCXR52464000
464
R376
FCXR52464000
464
R377
FCXR53100000
1k0
R378
FCRY00010000
W0.22/5
R383
FCRY00010000
W0.22/5
R384
FCRP51680000
6.8/2 PR02
R387
FCXR54316000
31k6
R389
FCXR54316000
31k6
R390
FCRP51220000
2.2/2 PR02
R393
FCXR53681000
6k81
R395
FCXR54316000
31k6
R396
FCXR54316000
31k6
R397
FCXR53681000
6k81
R398
FCXR54100000
10k0
R403
FCXR54464000
46k4
R405
FCXR54316000
31k6
R406
FCXR54464000
46k4
R409
FCXR53147000
1k47
R411
FCXR54464000
46k4
R413
FCXR54215000
21k5
R414
FCXR54464000
46k4
R415
FCXR54215000
21k5
R416
FCXR55100000
100k0
R417
FCXR51750000
75.0
R418
FCXR51750000
75.0
R419
FCXR55287000
287k
R420
FCXR53147000
1k47
R422
FCXR53147000
1k47
R423
FCXR53147000
1k47
R424
FCXR53147000
1k47
R425
FCXR53464000
4k64
R427
FCXR52178000
178
R429
FCXR52178000
178
R430
FCXR52178000
178
R431
FCXR52178000
178
R432
FCXR53215000
2k15
R434
40-0175-0101 EP06-06 MPA4-150R.xls 10 of 12

PARTS LIST:
PRINTED CIRCUIT 11.1065.01.01
Code
Description
Reference
FCXR54100000
10k0
R435
FCXR54100000
10k0
R436
FCXR55100000
100k0
R437
FCXR55100000
100k0
R438
FCXR53100000
1k0
R439
FCXR54383000
38k3
R440
FCXR53100000
1k0
R441
FCXR53287000
2k87
R442
FCXR54215000
21k5
R443
FCXR54100000
10k0
R444
FCXR54100000
10k0
R445
FCXR56215000
2M15
R446
FCXR53121000
1k21
R447
FCXR55100000
100k0
R448
FCXR54147000
14k7
R449
FCXR56215000
2M15
R450
FCXR52100000
100.0
R451
FCXR54100000
10k0
R452
FCXR53121000
1k21
R453
FCXR54562000
56k2
R455
FCXR54562000
56k2
R456
FCXR54562000
56k2
R457
FCXR54562000
56k2
R458
FCT804006000
Screw M4x6 SPAN
SC100
FCT804006000
Screw M4x6 SPAN
SC101
FCT804006000
Screw M4x6 SPAN
SC102
FCT804006000
Screw M4x6 SPAN
SC103
FCT804006000
Screw M4x6 SPAN
SC104
FCT804006000
Screw M4x6 SPAN
SC105
FCT803010000
Screw M3x10 SPA
SC106
FCT803010000
Screw M3x10 SPA
SC107
FCT803010000
Screw M3x10 SPA
SC108
FCT803010000
Screw M3x10 SPA
SC109
FCT803010000
Screw M3x10 SPA
SC110
FCT803010000
Screw M3x10 SPA
SC111
FCT803010000
Screw M3x10 SPA
SC112
FCT803010000
Screw M3x10 SPA
SC113
FCT803010000
Screw M3x10 SPA
SC114
FCT804006000
Screw M4x6 SPAN
SC119
FCT804006000
Screw M4x6 SPAN
SC120
FCT750300800
Screw M3x8
SC121
FCSEPDLMSPM0
Plastic Spacer
SP100
FCSEPDLMSPM0
Plastic Spacer
SP101
FCSEPDLMSPM0
Plastic Spacer
SP102
FCSEPDLMSPM0
Plastic Spacer
SP103
FCSEPDLMSPM0
Plastic Spacer
SP104
FCSEPDLMSPM0
Plastic Spacer
SP105
FCSEPDLMSPM0
Plastic Spacer
SP106
FCSEPDLMSPM0
Plastic Spacer
SP107
FCARAT000000
Washer Ins. Tr.3x5.3x1.7
WA100
FCARM3201000
Metal Washer 3.2x6x1
WA101
FCARM3201000
Metal Washer 3.2x6x1
WA102
FCARM3201000
Metal Washer 3.2x6x1
WA103
FCARM3201000
Metal Washer 3.2x6x1
WA104
FCARM3201000
Metal Washer 3.2x6x1
WA105
FCARM3201000
Metal Washer 3.2x6x1
WA106
40-0175-0101 EP06-06 MPA4-150R.xls 11 of 12

PARTS LIST:
PRINTED CIRCUIT 11.1065.01.01
Code
Description
Reference
FCARM3201000
Metal Washer 3.2x6x1
WA107
FCARM3201000
Metal Washer 3.2x6x1
WA108
FCARM3201000
Metal Washer 3.2x6x1
WA109
FCARDE030000
Toothed Washer f/M3
WA114
FC0H02353000
1023.05.30
WI102
40-0175-0101 EP06-06 MPA4-150R.xls 12 of 12
