Ecoray ORANGE 1040HF User manual

DIAGNOSTIC X-RAY UNIT
User Manual
ORANGE 1040HF
- ULTRA 1040HF, ULTRA 100HF
Document No. : EUM-Vet-01
Issued Date : May.26,2016
Revision : 1.1
For better performance and safety, this manual may be changed without any prior notice.
The original version of ORANGE 1040HF is being written in English.

- 2 -
Diagnostic X-ray Unit
USER MANUAL
Section 1. (General Information)
Complied standard ………….……………………………………………………………………………...
5
Contact …………….…………….…………………………………………………………………………….…
6
Guarantee conditions ……………………………………………………………………………………...
Safety information……………………………………..……………………………………………….…...
7
8
Radiation information……………………………………………………………………………………...
9
Warning information.…………………………………………………………………………………….…
10
Warning label information ………………………………….……………………………………….....
Label information ……………………………………………………………………………………………
11
12
Intended use………………………….……………………………………………………………………..….
Note to user………………………………………………………………………………………………..……
Symbols and terms……………………………………………………………………………………..…..
Product name designation……………………………………………………………………………….
13
13
13
14
Electromagnetic compatibility statement..……………………………………………..………..
14
Cleaning………………. …………………….……………………………………………………………..……
14
Proper environment..…………………………..……………………………………………………..……
15

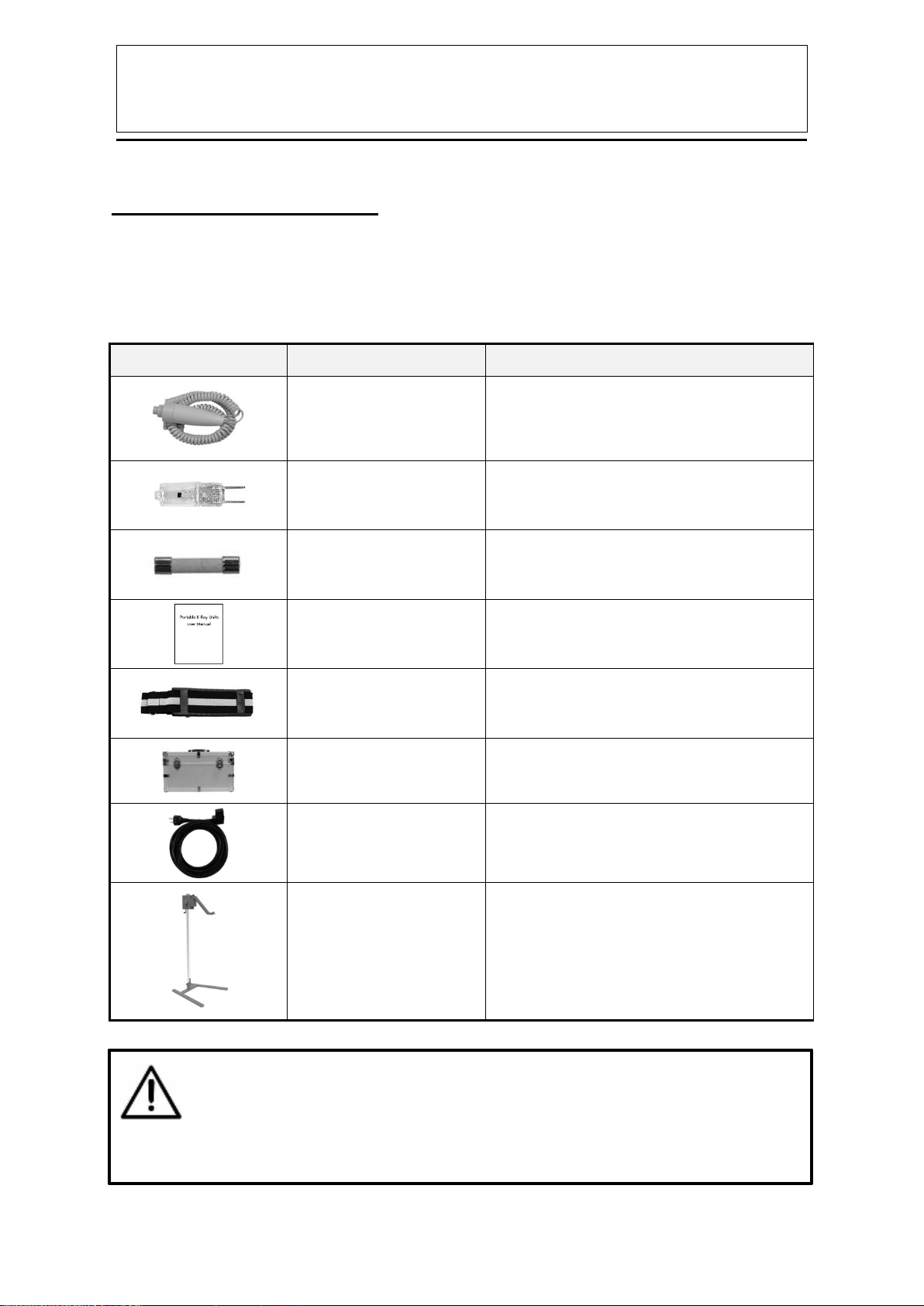

Accessories composition .……………………………………………….……………………………….
16

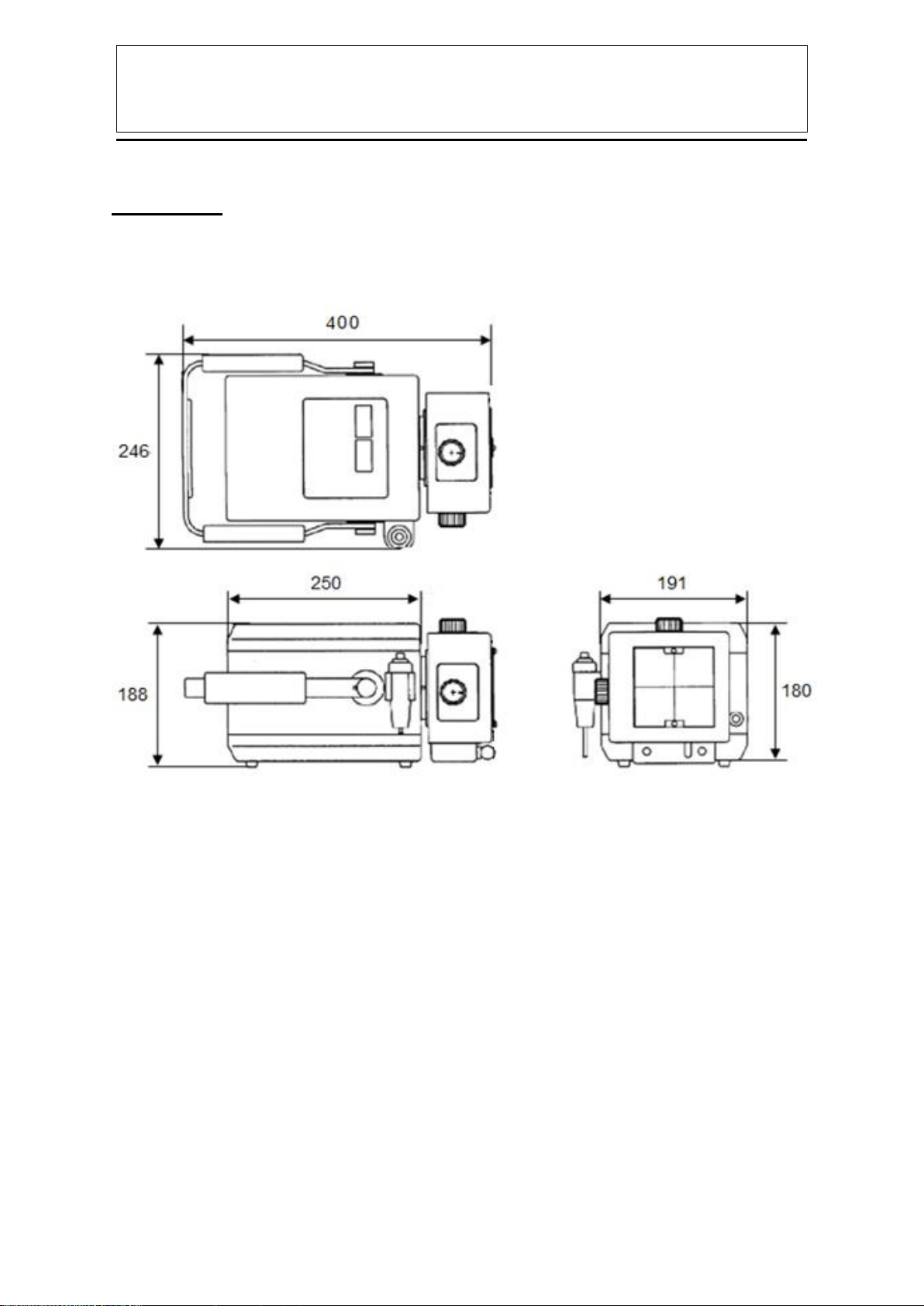

Dimension…………………….. ………………………………………………………………………..……..
17

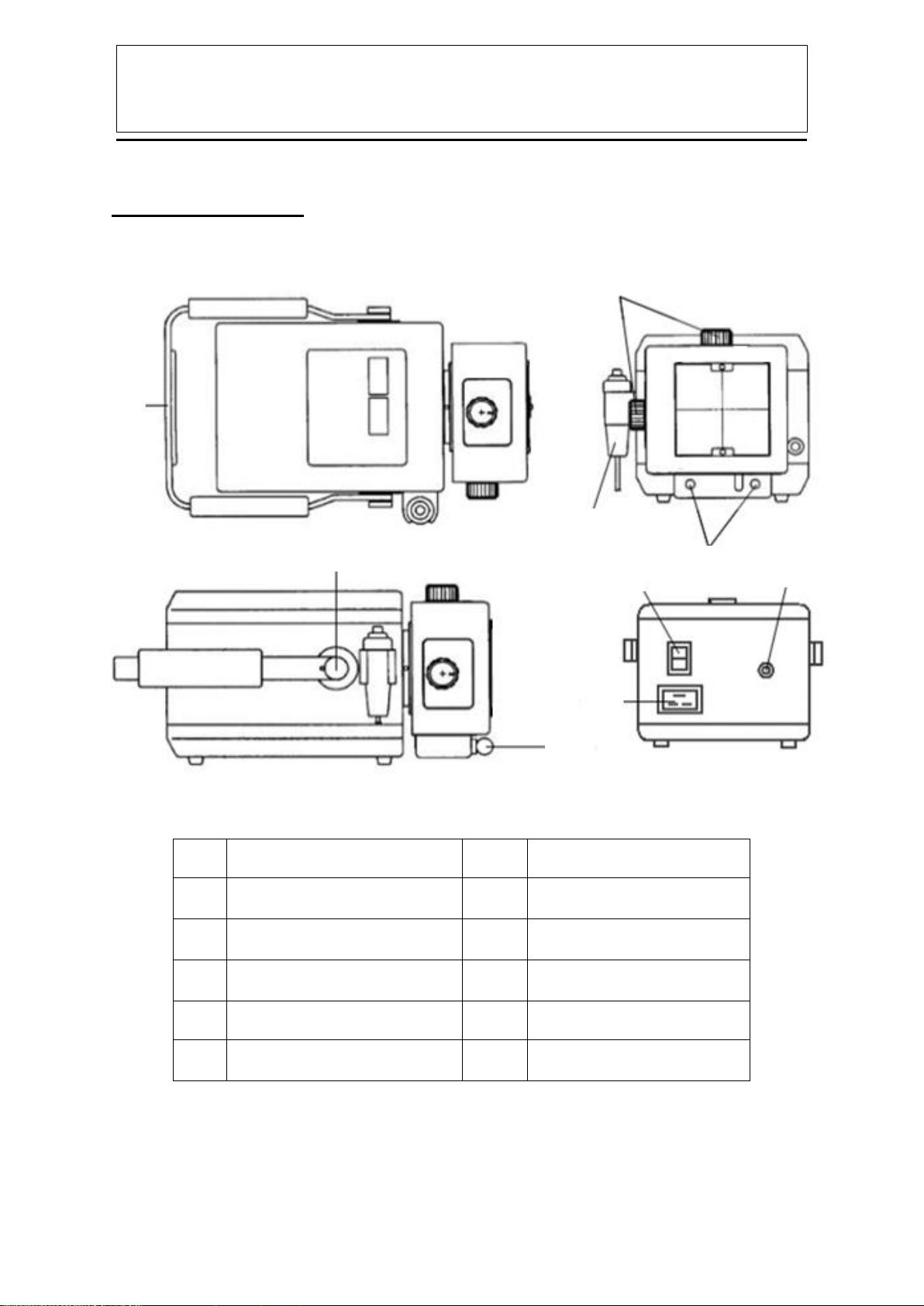

Name of each part..…………………………………………………………………………………..…….
Identification label…………………………………………………………………………………….…….

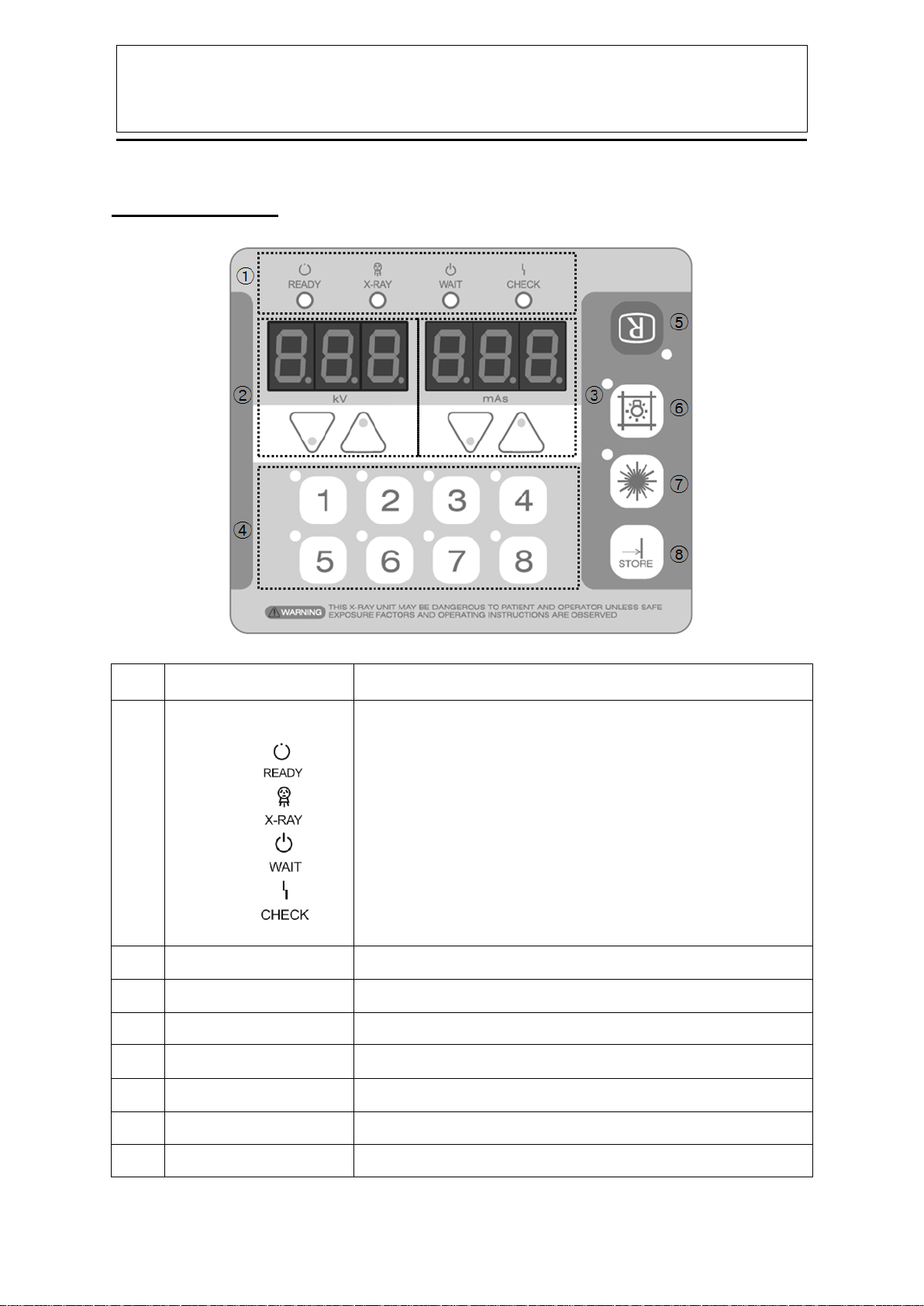

Operation panel………………………………………………………………………………………….……
Specifications…………………………………………………………………………..……….………….…
X-ray tube specification………………………………………………………………………….………..
18
19
20
21
22
Section 2. (Operation)
Operation conditions …..……………………..…………………………………………………………..
25
Operation instruction…………………………………………..……………..….….………….............
26
Error code and corrective actions…………………………………………………………………….
Exposure data table………………………………………………………………………………………
Designated significant zone of occupancy ………………………………………………………
30
31
32
Table of Contents

- 3 -
Diagnostic X-ray Unit
USER MANUAL
Section 3. (Service Manual)
Calibration process …..……………………..……………………………………………………………..
Reproducibility of the radiation output………………………………………………………..…..
Lamp exchange procedure………………………………………………………………………………
Fuse exchange procedure…………………………………………………………………………….….
Put in the hand switch…………………………………………………………………………………....
Put in the power connector and plug……………………………………………………….……..
Diagnostic x-ray unit stand fixing…………………….……………………………………….……..
34
35
38
39
40
40
41
Section 4. (Schematics)
Block diagram …..……………………..…………………………………………………………..………..
Power board……………………………………………………………………………………………………
Power board (DRV)……………………………………………………………………………….…………
Main board (CPU)……………………………………………………………………………………………
Main board (EP_FB)……………………………………………………………………………..………….
Main board (IP_FB)………………………………………………………………………………..………..
44
45
46
47
48
49
Table of Contents

- 4 -
Diagnostic X-ray Unit
USER MANUAL
Section 1.
General Information

- 5 -
Diagnostic X-ray Unit
USER MANUAL
The diagnostic x-ray unit is manufactured according to the following standard and
associated equipment.
☞EN 60601-1-2 : 2007 / AC : 2010 (EMC)
☞EN 55011:2009 A1 : 2010 (EMC)
☞EN 60601-1 : 2006 (SAFETY)
☞EN 60601-1-3 : 2008 (SAFETY)
(Diagnostic X-ray Unit with radiation protection in accordance with EN 60601-1-3:2008)
☞EN 60601-2-28 : 2010 (SAFETY)
(X-ray Tube Assembly [ORANGE 1040HF HV Tank] EN 60601-2-28:2010)
☞EN 60601-2-54 : 2009 (SAFETY)
(X-ray Equipment for Radiography [ORANGE 1040HF] EN 60601-2-54: 2009)
☞Risk Management Report (Report Number : GRM-01)
Complied Standard

- 6 -
Diagnostic X-ray Unit
USER MANUAL
Manufacturer
ECORAY Co., Ltd.
- Address : #714-716, ForHu B/D, 58, Wangsimni-ro, Seongdong-gu, Seoul, Korea.
- TEL : [phone]
- FAX : [phone]
- E-mail : [e-mail] / [e-mail]
- URL : www. ecoray.kr
EC authorized representative
BCF Technology Ltd.
- Address : Imaging House, Phoenix Crescent Strathclyde Business Park Bellshill,
ML4 3NJ, Scotland, UK
- TEL : [phone]
- FAX : [phone]
Contact

- 7 -
Diagnostic X-ray Unit
USER MANUAL
Manufacturer offers the following guarantee to the purchaser of this equipment. The
guarantee is valid for 24 months from when the equipment is handed over to the
first retail purchaser. The guarantee covers all problems caused by faulty
manufacture or faulty material. Call the customer department where purchased when
problems arise. Customer responsible for freight charges for repairs.
The guarantee is valid only when the equipment is installed in the proper
environment as specified in the usage guide section. Make sure to use the
equipment as instructed in the usage guide section.
The guarantee does not cover the damage and loss caused by outside factors
such as fire, flood, storm, tidal wave, lightening, earthquake, theft, abnormal
conditions of operation, and intentional destruction of the system.
Insubstantial defects do not qualify refund e.g. prices for the batteries, training
materials, and supplies are not covered.
We do not take responsibility for damages or loss which appear after the
guarantee period.
The guarantee does not cover additional and indirect damages related with
system operation.
Service may be requested by callings [phone] (or email to
[e-mail]) customer service department for R.A numbers. The product
name, serial number, date of purchase and the details of the problem should be
provided.
Defective equipment should be packed properly in a return box and return to
authorized dealer or manufacturer.
This guarantee can replace all other guarantees for detailed parts and product.
Guarantee Conditions

- 8 -
Diagnostic X-ray Unit
USER MANUAL
This equipment is designed and manufactured with due consideration given to the
safety of the operator and subject, and also to the reliability of equipment. The
following precaution must be observed for additional safety.
Safety Information
Caution
Only an experienced expert should operate the unit.
Attention should be paid not expose the unit to factors such as, slant, vibration
and shock(including when traveling) in where the unit should be.
The equipment has been factory-adjustment for optimum performance. Do not
attempt to adjust any present controls or switches except those specified in this
manual for operation.
If you have experienced any trouble with the equipment, the main switch off
immediately, and contact its authorized dealer for the service for assistance.
Pregnant animals should be avoid radiation and consult with a doctor if
required.
Do not use the other connector which it does not provided from manufacturer.
The equipment is designed for the purpose of radiographic diagnostic x-ray
use therefore the unit shall not be used for fluoroscopy.
The equipment is designed for the diagnosis purposes, the equipment shall not
be used for therapy.
Be careful not to drop the unit when moving or installation.
The system should be away from water.
Do not use with wet hands.
Do not use the equipment random.
Review operational environmental condition in the manual before use.

- 9 -
Diagnostic X-ray Unit
USER MANUAL
This equipment is manufactured with the necessary devices and it protects operator
and animal from the ionized radiation that is radiated form the X-ray source
assembly.
Radiation Information
Caution
User and operator must use a protective devices(X-ray protection partition)
and a protective clothing(Lead Apron) as appropriate to the workload
involved.
During X-ray exposure, no object but animal should stay in the region of
radiation. Otherwise, the extra object can make unexpected effect to X-ray
image that may interfere correct diagnosis.
Eliminate all the useless objects from the zones, because they are a further
source of secondary radiation, above all near the source.
The focal to skin distance shall be not shorter than 45 cm.
Operators are requested to use minimum kV and mAs values for experimental
use.
Do not exceed in the size of the radiograms and limit the X-ray field size to
the size of interest only.
User(Doctor or Expert) must know animal body condition when radiation
X-ray.
Operator should exposure at the minimum significant zone of occupancy
referring page.32.

- 10 -
Diagnostic X-ray Unit
USER MANUAL
This is the important information for the reader or user. User or reader should pay
attention to this important information. If not, serious damage to people or equipment
can be occurred.
Warning Information
Warning
The retaking of x-rays was necessary due to shaking of the diagnostic
x-ray units when used without the diagnostic x-ray stand. Repeated
exposure to the radiation may risk the health of both animals and
radiologists, therefore Must use the diagnostic x-ray stand.
(A way to fixed : Page.41)
To avoid risk of electric shock, this equipment must only be connected to a
supply mains with protective earth.
Do not modify this equipment without authorization of the manufacturer.
Check that the input power frequency, voltage and allowable current matches
with the unit requirements.
This unit has built-in dual laser modules for targeting SID therefore Please
keep your eyes away from the source of laser that may harm your bare eyes.
Do not use the equipment close to a flammable or an aesthetic gas. It has the
danger of explosion.

- 11 -
Diagnostic X-ray Unit
USER MANUAL

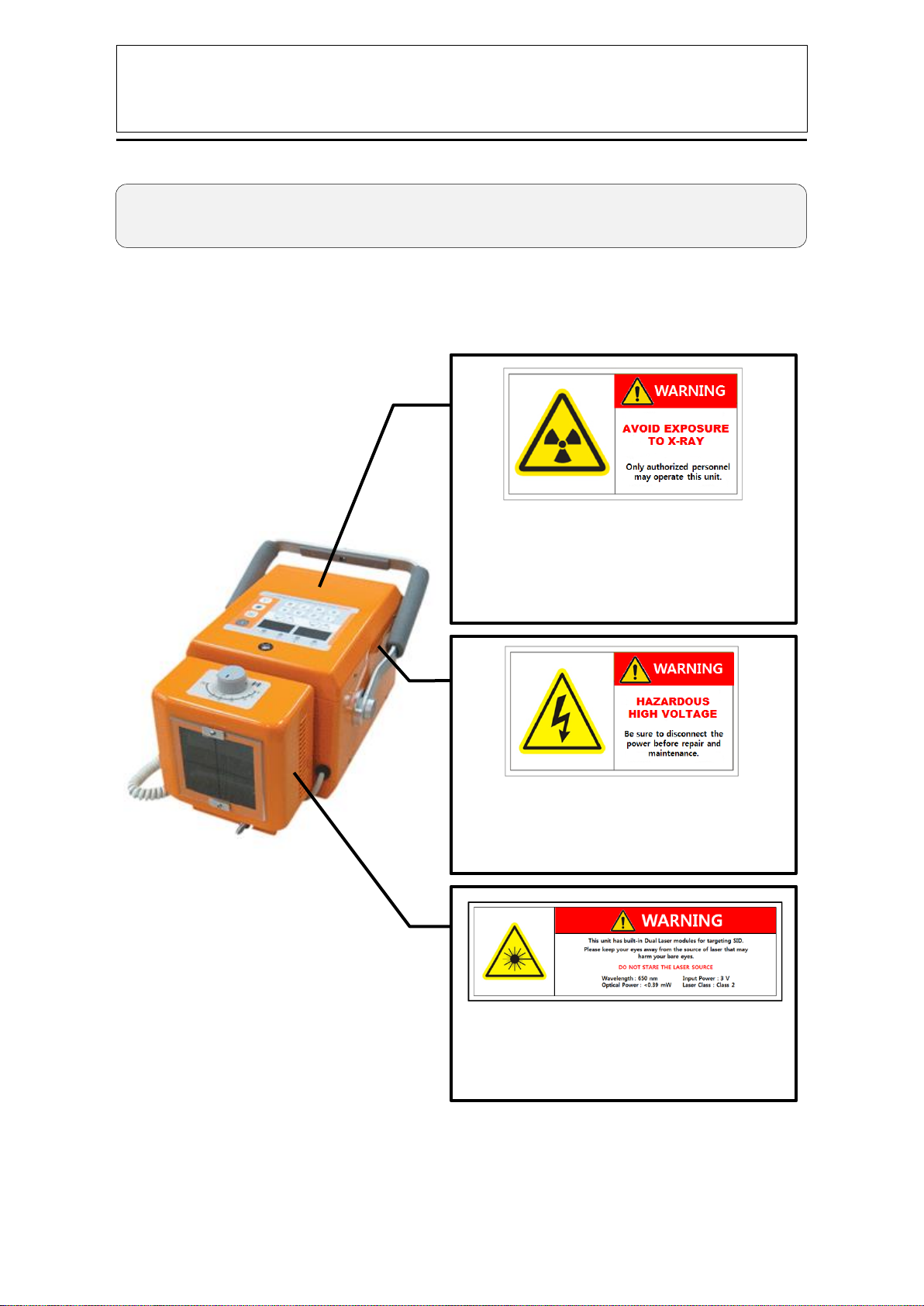

Warning of Laser
This label placed on the side of collimator.
Please keep your eyes away from the source of
laser that may harm your bare eyes.
Warning of dangerous voltage
This label placed on the top of HV Tank. HV Tank
uses high voltage to generate X-ray so cut off the
power before checking and repairing the unit.
Warning of ionized Radiation
This label placed on the top of top case.
The ionized radiation is dangerous for the animal
and the operator if the appropriate safety
measures are not strictly observed.
Warning Label Information

- 12 -
Diagnostic X-ray Unit
USER MANUAL

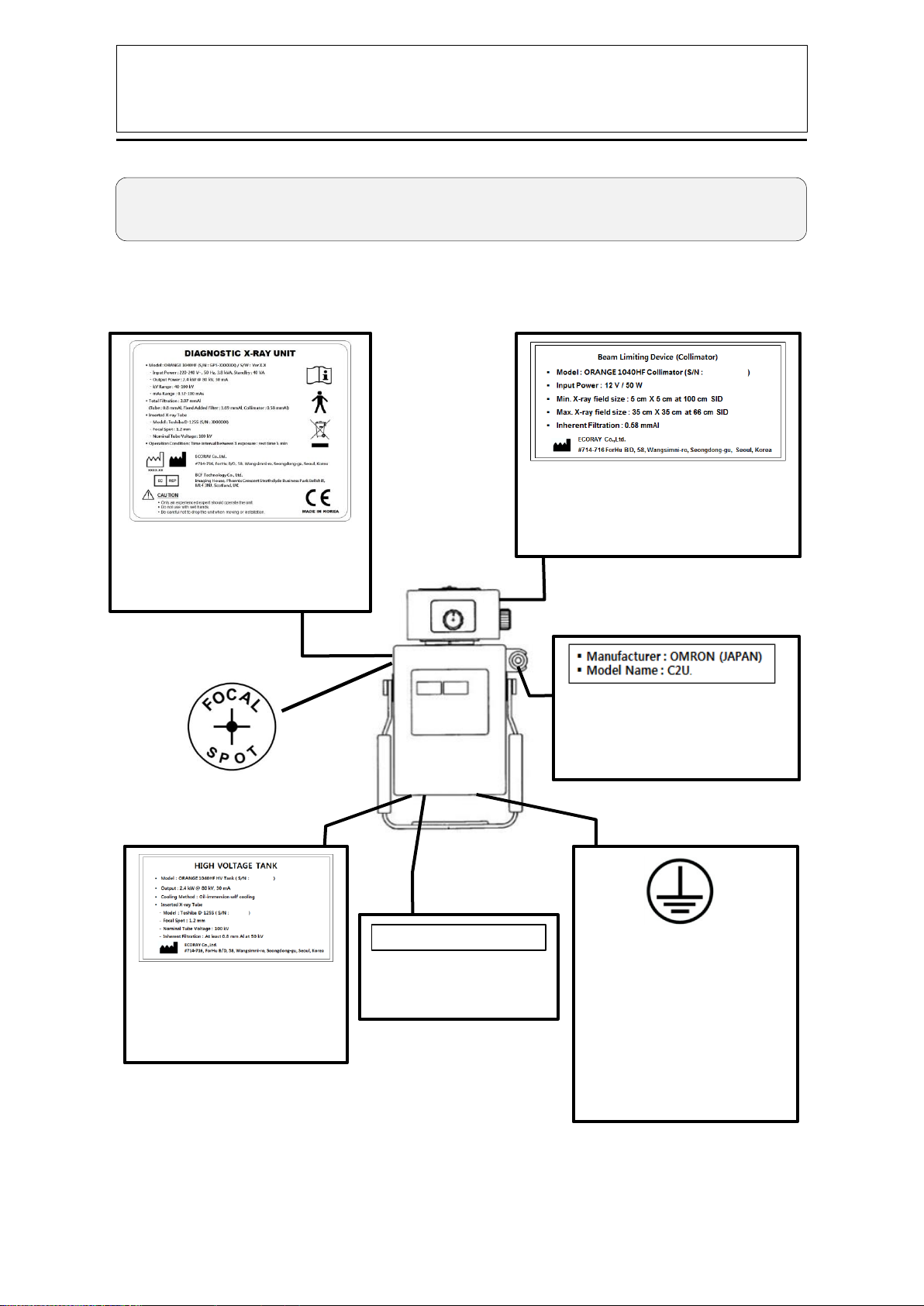

Label Information
Identification
This label placed on the bottom
case. This label explained product
information.
Beam Limiting Device
This label placed on the side of
collimator. This label explained
collimator information.
High Voltage Tank
This label placed on the top of
HV tank. This label explained
HV tank information.
Protective Earth
This label placed on the
inside of case. Identify the
point where the system safety
ground is fastened to the
chassis. Protective earth is
connected to conductive parts
of Class Ⅰequipment for
safety purposes.
Hand Switch Information
This label placed on the side of
Hand switch. This label explained
manufacturer and model name.
220-240 V~ 50 Hz
This label placed on the
under power inlet. This
label is input power spec.

- 13 -
Diagnostic X-ray Unit
USER MANUAL
Intended Use
This x-ray unit has been developed specially for diagnostic veterinary x-ray
applications. It should not be used for other applications.
Note to User
To ensure safe operation and long term performance stability, it is essential that you
fully understand the functions, operating and maintenance instruction reading this
manual before operating equipment.
Particular attention must be paid to all warnings, cautions and notes incorporated
herein. In correct operation, or failure of the user to maintain the equipment relieves
the manufacturer or his agent from responsibility for any damage or injury as a result
of the system noncompliance.
The responsibility about use of medical apparatus and management of maintenance
is in a user side.
Symbols and Terms
The following symbols will be used in this manual: their meaning and their
application are described further below.
Caution:
Calls attentions to action or conditions that could cause light
injury to the user or damage to the instrument or user's data,
and precautions that can be taken to prevent such
occurrences.
Note:
They inform the reader about the relevant facts and
conditions; they draw the attention to important information
but, if they are not taken into consideration, they do not
necessarily cause damages to people or to the equipment.

- 14 -
Diagnostic X-ray Unit
USER MANUAL
Product Name Designation
Main product name : ORANGE 1040HF
Addition product name : ULTRA 1040HF, ULTRA 100HF
Electromagnetic Compatibility Statement
This generating equipment, used and related to radio frequency energy, if not
installed and used in accordance with the instruction, may cause harmful
interference to other devices in the vicinity. However, there is no guarantee that
interference will not occur in particular installation. If this equipment does cause
harmful interference to other device, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by on
or more of the following measures.
1) Reorient or relocate the receiving device.
2) Increase the separation between the equipment.
3) Connect the equipment into an outlet on a circuit different from that to which the
other devices are connected.
☞If the problem continues, consult to the manufacturer or field service technician.
Cleaning
To make sure that power is off for diagnostic x-ray unit while cleaning. Use a non-
alcohol based disinfectant only - wipes, or a cloth dampened with liquid. Diagnostic
x-ray unit is not designed to be used to sterilize anything else.
Caution : Do not use by any other chemical liquid.

- 15 -
Diagnostic X-ray Unit
USER MANUAL
Proper Environment
For normal operation, you must keep away from the place with a strong vibration
and maintain the following range of temperature and humidity.
Operation Environment
Temperature range: 10°C - 40°C,
Relative Humidity Range: 30% - 75% RH
Pressure: 700 –1060 hPa
Height Range: 0 –2000 m
The most optimal recommended rage of temperature and humidity
Temperature range: 17 °C - 23 °C,
Relative Humidity Range: 40 % - 60 % RH
For storage and transportation condition, you must maintain the following
range of temperature and humidity and atmosphere.
Storage/Transport Environment
Temperature range: -25 °C - +60 °C,
Relative Humidity Range: 10 % - 95 % RH
Air Pressure Range: 500 - 1060 hPa
* non-condensing, not packaged for outdoor storage.
Caution : Avoid the following environments for operation or storage ;
Where the equipment is exposed to water vapor.
Where the equipment is exposed to direct sunlight.
Where the equipment is exposed to dust.
Where the equipment is exposed to high humidity.
Where there is a ventilation problem.
Where the equipment is exposed to a salty atmosphere.
Where the equipment is exposed to chemicals or any gas.

- 16 -
Diagnostic X-ray Unit
USER MANUAL
Caution : Use hand switch and power supply cable which provided
from manufacture only. When problems occur by using
other parts, the manufacture does not bear any
responsibility.
Accessories Composition
This diagnostic x-ray unit is essentially built up of the following parts:
Since diagnostic x-ray unit is integrated one body X-ray equipment therefore
following regions are firmly fixed and connected of consist of.
Name
Specification
Hand Switch
Manufacture : OMRON
Model Name : C2U (Push button switch)
2 Steps (1 Step : "Ready", 2 Step : "Shot" )
Extra Lamp
Manufacturer : OSRAM
Model Name : 64610HLX
Power : 12 V / 50 W
Extra Fuse
Body Type : Ceramic
Power : 15 A, 250 V~
User Manual
Size : W150 X H120 mm
Aluminum Carrying Case
Shoulder Strap
Length : 125 mm
Aluminum Carrying Case
Size : W530 X L295 X H255 mm
Power Supply Cable
Length : 6000 mm
Stand
(Option)
Size : W775 X L720 X H1255(1715) mm

- 17 -
Diagnostic X-ray Unit
USER MANUAL
Dimension
(Unit : mm, Without accessories Weight : 12.5 kg)

- 18 -
Diagnostic X-ray Unit
USER MANUAL
Name of Each Part
①
Handle
⑦
Laser Beam Outlet
②
Main Body
⑧
Angle Meter
③
Operation Panel
⑨
Measuring Tape
④
Collimator
⑩
Main Switch
⑤
Collimator Knob
⑪
Power Inlet
⑥
Hand Switch
⑫
Mono Jack
⑤
①
②
③
④
⑥
⑦
⑧
⑩
⑨
⑫
⑪

- 19 -
Diagnostic X-ray Unit
USER MANUAL
Identification Label
No
Explanation
①
General Information
②
User Manual
Before use equipment, Must read a user manual
Electric
Protection
Type B applied part. To identify a type B applied part
complying with IEC 60601-1. Note - B = Body
Disposal
Disposal of this product must be handled according to
local laws and regulations
③
Date of
manufacture
Date of product manufacture
Manufacturer
Information
Basic information of manufacturer
AR
Information
Authorized Representative in European Community
④
Caution
General caution
CE Mark
Conformite European
①
②
③
④
④

- 20 -
Diagnostic X-ray Unit
USER MANUAL
Operation Panel
NO
Name
Performance
①
System Indicate
It shows an exposure is ready to make pressing READY switch.
It lamp on during exposure is being made.
It It lamp on during 5 sec after exposure.
It lamp on occurring is system problem.
②
kV Key
kV can be set
③
mAs Key
mAs can be set
④
APR Key
It is available for 16/8 APR data Memory (kV, mAs)
⑤
Display reversal key
It can be kV/mAs reverse display
⑥
Collimator Lamp
It indicates a field to be exposed
⑦
Laser beam key
For exposure focus
⑧
Store key for APR
Save the selected APR data
