ecoStage 5R BEAM200 User manual

1
BEAM200 MOVING HEAD LIGHT
WEIGHT：17.5KG
COLOR TEMPERATURE:（8400K）
POWER: （200/230W）

2
Item
Item ............................................................................................................................ 2
1. Product introduce ..................................................................................4
1.1 Fixture Size...................................................................................................... 4
2. Safety information............................................................................................. 4
2.1 Anti-high temperature ........................................................................................ 5
2.2 Burst Prevention ................................................................................................. 5
2.3 To prevent falling wounding ........................................................................... 5
2.4 UV protection and the bulb explosion ................................................................ 5
2.5 Prevention of electric shock ............................................................................... 6
2.6 to prevent burning or fire ................................................................................... 6
3. Packing and shipping .................................................................................... 6
3.1 packaging randomized accessories project ...................................................... 6
3.2 transport the protection locks...............................................................................7
3.3 device packaging ............................................................................................. 7
3.4 Unpacking........................................................................................................... 7
4. Installation standards ....................................................................................... 7
4.1 device fixed to the bracket ...................................................................................7
4.2 rigging installation ........................................................................................... 7
4.3 connected devices................................................................................................ 8
5. AC power................................................................................................................ 8
5.1 Fuse......................................................................................................................8

3
5.2 Power connection............................................................................................... 8
6. Lamp........................................................................................................................9
6.1 Bulb Description ............................................................................................. 9
6.2 changing a light bulb........................................................................................... 9
7. Control Panel.........................................................................................................9
7.1 Introduction...................................... ................................................................. .9
8. B200W reference ................................................................................................ 9
8.1 address code, XY axis control mode............................................................ 10
8.2 MODE control mode......................................................................................10
8.3 DISP Mode.....................................................................................................11
8.4 LAMP Mode .................................................................................................11
8.5 RESET mode.................................................................................................11
8.6 OPTO Mode .................................................................................................11
8.7 Channels introduction...................................................................................12

4
STATEMENT
The product is good packing when ship out the factory. All users should strictly abide by the
warnings and instructions stated in this manual, any damage and results due to misuse and the
neglect of this operating manual will be excluded from the deal responsibility this manual will not
informed in additionally if have technical changes.
DISPLAY PRODUCTION DESCRIPTION
Thank you for choose this B200 products, this model is the moving head light which is the latest
development of the smart, efficient products, beautiful shape, smooth R & D, combined with the
advanced technology of today's stage lighting products with international advanced electronic
control technology and excellent user-friendly industrial design , fully comply with CE standard,
accepted international standard DMX512 signal mode.
This moving head lights, use ceramic luminescent film reflector as a condenser system, coupled
with the high-quality optical lens components, broadband voltage, a clear pattern, sharp and
uniform output light efficiency. Intelligent LED display module, the English language selection
mode, intuitive operating menu, shortcut.
B200, have 16/20 international standard DMX512 channels optional Horizontal scan: 540 °
vertical scanning 270 ° (16bit precision scanning) electronic correction, dot-matrix display, four
touch switch LCD + single-Key flying shuttle can spin. The can be inverted 180 °, the color wheel
is combined with white and 14 colors. Gobo wheel: 7 patterns + white effect round by eight prism
and atomization function. 0-100% mechanical dimmer, support mechanical strobe and variable
strobe effect, strobe macro function. The optical system of the lens group electric focusing, the
beam angle of 0 to 4 ° with overheating protection function
Moving head lights are widely used in television, disco, dance halls, nightclubs, large-scale
performances and other professional venues
1. PRODUCT INTRODUCTION
1.1BEAM SIZE
Size：395（L）×287（W）×495（H）mm
Net Weight：17.5KG
2. SAFETY INFORMATION
Safety warning message
This product is only suitable for professional use, and does not apply to security for other purposes.
After you got the lights, please check the package whether have any damage caused by
transportation. If there is any damage, do not use this fixture, and please contact the dealer or

5
manufacturer as soon as possible.
This product is only suitable for indoor, IP20 protection class. Lamps should be kept dry to avoid
Moisture, overheating or dusty environment. Prevent lamps come into contact with water or any
other liquid.
The use of this product should pay attention to: fire, heat, electric shock, ultraviolet radiation, the
lamp to explode or
Shedding caused serious or fatal injury.
Need to read the instructions before use energized or installing.
Follow through the operation of security methods and pay attention to the warning signs on the
specification and equipment. If you have any problem for how to safely operate the equipment.
Please contact your dealer.
2.1 ANTI-HIGH TEMPERATURE
Ta =40
Please don’t use the equipment if the temperature above 40℃
2.2 BURST PREVENTION
The lens should be changed if had damaged or any problems. Don’t change the
non-original manufacturer lens.
Len size：￠1136×60 mm
2.3 TO PREVENT FALLING WOUNDING
Please don’t move the package by one person only.
When Hang the fixture, please must verify that the facilities to be able to
withstand the weight of the lamps at least 10 times more.
Please make sure the Mounting hardware is strong enough no any damage, and
insurance for the safety rope as auxiliary security fixed in other facilities will
need to verify before installation. Installing or removing the equipment, to make
the pulley below the work location
2.4 UA PROTECTION AND THE BULB EXPLOSION
Prohibit straight viewpoint with exposed bulbs to avoid UV damage to the eyes;
Do not use the equipment without the lens screen and the lid;
The lens and the light head covers should be timely replaced if any damage to rupture

6

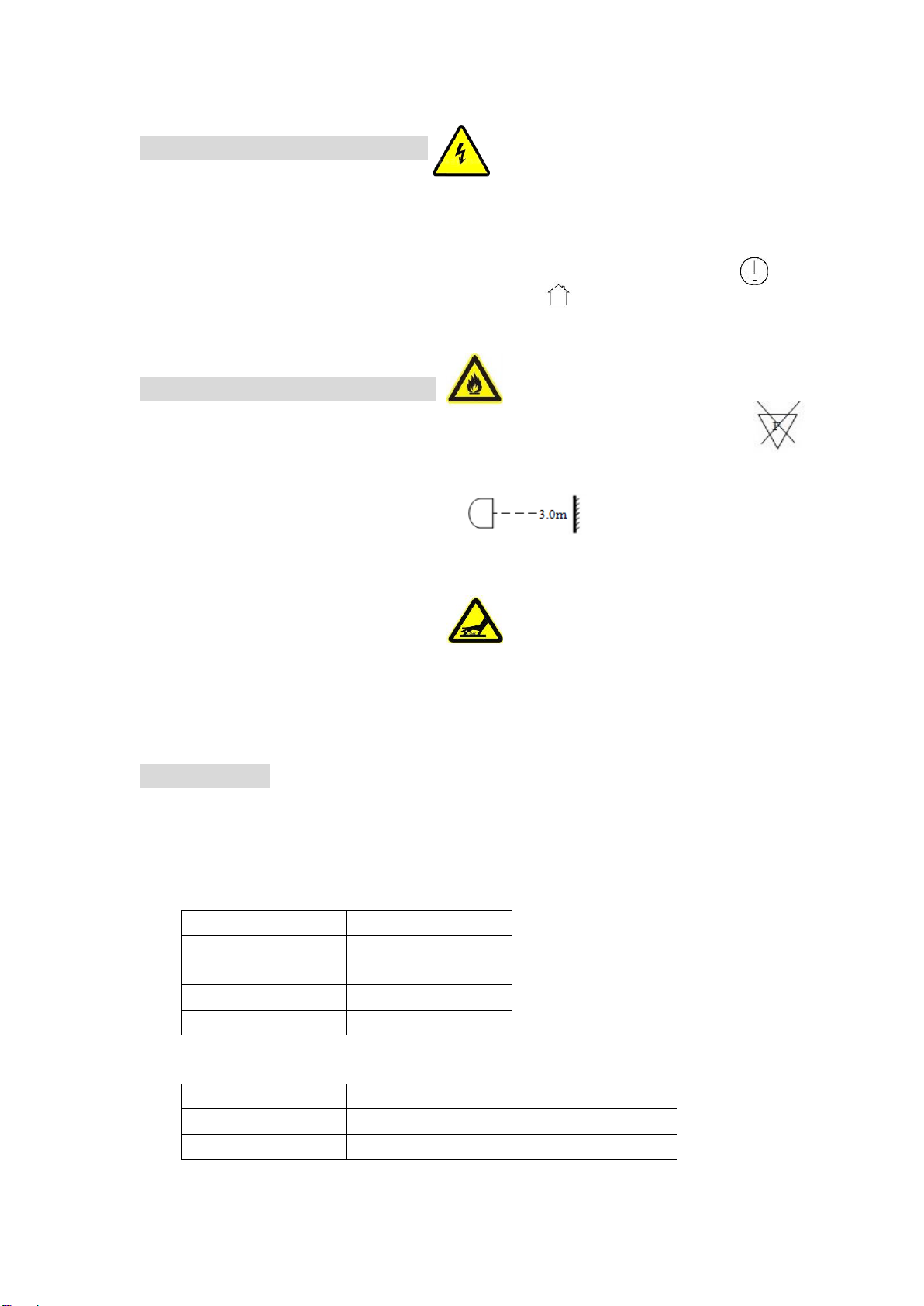

2.5 PREVENTION OF ELECTIC SHOCK
The electrical connection must only be carried out with corresponding qualifications;
Before installing, make sure you use the power voltage lamps must comply with the identified
power, voltage and have an overload or leakage protection;
Each lamp must be properly grounded, installed in accordance with the relevant standards;
Cut off the power when stall or replace the lamp and the fuse;
Prohibit the use of a lightning storm or wet environment.
2.6 TO PREVENT BURNING OR FIRE
1. Do not be mounted the light directly on the surface of ordinary combustible material.
2. Do not short-circuit temperature protection switch or fuse, use the specified type of fuse.
3. The equipment must be installed away from inflammable and explosive materials.
4. The equipment should be projected range of 3 meters away objects and projectiles
temperature less than 60 ° C; ---- 3.0m.
5. Fan or ventilation, at least in the range of 0.5 meters can not be an obstacle.
6. Do not place any object on the lens.
7. Handling at least allow the device to cool for 20 minutes.
8. Do not replace the non-original parts.
3. PACKAGE
3.1 ATTACHMENT
Beam200 packed with fly-case of one in one ,two in one ,or carton box.
Attach follow accessory.
ACCESSORY
CONTENT
QUANTITY
USER MANUL
1
SAFTY ROPE
1
HANG FIXTURE
2
SIGNAL CABLE
1
PACAKGE SIZE
CARTON BOX
410*490*600
FLY-CASE 1 IN 1
690*470*430
FLY-CASE 2 IN 1
985*450*735

7
3.2 TRANSPORT PROTECT LOCK
In order to protect the light, there is a protect lock; During the transport , the lock will closed
keeping the item in safety state.
3.3 ABOUT PACK STAGE
1. Before packed, make sure power is off, and wait for at least 20mins for cooling down.
2. Before clean the fixture, make sure X, Y axis protect lock closed.
3. After packed by plastic bag, high-lift the fixture with two handles besides the product. put
the product into the fly-case up-side-down.
4. After packed the product, put the accessory into the accessory case, then closed and lock the
fly-case.
5. Fly-case only up stacked two layers. Prohibited upside down
6. When packed with carton box, equipment should be put into the foam first, then set into a
carton, pay attention to the vertical position.
3.4 UNPACKING
Note: Before unpacking check the damage is whether due to the transportation or not, if you find any
such damage, please do not use this item, and contact with the dealer or manufacturer as soon as
possible.
1. Open the fly-case, and discover the inside plastic bag.
2. High-lift the product by two handles beside the bottom base and move it out.
3. Before power on, make sure you have opened the X, Y axis lock!
4. INSTALL STRANDARD
4.1 INSTALL LOCK
B200 can be placed on the stage, or mounted in an arbitrary direction of the truss. Two fast locks
system could fix the item easily
4.2 EQUIPMENT FIXED
1. Before installation must verify the fast lock is keep in good state, and can withstand at
least 10 times the weight of product. Verify that the building can withstand at least 10
times of the total weight of the product and accessory equipments.
2. Fix the hang fixture into the hole, which located on the base of the price.
Seize handle of fasteners, clockwise rotate 1/4 turn and lock. Installed other one fastener
in the same method.
3. Using the safety cable which can withstand 10 times the weight of the equipment.
4. Make sure the X,Y protect locks are opened, Verify that within 3 meters there is no
combustibles .

8
WARNING
Fixture must use two fixing devices, and make sure the fixing device have locked! And only
fully clockwise rotate 90 ° can lock the hang fixture! Do remember plus a safety rope, and
do not connect the safety rope to plastic handle. It should be connect to the hole on the base!
4.3 FIXTURE CONNECT
Attention! One product only can accept one input one output.
B200 DMX cable include 3 contact pins:
Pin 1, FOR GROUND; Pin 2 connected to the negative polarity signal; The pin
3connected to the positive polarity signal.
DMX512 cable must use the professional shielded twisted pair cable; standard
loudspeaker cable is not reliable to control the long-range data. 24AWG cable is
suitable for more than 300 meters long-distance signal transmission and must add\
DMX 512 signal amplifier.
Do not use two outputs to separate the connection, if separate a continuous connection
to branch, DMX512 splitter is necessary.
Attention! Do not overload the connection. One continuous connection can only
connect up to 32 devices.
If use the DMX512 splitter. At first connect DMX512 Splitter input terminal to
controller .And then connected from the splitter output terminal to next device.
Do as above guide to connect other device, and finally coupled with terminal insertion
5. ALTERNATING CURRENT POWER SUPPLY
5.1 VOLTAGE, POWER, FUSE SPECIFICATION
Input Voltage
Total Power
Frequency
110~240V
230W
50/60HZ
Fuse voltage
Electronic current
Specification
250V
6A
5×20
5.2 POWER PROTECT
The equipment must be operated by professionals; Make sure that the voltage of
power supply must be comply with the voltage identified on the lamp, and must have
an overload or leakage electrical protection.
ATTENTION!
Factory has equipped the standard 3 pin plug socket. Connect the power supply as

9
below table.
If lamp cable is damaged, replacement should be operate by factory or qualified
staff. Any question, please contact professionals or talk to a qualified electrician.
Live wire(L)
Null(N)
Ground wire
RED
BLUE
Yellow +Green
6. LAMP
6.1 LAMP DESCRIPTION
LAMP MODEL
POWER OF LAMP
LIFE/HOUR
COLOR TEMPERATURE
Philips UHP
189 W
2200 HOUR
8000K
YODN 5R
200 W/230W
2200 HOUR
8000K
WARNING! There is a safety hazard or damage if install similar bulb
To reduce the risk of damage to light ,do change the lamp before using
time over 125% of lamp life .
6.2 LAMP REPLACE
Attention! When replace the lamp is forbidden to touch lamp with bare hand, to
avoid the greasy dirt stains filament. filament must be kept clean
1. Disconnect the power. Before replace lamp, fixture need 20 minutes for lamp
cooling. Fasten the head with Y axis protect lock in 60 ° position.
2. Use cross screwdriver to open the light body cover, remove the fan bracket,
pull out the bulb cable
3. Open stainless steel tablet holder with one hand and the use other hand to pull
out the bulb at oblique 15 °
4. Install the lamp
7. CONTROL PANEL
7.1 CONTROL PANEL INTORUCTION
POWER SIGNAL
LIGHT
DMX SIGNAL
LIGHT
DISPLAY SCREEN
BUTTON

10
8. BEAM2OOW CONTROL
8.1 DMX ADDRESS AND X,Y AXIS CONTROL
A001 DMX address：001
Rpan: X axis reverse
ON X axis reverse on
OFF X axis reverse off
Rtil: Y axis reverse Click “up”button to enter this model, “E”button
confirm. Click “up”and “down”button to
adjust state. Press “E”for confirm
ON Y axis reverse on
OFF Y axis reverse off
8.2 MODE CONTROL
MODE CONTROL Click “up”button to enter this model, “E”button
confirm, click “up”and “down”button to adjust state.
Press “E”for confirm
DMX DMX MODE
DIS1:16CH
DIS2:20CH
DIS3: Advanced
AUTO AUTO
SOUD SOUND
Press E button enter the DMX address set. Click “up”and
“down”button to adjust 0-255 address. Press “E”saved
Click “up”button to enter this model, “E”button
confirm. Click “up”and “down”button to adjust
state. press “E”for confirm

11
8.3 DISPLAY MODE
DISP: DISPLAY MODE Click “up”button to enter this model, “E”
button confirm, click “up”and “down”
button to adjust state. Press “E”for confirm
MOD1：Display
MOD2：Dim display
MOD3：No display ( any button re-light)
Reverse display screen
8.4 LAMP MODE
LAMP:LAMP MODE ON ,Press “E”, turn on lamp by manual.
Show “OK？”and flash，Press “E”，Lamp on when
turn on the light
OFF, Press “E”, turn off lamp by manual
Show “OK？”and flash，Press “E”，Lamp off when
turn on the light
8.5 REST:RESET MODE
REST:RESET MODE Reset
All channel reset Press “E”, All reset
8.6 OPTO: OPTICAL COUPLE MODE
OPTO: OPTICAL COUPLE OPTICAL COUPLE ADJUST
ON Press “E”Adjust available
OFF Press “E”No adjust function

12
8.7 CHANNEL CONTROL
Channel
DMX No
Content
1CH Color
0-4
White
5-8
White+Color1
9-12
Color1
13-17
Color1+Color2
18-21
Color2
22-25
Color2+Color3
26-29
Color3
30-34
Color3+Color4
35-38
Color4
39-42
Color4+Color5
43-46
Color5
47-51
Color5+Color6
52-55
Color6
56-59
Color6+Color7
60-63
Color7
64-68
Color7+Color8
69-72
Color8
73-76
Color8+Color9
77-81
Color9
82-85
Color9+Color10
86-89
Color10
90-93
Color10+Color11
94-98
Color11
99-102
Color11+Color12
103-106
Color12
107-110
Color12+Color13
111-115
Color13
116-119
Color13+Color14
120-123
Color14
124-127
Color14+Color15
128-255
Color15
2CH Strobe
0-3
White
4-103
Slow strobe to fast strobe
104-107
White
108-207
Fast strobe to slow strobe
208-212
white
213-225
Free strobe ,slow
226-138
Free strobe ,middle
239-251
Free strobe ,fast
252-255
White

13
3CH Dimming
0-255
0-100%
4CH Gobo
0-3
White
4-7
Gobo1
8-11
Gobo2
12-15
Gobo3
16-19
Gobo4
20-23
Gobo5
24-27
Gobo6
28-31
Gobo7
32-35
Gobo8
36-39
Gobo9
40-43
Gobo10
44-47
Gobo11
48-51
Gobo12
52-55
Gobo13
56-59
Gobo14
60-63
Gobo15
64-67
Gobo16
68-71
Gobo17
72-113
Gobo change ,fast to slow
114-117
Stop
118-159
Gobo change ,slow to fast
160-166
Gobo2,shaking slow to fast
167-172
Gobo3,shaking slow to fast
173-179
Gobo4,shaking slow to fast
180-185
Gobo5,shaking slow to fast
186-191
Gobo6,shaking slow to fast
192-198
Gobo7,shaking slow to fast
199-204
Gobo8,shaking slow to fast
205-211
Gobo9,shaking slow to fast
212-217
Gobo10,shaking slow to fast
218-223
Gobo11,shaking slow to fast
224-230
Gobo12,shaking slow to fast
231-236
Gobo13,shaking slow to fast
237-243
Gobo14,shaking slow to fast
244-249
Gobo15,shaking slow to fast
250-255
Gobo16,shaking slow to fast
5CH Prism
0-127
White
128-255
Prism
6CH Prism Rotate
0-20
Angle 0
21-41
Angle90
42-62
Angle180
63-83
Angle270

14
84-104
Angle360
105-126
Angle450
127
Angle540
128-190
Fast rotate to Slow rotate
191-192
stop
193-255
Slow rotate to fast rotate
7CH Empty
0-255
8CH Frost
0-255
0-100% Frost
9CH Focus
0-255
0-100% Focus
10CH X
0-255
540°
11CH X fine
0-255
1.8°
12CH Y
0-255
270°
13CH Y fine
0-255
1.8°
14CH Macro Function
0-11
12-24
25-37
38-50
51-62
63-255
15CH Reset
128
Reset
16CH Lamp
63
Off
178
On
17CH X.Y axis speed adjust
0-255
linearity control
18CH color speed adjust
0-255
linearity control
19CH Focus speed adjust
0-255
linearity control
20CH Patterns speed adjust
0-255
linearity control
