ECOTEST Gamma Sapiens User manual

UDKG-01A
“Gamma Sapiens”
INTELLECTUAL
GAMMA RADIATION
DETECTOR
Operating manual

Dear users,
You had chosen well if purchased a device of
“ECOTEST” trademark manufactured by “Sparing-Vist
Center”. Your device is easy to use and can be applied for
household purposes without special training of the user.
Should any questions arise, please contact our managers by
telephone [phone], fax [phone]
or e-mail [email protected].
We would greatly appreciate to receive your comments
and suggestions on its operation. The device is under
18-months (free of charge) warranty maintenance.
Best regards, International Sales Department

Dear users,
We would like to draw your attention to the delivery kit of
the UDKG-01A “Gamma Sapiens” intellectual gamma radiation
detector that includes two AAA batteries. However, the power
for operation can also be supplied by two ААА nickel-metal-
hydride (NiMH) rechargeable batteries of no less than 800 mАh
capacity instead of batteries that come with the device. You can
buy these rechargeable batteries and their charger at any retail
outlet. Famous manufactures, such as Varta, are highly
recommended.
Choose an automatic battery charger, preferably with a
function to control charging of each rechargeable battery.
Charge rechargeable batteries only when they are fully
discharged. Recharging partially discharged rechargeable
batteries on a repeated basis minimizes considerably their
lifespan.
Do not use one rechargeable battery along with a non-
rechargeable one to power the gamma radiation detector. This
will lead to the rechargeable battery failure.

CONTENTS
1DESCRIPTION AND OPERATION...................4
2PURPOSE OF USE ..........................................19
3MAINTENANCE .............................................30
4CERTIFICATE OF ACCEPTANCE .................35
5PACKING CERTIFICATE...............................36
6WARRANTY ...................................................37
7REPAIR ...........................................................39
8STORAGE .......................................................40
9SHIPPING........................................................41
10 DISPOSAL.....................................................42
WARRANTY CERTIFICATE.............................43

2
This operating manual (hereinafter called the
OM) is intended to inform the user about the
principles of operation of the UDKG-01A “Gamma
Sapiens” intellectual gamma radiation detector and
its operation procedure. The OM contains all
information necessary for proper use of the detector
and full realization of its technical capabilities.
The UDKG-01A “Gamma Sapiens” intellectual
gamma radiation detector is easy to use without the
need of special training of the user.
The UDKG-01A “Gamma Sapiens” intellectual
gamma radiation detector is intended to work with
smartphones or tablets which under the Android
operating system.

3
The OM contains the following abbreviations and
symbols:
DE -ambient dose equivalent of
gamma radiation;
DER -ambient dose equivalent rate of
gamma radiation;
QCD -Quality Control Department;
TS -technical specifications.

4
1DESCRIPTION AND OPERATION
1.1 Purpose of use
The UDKG-01A “Gamma Sapiens” intellectual
gamma radiation detector (hereinafter called the
detector) is designed to measure ambient dose
equivalent (DE) and ambient dose equivalent rate
(DER) of gamma radiation and transfer measured
data to asmartphone or a tablet via the Bluetooth
radio interface.
The detector is used to:
-monitor personal radiation safety;
- monitor apartments, buildings, and
constructions, household items, clothes, soil
surface of grounds, and vehicles exposed to
radiation.
The detector is not applicable for use in nuclear
power facilities.

5
1.2 Technical specifications
1.2.1 Measurement range of gamma radiation
DER – from 0.1 to 5000 μSv/h.
1.2.2 Main relative permissible error limit in
gamma radiation DER measurement at energy of
0.662 МeV )10(
*
H


, %, with confidence probability
of 0.95 (calibrated with 137Cs) is estimated by the
formula:
)10(
*
H


= 25+2/ )10(
*
H

,(1.1)
where )10(
*
H
is a numeric value of measured
gamma radiation DER in μSv/h.
1.2.3 Measurement range of gamma radiation DE
is from 0.001 to 9999 mSv.
1.2.4 Main relative permissible error limit in
gamma radiation DE measurement with confidence
probability of 0.95 is 25 %.

6
1.2.5 Energy range of registered gamma radiation
is from 0.05 to 3.00 MeV.
1.2.6 Energy dependence of the measurement
results during gamma radiation DER and DE
measurements in the energy range from 0.05 to
1.25 MeV is not more than ± 25 %.
1.2.7 Complementary permissible error limit in
gamma radiation DER and DE measurements caused
by ambient air temperature variations from – 18 to
+ 50 oC is not more than 5% per each 10 oC
deviation from +20 oC.
1.2.8 Power for the detector is supplied by two
AAA batteries with operating supply voltage of 3.0 V.
Supply voltage is possible to be changed during
discharge of batteries in the range from 3.2 to 2.4 V.
1.2.9 Complementary permissible error limit in
gamma radiation DER and DE measurements caused
by supply voltage variations of the detector within
2.4-3.2 V is not more than 5%.

7
1.2.10 Average current consumption of the detector
is not more then 20 mA.
1.2.11 Time of continuous operation of the
detector ona new rechargeable battery consisting of
two AAA cells of up to 1280 mAh capacity under
natural radiation background conditions is not less
than 60 hours.
1.2.12 Setup time of operating mode and
measurement time of the detector is not more than 3
minutes.
1.2.13 Unstable readings of the detector during
gamma radiation DER measurement for an 8-hour
continuous operation is not more than 5 %.
1.2.14 The Bluetooth radio interface (thereafter –
radio channel) serves as the interface for data
communications between the detector and the
smartphone or tablet personal computer.

8
1.2.15 The detector is able to perform data
communications via the interface within a distance of
not less than 5m.
1.2.16 Mean time between failure is not less than
6000 hours.
1.2.17 Average service life of the detector is not
less than 6 years.
1.2.18 Mean time to repair of the detector is not
more than 12 hours.
1.2.19 Average shelf life of the detector is not
less than 1 year
1.2.20 Dimensions of the detector is not more
than 194095 mm.
1.2.21 Weight of the detector without batteries is
not more than 0.05 kg.

9
1.2.22 The detector meets the requirements of
technical specifications (TS) under the following
operating conditions:
-temperature from – 18 to + 50 оС;
-relative humidity up to 95 % at +35 оС, non-
condensing;
-atmospheric pressure from 84 to 106.7 kPa
(from 645 to 800 mm Hg).
1.2.23 The detector is tolerant to sinusoidal
vibration effects of the group N1 according to
ГОСТ 12997-84 over a frequency range of 10 –55Hz,
shift amplitude corresponds to 0.15 mm.
1.2.24 The detector withstands exposure to
shocks according to ГОСТ 12997-84 with the
following parameters:
-shock pulse duration –9.5 ms;
-number of shocks –1000±10;
-maximum shock acceleration – 100m/s2.

10
1.2.25The detector in its shipping container can
endure:
-ambient air temperature from – 25 to +550С;
-relative air humidity up to (95±3) % аt +35 0С
temperature;
-shocks with 98 m/s2 acceleration, shock pulse
duration – 16 ms, number of shocks – 1000 ± 10 in
each direction.
1.2.26 The detector is immune to constant or
alternating with (501) Hz magnetic fields of
400 A/m intensity.
1.2.27 The detector tolerates exposure to gamma
radiation with DER of 1 Sv/h within 5 minutes.
1.2.28 Ingress protection rating of the detector’s
housing meets IP30 specifications according to
ГОСТ 14254-96.
1.2.29 The design of the detector supports
decontamination.

11
1.3 Delivery kit
1.3.1 The detector delivery kit consists of units
and maintenance documentation presented in
Table 1.1.
Тable 1.1 – Delivery kit of the UDKG–01A detector
Type Item Quantity Note
ВІСТ.412129.024-
06
UDKG–01A
“Gamma
Sapiens”
intellectual
gamma
radiation
detector
1 pc.
ВІСТ.412129.022-
02 НЕ
Operating
manual 1copy

12
Тable 1.1(continued)
Type Item Quantity Note
ENERGIZER
AAA 1.5 V
battery
2pcs.
B
atteries
of other
manufac-
turers are
permitted
Case of model
491, Galvemo
Ltd
1pc.
ВІСТ.412915.019-06 Package 1set

13
1.4 Design and principle of operation
1.4.1 General information
The detector is presented as a monoblock
construction with a built-in sensor of gamma
radiation (the Geiger-Muller counter), a printed-
circuit board with electronic components, and
batteries.
The operation principle of the detector is based on
transformation of radiation by the Geiger-Muller
counter into the sequence of voltage pulses; the
number of pulses is proportional to the registered
radiation intensity.
The power for operation is supplied by two AAA
batteries.

14
1.4.2 Design description
The detector is designed as a flat square plastic
housing with rounded corners.
The housing (Figure 1) consists of the front (1)
and the back (2) covers.
On the right side of the front cover there is a disk-
shaped control and indication board (3) with a
decorative circle frame (4) around. The window (5)
for two-color LED indicator and the control
button (6) are also located in that area.
The battery compartment (7) for two AAA
batteries is in the middle of the back cover. The
polarity signs are indicated at the bottom of the
battery compartment (7) for proper insertion of
batteries. The battery compartment is closed with a
lid (8).
A clip with an opening (9) fixed to the back cover
is used to attach the detector to a strap.

15

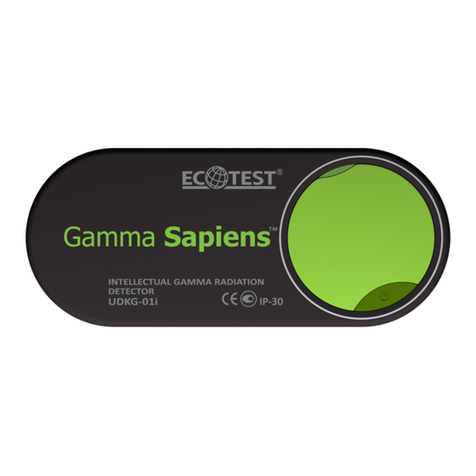

Figure 1 –UDKG-01A“Gamma Sapiens”
intellectual gamma radiation detector

16
1.5 Labeling and sealing
The detector is inscribed with the:
-full name of the detector;
-trademark of the manufacturer;
-approval mark in compliance with
ДСТУ 3400:2006;
-CE marking;
-ingress protection rating meets IP30
according to ГОСТ 14254-96.
The TS number and “Made in Ukraine” marking
are placed on the individual packaging of the
detector.
1.5.1 The housing of the detector (under a battery
compartment lid) should contain:
-type, voltage and polarity of batteries;
-date and year of manufacture;
-serial number according to the numbering
system of the manufacturer.

17
1.5.2 Labeling quality meets the ГОСТ 26828-86
requirements and is maintained during service life
under all conditions and modes, except for labeling
done on the individual package.
1.5.3 All detectors accepted by the Quality
Control Department (QCD) and prepared for packing
are sealed.
1.6 Packing of the detector
1.6.1 Packing is performed in accordance with the
requirements specified in ВІСТ.412915.019-06
design documents.
1.6.2 When packed for transport, detectors are
placed into unitized shipping containers, i.e. packing
boxes as required by ГОСТ 5959-80.
