EcoxGear SOUNDEXTREME SEI-SETXAUD User manual

User Guide
Audio Rocker Switch
Remote Control
Model: SEI-SETXAUD

2
· Please read this User Guide before installation and use.
· CAUTION: The power input voltage range for your Audio
Rocker Switch Remote Control (referred to as Switch) is 9V to
16V. It is designed to work with a +12V DC battery power supply.
If your vehicle battery power output is not 12V (e.g., 24V, 36V, or
48V), you will need a voltage converter with 12V output (e.g., a
48V-to-12V converter). Connecting the Switch directly to higher
voltages will cause damage to your device and VOID THE
PRODUCT WARRANTY.
· The Switch is capable of handling switching power with current
loads up to 20A at 12VDC. Don’t connect it to a device with
operating current exceeding 20A.
· The Switch has a Remote Turn-On Output feature; this is an
optional connection. When the Switch is turned on, it outputs a 12V
signal, which can be used to control the Remote Turn-On Input on
many SoundExtreme products, including our marine radios, and
amplified tower speakers (sold separately).
· The Switch has a built-in RF remote transmitter, which is designed
to pair with and control SoundExtreme soundbars, marine radios,
and amplified tower speakers (sold separately).
· The Switch fits in a standard Carling rocker switch opening, which
is commonly used in the dashboard of many o-road vehicles,
boats, and golf cars. The Switch panel is waterproof; however, the
housing behind the panel is only splash proof.
· CAUTION: In order to make sure there is no potential damage to
your audio system, unplug or power o your audio equipment until
after all connections are completed.
Important

3
Introduction
Features
The Switch is an all-in-one device providing power, audio, and LED
lighting (Scenes) controls to a paired SoundExtreme product.
Remote Turn-On Output
In addition to opperating as a power switch, the Switch also has
a +12V Remote Turn-On signal output, which can be connected
to a SoundExtreme product’s Remote Turn-On Input. That
SoundExtreme product can then be automatically turned on or off
when you turn the Switch on or off.
RF Remote Transmitter
The Switch has a built-in RF 433MHz remote transmitter, which is
used to pair with and control SoundExtreme audio products. The first
time you use the Switch, you will need to pair it with a product. Once
they are paired, your product will remember your Switch. Next time
you power on your product, your Switch's remote functions will be
ready to use.

4
Switch Layout

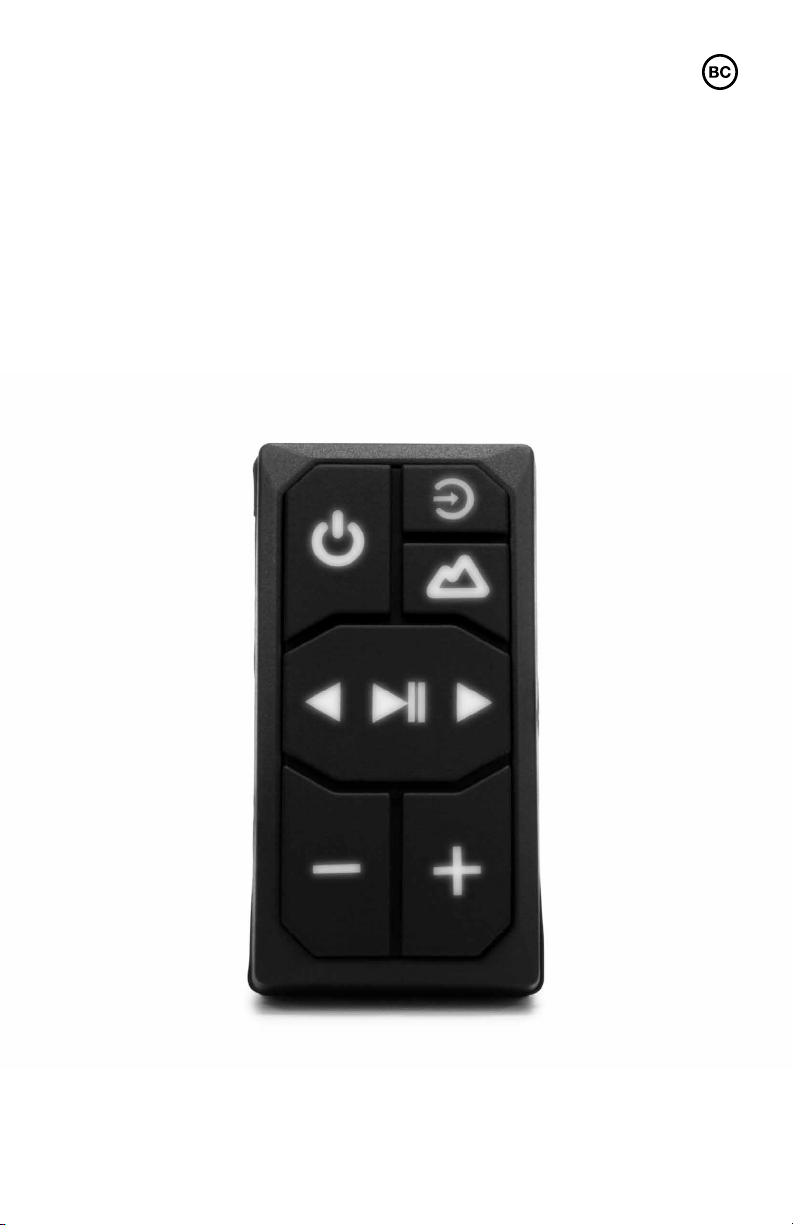

Switch Overview
Power Button Audio Mode Button
Scenes Button
Play / Pause and
Tracking Buttons
Volume Buttons
Inputs and Outputs
Power Inputs:
+12V Wire (Red) / GND Wire (Black)
Accessory Outputs:
+12V Wire (Red) / GND Wire (Black)
Remote Turn-On Output
Wire (Dark Blue)

5
Switch Overview
Connectors
Input:
· Power Input: +12V, GND – Connect to your vehicle's +12V battery.
Only connect to a +12V DC power supply.
Outputs:
· Remote Turn-On Output: +12V signal output when the Switch is on.
· Power Outputs: +12V, GND – Connect to a SoundExtreme
product's power input (maximum current not exceeding 20A, 12V).
Button Functions
Power Button
· Press and hold for 3 seconds to turn the Switch on or o.
· When the Switch is on, short-press to turn the button backlights on
or o.
· When the Switch is on, double-click to enable RF Remote Pairing
with a SoundExtreme product.
Audio Mode Button
· Short-press to cycle through the Audio Modes on the paired
SoundExtreme product(s). Dierent SoundExtreme products
may have dierent Audio Modes. For example, the SoundExtreme
Elite Soundbar has 5 Audio Modes: Bluetooth (Speaker Mode),
EcoCast Transmitting, EcoCast Receiving, FM, and Aux-In.
Scenes Button
· Short-press to cycle through the 5 pre-defined Scenes (LED
lighting presets) on the paired SoundExtreme product.
· If the paired SoundExtreme product has an LED Light Bar or Dome
Light, press and hold to turn it on or o.

6
Switch Overview
Play / Pause and Tracking Buttons
· When the paired SoundExtreme product is in Bluetooth mode,
press the Play / Pause Button to play or pause audio.
· When the paired SoundExtreme product is in Bluetooth Mode,
press or to skip to the previous or next audio track.
· When the paired SoundExtreme product is in FM Mode,
press or to tune to the previous or next radio station.
· Press and at the same time to clear Bluetooth pairing
records.
Volume Buttons
· Press or to decrease or increase the volume.

7
Installation and Wiring
Installing Your Switch Onto Your Vehicle
The Switch is designed to snap into a standard Carling style rocker
switch opening.
· If you already have that style of an opening on your vehicle, you can
simply snap the Switch into place.
· If your vehicle doesn’t already have that style of an opening, you
will need to cut a rectangular hole into your vehicle. Before you cut,

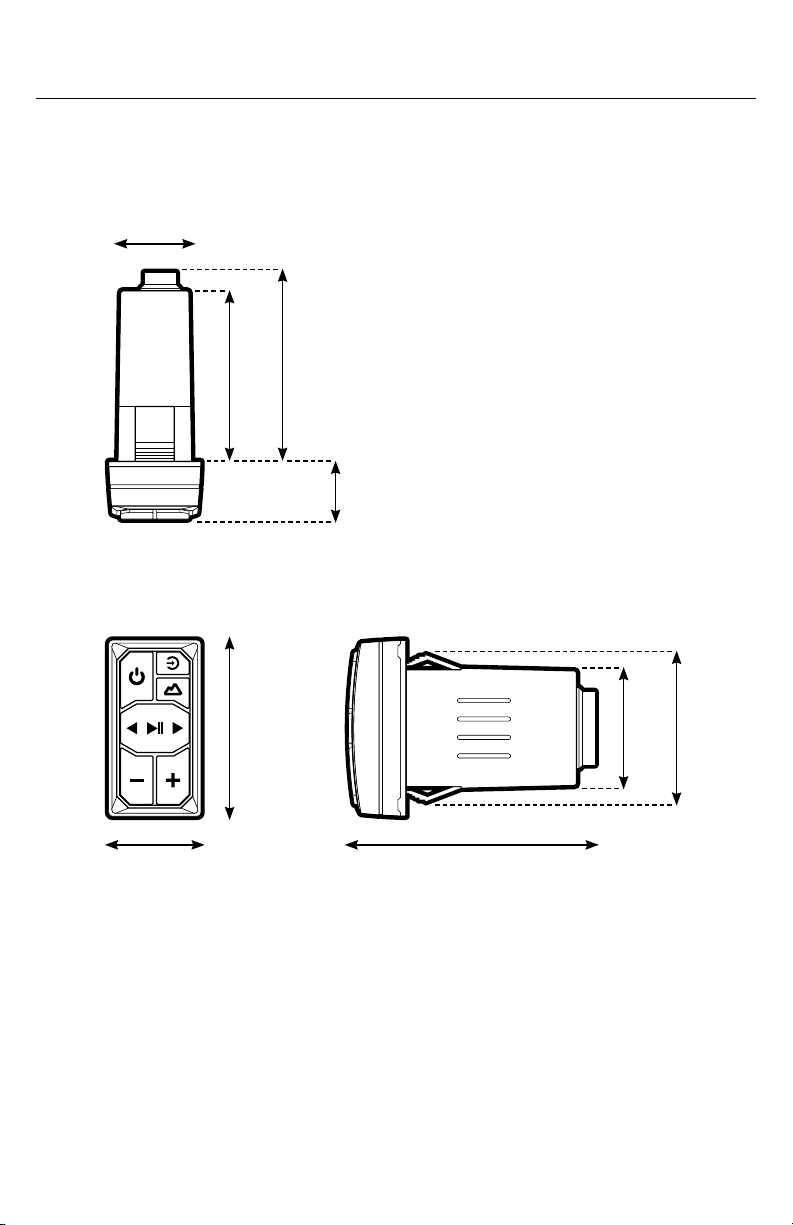

please refer to the dimensions under the Specifications section to
determine the cutout size.
Connecting to an External Speaker
If you want to provide power to and control an external
SoundExtreme product's power on and o feature, you will need to
connect it to the Switch's Accessory Power Outputs and Remote
Turn-On Ouput.
Accessory Power Outputs
Connect the Switch's Accessory Power Outputs (+12V and GND) to
the power inputs on the SoundExtreme product you want to control.
· Make sure that the Switch's RED +12V Wire is connected to the
SoundExtreme product's RED Wire and the Switch's BLACK GND
Wire is connected to the SoundExtreme product's BLACK Wire.
Switch's Accessory
Power Outputs
SoundExtreme Product
Power Inputs

8
Installation and Wiring
Remote Turn-On Output
Switch's Remote
Turn-On Output Wire
SoundExtreme Product
Remote Turn-On Input Wire
Besides the 12V power supply, the Switch has an optional Remote
Turn-On Signal Output to turn on and power o the SoundExtreme
product you want to control. The output voltage is 12V.
If your SoundExreme product has a Remote Turn-On Input, follow
the steps below:
1. Connect the Switch's (Dark Blue) Remote Turn-On Output Wire
to the SoundExtreme product's Remote Turn-On Input. You may
need an extension cable (not included).
2. Once the connections are completed, the SoundExtreme product
will automatically turn on or o when the Switch is turned on or o.

9
Installation and Wiring
Connecting to 12VDC Power Supply
When you install the Switch to a battery or a voltage regulator on
a golf cart, a boat, a quad bike, a UTV, or another vehicle, you need
to make sure that your vehicle battery or battery pack terminal
voltage is 12VDC. If the battery terminal voltage is not 12V, you will
need a DC–DC converter with output 12V. Connecting the Switch
to a non-12VDC power source will lead to a malfunction or damage
to the Switch.
Recommendation: If you are not familiar with all of the vehicle’s
battery or ignition switch connections, consult your vehicle’s
manual or a technician. Incorrect connections to your vehicle’s
battery or ignition signal terminal may cause damage to your
speaker and your vehicle.
Connect the +12V and GND wires
to the 12VDC power supply.
· Make sure that the RED Wire
is connected to +12V battery’s
positive (+) terminal and the
BLACK Wire is connected to
battery’s negative (-) terminal.
WARNING! Only connect to a 12V
power supply. Do NOT connect to
a 24V, 36V, or 48V power supply.
Connecting the Switch directly to
these higher voltages will cause
damage to the Switch and VOID
THE PRODUCT WARRANTY.
Black Wire Red Wire

10
Audio Functions

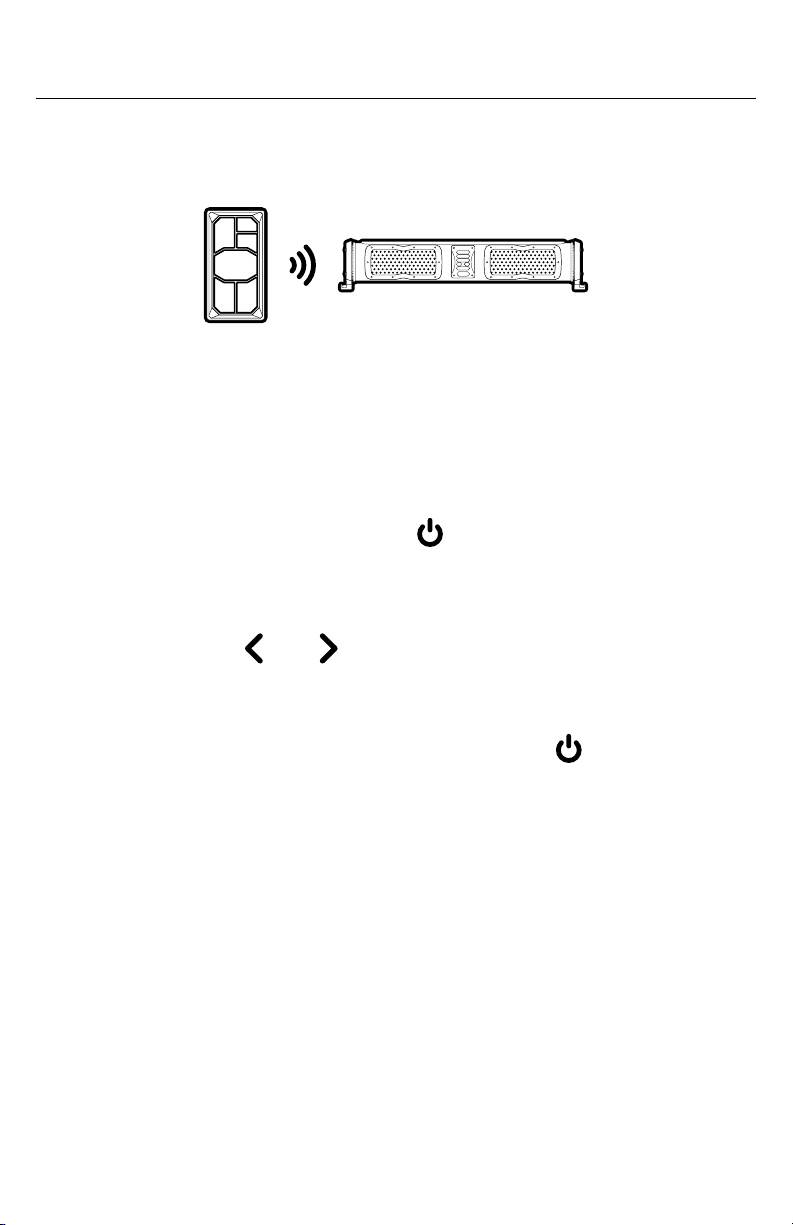

First Time RF Remote Pairing
The first time you use the Switch, you will need to pair the Switch with
a SoundExtreme product. This process is only needed for the first
time you use the Switch with a product.
Please follow the steps below for first-time pairing:
1. Press and hold the Power Button to turn the Switch on.
2. Enable RF remote pairing on your SoundExtreme product.
Example: On a SoundExtreme Elite Soundbar, press and
hold both the and Buttons on the Soundbar at the same
time for 3 seconds. The Soundbar's LED Party Lights will flash
Green, indicating it is ready to pair with a remote.
3. On your Switch, double-click the Power Button . Your Switch
will start pairing.
4. Once paired, a SoundExtreme Elite Soundbar's LED Party Lights
will rapidly flash Green 3 times, indicating a successful pairing.
Note: If the paired SoundExtreme product is not a Soundbar, it may
produce a dierent prompt to indicate a successful pairing. Please
refer to the product's User Guide.
5. Now you can press a button on the Switch, such as the Audio
Mode Button, to check if your SoundExtreme product responds.
