Edco EH1500 Specifications

E-EH1500-IPL-0123
Page 1
800-638-3326 • edcoinc.com • [email protected]
REVISED STARTING
SERIAL # 230110001
Engine Hoist and Carrier Cart
SKU # MODEL #
99500 EH1500
OPERATORS INSTRUCTIONS
AND PARTS LIST MANUAL
MODEL EH1500
Printed in USA
KJK ©2022
EQUIPMENT DEVELOPMENT COMPANY, INC.
100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA
Phone: [phone] or 301-663-1600 • Fax: [phone] or 301-663-1607
Website: www.edcoinc.com • E-mail: [email protected]
READ AND UNDERSTAND THE OPERATOR’S SAFETY MANUAL THOROUGHLY
BEFORE ATTEMPTING TO OPERATE THIS EQUIPMENT.
Death or serious injury could occur if this machine is used improperly.
Machine specific Operator’s Instruction Manuals are offered at edcoinc.com/customer-support/parts-and-manuals

E-EH1500-IPL-0123
Page 2
800-638-3326 • edcoinc.com • [email protected]
•Engine exhaust from this product contains chemicals
known to the State of California to cause cancer, birth
defects or other reproductive harm.
• 7LOWLQJ D JDVROLQH SRZHUHG PDFKLQH ¿WWHG ZLWK DQ
(3$DSSURYHGYHQWHGFKDUFRDO¿OWHUJDVFDSEH\RQG
20° can cause fuel leakage. If a leak occurs, do not
VWDUWRUUXQWKHHQJLQHXQWLOWKHOHDNLV¿[HG(OLPLQDWHDOORWKHULJQLWLRQ
VRXUFHVLQWKHLPPHGLDWHDUHDQRVPRNLQJÀDUHVVSDUNVRUÀDPHV
Use approved gasoline absorbing material to contain the fuel leakage.
Then use clean, non-sparking tools to collect absorbed materials then
GLVSRVHRIWKHVHFRQWDPLQDQWVSURSHUO\
•*DVROLQHLVH[WUHPHO\ÀDPPDEOHDQGSRLVRQRXV,WVKRXOG
RQO\EHGLVSHQVHGLQZHOO YHQWLODWHG DUHDVDQGZLWKDFRRO
engine.
• Small gasoline engines produce high concentrations of
FDUERQPRQR[LGH&2H[DPSOHD+3F\FOHHQJLQHRSHUDWLRQLQ
DQHQFORVHGFXIWDUHDZLWKRQO\RQHFKDQJHRIDLUSHUKRXU
LVFDSDEOHRISURYLGLQJGHDGO\FRQFHQWUDWLRQVRI&2LQOHVVWKDQ¿IWHHQ
minutes. Five changes of air in the same area will produce noxious
fumes in less than 30 minutes. Gasoline powered equipment should
QRWEHXVHGLQHQFORVHGRUSDUWLDOO\HQFORVHGDUHDV6\PSWRPVRI&2
poisoning include, head-ache, nausea, weakness, dizziness, visual
SUREOHPV DQG ORVV RI FRQVFLRXVQHVV ,I V\PSWRPV RFFXU  JHW LQWR
IUHVKDLUDQGVHHNPHGLFDODWWHQWLRQLPPHGLDWHO\
• Never refuel a hot engine or an engine while it is running.
(QJLQHVDUHVKLSSHGIURPIDFWRU\ZLWKRXWIXHORLO
SAFETY MESSAGES
Indicates an imminent hazard which, if not avoided,
ZLOOUHVXOWLQGHDWKRUVHULRXVLQMXU\
Indicates an imminent hazard which, if not avoided,
FDQUHVXOWLQGHDWKRUVHULRXVLQMXU\
Indicates hazards which, if not avoided, could result in
VHULRXVLQMXU\DQGRUGDPDJHWRWKHHTXLSPHQW
•6DIHW\,QVWUXFWLRQVDUHSURFHHGHGE\DJUDSKLFDOHUWV\PERORI'$1*(5
:$51,1*RU&$87,21
GASOLINE / PROPANE POWERED EQUIPMENT
 'RQRWGLVFRQQHFWSRZHUE\SXOOLQJFRUG7RGLVFRQQHFWJUDVSWKH
plug, not the cord.
• Unplug power cord at the machine when not in use and before servic-
ing.
• Switch motor OFF before disconnecting power.
 1HYHUXVHIUD\HGGDPDJHG WDSHGRUXQGHUUDWHGH[WHQVLRQ FRUGV
(OHFWULFDOVKRFNFRXOGUHVXOWLQGHDWKRUVHULRXVLQMXU\WRWKHRSHUDWRU
and damage to the equipment.
 $VVXUH\RXDUHXVLQJWKHSURSHUH[WHQVLRQFRUGOHQJWK
 (TXLSPHQW VKRXOG RQO\ EH RSHUDWHG E\ WUDLQHG SHUVRQQHO LQ JRRG
SK\VLFDOFRQGLWLRQDQGPHQWDOKHDOWKQRWIDWLJXHG7KHRSHUDWRUDQG
PDLQWHQDQFH SHUVRQQHO PXVW EH SK\VLFDOO\ DEOH WR KDQGOH WKH EXON
weight and power of this equipment.
• This is a one person tool. Maintain a safe operating distance to other
personnel. It is the operators’ UHVSRQVLELOLW\ to keep other people (work-
HUVSHGHVWULDQVE\VWDQGHUVHWFDZD\GXULQJRSHUDWLRQ%ORFNRႇ
WKHZRUNDUHDLQDOOGLUHFWLRQVZLWKURSLQJVDIHW\QHWWLQJHWF
)DLOXUHWRGRVRPD\UHVXOWLQRWKHUVEHLQJLQMXUHGE\À\LQJGHEULVRU
exposing them to harmful dust and noise.
 7KLVHTXLSPHQWLVLQWHQGHGIRUFRPPHUFLDOXVHRQO\
 )RU WKH RSHUDWRU¶V VDIHW\ DQG WKH VDIHW\ RI RWKHUV DOZD\V NHHS DOO
guards in place during operation.
• Never let equipment run unattended.
 3HUVRQDO3URWHFWLRQ(TXLSPHQWDQGSURSHUVDIHW\DWWLUHPXVWEHZRUQ
ZKHQRSHUDWLQJ WKLV PDFKLQHU\7KHRSHUDWRUPXVWZHDUDSSURYHG
VDIHW\HTXLSPHQWDSSURSULDWHIRUWKHMREVXFKDVKDUGKDWDQGVDIHW\
VKRHV ZKHQ FRQGLWLRQV UHTXLUH +HDULQJ SURWHFWLRQ 0867 EH XVHG
ZKHQRSHUDWLRQDOQRLVHOHYHOVRIWKLVHTXLSPHQW PD\ H[FHHG GE
(\HSURWHFWLRQ0867EHZRUQDWDOOWLPHV
GENERAL INSTRUCTIONS
.HHSERG\SDUWVORRVHFORWKLQJDQGDFFHVVRULHVDZD\IURP
moving parts. Failure to do so could result in dismemberment
or death.
'RQRWPRGLI\WKHPDFKLQH
6WRSPRWRUHQJLQHZKHQDGMXVWLQJRUVHUYLFLQJWKLVHTXLSPHQW0DLQWDLQ
DVDIHRSHUDWLQJGLVWDQFHIURPÀDPPDEOHPDWHULDOV6SDUNV
IURPWKHFXWWLQJDFWLRQRIWKLVPDFKLQHFDQLJQLWHÀDPPDEOH
materials or vapors.
•  3URSDQH LV H[WUHPHO\ ÀDPPDEOH DQG LV KHDYLHU WKDQ DLU
DQGWHQGVWRVHWWOHLQORZDUHDVZKHUHDVSDUNRUÀDPHFRXOG
LJQLWHJDV'2127VWDUWRURSHUDWHWKLVSURSDQHHQJLQHLQ
DSRRUO\YHQWLODWHGDUHDZKHUHOHDNLQJSURSDQHJDVFRXOGDFFXPXODWH
DQGHQGDQJHUVDIHW\RISHUVRQVLQDUHD,IKHDGDFKHGHYHORSVVKXWRႇ
PDFKLQH+DYHLWFKHFNHGIRUFDUERQPRQR[LGHHPLVVLRQVE\DTXDOL¿HG
WHFKQLFLDQEHIRUHXVLQJLWDJDLQ7RHQVXUHSHUVRQDOVDIHW\LQVWDOODWLRQ
DQGUHSDLURISURSDQHIXHOVXSSO\V\VWHPVPXVWEHSHUIRUPHGRQO\E\
TXDOL¿HGWHFKQLFLDQV&DUERQPRQR[LGHHPLVVLRQVIURPWKLVPDFKLQHDUH
JUHDWO\LQFUHDVHGGXHWRDGLUW\FRPEXVWLRQDLUFOHDQHU
Extreme care must be taken when operating electric models
ZLWKZDWHUSUHVHQW(QVXUHSRZHUFRUGLVSURSHUO\JURXQGHG
LVDWWDFKHGWRD*URXQG)DXOW,QWHUUXSWHU*),RXWOHWDQGLV
undamaged.
• Check all electrical cables - be sure connections are tight and cable
LVFRQWLQXRXVDQGLQJRRGFRQGLWLRQ%HVXUHFDEOHLVFRUUHFWO\UDWHG
for both the operating current and voltage of this equipment.
• Improper connection of the equipment grounding conductor can
UHVXOWLQDULVNRIHOHFWULFVKRFN&KHFNZLWKTXDOL¿HGHOHFWULFLDQRU
VHUYLFHSHUVRQLIWKHUHLVDQ\GRXEWDVWRZKHWKHUWKHRXWOHWLVSURSHUO\
grounded. Adhere to all local codes and ordinances.
 127(,QWKHHYHQWRIDPDOIXQFWLRQRUEUHDNGRZQJURXQGLQJSURYLGHV
a path of least resistance for the electric current to dissipate. The motor
is equipped with a grounded plug and must be connected to an outlet
WKDWLVSURSHUO\LQVWDOOHGDQGSURSHUO\JURXQGHG'2127PRGLI\WKH
SOXJSURYLGHGRQWKHPRWRU,IWKHSOXJGRHVQRW¿WWKHRXWOHWKDYHD
TXDOL¿HGHOHFWULFLDQLQVWDOOWKHSURSHUUHFHSWDFOH
ELECTRICAL POWERED EQUIPMENT
DUST WARNING
6RPHGXVWFUHDWHGE\SRZHUVDQGLQJVDZLQJJULQGLQJ
drilling, and other construction activities contains chemi-
cals known to cause cancer, birth defects, or other
reproductive harm. Materials being removed can be toxic or hazardous.
A breathing respirator is required to help protect the operator.
 6RPHH[DPSOHVRIWKHVHFKHPLFDOVDUH
• Lead from lead-based paints.
 &U\VWDOOLQHVLOLFDIURPEULFNVFRQFUHWHDQGRWKHU
 PDVRQU\SURGXFWV<RXUULVNRIH[SRVXUHWRWKHVHFKHPLFDOVYDULHVGH-
SHQGLQJRQKRZRIWHQ\RXGRWKLVW\SHRIZRUN7RUHGXFH\RXUULVNZRUN
LQDZHOOYHQWLODWHGDUHDXVHDGXVWFRQWUROV\VWHPVXFKDVDQLQGXVWULDO
VW\OHYDFXXPDQGZHDUDSSURYHGSHUVRQDOVDIHW\HTXLSPHQWVXFKDVD
GXVWSDUWLFOHUHVSLUDWRUGHVLJQHGWR¿OWHURXWPLFURVFRSLFSDUWLFOHV
 6HHPRUHRQWKHLPSRUWDQFHRIGXVWSUHYHQWLRQDQGVLOLFDZDUQLQJVDW
RVKDJRYVLOLFD
• More concrete and silica dust supression training and educational ma-
WHULDOVDYDLODEOHDWHGFRLQFFRPVLOLFDVWDQGDUGVRUVFDQWKH45FRGHRQ
SDJH
 :ULWWHQH[SRVXUHSODQVDUHSURYLGHGDWKWWSZZZHGFRLQFFRPZULWWHQ
H[SRVXUHFRQWUROSODQV
ELECTRICAL POWERED EQUIPMENT CONTINUED
SAFETY INFORMATION

E-EH1500-IPL-0123
Page 3
800-638-3326 • edcoinc.com • [email protected]
TABLE OF CONTENTS
Section Page Number
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
How To Order Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Weights and Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4, 5
Part Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Safety Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Loading/Unloading Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8, 9
Utilizing Hoist/ Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Maintenance Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Illustration 1: Crane Boom and Mast. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12, 13
Illustration 2: Outrigger and Hoist Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14, 15
Illustration 3: Carrier Cart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16, 17
Decal Sheet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Limited Equipment Warranty of Sale . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
STOP - Before Using This Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
HOW TO ORDER REPLACEMENT PARTS
 To insure product safety and reliability, always use
genuine EDCO replacement parts when making
repairs to the equipment.
 When calling for parts, specify the MODEL and
SERIAL number of the machine, which can be found
on the NAME PLATE. Keep that information in the
space provided. In addition to this information, give
part number, description, and quantity as listed on
the parts list to your parts representative.
 Please note: Due to improvements and changes
in the equipment, the illustrations shown may be
different than the actual machine.
FILL IN INFORMATION BELOW
Date of Purchase ______________________________
Model # _____________________________________
Serial # ______________________________________
SKU # ______________________________________
PARTS LIST MANUAL
MODEL EH1500
Engine Hoist and Carrier Cart

E-EH1500-IPL-0123
Page 4
800-638-3326 • edcoinc.com • [email protected]
DIMENSIONS AND WEIGHT
Weight 267 lb / 121 kg
Dimensions and Weight
are approximate and
subject to change.
40.25 in. / 1,022mm
35.5 in. / .902 mm
8 in.
203 mm
19 in.
482 mm
054 in.
1,372 mm
75 in.
1,905 mm
92 in. / 2,336 mm
66 in. / 1,676 mm
36 in. / 914 mm
5.5 in. / 140 mm.
Minimum
Maximum
0

E-EH1500-IPL-0123
Page 5
800-638-3326 • edcoinc.com • [email protected]
Length
Width
Height
Weight
37.5” / 953 mm
20” / 508 mm
77” / 1956 mm
339 lb / 153 kg
Dimensions and Weight
are approximate and
subject to change.
DIMENSIONS AND WEIGHT
Loaded Carrier Unloaded Carrier
37.5” / 953 mm
20” / 508 mm
38” / 965 mm
72 lb / 33 kg
Length
Width
Height
Length
Width
Height

E-EH1500-IPL-0123
Page 6
800-638-3326 • edcoinc.com • [email protected]
PARTS DESCRIPTIONS
Crane Boom (decal 6)
Hoist Hook
Outrigger Latch
Hoist Frame Caster
Left Outrigger (decal 4)
Outrigger
Wheel (nut
facing out)
Mast (decal 2)
Hydraulic
Jack (decal 1)
Push
Handle
Hoist Frame
(decal 3)
Carrier Pull Handle
Carrier Caster
Carrier Wheel
Carrier Push
Handle
Jack Top Pivot Block
Right Outrigger
(decal 5)

E-EH1500-IPL-0123
Page 7
800-638-3326 • edcoinc.com • [email protected]
Read and understand the Operator’s Manual
before operating this equipment.
Death or serious injury can result if this machine is used improperly.
Safety Guidelines
Eye protection must be worn at all times when this machine is in use. Use only ANSI approved safety glasses
to help prevent eye injury. Everyday eyeglasses have only impact resistant lenses; they are NOT safety
glasses.
Operator must wear appropriate clothing and footwear. Do not wear loose clothing or jewelry that can get
tangled or caught in moving parts. Steel toe safety shoes must be worn.
• Maintain the machine in safe operating condition with all guards/latches/hooks in place and secure, all me-
chanical fasteners tight, all controls in working order and the machine configured for the job application. Be
sure all safety decals can be clearly read and understood. Replace damaged or missing decals immediately.
• The EDCO Engine Hoists are designed to lift up to 1500 points on a flat, horizontal firm surface. They are
designed to be operated by a single informed operator from a safe position near the piece of equipment that is
safe from a dropped load.
• Keep a safe operating distance to other personnel in the area and never leave the machine unattended
when a load is being lifted by the engine hoist.
• Avoid unlevel surfaces and any objects protruding from firm surface when manuevering engine hoist and
engine hoist carrier with load or without load.
• Never operate this machine while under the influence of drugs, alcohol or when taking medications that im-
pair the senses or reactions, or when excessively tired or under stress.
• Ensure load is completely secure in the hoist hook. Ensure hoist hook latch is always closed when any load
is applied. Replace hook if there is any visible damage (deep knicks, broken latch, bent hook).
• Maintain wheels/casters to ensure smooth movement when manuevering the engine hoist.
• Inspect entire engine hoist prior to every use for any visible cracks, bent components and loose hardware. If
any of the mentioned is present, do not use the engine hoist until the damage has been remedied.
• Properly maintain the hydraulic jack according to the operating instructions listed on the hydraulic jack.
https://www.usjack.com/wp-content/uploads/56064-3-Ton-Bluebird-2021-1.pdf for more info.
• This is a lifting device ONLY, the load shall be supported immediately by appropriate means.
• Do not overload, overloading can cause dever damage and/or failure of the engine hoist and its components.

E-EH1500-IPL-0123
Page 8
800-638-3326 • edcoinc.com • [email protected]
Left Outrigger
(decal 4)
Mast (decal 2)
Crane Boom
(decal 6)
Hydraulic Jack (decal 1)
Hoist Frame (decal 3)
Right Outrigger
(decal 5)
INSTRUCTIONS
Unloading Carrier & Assembling Hoist
1. Familiarize yourself with the descriptions on page 6 of this manual. Following the sequence
below will allow for ease of hoist assembly (see illustrations on facing page and below).
2. Remove crane boom (decal 6) from carrier, set aside.
3. Remove right outrigger (decal 5) from the carrier right rear pocket, set aside.
4. Remove frame (decal 3) from the carrier, set aside.
5. Remove the hoist mast (decal 2) from the carrier, set aside.
6. Remove the left outrigger (decal 4) from the carrier left rear pocket, set aside.
7. Remove the jack (decal 1) from the carrier, set aside.
8. With hoist frame on firm, level surface, insert right outrigger (decal 5) in the left frame pocket
if the mast vertical pocket is on the far side. The outrigger wheel bolt should have its nut facing
outward, and both outriggers should be inserted into their pockets until the orange latch clicks
into place. The outriggers should not be removable from the frame without manually releasing the
orange latches.
9. Insert the left outrigger (decal 4) into the right frame pocket if the mast vertical pocket is on the
far side. The wheel nut should be facing outward and the latch should click positively into place.
10. Insert the mast (decal 2) into the vertical pocket on the far side of the frame.
11. Place the crane boom (decal 6) over the bar support at the top of the mast, oriented as shown
below with the pivot block hanging down. Rest the crane boom with the hook tab over the bar and
lower the boom until it rests against the mast.
12. Link the hydraulic jack ram to the crane boom pivot block using the detent pin. Ensure detent
pin is fully inserted through the pivot block. Lower hydraulic jack base over the bar support on the
middle part of the mast. The carrying handle on the lower part of the hydraulic jack is to be facing
forward toward the outriggers (see below).
Figure 1
Figure 2

E-EH1500-IPL-0123
Page 9
800-638-3326 • edcoinc.com • [email protected]
Dismantling Hoist and Loading Carrier
1. Familiarize yourself with the descriptions on page 6 of this manual. Following the sequence
below will allow for ease of hoist dismantling and loading of the carrier. Orientation of the pieces is
important to note. Follow the directions below as well as the images below.
2. Ensure jack (decal 1) is completely compressed, by releasing the short jack lever on the side of
the jack. Once the jack is compressed, secure the jack handle tube on the hoist mast and lift the
jack out of the bar support on the mast, rest the crane boom against the mast, then remove the
detent pin from the crane boom pivot block, releasing the jack ram. Set the jack aside.
3. Remove the crane boom (decal 6), set aside.
4. Remove the mast (decal 2) from the hoist frame, and load onto the carrier as oriented below.
5. Remove the left outrigger (decal 4), and load onto the carrier as oriented below.
6. Remove the right outrigger, set aside.
7. Remove the hoist frame (decal 3) and load it onto the carrier as oriented below.
7. Load the right outrigger (decal 5), onto the carrier as shown below.
8. Load the crane boom (decal 6) onto the carrier, hook uppermost, pivot block outward.
9. Load the jack (decal 1) onto the carrier as shown below.
INSTRUCTIONS
Left Outrigger
(decal 4)
Right Outrigger
(decal 5)
Hydraulic Jack
(decal 1)
Hoist Frame
(decal 3)
Mast (decal 2)
Crane Boom
(decal 6)

E-EH1500-IPL-0123
Page 10
800-638-3326 • edcoinc.com • [email protected]
UTILIZING HOIST, OPERATION INSTRUCTIONS
Securing load on Engine Hoist Swivel Hook
1. Always ensure the load is balanced evenly on the swivel hook, this will prevent slipping of the
lifted item once lifted. An uneven load could cause the engine hoist to tip and cause severe bodily
injury, possibly death, as well as property damage.
2. Ensure lifting assist items, such as, but not limited to, crane boom hooks, chains, tethers, straps,
are in good working condition with NO cuts, tears, frays and are properly rated.
3. Ensure the Swivel Hook latch is completely closed before lifting any item. This will prevent lifted
items from coming offthe hook while lifting.
4. The Swivel Hook has the ability to rotate 360° which allows for easy manevuring the lifted item
once it is lifted.
5. Lift only from areas as specified by the vehicle, equipment manufacturer. Lifting from unapproved
areas could cause property damage.
Utilizing Hydarulic Jack to lift and lower
1. To operate valve, open release valve, pump handle several times with provided jack pump handle
this will release any airbound condition. Close release valve. Utilizing pump handle begin pumping
slowly to ensure the load is safe to lift. Continue lifting to designated height. Then support with prop-
er support tools.
2. To lower load, begin by slowly rotating/opening the release valve. Ensure you operate the release
valve slowly to begin the lowering. Opening release valve rapdily, can cause property damage and
could cause loss of load.

E-EH1500-IPL-0123
Page 11
800-638-3326 • edcoinc.com • [email protected]
MAINTENANCE INSTRUCTIONS
Maintaning Engine Hoist and components
1. Hydarulic Jack: Refill Hydraulic Jack with recommended Jack Oil. Never use a substitute. Use
only HAND JACK OIL, 5W to 10W grade 15 with ram COMPLETELY collapsed, fill to the bottom of
the filler plug.
2. Hydraulic Jack: When storing Engine Hoist, always compress the ram of the hydraulic jack com-
pletely with the release valve closed.
3. Hydarulic Jack: Light machine oil on all moving parts periodically.
4. Engine Hoist: There are 2 casters on the engine hoist, there are 3 grease points on each caster.
Grease these bearings weekly.
5. Engine Hoist: There are 2 casters on the engine hoist carrier, there 3 grease points on each of
these casters. Grease these bearings weekly.
6. Engine Hoist: Inspect/Replace the engine hoist swivel hook as needed. When visible wear is pres-
ent or if there are any knicks/cracks: Replace immediately.
Maintenance Notes:
________________________________________________________________________________
________________________________________________________________________________
________________________________________________________________________________
________________________________________________________________________________
________________________________________________________________________________
________________________________________________________________________________
________________________________________________________________________________
________________________________________________________________________________
________________________________________________________________________________
________________________________________________________________________________
________________________________________________________________________________
________________________________________________________________________________
________________________________________________________________________________
________________________________________________________________________________
________________________________________________________________________________
________________________________________________________________________________
________________________________________________________________________________
________________________________________________________________________________
________________________________________________________________________________
________________________________________________________________________________
________________________________________________________________________________
________________________________________________________________________________
________________________________________________________________________________
________________________________________________________________________________

E-EH1500-IPL-0123
Page 12
800-638-3326 • edcoinc.com • [email protected]


















ILLUSTRATION 1: CRANE BOOM & MAST
ILLUSTRATION 1: CRANE BOOM & MAST

E-EH1500-IPL-0123
Page 13
800-638-3326 • edcoinc.com • [email protected]
PARTS LISTING - ILLUSTRATION 1: CRANE BOOM AND MAST
PARTS LISTING - ILLUSTRATION 1: CRANE BOOM AND MAST
Item # Part # Part Description Qty
1 101241 HOIST MAST WELDMENT 1
2 101261 SPRING, COMP. .845”OD X 2”FL 1
3 101256-1 JACK, TUBE (PROVIDED WITH #7, 101256) 1
4 101244 JACK MOUNT WELDMENT 1
5 10806 SCREW, CAP 5/16-18 X 1 2
6 10151 NUT, HEX NYLON LOCK 5/16-18 ZINC 2
7 101256 JACK, 3 TON HYDRAULIC 1
8 101245 JACK TOP PIVOT BLOCK 1
9 101257 SCREW, CAP 3/4-16 X 3-1/2 GR8 1
10 101258 NUT, HEX NYLON 3/4-16 ZINC 1
11 101260 PIN, DETENT RING 1/4 X 2 EL W/ LANYARD 1
12 10877 SCREW, CAP STSHW 10-24 X 1/2 1
13 10831 WASHER, LOCK, INT. TOOTH #10 1
14 101251 HOOK, HOIST 1 TON 1
15 101259 SCREW, CAP 1/2-13 X 2-1/4 GR8 1
16 101264 CRANE BOOM HOOK TUBE 1
17 10155 NUT, HEX NYLON LOCK 1/2-13 ZINC 1
18 101242 CRANE BOOM WELDMENT, 1500 1

E-EH1500-IPL-0123
Page 14
800-638-3326 • edcoinc.com • [email protected]

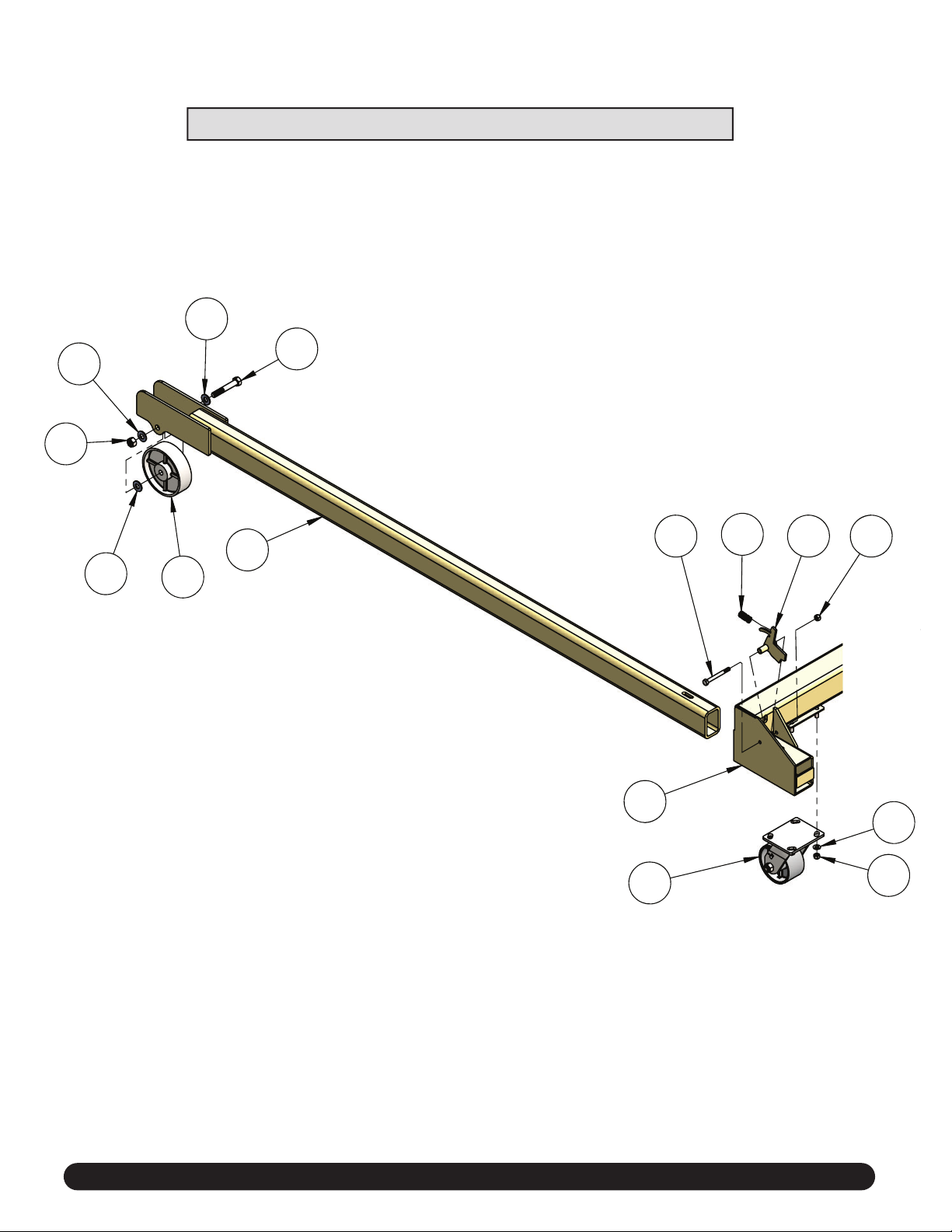

ILLUSTRATION 2: OUTRIGGER AND HOIST FRAME
ILLUSTRATION 2: OUTRIGGER AND HOIST FRAME















E-EH1500-IPL-0123
Page 15
800-638-3326 • edcoinc.com • [email protected]
PARTS LISTING - ILLUSTRATION 2: OUTRIGGER AND HOIST FRAME
PARTS LISTING - ILLUSTRATION 2: OUTRIGGER AND HOIST FRAME
Item # Part # Part Description Qty
1 101238 HOIST FRAME WELDMENT 1
2 101253 WHEEL, CASTER 4X2 2
3 10213 WASHER, FLAT 5/16 SAE ZINC 8
4 10151 NUT, HEX NYLON LOCK 5/16-18 ZINC 10
5 101239 OUTRIGGER LATCH WELDMENT 2
6 101262 SPRING, COMP. .60”OD X 1.25”FL 2
7 11734 SCREW, CAP 5/16-18 X 3 2
8 101240 OUTRIGGER WELDMENT 2
9 101254 WHEEL, CAST IRON, 5X1.5 2
10 10324 SCREW, CAP 1/2-13 X 3-1/2 2
11 10312 WASHER, FLAT 1/2 SAE ZINC 8
12 10155 NUT, HEX NYLON LOCK 1/2-13 ZINC 2

E-EH1500-IPL-0123
Page 16
800-638-3326 • edcoinc.com • [email protected]
ILLUSTRATION 3: CARRIER CART
ILLUSTRATION 3: CARRIER CART


















PART #: 99501
PART #: 99501

E-EH1500-IPL-0123
Page 17
800-638-3326 • edcoinc.com • [email protected]
Item # Part # Part Description Qty
1 101246 CARRIER WELDMENT 1
2 28003 WHEEL 10 X 2-1/4 X 3/4”BRG 2
3 10306 PIN, COTTER 3/16 X 1-1/2 2
4 101248 CARRIER HANDLEBAR 1
5 10204 SCREW, CAP 5/16-18 X 1-3/4 4
6 10213 WASHER, FLAT 5/16 SAE ZINC 4
7 10151 NUT, HEX NYLON LOCK 5/16-18 ZINC 4
8 101249 CARRIER JACK SUPPORT WELDMENT 1
9 10053 SCREW, CAP 5/16-18 X 3/4 2
10 10213 WASHER, FLAT 5/16 SAE ZINC 2
11 10151 NUT, HEX NYLON LOCK 5/16-18 ZINC 3
12 101252 WHEEL, CASTER 6X2, LOCKING 2
13 10055 SCREW, CAP 3/8-16 X 1 8
14 10025 WASHER, FLAT 3/8 SAE ZINC 8
15 10156 NUT, HEX NYLON LOCK 3/8-16 ZINC 8
16 101268 CARRIER L HANDLE WELDMENT 1
17 10380 SCREW, CAP 5/16-18 X 2 1
PARTS LISTING -
PARTS LISTING -
ILLUSTRATION 3: CARRIER CART
ILLUSTRATION 3: CARRIER CART

E-EH1500-IPL-0123
Page 18
800-638-3326 • edcoinc.com • [email protected]
DECAL SHEET
DECAL SHEET

E-EH1500-IPL-0123
Page 19
800-638-3326 • edcoinc.com • [email protected]

(TXLSPHQW'HYHORSPHQW&RPSDQ\,QFKHUHLQUHIHUUHGWRDV('&26HOOHUZDUUDQWVWKDW
HDFKQHZXQLWPDQXIDFWXUHGE\('&2WREHIUHHIURPGHIHFWVLQPDWHULDODQGZRUNPDQVKLS
LQQRUPDOXVHDQGVHUYLFHIRUDSHULRGRIRQH\HDUH[FHSWIRUWKHFXWWHUGUXPDVVHPEO\
RQDOOPRGHOFRQFUHWHDVSKDOWSODQHUV$1'WKHFKLVHOKHDGDVVHPEO\RQDOOPRGHO$/5¶V
$/5%6LQZKLFKFDVHWKHZDUUDQW\SHULRGVKDOOEHGD\VIURPGDWHRIVKLSPHQWWRWKH
RULJLQDOUHWDLORUHTXLSPHQWUHQWDOFHQWHURZQHU
$FFHVVRULHVRUHTXLSPHQWIXUQLVKHGDQGLQVWDOOHGRQWKHSURGXFWE\('&2EXWPDQXIDFWXUHGE\
RWKHUVLQFOXGLQJEXWQRWOLPLWHGWRHQJLQHVPRWRUVHOHFWULFDOFRPSRQHQWVWUDQVPLVVLRQVHWF
VKDOOFDUU\WKHDFFHVVRU\PDQXIDFWXUHUVRZQZDUUDQW\
('&2ZLOODWLWVRSWLRQUHSDLURUUHSODFHDWWKH('&2IDFWRU\RUDWDSRLQWGHVLJQDWHGE\
('&2DQ\SDUWZKLFKVKDOODSSHDUWRWKHVDWLVIDFWLRQRI('&2LQVSHFWLRQWRKDYHEHHQ
GHIHFWLYHLQPDWHULDORUZRUNPDQVKLS
('&2 UHVHUYHV WKH ULJKW WR PRGLI\ DOWHU DQG LPSURYH DQ\ SDUW RU SDUWV
ZLWKRXWLQFXUULQJDQ\REOLJDWLRQWRUHSODFHDQ\SDUWRUSDUWVSUHYLRXVO\VROGZLWKRXWVXFK
PRGLILHGDOWHUHGRULPSURYHGSDUWRUSDUWV
7KLVZDUUDQW\LVLQOLHXRIDQGH[FOXGHVDOORWKHUZDUUDQWLHVH[SUHVVHGLPSOLHGVWDWXWRU\
RU RWKHUZLVH FUHDWHG XQGHU DSSOLFDEOH ODZ LQFOXGLQJ EXW QRW OLPLWHG WR WKH ZDUUDQW\ RI
PHUFKDQWDELOLW\DQGWKHZDUUDQW\RIILWQHVVIRUDSDUWLFXODUSXUSRVHLQQRHYHQWVKDOOVHOOHU
RUWKHPDQXIDFWXUHURIWKHSURGXFWEHOLDEOHIRUVSHFLDOLQFLGHQWDORUFRQVHTXHQWLDOGDP
DJHVLQFOXGLQJORVVRISURILWVZKHWKHURUQRWFDXVHGE\RUUHVXOWLQJIURPWKHQHJOLJHQFH
RIVHOOHUDQGRUWKHPDQXIDFWXUHURIWKHSURGXFWXQOHVVVSHFLILFDOO\SURYLGHGKHUHLQ,QDG
GLWLRQWKLVZDUUDQW\VKDOOQRWDSSO\WRDQ\SURGXFWVRUSRUWLRQVWKHUHRIZKLFKKDYHEHHQ
VXEMHFWHGWRDEXVHPLVXVHLPSURSHU LQVWDOODWLRQPDLQWHQDQFHRU RSHUDWLRQHOHFWULFDO
IDLOXUHRUDEQRUPDOFRQGLWLRQVDQGWRSURGXFWVZKLFKKDYHEHHQWDPSHUHGZLWKDOWHUHG
PRGLILHGUHSDLUHGUHZRUNHGE\DQ\RQH QRWDSSURYHGE\ VHOOHURUXVHG LQDQ\PDQQHU
LQFRQVLVWHQWZLWKWKHSURYLVLRQVRIWKHDERYHRUDQ\LQVWUXFWLRQVRUVSHFLILFDWLRQVSURYLGHG
ZLWKRUIRUWKHSURGXFW
)25&(0$-(85(
6HOOHU¶VREOLJDWLRQKHUHXQGHUDUHVXEMHFWWRDQG6HOOHUVKDOOQRWEHKHOGUHVSRQVLEOHIRUDQ\
GHOD\RUIDLOXUHWRPDNHGHOLYHU\RIDOORUDQ\SDUWRIWKH3URGXFWGXHWRODERUGLIILFXOWLHV
ILUHVFDVXDOWLHVDFFLGHQWVDFWVRIWKHHOHPHQWVDFWVRI*RGWUDQVSRUWDWLRQGLIILFXOWLHV
GHOD\VE\DFRPPRQFDUULHULQDELOLW\WRREWDLQ3URGXFWPDWHULDOVRUFRPSRQHQWVRUTXDOLILHG
ODERUVXIILFLHQWWRWLPHO\SHUIRUPSDUWRIRUDOORIWKHREOLJDWLRQVFRQWDLQHGLQWKHVHWHUPV
DQGFRQGLWLRQVJRYHUQPHQWDOUHJXODWLRQVRUDFWLRQVVWULNHVGDPDJHWRRUGHVWUXFWLRQLQ
ZKROHRUSDUWRIPDQXIDFWXULQJSODQWULRWVWHUURULVWDWWDFNVRULQFLGHQWVFLYLOFRPPRWLRQV
ZDUOLNHFRQGLWLRQVIORRGWLGDOZDYHVW\SKRRQKXUULFDQHHDUWKTXDNHOLJKWQLQJH[SORVLRQ
RUDQ\RWKHUFDXVHVFRQWLQJHQFLHVRUFLUFXPVWDQFHVZLWKLQRUZLWKRXWWKH8QLWHG6WDWHVQRW
VXEMHFWWRWKH6HOOHU¶VFRQWUROZKLFKSUHYHQWRUKLQGHUWKHPDQXIDFWXUHRUGHOLYHU\RIWKH
3URGXFWVRUPDNHWKHIXOILOOPHQWRIWKHVHWHUPVDQGFRQGLWLRQVLPSUDFWLFDEOH,QWKHHYHQW
RIWKHRFFXUUHQFHRIDQ\RIWKHIRUHJRLQJDWWKHRSWLRQRI6HOOHU6HOOHUVKDOOEHH[FXVHG
IURPWKHSHUIRUPDQFHXQGHUWKHVH7HUPVDQG&RQGLWLRQVRUWKHSHUIRUPDQFHRIWKH6HOOHU
VKDOOEHFRUUHVSRQGLQJO\H[WHQGHG
7KLVGRFXPHQWVHWVIRUWKWKHWHUPVDQGFRQGLWLRQVSXUVXDQWWRZKLFKWKHSXUFKDVHU³3XU
FKDVHU´ZLOOSXUFKDVHDQG(TXLSPHQW'HYHORSPHQW&R,QF³6HOOHU´ZLOOVHOOWKHSURGXFWV
DFFHVVRULHVDWWDFKPHQWVFROOHFWLYHO\WKH3URGXFWV³RUGHUHGE\WKH3XUFKDVHU7KHVH
WHUPVDQGFRQGLWLRQVVKDOOJRYHUQDQGDSSO\WRWKHVDOHRI6HOOHU¶V3URGXFWVWR3XUFKDVHU
UHJDUGOHVVRIDQ\WHUPVDQGFRQGLWLRQVDSSHDULQJRQDQ\SXUFKDVHRUGHURURWKHUIRUPV
VXEPLWWHGE\3XUFKDVHUWR6HOOHURUWKHLQFRQVLVWHQF\RIDQ\WHUPVWKHUHLQDQGKHUHLQ
35,&(
$OOSULFHVVHWIRUWKRQDQ\SXUFKDVHRUGHURURWKHUGRFXPHQWDUH)2%6HOOHUVIDFLOLW\RUGLV
WULEXWLRQSRLQWDVPD\EHGHWHUPLQHGE\6HOOHU)2%3RLQW$OOSULFHVDUHH[FOXVLYHRIDQ\
DQGDOOWD[HVLQFOXGLQJEXWQRWOLPLWHGWRH[FLVHVDOHVXVHSURSHUW\RUWUDQVSRUWDWLRQWD[HV
UHODWHGWRWKHVDOHRUXVHRIWKH3URGXFWVQRZRUKHUHDIWHULPSRVHGWRJHWKHUZLWKDOOSHQDOWLHV
DQGH[SHQVHV3XUFKDVHU VKDOOEHUHVSRQVLEOHIRUFROOHFWLQJDQGRUSD\LQJDQ\DQGDOOVXFK
WD[HVZKHWKHURUQRWWKH\DUHVWDWHGLQDQ\LQYRLFHIRUWKH3URGXFWV8QOHVVRWKHUZLVHVSHFL
ILHGKHUHLQDOOSULFHVDUHH[FOXVLYHRILQODQGWUDQVSRUWDWLRQIUHLJKWLQVXUDQFHDQGRWKHUFRVWV
DQGH[SHQVHVUHODWLQJ WRWKHVKLSPHQWRI WKH3URGXFWVIURP WKH)2% SRLQWWR3XUFKDVHU¶V
IDFLOLW\$Q\SUHSD\PHQWE\6HOOHURIIUHLJKWLQVXUDQFHDQGRWKHUFRVWVVKDOOEHIRUWKHDFFRXQW
RI3XUFKDVHUDQGVKDOOEHUHSDLGWR6HOOHU
3$<0(177(506
3D\PHQWWHUPVDUHDVIROORZVGD\VWRDSSURYHGDQGTXDOLILHGDFFRXQWV1HW
GD\V7KLVLVDFDVKGLVFRXQWIRULQYRLFHVSDLGZLWKLQGD\VDIWHUWKHLQYRLFHGDWHUHJDUG
OHVVRIGDWHRIUHFHLSWRIVKLSPHQW7KLVLVQRWDWUDGHGLVFRXQWDQGZLOOQRWEHJUDQWHGWR
DFFRXQWVWKDWGRQRWDGKHUHWRVWDWHGWHUPV
$OOSDVWGXHDFFRXQWVDUHVXEMHFWWRDODWHSD\PHQWIHHRISHUPRQWKRUDPD[LPXP
DOORZHGE\ODZLIGLIIHUHQWDORQJZLWKWKHH[SHQVHVLQFLGHQWDOWRFROOHFWLRQLQFOXGLQJUHDVRQ
DEOHDWWRUQH\¶VIHHVDQGFRVWV
6HOOHUUHVHUYHVWKHULJKWWRKROGVKLSPHQWVDJDLQVWSDVWGXHDFFRXQWV
6HOOHUUHVHUYHVWKHULJKWWRDOWHUSD\PHQWWHUPV
)5(,*+77(506
$OOVKLSPHQWVZLOOEHPDGH)2%VKLSSLQJSRLQWDVGHVLJQDWHGLQWKHVH7HUPVDQG&RQGL
WLRQVDQGWLWOHVKDOOSDVVDWWKH)2%SRLQW'HOLYHU\WRWKHLQLWLDOFRPPRQFDUULHUVKDOO
FRQVWLWXWH GHOLYHU\ WR WKH 3XUFKDVHU $Q\ FODLPV IRU ORVV RU GDPDJH GXULQJ VKLSPHQW
DUHWREHILOHGZLWKFDUULHUE\WKH3XUFKDVHU6HOOHUZLOOQRWDVVXPHUHVSRQVLELOLW\IRUWKH
SHUIRUPDQFHRIWKHFDUULHU
%DFNRUGHUVZLOOEHVKLSSHGLQWKH PRVW SUDFWLFDO IDVKLRQ ZLWK FKDUJHV FRQVLVWHQW ZLWK
RXUIUHLJKWSROLF\HVWDEOLVKHGZLWKWKHRULJLQDORUGHU836)('(;0$,/RUVKLSPHQWV
E\RWKHUFRXULHUVDUHVXEMHFWWRWKHVDPHWHUPVDQGFRQGLWLRQVDVRXWOLQHGLQSDUDJUDSK
´)UHLJKW7HUPV´
'(/,9(5<'$0$*(66+257$*(6
6HOOHUVKDOOXVHUHDVRQDEOHHIIRUWVWRDWWHPSWWRFDXVHWKH3URGXFWVWREHGHOLYHUHGDVSURYLGHG
IRULQWKHVH7HUPV&RQGLWLRQV'HOLYHU\WRWKHLQLWLDOFRPPRQFDUULHUVKDOOFRQVWLWXWHWKHGHOLYHU\
WRWKH3XUFKDVHU6HOOHUVUHVSRQVLELOLW\LQVRIDUDVWUDQVSRUWDWLRQULVNVDUHFRQFHUQHGFHDVHV
XSRQWKHGHOLYHU\RIWKH3URGXFWVLQJRRGFRQGLWLRQWRVXFKFDUULHUDWWKH)2%SRLQWDQGDOOWKH
3URGXFWVVKDOOEHVKLSSHGDWWKH3XUFKDVHU¶VULVN6HOOHUVKDOOQRWEHUHVSRQVLEOHRUOLDEOHIRU
DQ\ORVVRILQFRPHDQGRUSURILWVRULQFLGHQWDOVSHFLDOFRQVHTXHQWLDOGDPDJHVUHVXOWLQJIURP
6HOOHU¶VGHOD\HGSHUIRUPDQFHLQVKLSPHQWDQGGHOLYHU\
5(78512)'()(&7,9(352'8&76
'HIHFWLYHRUIDLOHGPDWHULDOVKDOOEHKHOGDWWKH3XUFKDVHU¶VSUHPLVHVXQWLODXWKRUL]DWLRQKDV
EHHQJUDQWHGE\6HOOHUWRUHWXUQRUGLVSRVHRI3URGXFWV3URGXFWVWKDWDUHWREHUHWXUQHG
IRUILQDOLQVSHFWLRQPXVWEHUHWXUQHG)UHLJKW3UHSDLGLQWKHPRVWHFRQRPLFDOZD\&UHGLW
ZLOOEHLVVXHGIRUPDWHULDOIRXQGWREHGHIHFWLYHXSRQ6HOOHU¶VLQVSHFWLRQEDVHGRQSULFHV
DWWLPHRISXUFKDVH
352'8&7625'(5(',1(5525
3URGXFWVPD\EHUHWXUQHGSURYLGHGWKDWFODLPLVPDGHDQG6HOOHULVQRWLILHGZLWKLQGD\V
RIUHFHLSWRI3URGXFWVDQGWKH3URGXFWVDUHLQRULJLQDOEX\HU¶VSRVVHVVLRQQRWPRUHWKDQ
GD\VSULRUWRUHWXUQVXEMHFWWR6HOOHU¶VDSSURYDO,I3URGXFWVDUHDFFHSWHGIRUUHWXUQ
WKH\PXVW EH)UHLJKW3UHSDLGDQGEX\HUZLOOEHFKDUJHGDPLQLPXPRIUHVWRFNLQJ
FKDUJHSOXVDFKDUJHEDFNIRURXWERXQGIUHLJKWFKDUJHVLIWKHRULJLQDORUGHUZDVVKLSSHG
SUHSDLG5HWXUQVDUHQRWDFFHSWHGIRUDQ\3URGXFWVWKDWDUHVSHFLILFDOO\PDQXIDFWXUHGWR
PHHWWKHEX\HU¶VUHTXLUHPHQWRIHLWKHUVSHFLILFDWLRQVRUTXDQWLW\
$*5((0(176
7KHVH7HUPVDQG&RQGLWLRQVFRQVWLWXWHWKHHQWLUHDJUHHPHQWEHWZHHQ6HOOHUDQG3XUFKDVHUDV
LWUHODWHVWRWHUPVDQGFRQGLWLRQVRIVDOHDQGVXSHUVHGHVDQ\DQGDOOSULRURUDORUZULWWHQDJUHH
PHQWVFRUUHVSRQGHQFHTXRWDWLRQVRUXQGHUVWDQGLQJVKHUHWRIRUHLQIRUFHEHWZHHQWKHSDUWLHV
UHODWLQJWRWKHVXEMHFWPDWWHUKHUHRI7KHUHDUHQRDJUHHPHQWVEHWZHHQ6HOOHUDQG3XUFKDVHU
ZLWKUHVSHFWWRWKH3URGXFWKHUHLQH[FHSWWKRVHVSHFLILFDOO\VHWIRUWKLQDQGPDGHSDUWRIWKHVH
WHUPVDQGFRQGLWLRQV$Q\DGGLWLRQDOWHUPVFRQGLWLRQVDQGRUSULFHVDUHUHMHFWHGE\6HOOHU
7KHVHWHUPVDQGFRQGLWLRQVPD\EHPRGLILHGFDQFHOOHGRUUHVFLQGHGRQO\E\DZULWWHQ
DJUHHPHQWRIERWKSDUWLHVH[HFXWHGE\WKHLUGXO\DXWKRUL]HGDJHQWV

86(21/<*(18,1(('&23$576$&&(6625,(6
 )RU\RXURZQVDIHW\WKHVDIHW\RIRWKHUVDQGWKHOLIHRI\RXUPDFKLQH
 68%0,7$//:$55$17<&/$,06$7
 HGFRLQFFRPFXVWRPHUVXSSRUWZDUUDQW\FODLPIRUP
/,0,7('(48,30(17:$55$17<2)6$/(
7(506$1'&21',7,216
127$33/,&$%/(726$/(67+528*+$87+25,=('',675,%87,21

E-EH1500-IPL-0123
Page 20
800-638-3326 • edcoinc.com • [email protected]
Scan This QRC or Visit
www.edcoinc.com/customer-support
READ: EDCO Owner’s Manuals and Parts Listings share basic information
and parts of each product. Download and print them whenever needed.
WATCH: EDCO Product Training Videos show how to use products, install
tooling, and perform basic maintenance.
FIND: Somewhere on this product is an EDCO QRC Training Decal. Scanning
this code provides owner’s information, videos, and other training content
anywhere/anytime on your mobile device.
JOIN: EDCOed.comLVDIUHHKRXUWUDLQLQJVSDFH(DFKFHUWLȴFDWLRQWUDFN
IRFXVHVRQDVSHFLȴF('&2SURGXFWJURXS7KHLQIRUPDWLRQLQWKHVHWUDFNVKHOS
businesses be successful with those products.
Example Only
('&2LVDOZD\VXSGDWLQJRQOLQHWUDLQLQJLQIRUPDWLRQVR\RXDOZD\VKDYHWKHPRVWUHFHQWFRQWHQW
$OVRVHH2SHUDWRUȇV6DIHW\/LPLWHG:DUUDQW\0DQXDO
Equipment Development Co., Inc. • 800.638.3326 • [email protected]
BEFORE USING THIS PRODUCT
+DYH<RX8VHG('&2ȇV2QOLQH&XVWRPHU6XSSRUW""
