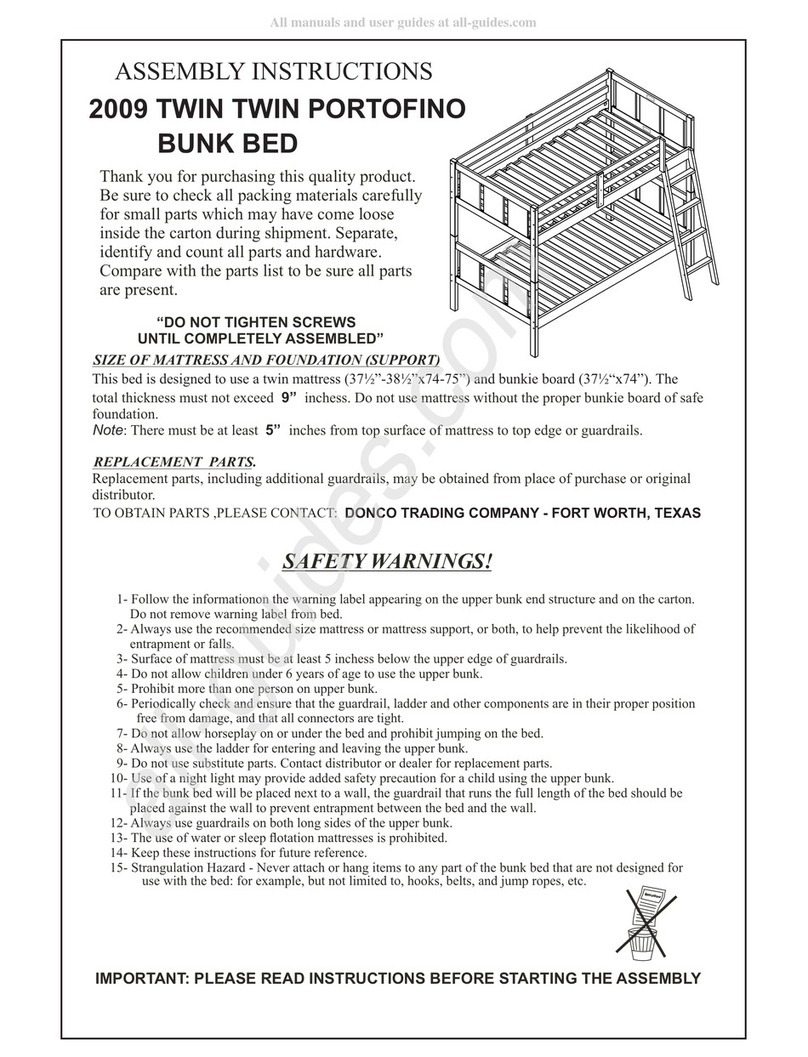

Donco 2009 TWIN User manual

Thank you for purchasing this quality product.
Be sure to check all packing materials carefully
for small parts which may have come loose
inside the carton during shipment. Separate,
identify and count all parts and hardware.
Compare with the parts list to be sure all parts
are present.
“DO NOT TIGHTEN SCREWS
UNTIL COMPLETELY ASSEMBLED”
SAFETY WARNINGS!
1- Follow the informationon the warning label appearing on the upper bunk end structure and on the carton.
Do not remove warning label from bed.
2- Always use the recommended size mattress or mattress support, or both, to help prevent the likelihood of
entrapment or falls.
3- Surface of mattress must be at least 5 inchess below the upper edge of guardrails.
4- Do not allow children under 6 years of age to use the upper bunk.
5- Prohibit more than one person on upper bunk.
6- Periodically check and ensure that the guardrail, ladder and other components are in their proper position
free from damage, and that all connectors are tight.
7- Do not allow horseplay on or under the bed and prohibit jumping on the bed.
8- Always use the ladder for entering and leaving the upper bunk.
9- Do not use substitute parts. Contact distributor or dealer for replacement parts.
10- Use of a night light may provide added safety precaution for a child using the upper bunk.
11- If the bunk bed will be placed next to a wall, the guardrail that runs the full length of the bed should be
placed against the wall to prevent entrapment between the bed and the wall.
12- Always use guardrails on both long sides of the upper bunk.
13- The use of water or sleep flotation mattresses is prohibited.
14- Keep these instructions for future reference.
15- Strangulation Hazard - Never attach or hang items to any part of the bunk bed that are not designed for
use with the bed: for example, but not limited to, hooks, belts, and jump ropes, etc.
IMPORTANT: PLEASE READ INSTRUCTIONS BEFORE STARTING THE ASSEMBLY
