Eddy Wireless DM1000 User manual
DM1000 ii
Handset 1 Antenna
2 Betlclip attachment
3 Speaker for Ringer
4 Handset battery compartment
5 New Message LED
6 Handset Earpiece
7LCDDisplay
8FunctionKeys
9Up/Downkeys
10 Menu and Off keys
11 * Scroll Left
12 Flash/Delete key
13 Redial/Pause key
14 Headset Jack
15 #Scroll Right
16 Intercom
17 Handset Microphone
18 Handset Charging Contacts
DM1000 CB GSM.book Page ii Sunday, July 11, 2010 10:24 PM
DM1000 iii
Base
19 Base Speaker/Ringer
20 LCD Display
21 Function Keys
22 Up/Down Keys
23 Menu and Off Keys
24 Intercom Key
25 Speaker Phone Key
26 Speaker Phone ON LED
27 Redial/Pause Key
28 New Message LED
29 Flash Key
30 DC IN 9V Jack
31 TEL LINE Jack
32 Corded Handset Jack
33 Battery cover
34 SIM Card Access Cover
34
DM1000 CB GSM.book Page iii Sunday, July 11, 2010 10:24 PM
DM1000 iv
Notes
DM1000 CB GSM.book Page iv Sunday, July 11, 2010 10:24 PM
DM1000 v
Contents
Get ready . . . . . . . . . . . . . . . . . . . . . . 1
About the SIM card . . . . . . . . . . . . . . . . . . . 1
Install the SIM card . . . . . . . . . . . . . . . . . 2
Choose Location . . . . . . . . . . . . . . . . . . . . . 3
Desk or Table . . . . . . . . . . . . . . . . . . . . . 3
Wall mount . . . . . . . . . . . . . . . . . . . . . . . 4
Base power on . . . . . . . . . . . . . . . . . . . . . 5
Power backup batteries (Optional) . . . . . . 5
Standby Screen . . . . . . . . . . . . . . . . . . . . 7
Signal level meter . . . . . . . . . . . . . . . . . . 8
Ready the cordless handset . . . . . . . . . . . . 9
Get set . . . . . . . . . . . . . . . . . . . . . . . 12
Dialing mode . . . . . . . . . . . . . . . . . . . . . . 12
Time and date . . . . . . . . . . . . . . . . . . . . . 13
Set the ringer tone . . . . . . . . . . . . . . . . . . 14
Set the ringer volume . . . . . . . . . . . . . . . 15
Key beep . . . . . . . . . . . . . . . . . . . . . . . . . 17
Area codes . . . . . . . . . . . . . . . . . . . . . . . . 17
Add/remove a 1 . . . . . . . . . . . . . . . . . . . 18
Add/remove area code . . . . . . . . . . . . . . 18
Language . . . . . . . . . . . . . . . . . . . . . . . . . 19
LCD contrast . . . . . . . . . . . . . . . . . . . . . . 19
Name . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Handset registration . . . . . . . . . . . . . . . . . 20
Register . . . . . . . . . . . . . . . . . . . . . . . . 20
Deregister . . . . . . . . . . . . . . . . . . . . . . . 21
DM1000 CB GSMTOC.fm Page v Sunday, July 11, 2010 10:26 PM
DM1000 vi
GO! . . . . . . . . . . . . . . . . . . . . . . . . . 22
Make a wireless call . . . . . . . . . . . . . . . . . 22
Make a landline call . . . . . . . . . . . . . . . . . . 23
Set earpiece volume . . . . . . . . . . . . . . . . 23
Calling options . . . . . . . . . . . . . . . . . . . . . 24
Speed dial . . . . . . . . . . . . . . . . . . . . . . . 24
Redial . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Pause (for TEL line use only) . . . . . . . . . . 25
Answer a wireless call . . . . . . . . . . . . . . . . 25
Answer a landline call . . . . . . . . . . . . . . . . 26
In-Call operations . . . . . . . . . . . . . . . . . . . 27
Place a call on Hold . . . . . . . . . . . . . . . . 27
Mute a call . . . . . . . . . . . . . . . . . . . . . . 27
Transfer a call . . . . . . . . . . . . . . . . . . . . 27
Set up a conference call . . . . . . . . . . . . . 30
Phone book . . . . . . . . . . . . . . . . . . . . . . . 31
Enter names and characters . . . . . . . . . . 31
Enter numbers directly . . . . . . . . . . . . . . 32
Edit names or numbers . . . . . . . . . . . . . . 33
Enter numbers from Caller ID . . . . . . . . . 33
Call from phone book . . . . . . . . . . . . . . . 35
Speed dial . . . . . . . . . . . . . . . . . . . . . . . 35
Messages . . . . . . . . . . . . . . . . . . . . . . . . . 35
Voice messages . . . . . . . . . . . . . . . . . . . 36
Short Message Service (SMS) . . . . . . . . . 37
More features . . . . . . . . . . . . . . . . . . 43
Caller ID . . . . . . . . . . . . . . . . . . . . . . . . . 43
Caller ID information . . . . . . . . . . . . . . . 43
Check the log . . . . . . . . . . . . . . . . . . . . 45
Dial a number . . . . . . . . . . . . . . . . . . . . 45
DM1000 CB GSMTOC.fm Page vi Sunday, July 11, 2010 10:26 PM
DM1000 vii
Save a number . . . . . . . . . . . . . . . . . . . 45
Delete a number . . . . . . . . . . . . . . . . . . 46
Call Forwarding . . . . . . . . . . . . . . . . . . . . . 47
Activate Call Forwarding . . . . . . . . . . . . . 47
Deactivate Call Forwarding . . . . . . . . . . . 48
Page and Intercom . . . . . . . . . . . . . . . . . . 48
Page . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Intercom . . . . . . . . . . . . . . . . . . . . . . . . 49
Two-line calling . . . . . . . . . . . . . . . . . . . . . 50
Quick reference chart . . . . . . . . . . . . . . . 51
Make two separate calls . . . . . . . . . . . . . 52
Receive two separate calls . . . . . . . . . . . 52
Call waiting with two calls . . . . . . . . . . . . 53
Barge-in . . . . . . . . . . . . . . . . . . . . . . . . . 53
Quick reference chart . . . . . . . . . . . . . . . 55
Set up Barge-In . . . . . . . . . . . . . . . . . . . 56
Use Barge-In . . . . . . . . . . . . . . . . . . . . . 56
Cellular only . . . . . . . . . . . . . . . . . . . . . . . 57
Set up Cellular only . . . . . . . . . . . . . . . . 57
Turn off Cellular only . . . . . . . . . . . . . . . 57
CEL Phone Number . . . . . . . . . . . . . . . . . . 58
Power back-up . . . . . . . . . . . . . . . . . . . . . 58
Precautions . . . . . . . . . . . . . . . . . . . . 60
Rechargeable Nickel-Metal-Hydride Battery
Warning . . . . . . . . . . . . . . . . . . . . . . . . 60
Rechargeable Nickel-Metal-Hydride Batteries
Must Be Recycled or Disposed of Properly 61
Important safety instructions . . . . . . . . . . . 61
Important Electrical Considerations . . . . . 64
The FCC Wants You To Know . . . . . . . . . . 65
DM1000 CB GSMTOC.fm Page vii Sunday, July 11, 2010 10:26 PM
DM1000 viii
Range . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Telephone Line Problems . . . . . . . . . . . . 66
Radio Interference . . . . . . . . . . . . . . . . . 67
Cordless Telephone Privacy . . . . . . . . . . . 68
Installation Considerations . . . . . . . . . . . 68
Telephone Line Outlets . . . . . . . . . . . . . . 69
Connecting the Telephone Cords . . . . . . . 70
Applying Power to the base . . . . . . . . . . . 70
I.C. Notice . . . . . . . . . . . . . . . . . . . . . . . . 71
RADIO EQUIPMENT . . . . . . . . . . . . . . . . 72
General information . . . . . . . . . . . . . . 73
DM1000 Menu map . . . . . . . . . . . . . . 74
DM1000 CB GSMTOC.fm Page viii Sunday, July 11, 2010 10:26 PM
DM1000 ix
Notes:
DM1000 CB GSMTOC.fm Page ix Sunday, July 11, 2010 10:26 PM
Get ready
DM1000
1
1Getready
•About the SIM card
This phone connects to GSM networks through a
Subscriber Identity Module card that you get from
your cellular service provider. The SIM card carries
information about your wireless account.
Some important considerations:
• Keep all SIM cards out of the reach of small children.
• The SIM card and its contacts are easily damaged
by scratches or bending, so be careful when
handling, inserting, or removing the card.
•Disconnect power and remove batteries from
the phone before removing or inserting the SIM
card.
Included items
• Base • Belt clip
• Cordless handset • Wall mount bracket
• AC adaptor for base • Telephone cord
• AC adaptor for
cordless handset •Userguide
• Rechargeable battery
for cordless handset
DM1000 CB GSM.book Page 1 Sunday, July 11, 2010 10:28 PM
DM1000
1Install the SIM card
1Important: Verify power is disconnected
from the base.

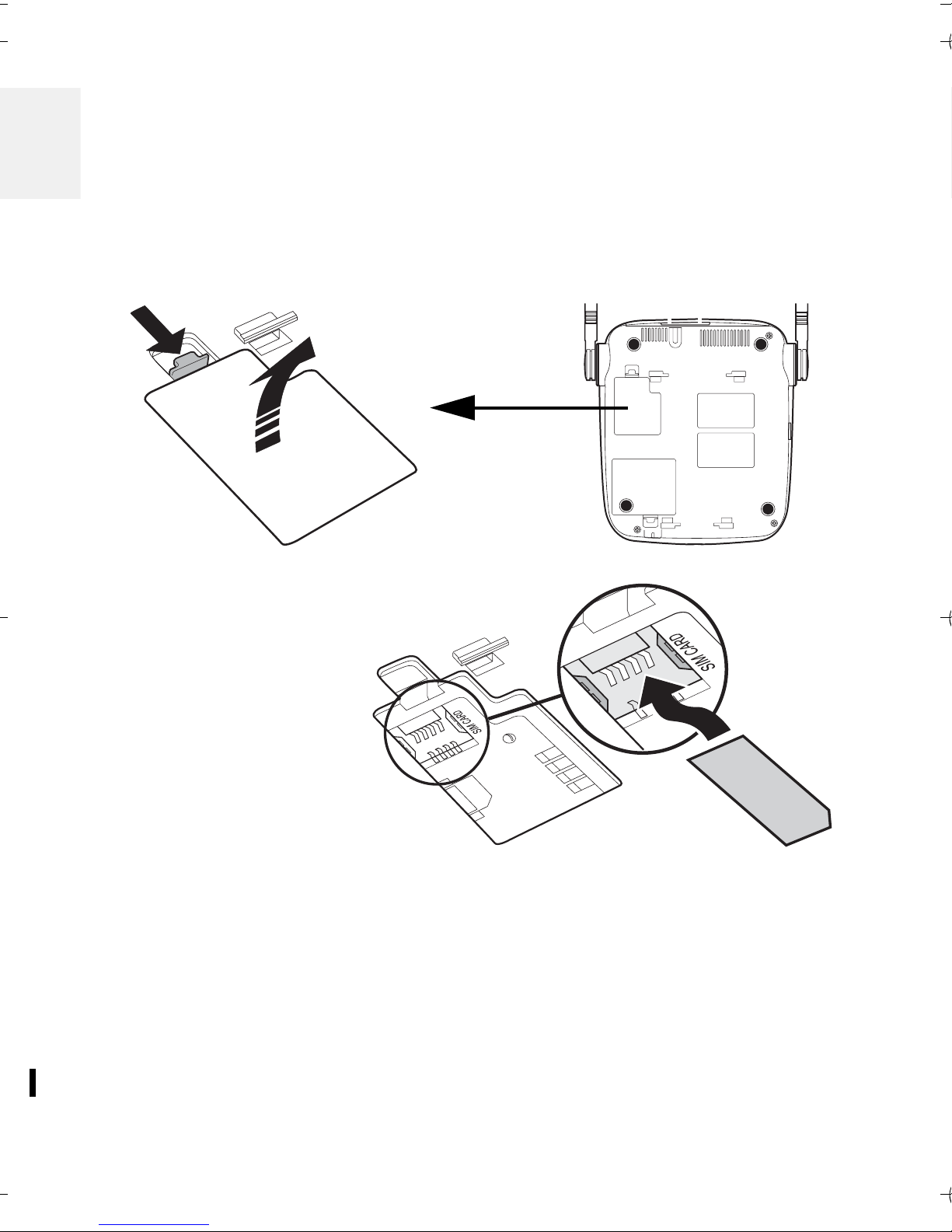

2Turn the Base Unit over and open the SIM card
cover.
3Align the
SIM card
with the
beveled
corner
facing
right, gold
contact
area facing
downward.
4Carefully slide in the SIM card until the flat edge
contacts the end of the receptacle.
Also, refer to the diagram on the SIM
Compartment cover.
5Replace the cover.
DM1000 CB GSM.book Page 2 Sunday, July 11, 2010 10:28 PM
Get ready
DM1000
1
•Choose Location
Some important considerations:
• Charge the handset for 12–15 hours before use it.
• Locate the base near both a phone jack and a
power outlet which is not controlled by a switch.
• Keep the base and handset away from sources of
electrical noise, such as motors and fluorescent
lighting.
• Leave enough room to raise both base antennas
fully vertical.
Desk or Table

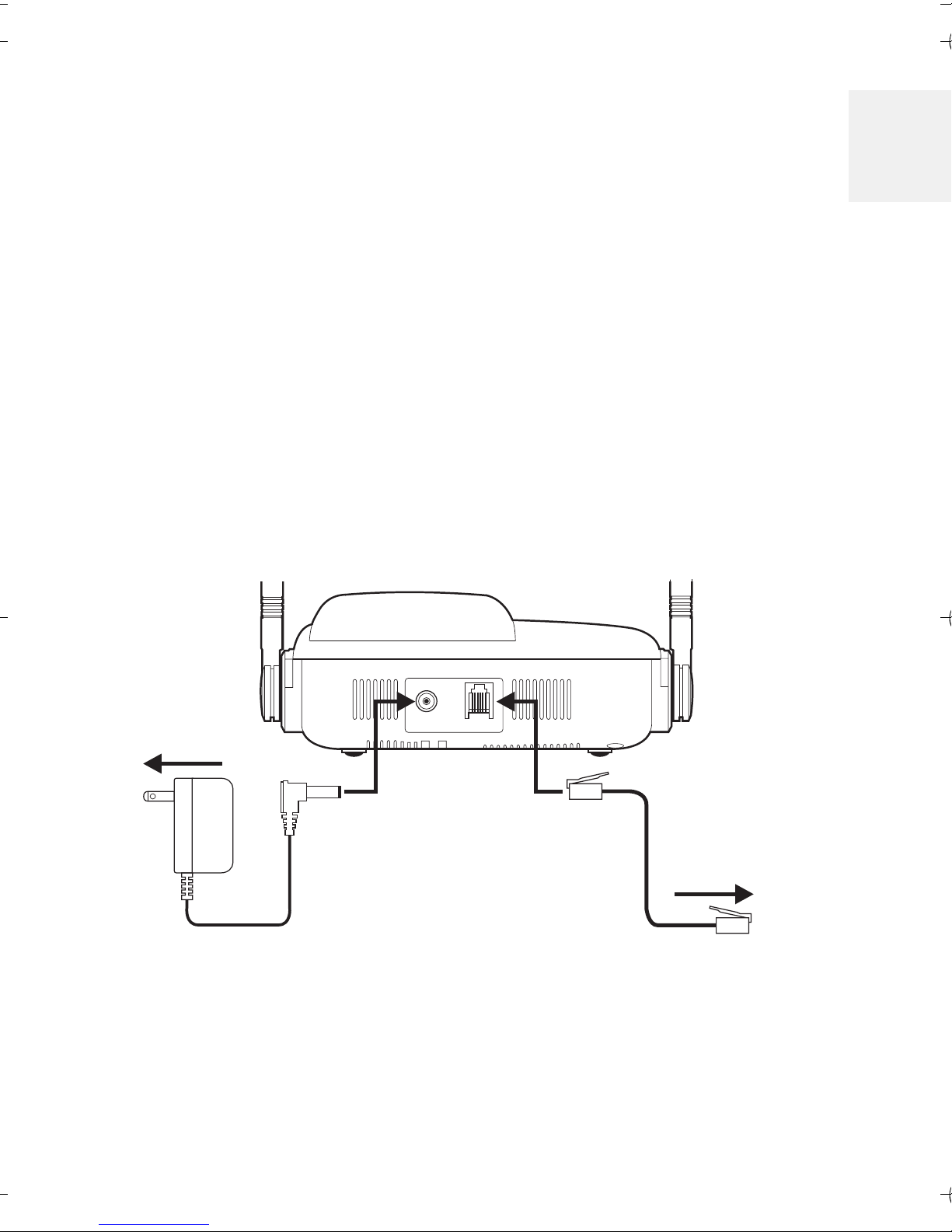

1Connect the telephone line cord to the TEL LINE
jack and to a telephone jack.
2Set the base on a desk or table and place the
handset on the base.
To AC outlet
To telephone
outlet
DM1000 CB GSM.book Page 3 Sunday, July 11, 2010 10:28 PM
DM1000
13Connect the handset cord to the jacks on the
handset and the base, then set the handset in
the cradle.
4Raise both antennas to a vertical position.
5Find the base AC adaptor (the larger adaptor),
and connect it to the DC IN 9V jack and to a
standard 120V AC.
Wall mount
1Attach the wall mount adaptor to the base.
2Find the base AC adaptor (the larger adaptor),
plug the connector into the DC IN 9V jack, then
plug the telephone line cord to the TEL LINE
jack.
3Wrap the AC adaptor inside the molded wiring
channel, then wrap the cord around the strain
relief notch.
4Raise the antennas to a vertical position.
DM1000 CB GSM.book Page 4 Sunday, July 11, 2010 10:28 PM
Get ready
DM1000
1
5Align the mounting slots on the base with the
mounting posts on the wall plate. Then push in
and down until the phone is firmly seated.
6Connect the handset cord to the jacks on the
handset and base, then set the corded handset
in the cradle.
7On the base, remove the handset retainer, flip it
over, then replace it.
Base power on

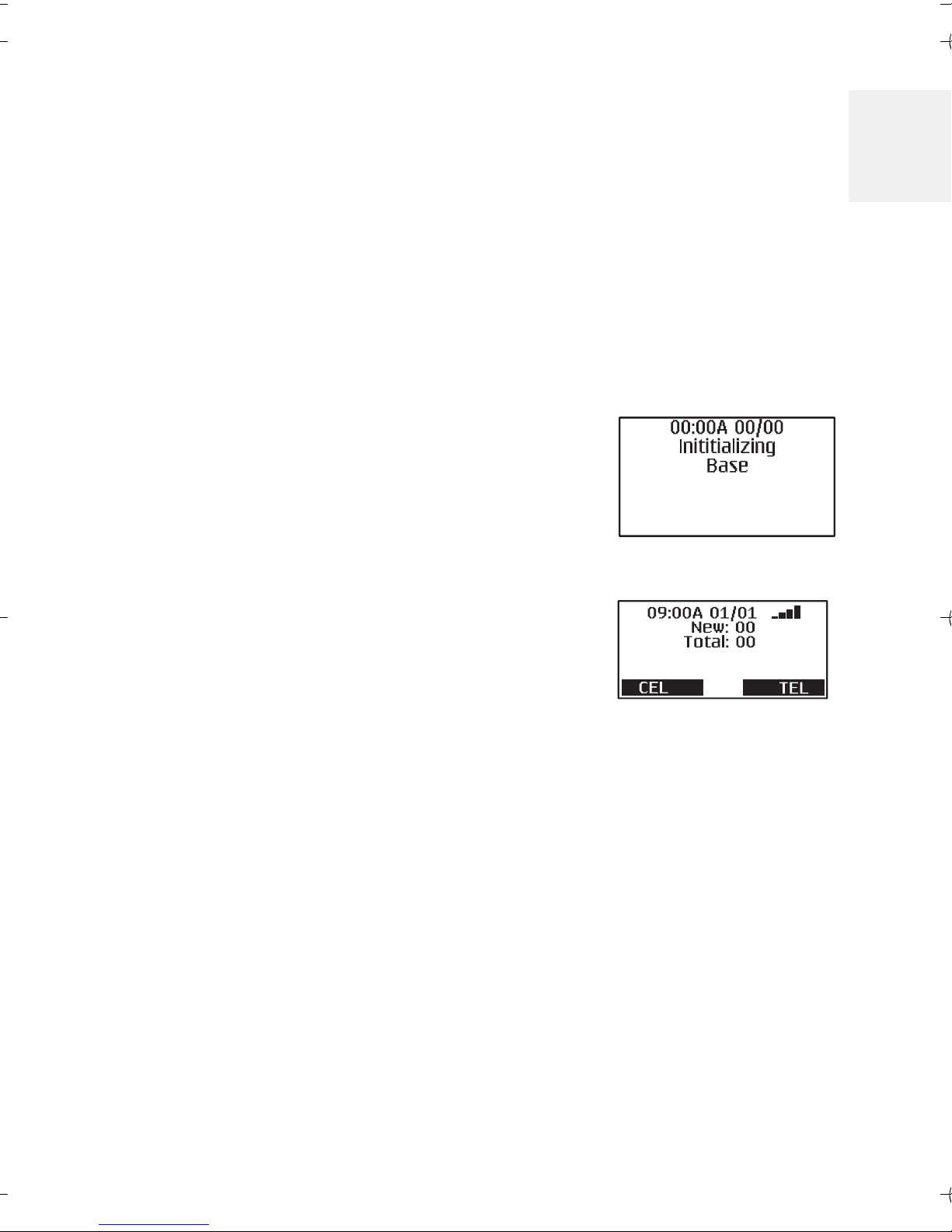

When powered on for the first
time, the base goes through an
initialization sequence.
Note: Do not use the phone
until the initialization
sequence is complete.
Power backup
batteries (Optional)
The optional back-up batteries provide a reserve
power supply so the base can operate for up to 30
minutes (depending on battery condition) in case of
power outages or if power is cut off to the base for
any reason. Backup power activates immediately
when the normal power supply to the base is cut off.
1Verify power is disconnected from the base.
2Open the battery cover on the bottom of the
DM1000 CB GSM.book Page 5 Sunday, July 11, 2010 10:28 PM
DM1000
1base.
3Insert five AA alkaline
batteries with the
polarity (+ and -)
aligned as marked in the
compartment.
4Replace the cover.
Note:
• Batteries are not included
• Batteries are not required to operate the product
• There is no indication that shows when the base is
operating with normal power or back-up power
• If you choose to install back-up batteries, check
the power level frequently (see “Power back-up”
on page 58). Replace the batteries when the
power level is less than half of maximum
• After any power outage, check the battery power
level and replace batteries as needed
•
The battery power comes on automatically when
DM1000 CB GSM.book Page 6 Sunday, July 11, 2010 10:28 PM
Get ready
DM1000
1
current from the AC adaptor is interrupted;
unplugging the AC adaptor does not turn off power
to the phone
• Be sure to remove at least one battery when
disconnecting power
•The
Battery Level indicator on the base menu
screen may not show true battery condition unless
all five batteries are installed
Caution: Use only AA alkaline batteries for power
backup. Do not use rechargeable
batteries. The battery compartment
circuitry is not designed to recharge
batteries.

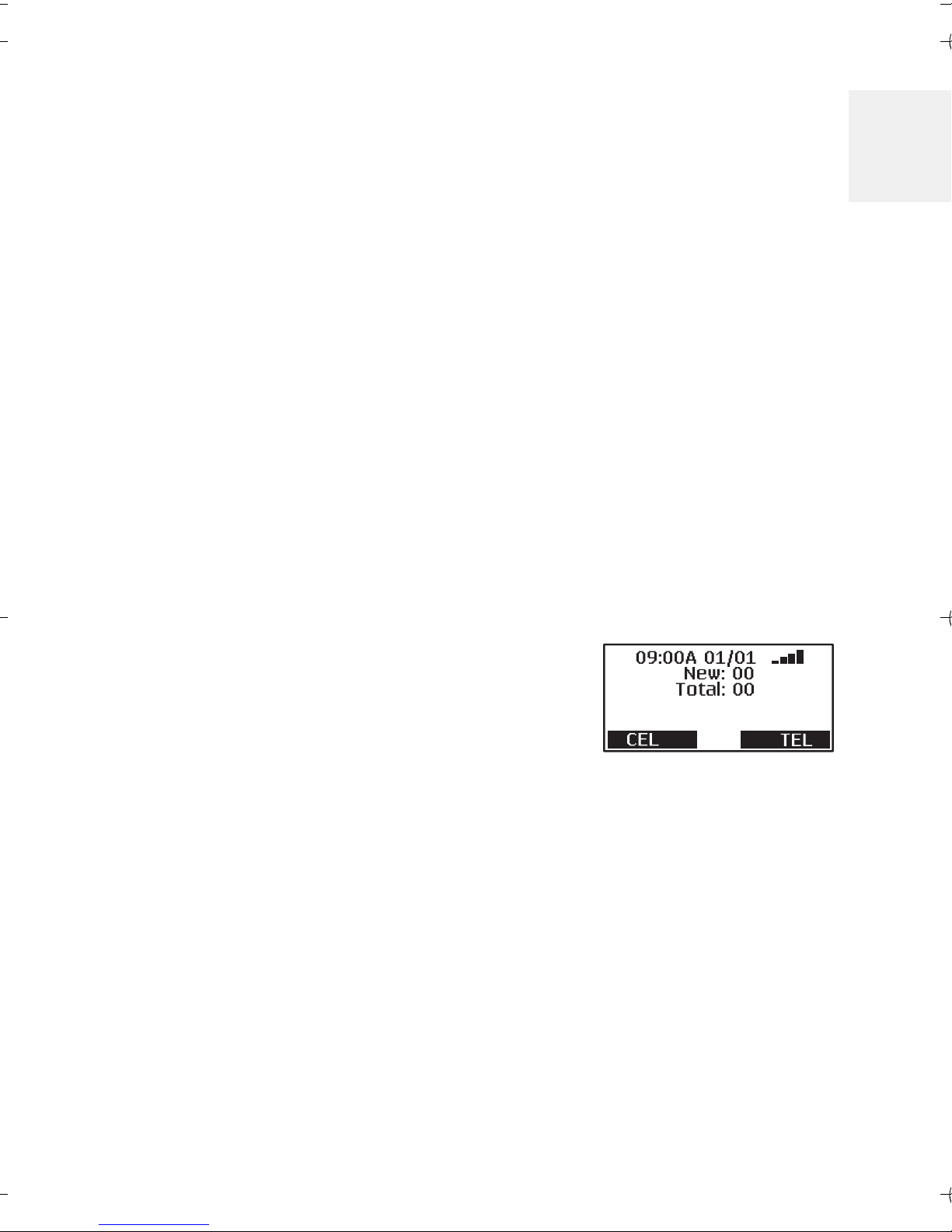

Standby Screen
When the sequence is complete,
the Standby Screen appears.
This screen appears on both the
base and the handset, and is
always visible when the phone is
idle. At the bottom of the screen, the text indicates
which service lines are active. CEL is wireless
service, and TEL is landline service.
The CEL indicator may take up to two minutes to
appear, depending on cellular signal conditions in
your area.
DM1000 CB GSM.book Page 7 Sunday, July 11, 2010 10:28 PM
DM1000
1If you have connected with your cellular service
provider, the date and time may be set
automatically. If not, see “Time and date” on page
13 to set the date and time manually.
Signal level meter
The Signal Level feature helps
you find your strongest cellular
service signal. Move the base
around your location to find the
strongest signal level.
Be sure the CEL indicator is shown in the
display before checking the signal level.
DM1000 CB GSM.book Page 8 Sunday, July 11, 2010 10:28 PM
Get ready
DM1000
1
Ready the cordless handset

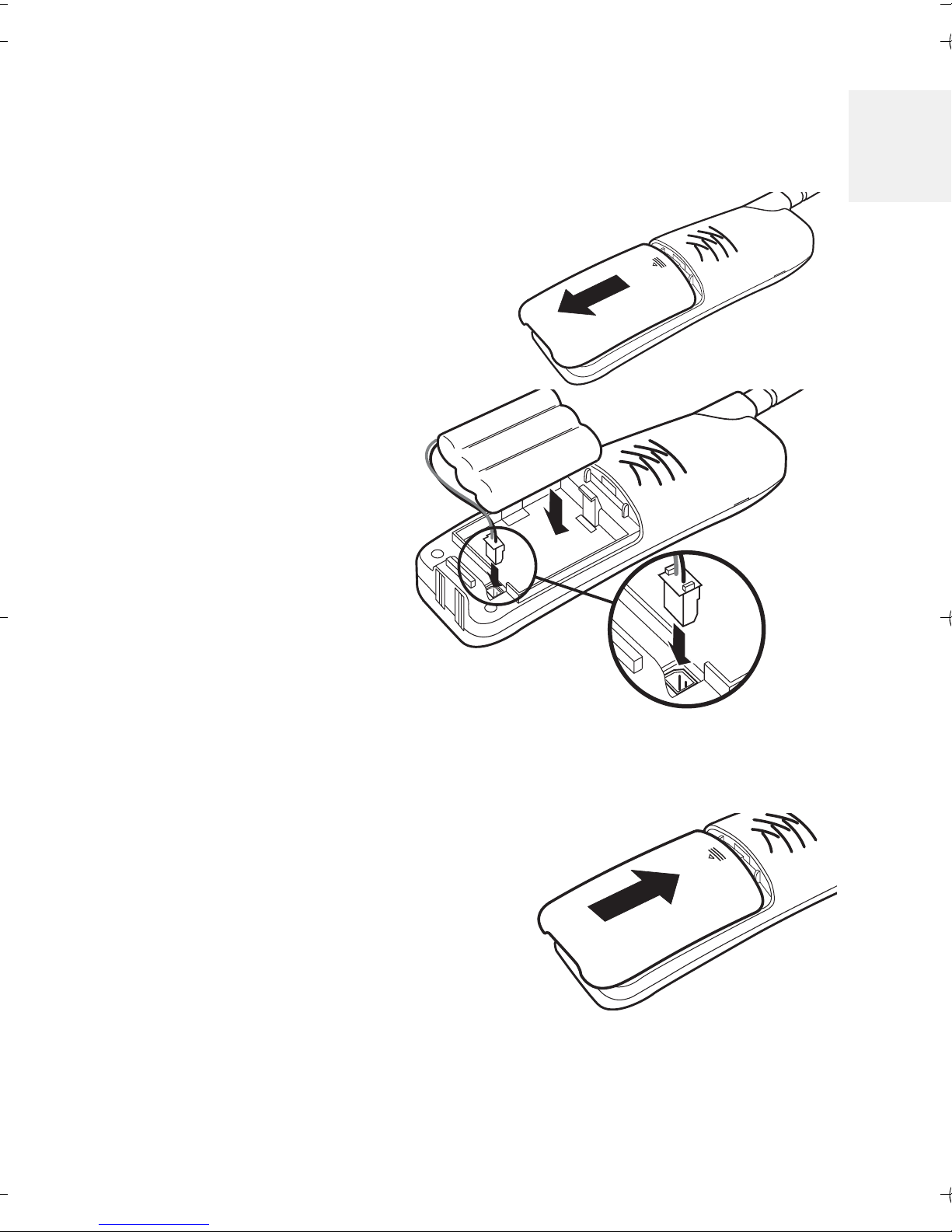

INSTALL THE BATTERY
1Open the cover.
2Verify that the
connector is
properly
aligned with
the jack and
connect the
battery.
Note: The
connector
is
designed to easily fit the jack in only one
direction. Do not use excessive force.
3Close the cover.
DM1000 CB GSM.book Page 9 Sunday, July 11, 2010 10:28 PM
DM1000
1CHARGE THE
BATTERY
1Find the cordless
handset AC
Adaptor (the
smaller adaptor,
Model number
HKD090050U).
Connect the AC adaptor to the DC 9V IN jack on
the charger and to a standard 120V AC wall
outlet.
2Set the charger on a desk or table, then set the
handset in the charger with the keypad facing
forward.
3Allow the battery to charge for
12–15 hours.
Note: Charge the battery
frequently. Leaving the
battery uncharged for a
prolonged period can
adversely affect battery
charging capacity. If this
happens, replace the battery.
To AC outlet
DM1000 CB GSM.book Page 10 Sunday, July 11, 2010 10:28 PM
Get ready
DM1000
1
A power indicator in the upper
right corner of the LCD shows
how much battery life remains.
Full charge
Low charge
Note: Use only the rechargeable battery pack
supplied with your cordless handset.
09:00A 01/01
Total: 00
New: 00
HANDSET - 1
CEL TEL
DM1000 CB GSM.book Page 11 Sunday, July 11, 2010 10:28 PM
Other manuals for DM1000
1
Table of contents
