Eden 94094EDAMZ User manual

Fig. 6
cleaning pin
18 NOZZLES 3WAY VARIABLEWIDTH OSCILLATING SPRINKLER
Base
Oscillator tube
Spray nozzles (18)
Width Adjustment tabs
Sliding tabs
Plastic nozzle heads :
Adjustable range control :
Coverage Max :
94094EDAMZ
Attach your garden hose to the sprinkler.
Use the range sliding tabs to select desired rectangular watering distance. (Fig 1 )
Turn water ow control knob to regulate water pressure. (Fig 2)
Press Width Adjustment Tabs for wide to narrow spray path.(Fig 3)
Turn on the faucet and check to see how the coverage is working. Make adjustments to suit your needs.
18
Yes
4,000 sq. ft. (371m²)
(Based on 40 Psi / 2.768 Bar)
1.
2.
3.
4.
5.
Flow control
Hose connection
Inlet lter
Cleaning pin
6.
7.
8.
9.

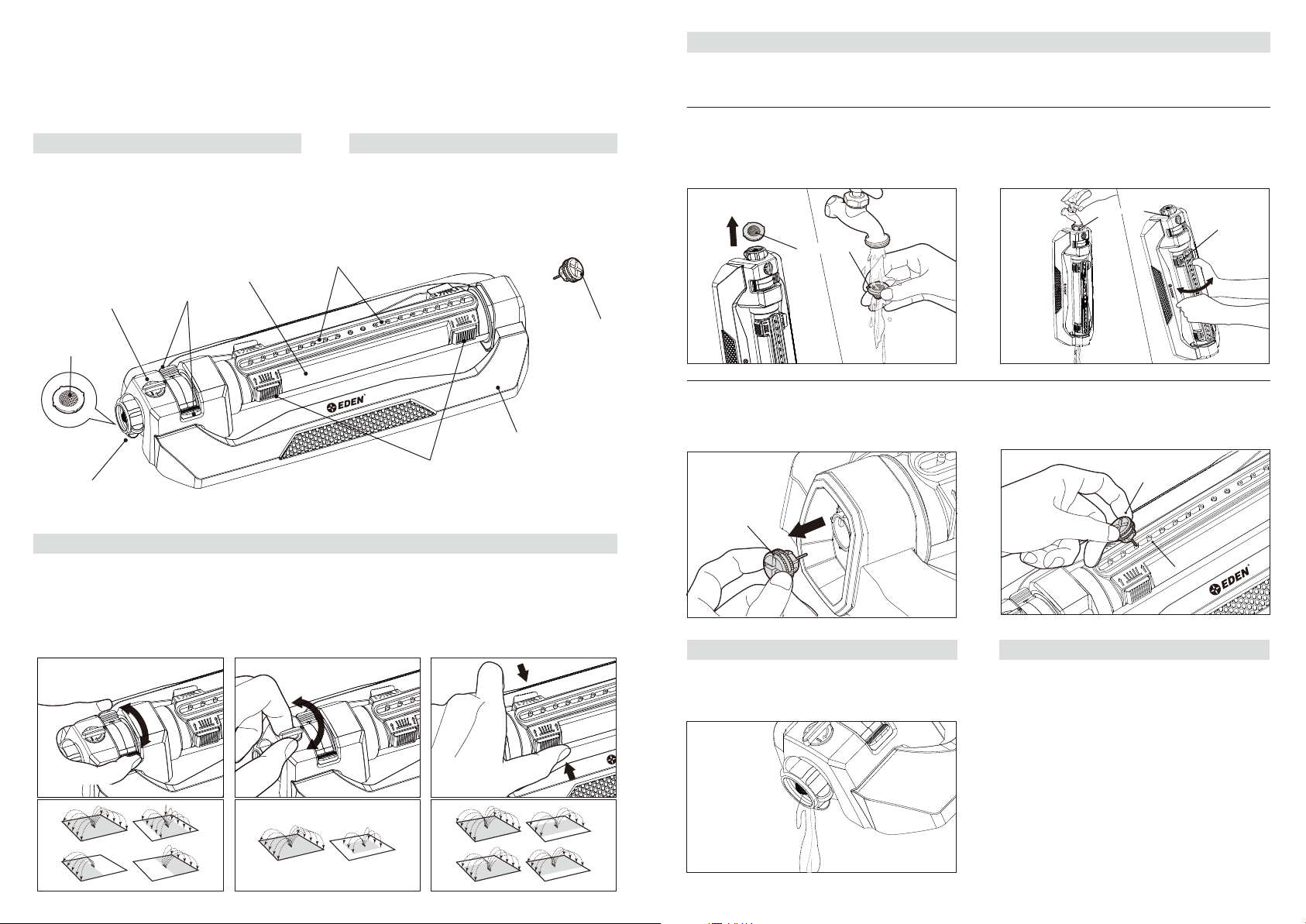

Get To Know Your Sprinkler
Usage
Specications
If your sprinkler begins to display irregular water pressure or is clogged due to dirt buildup, do the following
maintenance task.
Remove your hose from your sprinkler.
Notice a small inlet lter from the hose-end of the
oscillator, remove it and run under water to remove
the dirt (Fig. 4).
1.
Maintenance + Care
Storage Tips
To ush, connect the oscillator to a faucet.
Turn on the faucet and while the water continues
running, spin the tube gently back and forth for few
minutes (Fig. 5)
2.
Remove the cleaning pin from the opposite end of
the oscillator (Fig. 6).
3. Use the provided cleaning pin to clear any clogs
from the spray nozzles while running water in
step 2 (Fig. 7).
Drain the sprinkler after use. DO NOT allow water to
freeze in the sprinkler (Fig. 8).
4.
1.
2.
3.
4.
Fig. 8
Fig. 7
Fig. 1
cleaning pin
spray nozzles
cleaning pin
spray nozzles
9.
1.
3.
4.
7.
8.
6. 5.
2.
Use this manual to familiarize yourself with the various parts and components, the use, handling and features of the
sprinkler. Save this manual for future reference.
1.
2.
3.
4.
5.
Think of the best coverage design for the watering
without wasting water resources before placing the
sprinkler in the location where you want to water.
Drain any water from the sprinkler after use. This
will preserve the unit for longer lasting use.
Place the sprinkler in a dry warm storage area until
it is required.
Water only when necessary, preferably in the
morning as this will minimize water loss through
evaporation. To obtain deep root growth,water
deeply but do not water often. Watering every
second day will provide for better water coverage.
Using a timer can be helpful in reducing waste.
Watch water application to avoid water run-o.
Fig. 7
Fig. 3Fig. 2
Fig. 4
inlet lter
Fig. 5 hose-end
tube

 CAUTION 
-For outdoor use with cold water only
-Do not spray near electrical connections
-When not in use, rinse the tool with water to remove most of the dirt, dry your tool, and store indoors
18 NOZZLES 3WAY
VARIABLEWIDTH
OSCILLATING SPRINKLER
94094EDAMZ
• Coverage up to 4000 sq. ft. ( 371 m² )
(Based on 40 PSI / 2.76 Bar)
• 18 Clog resistant nozzles
• Width adjustment tabs for easy width adjustment
• Water ow control
• Sliding tabs allow for simple range adjustment
• Needle plug for nozzle cleaning
UNLOCK LOCK
Secure twist-and-lock
mechanism prevents
accidental disconnection
A
C
A B C D
B
D
Quick and easy connections to 5/8-inch and
1/2-inch garden hoses, sprinklers, nozzles, and/or
any other garden watering tools
UNLOCK
LOCK
The Quick Connect Adapter (2 pcs) and Hose
Connector with Water Stop (1 pc) simplify your
watering experience. Simply attach the
connector at the end of your hose. Then,
connect the adapters to your watering tools.
Interchange various tools in a snap without
turning o the water as the adapter will stop
the water ow. No more kinking or hose
twisting as the adapter allows the hose to
swivel 360 degrees.
WARNING: This product can expose you to chemicals including styrene, which is known to the
State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Made in Taiwanwww.edengarden.com
