Eden 96122EDAMZ User manual

Simply attach the sprinkler head to the top of the base.
Hold the bottom of the sprinkler head and base of the
sprinkler to tighten by hand (do not overtighten).
Assembly
96122EDAMZ
6 spray patterns to meet all
your watering needs -
at, fan, large, jet, full and mini
Spray Angle - adjust the
tabs to change the spray
angle from 5° to 360°
Range tab - adjust range
and prevent water waste
Hose end connector
with added lter to
prevent sediment and
dirt from reaching
sprinkler
Flow through design allows
for additional units to be
connected in series .
(Max. suggested sprinklers
in tandem: 3)
Aluminum wide "H"
shape platform
design for more
stability
Quick Connect Starter Set
ts all standard garden hoses
and watering tools
6-PATTERN MOBILE ROTARY
GEAR DRIVE SPRINKLER
Use the Quick Connect
System to easily connect
and disconnect the
sprinkler from the hose.
Connect the Product
Adapter to the base of the
sprinkler. Attach the
lockable Quick Connect to the end of the hose, then simply
snap in the hose to the sprinkler to begin using.
Use the additional included Product Adapter for your
nozzles, wands, or other watering tools to switch between
tools, even with the water running.
Note: If you are not using the Quick Connect System,
simply connect the sprinkler directly to the hose.
To extend, simply remove the back end-cap and attach
another hose and connect another sprinkler.
LOCK
WATER
+
Connect the Hose
2 Extra stainless
steel lter washers
for a leak-free seal

The Quick Connect Adapter (2 pcs) and Hose
Connector with Water Stop (1 pc) simplify your
watering experience. Simply attach the connector
at the end of your hose. Then, connect the
adapters to your watering tools. Interchange
various tools in a snap without turning o the
water as the adapter will stop the water ow. No
more kinking or hose twisting as the adapter
allows the hose to swivel 360 degrees.
A
C
A B C D
B
D
Quick and easy connections to 5/8-inch and
1/2-inch garden hoses, sprinklers, nozzles, and/or
any other garden watering tools
-For outdoor use with cold water only
-Do not spray near electrical connections
-When not in use, rinse the tool with water to remove most of the dirt, dry your tool, and store indoors
UNLOCK
LOCK
UNLOCK LOCK
Secure twist-and-lock
mechanism prevents
accidental disconnection
Spray Pattern Adjustments
CAUTION
CLICK!
5°-360°

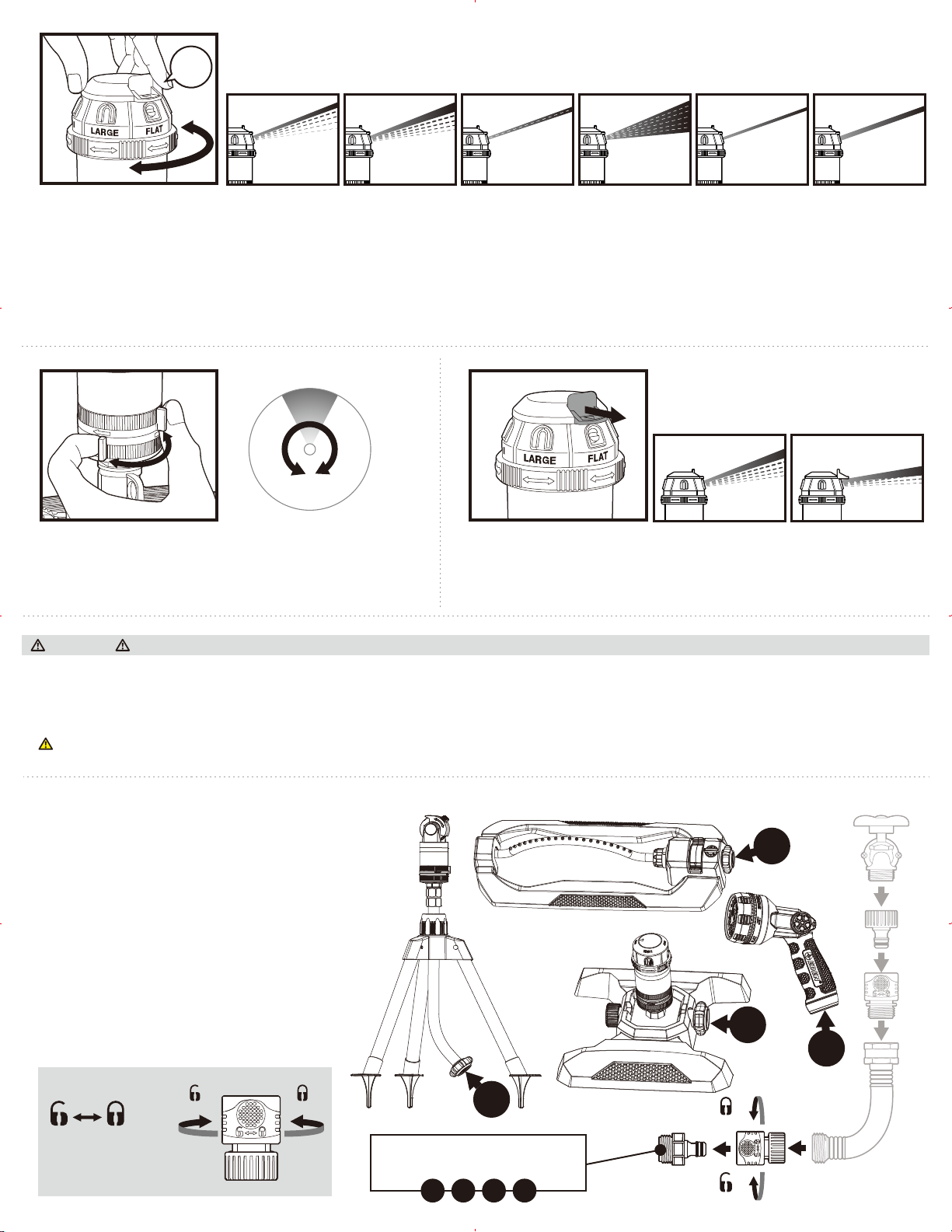

Depending on your watering needs, you can manually select from the various pattern settings :
Flat - The at pattern provides a at wave of water.
Fan - The fan pattern disperses water in a wide fan shape.
Large - This provides a larger watering spray area.
Full - This pattern provides strong distance watering.
Jet-Concentrated far distance watering.
Mini-Provides gentle spray for delicate plants.
Spray Angle Adjustment
Adjust the tabs to change the spray angle to t your needs
(from 5°up to 360°).
Range Adjustment
Move the tab in or out to control the spray distance and
water where it's needed.
MINI LARGE FLAT FAN JET FULL
WARNING: This product can expose you to chemicals including styrene, which is known to the State of California to
cause cancer. For more information go to www.P65Warnings.ca.gov.
