Edge Products Edge EZ Module Service manual

2004.5-2007 Dodge Cummins 5.9L (325HP)
Edge Products EZ Module
Installation Instructions and Manual
OLD P/N: EZD1000D
NEW P/N: 30204

Edge EZ User Manual Edge Products
2
© 2007 Edge Products
All rights reserved.
Edge Products
1080 South Depot Dr.
Ogden, UT 84404
1-888-360-3343
www.edgeproducts.com
Manual Version 5

Edge EZ User Manual Edge Products
3
Table of Contents
DISCLAIMER OF LIABILITY _________________________________________________ 4
LIMITATION OF WARRANTY_________________________________________________ 4
AFTERMARKET PRODUCTS AND YOUR VEHICLE’S WARRANTY ________________ 5
About the Dodge EZ___________________________________________________________ 7
Dodge Cummins 5.9L EZ Installation ____________________________________________ 8
Supplied Items:____________________________________________________________________8
Tools Required: ___________________________________________________________________8
MAP (Manifold Absolute Pressure) Connection________________________________________10
Fuel Pressure Sensor Connection____________________________________________________10
Final Inspection and Operation _____________________________________________________10
Adjusting Power Levels____________________________________________________________11
Power Levels________________________________________________________________ 12
How to Use Your Edge EZ Module______________________________________________ 13
Using your Edge EZ Module_____________________________________________________________ 13
Towing__________________________________________________________________________13
Exhaust Gas Temperature _________________________________________________________14
Technical Support ___________________________________________________________ 15

Edge EZ User Manual Edge Products
4
THIS IS A HIGH PERFORMANCE PRODUCT. USE AT YOUR OWN RISK.
Do not use this product until you have carefully read the following agreement.
This sets forth the terms and conditions for the use of this product. The installation of this product indicates that the
BUYER has read and understands this agreement and accepts its terms and conditions
DISCLAIMER OF LIABILITY
Edge Products Inc. and its successors, distributors, jobbers, and dealers (hereafter SELLER) shall in no way be responsible for
the product's proper use and service. THE BUYER HEREBY WAIVES ALL LIABILITY CLAIMS.
The BUYER acknowledges that he/she is not relying on the SELLER’s skill or judgment to select or furnish goods suitable for
any particular purpose and that there are no liabilities which extend beyond the description on the face hereof and the BUYER
hereby waives all remedies or liabilities, expressed or implied, arising by law or otherwise, (including without any obligations of
the SELLER with respect to fitness, merchantability and consequential damages) or whether or not occasioned by the SELLER's
negligence.
The SELLER disclaims any warranty and expressly disclaims any liability for personal injury or damages. The BUYER
acknowledges and agrees that the disclaimer of any liability for personal injury is a material term for this agreement and the
BUYER agrees to indemnify the SELLER and to hold the SELLER harmless from any claim related to the item of the
equipment purchased. Under no circumstances will the SELLER be liable for any damages or expenses by reason of use or sale
of any such equipment.
The SELLER assumes no liability regarding the improper installation or misapplication of its products.
It is the installer's responsibility to check for proper installation and if in doubt, contact the manufacturer.
LIMITATION OF WARRANTY
Edge Products Inc. (hereafter "SELLER") gives Limited Warranty as to description, quality, merchantability, fitness for any
product’s purpose, productiveness, or any other matter of SELLER's product sold herewith. The SELLER shall be in no way
responsible for the product’s open use and service and the BUYER hereby waives all rights other than those expressly written
herein. This Warranty shall not be extended or varied except by a written instrument signed by SELLER and BUYER.
The Warranty is Limited to one (1) year from the date of sale and limited solely to the parts contained within the product's kit. All
products that are in question of Warranty must be returned shipping prepaid to the SELLER and must be accompanied by a dated
proof of purchase receipt. All Warranty claims are subject to approval by Edge Products Inc.
Under no circumstances shall the SELLER be liable for any labor charged or travel time incurred in diagnosis for defects,
removal, or reinstallation of this product, or any other contingent expenses.
If the BUYER sends back a failed unit that is out of warranty and chooses to buy a refurbished unit, the refurbished unit will only carry a
60 day warranty. If the BUYER purchases a new unit at a predetermined discounted rate, it will have the standard 1 year warranty.
Under no circumstances will the SELLER be liable for any damage or expenses insured by reason of the use or sale of any such
equipment.
IN THE EVENT THAT THE BUYER DOES NOT AGREE WITH THIS AGREEMENT: THE BUYER MAY PROMPTLY
RETURN THIS PRODUCT, IN A NEW AND UNUSED CONDITION, WITH A DATED PROOF OF PURCHASE, TO THE
PLACE OF PURCHASE WITHIN SIXTY (60) DAYS FROM DATE OF PURCHASE FOR A FULL REFUND.
THE INSTALLATION OF THIS PRODUCT INDICATES THAT THE BUYER HAS READ AND UNDERSTANDS THIS
AGREEMENT AND ACCEPTS ITS TERMS AND CONDITIONS.

Edge EZ User Manual Edge Products
5
AFTERMARKET PRODUCTS AND YOUR VEHICLE’S WARRANTY
Many of our customers ask, “Will your product void my vehicle’s manufacturer’s
warranty?” While the answer is straightforward from a legal standpoint, we also
want to educate our customers (and after-market consumers) on some industry
realities and offer some common sense precautions to minimize your risk.
Consumers of aftermarket products are protected by The Federal Magnusson-Moss
Warranty Act. The Act states that if something breaks on your car and you take it
in for warranty repair, the dealer must honor your warranty unless they can prove
that whatever modifications you have added to your car actually caused the
problem. Please keep in mind that towing in anything higher than level two and
hard driving in level three is not recommended.
While as a consumer, you have strong legal protection with regards to your
vehicle’s warranty, there is also a practical reality that different automotive
manufacturers and dealers have greatly varying views on aftermarket products, in
particular those that produce horsepower, such as (performance enhancement)
chips and intakes. There are dealers and manufacturers out there that will use the
presence of a horsepower upgrade to void your vehicle’s warranty. They will do
this regardless of whose box or chip you are using. Any aftermarket company that
does not acknowledge this is misleading you.
The bottom line is that while the law protects the consumer and provides for
enforcement of the warranty, it is very difficult for most people to hire an attorney
and fight a voided warranty. Edge recommends that you always disconnect and
remove your module and monitor when you take your vehicle to a dealer for
warranty work in order not to interfere with Diagnostic equipment.

Edge EZ User Manual Edge Products
6
This warranty is void for any new products purchased through auction websites.
Warranty is valid only for new products purchased through Authorized Dealers
(proof of purchase required for all warranty claims).
All Edge modules and programmers are built to operate with OEM calibrations. When
you take your vehicle to a service center they may, by your request or otherwise, update
your vehicles calibrations. Therefore it is important that you return your vehicle to stock
before taking it in for service. Edge updates its active products (i.e. those currently being
manufactured) to work effectively with updated OEM calibrations. However, this process
can take some time as Edge is not always made aware of calibration changes made by the
OEM. In the case of discontinued products, Edge cannot ensure that your unit will work
effectively if you take your vehicle to a dealership and you are given, by your request or
otherwise, a new calibration.

Edge EZ User Manual Edge Products
7
About the Dodge EZ
Introduction
Thank you for purchasing the Edge EZ Module for the Dodge Cummins® 5.9L Diesel.
The Edge EZ module has been developed and produced from the highest quality
materials available to ensure the best performance for years to come. If you have any
questions, please contact Edge Products. We will be very happy to answer your
questions about our complete product line.
•The Edge EZ Module is an add-on Engine Control Module (ECM) for the
Cummins® 5.9L Engine that offers additional features not available on a
stock engine. Since it is an “add on” ECM, it uses all the factory data, and
then enhances the factory settings to optimize your truck’s performance.
The EZ module offers a power increase over stock throughout the RPM range, but
the power is most noticeable in midrange RPM’s. This greatly improves
drivability and towing performance. Transmission downshifting is greatly
reduced, especially while passing or towing.

Edge EZ User Manual Edge Products
8
Dodge Cummins 5.9L EZ Installation
Supplied Items:
1. Edge EZ Module
2. Three Wire Ties
3. Two Velcro Strips
Tools Required:
None
Please read these instructions completely so that you understand each step prior to
installation.
The Edge EZ Module

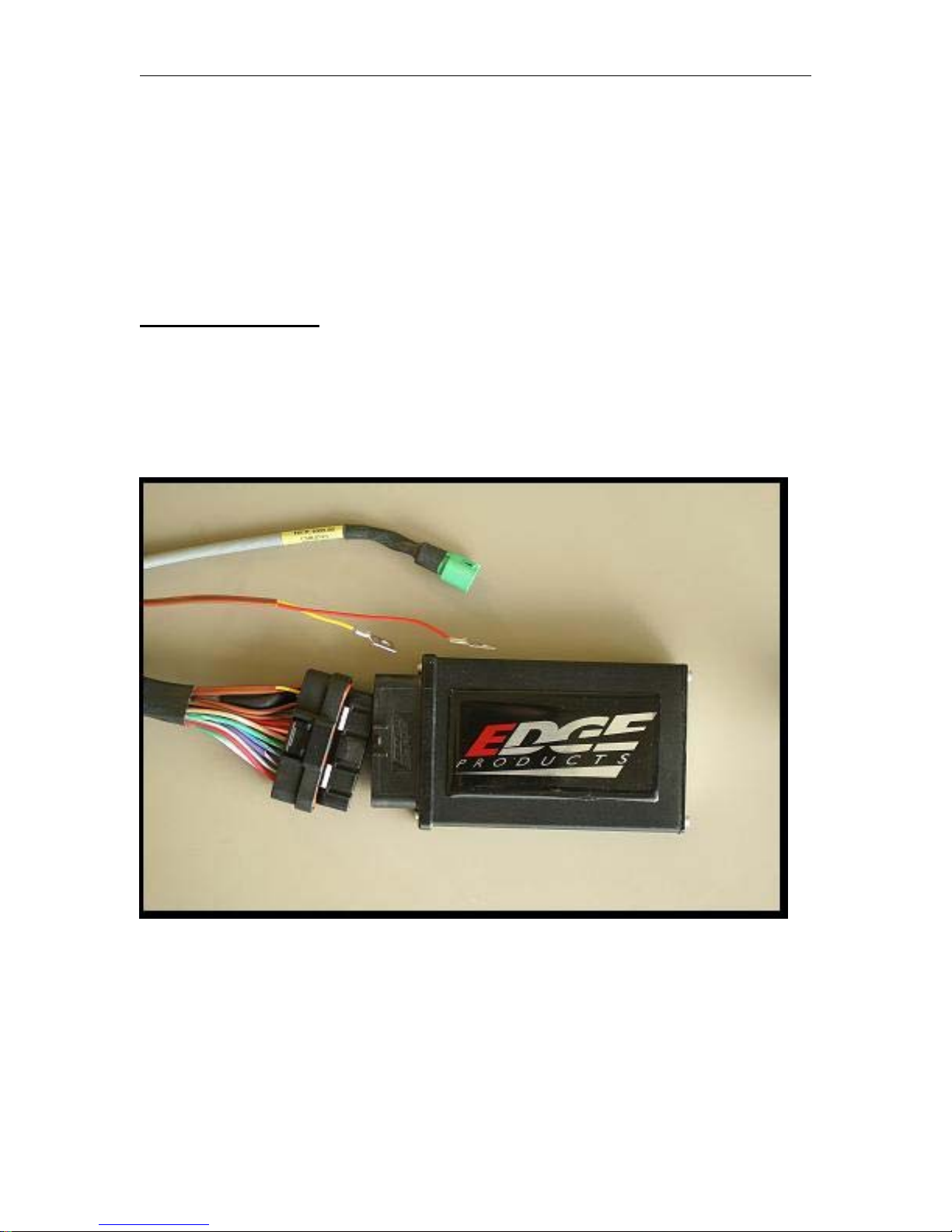

This picture shows the Edge EZ Module with the harness cable
Fuel Pressure
Connections MAP
Connections
Power Level
Selector Switch
Connection

Edge EZ User Manual Edge Products
9
Module Installation
The Edge EZ Module can mount on the flat black plastic fuse box cover located in
the engine compartment on the driver’s side fender. Attach the module to the truck
using the supplied VELCRO® strips, allowing enough harness movement for
removal of the cover.
Harness Connector – Your EZ module may be equipped with a harness that can
be disconnected at the EZ module itself (See figure 1A). It is important to make
sure that your EZ module is always connected to the harness when the wiring
harness is connected to the truck, otherwise the truck may not run properly, or may
trip engine “codes.”
FIGURE 1A

Edge EZ User Manual Edge Products
10
MAP (Manifold Absolute Pressure) Connection
1. Connect the supplied MAP sensor wiring harness to the main wiring harness in
the engine compartment.
Disconnect the stock
wiring harness at the MAP
sensor located on top of the
intake manifold. Plug the
supplied MAP sensor
connector into the stock
engine MAP sensor and the
stock engine wiring
harness connector into the
supplied MAP sensor
connector.
Fuel Pressure Sensor Connection
2. Disconnect the stock wiring harness at the sensor located on the main fuel rail on
the driver’s side towards the rear of the engine. Plug the supplied pressure sensor
connector into the stock
pressure sensor on the engine
and the stock engine wiring
harness connector into the
supplied pressure sensor
connector.
Final Inspection and Operation
3. Recheck all connections, fittings and fasteners for a properly secure installation.
4. Using the supplied wire ties, secure the wiring harness from possible damage
from moving engine parts.

Edge EZ User Manual Edge Products
11
-Level 1
-Level 2
-Level 3
Power Level
Adjustment Switch
Adjusting Power Levels
The Edge EZ Module offers 3 levels of power beyond stock. The power from the
Edge EZ Module begins by plugging the module into your truck. The power levels
are adjusted by changing the
“in cab” switch position to the
level you need. Adjusting
power levels on an EZ module
has never been EZier!
Refer to the power level switch
picture for position and power
level selection.
Tab

Edge EZ User Manual Edge Products
12
Power Levels
The following power gains are representative of an actual test vehicle. Power gains
may vary somewhat on a different vehicle or in different geographic settings.
Horsepower Torque
Level 1: 25 50
Level 2: 45 77
Level 3: 65 150

Edge EZ User Manual Edge Products
13
How to Use Your Edge EZ Module
Using your Edge EZ Module
This section is to help you use the Edge EZ module effectively and add enjoyment
to your diesel truck experience.
The first thing you will probably notice especially if this is your first time driving a
diesel truck with a performance module is that you will experience more power,
quicker take-offs, better passing and acceleration, and even better fuel economy.
Power level one is specifically designed to maximize fuel economy improvements.
Another thing you may notice is that your truck is suddenly a lot more responsive
to drive. Now, a word of caution; normally, driving the stock
truck you have a feel for how fast you are going in each gear, but that changes with
the EZ module. You may find yourself doing 55 in a
35 mph zone or taking corners too fast. Be cautious and be aware that there may
be an adjustment period to your new-found power.
Towing
What about towing? What can this do for you when you are towing? The great
thing about Edge EZ Module and all the other Edge® power modules is that they
were created for towing. That is why Edge built them, and why we keep making
them better. Let’s assume that in a stock truck you would pull your 5,000lb load
up the grades in 3rd gear. Your EGT (Exhaust Gas Temperature) may run at about
1200°F. With the EZ module on level 2, you have effectively increased the
horsepower by 45, and the torque by 77 Foot-pounds. That is like adding a fifth
horse to pull a four horse carriage. That is representative of how much your power
has increased. That means you will be running at a lower rpm and your EGT has
decreased. And best of all you are going faster and the truck may have already
shifted into 4th gear. Power level 3 is designed to match fueling with any
additional upgrades you may have done to your vehicle. Level 3 should never be
used while towing. Level 3 is designed to take advantage of the built-in safety
margins the manufacture needs to add in order to make sure your vehicle can tow
at its maximum capacity. When driven responsibly, and used with an EGT gauge,
level 3 will not stress the stock engine or transmission as long as you are not
towing.

Edge EZ User Manual Edge Products
14
Exhaust Gas Temperature
Now let’s talk about the different power levels and the Exhaust Gas Temperature
(EGT) readings, and what they mean. As mentioned earlier the EGT tells you how
hot the exhaust gases are in the exhaust manifold coming from the engine. This is
important because you shouldn’t let them run for long periods above 1350 F. The
higher the level, the more fuel is fed to the engine, and potentially, the higher the
EGTs. Since towing is harder on the engine and the transmission, we recommend
that you tow in level 1 for a heavy load, or, on a light load level 2. This will
protect you from putting too much stress on the engine and transmission. Level 2
is a good all-around mode, allowing for better economy and better performance,
while not stressing the engine and transmission. We recommend that you run your
truck in level 2 or lower for your normal daily activities

Edge EZ User Manual Edge Products
15
Technical Support
888-360-3343
To expedite your support call, please have part number (i.e., EZD1000D), version
number, and Date of Manufacture ready prior to calling support
