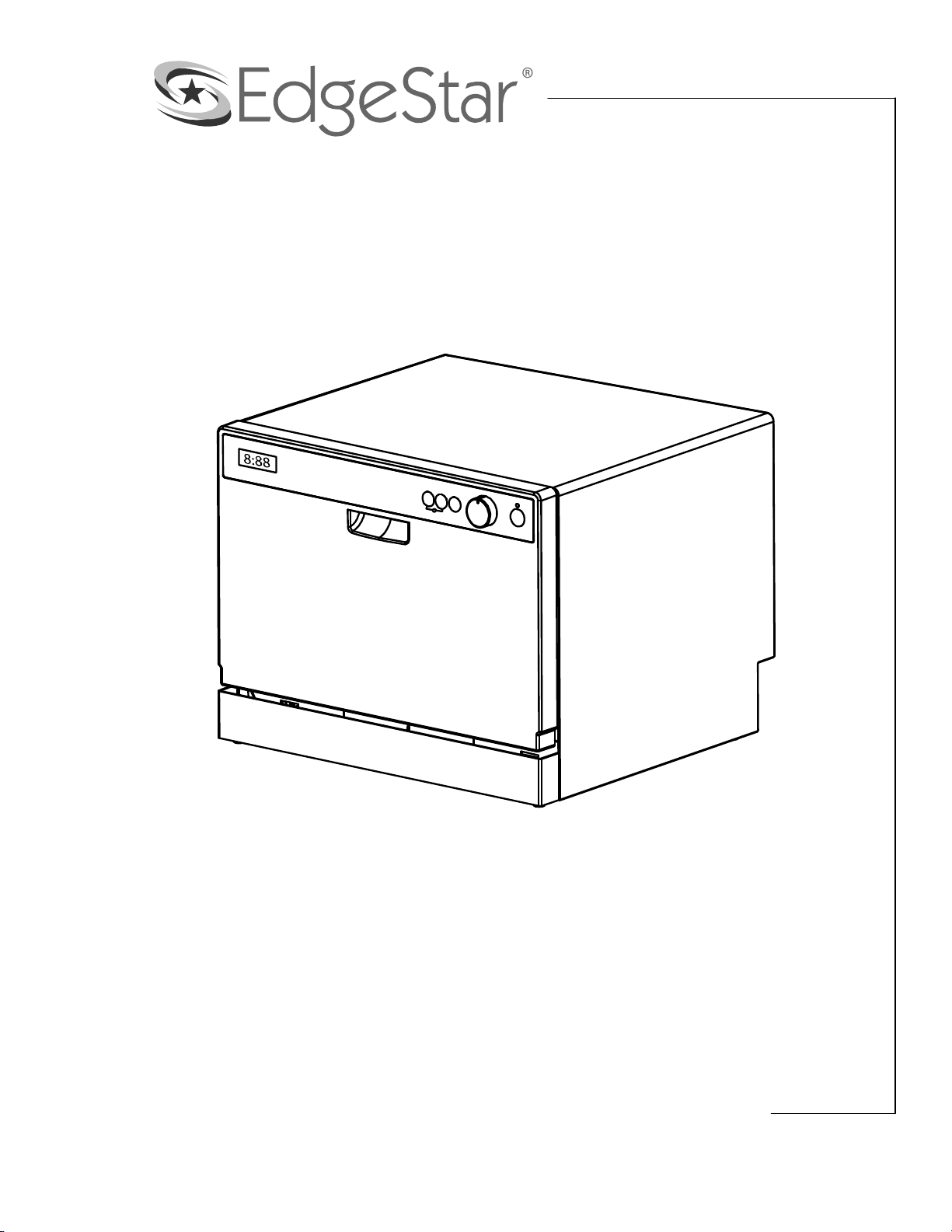

EdgeStar DWP61ES User manual

Dishwasher
Owner’s Manual
For more information on other great EdgeStar products on the web, go to http://www.edgestar.com
DWP61ES

IMPORTANT SAFETY INFORMATION
Read all instructions carefully prior to use. For your safety, the information
detailed in this manual should be followed. Improper use and/or handling
can cause serious damage to the appliance and/or to the user including
but not limited to fire, explosion, and/or electric shock, resulting in
personal injury, or death.
Use this appliance only for its intended purpose as described in this
Owner′s Manual.
WATER HEATER SAFETY PRECAUTION
Hydrogen gas is flammable!
Under certain conditions, hydrogen gas may be produced in a water
heater that has not been used for more than two weeks. To prevent the
possibility of damage and/or injury, turn on all hot water faucets and allow
them to run for several minutes. Do this before using any electrical
appliance connected to the hot water system. This simple procedure will
release any built-up hydrogen gas. Since hydrogen gas is flammable, do
not smoke, use an open flame or use any appliance during this process.
PROPER INSTALLATION AND MAINTENANCE
When installing and servicing your dishwasher, refer to the following:
This dishwasher should be properly installed and placed in a location in
accordance with the Installation Instructions prior to operation.
Connect the dishwasher to a grounded permanent electrical system.
Check with a qualified electrician or service representative if you are in
doubt whether the appliance is properly grounded.
Improper electrical connection poses a risk of electric shock.
Do not attempt to repair or replace any part of your dishwasher unless it
is specifically recommended in this manual.
All other service maintenance should be completed by a qualified
technician.
To minimize the possibility of electric shock, disconnect this appliance
from the power supply before attempting any maintenance.
Turning the dishwasher OFF does not disconnect the appliance from
the power supply.
Dispose of discarded appliances, including any shipping and packaging
materials, properly.

EdgeStar Dishwasher ii
PRECAUTIONS FOR OPERATION
When using your dishwasher, follow basic precaution, including the
following:
Use this appliance only for its intended purpose as described in this
Owner’s Manual.
This appliance is not intended for use by children.
Do not allow children to play with, on, or inside this or any appliance.
Close supervision is necessary if this appliance is used near children.
Use caution when opening or closing the door to avoid injury.
Use only powder, tabs, liquid detergents, or rinse agents recommended
for use in a dishwasher and keep them out of the reach of children.
Using a detergent that is not specifically designed for dishwashers may
have an undesired result such as excessive suds.
To avoid damage to the door seal, place sharp items strategically.
Load sharp knives handle-side up to reduce the risk of injury.
Do not wash plastic unless it is marked as dishwasher safe. For plastic
items not marked as dishwasher safe, refer to the manufacturer’s
recommendations.
Do not operate your dishwasher unless everything enclosed is securely
in place.
Do not tamper with controls.
Do not rough-handle, sit, or stand on the door or dish rack of the
dishwasher.
Do not discard the dishwasher without removing the door.
Do not store or use combustible materials such as gasoline or other
flammable vapors and liquids in the vicinity of this or any other
appliance.
Contents washed in anti-bacterial mode (if available) may be hot to the
touch. Use care before handling.
If your dishwasher is connected to a wall switch, ensure tthe switch is
ON prior to use.
Do not wash non-dishware items such as furnace filters, paint brushes,
etc. in your dishwasher. Discoloration, staining, and/or other damage to
dishwasher may result.
If you choose to turn the switch OFF between wash cycles on
dishwashers with electronic controls, allow 5 - 10 seconds after turning
the switch ON before touching the START/RESET button. This allows
the control system to reboot.
PLEASE SAVE THESE INSTRUCTIONS

1
Table of Contents
IMPORTANT SAFETY INFORMATION ..............................................................................I
PRECAUTIONS FOR OPERATION ....................................................................................II
INTRODUCTION .............................................................................................................2
PARTS IDENTIFICATION .................................................................................................3
FRONT VIEW...................................................................................................................... 3
BACK VIEW........................................................................................................................3
ACCESSORIES .....................................................................................................................3
PREPARING THE DISHWASHER FOR USE ........................................................................4
UNPACKING THE DISHWASHER .............................................................................................. 4
INSTALLATION REQUIREMENTS.....................................................................................4
CLEARANCE REQUIREMENTS ................................................................................................. 4
WATER REQUIREMENTS....................................................................................................... 4
Water Pressure.......................................................................................................... 4
Water Temperature ..................................................................................................4
ELECTRICAL REQUIREMENTS.................................................................................................. 4
CONNECTING THE DISHWASHER ...................................................................................5
DISCONNECTING YOUR DISHWASHER ......................................................................................6
OPERATING INSTRUCTIONS...........................................................................................7
CHECKLIST BEFORE USING YOUR DISHWASHER.......................................................................... 7
CONTROL PANEL FUNCTIONS ................................................................................................7
Error Codes................................................................................................................7
WASH CYCLES CHART ..........................................................................................................8
PROPERLY LOADING THE DISHWASHER.................................................................................... 9
Cutlery Basket ........................................................................................................... 9
ONLY USE PROPER DETERGENT ...........................................................................................10
USE JET-DRY RINSE AGENT................................................................................................. 12
ONLY USE BRANDED RINSE AID FOR THE DISHWASHER.NEVER FILL THE RINSE AID DISPENSER WITH ANY
OTHER SUBSTANCES SUCH AS LIQUID DETERGENT.STARTING THE WASH CYCLE ..............................12
CHANGING THE CYCLE .......................................................................................................13
Forget to Add a Dish?.............................................................................................. 14
AT THE END OF THE WASH CYCLE ........................................................................................14
FILTER SYSTEM ................................................................................................................. 15
CLEANING THE DISHWASHER ......................................................................................16
CLEANING THE DOOR ........................................................................................................ 16
CLEANING THE SPRAY ARMS ............................................................................................... 16
PROTECT AGAINST FREEZING ......................................................................................16
GUIDE TO KEEPING THE DISHWASHER IN TOP SHAPE..................................................17
TROUBLESHOOTING ....................................................................................................18
TROUBLESHOOTING CONTINUED ..........................................................................................19
SPECIFICATIONS ..........................................................................................................20
EDGESTAR LIMITED WARRANTY..................................................................................21

EdgeStar Dishwasher 2
INTRODUCTION
Thank you for purchasing this EdgeStar dishwasher. We are glad you chose us.
We believe that your purchase of this product opens a relationship between you
and EdgeStar. We will provide the customer support needed to nurture that
relationship.
This manual contains important information regarding the proper installation, use
and maintenance of your dishwasher. Following this manual will ensure that your
product will work at its peak performance and efficiency.
Please save the original product packaging in case you need to safely transport
your dishwasher.
For Your Records:
Please write down the model number and serial number
below for future reference. You can locate your model
number on the tub wall just inside the door. Both numbers are
needed to obtain warranty service. You may also want to
staple your receipt to this manual as it is the proof of your
purchase, and is also needed for service under your
warranty.
Model Number:
Serial Number:
Date of Purchase:
To better serve you, please do the following before contacting customer service:
If you received a damaged product, immediately contact the dealer that
sold you the product.
Read and follow this instruction manual carefully to help you install, use
and maintain your portable air conditioner.
Read the troubleshooting section of this manual as it will help you
diagnose and solve common issues.
Visit us on the web at http://www.edgestar.com for product guides,
additional troubleshooting resources and up-to-date information. If you
need service, our friendly customer service representatives are available
via email at serv[email protected] or by telephone at 1 (866) 319-
5473.

3

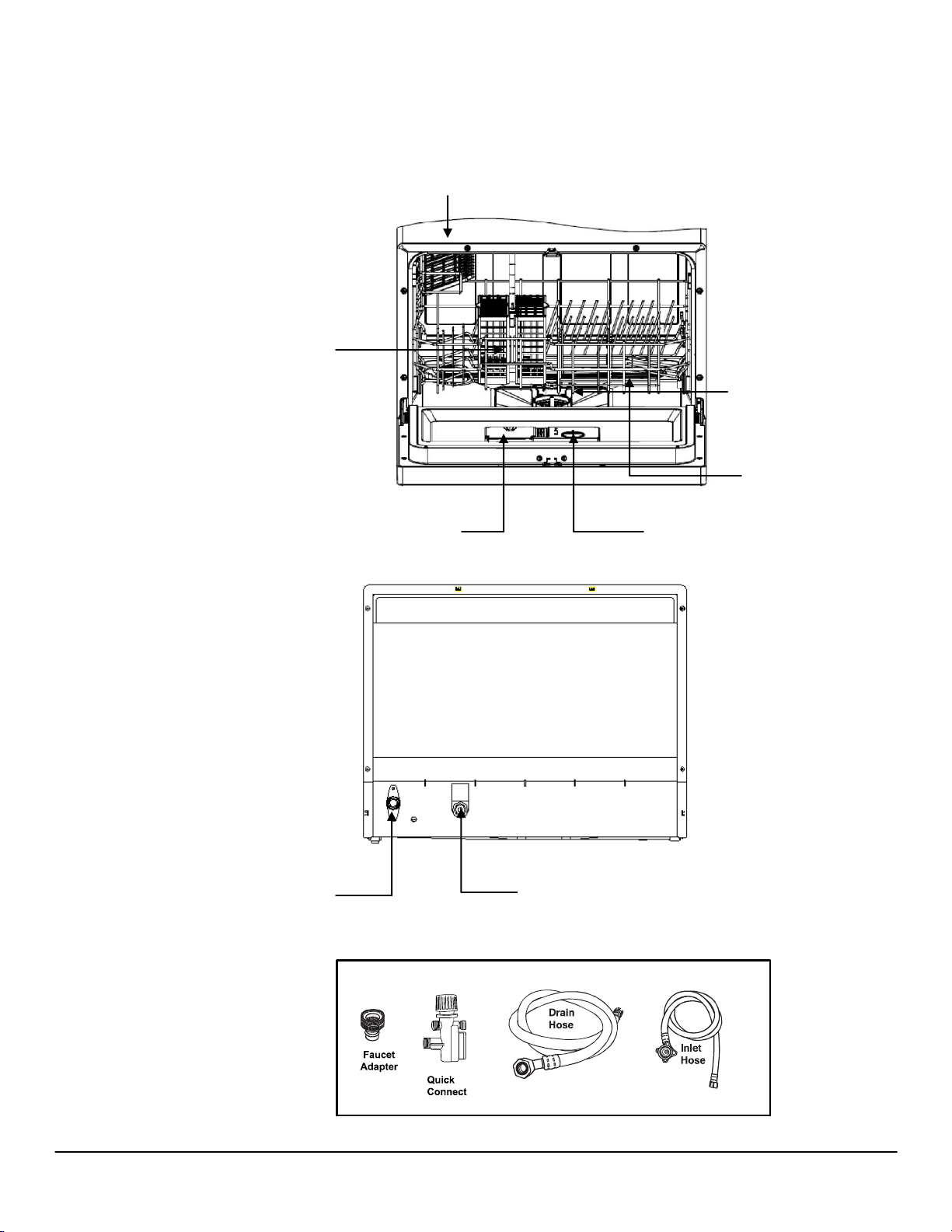

Parts Identification
Front View
Back View
Accessories
Filter System
Detergent Dispenser
Cup Shelf
Rinse Aid Dispenser
Spray Arm
Drain Port
Inlet Port
Cutlery Basket

EdgeStar Dishwasher 4
Preparing the Dishwasher for Use
Unpacking the Dishwasher
Use at least two people to move and install the dishwasher to prevent back and
other types of injuries. Carefully remove the packaging materials. Remove any
shipping tape and glue from your dishwasher before using. Do not use sharp
instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to remove
tape or glue. These products can damage the surface of your icemaker. Check to
make sure the parts necessary for installation are included. If any parts are
missing, please contact our customer service. Put the dishwasher on a level and
flat surface that is able to support the entire weight of the dishwasher fully
loaded.
Installation Requirements
The dishwasher has been designed for a countertop installation. Please follow
the instructions for clearance, water and electrical requirements.
Clearance Requirements
The minimum height clearance required to install your dishwasher on a counter
top surface with overhead cupboards is 45cm (17.7”).
Water Requirements
Make sure the water supply/faucet connection is within reach of the inlet and
drain hose assembly (i.e., 58 cm / 22.8”). If your sink has a spray wand, it is
recommended that the hose be disconnected and the hole plugged.
Water Pressure
For best results, incoming water pressure should be between 15 and 20 pounds
per square inch (psi).
Water Temperature
For best results, the water temperature must be at least 55ºC (130ºF). To prevent
damage to the dishwasher, the temperature of the incoming water supply should
not exceed 65ºC (149ºF).
Electrical Requirements
Read all safety precautions listed at the beginning of this manual. It is
recommended that you use receptacles that cannot be turned off by a switch or
pull chain.
Make sure there is an electrical supply (outlet) within reach of the electrical
power supply cord (195 cm / 6.3 ft).
The dishwasher is equipped with a power supply cord having a 3-prong
grounding plug. To minimize possible shock hazard, the cord must be plugged
into a mating 3-pronged and grounding-type wall receptacle providing 110-120V,
60Hz, grounded in accordance with the National Electrical Code and local codes
and ordinances. If a mating wall receptacle is not available, it is the personal
responsibility of the customer to have a properly grounded, 3-prong wall
receptacle installed by a certified electrician. Use a circuit that is rated for 10
amps.
WARNING: Do not use an extension cord or an adapter plug with this appliance.
WARNING! Do not, under any
circumstances, cut or remove
the third (ground) prong from
the power cord.
WARNING: A hose that
attaches to a spray wand can
burst if it is installed on the
same water line as the
dishwasher.

5
Connecting the Dishwasher
Your dishwasher comes equipped with a Faucet Adapter, Quick Connect, Drain
Hose and Inlet Hose. The faucet adapter must be installed on the faucet before
you can connect the dishwasher. This adapter is included inside your
dishwasher.
The faucet adapter is compatible with faucets inclusive of either male (outside) or
female (inside) threaded faucet connections.
1. Screw the faucet adapter onto (or into) the faucet tap. Check for leaks (use
Teflon or plumbers tape to eliminate any leaks if necessary).
2. Connect the six-sided connection of the drain hose to the drain port
connection on the back of the dishwasher cabinet. To avoid damage to
threads, do not over-tighten.
3. Connect the star-shaped connection of the inlet hose to the inlet port on the
back of the dishwasher cabinet. Do not over-tighten.
4. Connect the circular connection of the drain hose onto the longer (bottom)
male connection on the quick connect.
5. Connect the circular connection of the inlet hose onto the shorter (top) male
connection on the quick connect.
6. Attach the Quick Connect assembly onto the faucet adapter, by pulling down
the outer locking collar on the Quick Connect, while pushing the quick
connect assembly upward onto the faucet adapter.
7. Release the locking collar when the quick-connect assembly snaps onto the
faucet adapter. Verify the connection is secure.
8. Slowly open the hot water line and check for any sign of water leaks at all
connections. If leaks are located, immediately close the water supply and
repair the hose connections.
Pressure Relief Valve
Faucet Adapter
Locking Collar
Quick Connect assembly

EdgeStar Dishwasher 6

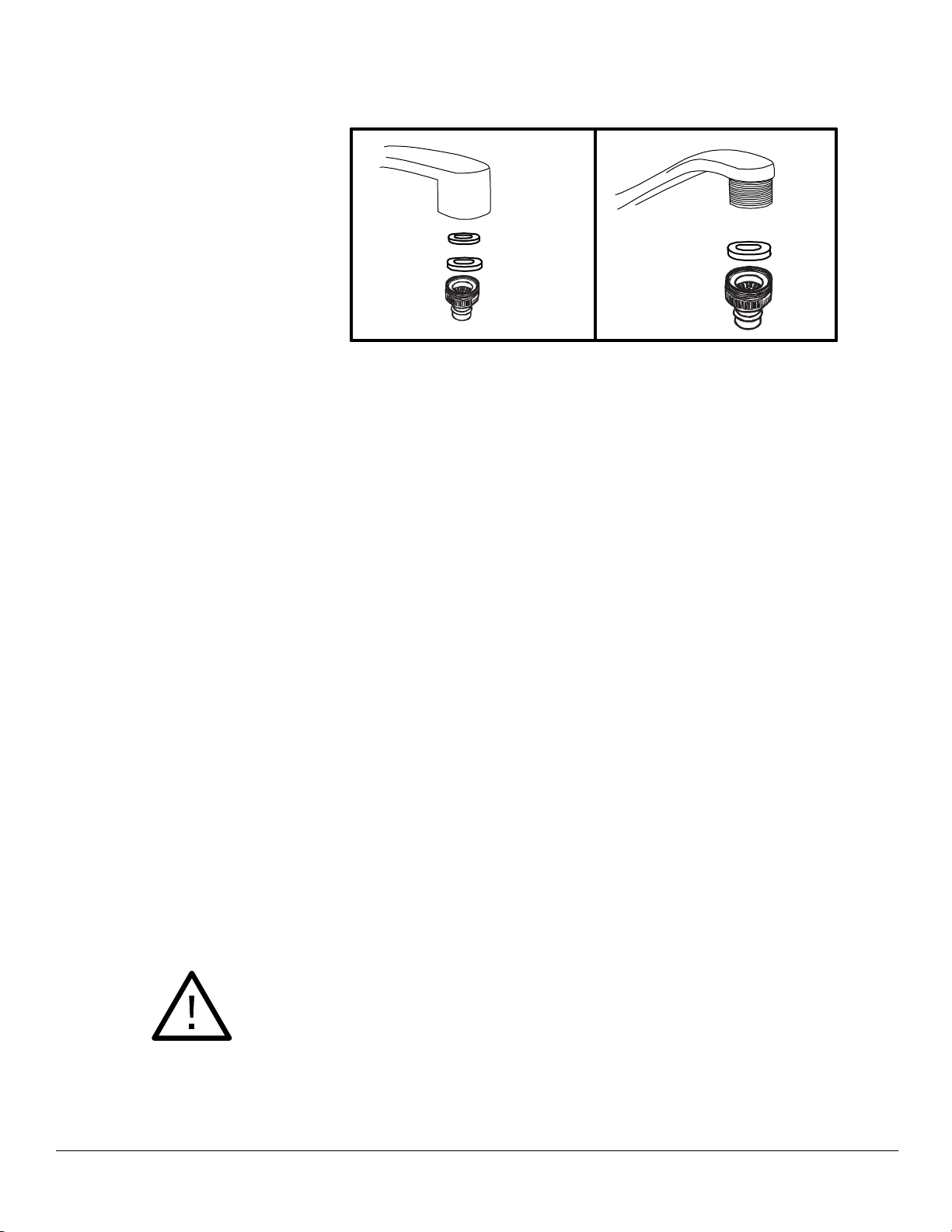

If your existing faucet adapter is not compatible with the “quick connect” hose
assembly supplied, then the following procedures should be followed:
• Connect the faucet adapter (included with dishwasher) to your faucet.
• If your faucet is inclusive of a ‘female’ type (threaded) connection, both rubber
washers must be installed inside the faucet adapter.
• If your faucet is inclusive of a ‘male’ type (threaded) connection, use only the
standard rubber washer (0.2”/5mm thick) supplied within the adapter. Remove
the second rubber washer.
For Best Results:
Your dishwasher cleans by spraying a mixture of clean hot water and detergent
(under pressure) against the soiled surfaces of dishes. The water is pumped
through a rotating spray arm, drained through a filter (removing food and soiled
particles) and pumped back through the spray arm. Soiled water is pumped out
and replaced with clean water at the end of each cycle (the number of times this
is repeated depends on the wash cycle chosen).
NOTE:
Hard water conditions will adversely affect the washing performance of your
dishwasher. Hard water conditions will also contribute to ‘lime’ (white film
substance) deposits and/or ‘scaling’ on the stainless steel surface of the
dishwasher tub and heater element, located in the sump underneath the
removable filter screen. To assist in minimizing these conditions, it is
recommended to periodically operate/rinse the inside of the dishwasher (empty)
using 1 cup of white vinegar at least once a week.
Disconnecting your Dishwasher
1. Close the hot water supply at the faucet.
2. Disconnect the power supply cord.
3. Remember to release the water pressure inside the inlet hose.
4. The inlet hose is pressured when the water supply line is opened, even if
closed immediately.
5. To release pressure: press and hold the red pressure relief button on the
quick-connect assembly until the flow of water stops.
6. Disconnect the quick-connect hose assembly by pulling down on the outer
locking collar, thus releasing it from the faucet adapter.
Failure to relieve water pressure before disconnecting the Quick
Connect assembly from the Faucet Adapter may result in backpressure
overspray.
The inlet water temperature can be EXTREMELY HOT!
Backpressure overspray could cause SEVERE BURNS and/or
SCALDING!
Do NOT let children disconnect the dishwasher. Close supervision of
children is always important around appliances.

7
Operating Instructions
To get the best performance from your dishwasher, read all operating
instructions.
Checklist Before using your Dishwasher
The following things should be checked before using the dishwasher.
1. The dishwasher is level
2. The hot water faucet is opened
3. There are no leaks at the drain and inlet ports.
4. The unit’s power plug is connected to a grounded outlet
5. The power is switched on
6. There are no kinks in the drain and inlet hoses
7. All packing and printed materials are removed from the dishwasher
Control Panel Functions
Error Codes
E1 –Long water inlet time –Faucet may not be opened or water
pressure is too low.
E4 –Overflow –dishwasher may be leaking.
1. Power Button: Press to turn the unit ON/OFF.
2. Power Light: Indicates when the ON/OFF Button has been pressed.
3. Washing Program Selector: Rotate the knob to select the desired wash cycle.
4. Start/Pause Button: Press to START or PAUSE the dishwasher.
5. Delay Button: Press this button to DELAY start of wash cycle.
6. 3 IN 1 Button: Press this button to select 3 in 1 function
7. Child lock function: Press 3 in 1 button and delay at the same time.
8. Display: Shows delay time, rinse-aid warning, time remaining of wash cycle, child lock
function, 3 in 1 function, and program modes
7
2
1
3
4
5
8
6
