Edimax BR-6228nS V2 User manual
BR-6228nS V2
BR-6228nC V2
UserManual
09‐2013/v1.1
CONTENTS
I.ProductInformation...............................................................................1
I‐1.PackageContents..........................................................................................................1
I‐2.LEDStatus......................................................................................................................1
I‐3.BackPanel......................................................................................................................3
I‐4.SafetyInformation.........................................................................................................4
II.Installation.............................................................................................5
II‐1.Wi‐FiRouterMode........................................................................................................8
II‐2.AccessPointMode.......................................................................................................12
II‐3.RangeExtenderMode.................................................................................................16
II‐4.WPSSetup....................................................................................................................22
II‐5.ResettoFactoryDefaultSettings................................................................................22
III.BrowserBasedConfigurationInterface.................................................23
III‐1.Login.............................................................................................................................23
III‐2.SaveSettings................................................................................................................25
III‐3.MainMenu..................................................................................................................26
III‐3‐1.Status...........................................................................................................................27
III‐3‐2.SetupWizard................................................................................................................28
III‐3‐3. Internet........................................................................................................................30
III‐3‐3‐1.WANSetup...................................................................................................................30
III‐3‐3‐1‐1. DynamicIP...................................................................................................................30
III‐3‐3‐1‐2. StaticIP........................................................................................................................31
III‐3‐3‐1‐3. PPPoE...........................................................................................................................33
III‐3‐3‐1‐4. PPTP.............................................................................................................................35
III‐3‐3‐1‐5. L2TP..............................................................................................................................37
III‐3‐3‐1‐6. WISP.............................................................................................................................39
III‐3‐3‐2. DDNS............................................................................................................................40
III‐3‐4. LAN...............................................................................................................................42
III‐3‐5. 2.4GHzWireless...........................................................................................................45
III‐3‐5‐1. Basic.............................................................................................................................45
III‐3‐5‐1‐1. Disable.........................................................................................................................46
III‐3‐5‐1‐2. WEP..............................................................................................................................47
III‐3‐5‐1‐3. WPAPre‐SharedKey....................................................................................................48
III‐3‐5‐1‐4. WPARadius..................................................................................................................49
III‐3‐5‐2.Guest............................................................................................................................50
III‐3‐5‐3.WPS..............................................................................................................................52
III‐3‐5‐4.AccessControl..............................................................................................................53
III‐3‐5‐5.Schedule.......................................................................................................................55
III‐3‐6.Firewall.........................................................................................................................57
III‐3‐6‐1.URLBlocking................................................................................................................57
III‐3‐6‐2.AccessControl..............................................................................................................59
III‐3‐6‐3.DMZ..............................................................................................................................63
III‐3‐6‐4.DoS...............................................................................................................................64
III‐3‐7.QoS...............................................................................................................................66
III‐3‐7‐1.QoS...............................................................................................................................66
III‐3‐8.Advanced.....................................................................................................................70
III‐3‐8‐1.StaticRouting...............................................................................................................70
III‐3‐8‐2.PortForwarding...........................................................................................................71
III‐3‐8‐3.VirtualServer...............................................................................................................73
III‐3‐8‐4.2.4GHzWireless...........................................................................................................74
III‐3‐8‐5.ALG...............................................................................................................................75
III‐3‐8‐6.IGMP............................................................................................................................76
III‐3‐8‐7.UPnP.............................................................................................................................76
III‐3‐9.Administration.............................................................................................................77
III‐3‐9‐1.TimeZone....................................................................................................................77
III‐3‐9‐2.Password......................................................................................................................78
III‐3‐9‐3.RemoteAccess.............................................................................................................79
III‐3‐9‐4.Backup/Restore...........................................................................................................80
III‐3‐9‐5.Upgrade.......................................................................................................................80
III‐3‐9‐6.Restart..........................................................................................................................81
III‐3‐9‐7.Logs..............................................................................................................................81
III‐3‐9‐8.ActiveDHCPClient.......................................................................................................82
III‐3‐9‐9.Statistics.......................................................................................................................82
IV.Appendix..............................................................................................83
IV‐1.ConfiguringyourIPaddress.........................................................................................83
IV‐1‐1.HowtocheckthatyourcomputerusesadynamicIPaddress...................................84
IV‐1‐1‐1.WindowsXP.................................................................................................................84
IV‐1‐1‐2.WindowsVista.............................................................................................................86
IV‐1‐1‐3.Windows7...................................................................................................................88
IV‐1‐1‐4.Windows8...................................................................................................................91
IV‐1‐1‐5.MacOS.........................................................................................................................95
IV‐1‐2.HowtomodifytheIPaddressofyourcomputer........................................................97
IV‐1‐2‐1.WindowsXP.................................................................................................................97
IV‐1‐2‐2.WindowsVista.............................................................................................................99
IV‐1‐2‐3.Windows7.................................................................................................................100
IV‐1‐2‐4.Windows8.................................................................................................................103
IV‐1‐2‐5.Mac............................................................................................................................107
IV‐1‐3.HowtoFindYourNetworkSecurityKey...................................................................110
IV‐1‐3‐1.Windows7&Vista.....................................................................................................110
IV‐1‐3‐2.Mac............................................................................................................................112
IV‐1‐4.HowtoFindYourRouter’sIPAddress.......................................................................115
IV‐1‐4‐1.WindowsXP,Vista&7...............................................................................................115
IV‐1‐4‐2.Windows8.................................................................................................................117
IV‐1‐4‐3.Mac............................................................................................................................120
IV‐2.ConnectingtoaWi‐Finetwork..................................................................................122
IV‐3.Troubleshooting.........................................................................................................124
IV‐4.Glossary......................................................................................................................128
1
I. ProductInformation
I‐1.PackageContents
Beforeyoustartusingthisproduct,pleasecheckifthereisanythingmissingin
thepackage,andcontactyourdealertoclaimthemissingitem(s):
BR‐6228nSV2
(5dBiAntennax1)
BR‐6228nCV2
(9dBiAntennax1)
PowerAdapter
EthernetCable QuickInstallationGuideCD‐ROM
or
2
I‐2.LEDStatus
LEDLEDStatus Description
PWR
OnDeviceison.
OffDeviceisoff.
WLAN
OnWi‐Fiisactive(orWPSisactive).
FlashingWi‐Fiactivity(transferringdata).
OffWi‐Fiisnotactive.
WAN
OnWANportconnected.
FlashingWANactivity.
OffWANportnotconnected.
LAN(1–4)
OnEthernetportisconnectedtoanetwork
device.
FlashingLANactivity.
OffEthernetportisnotconnectedtoa
networkdevice.
3
I‐3.BackPanel
WANPortLANPorts1–4WPS/ResetButton
PowerPort
BR6228nSV2:Fixed5dBiAntenna
BR6228nCV2:Detachable9dBiAntenna
4
I‐4.SafetyInformation
Inordertoensurethesafeoperationofthedeviceanditsusers,pleaseread
andactinaccordancewiththefollowingsafetyinstructions.
1.Thedeviceisdesignedforindooruseonly;donotplaceitoutdoors.
2.Donotplacethedeviceinornearhot/humidplaces,suchasakitchenor
bathroom.
3.Donotpullanyconnectedcablewithforce;carefullydisconnectitfromthe
BR‐6228nSV2/nCV2.
4.Handlethedevicewithcare.Accidentaldamagewillvoidthewarrantyof
thedevice.
5.Thedevicecontainssmallpartswhichareadangertosmallchildrenunder
3yearsold.Pleasekeepthedeviceoutofreachofchildren.
6.Donotplacethedeviceonpaper,cloth,orotherflammablematerials.The
devicemaybecomehotduringuse.
7.Therearenouser‐serviceablepartsinsidethedevice.Ifyouexperience
problemswiththedevice,pleasecontactyourdealerofpurchaseandask
forhelp.
8.Thedeviceisanelectricaldeviceandassuch,ifitbecomeswetforany
reason,donotattempttotouchitwithoutswitchingthepowersupplyoff.
Contactanexperiencedelectricaltechnicianforfurtherhelp.
5
II. Installation
1.Plugtheincludedpoweradapterintothedevice’s5VDCpowerportand
theotherendintoanelectricalsocket.
2.EnsurethatthepowerLEDislit.Ifnot,thedeviceisnotproperly
connected.
3.UseaWi‐Fidevice(e.g.computer,tablet,smartphone)tosearchforaWi‐Fi
networkwiththeSSID“edimax.setup”andconnecttoit.
iOS4orAndroid4andabovearerequiredforsetupona
smartphoneortablet.
4.Openawebbrowserandifyoudonotautomaticallyarriveatthe“Get
Started”screenshownbelow,entertheURLhttp://edimax.setupandclick
“GetStarted”tobeginthesetupprocess.
6
Ifyoucannotaccesshttp://edimax.setup,pleasemakesureyour
computerissettouseadynamicIPaddress.RefertoIV‐1.
ConfiguringyourIPaddressformoreinformation.
5.SelectthemodeforyourBR‐6228nSV2/nCV2andclick“Next”tocontinue.
Wi‐FiRouterThedeviceconnectstoyourmodemand
enablesInternet(wirelessandEthernet)
accessonyournetworkdevices.
AccessPointThedeviceconnectstoanexistingroutervia
EthernetcableandprovidesInternet(wireless
7
andEthernet)accessforyournetworkdevices.
RangeExtenderThedeviceconnectswirelesslytoyourexisting
networkandrepeatsthewirelesssignal.
Followtheappropriateinstructionsforyouroperatingmode:
8
II‐1.Wi‐FiRouterMode
1.ConnecttheblueWANportofyourBR‐6228nSV2/nCV2totheLANport
ofyourmodemusinganEthernetcable,andthenclick“Next”.
2.PleasewaitamomentwhiletheBR‐6228nSV2/nCV2teststhe
connection.
9
3.Click“Next”tocontinueandconfigurethedevice’swirelessnetwork.
4.Enteranameandpasswordforyourwirelessnetwork,thenclick“Next”
tocontinue.
10
5.Asummaryofyourconfigurationwillbedisplayed,asshownbelow.
Checkthatallofthedetailsarecorrectandthenclick“Next”toproceed.
Ifyouwishtobackupthedevice’ssettings,click“Backupthis
configuration”toopenanewwindowandsaveyourcurrent
configurationtoarouter.txtfile.
11
6.Pleasewaitamomentuntilthedeviceisready.
7.Afinalcongratulationsscreenwillindicatethatsetupiscomplete.Please
closethebrowserwindow.
8.TheBR‐6228nSV2/nCV2isworkingandreadyforuse.Youcannow
connecttothedevice’snewSSID.PleaserefertoIV‐2.Connectingtoa
Wi‐Finetworkifyourequiremoreguidance.
12
II‐2.AccessPointMode
1.ConnecttheyellowLANportofyourBR‐6228nSV2/nCV2totheLANport
ofyourexistingrouterusinganEthernetcable,thenclick“Next”.
2.Select“ObtainanIPaddressautomatically”or“UsethefollowingIP
address”foryourBR‐6228nSV2/nCV2.IfyouareusingastaticIP,enter
theIPaddress,subnetmaskanddefaultgateway.Click“Next”toproceed
tothenextstep.
13
“ObtainanIPaddressautomatically”istherecommendedsetting
formostusers.FormoreguidanceonstaticIPaddresses,please
refertoIV‐1.ConfiguringyourIPaddress.
3.Enteranameandpasswordforyourwirelessnetwork,thenclick“Next”
tocontinue.
4.Asummaryofyourconfigurationwillbedisplayed,asshownbelow.
Checkthatallofthedetailsarecorrectandthenclick“Next”toproceed.
14
Ifyouwishtobackupthedevice’ssettings,click“Backupthis
configuration”toopenanewwindowandsaveyourcurrent
configurationtoaAP.txtfile.
5.PleasewaitamomentuntiltheBR‐6228nSV2/nCV2isready.
6.Afinalcongratulationsscreenwillindicatethatsetupiscomplete.Please
closethebrowserwindow.
15
7.TheBR‐6228nSV2/nCV2isworkingandreadyforuse.Youcannow
connecttothedevice’snewSSID.PleaserefertoIV‐2.Connectingtoa
Wi‐Finetworkifyourequiremoreguidance.
16
II‐3.RangeExtenderMode
1.PleaseensureyourBR‐6228nSV2/nCV2iswithinWi‐Firangeofyour
existingwirelessrouter.Click“Next”tocontinue.
2.The“WirelessSiteSurvey”pagedisplaysallavailablewirelessnetworks
withinrange.SelecttheWi‐Finetworkname(SSID)whichyouwishto
connecttoandentera“DeviceSSID”(BR‐6228nSV2/nCV2’sSSID)and
“SecurityKey”(existingSSID’spassword)ifrequired.Click“Next”to
continue.
IftheWi‐Finetworkyouwishtoconnecttodoesnotappear,try
clicking“Refresh”.
Other manuals for BR-6228nS V2
1
This manual suits for next models
1
Table of contents
Other Edimax Network Router manuals
Edimax
Edimax EW-7822UMX User manual
Edimax
Edimax BR-6104KP User manual
Edimax
Edimax AR-7084A User manual
Edimax
Edimax ES-1008PH User manual
Edimax
Edimax AR-7186WnA User manual
Edimax
Edimax 3G-6408n User manual
Edimax
Edimax EW-7415PDn User manual
Edimax
Edimax 3G-6200nL V2 Reference guide
Edimax
Edimax router User manual
Edimax

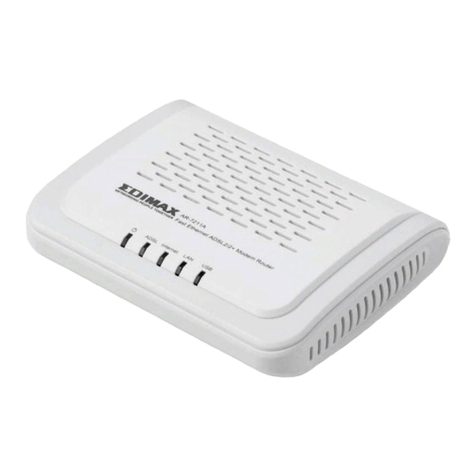

Edimax AR-7211A User manual
Edimax
Edimax Edimax user guide Router User manual
Edimax
Edimax GP-103IT User manual
Edimax
Edimax BR-6228nC User manual
Edimax
Edimax HP-8501 User manual
Edimax
Edimax AR-7182WnA User manual
Edimax
Edimax AR-7084A User manual
Edimax
Edimax IC-1500 series Instruction Manual
Edimax
Edimax BR-6478 AC V2 User manual
Edimax
Edimax BR-6675nD User manual
Edimax
Edimax BR-6314K User manual
