Edimax GS-5008PL User manual

GS-5008PL
User Manual
12-2015 / v1.0

1
Table of Contents
Chapter 1 Product Introduction 2
1.1 Product Overview 2
1.2 Features 2
1.3 External Component Description 3
1.3.1 Front Panel 3
1.3.2 Rear Panel 5
1.4 Package Contents 5
Chapter 2 How to Login the Switch 6
2.1 Switch to End Node 6
2.2 How to Login the Switch 7
Chapter 3 Switch Configuration 8
3.1 System 9
3.1.1 Device Name Setup 10
3.1.2 IPv4 Address and Subnet Mask Setup 10
3.2 Management 11
3.3 Port 12
3.4 VLAN 13
3.4.1 IEEE 802.1Q VLAN 13
3.4.2 Port-Based VLAN 15
3.5 Trunking 16
3.6 QoS 18
3.7 Broadcast Storm Control 20
3.8 Loop Detect/Prevent 21
3.9 IGMP Snooping 22
3.10 POE 23
3.11 Password 24
3.12 Logout 25
Federal Communication Commission Interference Statement 27

2
Chapter 1 Product Introduction
Thank you for purchasing an Edimax PoE Web Smart Ethernet Switch. Before you install and use the
product, please read this manual carefully to make the best use of the product’s functions.
1.1 Product Overview
The Giga Ethernet POE Switch provides a seamless network connection, with integrated 1000Mbps
Gigabit Ethernet, 100Mbps Fast Ethernet and 10Mbps Ethernet network capabilities.
1.2 Features
 Supports 8 10/100/1000Mbps Gigabit Ethernet ports
 Support IEEE 802.3af/at PoE compliant to simplify deployment and installation
 Support PoE up to 30W per port With 150W total power budget
 Automatically detects power devices(PD) and power consumption levels
 IEEE 802.1Q VLAN allows network segmentation to enhance performance and security
 IEEE 802.1p QoS with 4 priority queues
 Supports Access Control List (ACL)
 Switch capacity:16Gbps, Forwarding rate:11.9Mbps
 Support IGMP Snooping V1 / V2 /V3
 4K MAC address table and 9K jumbo frames

3
1.3 External Component Description
1.3.1 Front Panel
The front panel of the Switch consists of 8 x 10/100/1000Mbps RJ-45 ports, and a series of LED
indicators as shown as below.

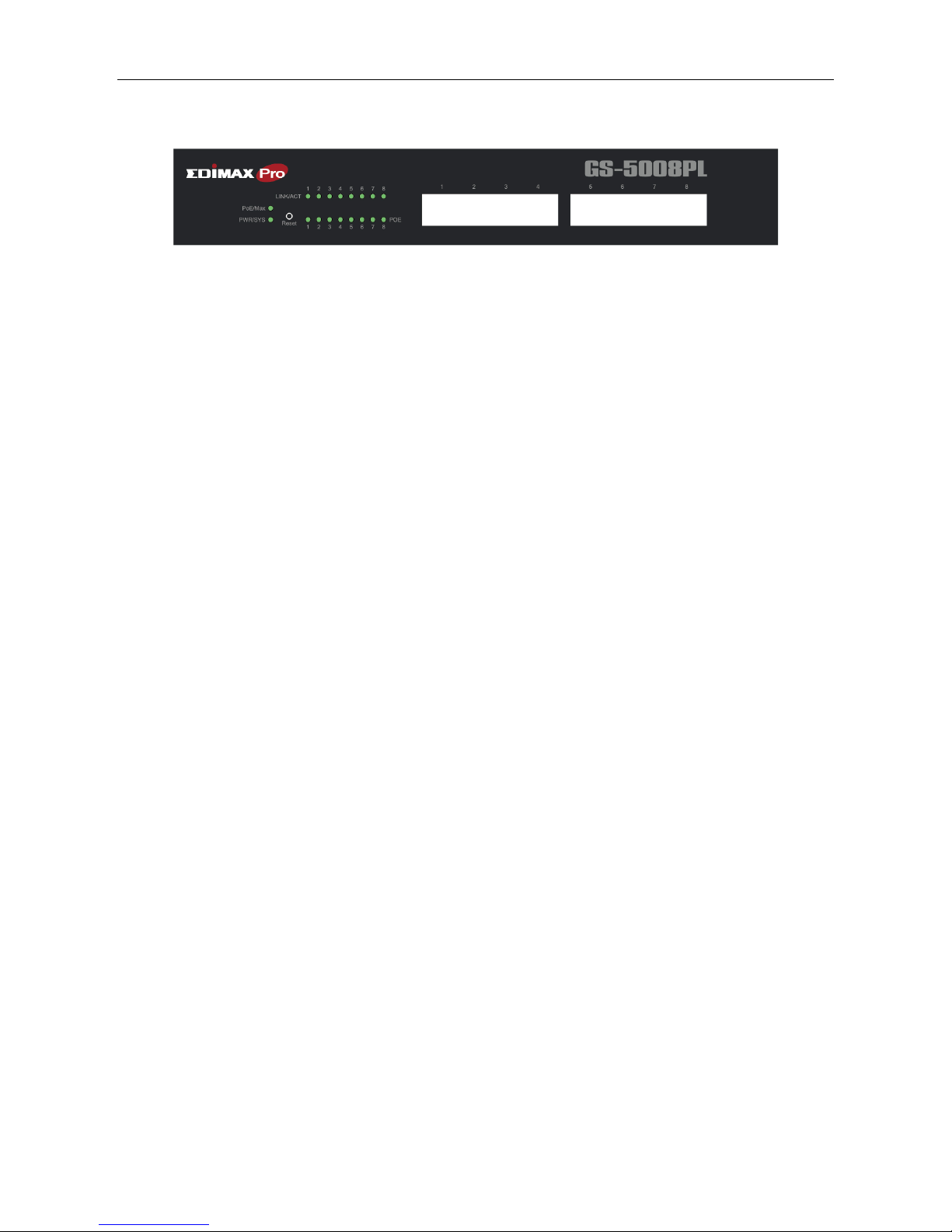

Front Panel
10/100/1000Mbps RJ-45 ports (1~8):
Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps or 1000Mbps. Each has a
corresponding 10/100/1000Mbps LED.
LED indicators:
The LED Indicators will allow you to monitor, diagnose and troubleshoot any potential problem with the
Switch, connection or attached devices.

4
LED Indicators
The following chart shows the LED indicators of the Switch along with explanation of each indicator.
Power/System: Green LED
Off: power off or fail
On: power on
Blinking: system booting up
PoE Max: Green LED
Off: PoE power output under 70% PoE power budget
On: PoE power output over 70% PoE power budget
Port LED:
LINK/ACT: bio-color LED
Off: port disconnected or link fail
Green on: GbE connected
Amber on: 10/100M connected
Blinking: sending or receiving data
PoE
Off: PoE power output off
Green on: PoE power output on

5
1.3.2 Rear Panel
The rear panel of the Switch houses an AC power connector as shown below.
Rear Panel
AC Power Connector:
Power is supplied through anAC power cable. It supports AC 100 - 240V, 50 - 60Hz.
1.4 Package Contents
Before you start using this product, please check if there is anything missing in the package, and contact
your dealer to claim the missing item(s):
 GS-5008PL POE Web Smart Switch
 Quick Installation Guide
 CD
 Power Cord
 Rack-Mount Kit

6
Chapter 2 Connect & Login
2.1 Switch to End Node
Use a standard Cat.5/5e Ethernet cable (UTP/STP) to connect the Switch to end nodes as shown below.
Switch ports will automatically adjust to the characteristics (MDI/MDI-X, speed, duplex) of the device to
which is connected.
Please refer to the LED Indicator Specification.The LINK/ACT/Speed LEDs for each port lights on when
the link is available.

7
2.2 Login
Open a web browser and go to the switch’s IP address. The default IP address is 192.168.2.2. Your
computer’s IP address must be in the same subnet as the switch. For the default IP address this is any IP
address in the range 192.168.2.x (x = 3 –254). You can modify the IP address of your computer if you
need.
Parameter
Default Value
Default IP address
192.168.2.1
Default user name
admin
Default password
1234
1.Enter the switch’s IP address (192.168.2.1) in the URL bar of a web browser. IE 7 or above is
recommended.
2.At the following screen login with the default username “admin” and password “1234”.
3.You will arrive at the switch configuration window as shown below:

8
Chapter 3 Switch Configuration
The PoE smart switch software provides rich layer 2 functionality for
switches in your networks. This chapter describes how to use the
web-based management interface (Web UI) to configure the switch’s
features.
The left column shows the configuration menu. The top row shows
the switch’s current link status. Green squares indicate the port link is
up, while black squares indicate the port link is down. Below the
switch panel, you can find a common toolbar to provide useful
functions. The rest of the screen area displays the configuration
settings.
System
This link takes you to a screen where you can configure device name and ip.
Management
This link takes you to screens where you can perform firmware and
configuration file maintenance as well as reset and reboot the system.
Port
This link takes you to a screen where you can check Link Status, TX/RX
counter, Loop Status and Loop Reset.
VLAN
This link takes you to screens where you can configure port-based or
802.1Q VLAN.
Trunking
This link takes you to screen where you can logically aggregate physical
links to form one logical, higher-bandwidth link.
QoS
This link takes you to screen where you can enable Port-Based QoS or
IEEE 802.1p QoS
Broadcast Storm Control
This link takes you to screen where you can set up broadcast rate limit on
every port.
Loop Detect/Prevent
This link takes you to a screen where you can check Loop Detection and
Loop Prevention
IGMP Snooping
This link takes you to screens where you can configure IGMP Snooping.
PoE
This link takes you to screens where you can configure PoE.
Password
This link takes you to screens where you can change the system login
password.
Logout
Logout system.

9
3.1 System

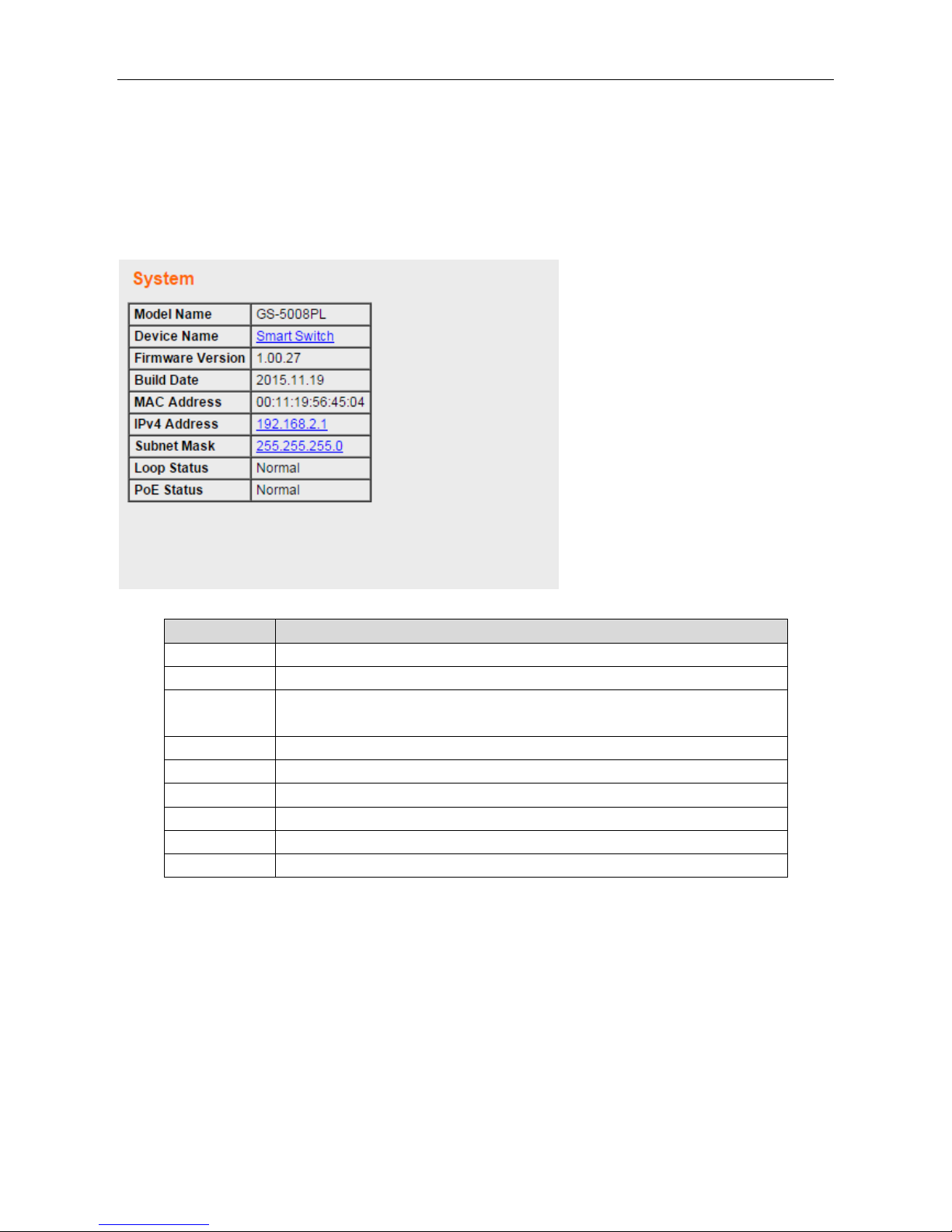

View device information and status such as firmware version number, Device Name, MAC address, IP
Address, Loop Status, PoE Status, etc. Use this screen to configure device name and ipv4 address.
LABEL
DESCRIPTION
Model Name
This field displays the model of the Switch.
Device Name
This field displays the descriptive name of the Switch for identification purposes.
Firmware
Version
This field displays the version number of the Switch’s current firmware.
Build Date
This field displays the current firmware the date created.
MAC Address
This field refers to the Ethernet MAC (Media Access Control) address of the Switch.
IPv4 Address
This field displays the current IP of the Switch.
Subnet Mask
This field displays the current subnet mask of the Switch.
Loop Status
Normal indicates that no loop occurs on any port; otherwise Loop is displayed.
PoE Status
Normal indicates that PoE devices are normally; otherwise Error is displayed.

10
3.1.1 Device Name Setup
Go to System > Device Name
Choose a descriptive name for identification purposes. This name consists of up to 20 characters;
"a-z","A-Z","0-9" and hyphen and underscore are allowed.
3.1.2 IPv4 Address and Subnet Mask Setup
The Switch needs an IP address for it to be managed over the network. The factory default in-band
IP address is 192.168.2.1. The subnet mask specifies the network number portion of an IP address.
The factory default subnet mask is 255.255.255.0.
Go to System > IPv4 Address
LABEL
DESCRIPTION
IPv4 Address
Enter the IP address of your Switch in dotted decimal notation for example
192.168.2.1.
Subnet Mask
Enter the IP subnet mask of your Switch in dotted decimal notation for example
255.255.255.0.

11
3.2 Management
Use this screen to manage firmware and your configuration files. Click Management in the navigation
panel to open the following screen.
BUTTON
DESCRIPTION
Reset
Click Reset to clear all Switch configuration information you configured and return
to the factory defaults.
Reboot
Click Reboot and then wait for the Switch to restart. This takes up to five seconds.
This does not affect the Switch’s configuration.
Backup
Back up your current Switch configuration to a computer.
1 Click Backup, and then display the Save As screen.
2 Choose a location to save the file on your computer.
Restore
Restore a previously saved configuration from your computer to the Switch using
the Configuration Restore/Backup screen.
Click Path to locate the configuration file you wish to restore. After you have
specified the file, click Restore.
Upgrade
Make sure you have downloaded (and unzipped) the correct model firmware and
version to your computer before uploading to the device.
Click Path to locate the firmware file you wish to upload to the Switch. After you
have specified the file, Click Upgrade to load the new firmware. After the firmware
upgrade process is complete, see the System screen to verify your current
firmware version number.

12
3.3 Port
To view port statistics, click Port in the web configurator menu.
LABEL
DESCRIPTION
Port
This identifies the Ethernet port.
Link Status
This field displays the speed (either 10Mbps, 100Mbps or 1000Mbps).
This field displays Down if the port is not connected to any device.
TX
This field shows the number of transmitted bytes on this port.
RX
This field shows the number of received bytes on this port.
Loop Status
This field displays Loop if the port is loop.
Loop Reset
Select the loop port checkbox, Click Apply to make port link up on this port.
Clear Counters
Click Clear Counters to clear statistics for all ports.
Apply
If a port is loop, the Apply button is shown. Click Apply to clear loop status on this
port.

13
3.4 VLAN
3.4.1 IEEE 802.1Q VLAN

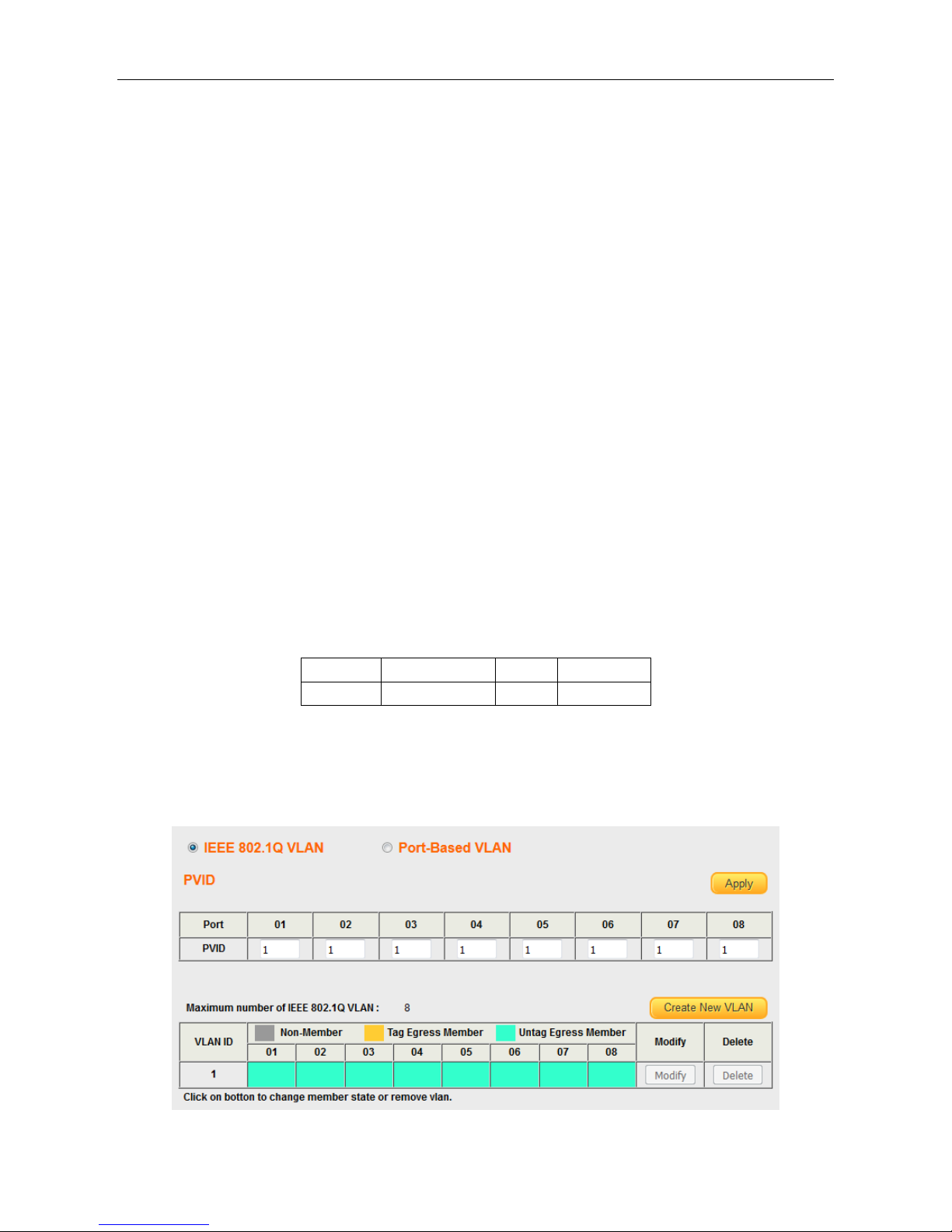

Go to VLAN > IEEE 802.1Q VLAN
IEEE 802.1Q is a protocol for Ethernet frame carrying VLAN tag. The traffic is encapsulated so that a
number of logically separate VLANs can be carried by the same physical LAN.
The VLAN ID associates a frame with specific VLAN and provides the information that switches need to
process the frame across the network. A tagged frame is four bytes longer than an untagged frame and
contains two bytes for the TPID (Tag protocol Identifier, residing within the type/length filed of the Ethernet
frame) and two bytes for the TCI (Tag Control Information, starting after the source address field of the
Ethernet frame).
The CFI (Canonical Format Indicator) is a single-bit flag, always set to zero for Ethernet switches. If a
frame received at an Ethernet port has a CFI set to 1, then that frame should not be forwarded as it is to
an untagged port. The remaining twelve bits define the VLAN ID are independent of each other. A frame
with VID (VLAN Identifier) of null (0) is called a priority frame, meaning that only the priority level is
significant and the default VID of the ingress priority frames and the value 4095 (FFF) is reserved, so the
maximum possible number of VLAN configurations is 4094.
TPID
User Priority
CFI
VLAN ID
2 Bytes
3 Bits
1 Bit
12 bits
Once the VLAN table is configured and maintained in GS-5008PL, frames will be handled by all
operations of VLAN configuration. These operations include the stripping or adding of the IEEE 802.1Q
tag.

14
LABEL
DESCRIPTION
Port
This identifies the Ethernet port.
PVID
This is the VLAN ID assigned to untagged frames that this port received.
Apply
Click Apply to save PVID changes to the non-volatile memory
Maximum number of
IEEE 802.1Q VLAN
The maximum number of IEEE 802.1Q VLAN that can be created.
VLAN ID
This is the VLAN identification number that was configured in the IEEE 802.1Q
VLAN screen.
Port Member
This column displays the members that are participating in a VLAN. A
Non-Member is marked as Gray, a tagged Egress Member is marked as Yellow,
and an Untagged Egress Member is marked as Green.
Modify
Click this to go to the VLAN add screen.
Delete
Click this to delete VLAN which button belong to.

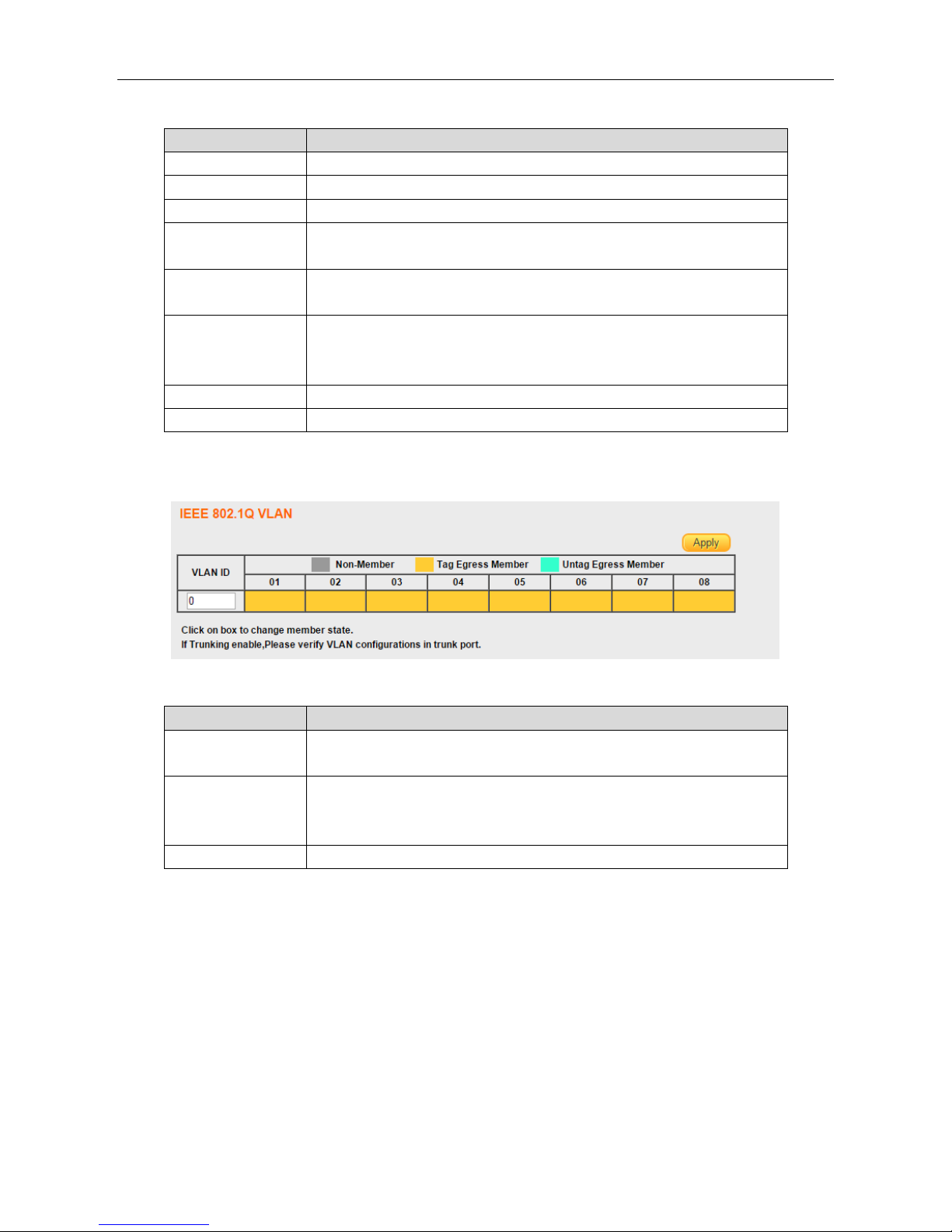

VLAN > IEEE 802.1Q VLAN > Create New VLAN
LABEL
DESCRIPTION
VLAN ID
This is the VLAN identification number that was configured in the IEEE 802.1Q
VLAN screen.
Port Member
This column displays the members that are participating in a VLAN. A
Non-Member is marked as Gray, a tagged Egress Member is marked as Yellow,
and an Untagged Egress Member is marked as Green.
Apply
Click Apply to save your changes.

15
3.4.2 Port-Based VLAN
Go to VLAN > Port-Based VLAN
The port-based VLAN feature worksas a filter, filtering out traffic destined to non-private domain ports. For each
received frame, the forwarding table (FDB) resolves theDAand obtains a forwarding vector (list of ports to which
the frame will be forwarded).The FDB then applies the VLAN filter to the forwarding vector, effectively masking
out the non-private domain ports. The frame is only forwarded to those ports that meet the FDB criteria, as well
as the port-based VLAN criteria.
LABEL
DESCRIPTION
Group ID
This is the Group identification number that increase by degrees in the
Port-Based VLAN screen.
Member Port
Click the check box of themembers that are participating in a Group.
Delete
Click this to delete Group which button belong to.
Apply
Click Apply to save your changes.

16
3.5 Trunking
Go to Trunking > LACP
Link aggregation (trunking) is the grouping of physical ports into one logical higher-capacity link. You may
want to trunk ports if for example, it is cheaper to use multiple lower-speed links than to under-utilize a
high-speed, but more costly, single-port link.
The Switch supports the link aggregation IEEE802.3ad standard. This standard describes the Link
Aggregation Control Protocol (LACP), which is a protocol that dynamically creates and manages trunk
groups.
When you enable LACP link aggregation on a port, the port can automatically negotiate with the ports at
the remote end of a link to establish trunk groups. LACP also allows port redundancy, that is, if an
operational port fails, then one of the “standby” ports become operational without user intervention.
Please note that:
You must connect all ports point-to-point to the same Ethernet switch and configure the ports for
LACP trunking.
LACP only works on full-duplex links.
All ports in the same trunk group must have the same media type, speed, duplex mode and flow
control settings.
Configure trunk groups or LACP before you connect the Ethernet switch to avoid causing network
topology loops.
LABEL
DESCRIPTION
LACP Global State
Select Enable or Disable to enable or disable LinkAggregation Control Protocol
Link Aggregation
Algorithm
Select the outgoing traffic distribution type. Packets from the same source and/or
to the same destination are sent over the same link within the trunk. By default,
the Switch uses the MAC SA & DA distribution type.
Select MAC SA to distribute traffic based on the packet’s source MAC address.
Select MAC DA to distribute traffic based on the packet’s destination MAC

17
address.
Select MAC SA & DA to distribute traffic based on a combination of the packet’s
source and destination MAC addresses.
Link Group Activity
Switch TX LACP control packet Activity or Passive.
Link Group Member
The check box of port would be selected that the port added into Link Group
successfully when refresh this web page.
Apply
Click Apply to save your changes.

18
3.6 QoS
GS-5008PL provide Quality of Service (QoS) feature. Two kinds of QoS mechanism are provided for
traffic forwarding: port-based QoS and 802.1p QoS. Users can switch either of them by Web pages.
When Quality of Service (QoS) feature is enabled, traffic will be forwarded according to predefined setting
of port-based QoS or 802.1p QoS.
If QoS type is set to port-based, the priority is based on the incoming port of the traffic. The current queue
for each port is configured as below.
Port
Queue
1
0
2
0
3
1
4
1
5
2
6
2
7
3
8
3
Go to QoS > Port-Based QoS
If QoS type is set to 802.1p, the priority is based on the incoming PCP field of the traffic. The current
queue for each PCP is configured as below.

19
PCP
Queue
0
0
1
0
2
1
3
1
4
2
5
2
6
3
7
3
Go to QoS > IEEE 802.1P QoS
Go to QoS > Disable QoS
