Edimax IC-7001W User manual

I
IC-7001W
User Manual
10-2013 / v1.0

I
Copyright ＠Edimax Technology Co., Ltd. all rights reserved. No part of this publication
may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated
into any language or computer language, in any form or by any means, electronic,
mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written
permission from Edimax Technology Co., Ltd.
Edimax Technology Co., Ltd. makes no representations or warranties, either
expressed or implied, with respect to the contents hereof and specifically disclaims any
warranties, merchantability, or fitness for any particular purpose. Any software described
in this manual is sold or licensed as is. Should the programs prove defective following
their purchase, the buyer (and not this company, its distributor, or its dealer) assumes
the entire cost of all necessary servicing, repair, and any incidental or consequential
damages resulting from any defect in the software. Edimax Technology Co., Ltd. reserves
the right to revise this publication and to make changes from time to time in the contents
hereof without the obligation to notify any person of such revision or changes.
The product you have purchased and the setup screen may appear slightly different
from those shown in this QIG. For more information about this product, please refer to
the user manual on the CD-ROM. The software and specifications are subject to change
without notice. Please visit our website www.edimax.com for updates. All brand and
product names mentioned in this manual are trademarks and/or registered trademarks
of their respective holders.
Edimax Technology Co., Ltd.
Add: No. 3, Wu-Chuan 3rd Rd., Wu-Ku Industrial Park, New Taipei City, Taiwan
Tel: [phone]
Email: [e-mail]
Notice According to GNU General Public License Version 2
Certain Edimax products include software code developed by third parties, software code is subject to
the GNU General Public License ("GPL") or GNU Lesser General Public License ("LGPL"). Please see the
GNU (www.gnu.org) and LPGL(www.gnu.org) Websites to view the terms of each license.
The GPL Code and LGPL Code used in Edimax products are distributed without any warranty and are
subject to the copyrights of their authors. For details, see the GPL Code and LGPL Code licenses. You
can download the firmware-files at http://www.edimax.com under "Download" page.

II
I. Product Information.............................................................................. 1
I-1. Package Contents ....................................................................................................................1
I-2. System Requirements.............................................................................................................1
I-3. Back Panel...............................................................................................................................2
I-4. LED Status ...............................................................................................................................3
I-5. Product Label ..........................................................................................................................3
I-6. Reset .......................................................................................................................................4
II. Hardware Installation............................................................................ 5
III. Camera Setup & EdiView Finder ............................................................ 6
III-1. EdiView Finder Network Camera Setup .................................................................................6
III-1-1. Windows .................................................................................................................................6
III-1-2. Mac .......................................................................................................................................12
III-2. Using EdiView Finder ............................................................................................................15
III-3. WPS (Wi-Fi Protected Setup) ................................................................................................17
IV. Web-Based Management Interface ......................................................18
IV-1. Basic ......................................................................................................................................23
IV-1-1. Network ................................................................................................................................23
IV-1-2. Wireless.................................................................................................................................25
IV-1-2-1. Smartphone ........................................................................................................................26
IV-1-2-2. Computer ............................................................................................................................29
IV-1-2-3. WPS.....................................................................................................................................30
IV-1-3. Dynamic DNS.........................................................................................................................31
IV-1-4. RTSP ......................................................................................................................................32
IV-1-5. Date & Time ..........................................................................................................................33
IV-1-6. Users .....................................................................................................................................34
IV-1-7. UPnP......................................................................................................................................36
IV-1-8. Bonjour .................................................................................................................................37
IV-2. Video .....................................................................................................................................38
IV-2-1. Video Settings .......................................................................................................................38
IV-2-2. Image Appearance ................................................................................................................40
IV-2-3. Night Vision...........................................................................................................................41
IV-3. Events....................................................................................................................................42
IV-3-1. Motion Detection..................................................................................................................42
IV-3-2. Detection Region ..................................................................................................................44
IV-3-3. Schedule Settings..................................................................................................................46
IV-3-4. SMTP .....................................................................................................................................48
IV-3-5. FTP.........................................................................................................................................50

III
IV-4. Pan & Tilt...............................................................................................................................51
IV-4-1. Pan & Tilt Settings.................................................................................................................51
IV-4-2. Preset ....................................................................................................................................52
IV-5. System...................................................................................................................................54
IV-5-1. Basic ......................................................................................................................................54
IV-5-2. Advanced ..............................................................................................................................55
IV-5-3. Cloud Service.........................................................................................................................57
IV-6. Status ....................................................................................................................................58
IV-6-1. System Information ..............................................................................................................58
IV-6-2. System Log ............................................................................................................................60
V. Myedimax.com ....................................................................................61
VI.16 Channel Viewer for Windows...........................................................65
VI-1. Installation ............................................................................................................................65
VI-2. Using the 16 Channel Viewer................................................................................................69
VI-3. Configuring the 16 Channel Viewer......................................................................................72
VI-3-1. Camera Configuration...........................................................................................................72
VI-3-1-1. Camera................................................................................................................................73
VI-3-1-2. Scheduled Recording ..........................................................................................................75
VI-3-1-3. Audio...................................................................................................................................78
VI-3-1-4. Motion Recording ...............................................................................................................79
VI-3-2. General Options....................................................................................................................81
VI-3-2-1. General................................................................................................................................81
VI-3-2-2. Email Setting .......................................................................................................................83
VI-3-2-3. Security ...............................................................................................................................85
VI-3-2-4. About ..................................................................................................................................87
VI-4. Changing the Display Layout.................................................................................................88
VI-5. Full Screen Mode ..................................................................................................................91
VI-6. Scan.......................................................................................................................................92
VI-7. Pan & Tilt...............................................................................................................................93
VI-8. Snapshot ...............................................................................................................................94
VI-9. Recording ..............................................................................................................................95
VI-10. Video Playback......................................................................................................................96
VII. EdiView App.........................................................................................97

1
I. Product Information
I-1. Package Contents
IC-7001W QIG CD-ROM
Power Adapter Ethernet Cable
I-2. System Requirements
-Intel Pentium 4 2.4GHz (above or similar)
-VGA card (1024*768 or above)
-CD-ROM Drive
-At least 128MB hard disk space (256 MB recommended)
-Windows 2000, XP, Vista, 7 or 8
-Web browser (Internet Explorer 7.0, Firefox 3.6, Chrome 10, Opera 11,
Safari 5 or above)

2
I-3. Back Panel
Antenna
LED
LAN Port
Power Port
WPS/Reset Button
Audio Output

3
I-4. LED Status
I-5. Product Label
The product label located on the bottom of the camera displays the MAC
address and cloud ID of your network camera.
The MAC address and cloud ID are the same for easy reference.
The cloud ID allows you to view a live stream from your network camera
remotely (from any Internet connection) as described later in III-4.
Myedimax.com.
LED Color
LED Status
Description
Orange
Quick Flashing
Network camera is starting
up/restarting.
Slow Flashing
(1 x per second)
WPS is active.
Green
On
Connected to network and cloud.
Slow Flashing
(1 x per second)
Connected to network but not cloud.
Off
--
No connection.

4
I-6. Reset
If you experience problems with your network camera, you can reset the
camera back to its factory default settings. This resets all settings back to
default.
1. Press and hold the WPS button found on the
back panel for at least 10 seconds
2. Release the button when the orange LED is
flashing quickly.
3. Wait for the network camera to restart. The
camera is ready when the green LED is on or
flashing.
After reset, the LED will display off If there is no Ethernet
connection to the network camera from a router/access
point/switch.

5
II. Hardware Installation
Follow the instructions below to ensure your camera is properly connected
and ready for setup.
1. Use an Ethernet cable to connect the network camera’s LAN port to a
router/switch/access point’s LAN port, as shown below.
2. Connect the power adapter to the network camera’s power port and to a
power supply, as shown below.
3. Wait a moment for the camera to power on. The camera is ready when
the green LED on the back of the camera displays on or flashing. Please
refer to III. Camera Setup to setup your network camera.

6
III. Camera Setup & EdiView Finder
Your network camera can be up and running in just a few minutes. First,
please follow the instructions below for Windows or Mac in III-1. Installing &
Using EdiView Finder to install the EdiView Finder software and connect your
camera to your wireless network.
Or you can follow III-3. WPS as an alternative method to connect your
network camera to your wireless network.
Then, you can use the web based management interface to watch a live
stream and further configure the camera if you need (see IV.).
Additionally, you can view the camera’s live image using either the cloud ID
(see V.), the 16 channel viewer software (see VI.), or the EdiView smartphone
app (see VII).
III-1. EdiView Finder Network Camera Setup
Ensure your computer is connected to the same router as the
network camera.

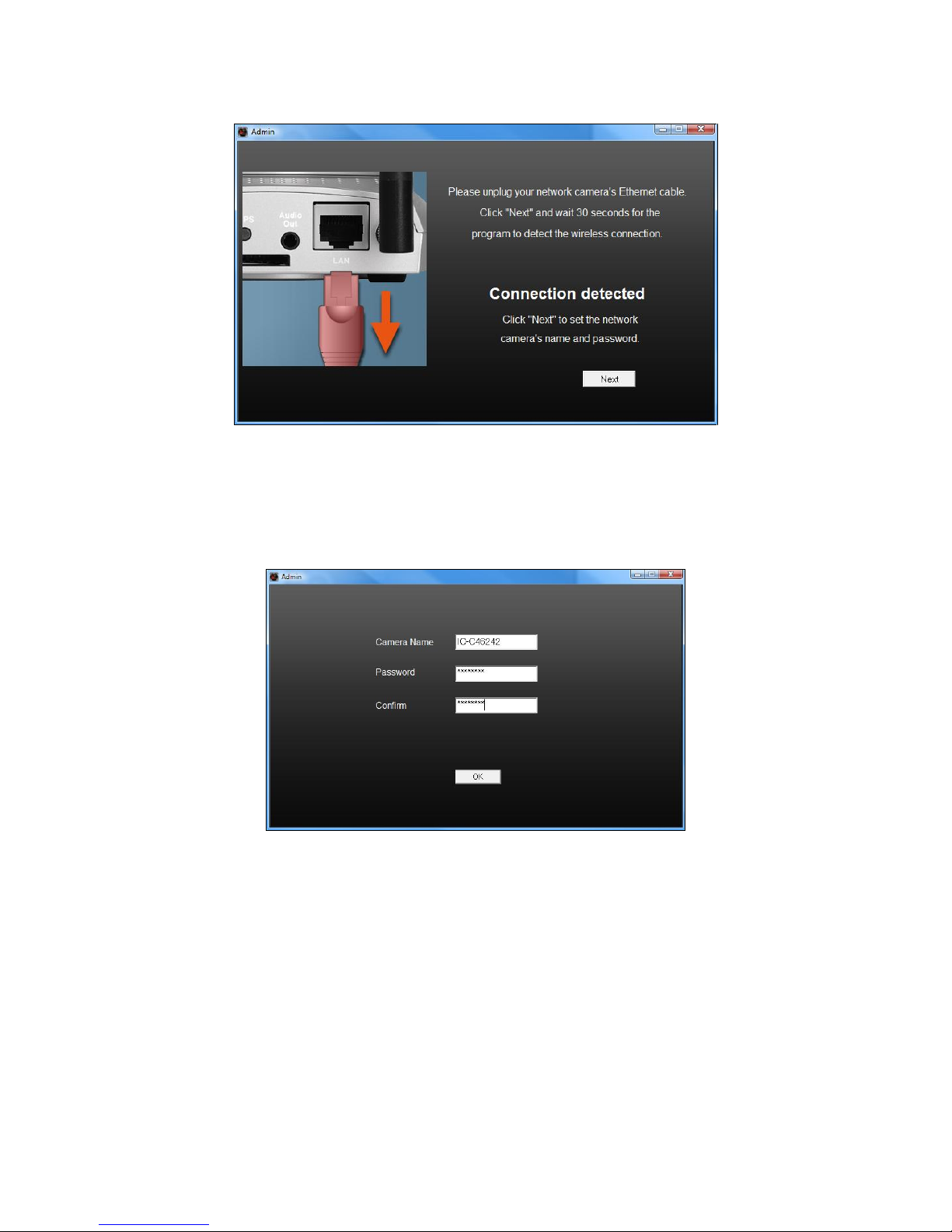

III-1-1. Windows
1. Insert the included CD into your CD-ROM drive and if the setup utility does
not automatically open, please locate and open the “Autorun.exe” file in
the “Autorun” folder.
2. Click “Setup Utility” to install the EdiView Finder software utility.
