STR 100 - Signal Transducer
Content
1 PREFACE.......................................................................................................4
2 STR 100 SYSTEM..........................................................................................6
2.1 DESCRIPTION..................................................................................................................... 6
2.2 FEATURES.......................................................................................................................... 6
2.3 FUNCTION........................................................................................................................... 6
2.4 TYPICAL APPLICATION.....................................................................................................7
2.5 CONSTRUCTION................................................................................................................. 7
2.6 HOUSIN ............................................................................................................................. 8
2.7 INTENDED USE................................................................................................................... 8
3 DEVICE...........................................................................................................9
3.1 APPEARANCE..................................................................................................................... 9
4 HARDWARE DESCRIPTION.......................................................................10
4.1 MAIN BOARD..................................................................................................................... 10
4.2 INTERFACE BOARDS.......................................................................................................10
4.2.1 RS232 I TERFACE BOARD...........................................................................................10
4.2.2 RS485 I TERFACE BOARD...........................................................................................11
4.2.3 VERSATILE LI K FIBER OPTIC I TERFACE BOARD..................................................13
4.2.4 MULTIMODE FIBER OPTIC I TERFACE BOARD.........................................................14
4.2.5 SI GLEMODE FIBER OPTIC I TERFACE BOARD.......................................................14
4.2.6 10/100BASE-TX ETHER ET I TERFACE BOARD.......................................................15

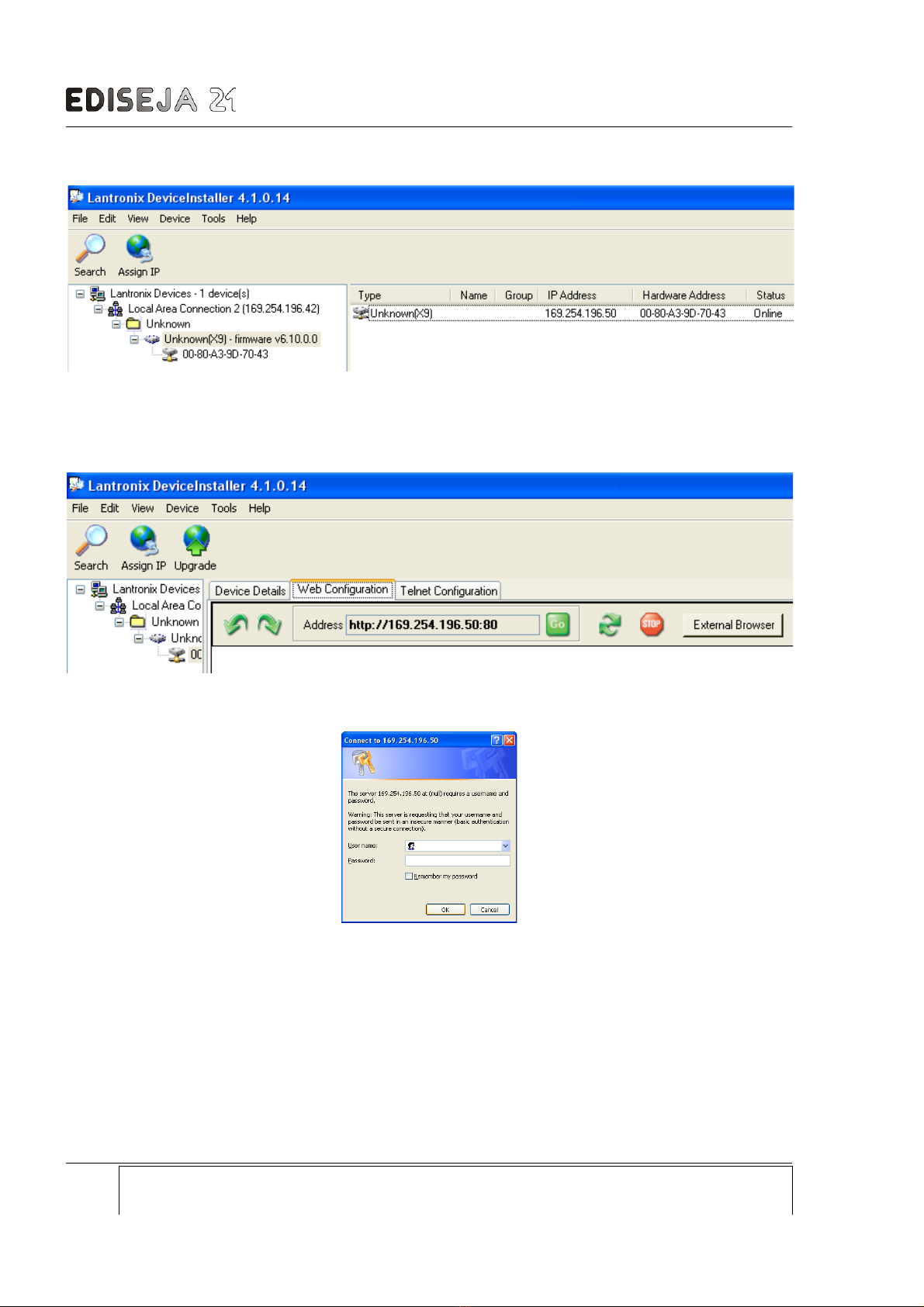

4.2.6.1 LA TRO IX I STALLER SETTI GS..........................................................................16
4.3 IO BOARDS....................................................................................................................... 21
5 SCHEMATIC.................................................................................................26
5.1 STR 100 / x.x.NON.IOx...................................................................................................... 26
5.2 STR 100 / x.x.NON.IOxR................................................................................................... 27
6 TYPICAL CONNECTION.............................................................................28
7 INSTALLATION............................................................................................29
7.1 INSTALLATION.................................................................................................................. 29
7.2 DEVICE SETTIN .............................................................................................................. 30
Page: Company: Device: Document: Code: Date:
2 Ediseja 21 STR 100 User manual STRMUED1 09.08.2019
8 COMMISSIONIN & MAINTENACE..........................................................31
8.1 COMMISSIONIN .............................................................................................................. 31
8.2 MAINTENANCE................................................................................................................. 31
9 TECHNICAL DATA......................................................................................32
10 DIMENSIONS.............................................................................................37
11 ORDERIN .................................................................................................38
Company: Device: Document: Code: Date: Page:
Ediseja 21 STR 100 User manual STRMUED1 09.08.2019 3
STR 100 - Signal Transducer
1 PREFACE
Liability statement
We have checked the contents of this manual to ensure that the descriptions of both hardware
and software are as accurate as possible. However, deviations may occur so that no liability can
be accepted for any errors or omissions contained in the information given.
The contents of this manual will be checked in periodical intervals, corrections will be made in
the following editions.
We reserve the right to make technical improvements without notice.
Contact
If you have any questions or comments related to this product please contact us on:
Ediseja 21 d.o.o.
Drenov Gric 175
1360 Vrhnika
Slovenia – EU
Tel: 00 386 51 643 411, 051 643 411
Email: grega.flander@ediseja21.com
www.ediseja21.com
Copyright
Copyright © Ediseja 21, 2013. All rights reserved.
Explanation of the symbols
Read the instructions!
Device was tested with 2,5 kV AC voltage to check the device insulation.
Device ground terminal.
Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC; the affixed
product label indicates that you must not discard this electrical/electronic product in
domestic household waste.
Warnings
In this paper the following terms are used:
Danger
indicates that death, severe personal injury or substantial property damage will result if proper
precautions are not taken.
Warning
Page: Company: Device: Document: Code: Date:
4 Ediseja 21 STR 100 User manual STRMUED1 09.08.2019
PREFACE
indicates that death, severe personal injury or substantial property damage can result if proper
precautions are not taken.
Caution
indicates that minor personal injury or property damage can result if proper precautions are not
taken. This particularly applies to damage on or in the device itself.
eneral information
These paper contain the information that is necessary for the proper and safe operation of the
described devices. This paper is intended for technically qualified personnel.
Warning!
Hazardous voltage is present inside the device during operation. Disregarding of safety
rules can result in severe personal injury or property damage.
Only qualified personnel may work with described devices after being familiar with warnings and
safety notices in this paper and other safety regulations.
Warning!
Device must operate completely assembled! Device must be used as described. No
modifications of the device should be made.
Warning!
Do not open device while it is energized! Hazardous voltage is present inside the
device. Disconnect all connectors before opening!
Warning!
If device is damaged disconnect it from power supply! Send it to the manufacturer for
inspection.
Warning!
Connect to earth before attaching power supply!
Company: Device: Document: Code: Date: Page:
Ediseja 21 STR 100 User manual STRMUED1 09.08.2019 5
STR 100 - Signal Transducer
2 STR 100 SYSTEM
2.1 DESCRIPTION
STR 100 is modular system of communication devices that can be used for various of tasks
such as:
distance protection criteria transfer
disconnector and circuit breaker statuses transfer between substations
signal transfer via communication through noisy industrial enviroment
status and command transfer for remote switch
2.2 FEATURES
Wide range power supply
Digital input voltage suitable for substation's power supply
RS232, RS485, Fiber Optic or Ethernet communication interface
Switch selected BAUD rate
4 digital inputs
4 dIgital outputs
DI 35 rail mount
Short response time
2.3 FUNCTION
Two devices from STR 100 system works in pair. Input statuses from one device are transfered
to second device outputs and vice versa.
Devices are coupled through full duplex commnication link. Communication is based on special
protocol. If communication link is broken DO statuses of both devices are returned to theirs inital
states. Speed of communication can be selected by switches.
One of DOs has two functions. It can operate as normal DO or as communication failed
signalization. Selection between functions is made by switch.
Page: Company: Device: Document: Code: Date:
6 Ediseja 21 STR 100 User manual STRMUED1 09.08.2019

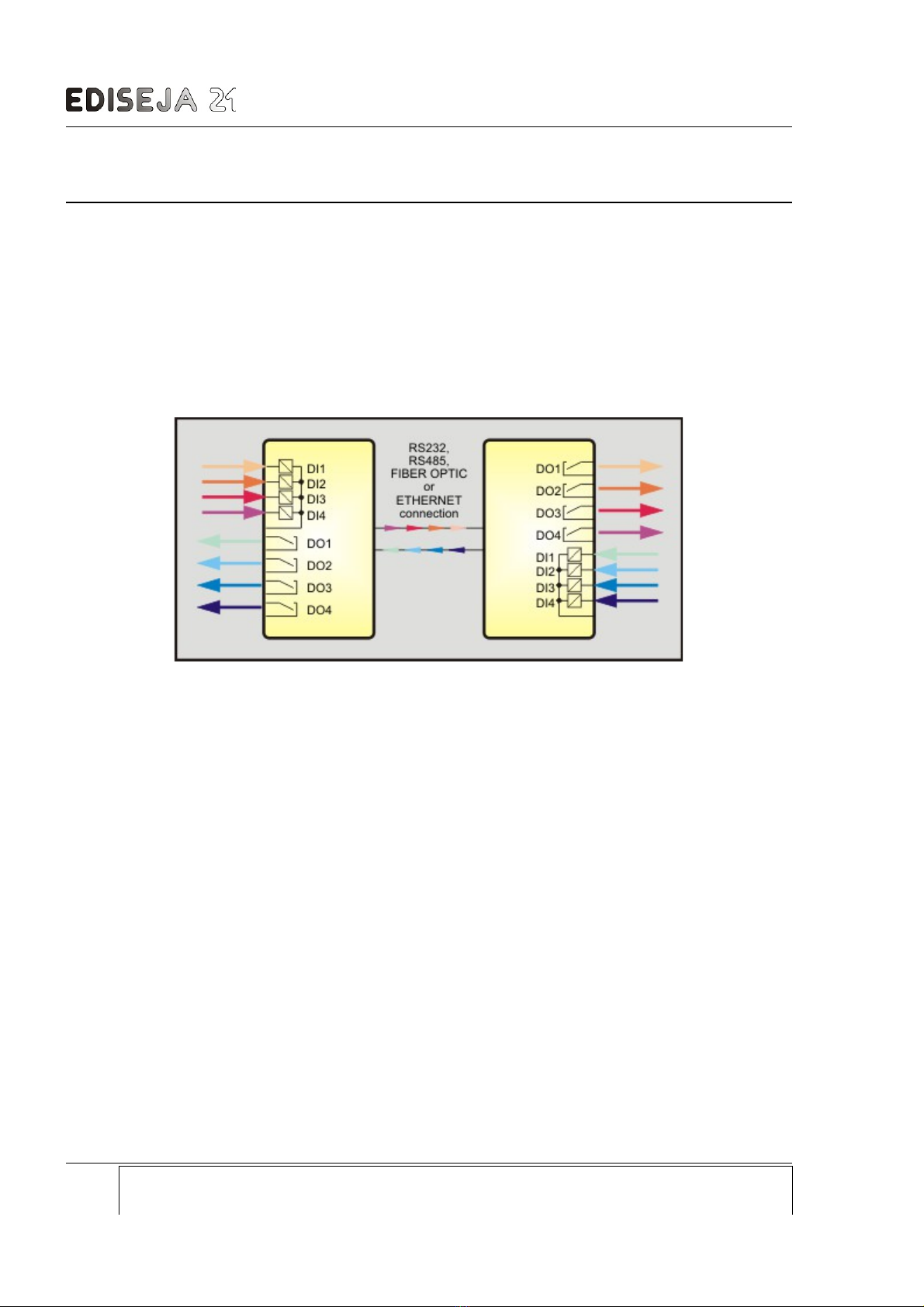

Picture 1: STR 100 block schematic
FU CTIO
All normaly used connectors, switches and light indicators are accessed at the front side of the
device. One light indicator indicates power supply voltage, others indicate communication and
IOs activity.
2.4 TYPICAL APPLICATION
Typical application is transfer of trip command and circuit breaker status between two
substations.
2.5 CONSTRUCTION
Company: Device: Document: Code: Date: Page:
Ediseja 21 STR 100 User manual STRMUED1 09.08.2019 7
Picture 2: STR 100 typical application
STR 100 - Signal Transducer
All devices from STR 100 system are based on various boards. There are three groups of
boards. One main board, one or two communication boards and one IO board is used in one
device :
main board with power supply
HI – high voltage power supply board
MD – medium voltage power supply board
LO – low voltage power supply board
communication interface
RS232 board
RS485 board
Versatile (650 nm) 1 mm plastic fiber optic board (~110 m)
Multimode (820 nm) fiber optic board (~2000 m)
Singlemode (1310 nm) fiber optic board (~20 km)
Ethernet board
IO board
IOL – 4 Digital Input (24 V DC), 4 Digital Output board
IO4 – 4 Digital Input (48 V DC), 4 Digital Output board
IO1 – 4 Digital Input (110 V DC), 4 Digital Output board
IO2 – 4 Digital Input (220 V DC), 4 Digital Output board
User can order any combination that suits him or her best.
2.6 HOUSIN
Housing of STR 100 system devices is aluminium and intended for mount on standard DI 35
rail (acc. to DI E 50022-35). Housing is same for all combinations.
2.7 INTENDED USE
Device are intended for use in cubicles and cabinets in all kinds of power production,
transmission and distribution stations as well as in industry. It requires no maintenace.
Page: Company: Device: Document: Code: Date:
8 Ediseja 21 STR 100 User manual STRMUED1 09.08.2019
STR 100 - Signal Transducer
4 HARDWARE DESCRIPTION
Hardware is based on main board (power supply), interface board and IO board (DIs and DOs).
4.1 MAIN BOARD
Main board provides neccesary power to other parts of the device and place for interface board.
On the board there are also three LEDs. The yellow LED shows activity on receive (Rx) line and
the green one shows activity on transmit (Tx) line. Additional green LED indicates the device
power supply activity.
User can choose between two main boards:
HI – high voltage power supply board
MD – medium voltage power supply board
LO – low voltage power supply board
Connector pin table
Phoenix MSTB 1 2
Description L- , L+, L1
For further technical data see chapter „TECH ICAL DATA“.
4.2 INTERFACE BOARDS
User can choose between following interface boards:
RS232 board
RS485 board
Versatile link plastic fiber optic board
Multimode Fiber Optic (ST connector) board
Singlemode Fiber Optic (SC connector) board
Singlemode Fiber Optic (FC connector) board
Singlemode Fiber Optic (ST connector) board
Ethernet board
Although STR 100 device can have two interfaces it can communicate only with one at the time.
Data is always received and transmited to both interfaces (ports).
4.2.1 RS232 INTERFACE BOARD
Description
Single, nonisolated, full duplex, RS232 port with DB9 female connector. Supported Rx, Tx and
G D pins.
Connector pin table
Page: Company: Device: Document: Code: Date:
10 Ediseja 21 STR 100 User manual STRMUED1 09.08.2019
I TERFACE BOARDS
DB9 F 2 3 5
Description RX TX G D
Direction I OUT -
4.2.2 RS485 INTERFACE BOARD
Description
Single, galvanically isolated, half duplex, RS485 port with Phoenix 3 pin screw connector, with
automatic switch to receive after end of transmission and with additional terminating and
stabilizating resistors.
Hardware settings
For proper functioning of that board some settings must be done:
RS485 bus termination and stabilisation
baud rate
RS485 bus termination and stabilisation
TERMI ATIO

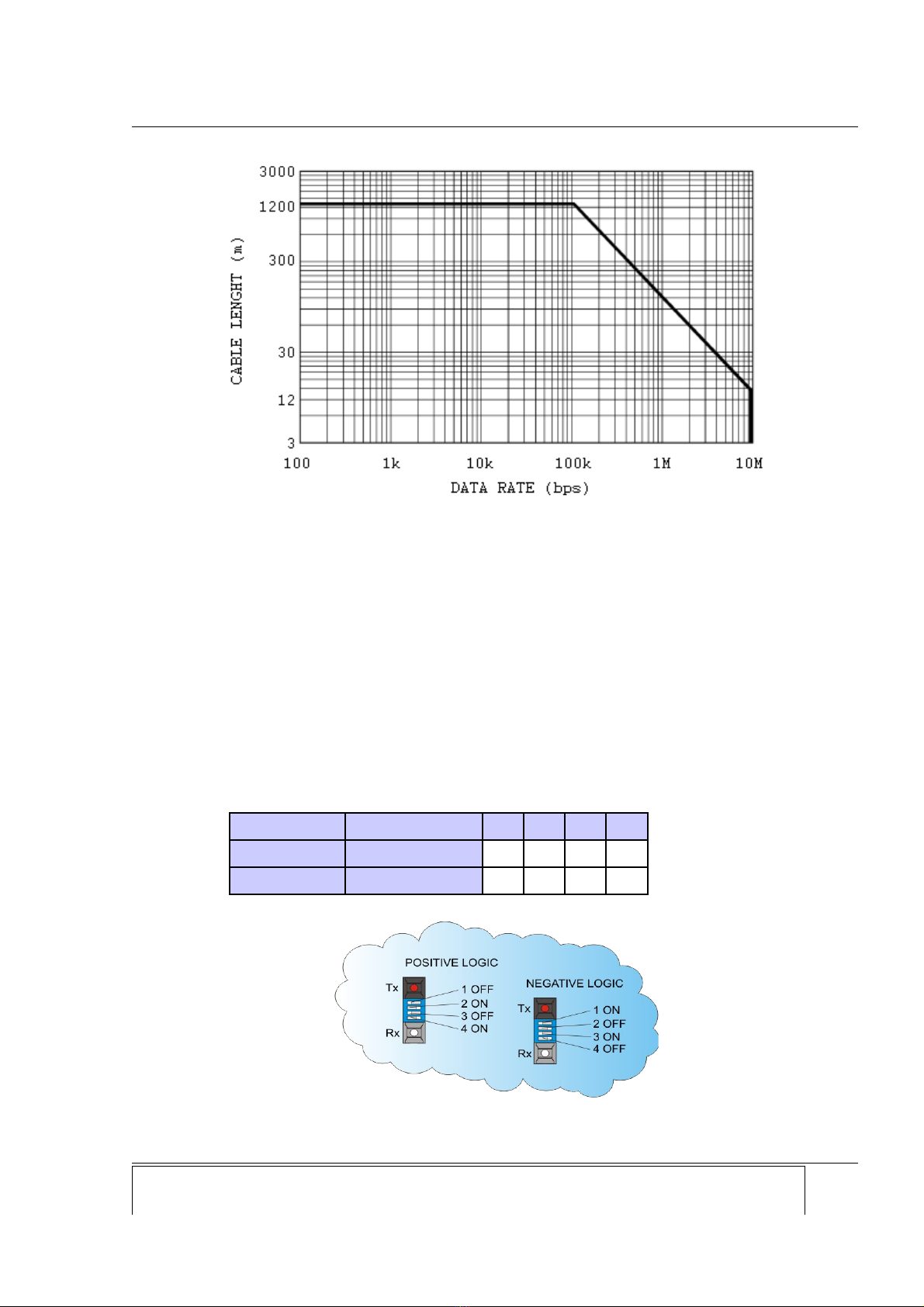

At high transmission rates or long distance, RS485 bus termination is necessary.
The termination on RS485 bus must be set on both ends of the RS485 bus.
STABILISATIO
Some device, to work properly, demands that RS485 must always be in known and valid state.
That is, when + (positive) pin is more than 200 mV positive than – (negative) pin. Pins + and –
are sometimes marked as A and B. In case that no device on RS485 bus is transmitting or in
case of short circuit, there is no voltage difference between those pins and some device do not
work correctly.
On this port board so called „true fail-safe“ RS485 chip is used so board works correctly without
stabilisation at invalid RS485 bus state. But still switches for stabilisation are provided on port
board. The stabilization on RS485 bus may be set on one device only!
Switches at the lower side of connector:
Switch 4 5 6
Description RS485 stabilisation RS485 termination RS485 stabilisation
Company: Device: Document: Code: Date: Page:
Ediseja 21 STR 100 User manual STRMUED1 09.08.2019 11

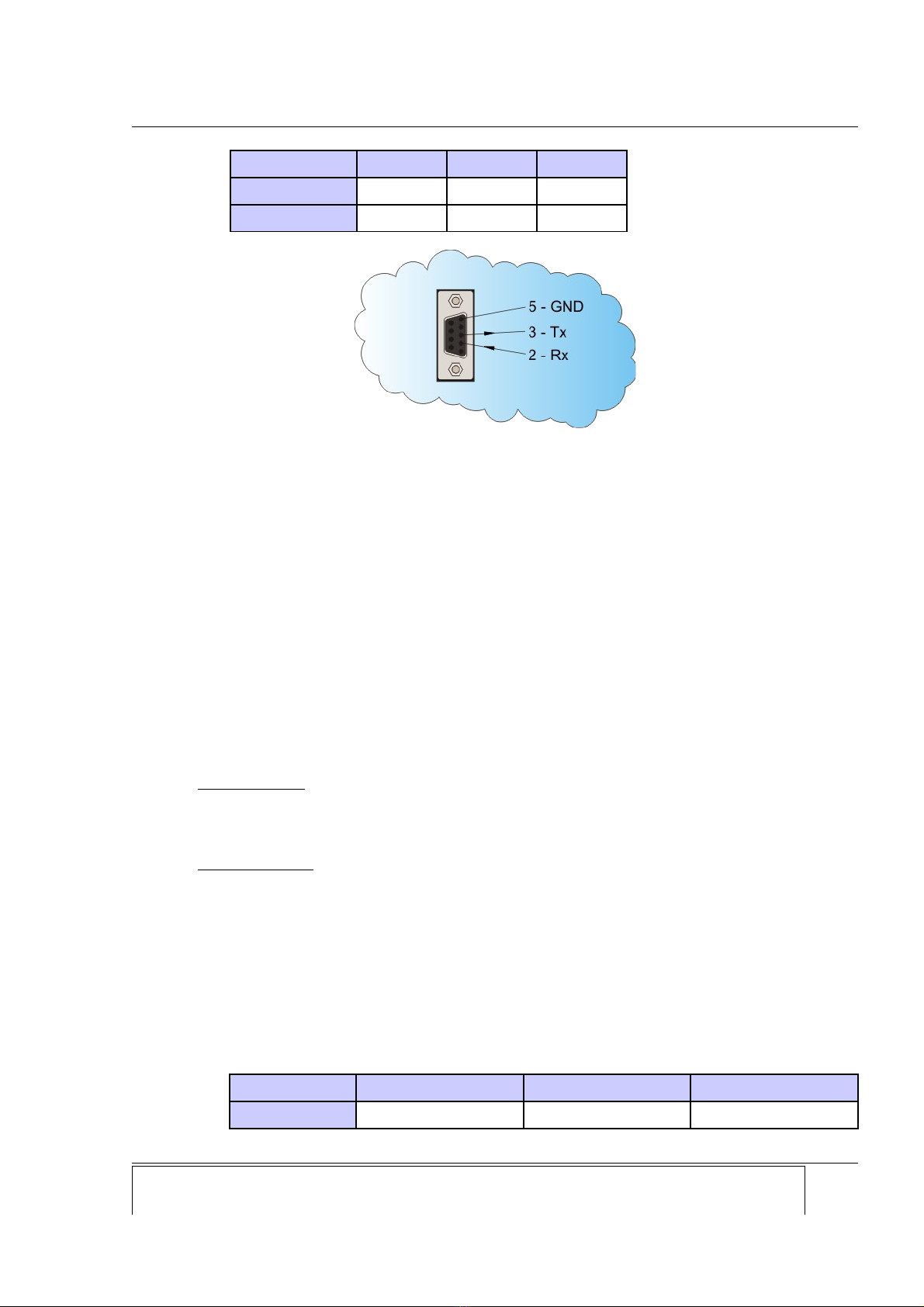

Picture 4: DB9 Female connector
STR 100 - Signal Transducer
Switches at the upper side of connector:
BAUD rate
BAUD rate Switch
Interface 5 Interface M Interface L 1 2 3
19200 4800 300 OFF OFF OFF
38400 9600 600 OFF OFF O
57600 19200 1200 OFF O OFF
115200 38400 2400 O OFF OFF
BAUD rate setting 19k2 (bps) is valid for all standard communication protocols, that do not
request special timings. If special protocols (small request-respond time required) are used
please note it in order.
NOTE! If there are problems with communication, try using higher speed setting. Some
manufacturer have different markings for B and A line. Try to switch A and B wires. See
http://en.wikipedia.org/wiki/RS-485 for detailed information.
Connector pin table
MSTB 1 2 3
Description G D - (A) + (B)
Page: Company: Device: Document: Code: Date:
12 Ediseja 21 STR 100 User manual STRMUED1 09.08.2019
Picture 5: RS485 BUS schematic
Picture 6: RS485 interface board appearance with switch settings
I TERFACE BOARDS
4.2.3 VERSATILE LINK FIBER OPTIC INTERFACE BOARD
Description
Single receiver and transmitter, full duplex, 660 nm wave lenght, fiber optic port for 1 mm
diameter plastic fiber cable, up to 100 distance, with positive or negative logic, up to 40 kbit/s.
Hardware settings
For proper functioning of that port, optic logic must be set the same, on both devices that
communicates:
Fiber optic logic settings
Switch SW1 Light in idle state 1 2 3 4
Positive logic OFF OFF O OFF O
Negative logic ON O OFF O OFF
Company: Device: Document: Code: Date: Page:
Ediseja 21 STR 100 User manual STRMUED1 09.08.2019 13
Picture 7: Data rate vs cable lenght
Picture 8: Versatile link fiber optic interface board appearance
STR 100 - Signal Transducer
4.2.4 MULTIMODE FIBER OPTIC INTERFACE BOARD
Description
Single, full duplex, multimode, fiber optic port with ST connectors with positive or negative logic.
Hardware settings
For proper functioning of that board, optic logic must be set:
Fiber optic logic settings
Switch SW1 Light in idle state 1 2 3 4
Positive logic OFF OFF O OFF O
Negative logic ON O OFF O OFF

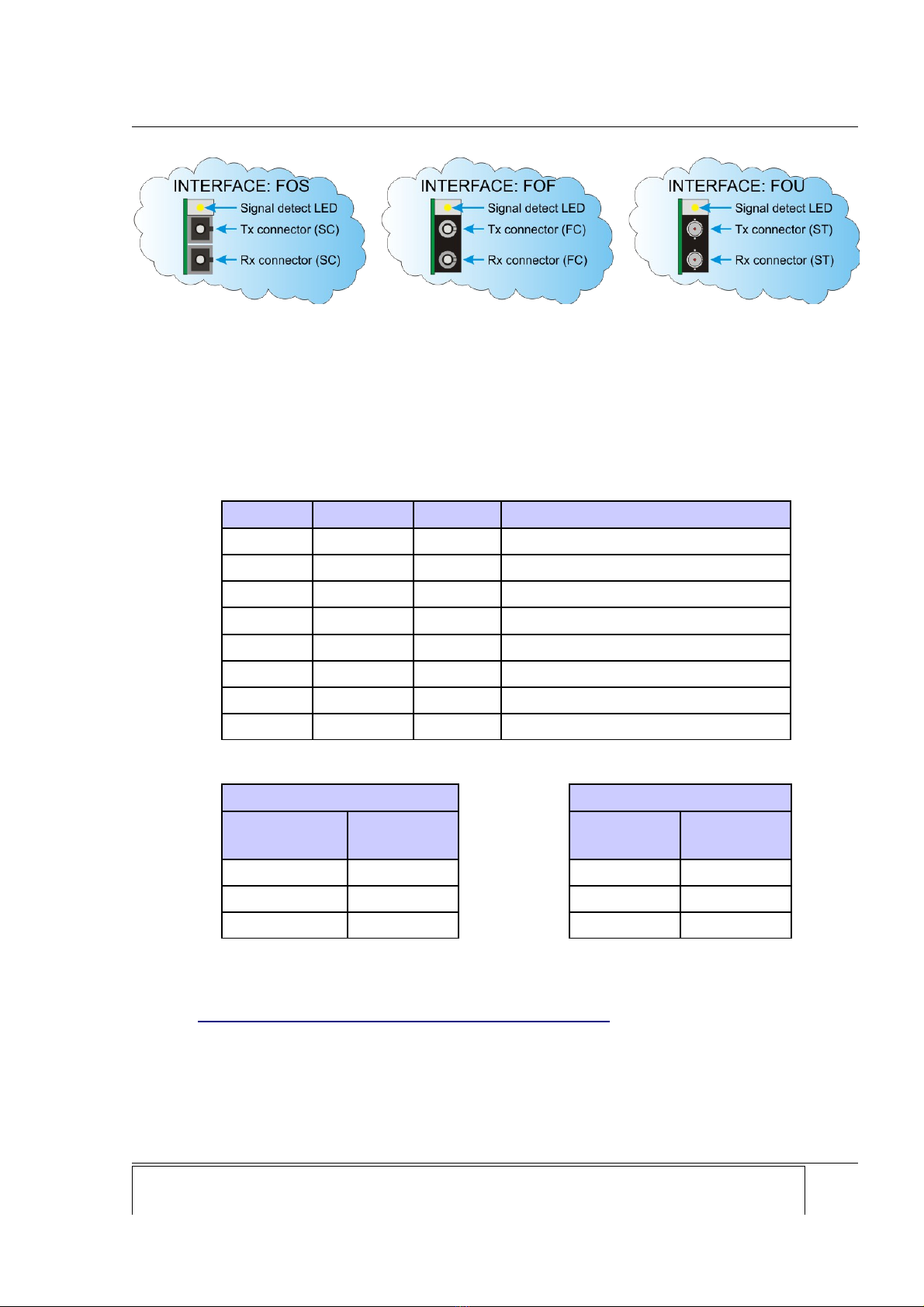

4.2.5 SIN LEMODE FIBER OPTIC INTERFACE BOARD
Description
Full duplex, singlemode, 1310 nm, up to 2,048 Mbit/s fiber optic port with SC connectors
(interface FOS), FC connectors (interface FOF) or ST connectors (interface FOU). This
interface allows transmission up to 20 km. Signal detect LED is activated, when receiver
receives enough light signal from transmitter from another end of the fiber cable.
Warning!
Radiation emitted by single mode laser devices can be dangerous to human eyes.
Avoid eye exposure to direct or indirect radiation.
Page: Company: Device: Document: Code: Date:
14 Ediseja 21 STR 100 User manual STRMUED1 09.08.2019
Picture 9: Multimode fiber optic interface board appearance
I TERFACE BOARDS
4.2.6 10/100BASE-TX ETHERNET INTERFACE BOARD
Description
Ethernet port with RJ45 connector.
Interface signals
Signal Direction Contact Function
TX+ Out 1 Differential Ethernet transmit data +
TX- Out 2 Differential Ethernet transmit data -
RX+ In 3 Differential Ethernet receive data +
RX- In 4 Differential Ethernet receive data -
ot used 5 Terminated
ot used 6 Terminated
ot used 7 Terminated
ot used 8 Terminated
LED functions
Upper LED - Link Lower LED - Activity
Description Meaning BAUD rate
selection
BAUD rate
selection
Off o Link Off o Activity
Amber 10 Mbps Amber Half Duplex
Green 100 Mbps Green Full Duplex
Software setting
For using this interface Installer program is needed. It can be obtained from
www.ediseja21.com\STR100-4channel-signal-transucer.htm. Installer program is needed for
setting IP, network mask,... Software can be obtained from www.lantronix.com.
Company: Device: Document: Code: Date: Page:
Ediseja 21 STR 100 User manual STRMUED1 09.08.2019 15
Picture 10: Singlemode fiber optic interface board appearance
STR 100 - Signal Transducer
4.2.6.1 LANTRONIX INSTALLER SETTIN S
Page: Company: Device: Document: Code: Date:
16 Ediseja 21 STR 100 User manual STRMUED1 09.08.2019
Picture 1 : Press "Ok"
Picture 11: Start program and press "Search" to find device, then select device to be set, press icon
Assign IP, type request IP number and press button Assign
Picture 12: Press "Web Configuration"
I TERFACE BOARDS
Setting Settings on both STR devices
Port Settings / Protocol RS2 2
Port Settings / Flow control None
Port Settings / Baud Rate 57600
Port Settings / Data Bits 8
Port Settings / Parity Even
Port Settings / Stop Bits 1
Pack Control / Enable Packing "checked"
Pack Control / Idle Gap Time 12 ms
NOTE! This are default factory settings. Do not change any of this settings, otherwise device can
stop working correctly!
Company: Device: Document: Code: Date: Page:
Ediseja 21 STR 100 User manual STRMUED1 09.08.2019 19
STR 100 - Signal Transducer
Setting Left picture - settings on
the first STR device
Right picture - settings on
the second STR device
Connect Mode / Active Connect "Auto Start" " one"
Endpoint Configuration / Local Port 10001 10001
Endpoint Configuration / Remote Port 10001 10001
Endpoint Configuration / Auto Increment Local.. "unchecked" "unchecked
NOTE! This are default factory settings. Do not change any of this settings, otherwise device can
Page: Company: Device: Document: Code: Date:
20 Ediseja 21 STR 100 User manual STRMUED1 09.08.2019
Picture 18: Connection Settings
Table of contents
