Edsyn VA175 Soldacav User manual

A revolutionary pick and place system that uses direct air pressure or vacuum to pick-up
and place parts and components. Using shop air, the VA175 generates air or vacuum for
whatever application is necessary. Use as a blower for cleaning and cooling hot compo-
nents or with the turn of a knob, use the suction to pick-up even the smallest of parts.
VA175
Air and Vacuum
Pick-Up System
WARNING: HIGH PRESSURE. DO NOT POINT TOOL AT ANYONE.
DO NOT BLOCK ANY AIR PASSAGES ALONG THE AIR LINES.
Static Safe
instruction manual

on on
At AIR setting air
is blown out the
pick-up tool.
At VAC setting air
is drawn in to the
pick-up tool
Place lifting cup over
component before pressing
trigger. Reflow the solder joints.
After the leads are
desoldered from the
pads press trigger to lift
component off the
circuit board.
Component is air lifted and
cooled at the same time.
on
off
hot air
component
circuit board
circuit board
component
Press Trigger to pick-up
component.
Use hot air to reflow the
solder joints.
BEVERYCAREFULNOT
TO VACUUM MOLTEN
SOLDER, DEBRI OR ANY
LIQUIDS.
AIR AND VACUUM
SETTINGS

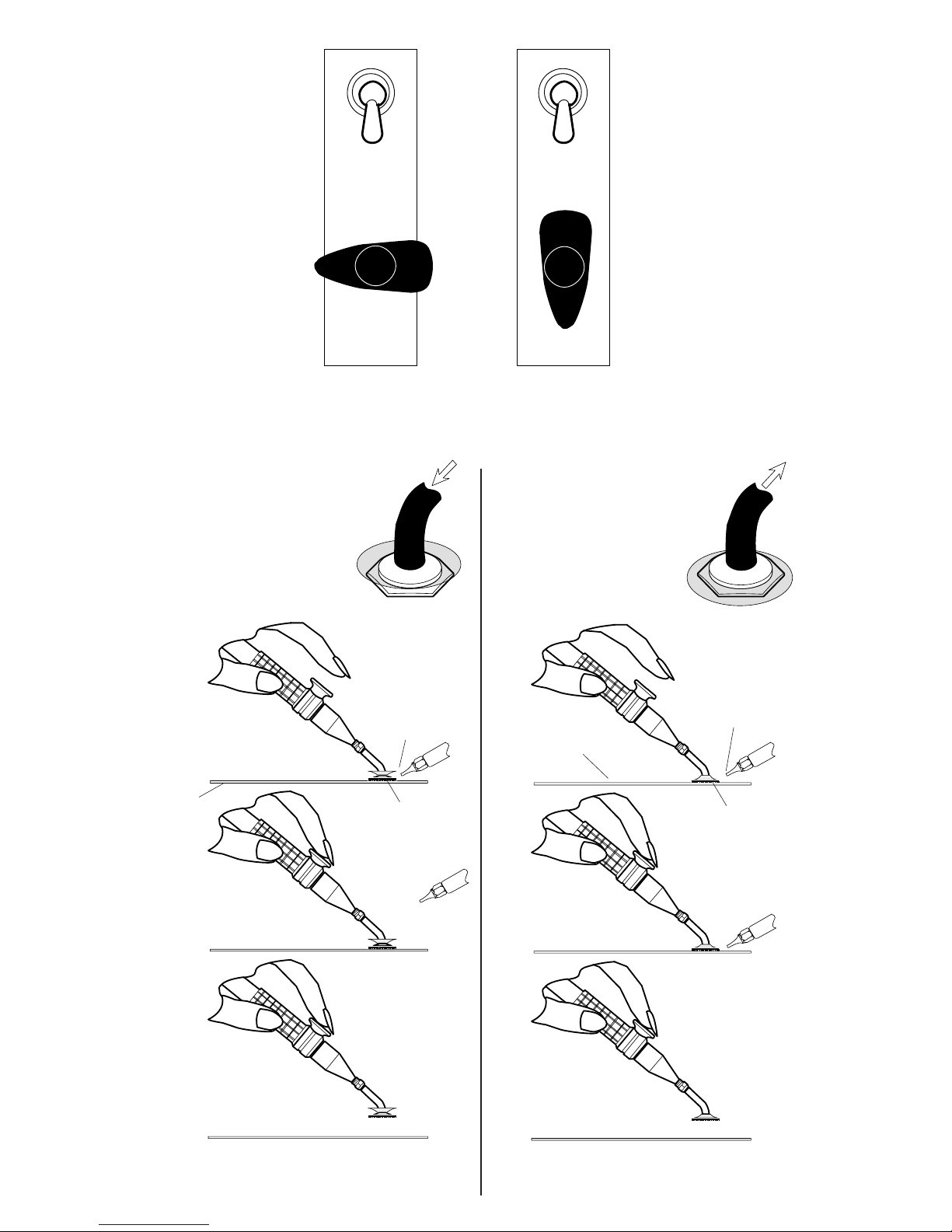

FOLLOW THESE TECHNIQUES for PICK & PLACE
AIR V A C
AIRAPPLICATION:
Silicone disk is folded
up or is removed.
To lift and cool down
the component
immediately after
the leads are
desoldered from the
pads.
VACUUM APPLICATION:
Silicone disk is lowered.
To lift and place a
component in conjunc-
tion with hot air solder-
ing.
air vacuum
Pick-up disk
must be fitted
snug to
prevent it
from being
blown off.

LP252
SPAREPARTSLIST
1
2
11
12
10
9
8
5
8A 8E
8D
8B
8C
3
1SP250 Suction Pick-up Disk .25 Dia. 1
2LN260 Angled Lifting Needle 1
3SRXX Collar, Jacking 1
5SR699 Head Piece, Threaded End (set screw included) 1
6SR202 O-ring 1
7SR702 Filter Element, Foam 1
8SR700 Trigger Valve Assy.(normally close poppet is standard) 1
8A SR743 Poppet, Normally Closed (black) 1
8B SR744 Valve Body 1
8C SR746 Spring 1
8D SR745 Knob 1
8E SR742 Poppet, Normally Open (gold) 1
9SR261 Fitting, Barbed 1
10 SR701 Handle, Low Static 1
11 HS308 Hose, Polyurethane, 3/32 ID 3 ft
12 SR428 Coupling, Male Quick-Disconnect 1
To order a complete pick-up tool assembly, ask for LP252
QTY
REQ'D
ITEM
NO. PART NO.DESCRIPTION
LP525PICK-UPTOOL
Press trigger to
release part.
Press trigger to
activate air or vaccum
6
7

1
2
3
4
6
9
58
7
15
16
6
18
11
10
14
19
20
22
21
10
13A
17
3
23
18
9
12
3
24
24A
VA175-1

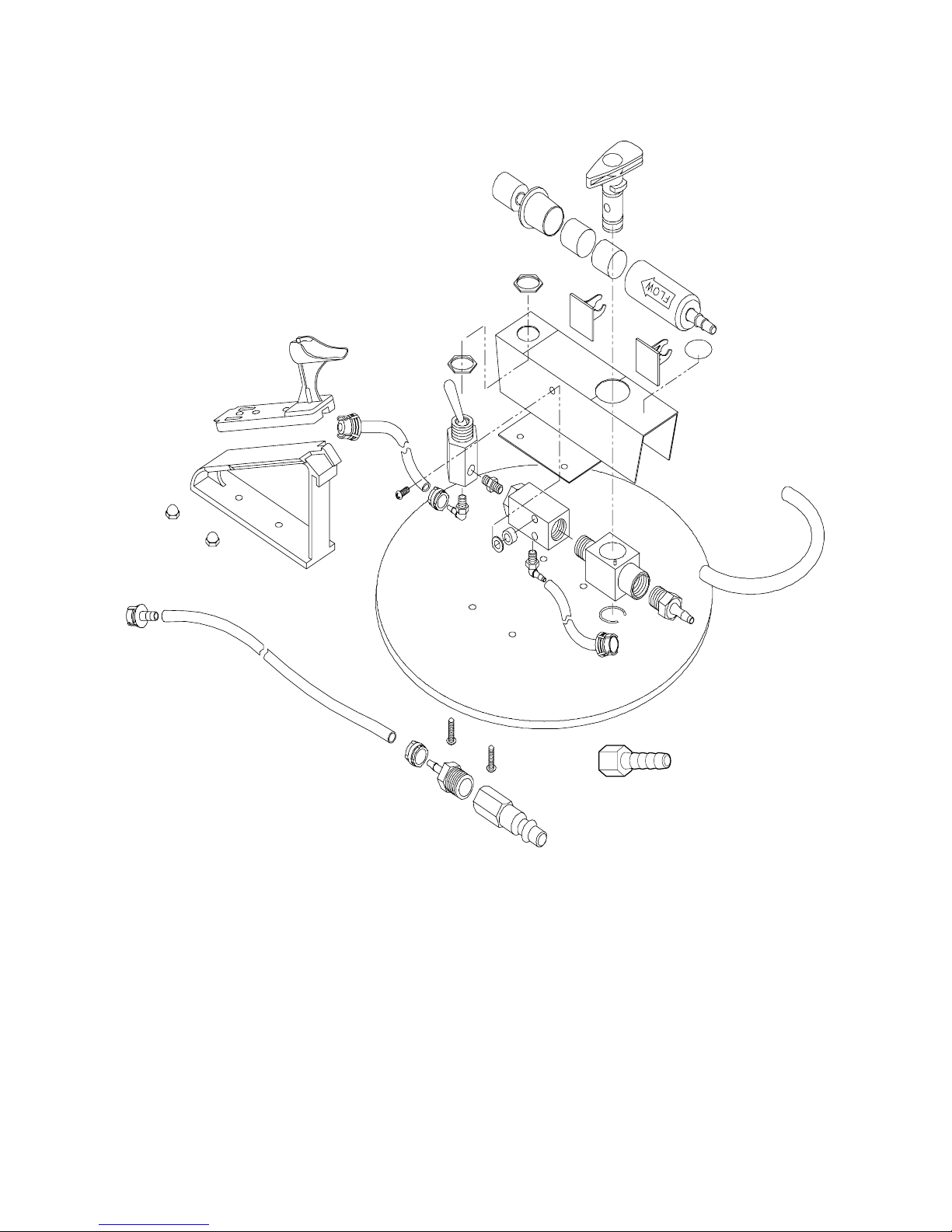

SPAREPARTSLIST
5
13B
13C

1SR704 Bracket 1
2SR705 2-way Air Toggle Switch 1
3SR283 Hose, 1/8" ID. Polyurethane (sold per foot) 3
7", 7", 36"
4SR428 Coupling, Male, Quick-Disconnect 1
5SR144 Screw, Round Head, Phillips, 6-32 x 1/2 3
6SR382 Elbow Connector, for 1/8" ID. Hose 2
7SR706 Fitting, Threaded Coupler 1
8SR707 Vacuum Ejector 1
9SR710 Fitting, Female, Quick-Disconnect, for 1/8" ID. Hose 2
10 SR703 Plug Valve 1
11 HB358 Threaded Hose Barbed for 5/32 ID. Hose 1
12 SR439 Holder, Hose Clip 2
13A* SR533 Barrel for AF110S Silencer 1
13B* AF040 Muffler Filter 2
13C* SR636 Element Cap for AF110S Silencer 1
14 HL603 Static-Safe Silicone Black Hose, 3/16" I.D. (sold per foot) 4"
15 SR137 Washer, # 8, .056 thk 1
16 SR708 Spacer, #8, .186 thk 1
17 SR229 EDSYN Medallion Logo 1
18 LC363 Locking Collar for 1/4 O.D. Hose 2
19 PD534 Pick-Up Tool Holder 1
20 SR709 Bracket Stand with dovetail 1
21 SR594 Base Plate 1
22 SR502 Acorn Nuts, 6-32 x 5/16 2
23 HB357 Threaded Hose Barbed Fitting 1
24 HB359 Quick Disconnect Fitting for VA175 1
24A SR678 Fitting, Air input for VA175-100 1
To order a complete assembly of items listed above ask for VA175-1
*To order a complete silencer assembly ask for AF110S
QTY
REQ'D
ITEM
NO. PART NO.DESCRIPTION
VA175-1 STATION

SPJ19 only
Needle only for
small components
Hex feet.
6 places.
AIR APPLICATION:
The raised corners must seat on component
surface. (The raised Hex corners prevent the
component from moving sideways) Care
should be taken not to damage Hex feet
VACUUM APPLICATION:
Components can still be picked up with
or without a suction cup.
ACCESSORIES
WT625
Use this to disassemble head
piece from valve assembly when
changing filter inside the LP252
SR742
Use this poppet to convert
from a normally closed to a
normally open valve
assembly.
Use this end to pry
open filter end cap
when replacing filter.
Use this end to
remove lifting
needle
assemblies.
WT623
HB357
Replacement
fitting for air
input hose.
1/8-27 NPT
LC363
Locking collar
for air input
hose

CHANGING POPPET CONFIGURATION
Sometimes the operator would prefer the LP252 to be in the
"ON" position all the time (continuous air flow output or
vacuum). because more time is actually spent in holding and
positioning the component than in releasing it.
AF040 Foam
Filter Element
Use WT625 to remove
AF631 felt filter
SR533 Barrel SR636 Silencer End Cap
MAINTENANCE
Keep Filter Elements clean
Continuous air flow or
vacuum to hold
component
Press to release
component
INSTALL
SR742 (gold)
normally open
poppet
REPLACE
SR743 (black)
normally close
poppet
TIGHTENREMOVE

FORM.956
Rev C
15958 ARMINTA ST. VAN NUYS, CA 91406-1896
PHONE: [phone] FAX (sales): 818.997.0895
Email: [email protected] Internet: www.edsyn.com
Intellectual
Property

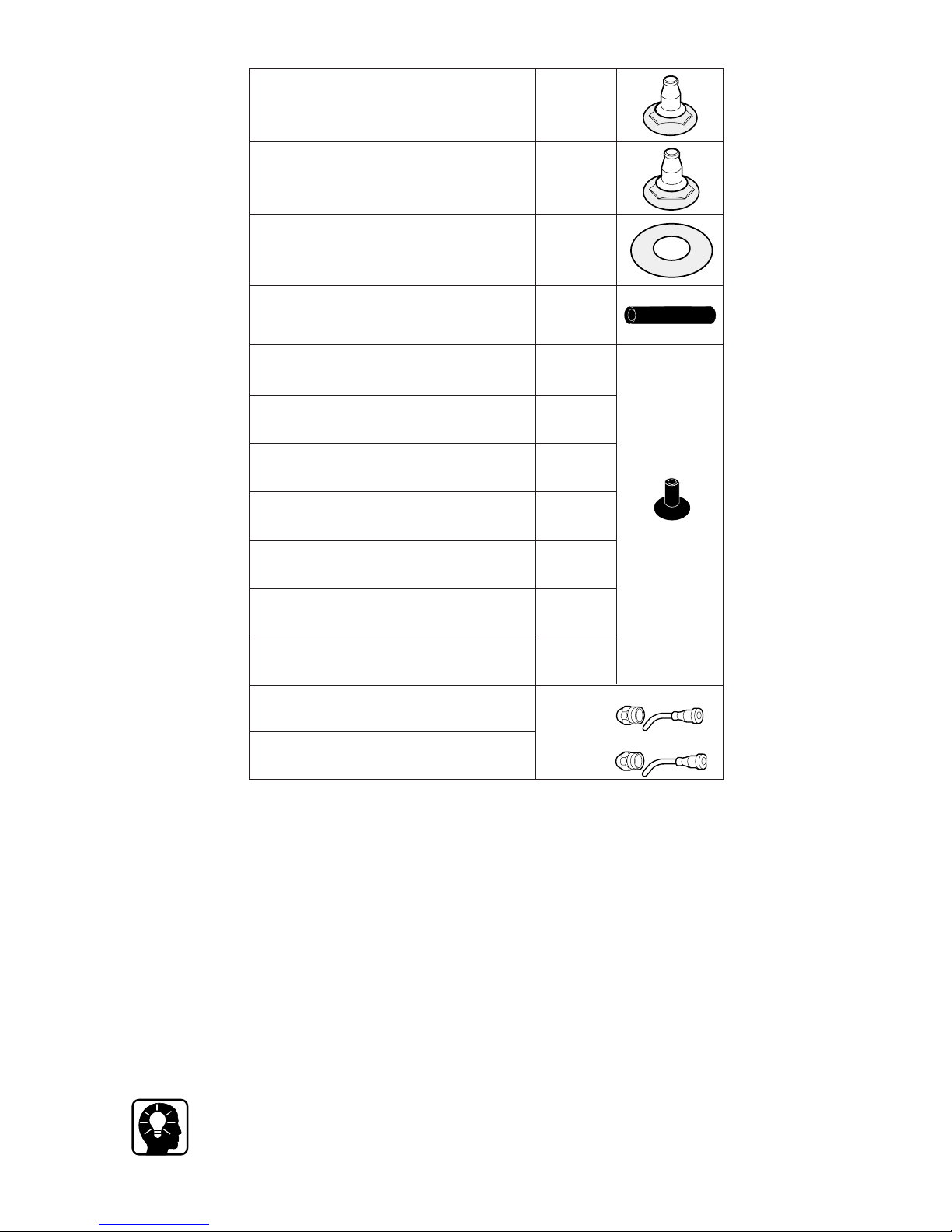

Suction Cups for the LP252
SPA25 OCTAVAC Air suction pick-up .25" hex
disk with .25" hex brass lifter and
.38" static-safe silicone disk
SPB25 OCTAVAC Air suction pick-up .25" hex
disk with .25" hex brass cup and
.38" static-safe silicone disk
SPA25-1 Replacement static-safe silicone .38" dia
disk for SPA25 & SPB25
SPJ19 Stealth high temperature 3/16" dia.
silicon jacket (Standard on LP252)
SP093 OCTAVAC static-safe silicone 3/32" dia.
suction cup (must use with LN275)
SP125 OCTAVAC static-safe silicone 1/8" dia.
suction cup (must use with LN275)
SP250 OCTAVAC static-safe silicone 1/4" dia.
suction cup
SP375 OCTAVAC static-safe silicone 3/8" dia.
suction cup
SP500 OCTAVAC static-safe silicone 1/2" dia.
suction cup
SP625 OCTAVAC static-safe silicone 5/8" dia.
suction cup
SP750 OCTAVAC static-safe silicone 3/4" dia.
suction cup
LN275 Lifting angled needle with HC273 .03" o.d. tube
LN276 Lifting angled needle with HC273 .07" o.d. tube
(Standard on LP252)
Design, color and material subject to change without notice
DESIGNED AND ASSEMBLED IN U.S.A.
©Copyright EDSYN, Inc. 2005
