Edwards & Co EC214-104 User manual

Stroller
Board
For Oscar M and Olive strollers
EC214-104
Use + Care Guide

STROLLER BOARD - USE + CARE GUIDE
2
Suitable for children up to 22kg
IMPORTANT
• Keep these instructions for future reference.
• Always follow the manufacturer’s instructions.
• Read all instructions carefully before assembly and use of
this Stroller Board.
• The correct use and maintenance of this product is essential.

STROLLER BOARD - USE + CARE GUIDE
3
Warnings 4
What’s in the box 5
Stroller Board components 6
Assembling the Stroller Board 7
Using the Stroller Board connectors 8
Attaching the connectors 8
Removing the connectors 11
Using the Stroller Board 12
Attaching the Stroller Board 12
Removing the Stroller Board 13
Storing the Stroller Board 14
Approved configurations 15
Olive 15
Oscar M 16
How to care for and maintain your Stroller Board 17
WARRANTY 19
Contents

STROLLER BOARD - USE + CARE GUIDE
4
Warnings
TO AVOID INJURY OR DEATH
NEVER leave child unattended on this product.
Stroller can tip if child attempts to hang from stroller
handle.
Maximum weight limit 22kg.
For use with approved Edwards & Co strollers only.
Cannot be used with Edwards & Co Otto stroller.
Intended for use with only one child at a time.
Always keep your hands on the stroller when your child is
standing on the Stroller Board.
Make sure that your child is always standing with both
feet on the Stroller Board and holding onto the handle bar
to avoid any possible injury during use.
Check the Stroller Board is connected securely before
each use.
DO NOT use if any part of the Stroller Board is loose,
missing or broken.
Beware of children’s feet and toes when pushing the
board down from it’s storage position.

STROLLER BOARD - USE + CARE GUIDE
5
What’s in the box
Use + Care Guide
(this instruction
manual)
1 x Stroller Board 2 x Wheels
2 x Connection Clips
(Left & Right)

STROLLER BOARD - USE + CARE GUIDE
6
Stroller Board components
Stroller
Board
Wheels
Wheel
Release
Button
Connector
Clasps
Connectors

Please don’t illustrate hand
Please don’t illustrate hand
STROLLER BOARD - USE + CARE GUIDE
7
1. Turn the stroller board upside
down and locate the metal
wheel pins.
Assembling the Stroller Board
2. Position the wheel above
the metal wheel pin on the
stroller board.
3. Push the metal release
button on the wheel and
simultaneously slide the wheel
onto the metal wheel pin.
4. Release the metal wheel
release button. Ensure the
wheel is secure by pulling it
upwards.
You will hear a click when the
wheel connects.
5. Repeat with the second wheel.

Note: The stroller can be folded with the Stroller Board
connectors in place.
STROLLER BOARD - USE + CARE GUIDE
8
Using the Stroller Board connectors
Attaching the connectors

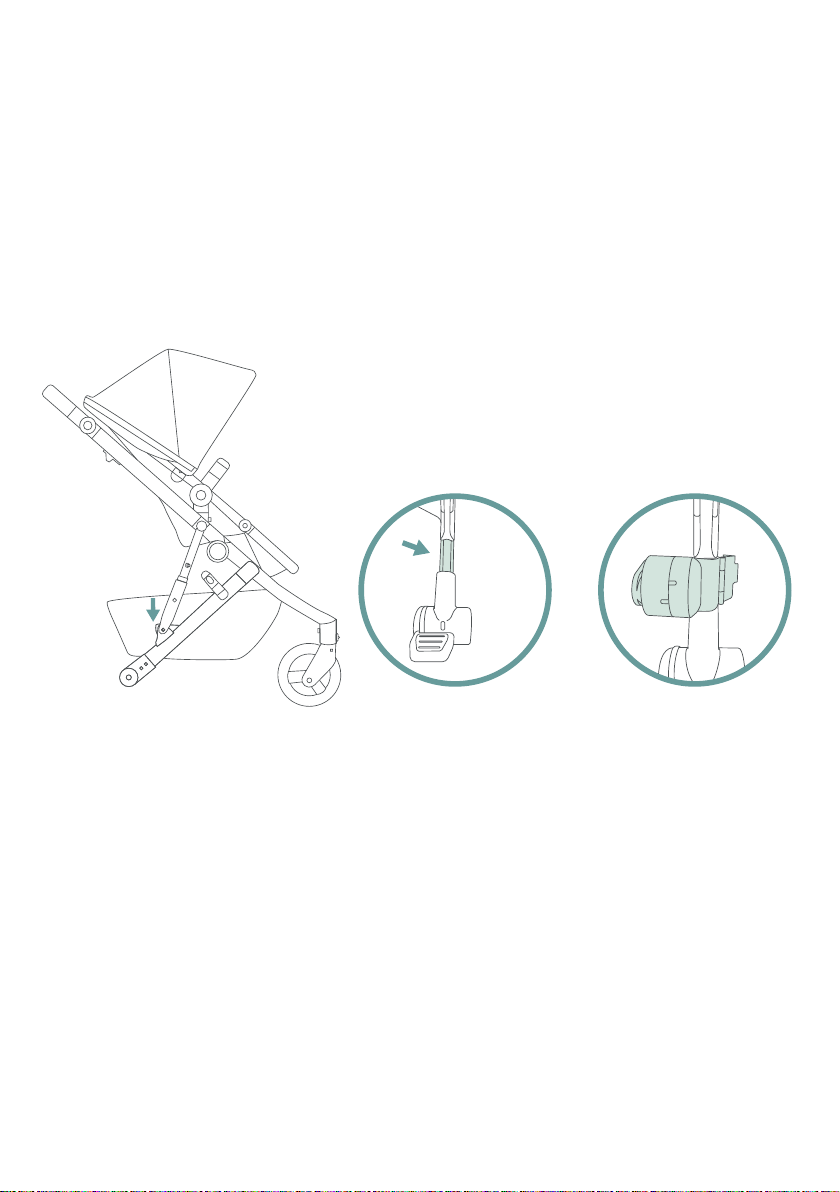

1. Remove the rear wheels
from the stroller. Press the
wheel release button in the
centre of the rear wheel.
2. Pull the wheel
outwards.

STROLLER BOARD - USE + CARE GUIDE
9
3. Slide the open connector into position on the lower
part of the stroller frame (L = Left; R = Right).

STROLLER BOARD - USE + CARE GUIDE
10

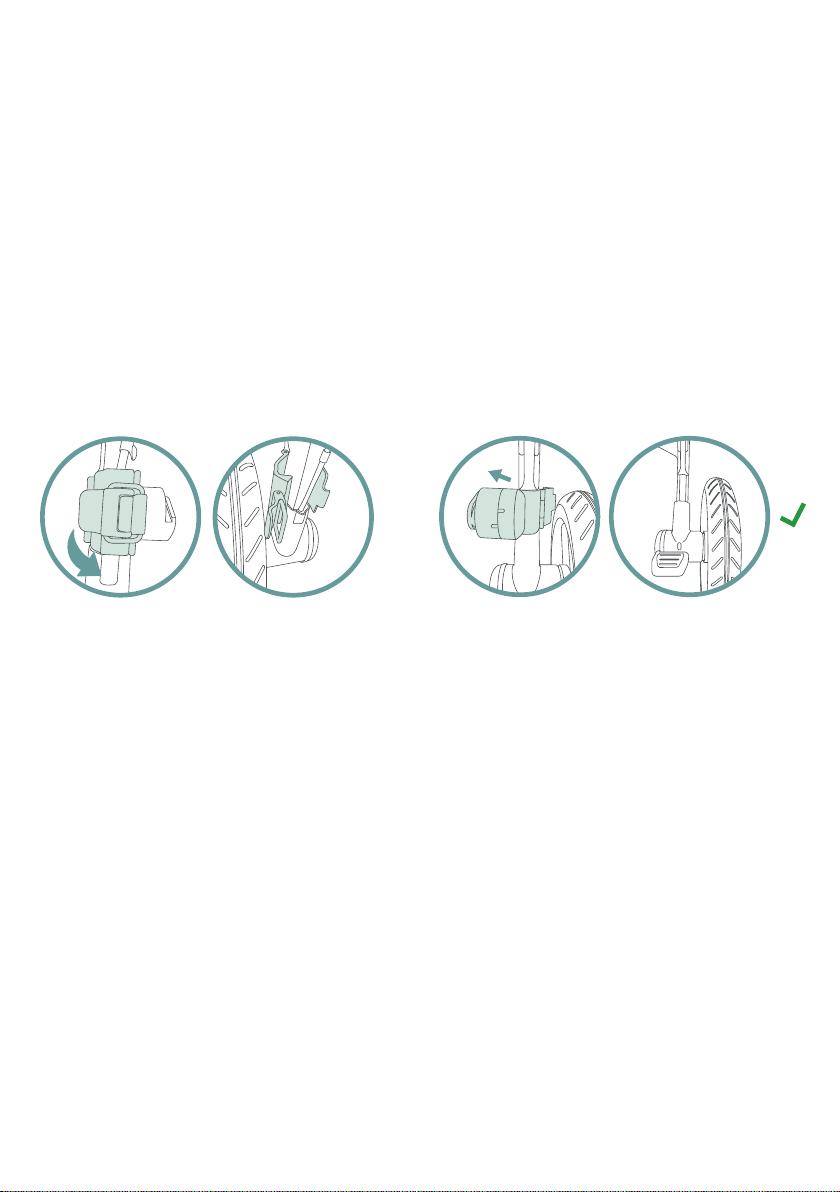

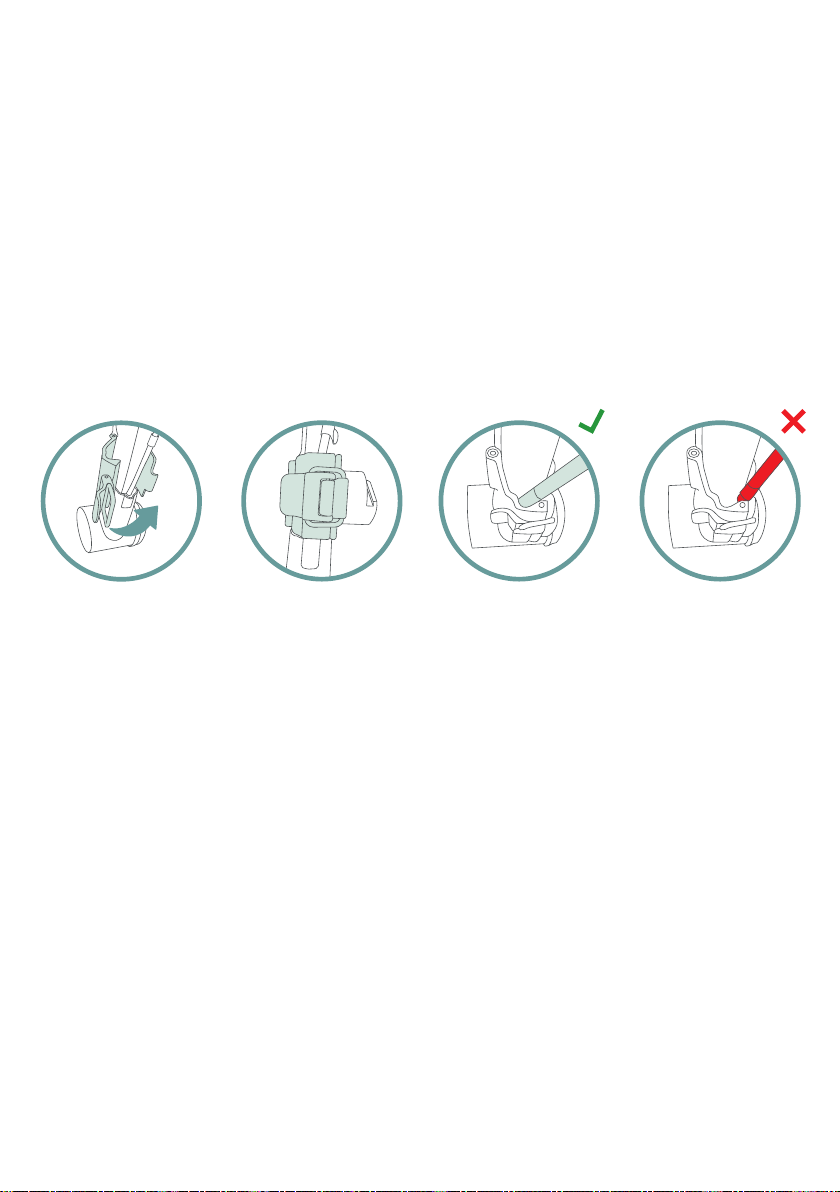

4. Close the plastic and metal
clasp on the underside of the
stroller frame.
5. Repeat with the second
connector. Once
attached, reattach rear
wheels on stroller.
Note: Ensure the brake cable is
inside the channel on the clamp. If
not fitted correctly, the cable may
jam and interfere with the brake
system.

STROLLER BOARD - USE + CARE GUIDE
11
3. Repeat with the
second connector.
1. Undo the connector’s
metal and plastic clasp
on the underside of the
stroller frame.
Removing the connectors
2. Remove the
connector.

STROLLER BOARD - USE + CARE GUIDE
12
Using the Stroller Board
1. Ensure the inner side of
the connector on the
stroller frame is in a vertical
position. If necessary, twist
it into position.
Attaching the Stroller Board
2. Position the arms of the
Stroller Board above each
of the connectors and slide
them down into place.
You will hear a click when
the Stroller Board connects.
3. Pull upwards on the
Stroller Board arms to
ensure it is secure.

STROLLER BOARD - USE + CARE GUIDE
13
1. Locate the Stroller Board
release buttons on top of
each arm, alongside the
connection points.
Removing the Stroller Board
2. Press both release buttons
and simultaneously lift the
Stroller Board arms upwards.

STROLLER BOARD - USE + CARE GUIDE
14
Storing the Stroller Board
1. Lift the stroller board until
it holds in storage position
1 after 1 click.
1. Lift the stroller board until
it holds in storage position
2 after 2 clicks.
Storage Position 1. Storage Position 2.
Note: There are two storage positions for the Stroller Board.
Note: When
using storage
position 2 on the
Oscar M stroller,
the Stroller Board
will push the frame
of the storage
basket upwards.

STROLLER BOARD - USE + CARE GUIDE
15
Approved configurations
Olive

STROLLER BOARD - USE + CARE GUIDE
16
Oscar M

STROLLER BOARD - USE + CARE GUIDE
17
Store your Stroller Board carefully
Store inside in a well-ventilated, dry area.
Do not store in a damp environment that is not well insulated (such as an
unfinished basement or outdoor shed).
Store when dry, not damp or wet.
Store away from direct sunlight.
Do not place heavy objects on top of your Stroller Board or accessories.
NEVER allow your Stroller Board to come into contact with corrosive
substances. Examples are battery acid or petroleum products. Corrosion
is not covered under our warranty - see the Warranty in this Instruction
Manual.
Clean your Stroller Board carefully
NEVER clean any part of the Stroller Board with abrasive, ammonia-
based, bleach-based or spirit-based cleaners.
Dry your Stroller Board carefully
Dry the Stroller Board thoroughly before storing it.
Check regularly for wear and tear
Check regularly for wear and tear on all Stroller Board parts.
Inspect your Stroller Board regularly
Inspect your Stroller Board regularly to maintain it. Regular inspection
ensures the locking devices are working correctly and essential
components are secure.
How to care for and maintain
your Stroller Board

STROLLER BOARD - USE + CARE GUIDE
18
Do not use your Stroller Board on the beach
Do not use your Stroller Board on the beach. Salt and moisture can
damage moving parts. Even salty atmospheric conditions can affect the
Stroller Board’s mechanisms.
If you live within 3kms of the sea, take extra care to park/store your
Stroller Board indoors and away from wind. Salt water carries in strong
winds and is extremely corrosive.

STROLLER BOARD - USE + CARE GUIDE
19
Warranty
All Edwards & Co products are guaranteed for two years
from the date of shipping against defects in material and
workmanship.
If we determine that the product has a manufacturing fault, we will repair or
replace it free of charge to you. The decision to repair or replace is solely at
the discretion of Edwards & Co Proof of purchase must be provided.
The warranty is “return to base” and not a free in-home service. This means
the customer is responsible for any inwards freight charge to return the
product to an Edwards & Co representative for warranty or service.
Our warranty excludes claims resulting from misuse, abnormal use,
overloading, general wear and tear, child outgrowing the product, not
following instructions, transportation damage (including airline or freight
damage), poorly maintained product, dropped goods, negligence, second-
hand product, modified product, colour fading, over inflation, mould, damage
to handle foam in use or fabric cuts and tears. Our warranty also does
not cover tyre punctures or corrosion to frames or fasteners as a result of
atmospheric or environmental conditions.
Any replacement will not give the right for the warranty period to be
extended.
Edwards & Co does not cover warranty if the product has been purchased
second hand or from an unauthorised reseller.
For the complete terms and conditions of our warranty, please visit our
website — edwardsandco.nz/pages/warranty
