Edwards & Co OSCAR MX HMV501 User manual

INSTRUCTION
MANUAL
OSCAR MX
HMV501
IMPORTANT - Keep these instructions for future
reference.
ALWAYS FOLLOW THE MANUFACTURERS INSTRUCTIONS.
READ ALL INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY AND USE OF THIS
STROLLER. THE CORRECT USE AND MAINTENANCE OF THIS PRODUCT IS
ESSENTIAL.
Suitable from children 6 months to 20 kg (or newborn to 20kg with
the Newborn Insert Cushion accessory).
Independently safety tested for compliance to the Australian
and New Zealand standard AS/NZS 2088:2013 and European EN

WARNINGS Australia/NZ
• ALWAYS APPLY THE BRAKES WHEN THE
STROLLER IS STATIONARY.
• DO NOT LEAVE CHILDREN UNATTENDED.
• SECURE THE CHILD IN THE HARNESS AT ALL
TIMES.
• DO NOT CARRY EXTRA CHILDREN OR BAGS ON
THIS STROLLER.
• MAKE SURE CHILDREN ARE CLEAR OF ANY
MOVING PARTS IF YOU ADJUST THIS STROLLER.
• USE THE HARNESS AT ALL TIMES.
• USE THE STRAP TO STOP THE STROLLER
ROLLING AWAY.
• DO NOT USE THE BASSINET ONCE THE CHILD
CAN SIT UP UNAIDED.
WARNINGS!: TO AVOID
INJURY OR DEATH:

WARNINGS Europe
WARNING!: TO AVOID
INJURY OR DEATH:
• Ensure that all the locking devices are engaged
before use.
• Never leave your child unattended.
• To avoid injury ensure that your child is kept
away when unfolding and folding this product.
• Do not let your child play with this product.
• Always use the restraint system.
• Check that the pram body or seat unit or car seat
attachment devices are correctly engaged before
use.
• This product is not suitable for running or skating.
• It is only safe to use the main seat with a newborn
baby when the seat is at full recline angle AND
with the newborn liner (sold separately).

• THE MAXIMUM WEIGHT OF THE CHILD USING THIS STROLLER
IS NOT TO EXCEED 20KG.
• THE MAXIMUM WEIGHT OF THE CHILD USING THIS STROLLER
WITH THE CAR SEAT CAPSULE ATTACHMENT IS NOT TO
EXCEED 13KG.
• THE MAXIMUM WEIGHT OF THE CHILD USING THIS STROLLER
WITH THE CARRY COT/BASSINET ATTACHMENT IS 9KG.
• THE MAXIMUM WEIGHT CAPACITY OF THE STORAGE BASKET
IS 5KG.
• THE MAXIMUM WEIGHT CAPACITY OF THE SEAT POCKET IS
1KG.
• THE SEAT IS ONLY SUITABLE FROM NEWBORN WHEN USING
THE NEWBORN INSERT CUSHION ACCESSORY. OTHERWISE IS
IT SUITABLE FROM 6 MONTHS.
• Do not carry extra children or bags on this stroller.
• Accessories not approved by Edwards & Co shall not be used with
this stroller.
• Do not use any other mattress in the Carry Cot/bassinet other than those
supplied by Edwards & Co.
• Do not place or attach weight on the handle or side of the stroller as it will
impact the stability of the frame.
• The stroller is not intended to be a substitute baby cot or bed. It is only
designed to enable safe transportation of children.
• Always take your child out of the stroller when on stairs.
• This stroller is designed for use on flat and gentle sloping surfaces. Take
care on higher sloping or uneven surfaces as there is a risk of the stroller
tipping over.
• There is a risk of fingers being jammed in moving parts when folding or
unfolding the stroller. Take care of fingers and NEVER let children fold or
unfold the stroller.
• Salt water or excessive moisture may cause corrosion on the fastenings
and moving parts of this stroller. Store your stroller in a sheltered
dry place and avoid beach use where possible. Corrosion caused by
environmental factors is not covered by the manufacturer warranty.
GENERAL WARNINGS (cont.)
WARNING!: TO AVOID
INJURY OR DEATH:

• Keep away from fire and extreme heat. Do not store in areas that
may get particularly hot in summer like roof space or beside shed
walls.
• Do not place heavy weights on the handle of the stroller as it will
impact the stability of the frame.
• The stroller is not intended to be a substitute baby cot or bed. It
is only designed to enable safe transportation of children.
• Always take your child out of the stroller when on stairs.
• To avoid serious injury, always use the safety harness when your
child is in the stroller. Always adjust the straps to suit the size of
your child’s body and to fit it firmly. A loose restraint or harness
is DANGEROUS.
• Never leave a harness connected when not fitted to a child in the
stroller. The harness can form loops which may be a strangulation
hazard.
• The buckle SHOULD ALWAYS be easily accessible. It is
important that your child can be released quickly in the event of
an emergency.
When jogging:
• Jogging with the stroller can be dangerous. We do not
recommend jogging over 8kph with this stroller.
• Only jog with a child that can sit up unaided.
• Always use the front wheel locked in fixed position.
• Always use the handle bar safety strap.
• Only jog on flat terrain, away from traffic or areas with dangerous
hazards.
• Change direction with small adjustments. Never turn the direction
of the stroller at speed at this risks the stroller tipping.
• Always have your child strapped to the seat tightly with bumper
bar installed..
• Always use the stroller in forward-facing position, with the seat
upright.
• Do not jog using the car seat or carry cot accessory.
GENERAL WARNINGS (cont.)
WARNING!: TO AVOID
INJURY OR DEATH:

STROLLER COMPONENTS
The product should come with the following:
Main components
• Stroller frame.
• Seat unit with harness and bumper bar.
• Three wheels.
• Sun canopy.
• Storage basket.
Folding trigger
Brake
Rear wheel
Front wheel
Sun canopy
Buckle
Swivel lock
Bumper bar
Handlebar

Rear wheels: Removal
Press the release button located on the wheel hub and pull the wheel
outwards.
Rear wheels: Installation
Locate the metal rod on the wheel. Whilst pressing the wheel hub
release button, insert the rod into the rear wheel housing located on
the axle. The wheel has successfully installed when you hear a CLICK!
Once installed, pull the wheel to confirm a proper connection.
ASSEMBLY: Wheel installation and removal

Front wheels: Removal
Push the button on the back of the wheel housing and pull outwards.
Front wheels: Installation
Insert the wheel rod into the front wheel housing until you hear a
CLICK!
Once installed, pull the wheel to confirm a proper connection.
ASSEMBLY: Wheel installation and removal
CARRYING THE STROLLER
We recommend lifting the stroller by grabbing the area near the fold
hinge.
ALWAYS make sure the fold lock is secured before lifting or carrying
the stroller.

Unfolding:
1. Make sure the brake is engaged.
2. Stand the stroller upright.
3. Lift the fold lock located on the right hand side of the frame away
from the catch clip.
4. Slowly pull the handle of the stroller upwards.
5. The stroller will unfold and CLICK! into place.
ASSEMBLY: Unfolding the stroller

FOLDING THE STROLLER
Folding:
Note - the seat unit must be in forward facing position, or removed, to
fold.
1. Apply the brakes.
2. Adjust the seat recline to an upright position.
3. Locate the two folding triggers. With both hands, slide the
triggers towards you.
4. Push the handlebar towards the floor until the fold lock engages.
The fold lock prevents the stroller from unfolding when carrying.
5. For a more compact fold, adjust the footrest.

ATTACHING & REMOVING THE SEAT
Attaching
1. To install the seat unit, insert the tongues on the seat unit into the
stroller frame adapter housing. You can install the seat in forward
or reverse position.
Removing
1. There are two buttons located on the stroller frame, just
underneath where the seat unit’s tongue connects . Press one of
the release buttons until it depresses (it will stay depressed).
2. Press the second release button on the other side until it
depresses. You do not need to press each button simultaneously.
3. Lift the seat unit up as pictured.

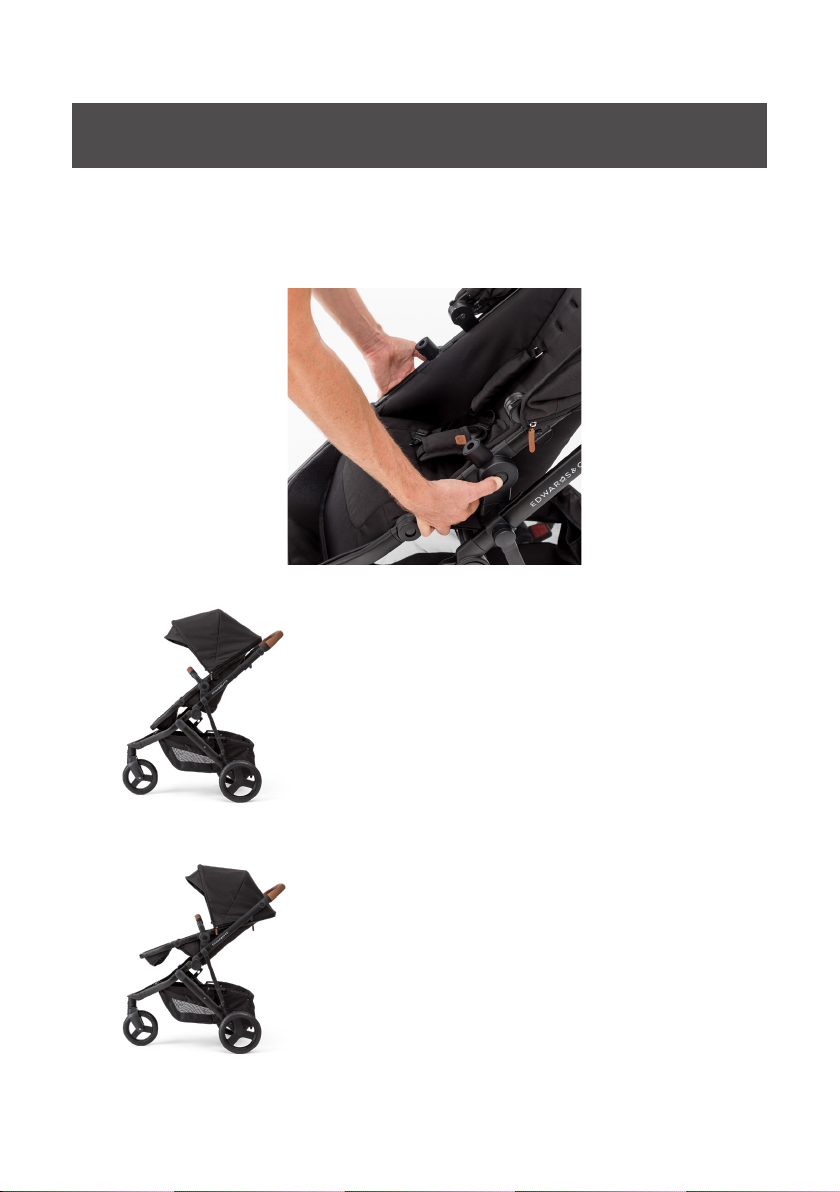

SEAT RECLINE
To adjust the recline, press the buttons on each side of the seat unit
and raise or lower the seat to the desired position. There are three
height settings.
1. Upright - suitable from 6 months +
2. Reclined - a sleeping position from
6months+.

SEAT RECLINE
3. Lie Flat- suitable from newborn only
when used with the Newborn Insert
Cushion (sold separately). See next
page.
FOOT REST
To raise or lower the leg rest, press the two buttons on both sides of
the leg rest hinge and move to your desired position.

USING THE NEWBORN INSERT CUSHION
The Newborn Insert Cushion converts the seat unit into an approved
safe surface suitable for newborn babies.
This accessory can be purchased from Edwards & Co or your nearest
retailer.
The Newborn Insert Cushion should only be used with the seat unit
in fully reclined position. NEVER use the liner in a semi-reclined or
upright position.
To install:
1. Remove the seat unit’s shoulder pads and crotch pads.
2. Adjust the shoulder strap height to the lowest position.
3. Thread the shoulder belts through the liner, through the loop on
the back of the head hugger, through the shoulder pads and finally
connect them to the buckle.
4. Pull the lumbar and crotch belts through the liner and connect
them to the buckle.
5. The final installation is pictured below.

ATTACHING & REMOVING THE CARRY COT
Attaching
1. Insert Carry Cot’s adapter tongues into the stroller frame adapter
housing. We only recommend installing the Carry Cot in reverse
facing position (with baby looking at you).
Removing
1. There are two buttons located on the stroller frame, just
underneath where the Carry Cot’s tongue connects . Press one of
the release buttons until it depresses.
2. Press the second release button on the other side until it
depresses. You do not need to press each button simultaneously.
3. Lift the Carry Cot up as pictured.
IMPORTANT - Only the Edwards & Co Carry Cot (M Series) can be connected
with the Edwards & Co Oscar Mx. Do not use other brands.
WARNING - DO NOT USE THE CARRY COT WHEN BABY CAN SIT UP
UNAIDED OR WHEN THEIR WEIGHT EXCEEDS 9KG. WHATEVER IS EARLIER.

Attaching
1. Insert Avery’s adapter tongues into the stroller frame adapter
housing. We only recommend installing the Avery car seat in
reverse facing position (baby looking at you).
Removing
1. There are two buttons located on the stroller frame, just
underneath where the car seat’s tongue connects . Press one of
the release buttons until it depresses.
2. Press the second release button on the other side until it
depresses. You do not need to press each button simultaneously.
3. Lift the car seat up as pictured.
IMPORTANT - Only the Edwards & Co Avery Car Seat (FA0062) can be
connected with the Edwards & Co Oscar Mx.
IMPORTANT - The maximum weight capacity of the car seat is 13kg.
IMPORTANT - The car seat is not a subsitute for a bassinet or bed. Do not
leave your child unattended in the car seat.
ATTACHING & REMOVING AVERY CAR SEAT

ATTACHING A MAXI-COSI STYLE CAR SEAT
Attaching the adapters
1. Locate your Maxi-Cosi/Universal Car Seat adapter (sold separately).
2. Identify the Left and Right adapter (stamped on the underside with either
L or R). Left side = Left side when standing at the handlebar. Right side
= Right side when standing at the handlebar.
3. Connect the appropriate adapter to the stroller’s seat housing.
Removing the adapters
1. There are two buttons located on the stroller frame, just underneath
where the adapter connects . Press one of the release buttons until it
depresses. Lift out the adapter.
2. Press the second release button on the other side until it depresses. Lift
up the adapter.
Attaching & removing the car seat
1. To attach the car seat, place the car seat’s adapter housing on top of the
adapters until you hear a CLICK!
2. To remove the car seat, simultanously release the buttons on the side of
the car seat shell and lift upwards (for more information please refer to
your car seat’s instruction manual).

BUMPER BAR
Attaching
1. Insert the tongue on the bumper bar into the housing on the seat
until it clicks. Pull the bar to ensure it’s connection.
Removing
2. Press the button underneath the bumper bar and pull out
simultaneously.
HANDLEBAR HEIGHT ADJUSTMENT
Press the buttons on the outside of the handlebar and raise or lower
as required.

BUCKLE
Locking the buckle
1. Insert each tongue into the buckle until you hear a CLICK!
2. Repeat for each tongue x 4.
Unlocking the buckle
1. Press the button at the centre of the buckle.

SHOULDER STRAP HEIGHT
There are three height slot positions for the shoulder straps. As your
child grows, you will need to move the straps according to your
child’s height. The correct height is where the straps are about level
or just above your child’s shoulders. The picture on the next page
demonstrates the correct installation.
To adjust the height - find the harness loops inside behind the seat.
Remove and insert the hooks into the loops.
