Efco SWAPLOADER SL-412 User manual

“Hooked on Quality”
PARTS AND OPERATION MANUAL
HOIST SERIAL NUMBER
MODEL
SL-412



0.0.TOC.SL-412
TABLE OF CONTENTS
I. INTRODUCTION
Letter to Customer .....................................................................................................................................1-1
Warranty Statement ..................................................................................................................................1-2

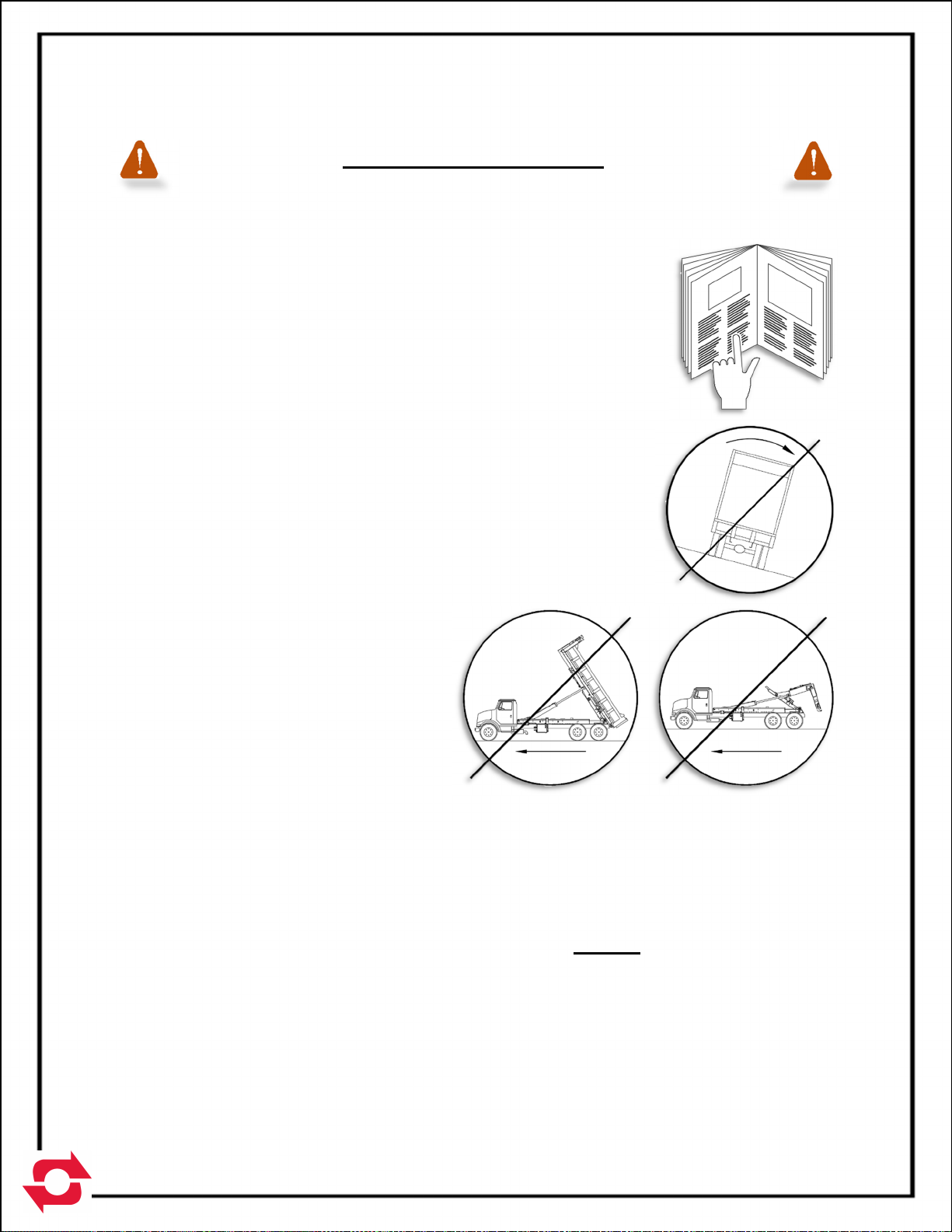

Safety Suggestions ....................................................................................................................................1-4
Decals ........................................................................................................................................................1-6
Serial Number Locations............................................................................................................................1-9
II. INSTALLATION
Initial Inspection .........................................................................................................................................2-1
General Installation Procedure .................................................................................................................. 2-1
Hoist Installation.........................................................................................................................................2-2

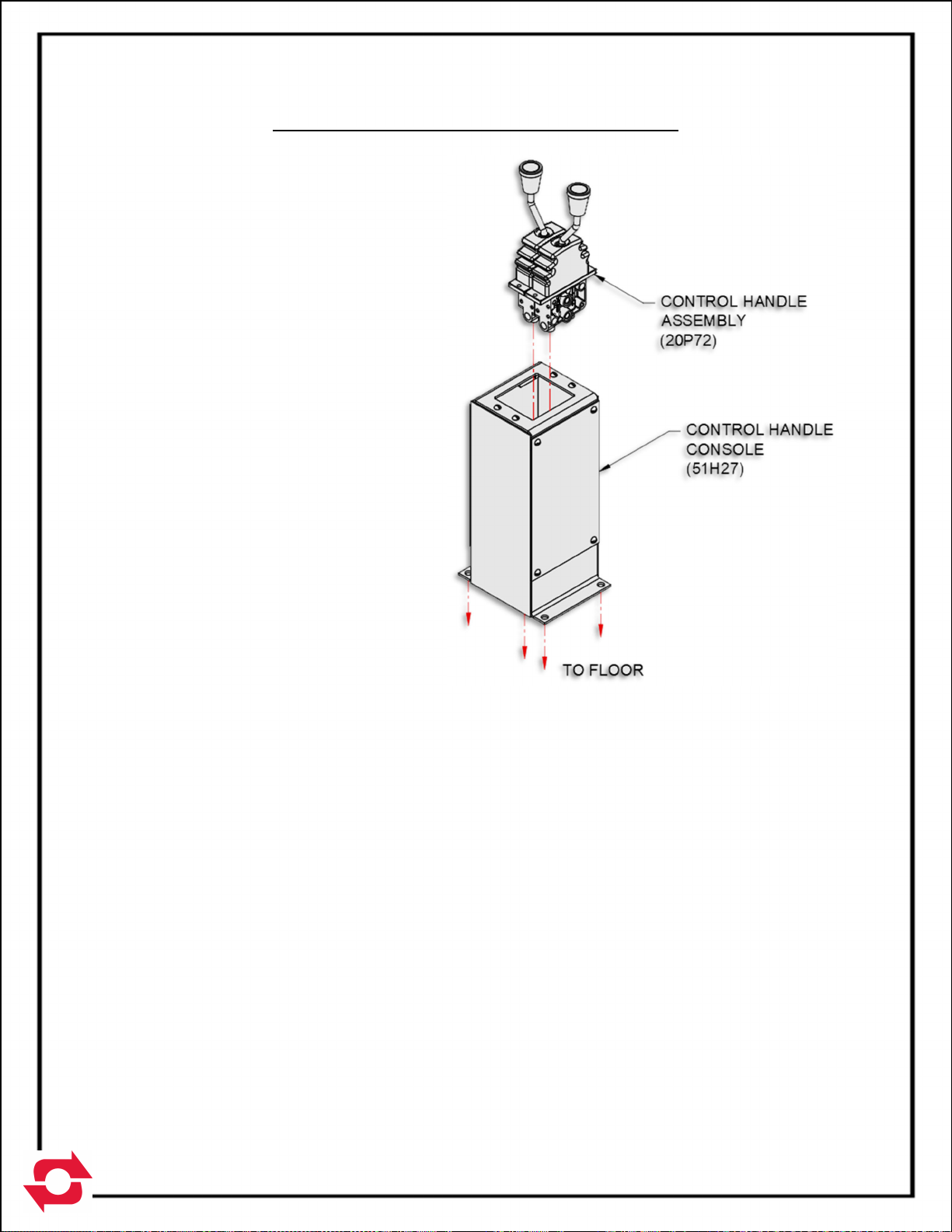

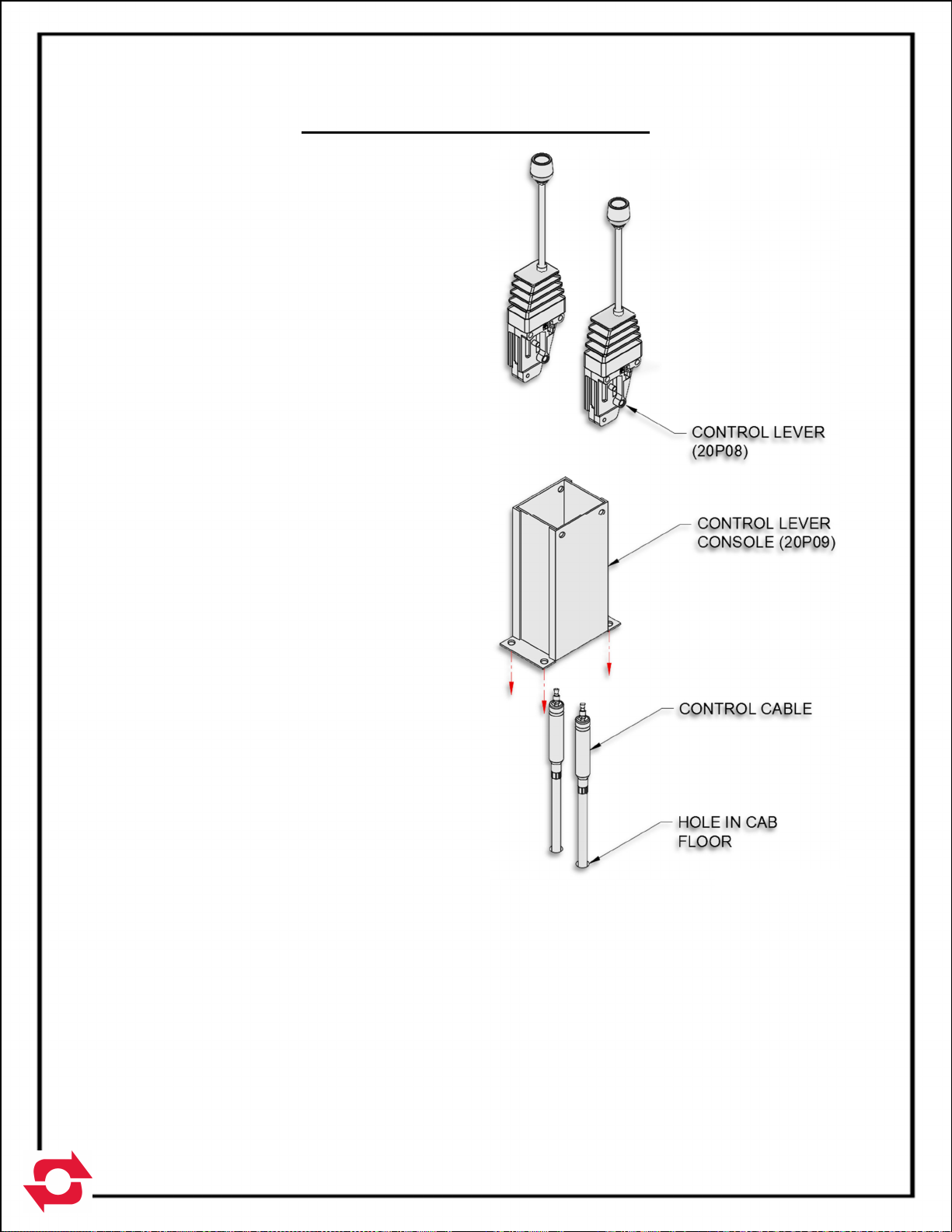

Controls Installation – Manual Shift ...........................................................................................................2-4
Controls Installation – Air Shift...................................................................................................................2-6
Air Control Installation w/ U-Lock (Option).................................................................................................2-7
P.T.O. Selection .........................................................................................................................................2-8
Pump Installation........................................................................................................................................2-9
Hydraulic Tank Installation .......................................................................................................................2-10
Start Up Procedure ..................................................................................................................................2-11
Subframe Critical Dimensions..................................................................................................................2-12
Stabilizer Installation (Option) ..................................................................................................................2-14
Accessory Installation
Bumper Assembly..............................................................................................................................2-17
Bumper Assembly w/ Extension ........................................................................................................ 2-19
Folding Bumper Assembly................................................................................................................. 2-21
Drop Down Bumper Assembly ..........................................................................................................2-23
Fender Assembly, Tandem Axle .......................................................................................................2-25
Rear Light Bar Assembly...................................................................................................................2-27
Roller & Roller Mount ........................................................................................................................2-31
Toolbox Assembly .............................................................................................................................2-33
III. OPERATION
Loading a Container...................................................................................................................................3-1
Dumping a Container .................................................................................................................................3-2
Placing a Container on the Ground............................................................................................................3-3
Changing Hook Heights (Adj. Jib Option) ..................................................................................................3-4
Rear Roller Spacing Adjustment Instructions ............................................................................................ 3-9
IV. MAINTENANCE
Maintenance Instructions ...........................................................................................................................4-1
Lubrication Diagram ................................................................................................................................... 4-2
Hydraulic Oil Specifications & Interchange Chart ......................................................................................4-3
Hydraulic Filter Element Specification .......................................................................................................4-3
Mast Lock (Pivot Lock) Inspection & Adjustment Instructions ................................................................... 4-4
Jib Lockout Valve Inspection & Adjustment Instructions ........................................................................... 4-5
Pressure Check Instructions ......................................................................................................................4-7
Outer Tube and Jib Wear Pad Replacement Instructions ......................................................................... 4-9




0.0.TOC.SL-412
V. PARTS
Base Hoist w/ Fixed Jib Assembly .............................................................................................................5-1
Main Frame Sub-Assembly........................................................................................................................5-2
Pivot Joint Sub-Assembly ..........................................................................................................................5-3
Outer Tube Sub-Assembly......................................................................................................................... 5-4
Pivot Lock (Mast Lock) Sub-Assembly ......................................................................................................5-5
Fixed Jib Sub-Assembly.............................................................................................................................5-6
Hoist Installation Kit.................................................................................................................................... 5-7
Base Cylinder Circuit..................................................................................................................................5-8
Tank Circuit ................................................................................................................................................5-9
Pump Circuit.............................................................................................................................................5-10
Manual Controls, 2-Section......................................................................................................................5-11
VI. OPTIONS
Adjustable Jib Sub-Assembly.....................................................................................................................6-1
Cylinder Circuit, BL 412 STD ..................................................................................................................... 6-2
U-Lock Assembly .......................................................................................................................................6-3
Air Controls, 2-Section ............................................................................................................................... 6-4
Manual Controls, 3-Section........................................................................................................................6-6
Manual Controls, BL 3-Section ..................................................................................................................6-7
Air Controls, 3-Section ............................................................................................................................... 6-8
Air Controls, BL 3-Section..........................................................................................................................6-9
Tank Circuit, 3-Section 412......................................................................................................................6-11
Stabilizer Assembly..................................................................................................................................6-12
Stabilizer Circuit .......................................................................................................................................6-13

SectionI:Introduction

1.0.INT.SL-412
TO THE CUSTOMER:
Your new SwapLoader Hoist was carefully designed and manufactured to give years of
dependable service. To keep it operating efficiently, read the instructions in this manual
thoroughly. It contains detailed descriptions and instructions for the efficient operation
and maintenance of your SwapLoader. Each section is clearly identified so you can
easily find the information that you need. Read the Table of Contents to learn where
each section is located. All instructions are recommended procedures only.
Throughout this manual you will come across "Dangers," "Warnings," or
"Cautions" which will be carried out in bold type and preceded by the symbol
as indicated to the left. Be certain to carefully read the message that follows to
avoid the possibility of personal injury or machine damage.
Record your SwapLoader Hoist serial number in the appropriate space provided on the
title page. Your SwapLoader dealer needs this information to give prompt, efficient
service when ordering parts. It pays to rely on an authorized SwapLoader Distributor for
your service needs. For the location of the Distributor nearest you, contact SwapLoader.
NOTE: It is SwapLoader's policy to constantly strive to improve SwapLoader products.
The information, specifications, and illustrations in this publication are based on the
information in effect at the time of approval for printing and publishing. SwapLoader
therefore reserves the right to make changes in design and improvements whenever it
is believed the efficiency of the unit will be improved without incurring any obligations to
incorporate such improvements in any unit which has been shipped or is in service. It is
recommended that users contact an authorized SwapLoader Distributor for the latest
revisions.
1-1

SectionI:Introduction


1.0.INT.SL-412
LIMITED WARRANTY STATEMENT
Effective August 1, 2023
SwapLoader U.S.A., Ltd., (SwapLoader), warrants to the original purchaser of any new SwapLoader product sold by an authorized
SwapLoader distributor or service center, that such products are free of defects in material and workmanship. All SwapLoader products
with an original factory in-service date of August 1, 2023, or later qualify for warranty as defined in this Limited Warranty Statement.
1 YEAR 4 YEAR 5 YEAR
Not to extend
beyond 24 months
from the original
factory ship date
Not to extend
beyond 60 months
from the original
factory ship date
Not to extend
beyond 72 months
from the original
factory ship date
HOIST
Manufactured Components
SwapLoader Manufactured Parts (excludes replacement or service parts)
includes but not limited to:

WeldmentsPins
HardwarePiece Parts
Repair Labor 
Vendor Supplied Components
Cylinders 

Hoses 

Fittings 

Jib Lockout Valve 

Hydraulic Body Lock Cylinder 
Repair Labor 

1 YEAR 4 YEAR 5 YEAR
Not to extend
beyond 24 months
from the original
factory ship date
Not to extend
beyond 60 months
from the original
factory ship date
Not to extend
beyond 72 months
from the original
factory ship date
OPTIONS & ACCESSORIES
Manufactured Components
SwapLoader Manufactured Parts (excludes replacement or service parts)
includes but not limited to:

BumpersSub-Frames
Stabilizers(structural)
Dual Rollers
Repair Labor 
Vendor Supplied Components
Includes but not limited to:
Reverts to Vendor Warranty
PumpsEHVs
ValvesControls
 SensorsTanks
ToolboxesTarps
LightsFenders
PTOsAll vendor replacement parts
Repair Labor
1-2

SectionI:Introduction

1.0.INT.SL-412
Coverage Start Date:
Derived from the completed warranty registration at www.swaploader.com/warranty-registration/. In the event warranty
registration is not completed, the factory ship date will be used.
Items under “hoists” or “manufactured components” on page 1 are allowed a 12-month period between factory shipment
and in service date to account for distributor stock.
Warranty Process:
Unless otherwise stated the following warranty process must be followed for repairs and/or replacement parts to be
covered:
Prior to any parts orders or repair work, contact SwapLoader at 888-767-8000 or w[email protected] to
initiate a claim and pre-authorize repairs.
Distributor will then order replacement parts and SwapLoader will invoice the distributor for the replacement parts
and freight.
After authorized repair is completed the distributor must submit a fully completed warranty claim form.
If required by SwapLoader, defective parts will be assigned an RGA (return goods authorization) number, and those
parts must be returned freight prepaid with a copy of the RGA form within 30 days of repair or credit consideration
will not be given.
Upon evaluation of the returned parts if warranty is approved credit will be issued to the appropriate distributor
account for the approved warranty costs which may include parts, labor, and/or freight.
SwapLoader will, at its discretion, adjust labor credit to pre-authorized or known repair times for covered repairs or
service.
Warranty Limitations & Responsibilities:
Warranty service must be performed by a distributor or service center authorized by SwapLoader to sell and/or service
SwapLoader products. Distributors or service centers will use only new or remanufactured parts or components furnished
by SwapLoader U.S.A. LTD.
Defects in material and workmanship must be reported to SwapLoader immediately at time of discovery, subsequent
damage caused by delay of defect reporting and repair will not be covered under warranty.
Defects observed inside of the active warranty period and reported outside of the active warranty period will not be
covered.
Warranty service, repairs or returns must be pre-authorized by SwapLoader to be considered for credit.
SwapLoader will, at its discretion, either repair defective parts or replace them with equivalent parts.
SwapLoader will ship any replacement parts by the most economical, yet expedient means possible. Expedited freight
delivery will be at the expense of the owner.
Labor rates and credits are determined by the SwapLoader Distributor agreement.
This warranty covers only defective material and workmanship. It does not cover depreciation or damage caused by
normal wear and tear, accident, mishap, untrained operators, or improper or unintended use. The owner has the
obligation of performing routine care and maintenance duties as stated in SwapLoader’s written instructions,
recommendations, and specifications. Any damage resulting from owner/operator failure to perform such duties shall void
the coverage of this warranty. The cost of labor and supplies associated with routine maintenance will be paid by the
owner.
Warranty Registration must be submitted within 15 days of Retail Sale of SwapLoader hoist to www.swaploader.com. If
unit has not been registered, then the warranty start date will revert to the original factory ship date. Warranty Registration
is the ultimate responsibility of the owner. If the owner is unsure product registration has been completed, contact
SwapLoader at 888-767-8000 or send email [email protected]et to confirm.
In no event will SwapLoader, the SwapLoader distributor or any company affiliated with SwapLoader be liable for
business interruptions, costs of delay, or for any special, indirect, incidental, or consequential costs or damages. Such
costs may include, but are not limited to:
loss of time
loss of revenue
loss of use
wages
salaries
commissions
lodging
meals
towing
hydraulic fluid
travel
mileage
any other incidental
costs
Warranty shall not apply if the equipment is operated in abnormal conditions or operated at capacities more than factory
ratings.
Warranty is expressly void if the seal on the main relief control valve has been tampered with or broken.
Warranty is expressly void if serial number plate or stamping is tampered with.
Paint, plating, and coatings are not covered under this warranty policy.
All products purchased by SwapLoader from outside vendors shall be covered by the warranty offered by that respective
manufacturer unless defined otherwise on page 1.
IT IS EXPRESSLY UNDERSTOOD AND AGREED THAT THERE ARE NO WARRANTIES MADE BY THE MANUFACTURER OR ITS
AGENTS, REPRESENTATIVES OR DISTRIBUTORS, EITHER EXPRESSED, IMPLIED, OR IMPLIED BY LAW, EXCEPT THOSE
EXPRESSLY STATED ABOVE IN THIS STANDARD LIMITED WARRANTY AGAINST DEFECTS IN MATERIAL AND WORKMANSHIP.
THE MANUFACTURER AND ITS AGENTS, REPRESENTATIVES AND DISTRIBUTORS SPECIFICALLY DISCLAIM ANY IMPLIED
WARRANTY OR MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE.
1-3

SectionI:Introduction


1.0.INT.SL-412
SAFETY SUGGESTIONS
1.
Do not operate or service this equipment until you have
been properly trained and instructed in its use and have
read the operation and service manual.
2.
Do not operate this equipment on uneven ground.
3.
Do not drive with the hoist in the
dump position or with the hook to
the rear.
4.
Do not exceed 1,500 Engine RPM when operating the Power Take Off (P.T.O.).
Never leave the P.T.O. in gear while transporting.
5.
The hoist must be used with containers that properly fit the hook and rear hold-
downs. The container specifications must match the hoist specifications.
6.
Keep the containers and hoist in good working order. DO NOT use if repairs are
needed. Perform periodic inspections and maintenance as required by the
maintenance section of the operator’s manual.
1-4

SectionI:Introduction

1.0.INT.SL-412
7.
Make sure work area is clear of people and obstacles prior
to dumping or unloading containers. SwapLoader strongly
recommends that a backup alarm be installed on the truck
chassis. The operation of the hook hoist is that the truck is
backed up to the body to pick it up and so there is a
potential pinch point between the body and the hook.
8.
Any container, which is on the hoist, MUST be unloaded
prior to performing any repairs or maintenance to the hoist.
Also, DO NOT allow any person to work on or be under the
hoist in a raised position without first installing adequate
safety blocks to eliminate all possibility of the hoist
accidentally lowering. SwapLoader strongly recommends
that, if possible, the container should be dismounted from
the hoist prior to performing any maintenance to the hoist.
9.
It is the responsibility of the owner and/or installer to ensure that any additional safety
devices required by state or local codes are installed on the SwapLoader Hoist
and/or Truck Chassis.
10.
Keep away from overhead power lines. Serious injury or
death can result from contact with electrical lines. Use care
when operating hoist near electrical lines to avoid contact.
11.
Avoid contact with high-pressure fluids. Escaping fluid
under pressure can penetrate the skin causing serious
injury. Avoid hazardous conditions by relieving pressure
before disconnecting hydraulic or other lines. Tighten all
connections before applying pressure. Search for leaks with
a piece of cardboard, while protecting hands and body from
the high-pressure fluids.
12.
It is the responsibility of the owner to provide proper maintenance of the Safety
Decals. Regular inspection and replacing of Safety Decals that have any fading or
damage which would impair their function should be done (See the illustration on the
following page for location of Safety Decals).
1-5

SectionI:Introduction


1.0.INT.SL-412
ITEM QTY P/N DESCRIPTION
1 2 90P07 OPERATION & SERVICE MANUAL
2 2 90P08 HOIST-BODY SPECIFICATIONS
3 ONE 90P09 HYDRAULIC OIL SPECIFICATIONS
4 ONE 90P10 HYDRAULIC OIL FLAMMABLE
5 2 90P11 HOIST FALLING
6 ONE 90P12 LEVER CONTROL
7 ONE 90P13 SAFETY INSTRUCTIONS
8 2 90P14 SWAPLOADER - JIB
9 ONE 90P18 RELIEF VALVE
10 ONE 90P78 HIGH PRESSURE FLUID
11 2 91P06 LUBRICATION POINTS
12 4 91P10 SL-412
* 13 2 90P94 ADJ. JIB OPERATION
* Included with the Ad
j
ustable Jib option
1-6

SectionI:Introduction

1.0.INT.SL-412
The following is a list of all the SwapLoader Safety Decals, and their part numbers. Please use
when reordering replacement decals.
90P07 – OPERATIONS & SERVICE MANUAL
90P08 – HOIST-BODY SPECIFICATIONS
90P09 – HYDRAULIC OIL SPECIFICATIONS
90P10 – HYDRAULIC OIL FLAMMABLE
90P11 – HOIST FALLING
90P12 – LEVER CONTROL
90P13 – SWAPLOADER SAFETY
INSTRUCTIONS
1-7

SectionI:Introduction


1.0.INT.SL-412
90P14 – SWAPLOADER - JIB
90P18 – RELIEF VALVE
90P78 – HIGH-PRESSURE FLUID
91P06 – LUBRICATION POINTS
91P10 – SL-412
90P94 – ADJUSTABLE JIB OPERATION
1-8

SectionI:Introduction

1.0.INT.SL-412
Serial Number Locations on a SwapLoader Hoist
























Serial Number Tag is located at
the front driver side of the hoist
(gray arrow on first picture).
The Serial Number is also
stamped into the frame of the
hoist on the top of the “inner rail”
shown at the rear of the
hoist
(red arrow on first picture). An
example of a 6-character serial
number is shown in the second
picture.
1-9

This Page Intentionally Left Blank

SectionII:Installation
2.0.INS.SL-412
INITIAL INSPECTION
When the hoist is installed and ready for delivery, it is
your responsibility to fill out and submit the Product
Registration Form. Visit
https://www.swaploader.com/warranty-registration/ to
complete this form.
When the SwapLoader hoist is received from the factory,
you should inspect the hoist for damage, which may have
occurred in shipment. If damage has occurred, you
should contact the shipper immediately. Be sure to note
any damage or missing items on bill of Lading.
When you receive your SwapLoader hoist, it is your
responsibility to make sure you have received all the parts
and pieces that were ordered, within 30 days of the
invoice date of the hoist. Lay out all the options, loose
parts and accessories on a table and compare the items
received vs the Packing List and the Loose Parts Box
List(s) shipped with the hoist order.
If you have any problems, shortages, or questions, please
contact SwapLoader U.S.A., Ltd. immediately.
GENERAL INSTALLATION PROCEDURE
The installation of the SwapLoader on a truck chassis will generally follow these steps:
1. Install hoist assembly onto truck chassis.
2. Mount the hydraulic control valve to the hoist and install the hydraulic plumbing from the
control valve to the hydraulic cylinders. Then install the control levers in the cab and
route the control cables to the hydraulic control value assembly.
3. Install the hydraulic tank, hydraulic filter, and hydraulic plumbing between the hydraulic
tank and the control valve assembly.
4. Select and install the P.T.O. on the truck transmission. (Note: This can be done prior to
hoist installation on the truck chassis.)
5. Install the hydraulic pump and the plumbing from the pump to the hydraulic tank and
control valve assembly.
6. Fill the hydraulic tank with oil, bleed the air from the pump suction line, and start up the
unit.
Although SwapLoader attempts to include the mounts and attaching fasteners with each hoist
unit, your installation may require some additional mounts or modifications. If you have
problems with your installation, please contact SwapLoader at 1-888-767-8000, as we may be
aware of another customer who has installed a SwapLoader on a similar truck chassis.
2-1

SectionII:Installation

2.0.INS.SL-412
FigureB
HOIST INSTALLATION TO TRUCK CHASSIS
1. Place the SL-412 hoist assembly on the truck chassis. The truck chassis mounting surface
should be flat without any steps or protrusions. If necessary, shim bars need to be added to
ensure a flat surface on which to support hoist. It is advised to clamp the main frame of the
hoist to the truck chassis prior to install of the mount brackets.
The clear frame dimension indicated in Fig. A allows for the overall length of the hoist plus 5
inches for cab clearance and rear light bar mounting. Extra frame length may be needed to
allow for mounting additional accessories (e.g., Cab Guard, Tarper, Light Kit, Stabilizer,
etc.). For example, when mounting a light kit on a truck with a long CA, check that the hoist
and the light kit are positioned far enough back to eliminate any interference between the
fender and the light kit. You should also consider the final weight distribution regarding the
bridge code when positioning the hoist.
NOTE:
THE ABOVE SPECIFICATIONS ARE A MINIMUM REQUIREMENT. IT IS THE RESPONSIBILITY OF THE OWNER/
OPERATOR TO ENSURE THE COMPLETED CHASSIS MEETS OR EXCEEDS ALL FEDERAL, STATE, AND LOCAL
REGULATIONS. ALSO, THE HOIST SHOULD NOT BE USED TO LIFT AND HAUL ANY LOAD THAT EXCEEDS THE LOAD
RATING OF ANY OF THE INDIVIDUAL COMPONENTS OF THE COMPLETED CHASSIS (TIRES, AXLES, SUSPENSION,
ETC.)
FigureA
2-2

SectionII:Installation
2.0.INS.SL-412
2. There are two types of mount brackets used on the Model SL-412 hoist as indicated in Fig.
Band Pg. 5-7. They are the angle brackets (Pt. No 89H51) and the mid brackets (Pt. No.
89H46). Locate the mount brackets on the side of the hoist as indicated in Fig. B. These
dimensions are flexible because of possible interference with chassis components. Also
allow for mounting the control valve assembly and the hydraulic tank. You should consult
the truck chassis supplier for any limitations regarding drilling mount holes in the truck
chassis frame rails. Typically, the holes must be at least 2 3/4” from the top of the truck
chassis rails (reference Fig. C, D & E). Once the locations of the mount brackets have been
determined, use the mount
brackets as a template for marking
the mounting holes in the truck
chassis frame rails. Drill the 21/32”
diameter holes required and attach
the brackets to the truck chassis
with the 5/8” diameter bolts,
washers, and locking hex nuts
provided. Torque to 110 ft.lb.
3. Bolt the mount brackets to the hoist
main frame as indicated on Fig. C,
D and E. You may need to modify
the mount brackets or add shim
plates to allow for variances in the
width of the truck chassis as well
as to allow for top rivets, stepped
channels, etc.
Figure
E
Figure
C
FigureD
2-3

SectionII:Installation


2.0.INS.SL-412
CONTROLS INSTALLATION – MANUAL
1. Attach the valve mount bracket (Pt. No.
41H01) to the main frame as indicated on
Pg. 5-11 with the fasteners provided (see
Pg. 5-7).
2. Mount the hydraulic control valve assembly
(Pt. No. 20P88) to the valve mount bracket
as shown on Pg. 5-11 with the fasteners
provided.
3. Install the hydraulic adapters, connect the
hydraulic tubing & hoses (Pt. Nos. 13P11,
11P98 & 11P99) to the control valve
assembly as indicated on Pg. 5-9. The
tubing should be supported by the clamp
assemblies that are provided in the Loose
Parts Box (see Pg. 5-7).
4. Determine the best location in the cab for
the control levers (Pt. No. 20P08). The
location should be such that the controls
can be easily reached while operating the
truck. A control lever console (Pt. No.
20P09) is provided to facilitate the mounting
of the control levers (see Pg. 5-11).
5. Assemble and install the control lever
console (see Fig. F). Typically, the console
is fastened to the floor of the cab and the
control cables are routed through additional
holes drilled in the floor. Your installation
may require that additional brackets be
fabricated, or other modifications made.
6. Attach the control cables to the control
levers and route the cable through the holes
in the cab. Install the control levers in the
console. Levers should be installed such
that when the levers are pushed forward the
control cable is extended. See Pg. 5-11
(Manual Control Assembly) for control lever orientation.

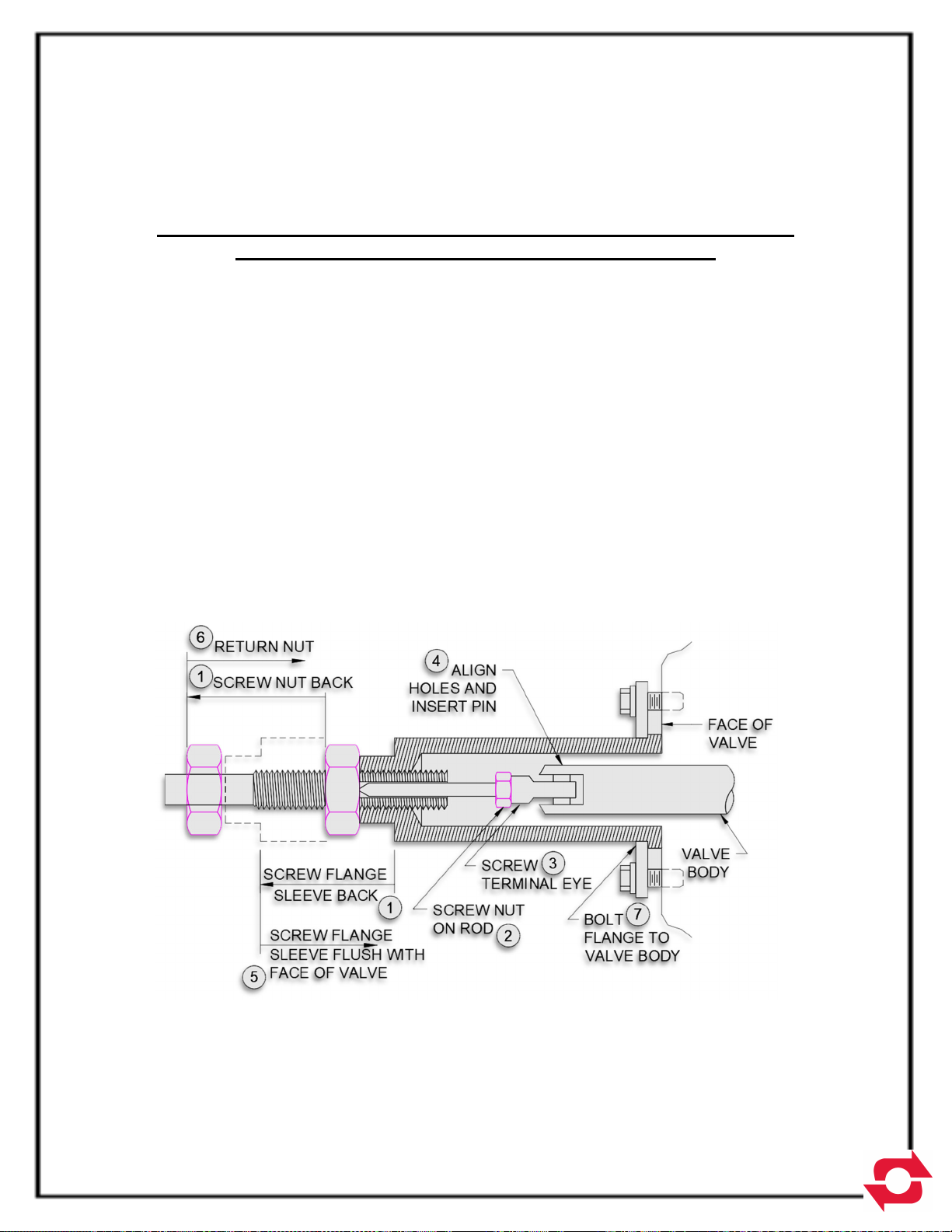

7. Route the cables to the control valve location and attach them to the control valve with the
bonnet connection kits provided (Pt. No. 20P10). See the following instruction sheet for
installation procedures. The control cables supplied are 96 inches long. Your mounting
may require different length control cables, which can be purchased locally or through
SwapLoader. Take proper care when routing the control cables, as a good cable path is
essential for a proper operating system. Keep bends in the cable path to a minimum and be
as generous as possible. Under no circumstances should any bend be tighter than an 8"
radius. Protect the cable from heat above 225 degrees F. and avoid hot areas such as
exhaust pipes, etc. Protect the cable from physical damages such as pinching or crushing,
FigureF
2-4

SectionII:Installation

2.0.INS.SL-412
and do not use cable supports, which may crush or deform the cable. Allow room for flexing
where the cable is attached to moving parts of the equipment, so that the cable is neither
kinked nor stretched.
INSTALLATION PROCEDURE FOR A HYDRAULIC CONTROL CABLE TO
HYDRAULIC VALVE WITH BONNET CONNECTION KIT
1. Turn .750-16 UNF jam nut entire length of threaded hub back over the cable. Place Flange
onto Sleeve (large end first) and flange onto sleeve and turn flange adaptor / flange / sleeve
assembly entire length of threaded hub back over the cable.
2. Turn .250-28 UNF jam nut onto cable threaded rod until it bottoms.
3. Place clevis of threaded rod and bottom against jam nut. Turn other .250-28 UNF jam nut
onto threaded rod until it bottoms against clevis. Align clevis so it will mate with spool
terminal eye and secure jam nut against clevis.
4. Slide the clevis onto terminal eye on spool and align the holes. Insert clevis pin through
yoke and terminal eye holes and secure clevis pin with retaining ring.
5. Now, with the cable attached to the valve and control head, turn the flange adapter / flange /
sleeve assembly back onto the threaded hub until it is flush with the valve face. When
turning on the flange adapter / flange / sleeve assembly, make sure that the control head
remains in the neutral position.
6. Tighten the .750-16 UNF jam nut against the sleeve and lock in position.
7. Bring flange into position on bolt assembly to valve housing.
2-5

SectionII:Installation

2.0.INS.SL-412
CONTROLS INSTALLATION - AIR SHIFT (OPTION)
1. Attach the valve mount bracket (Pt.
No. 41H01) to the main frame as
indicated on Pg. 6-4 with the fasteners
provided.
2. Mount the hydraulic control valve
assembly (Pt. No. 20P88) to the valve
mount bracket as shown on Pg. 6-4
with the fasteners provided. Attach air
shift kits (Pt. No. 20P95) to the
hydraulic control valve. Reference
installation instructions included with
the air shift kits.
3. Install the hydraulic adapters and
connect the hydraulic hoses and
tubing (Pt. Nos. 11P98, 11P99 &
13P11) to the control valve assembly
as indicated on Pg. 5-9. The tubing
should be supported by the clamp
assemblies that are provided in the
Loose Parts Box (See Pg. 5-7).
4. Determine the best location in the cab
for the control handle assembly (Pt.
No. 20P72). The location should be
such that the controls can be easily
reached while operating the truck. A
control handle console (Pt. No.
51H27) is provided to facilitate the mounting of the control handles (see illustration on the
right).
5. Install the air fittings and hose as shown on Pg. 6-5 (Air Circuit Plumbing Diagram). An air
pressure protection valve (Pt. No. 20P74) is provided so you can tap into the truck's air
supply without jeopardizing the integrity of the air system. The air hose is provided in a bulk
length, which you can cut to length as required for running the air lines. Take care in routing
the air lines and avoid hot areas such as exhaust pipes, etc.
2-6
