Effekta AX M2 Series User manual

Innovating power.
ENGLISH VERSION 2021
User Manual
Product name
Item number
Type
Revision
Language
AX M2 Series 3-5kW
SLAGVTSI3K0W1024
SLAGVTSI5K0W1048
Solar inverter 3-5kW
V1.7
EN

Innovating po wer .
AX M2 Series 3-5kW | Solar inverter
Solar inverter | V1.7
Safety–Page 2
Components of the User Manual
▪User manual
Use
▪This user manual must be stored in direct proximity to the solar inverter .
▪This user manual is a component of the UPS system .
▪Always refer to the complete original version (or the translation of the
original) of this user manual .
Manufacturer
EFFEKTA GmbH
Rheinwaldstr. 34
78628 Rottweil
Germany
Telefon: [phone]
E-Mail: [e-mail]
Legal Disclaimer
The distribution and reproduction of this document as well as the exploitation and
sharing of its content are prohibited unless expressly authorized. Violation of this is
subject to compensation for damages. All rights reserved in the event of patent
claims or the registration of a utility model or a design.
Subject to change without notice. © May 2022 printed in Germany

Innovating po we r.
Safety –Page 3
Solar inverter | V1.7
Trademarks and product names are used without a guarantee of the free usability. The
utmost care was taken in the creation of the texts and examples. Despite this, the
possibility of errors cannot be excluded. EFFEKTA GmbH does not accept legal
responsibility or any liability for missing or erroneous information and the
consequences .
EFFEKTA GmbH reserves the right to modify or to improve the software or hardware
or their components as well as the printed material provided or any parts of these
without notice.

Innovating po wer .
AX M2 Series 3-5kW | Solar inverter
Solar inverter | V1.7
Safety–Page 4
User Manual

Innovating po wer .
Safety - Page 5
Solar inverter | V1.7
TABLE OF CONTENTS
USER MANUAL 4
1. Safety 8
1.1 Safety instructions 8
1.2 Symbols used 8
1.3 General safety instructions 9
1.4 Known residual risks 11
1.4.2 Safety instructions for transport 11
1.4.3 Safety instructions for installation 12
1.4.4 Safety instructions for operation 14
1.4.5 Safety instructions for maintenance and repairs 15
1.4.6 Safety instructions for disposal 16
1.5 Hazard labels 17
1.6 Proper Use 18
1.7 Foreseeable misuse 19
2Scope of Delivery 20
3Device Description 21
4Inverter mode and power forms 22
5. Function Description 23
Possible power sources 23
Possible loads 23
5.1 Additional features 24
5.2 Battery charge valance function (equalization) 24
5.3 Use instructions for deep discharged batteries 26
6. Control and Display Elements 27
6.1 Description of the display symbols 28
6.2 Program overview 32
6.4 LCD display information 47
6.5 Description of the operation modes 53
7Storage, Transport and Unpacking 56
7.1 Storage 56
7.2 Transport to installation site 56
7.3 Unpacking and positioning 57
8Installation Preparation 58
8.1 Assembly instructions 58
9Connection 59
9.1 Safety instructions 59
9.2 Connecting the battery 60
9.3 Preparing an AC input/output connection 62
9.4 Connecting a photovoltaic system 63

Innovating po we r.
AXM2Series -5 kW | Solar inverter
Solar inverter | V1.7
Safety –Page 6
9.5 Several devices in parallel mode 66
9.5.1 Wiring instructions 69
9.6 Connecting the installation 82
9.7 Installing the remote display panel 83
9.8 Additional communication connections 85
9.8.2 Wi-Fi connection 85
9.8.3 Battery Management System (BMS) 86
9.8.3.2 Installing battery type WECO 90
9.8.3.3 Installing battery type SOLTARO 91
9.8.4 LCD display information 92
9.8.5 Dry contact 93
10 Operation 95
10.1 Switching on device 95
10.4 Export data protocol 97
10.5.1 Download and install 98
10.5.2 Register 102
10.5.4 Display operation modes 105
10.5.5 Display error and warning messages 106
11 Troubleshooting & Fault Clearance 112
11.1 Error mesages 113
11.2 Pylontech-battery alarm messages 114
11.4 Warning messages 116
11.5 Troubleshooting options 117
12 Cleaning, Maintenance &Repair 120
12.1 Safety regulations 120
12.2 General information 121
13 Disposal 122
13.1 Legal regulations 122
13.2 Environmental requirements 122
14 Technical data 123
14.1 Mains mode 123
14.2 Battery mode 123
14.3 Charging mode 124
14.3.1 Mains charging mode 124
14.3.2 Solar charging mode (MPPTtype) 125
14.4 ECO/bypass mode 126
14.5 General 126
14.6 Dimensions 127
DECLARATION OF CONFORMITY 128

Innovating po wer .
Safety –Page 8
Solar inverter | V1.7
1. Safety
1.1 Safety instructions
1.2 Symbols used
Danger
CAUTION
Indicates a potentially hazardous situation. The non-observance of the safety
regulations can lead to property damage.
SIGNAL WORD
Pictogram
Nature and source of danger .
Consequences of non-observance of instructions .
-Actions to prevent danger .
DANGER
Indicates a hazardous situation.
The non-observance of safety regulations leads to death.
WARNING
Indicates a potenitally hazardous situation.
The non-observance of safety regulations can lead to death or severe injury.
ATTENTION
Indicates a potentially hazardous situation.
The non-observance of safety regulations can lead to injury.

Innovating po wer .
AX M2 series 3-5kW | Solar inverter
Solar inverter | V1.7
Safety –Page 9
1.3 General safety instructions
General accident prevention measures
▪Adhere to the current safety regulations of your plant .
▪Never remove covers, safety equipment or other components from
the solar inverter!
▪Report defects and irregularities immediately to the responsible persons!
User Manual
▪Read the User Manual before working with the solar inverter.
▪Always refer to the complete original version of this User Manual. Incomplete
versions or copies of individual pages do not convey all the information from the
User Manual.
▪Observe the safety instructions and danger indications in this User Manual.
Operating personnel
▪It is only permissible that the installation and connection of the solar inverter is
performed by trained electricians in accordance with the corresponding safety
regulations, standards and the domestic guidelines!
▪The solar inverter can be operated by persons without prior experience.
▪Ensure that the location of the solar inverter is sufficiently illuminated.
▪
Permissible operation and environmental conditions
▪The solar inverter can only be assembled on stable and weight-bearing walls (e.g.
cement, brick).
▪The device may only be installed on a clean, dust-free and dry site.
▪The solar inverter must be installed in a well-ventilated environment, far from water,
inflammable gases and corrosive agents.
▪In any case, it must be ensured that the installation site has sufficient air circulation
for the cooling of the device.
▪Mind the distances between several solar inverters and that other devices located
in the immediate vicinity do not negatively influence the solar inverters (e.g. strong
waste heat).
▪The solar inverter is only permitted to be operated in interior rooms. It is not
intended for use in dusty or corrosive environments or in explosive atmospheres.

Innovating po wer .
Safety –Page 10
Solar inverter | V1.7
▪All the limits listed in the technical data regarding the
environmental and operation conditions shall be observed to
guarantee error-free operation.
Design modifications
▪No design modifications can be undertaken on the device
without the knowledge of EFFEKTA GmbH.
▪The device can only be operated with original replacement parts
from EFFEKTA GmbH or with replacement parts that comply with
the requirements of EFFEKTA GmbH.

Innovating po wer .
AX M2 series 3-5kW | Solar inverter
Solar inverter | V1.7
Safety –Page 11
1.4 Known residual risks
1.4.1 Safety instructions for storage
Storage temperature: -15°C~ 60°C,
5% to 95% relative humidity (non-condensing)
1.4.2 Safety instructions for transport
Heavy loads up to a maximum of 18 kg can
generally be carried by one person.
Heavy loads up to a maximum of 32 kg should be
carried by two persons whenever possible.
Heavy loads up to a maximum of 55 kg can only
be carried by three persons.
Loads up to 55 kg must be lifted with technical aids or
transported (e.g. fork lift).
When transporting heavy loads over 18 kg,
technical aids must be used for inclines of 10%.

Innovating po wer .
Safety –Page 12
Solar inverter | V1.7
1.4.3 Safety instructions for installation
▪Fire hazard in event of improper use !
−Never install the solar inverter in an explosive and/or
unventilated area. Pay attention to the observance of the
specified temperature range for the environment .
− Ensure the necessary air circulation .
− The solar inverter must not be positioned near sources of heat .
− Always note the operating position during the installation.

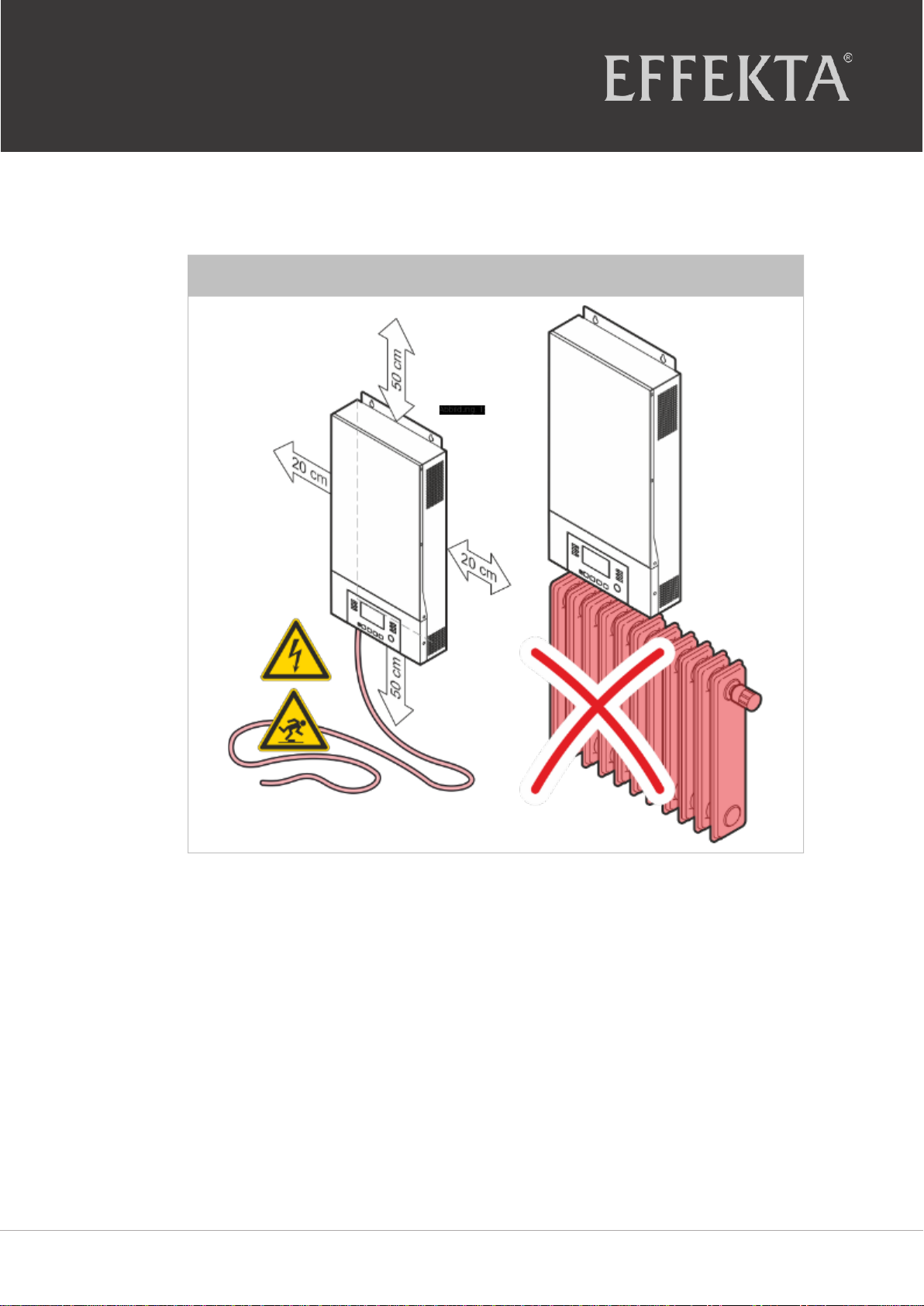

Figure 1: Safety instructions for the installation

Innovating po wer .
AX M2 series 3-5kW | Solar inverter
Solar inverter | V1.7
Safety –Page 13
▪Maintain the necessary minimum distance to neighboring equipment or
walls for the purpose of ventilation.
▪Risk of injury from electric arcs!
−Never install or operate the device in a damp environment.
−As a rule, keep liquids away from the device.
−After installing the device, condensation effects can occur as a result of
great temperature differences. That is why an acclimation period of at
least 2 hours should be maintained before further steps can be
undertaken. Make sure that the temperature compensation is
concluded and that the interior and exterior condensed areas have
dried completely.
▪Risk of accident from improperly executed installation work!
−Do not stand on the device!
−Install the solar inverter in an easily accessible location.
−Place the cable so that it cannot be stepped on or tripped over.
−The electrical connection must be carried out in accordance with
the wiring diagram by an authorized electrician as per VDE and the
current EVM regulations!
−In normal operation, the device must not be operated with a dismantled cover!

Innovating po wer .
Safety –Page 14
Solar inverter | V1.7
1.4.4 Safety instructions for operation
▪Danger from suddenly occurring disturbances!
− Report the occurrence of disturbances immediately to the responsible
person!
▪Risk of injury from connected power sources (battery feed)!
−The output terminals are energized by the battery feed in the event of of a
failure of the on-site power supply (e.g. power outage)!
−In normal operation, the device must not be operated with a dismantled cover!
The solar inverter should not be disconnected from the on-site energy supply
when properly operated (normal operation) The batteries cannot be charged if
the power supply is disconnected. The solar inverter can only function properly
with charged batteries.
Figure 2: Safety instructions for operation

Innovating po wer .
AX M2 series 3-5kW | Solar inverter
Solar inverter | V1.7
Safety –Page 15
1.4.5 Safety instructions for maintenance and repairs
▪High and low voltage: risk of injury!
−The battery circuit is not disconnected from the input voltage.
Hazardous voltages can occur between the battery poles and
the ground. Confirm that voltage is not present before touching!
−Before commencing with maintenance or repair work on the device, you
must
disconnect the device from the supply network and the battery feed.
▪Residual energy: risk of injury!
−Even after the device has been disconnected from the power
supply, the components of the solar inverter are still energized
(battery feed!) and are dangerous!
−Before performing maintenance and/or service work, disconnect the
batteries from the power supply and ensure that there is no electricity
and no dangerous voltage on the terminals of high-performance
condensers, such as e.g. BUS condensers!
▪Improper repair work: risk of injury!
−Improper repair work can lead to unexpected behavior of the solar
inverter! This can cause injury to persons.
Figure 2: Safety instructions for maintenance and rapairs

Innovating po wer .
Safety –Page 16
Solar inverter | V1.7
− You can only use isolated tools in accordance with IEC 60900!
− Wrist watches, jewelry and other metal objects must be removed!
− Maintenance and repairs can only be performed by trained specialists.
−Only persons who are sufficiently familiar with batteries and the necessary
safety measures are permitted to switch batteries and monitor the operation.
Unauthorized persons must be kept away from the batteries.
−Always install the same number and the same battery type when
replacing the battery.
− Replace the fuse only with one of the same type and current strength!
▪Accumulators and their connections can cause electrical shock. Risk of injury !
−If there are short circuits on the accumulators, touching the current-
bearing parts can cause severe burns .
−Accumulators should never be linked to heat sources and must not
be near flames. There is a risk of explosion !
1.4.6 Safety instructions for disposal
▪High and low voltage: risk of injury !
− Batteries can cause electrical shock and high short-circuit currents .
− Do not touch the electrical components !
▪High-performance batteries: risk of injury !
−Never dispose of batteries by burning. This can cause the batteries
to explode.
▪Do not disassemble the solar inverter ! Deliver the solar inverter
intact to a licensed private or public waste collector .
▪You must not open the batteries !
− There is a risk of corrosive effects for skin and eyes
▪Defects or degenerative accumulators must be
disposed of in an environmentally safe manner.
− Under no circumstances, dispose of the accumulators in the house waste .
− Observe the local regulations .

Innovating po wer .
AX M2 series 3-5kW | Solar inverter
Solar inverter | V1.7
Safety –Page 17
1.5 Hazard labels
All hazard labels (stickers, signs) affixed to the solar inverter must be observed. If
the hazard labels are defective, you must arrange for the immediate replacement .
Warning labels
Meaning
Actions
Warning of
dangerous
voltage
Battery connections can be energized !
Switch off the battery insert fuses .
Check if there is voltage on the
terminal before touching the
connections !
Warning of
dangerous
voltage
High leakage current! A ground
connection is absolutely necessary
before connecting to the supply.
Figure 3: Hazard labels →Safety instructions for disposal

Innovating po wer .
Safety –Page 18
Solar inverter | V1.7
1.6 Proper Use
The device is designed according to the latest technology and the recognized
safety rules. The solar inverter must only be used in a technically error-free
condition and properly, with full awareness of safety regulations and the dangers,
in observance of the user manual. Disturbances that affect the safety, in
particular, must be immediately eliminated .
This multi-function solar inverter/charging unit can supply all types of devices in
residential and office settings with power, such as, for example, tubular lights,
ventilators, refrigerators and air conditioning systems and much more. Various
generators, solar cells and accumulators can be used as power sources
alongside the usual power supply .
Another use or one extending beyond this is considered improper use. The
manufacturer/supplier is not liable for the resulting damages. The user alone
bears the risk. A different use is only permissible with written consent from
EFFEKTA GmbH .
The solar inverter is exclusively designed for commercial use .
The observance of this User Manual and the adherence to inspection and
maintenance work also fall under proper use .
This User Manual contains, among other things, general safety instructions and
well as specific safety instructions for certain actions or sources of danger
regarding certain components. It is necessary that you read and follow all
warning instructions in this description .
In addition to this description, you must observe the following regulations :
▪the currently valid rules and regulations for accident prevention in
the respective country and the installation site .
▪the currently valid rules for skilled and safety-related work in the
respective country and the installation site .
▪the currently valid requirements for the power supply in the
respective country and the installation site .

Innovating po wer .
AX M2 series 3-5kW | Solar inverter
Solar inverter | V1.7
Safety –Page 19
1.7 Foreseeable misuse
Operation in extreme environment
The device is not for use:
▪in explosive;
▪in dusty or damp;
▪in radioactive or;
▪in biologically or chemically contaminated atmosphere.
▪Supply of vital systems or equipment
Application for vital uses, implementation in hospitals or in direct patient care,
operation in areas with risk of fire or explosion and in areas with extreme
heat/cold or extreme humidity;
conceptualized!
Non-observance of safety instructions
The safety instructions for the solar inverter or included in the User Manual
must be observed. Non-observance of these can lead to damage to health or to
the death of operating or maintenance personnel or to persons in the vicinity of
the solar inverter.

Innovating po we r.
AX M2 Series 3-5 kW | Solar inverter
Solar inverter | V1.7
Scope of delivery –Page 20
2Scope of Delivery
1
2
1 x solar inverter AXM2
1 x UPS User Manual
3
4
1 x communication cable for external display
(SUB-D9 on RJ45)
1 x parallel cable 1 x power compensation
cable (only with AX-M2 5000-48 included in
standard delivery)
5
1 x BMS communication cable for
pylontech lithium battery
(dual -ided RJ45 plug)
6
1 x software CD
