1 Information on this Document
SMA Solar Technology AG
Operating manual STP15-25TL-30-BE-en-14 5
1 Information on this Document
1.1 Validity
This document is valid for:
• STP 15000TL-30 (Sunny Tripower 15000TL)
• STP 17000TL-30 (Sunny Tripower 17000TL)
• STP 20000TL-30 (Sunny Tripower 20000TL)
• STP 25000TL-30 (Sunny Tripower 25000TL)
1.2 Target Group
This document is intended for qualified persons and end users. Only qualified persons are allowed
to perform the activities marked in this document with a warning symbol and the caption
"Qualifiedperson". Tasks that do not require any particular qualification are not marked and can
also be performed by end users. Qualified persons must have the following skills:
• Knowledge of how an inverter works and is operated
• Training in how to deal with the dangers and risks associated with installing, repairing and
using electrical devices and installations
• Training in the installation and commissioning of electrical devices and installations
• Knowledge of all applicable laws, standards and directives
• Knowledge of and compliance with this document and all safety information
1.3 Content and Structure of this Document
This document describes the mounting, installation, commissioning, configuration, operation,
troubleshooting and decommissioning of the product.
You will find the latest version of this document and further information on the product in PDF format
and as eManual at www.SMA-Solar.com. You can also call up the eManual via the user interface
of the product.
Illustrations in this document are reduced to the essential information and may deviate from the real
product.
1.4 Levels of Warning Messages
The following levels of warning messages may occur when handling the product.
DANGER
Indicates a hazardous situation which, if not avoided, will result in death or serious injury.
WARNING
Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION
Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

1 Information on this Document SMA Solar Technology AG
Operating manualSTP15-25TL-30-BE-en-146
NOTICE
Indicates a situation which, if not avoided, can result in property damage.
1.5 Symbols in the Document

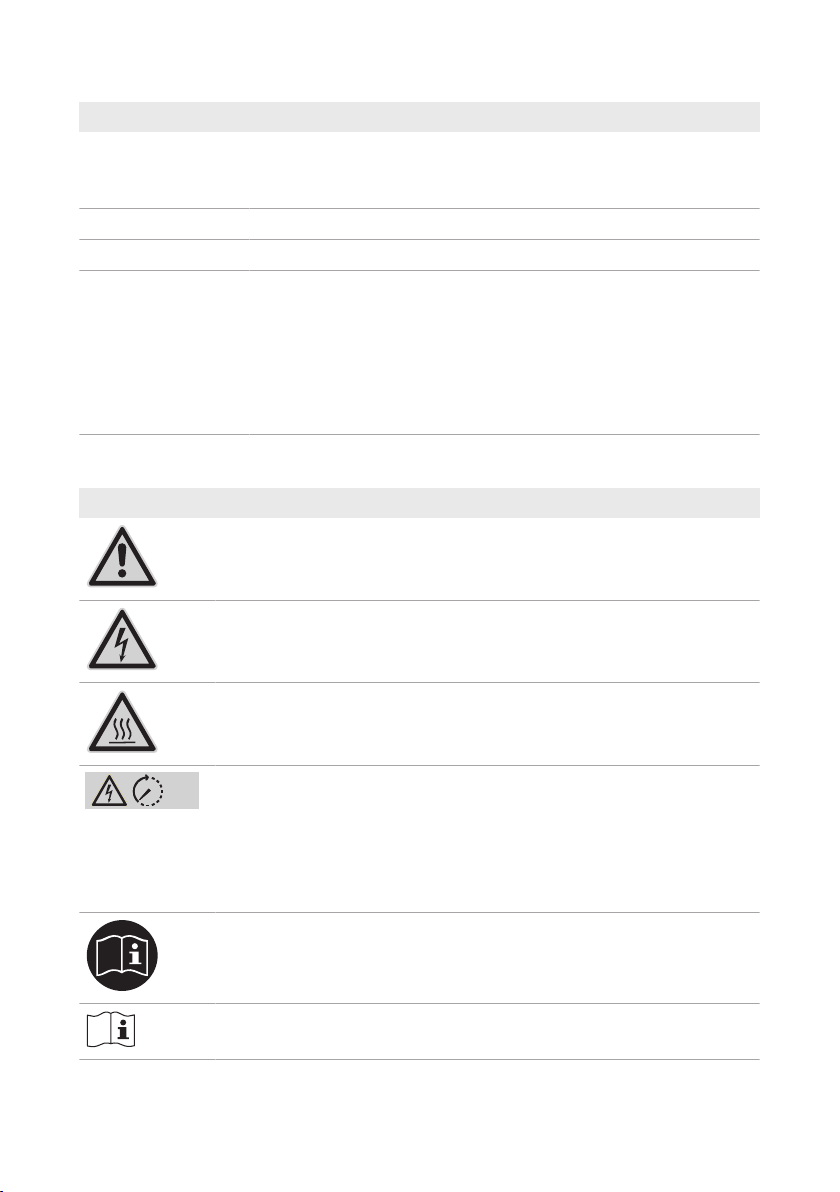

Symbol Explanation
Information that is important for a specific topic or goal, but is not safety-rele-
vant
☐
Indicates a requirement for meeting a specific goal
☑
Desired result
✖
A problem that might occur
Example
Sections describing activities to be performed by qualified persons only
1.6 Typographies in the Document
Typography Use Example
bold • Messages
• Terminals
• Elements on a user interface
• Elements to be selected
• Elements to be entered
• Connect the insulated
conductors to the terminals
X703:1 to X703:6.
• Enter 10 in the field
Minutes.
>• Connects several elements to be
selected • Select Settings > Date.
[Button]
[Key]
• Button or key to be selected or
pressed • Select [Enter].
# • Placeholder for variable
components (e.g., parameter
names)
• Parameter WCtlHz.Hz#
1.7 Designation in the document
Complete designation Designation in this document
PV system PV system
SunnyTripower Inverter, product

1 Information on this Document
SMA Solar Technology AG
Operating manual STP15-25TL-30-BE-en-14 7
1.8 Additional Information
For more information, please go to www.SMA-Solar.com.
Title and information content Type of information
"Application for SMAGridGuard Code" Form
"SMA GRID GUARD 10.0 - Grid management services through
SMA Inverter" Technical Information
"Efficiency and Derating"
Efficiency and derating behavior of the SMA inverters
Technical Information
"Short-Circuit Currents"
Information on short-circuit currents of SMA PV inverters
Technical Information
"Parameters and Measured Values"
Overview of all inverter operating parameters and their configura-
tion options
Technical Information
"SMA and SunSpec Modbus® Interface"
Information on the Modbus interface
Technical Information
"Modbus® parameters and measured values"
Device-specific register HTML file
Technical Information
"SMASpeedwire/Webconnect Data Module"
Connection to the Speedwire/Webconnect data module
Installation manual
"Integrated Plant Control"
Detailed explanation of the function and description for setting the
function
Technical Information
"Leading Leakage Currents"
Information on the Design of Transformerless Inverters
Technical Information

2 Safety SMA Solar Technology AG
Operating manualSTP15-25TL-30-BE-en-148
2 Safety
2.1 Intended Use
The SunnyTripower is a transformerless PV inverter, with 2 MPPtrackers, that converts the direct
current of the PV array to grid-compliant, three-phase current and feeds it into the utility grid.
The product is suitable for indoor and outdoor use.
The product must only be operated with PV modules of protection class II in accordance with
IEC61730, application class A. The PV modules must be compatible with this product.
PV modules with a high capacity to ground must only be used if their coupling capacity does not
exceed 3.5μF (for information on how to calculate the coupling capacity, see the Technical
Information "Leading Leakage Currents" at www.SMA-Solar.com).
All components must remain within their permitted operating ranges and their installation
requirements at all times.
The product must only be used in countries for which it is approved or released by SMA Solar
Technology AG and the grid operator.
The product is also approved for the Australian market and may be used in Australia. If DRM
support is specified, the inverter may only be used in conjunction with a Demand Response
Enabling Device (DRED). This ensures that the inverter implements the commands from the grid
operator for active power limitation at all times. The inverter and the Demand Response Enabling
Device (DRED) must be connected in the same network and the inverter Modbus interface must be
activated and the TCP server set.
Use SMA products only in accordance with the information provided in the enclosed
documentation and with the locally applicable laws, regulations, standards and directives. Any
other application may cause personal injury or property damage.
Alterations to the SMA products, e.g., changes or modifications, are only permitted with the express
written permission of SMA Solar Technology AG. Unauthorized alterations will void guarantee and
warranty claims and in most cases terminate the operating license. SMA Solar Technology AG
shall not be held liable for any damage caused by such changes.
Any use of the product other than that described in the Intended Use section does not qualify as the
intended use.
The enclosed documentation is an integral part of this product. Keep the documentation in a
convenient, dry place for future reference and observe all instructions contained therein.
This document does not replace and is not intended to replace any local, state, provincial, federal
or national laws, regulations or codes applicable to the installation, electrical safety and use of the
product. SMA Solar Technology AG assumes no responsibility for the compliance or non-
compliance with such laws or codes in connection with the installation of the product.
The type label must remain permanently attached to the product.
2.2 IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS

2 Safety
SMA Solar Technology AG
Operating manual STP15-25TL-30-BE-en-14 9
This section contains safety information that must be observed at all times when working.
The product has been designed and tested in accordance with international safety requirements. As
with all electrical or electronical devices, there are residual risks despite careful construction. To
prevent personal injury and property damage and to ensure long-term operation of the product,
read this section carefully and observe all safety information at all times.
DANGER
Danger to life due to electric shock when live components or DC cables are
touched
When exposed to light, the PV modules generate high DC voltage which is present in the DC
cables. Touching live DC cables results in death or lethal injuries due to electric shock.
• Do not touch non-insulated parts or cables.
• Disconnect the product from voltage sources and make sure it cannot be reconnected
before working on the device.
• Wear suitable personal protective equipment for all work on the product.
DANGER
Danger to life due to electric shock from touching an ungrounded PV module
or array frame
Touching ungrounded PV modules or array frames results in death or lethal injuries due to electric
shock.
• Connect and ground the frame of the PV modules, the array frame and the electrically
conductive surfaces so that there is continuous conduction. Observe the applicable local
regulations.
DANGER
Danger to life due to electric shock when touching live system components in
case of a ground fault
If a ground fault occurs, parts of the system may still be live. Touching live parts and cables
results in death or lethal injuries due to electric shock.
• Disconnect the product from voltage sources and make sure it cannot be reconnected
before working on the device.
• Touch the cables of the PV array on the insulation only.
• Do not touch any parts of the substructure or frame of the PV array.
• Do not connect PV strings with ground faults to the inverter.
• Ensure that no voltage is present and wait five minutes before touching any parts of the PV
system or the product.

2 Safety SMA Solar Technology AG
Operating manualSTP15-25TL-30-BE-en-1410
WARNING
Danger to life due to fire or explosion
In rare cases, an explosive gas mixture can be generated inside the inverter under fault
conditions. In this state, switching operations can cause a fire inside the inverter or explosion.
Death or lethal injuries due to hot or flying debris can result.
• In the event of a fault, do not perform any direct actions on the inverter.
• Ensure that unauthorized persons have no access to the inverter.
• Disconnect the AC circuit breaker, or keep it disconnected in case it has already tripped,
and secure it against reconnection.
• Only perform work on the inverter (e.g., troubleshooting, repair work) when wearing
personal protective equipment for handling of hazardous substances (e.g., safety gloves,
eye and face protection, respiratory protection).
WARNING
Risk of injury due to toxic substances, gases and dusts.
In rare cases, damages to electronic components can result in the formation of toxic substances,
gases or dusts inside the inverter. Touching toxic substances and inhaling toxic gases and dusts
can cause skin irritation, burns or poisoning, trouble breathing and nausea.
• Only perform work on the inverter (e.g., troubleshooting, repair work) when wearing
personal protective equipment for handling of hazardous substances (e.g., safety gloves,
eye and face protection, respiratory protection).
• Ensure that unauthorized persons have no access to the inverter.
WARNING
Danger to life due to electric shock from destruction of the measuring device
due to overvoltage
Overvoltage can damage a measuring device and result in voltage being present in the
enclosure of the measuring device. Touching the live enclosure of the measuring device results in
death or lethal injuries due to electric shock.
• Only use measuring devices with a DC input voltage range of 1000V or higher.
CAUTION
Risk of burns due to hot enclosure parts
Some parts of the enclosure can get hot during operation.
• Do not touch any parts other than the lower enclosure lid of the inverter during operation.

2 Safety
SMA Solar Technology AG
Operating manual STP15-25TL-30-BE-en-14 11
NOTICE
Damage to the enclosure seal in subfreezing conditions
If you open the product when temperatures are below freezing, the enclosure seals can be
damaged. Moisture can penetrate the product and damage it.
• Only open the product if the ambient temperature is not below -5°C.
• If a layer of ice has formed on the enclosure seal when temperatures are below freezing,
remove it prior to opening the product (e.g. by melting the ice with warm air).
NOTICE
Damage to the product due to sand, dust and moisture ingress
Sand, dust and moisture penetration can damage the product and impair its functionality.
• Only open the product if the humidity is within the thresholds and the environment is free of
sand and dust.
• Do not open the product during a dust storm or precipitation.
• Close tightly all enclosure openings.
NOTICE
Damage due to cleaning agents
The use of cleaning agents may cause damage to the product and its components.
• Clean the product and all its components only with a cloth moistened with clear water.
NOTICE
Damage to the inverter due to electrostatic discharge
Touching electronic components can cause damage to or destroy the inverter through
electrostatic discharge.
• Ground yourself before touching any component.
The inverter supports different firmware versions to fulfill different grid-
connection requirements within the EU.
With the firmware version ≤ 2.99.99.R, the inverter fulfills the grid-connection requirements
valid until April 26, 2019 within the EU. Grid-connection requirements outside the EU are not
affected and remain valid. With the firmware version ≥ 3.00.00.R, the inverter fulfills the
European grid-connection requirements in accordance with Regulation (EU) 2016/631 for
establishing a network code (also known as RfG), valid from April 26 2019 within the EU. The
inverter can be equipped ex-factory with the firmware version ≥ 3.00.00.R. This can be
identified by the imprints "SMA Grid Guard 10.0" and "RfG Firmware for EU countries" on the
box label. If no imprints can be found on the box label, the inverter is equipped with the
firmware version ≤ 2.99.99.R.
• Ensure that the inverter is equipped with a firmware version that fulfills the local grid-
connection requirements.

2 Safety SMA Solar Technology AG
Operating manualSTP15-25TL-30-BE-en-1412
Change to the names and units of grid parameters to comply with the grid-
connection requirements in accordance with Regulation (EU) 2016/631
(valid from April 27, 2019)
To comply with the EU grid-connection requirements (valid from April 27, 2019) the names
and units of grid parameters were changed. The change is valid from firmware version
≥3.00.00.R. Names and units of grid parameters for inverters with firmware version
≤2.99.99.R are not affected by this change and remain valid.

3 Scope of Delivery
SMA Solar Technology AG
Operating manual STP15-25TL-30-BE-en-14 13
3 Scope of Delivery
Check the scope of delivery for completeness and any externally visible damage. Contact your
distributor if the scope of delivery is incomplete or damaged.
The delivery may contain parts that are not required for the installation of this inverter.
AB D
(Name des Gerätes):
Bitte füllen Sie die folgenden Felder aus:
:
Typ:
Seriennummer:
Datum der Inbetriebnahme:
Anschrift:
Installationsbetrieb
Typ:
Seriennummer:
Datum der Inbetriebnahme:
Anschrift:
Installationsbetrieb
Gewährleistungs- und Garantiebedingungen
C
E
_
F
+
GIH J
KLN MP O
Figure 1: Components included in the scope of delivery
Position Quantity Designation
A 1 Inverter
B 1 DC Load-Break Switch
C 1 Wall mounting bracket
D 1 Quick reference guide, supplementary sheet with default
settings, installation manual of the DC connector
E 6 Negative DC connector
F 6 Positive DC connector
G 12 Sealing plug
H 1 Clamping bracket
I 1 Cylindrical screw M6x16
K 1 Conical spring washer M6
L 2 Cylindrical screw M5x20*
M 2 Conical spring washer M5*
P 1 AC cable gland
Q 1 Counter nut
* Spare part for the enclosure lid

4 Product Overview SMA Solar Technology AG
Operating manualSTP15-25TL-30-BE-en-1414
4 Product Overview
4.1 Product Description
The SunnyTripower is a transformerless PV inverter, with 2 MPPtrackers, that converts the direct
current of the PV array to grid-compliant, three-phase current and feeds it into the utility grid.
B
E
G
H
C
A
D
A
FI
Figure 2: Design of the SunnyTripower
Position Designation
A Thread for screwing in two eye bolts for transport
B Type label
The type label uniquely identifies the inverter. You will require the infor-
mation on the type label to use the product safely and when seeking cus-
tomer support from the SMAServiceLine. You will find the following in-
formation on the type label:
• Device type (Model)
• Serial number (SerialNo.)
• Date of manufacture
• Device-specific characteristics
C Ventilation grid
D Recessed grip
E LEDs
The LEDs indicate the operating state of the inverter (see Section4.4 "LED
Signals", page18).

4 Product Overview
SMA Solar Technology AG
Operating manual STP15-25TL-30-BE-en-14 15
Position Designation
F Display (optional)
The display shows the current operating data and events or errors (see
Section10.1 "Event Messages", page54).
G Lower enclosure lid
H Upper enclosure lid
I DC Load-Break Switch
The inverter is equipped with a DC load-break switch. If the DC load-
break switch is set to the position I, it establishes a conductive connection
between the PV array and the inverter. Setting the DC load-break switch
to the O position interrupts the DC electric circuit and completely discon-
nects the PV array from the inverter. Disconnection takes place at all
poles.
4.2 Symbols on the Product
Symbol Explanation
Beware of a danger zone
This symbol indicates that the product must be additionally grounded if addi-
tional grounding or equipotential bonding is required at the installation site.
Beware of electrical voltage
The product operates at high voltages.
Beware of hot surface
The product can get hot during operation.
20 min
Danger to life due to high voltages in the inverter; observe a waiting time of 5
minutes
High voltages that can cause lethal electric shocks are present in the live com-
ponents of the inverter.
Prior to performing any work on the inverter, disconnect it from all voltage
sources as described in this document.
Observe the documentation
Observe all documentation supplied with the product.
Observe the documentation
Together with the red LED, this symbol indicates an error.

4 Product Overview SMA Solar Technology AG
Operating manualSTP15-25TL-30-BE-en-1416
Symbol Explanation
Inverter
Together with the green LED, this symbol indicates the operating state of the in-
verter.
No function
Three-phase alternating current with neutral conductor
Direct current
The product is has no galvanic isolation.
WEEE designation
Do not dispose of the product together with the household waste but in accor-
dance with the disposal regulations for electronic waste applicable at the in-
stallation site.
The product is suitable for outdoor installation.
Degree of protectionIP65
The product is protected against the penetration of dust and water that is di-
rected as a jet against the enclosure from all directions.
CE marking
The product complies with the requirements of the applicable EU directives.
RCM (Regulatory Compliance Mark)
The product complies with the requirements of the applicable Australian stan-
dards.
The product complies with the Moroccan safety and EMC requirements for
electronic products.
4.3 Interfaces and Functions
The inverter can be equipped or retrofitted with the following interfaces and functions:

4 Product Overview
SMA Solar Technology AG
Operating manual STP15-25TL-30-BE-en-14 17
SMASpeedwire/Webconnect
The inverter is equipped with SMA Speedwire/Webconnect as standard. SMA Speedwire/
Webconnect is a type of communication based on the Ethernet standard. This enables inverter-
optimized 10/100Mbit data transmission between Speedwire devices in PV systems and the
software Sunny Explorer. The Webconnect function enables direct data transmission between the
inverters of a small-scale system and the Internet portal SunnyPortal without any additional
communication device and for a maximum of 4 inverters per SunnyPortal system. In large-scale PV
power plants, data transmission to the Internet portal SunnyPortal is carried out via the
SMAClusterController. You can access your SunnyPortal system from any computer with an
Internet connection.
Webconnect enables - for PV systems operated in Italy - the connection or disconnection of the
inverter to or from the utility grid and the specifying of the frequency limits to be used via
IEC61850-GOOSE messages.
Modbus
The product is equipped with a Modbus interface. The Modbus interface is deactivated by default
and must be configured as needed.
The Modbus interface of the supported SMA products is designed for industrial use – via SCADA
systems, for example – and has the following tasks:
• Remote query of measured values
• Remote setting of operating parameters
• Setpoint specifications for system control
RS485 Interface
The inverter can communicate via cables with special SMA communication products via the RS485
interface (information on supported SMAproducts at www.SMA-Solar.com). The RS485 interface
can be retrofitted and can be used in place of the SMASpeedwire/Webconnect interface in the
inverter.
Grid management services
The product is equipped with service functions for grid management.
Depending on the requirements of the grid operator, you can activate and configure the functions
(e.g. active power limitation) via operating parameters.
SMA Power Control Module
The SMAPowerControlModule enables the inverter to implement grid management services and
is equipped with an additional multifunction relay (for information on installation and configuration,
see the installation manual of the SMAPowerControlModule). The SMAPowerControlModule
can be retrofitted.
Multifunction Relay
You can configure the multifunction relay for various operating modes. The multifunction relay is
used, for example, to switch fault indicators on or off (for information on installation and
configuration, see the installation manual of the multifunction relay). The multifunction relay can be
retrofitted.

4 Product Overview SMA Solar Technology AG
Operating manualSTP15-25TL-30-BE-en-1418
SMAOptiTracGlobalPeak
SMAOptiTracGlobalPeak is an advancement of SMAOptiTrac and allows the operating point of
the inverter to follow the optimal operating point of the PV array (MPP) precisely at all times. In
addition, with the aid of SMAOptiTracGlobalPeak, the inverter detects several maximum power
points in the available operating range, such as may occur particularly with partially shaded
strings. SMA OptiTrac Global Peak is enabled by default.
Surge Arrester Type II
Surge arresters limit dangerous overvoltages. Surge arresters of typeII can be retrofitted.
QonDemand 24/7
The inverter can supply reactive power by means of QonDemand24/7 covering the entire unit
circle around the clock.
IntegratedPlantControl
The inverter can display the Q(V) characteristic curve specified by the grid operator by means of
IntegratedPlantControl without measuring on the grid-connection point. The inverter can
automatically compensate equipment installed between the inverter and the grid-connection point
after having activated the function (for information on the system configuration refer to the Technical
Information "Integrated Plant Control" at www.SMA-Solar.com).
SMA Smart Connected
SMA Smart Connected is the free monitoring of the inverter via the SMA SunnyPortal. Thanks to
SMA Smart Connected, the PV system operator and qualified person will be informed automatically
and proactively about inverter events that occur.
SMA Smart Connected is activated during registration in SunnyPortal. In order to use SMA Smart
Connected, it is necessary that the inverter is permanently connected to SunnyPortal and the data
of the PV system operator and qualified person is stored in SunnyPortal and up-to-date.
4.4 LED Signals
The LEDs indicate the operating state of the inverter.
LED Status Explanation
Green LED glowing Feed-in operation
If an event occurs during feed-in operation, an event mes-
sage will be shown in the communication product (see
Section10.1, page54).
flashing The conditions for feed-in operation are not yet met. As
soon as the conditions are met, the inverter will start feed-
in operation.
Red LED glowing Error
An error has occurred. The error must be rectified by a
qualified person (see Section10.1, page54).
Blue LED - No function

5 Mounting
SMA Solar Technology AG
Operating manual STP15-25TL-30-BE-en-14 19
5 Mounting
5.1 Requirements for Mounting
Requirements for the Mounting Location:
WARNING
Danger to life due to fire or explosion
Despite careful construction, electrical devices can cause fires.
• Do not mount the product in areas containing highly flammable materials or gases.
• Do not mount the product in potentially explosive atmospheres.
☐ Do not mount the inverter on a pillar.
☐ A solid support surface must be available (e.g., concrete or masonry). When mounted on
drywall or similar materials, the product emits audible vibrations during operation which could
be perceived as annoying.
☐ The mounting location must be inaccessible to children.
☐ The mounting location must be suitable for the weight and dimensions of the product (see
Section14 "Technical Data", page84).
☐ The mounting location must not be exposed to direct solar irradiation. If the product is
exposed to direct solar irradiation, the exterior plastic parts might age prematurely and
overheating might occur. When becoming too hot, the product reduces its power output to
avoid overheating.
☐ The mounting location should be freely and safely accessible at all times without the need for
any auxiliary equipment (such as scaffolding or lifting platforms). Non-fulfillment of these
criteria may restrict servicing.
☐ All ambient conditions must be met (see Section14, page84).
☐ To ensure optimum operation, the ambient temperature should be between -25°C and 40°C.
Permitted and prohibited mounting positions:
☐ The product may only be mounted in a permitted position. This will ensure that no moisture can
penetrate the product.
☐ The product should be mounted such that the LED signals can be read off without difficulty.
Figure 3: Permitted and prohibited mounting positions

5 Mounting SMA Solar Technology AG
Operating manualSTP15-25TL-30-BE-en-1420

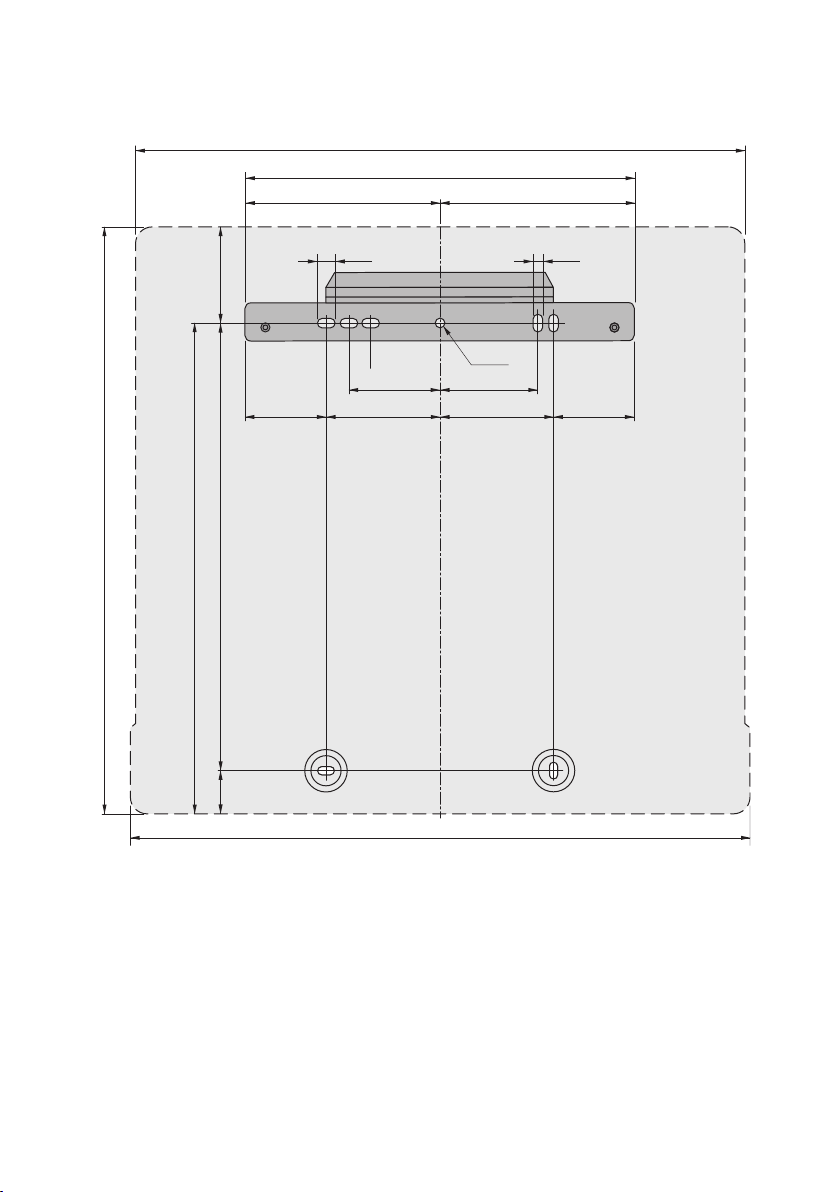

Dimensions for mounting:
638
432
216 216
20
Ø 11
112
105 110
86 130 86
467
619
40
130
648
507
11
Figure 4: Position of the anchoring points(Dimensions in mm)
Recommended Clearances:
If you maintain the recommended clearances, adequate heat dissipation will be ensured. Thus, you
will prevent power reduction due to excessive temperature.
☐ Maintain the recommended clearances to walls as well as to other inverters or objects.
☐ If multiple inverters are mounted in areas with high ambient temperatures, increase the
clearances between the inverters and ensure sufficient fresh-air supply.
